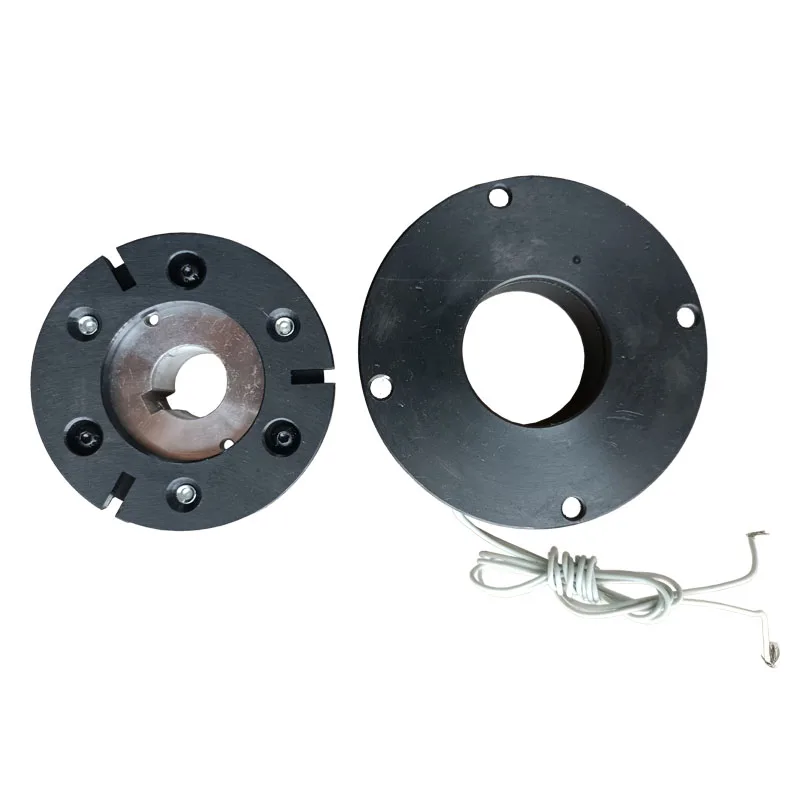

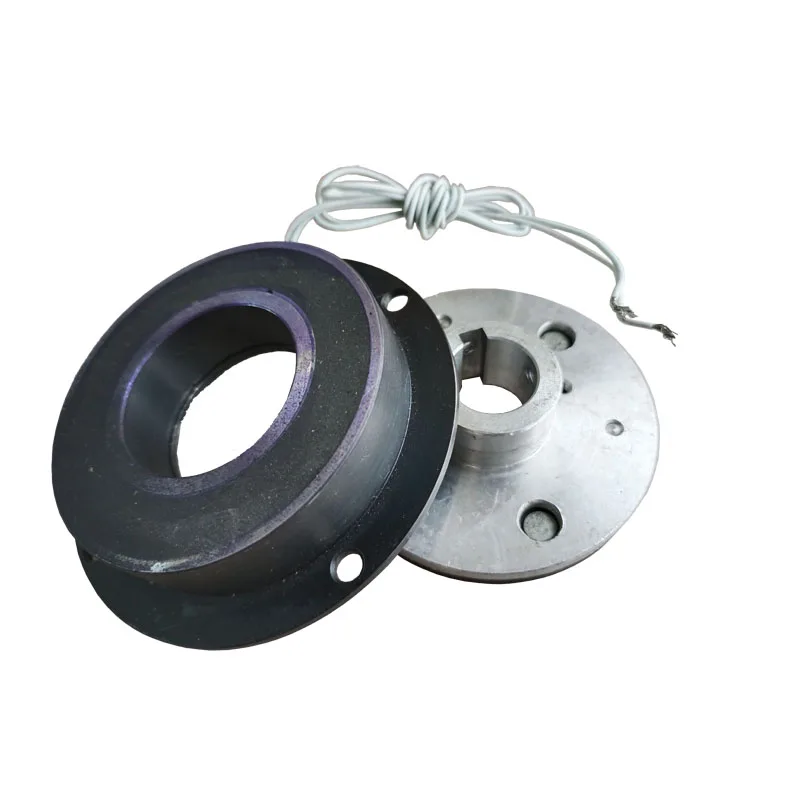

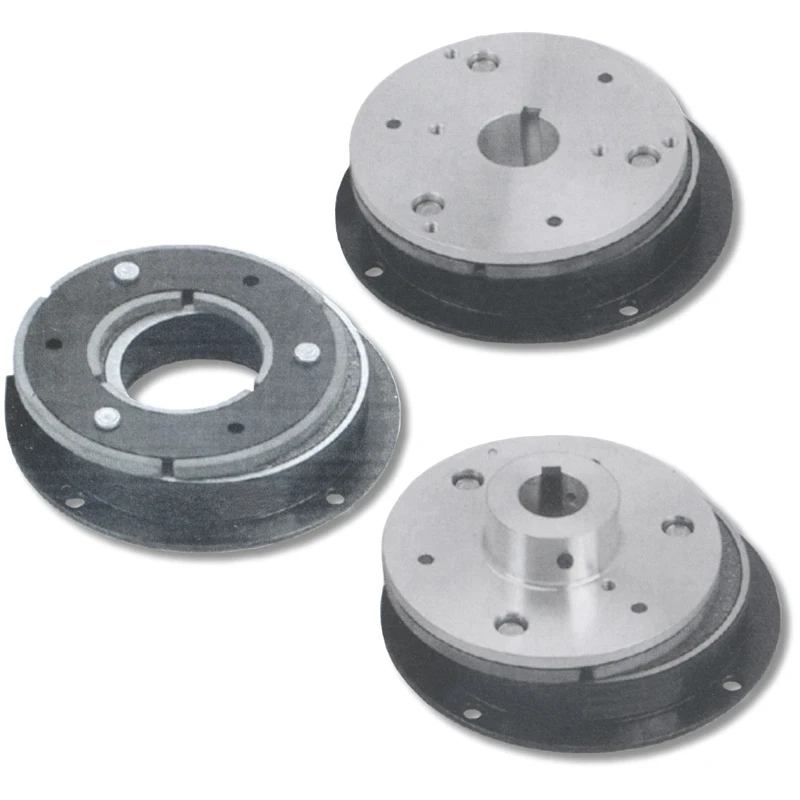

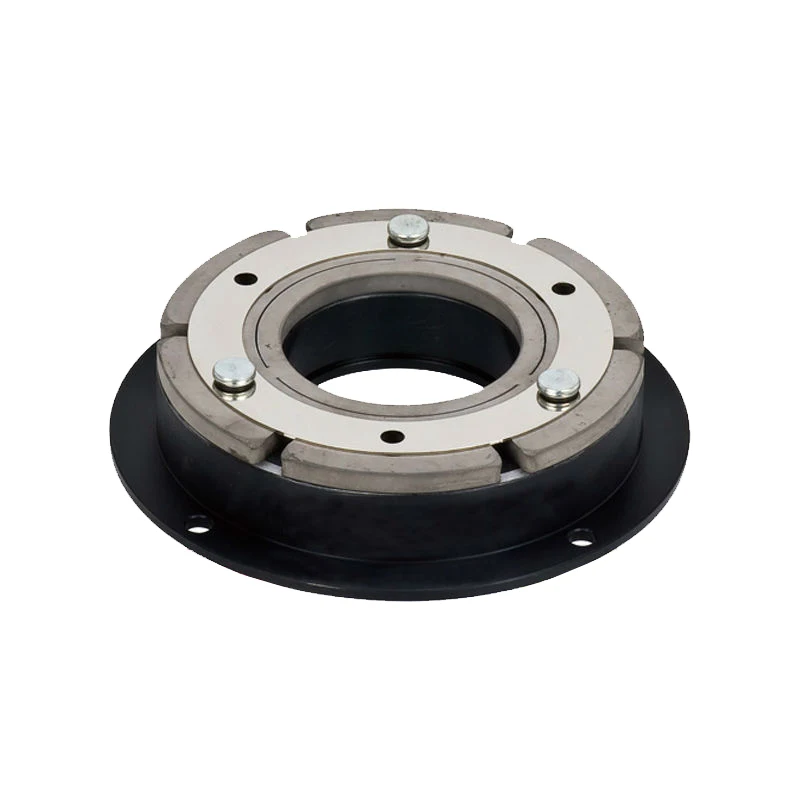

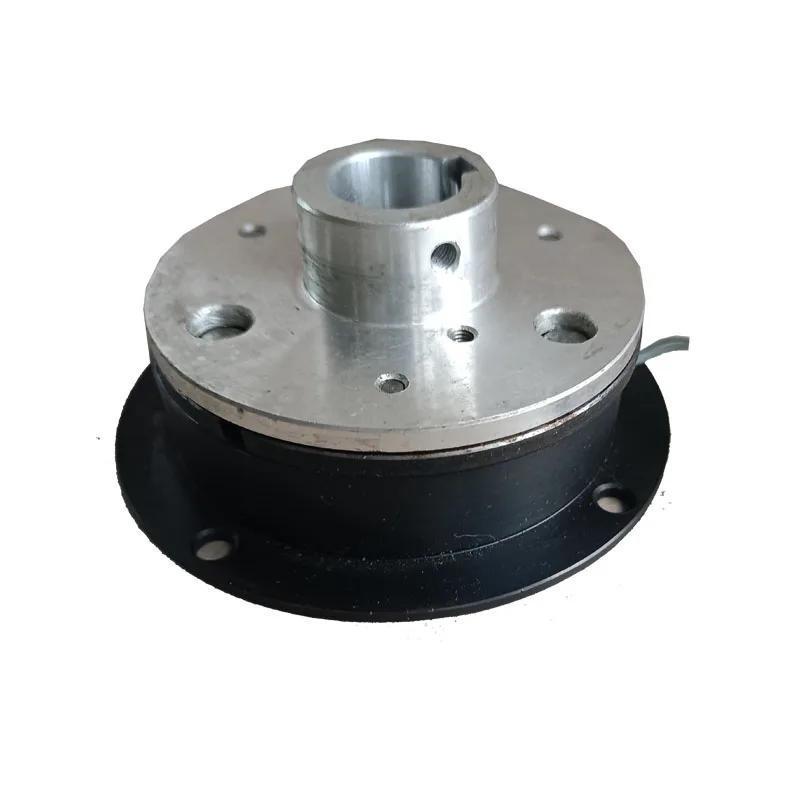

24V High Quality Mechanical electric motor disc DC electromagnetic brake

Product Overview

Description

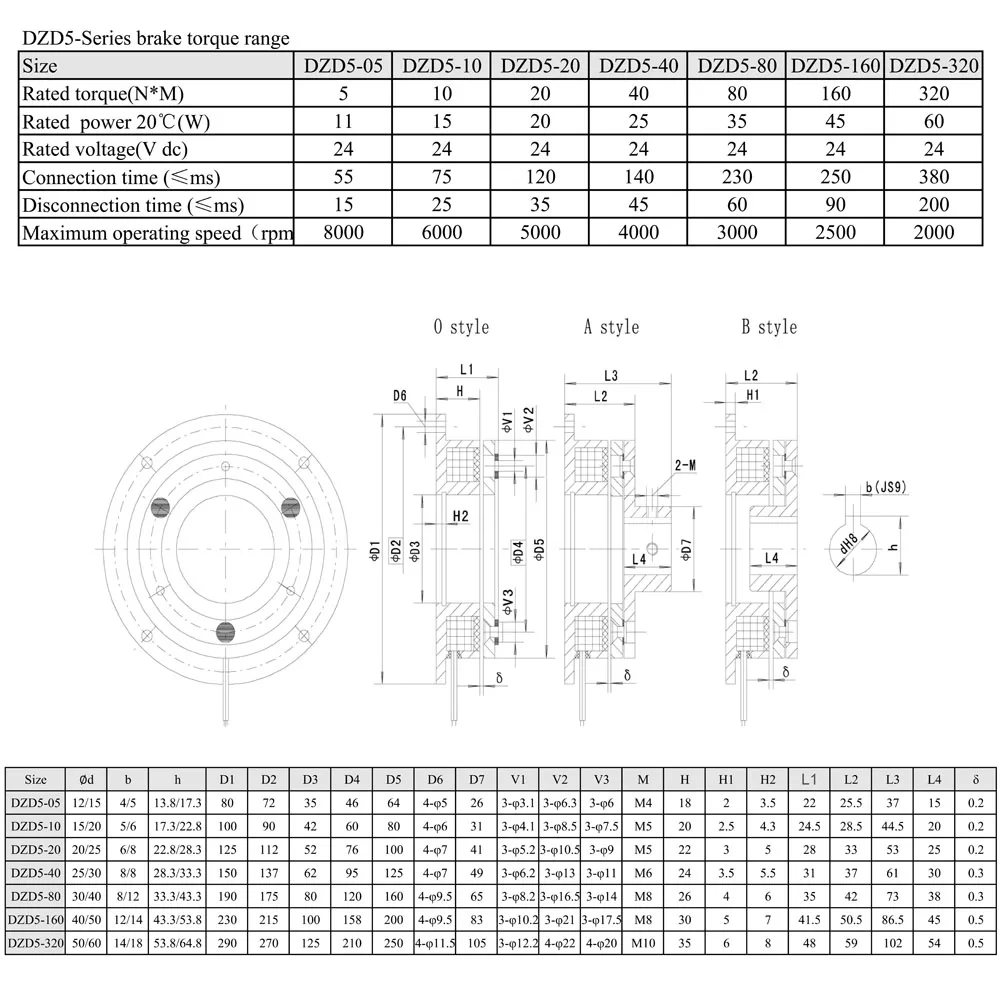

Product name	DZD5-160	Weight (KG)	1.9
Condition	New	Transport Package	Wooden Case
Specification	05-320	HS Code	8505200000
Production Capacity	8000	Certification	CE

Specifications:
      Braking torques: 05-320Nm;
      10 sizes, keep interchangeability with national standard motor size ;
      Common voltages: 24,96,180,205VDC, other voltages on request;
      Temperature class F (155°C), heat resistance of rotor up to 200ºC;
      Compact design, modular design, easy disassembly and replacement;
      Preset brake gap, adjustable air gap;
      Single and double brake structures with a mute device can be selected.;
      Hand release available as an option;
      High quality spring material, long service life, reasonable design, never invalid;


Applications:

      Lift, escalator
      Brake motors
      Port machinery
      Cranes
      Conveyors
      Hoisting equipment
      Metallurgical machinery
      Material handling equipment
      Light industrial packaging
      Controlled drives
      Automation technology
      Textile and printing
      Forklift truck
      Wood working machines
