Natural NTL 409 TM 100w small compact semiconductor bladeless ptc fan heater
- Category: >>>
- Supplier: Wenzhou Natural Automation Equipment Co. Ltd.
Share on (1600655674699):
Product Overview
Description
Products Description

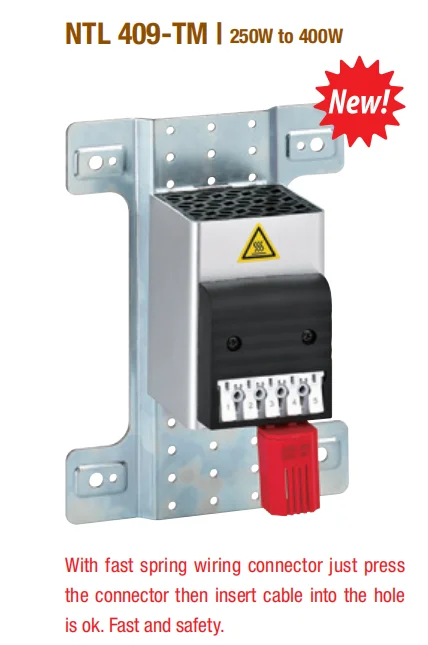

NTL 409-TM | ||
Operating voltage | 230VAC or 120VAC | |
Heating element | PTC resistor - temperature limiting | |
Surface temperature | 250W: max. +50°C (+122°F), 400W: max. +65°C (+149°F) each except upper protective grille at +20°C (+68°F) ambient temperature | |
Axial fan, ball bearing | air flow, free flow 45m³/h (230VAC), 54m³/h (120VAC) service life 40,000h at +40°C (+104°F) | |

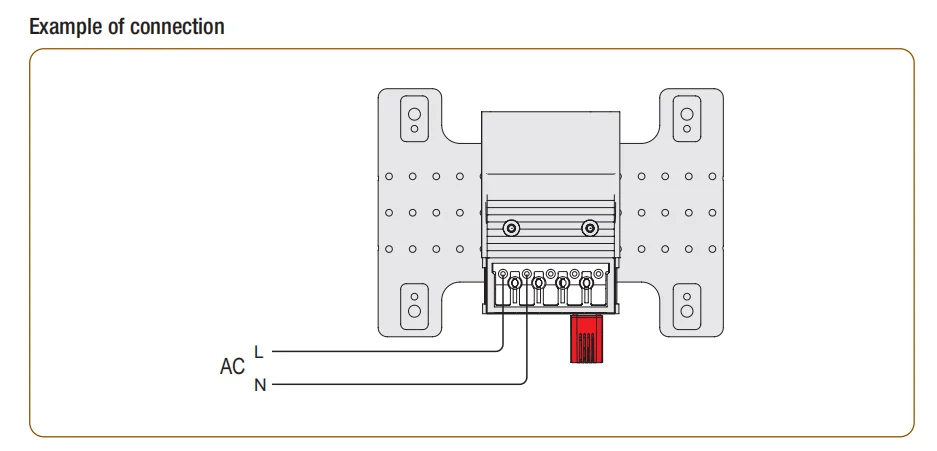

Connection | 2-pole clamp max. 2.5mm², clamping screw torque 0.8Nm max. | |
Casing | anodised extruded aluminium profile | |
Mounting | clip for 35 mm DIN rail, EN 60715 or screw fixing (Ø 5.3mm) | |
Fitting position | vertical airflow (air outlet up) | |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) | |
Operating/Storage humidity | max. 90% RH (non-condensing) | |
Protection type/Protection class | IP20 / I (earthed) | |
Note:other voltages on request | ||
* Small, compact design
* Quiet in operation
* Dynamic heating up
* Screw fixing
Fan heater prevents formation of condensation and provides an evenly distributed interior air temperature in enclosures
with electric/electronic components. The heater is connected using the internal terminal connectors. The small size of
the NTL 409-TM makes it ideal for use in enclosures where space is at a premium.
with electric/electronic components. The heater is connected using the internal terminal connectors. The small size of
the NTL 409-TM makes it ideal for use in enclosures where space is at a premium.
