Easy Axi Manual Chromatographic Column in biology pharmacy industry for pilot production and large scale production
- Category: >>>
- Supplier: Hangzhou Royal Pharmaceutical Equipment Co. Ltd.
Share on (1600655701014):
Product Overview
Description

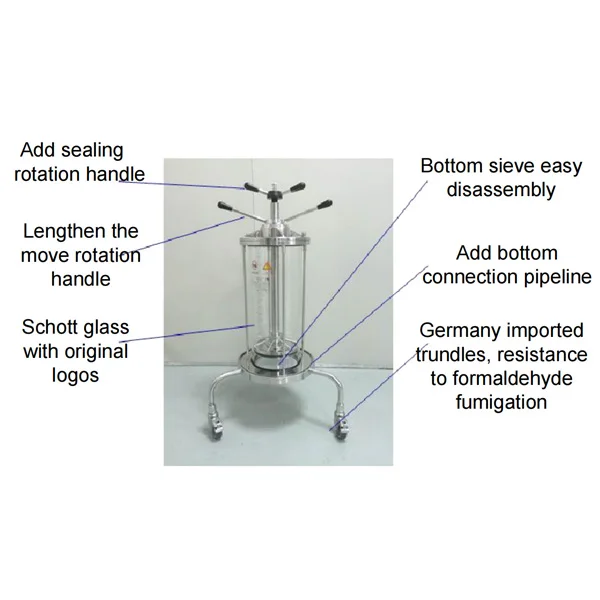

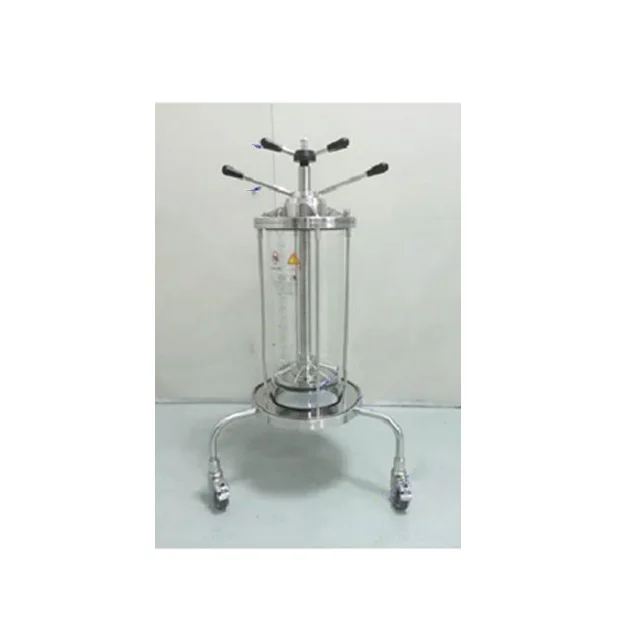

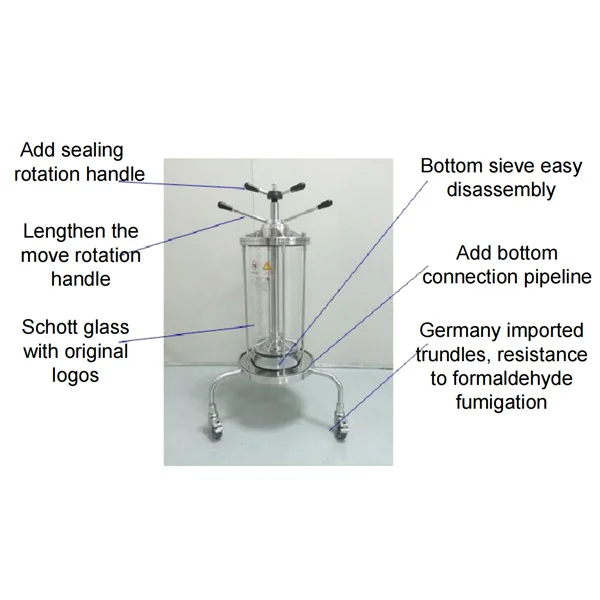

RY EasyAxi Manual Chromatographic Column
RY EasyAxi manual sanitary chromatographic column is designed for purification process of biological products with GMP grade. It covers almost all the chromatographic medias in biology-pharmacy industry, as well as available for pilot production and large- scale production. The chromatographic column is designed with compact structure, stable performance, easy operation and strong universality. Because of the advanced design ideas, the chromatographic column is capable of matching various chromatographic systems, especially when cooperating with the purification process platform which constructed by iBio chromatographic system, it is able to extend the pilot production and offers a great convenience for the production.
1.Advantages
• Sanitary Design based on the GMP requirements.
• The pressure-resistant capacity of the column contains 3Bar and 6Ba, that matching almost all the low pressure media.
• Suitable for the media in affinity, ion exchange, gel filtration, hydrophobic interaction, mixing and etc.
• All components that contact with solutions are made by biocompatible materials, and the materials certifications are available.
• Use T type sanitary clamps for all joints.
• Sealed by imported air seal ring for all the column that bigger than 300mm.
• The piston distribution system and outlet diversion trench are sanitary designed, not only to ensure the sealing, but also to ensure complete cleaning without any dead angle, as well as exhausted automatically.

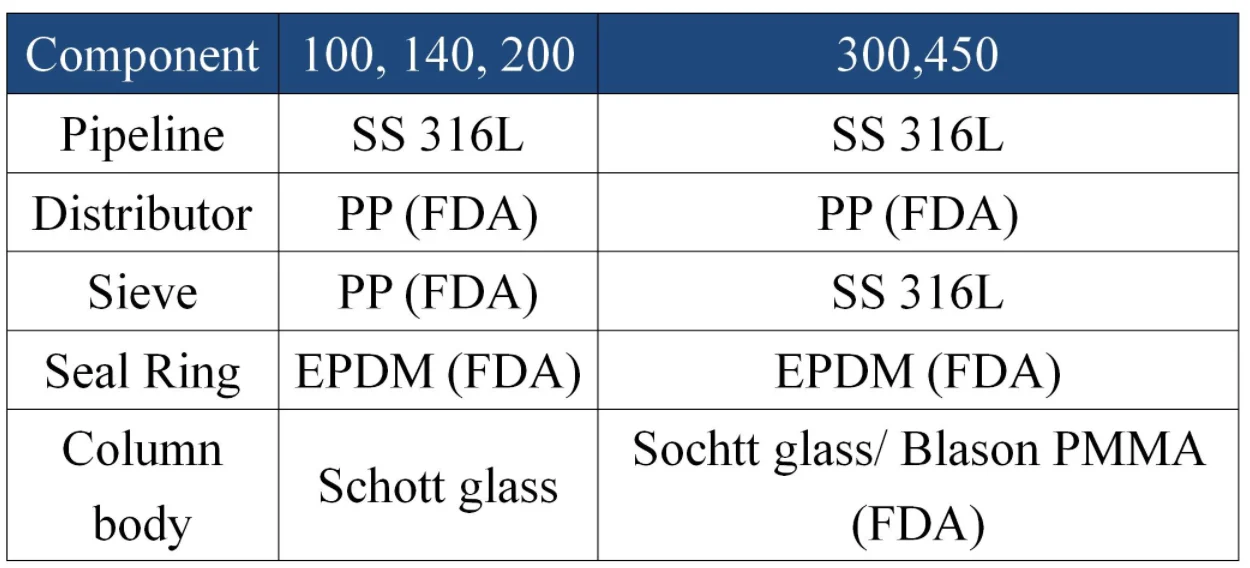

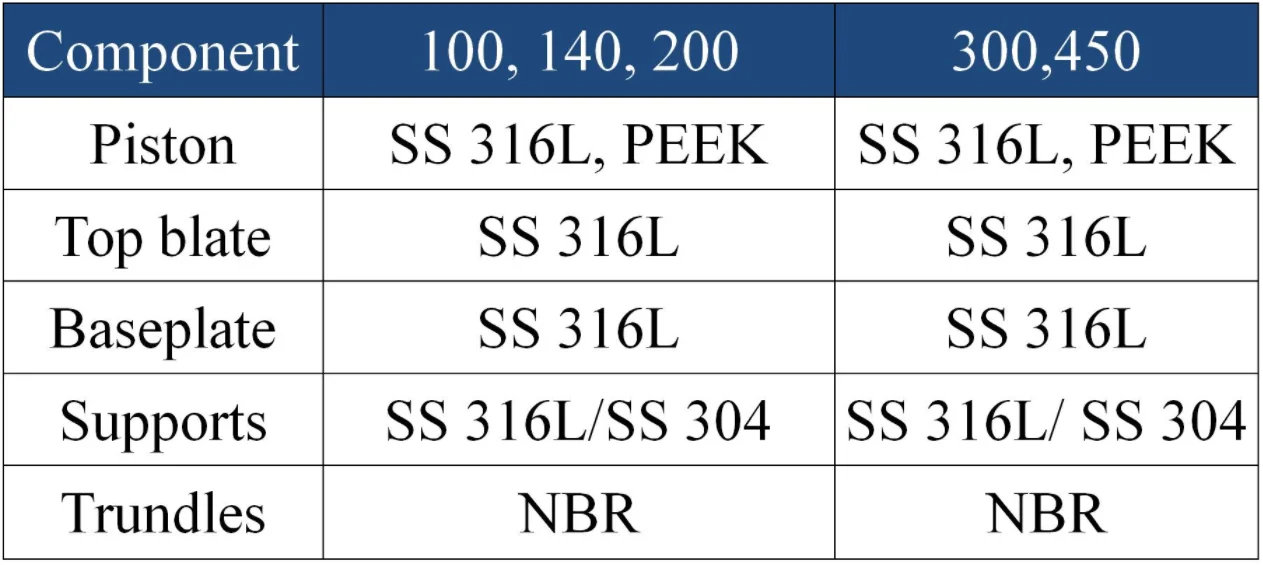

2.Materials
2.1 Components that contact with solutions
• Sanitary Design based on the GMP requirements.
• The pressure-resistant capacity of the column contains 3Bar and 6Ba, that matching almost all the low pressure media.
• Suitable for the media in affinity, ion exchange, gel filtration, hydrophobic interaction, mixing and etc.
• All components that contact with solutions are made by biocompatible materials, and the materials certifications are available.
• Use T type sanitary clamps for all joints.
• Sealed by imported air seal ring for all the column that bigger than 300mm.
• The piston distribution system and outlet diversion trench are sanitary designed, not only to ensure the sealing, but also to ensure complete cleaning without any dead angle, as well as exhausted automatically.
2.Materials
2.1 Components that contact with solutions
2.2 Components that not contact with solutions

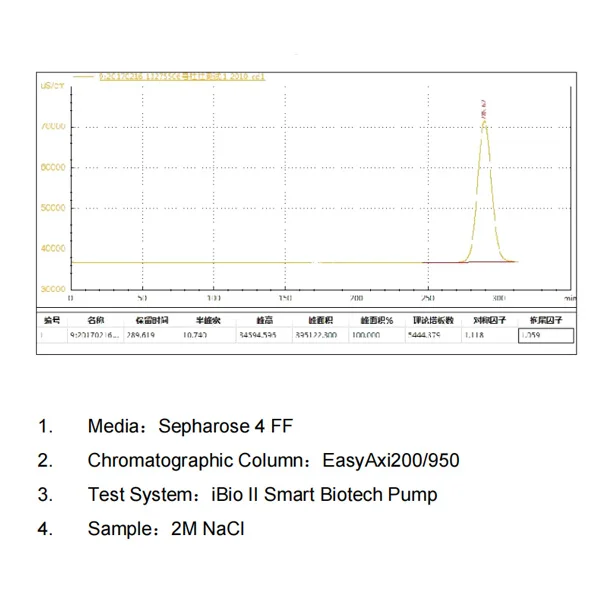

3.Column Efficiency Test Chart

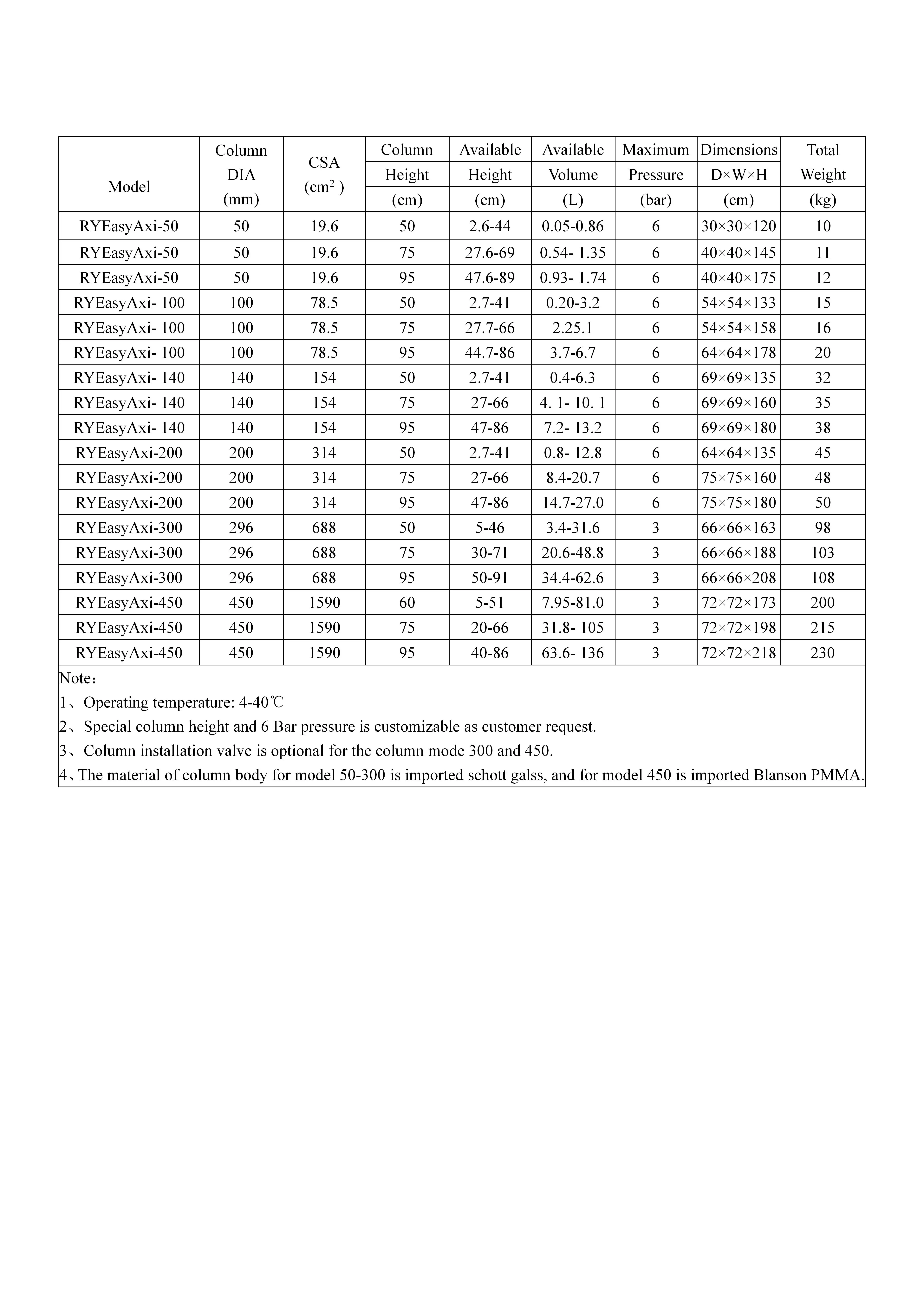

Main Technological Parameters |

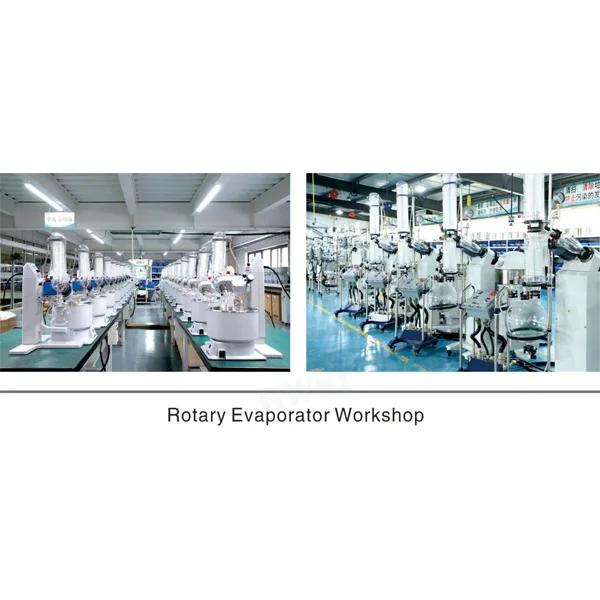

ROYAL PHARM is strong producer and supplier for laboratory and industrial equipment, reactors, distillation and reaction system, Automatic Chromatography Column. Mainly includes Laboratory equipment such as Glass Reactor, Rotary Evaporator, Glass filter, Glass condenser, Stirring reaction batch, Water circulating vacuum pump, Dynamic temperature control system, Recirculating chiller, Magnetic stirrer system, heating circulator, thermostatic bath, Diaphragm vacuum pump, Automatic Chromatography Column, Chromatographic column, Automatic TFF System, and so on. We can produce based on your special requirement.
