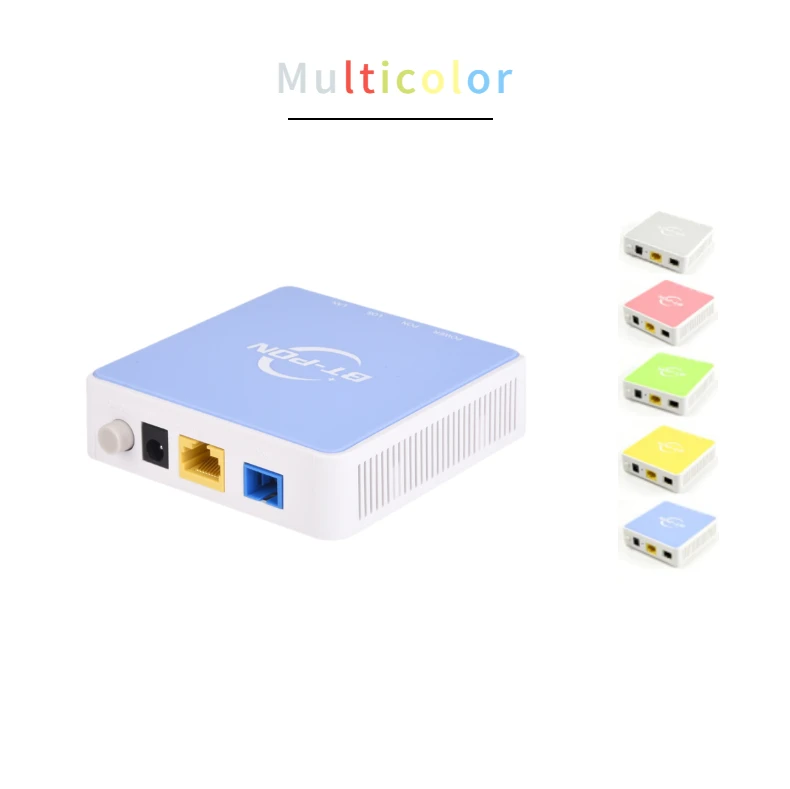

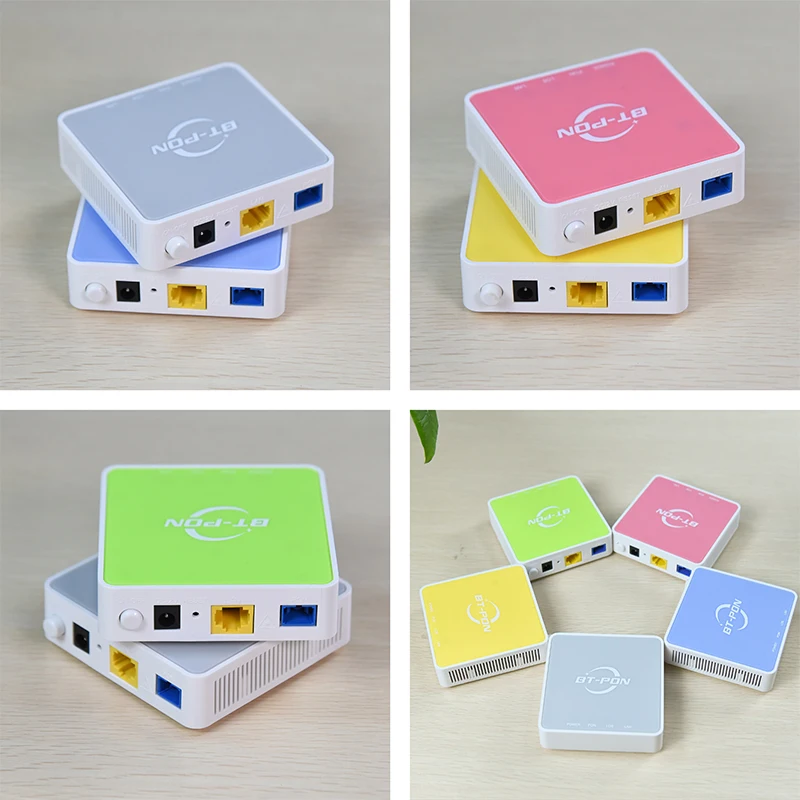

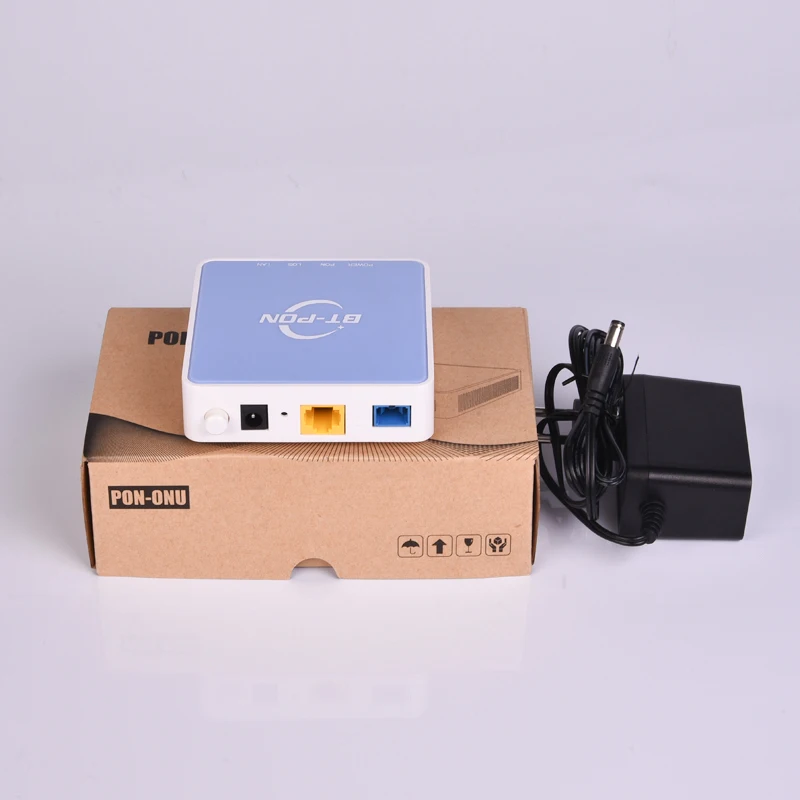

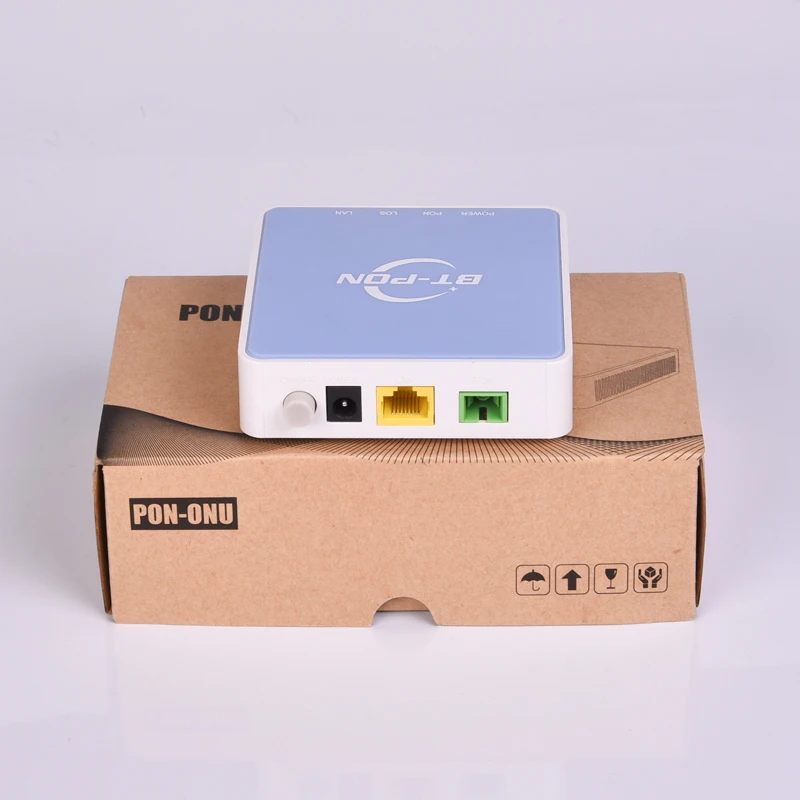

One Port Simple Optic Network Router 1Ge Ftth 1G 1 Ge Xpon Epon Gpon Onu Ont
- Category: >>>
- Supplier: Shenzhen Baitong Putian Technology Co. Ltd.
Share on (1600655731525):
Product Overview
Description
Product Description
Single Port 1Ports Ge Optical Ftth 1Ge Oem Xpon Fiber Optic Gpon Onu

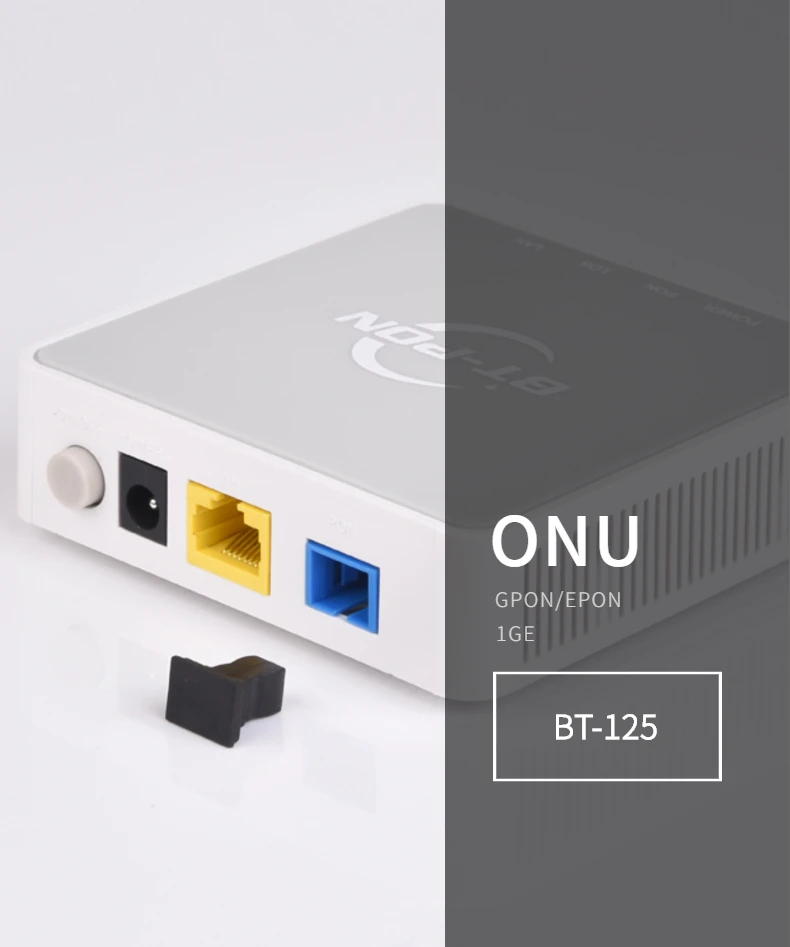

BT-125G model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function . With compact structure and small appearance, it is a kind of FTTH GPON optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.
Company Introduction
BT-PON has more than 10 years experience in fiber optical equipment industry since 2008. We're specializing in research and development of FTTX solution, especially in ONU and OLT technology. OEM & ODM are available.Our products cover G/EPON ONU/OLT,EOC, POE switch and other FTTX project equipment so on. Products have exported to more than 20 countries and regions around the world.
Our Service Support:
1. Professional technicians provide services
2. Technical advisory for any time
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. OEM & ODM, any your customized requirements we can try to help you realize.
5. Protection of your sales area ,ideas of design and all your private information.
6. 12 months warranty
2. Technical advisory for any time
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. OEM & ODM, any your customized requirements we can try to help you realize.
5. Protection of your sales area ,ideas of design and all your private information.
6. 12 months warranty
Fully understanding the needs of customers, and creating value for customers with advanced technology, considerate service, and tailor-made solutions. Providing customers with a full range of after-sales services and technical supports, and striving to create value for customers.

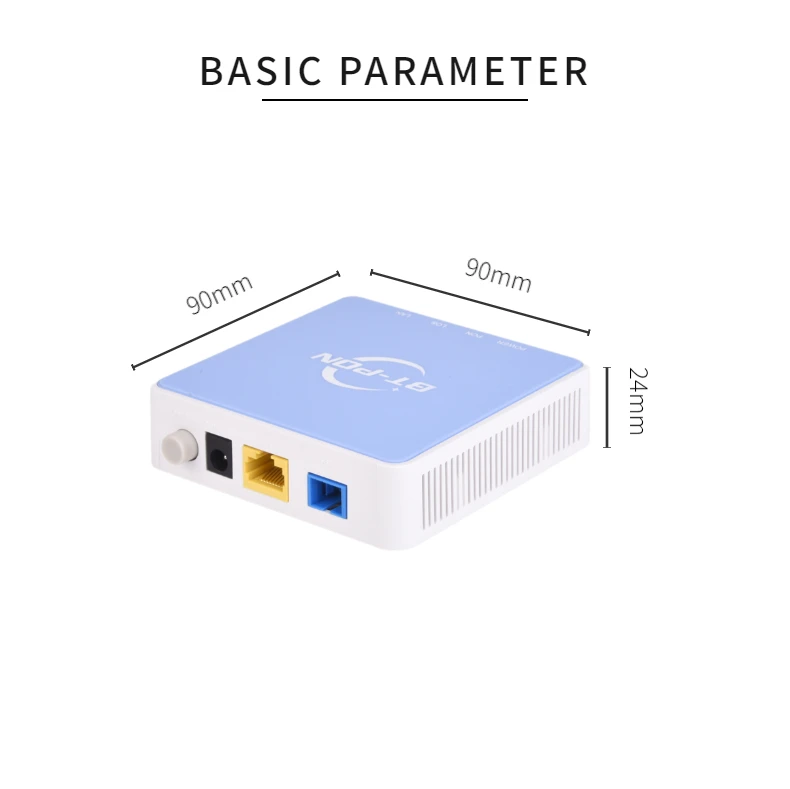

Specification
Product Specification | ||
Optical signal access | 1*XPON/GPON/EPON | |

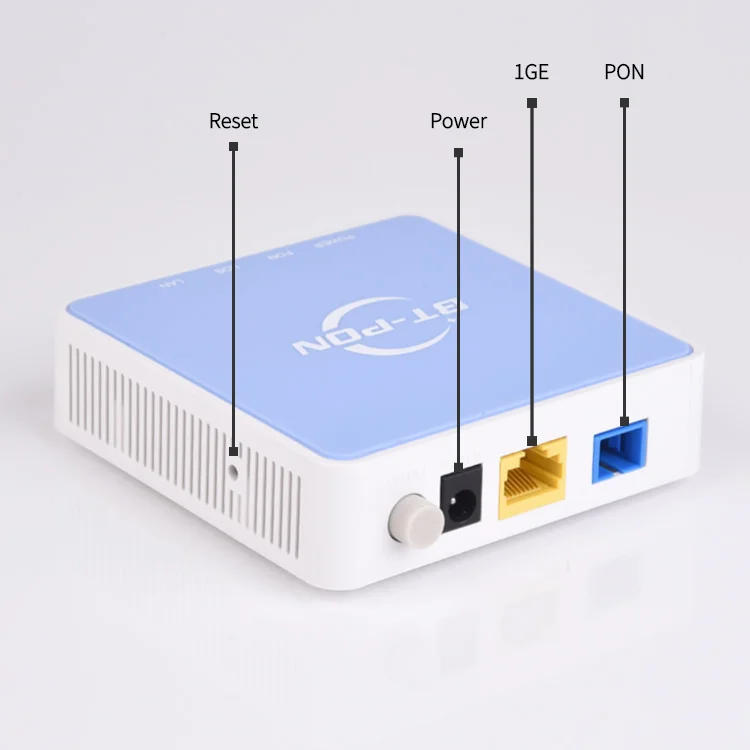

User interface | 1GE | |
Indicator light | POWER/PON/LOS/LAN | |
Power adapter input | 100V～240V AC，50Hz～60Hz | |
PowerSupply | 12V DC，0.5A | |
Power consumption | <6w | |
Module type | Class B+ SC/UPC | |
Working wavelength | up 1310nm，down 1490nm | |
TX Optical power value | 0.5～4dBm | |
RX Optical power sensitivity | -27dBm | |
Transmission rate | Uplink 1.244Gbps；downlink 2.488Gbps | |
Interface type | RJ45 | |
Interface parameters | 1 x10/100/1000Mbps auto adaptive Ethernet interfaces | |
Product features:
▲Compliance with IEEE 802.3ah & itu-t g.984.x standard
▲Compliance with IEEE 802.3ah & itu-t g.984.x standard
▲GPON:8 T-CONTs,32 GEM Ports
▲Integrate OMCI remote configuration and maintenance

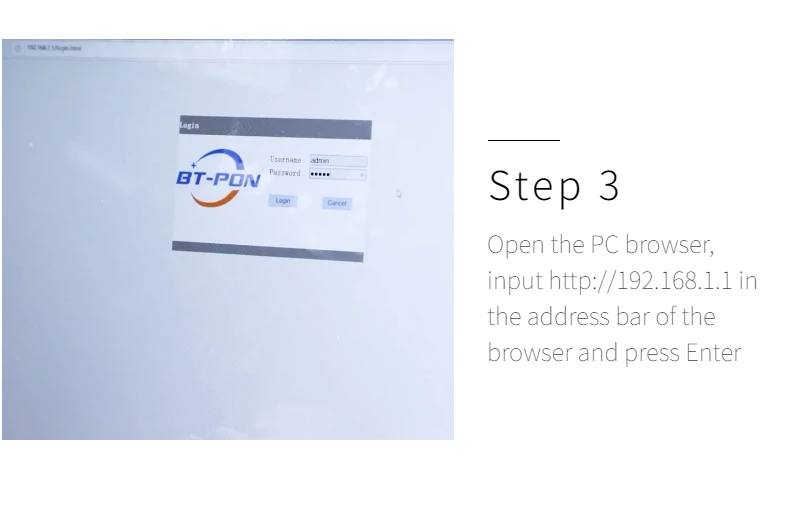

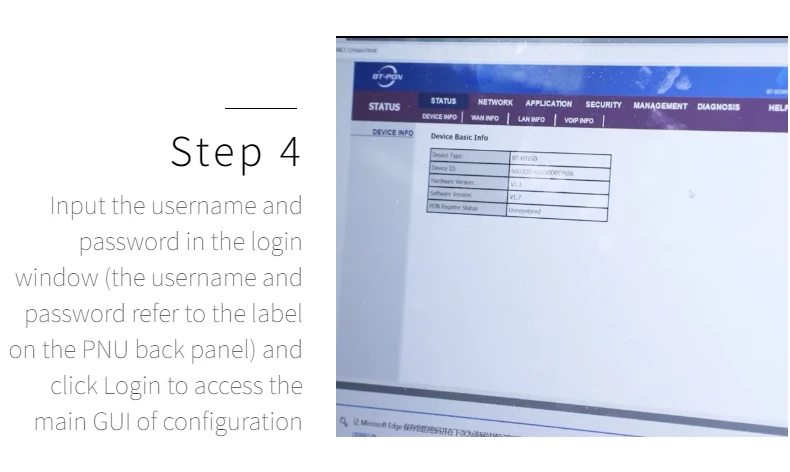

▲Supports the WEB configuration function
▲Layer 3 Home Gateway/CPE features with Hardware NAT, supports Route mode,etc
▲Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
▲Support PPPoE/ Static IP/ DHCP
▲Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
▲Support multicast IGMP v2 snooping,
▲Supports the AES-128 algorithm for data encryption of downlink data
▲Integrate OMCI remote configuration and maintenance
▲Supports the WEB configuration function
▲Layer 3 Home Gateway/CPE features with Hardware NAT, supports Route mode,etc
▲Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc
▲Support PPPoE/ Static IP/ DHCP
▲Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering
▲Support multicast IGMP v2 snooping,
▲Supports the AES-128 algorithm for data encryption of downlink data
Contact Us
Packing&Shipping
PACKING:
Original factory packing or customizedo,Or packed by standard export carton.
Shipping way :
By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.
Delivery time :
1-7 days after order confirmed, exact delivery date should be decided according to production season and order quantity.
Original factory packing or customizedo,Or packed by standard export carton.
Shipping way :
By air, by sea or express(UPS,DHL,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.
Delivery time :
1-7 days after order confirmed, exact delivery date should be decided according to production season and order quantity.
FAQ
1.Can I get a sample free?
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance
payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at
Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7
workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select
shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
Yes,you need place sample order to us, and we will reduce from next order .
2.How do I know your products are original and brand new ?
We guarantee products from our company are original and brand new.
You will get competitive price and professional technical supports.
3.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
4.How can we place order?
Comfirm PI — Got the deposit — Arrange production/delivery
After we made agreement on the product's parameters, we will make proforma invoice for your confirmation. When we got your advance
payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if not, then when the goods arrived at
Destination port, you must find a ship forwarder help you clear the custom.
5.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. Usually it takes about 7
workdays to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select
shipping by Air, but freight charge will be more expensive.
6.What's your products' advantages ?
A. Good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing, assemble, packing and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if any problem of the goods, we will help to solve the problem or provide replacement of the goods.
