Digital Precision Industrial Weighing Scale Counting Scale 500kg Industrial Platform Scales



Product Description





Product introduction
    Industrial Electronic Balance is a high capacity & precision weighing instrument equipped with internationally ad­ vanced technology and stainless steel weighing pan. It adopts gold-plated ceramic variable capacitance sensor, whose key components belong to internationally renowned brands, which guarantees high accuracy & stability, fast response, convenient operation & maintenance and reasonable price. As an optimal choice for professionals, it can be connected with computer, printer or other external devices.
    This series is widely used in
industrial measurement, special metal alloy, special components, production formula and identification cast iron weights etc.





Product Parameter




























































































ModelES100KES150KES200KES500KES1000KES2000K
Max.Capability100kg150kg200kg500kg1000kg2000kg
Readability1g1g2g2g10g20g
Repeatability±2g±2g±4g±4g±20g±40g
Linearity  Error±2g±2g±4g±4g±20g±40g
Weighing Pan size600  x 800mm1000  x 1000mm
External Dimension600  x 800 x 290mm1000 x 1000 x290mm
Operational Temperature Range13~25℃
Operational Moisture Range10%~70% RH
Response time (average)2.5s
Accuracy ClassII class
Preheat Time20-30 minutes
Power Adapter220v AC/50 Hz
Baud Rate Options300, 600, 1200, 2400, 4800, 9600
DisplayStandard LCD, optional 7" capacitive touch scree

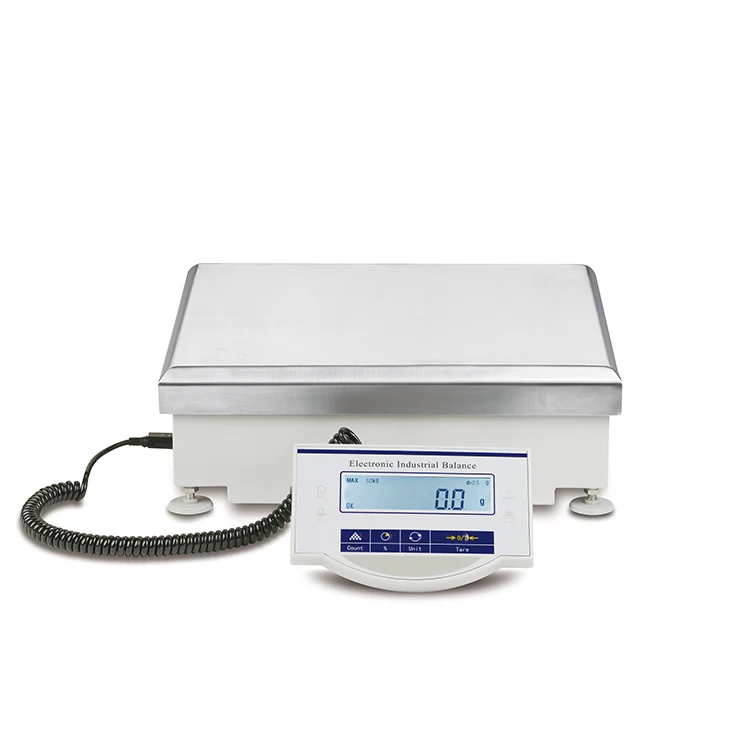

industrial counting scale .jpg


Product Advantage


1. Adopts gold-plated ceramic variable capacitance sensor;
2. Highly sensitive moisture sensor enable to minimize effect of moisture on operation;
3. Highly sensitive temperature sensor enable to minimize effect of temperature on operation;

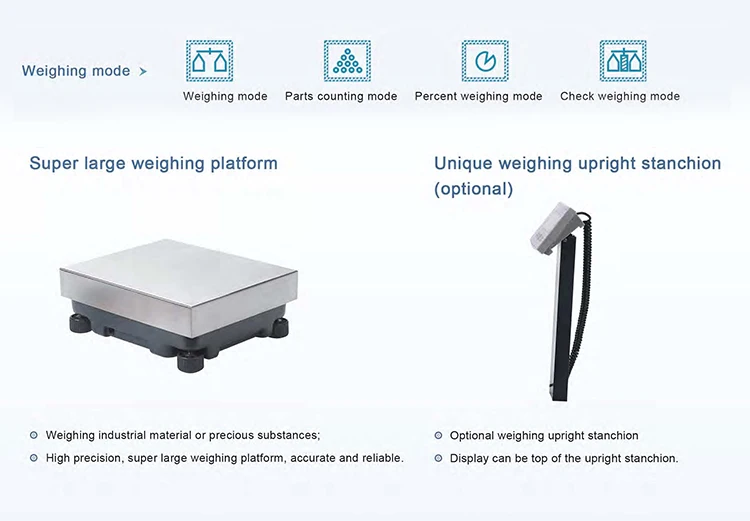

4. Various weighing modes: weighing mode, check weighing mode, percent weighing mode, parts counting mode,etc;
5. Strong anti-leakage, anti-static, anti-corrosion characteristics. Suitable for a variety of environments.
6. Large LCD display panel,bright and clear,provides user with easy operation and read.
7. Various weighing unit conversion functions: grams, carats, ounces and other units of free switching, suitable for various requirements of the weighing work;
8. RS232 interface for bidirectional communication between balances and computers, printers, PLCs and other external devices;












Company Information







FAQ


1. How long is the delivery time?
Normally goods will be shipped out within 3 - 7 days after payment.





2. Is it possible to make our own brand/logo on your product?
Yes, but depends on MOQ.





3. What's your MOQ?
This depends on different types of products. If it is a large machine, the MOQ is usually 1 set.





4. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sales service team will provide comprehensive technical support to help customers solve problems encountered when using our products, and promptly handle customer problems and complaints.





5. How to install and use the product?
The product is shipped with an operating instructions of English version. We also can provide installation video with English subtitles.
