Desktop SMT Placement Machine for Electronics Manufacturing
- Category: >>>
- Supplier: Wuxi KAYO Automation Equipment Co. Ltd.
Share on (1600655755872):
Product Overview
Description
SMT Placement Machine for Electronics Manufacturing
Product Details
Product Advantages

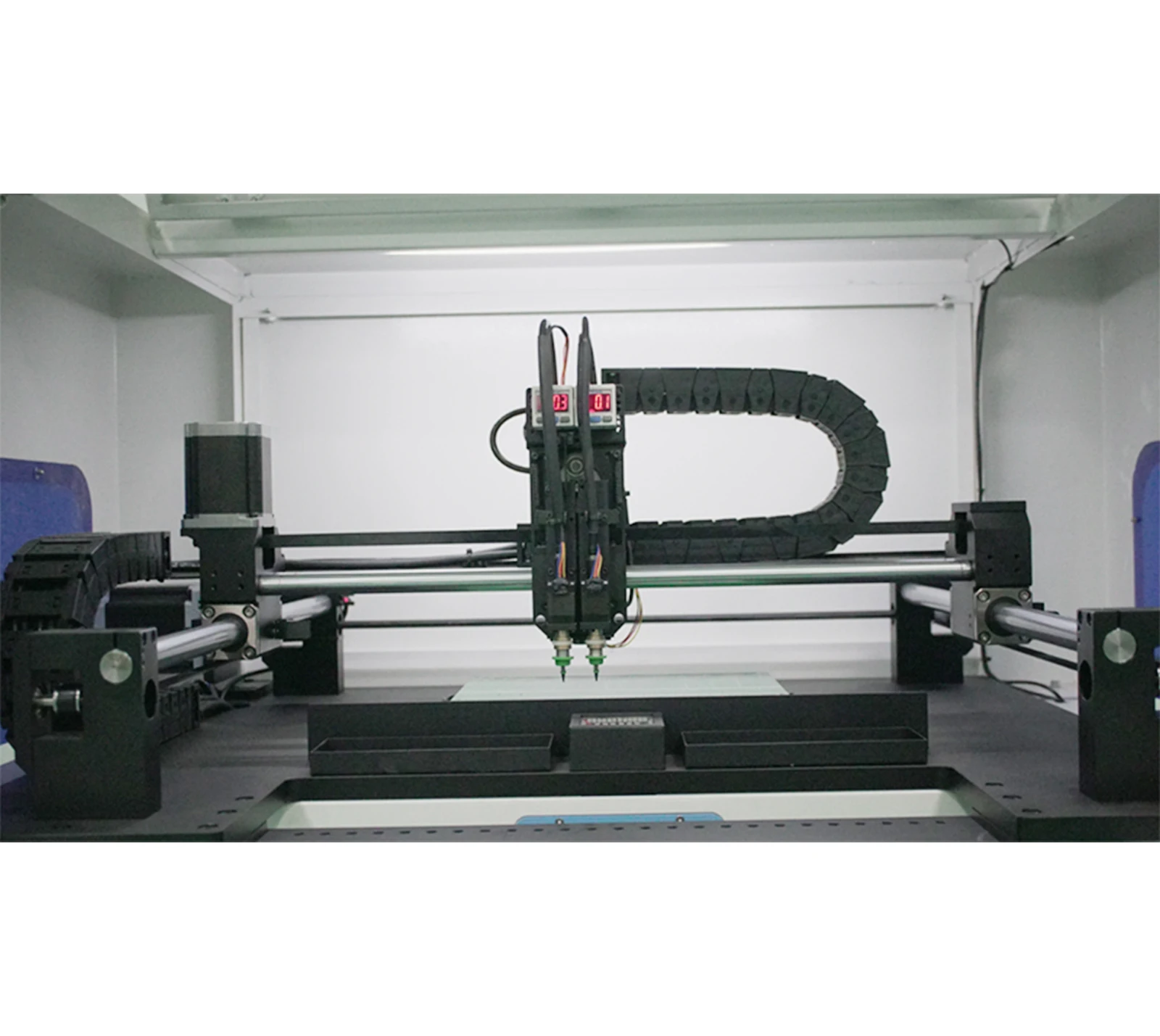

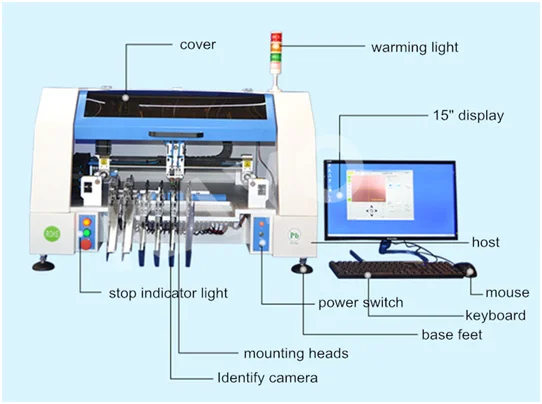

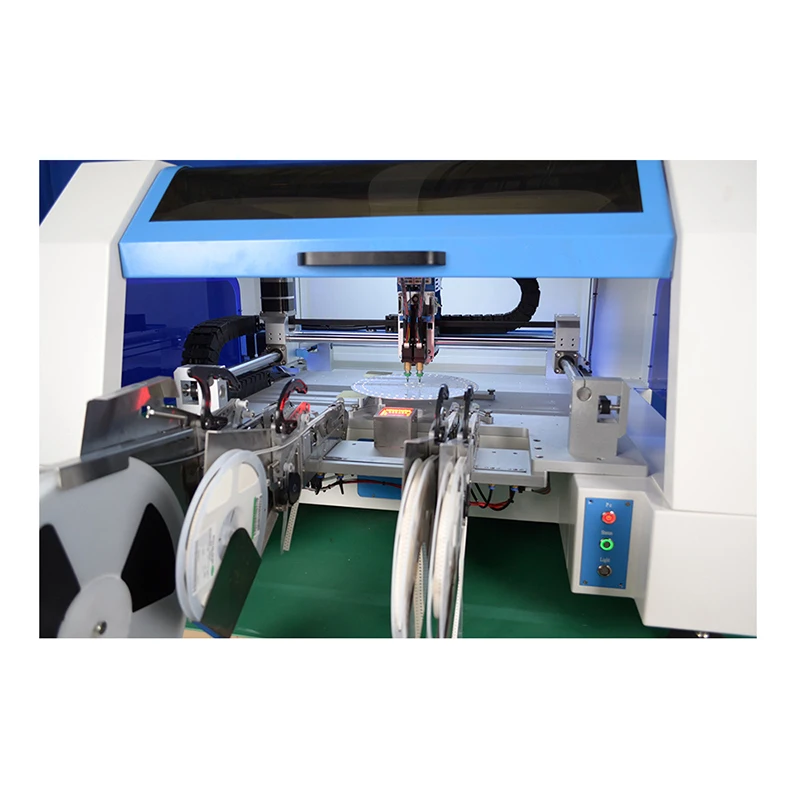

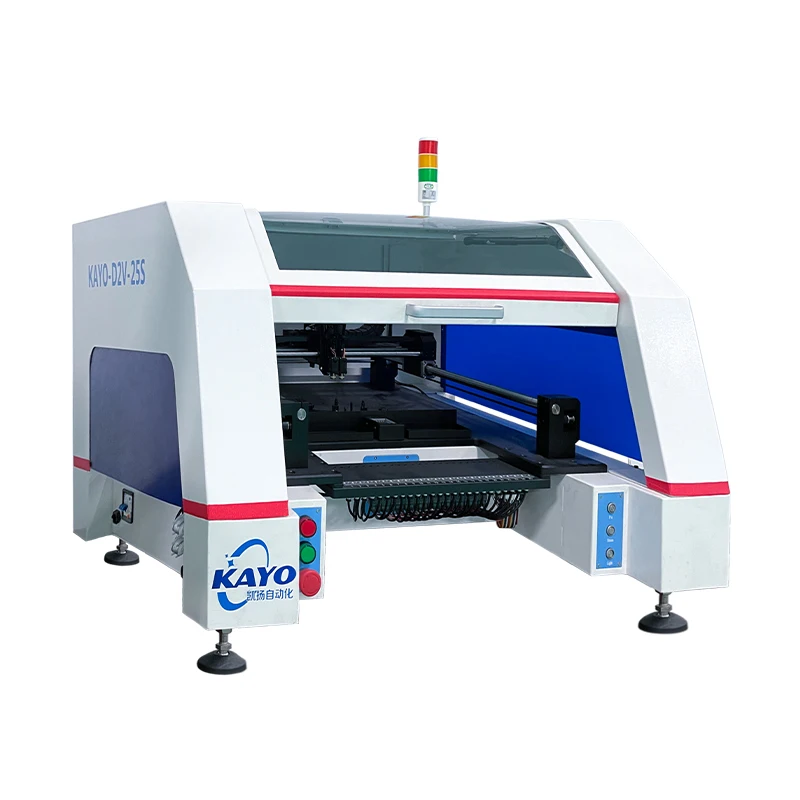

KAYO-D2V-25S is the classic of desktop dual-head SMT pick and placement machine. High precision, more reasonable mechanical design, easy operation, stable running, adapting air-operated feeder, automatic vision system, automatic detection materials shortage. Suitable for mounting most of the SMD components, such as 0402 0603 0805 1206 1210 3528 5050 SOP QFN, etc.
l Drawer type computer and driver integrated, could pull out lightly, convenient for later maintenance.
l Disassembled chassis, easy to handling.

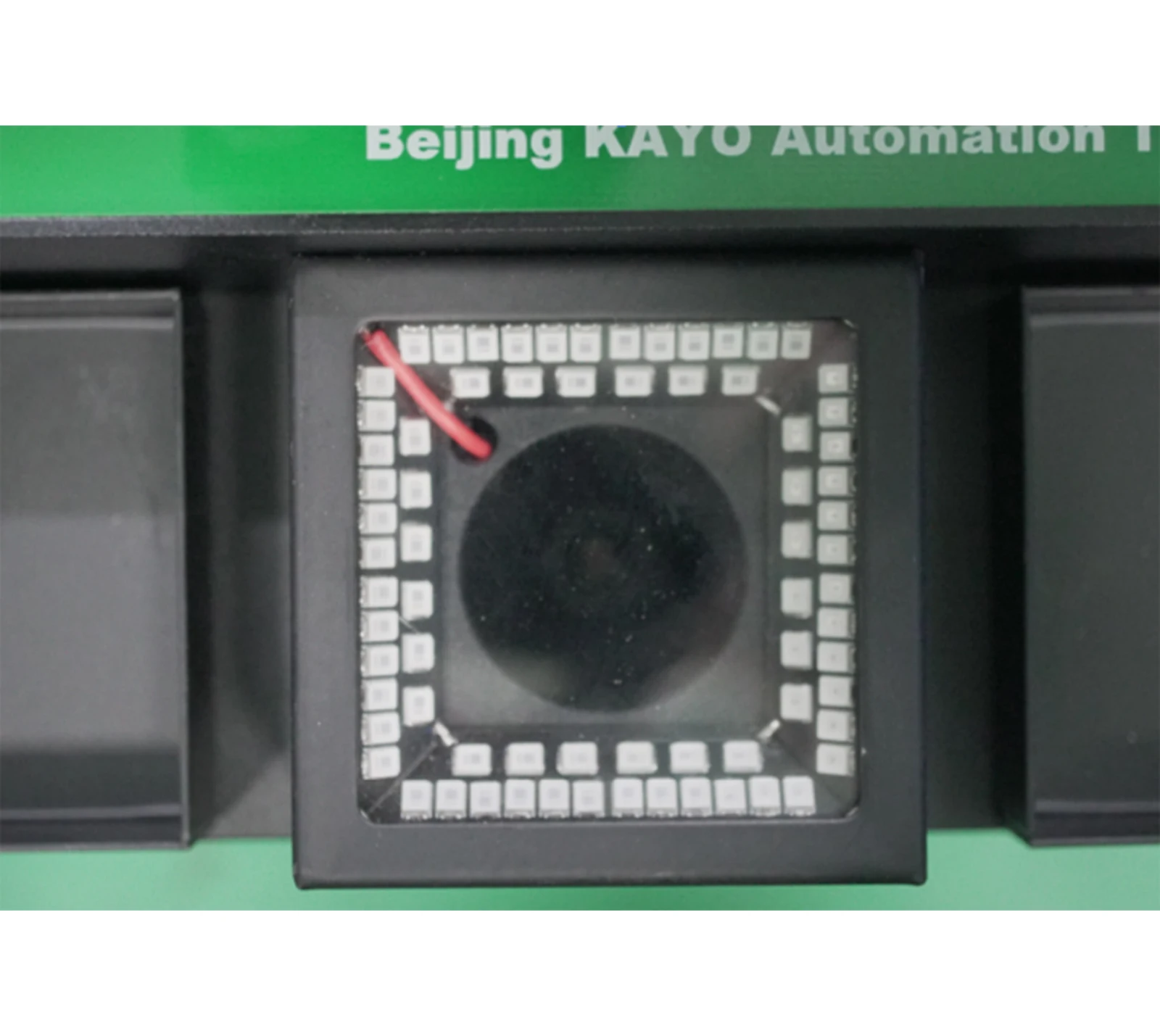

l HD industrial camera, precisely identify 0402, 15*15mm and other electronic chips.
l Intelligent remounting design, when pick materials failed, software will instruct to continue mounting no-stop, record and unify remounting. It could improve the mounting efficiency.
l Component auxiliary box design, make components programming and position revising more precisely.
l Software is easy to understand and use, free upgrade permanently.
Application
Applicable Mounting Range:
Specifications
| Model | KAYO-D2V-25S |
| Max. Circuit Board Area | 270x420mm |
| XY Max. Movement Range | 530x550mm |
| Z Axis Max. Movement Range | 20mm |
| Max. Mounting Speed | 5600 cph |
| Avarage Mounting Speed | 5000 cph |
| Positioning Accuracy | 0.01mm |
| Nozzle Buffering Range | 8mm |
| Power Supply | AC220V, 50Hz |
| Compressed Air | 0.5~0.7Mpa |
| Avarage Power | 300W |
| Support Feeding Method | Tape feeder, tube feeding, tray IC |
| Applicable Components | 0402, 0603, 0805, 1206, 3528/ 5050/ 3014, diodes, transistors, |
| QFN/ SOP/ SOT/ BGA/ Chip 100 pin or 15mm*15mm | |
| Feeder No. | 25 |
| Moter | Stepper Moter |

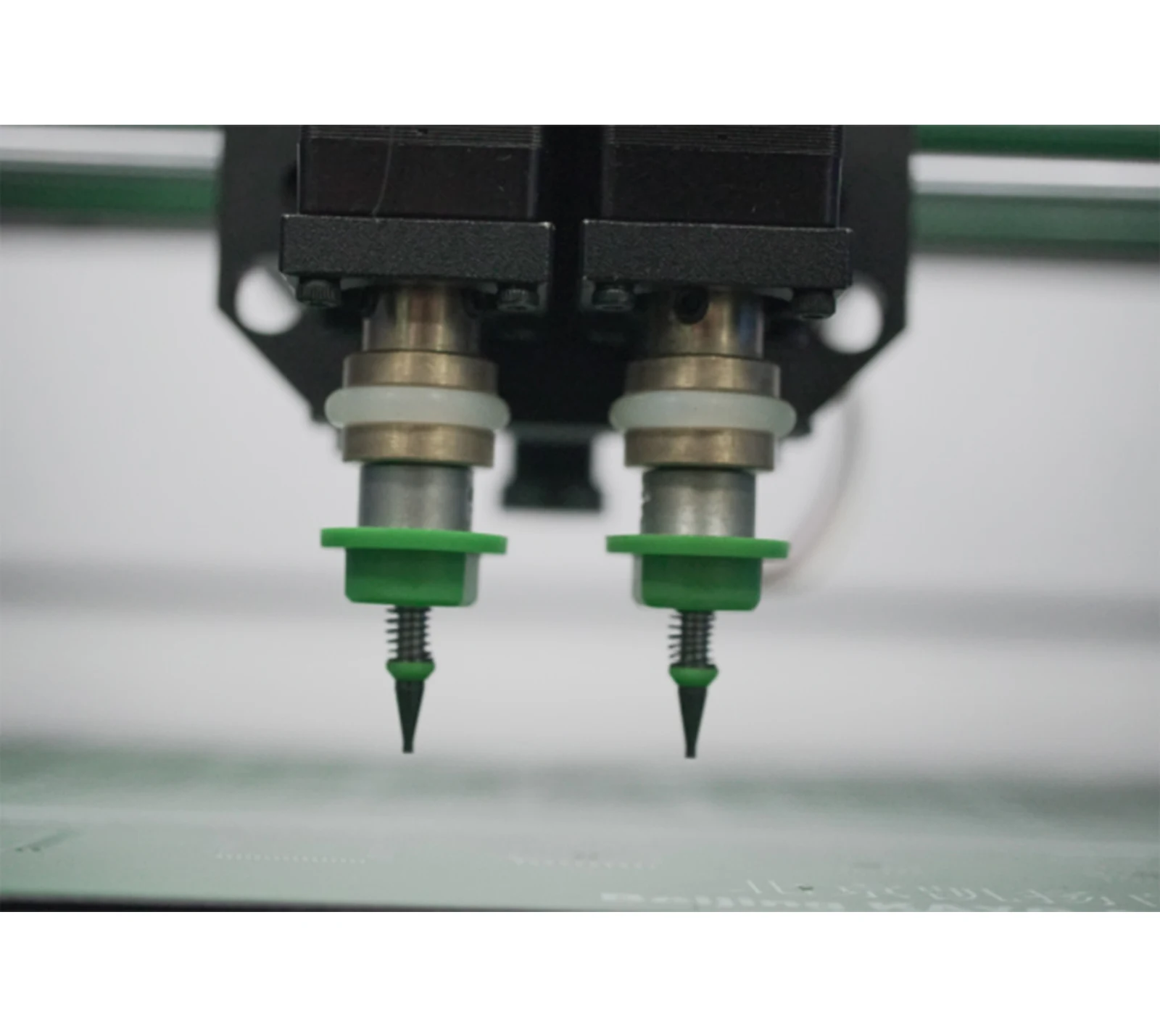

| Mounting Head | 2 Heads |
| Motion Driving System | High speed digital high pressure driver |
| Component Angle | 0~360°, synchronized rotation in motion |
| Programming Mode | Point-to-point programming, visual programming, |
| PCB file coordinates inputting etc. | |
| Vision Operating System | Built-in PC, automatically recognize, correct and remount |
| X/Y Running Mode | A new generation of linear interpolation linkage |
| Air Source | Reversal positive and negative pressure switch |
| Operating Software | KAYO-2DV-25S |
| Visual Programming Camera | Ultra high pixel color infrared |
| Visual Display | 15" Color HD display |
| Weight | 168KGS |

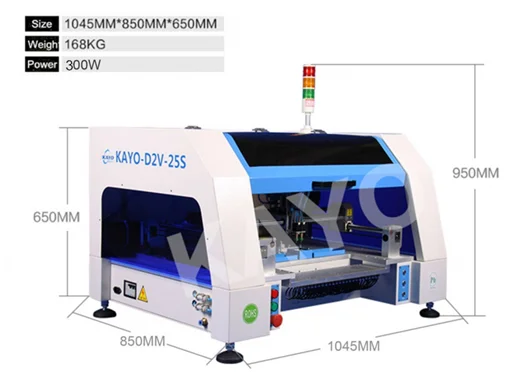

| Dimensions | 1045mm*850mm*660mm(not include the warning light) |
Production Line
SMT pick and place machine
SMT pick and place machine
| Machine Name | KAYO-2DV-25S | KAYO-A4 | KAYO-A4L | KAYO-1706-3DSG (KAYO-A6L) | KAYO-A8L | KAYO-S600 | |
| Type | Desktop | Vertical | |||||
| Mounting Heads | 2 | 4 | 4 | 6 | 8 | 6 | |
| Feeder No. | 25 | 46 | 46 | 60 | 70 | 82 | |
| Max. Mounting Speed | off visual (CPH) | 6000 | 7000 | 8000 | 13000 | 15000 | 16000 |
| on visual (CPH) | 5000 | 5000 | 6000 | 10000 | 12000 | 14000 | |
| PCB Size | Min.(W*Lmm) | 50*50 | |||||
| Max.(W*Lmm) | 295*420 | 300* 480 | 300* 480 | 370* 650 | 380* 650 | 380* 650 | |
| Camera | Total | 2 | 6 | 6 | 8 | 10 | 9 |
| Mark | 1 | 1 | 1 | 1 | 1 | 1 | |
| High-speed | 1 | 4 | 4 | 6 | 8 | 6 | |
| High-precision | 0 | 1pc of 5million | 1pc of 8million | ||||
| Visual correction | 0 | 0 | 0 | 0 | 0 | 1 | |
| Driving Motor | Progressive motor | Panasonic servo motor | |||||
| Motion Drive System | High speed digital high voltage driver | Panasonic High speed DPS driver | |||||
| Positioning Accuracy | 0.01mm | ||||||
| Support Feeding Method | 8/12/16/24/32/44mm Pneumatic and electric feeder ,vibration feeder ,tube feeding, tray IC | ||||||
| Applicable Mounting Range | Min. | 402 | 201 | ||||
| Max. | 15*15mm | 45mm*45mm range pin pitch ≥0.3mm SSOP,QFP, BGA etc. | |||||
| Weight(kgs) | 100 | 350 | 450 | 450 | 550 | 880 | |
| Dimensions(mm) | 1050*850*660 | 1180*1080*880 | 1095*1165*1400 | 1335*1230*1420 | 1500*1280*1410 | ||
