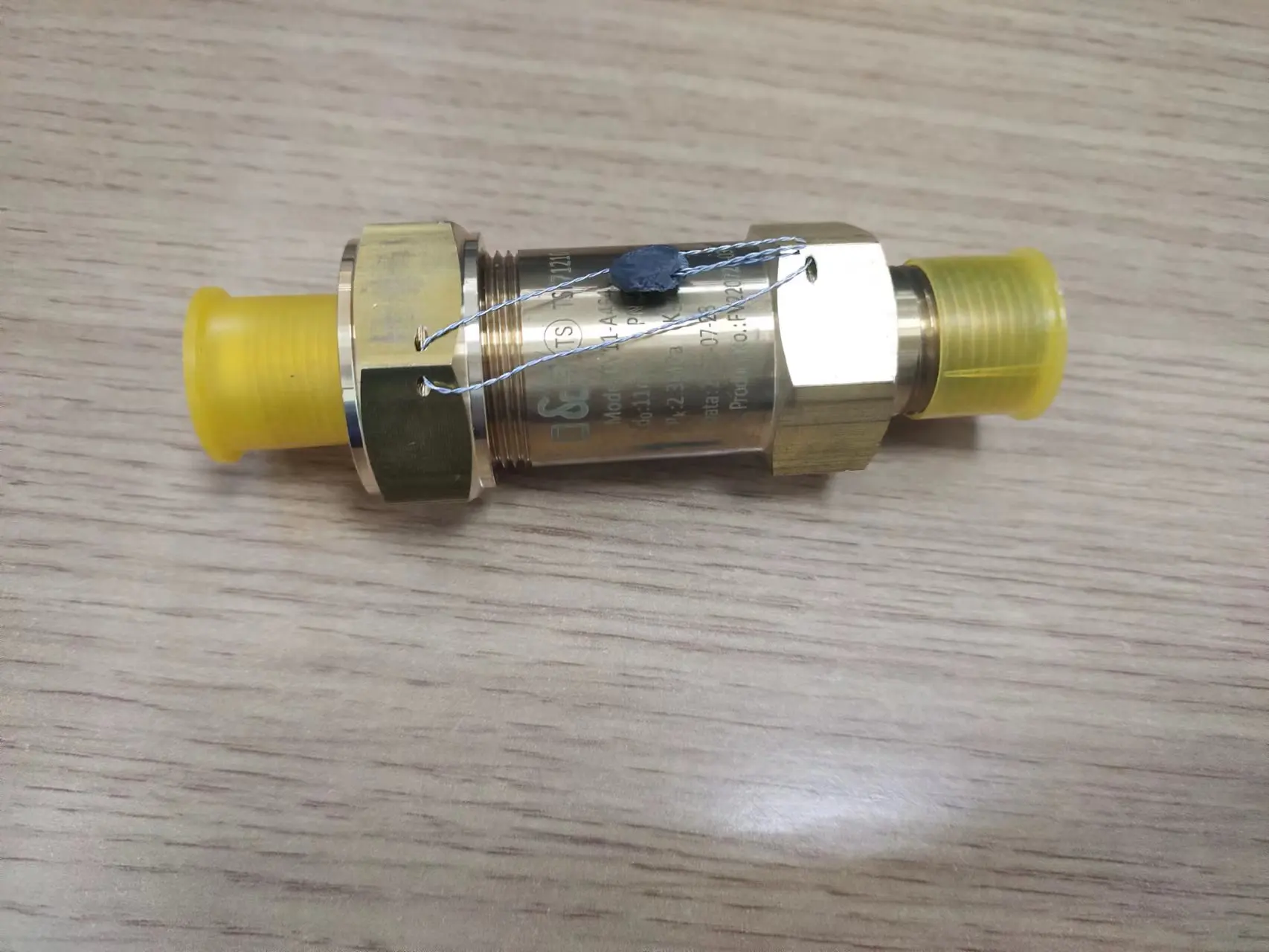

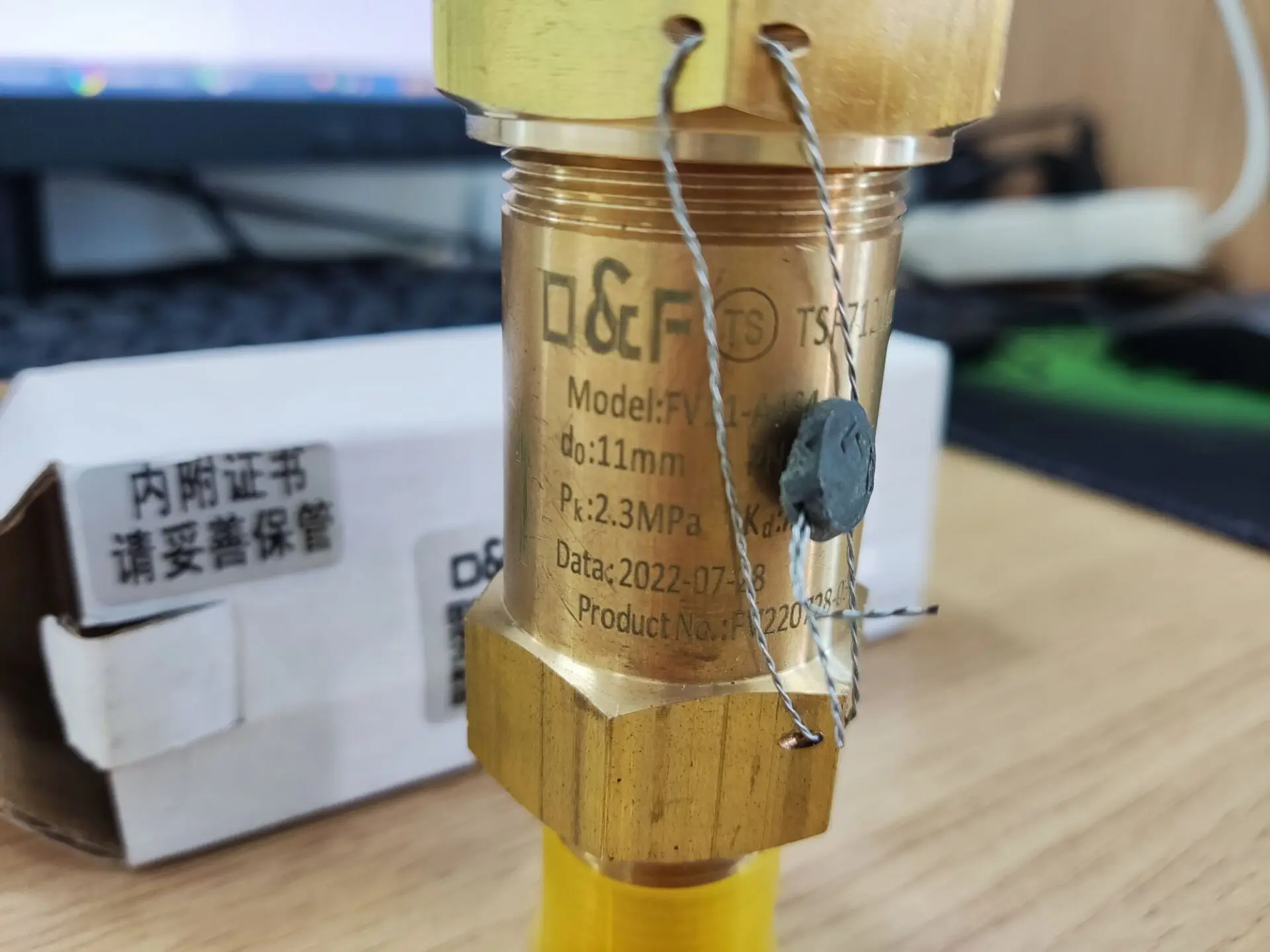

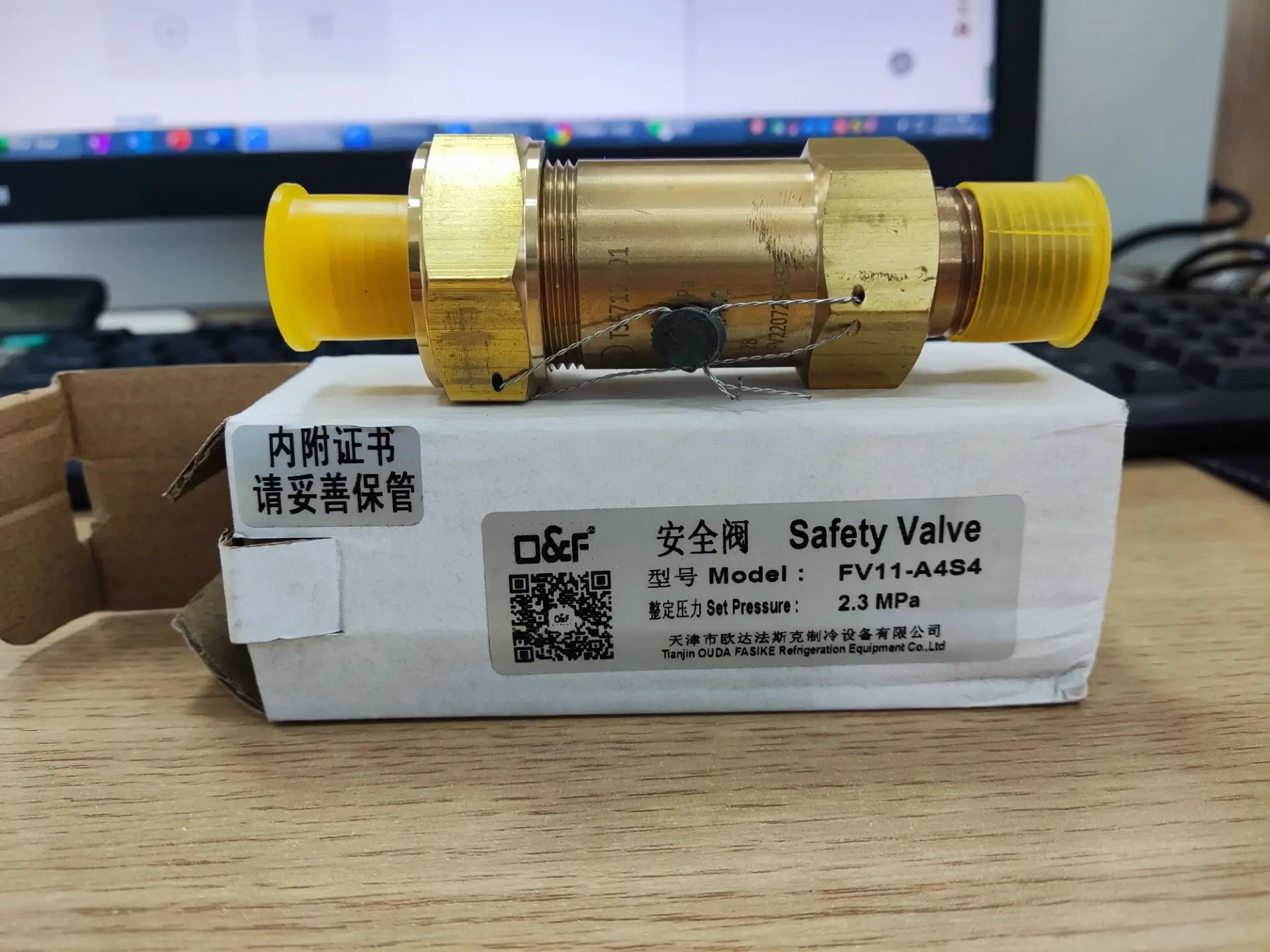

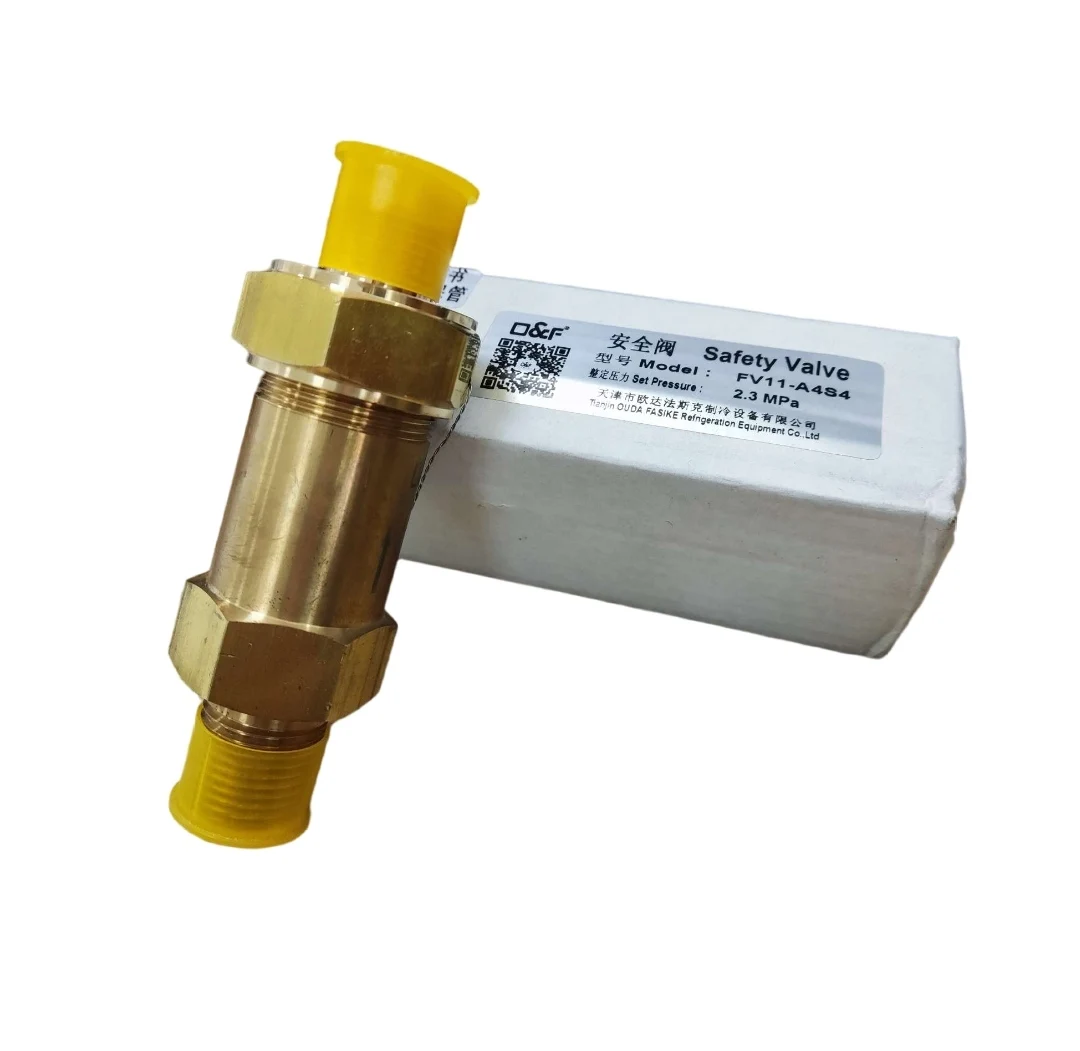

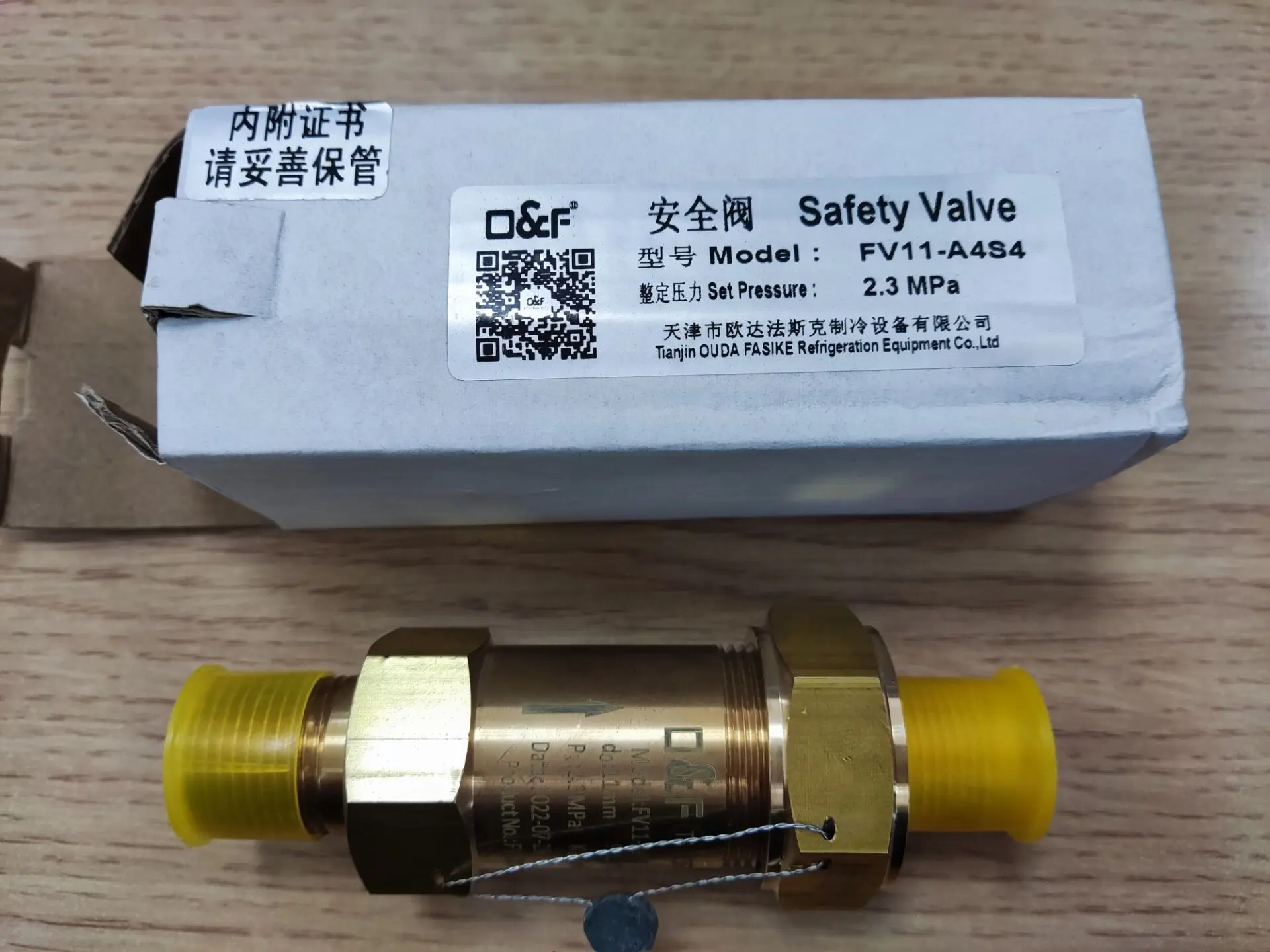

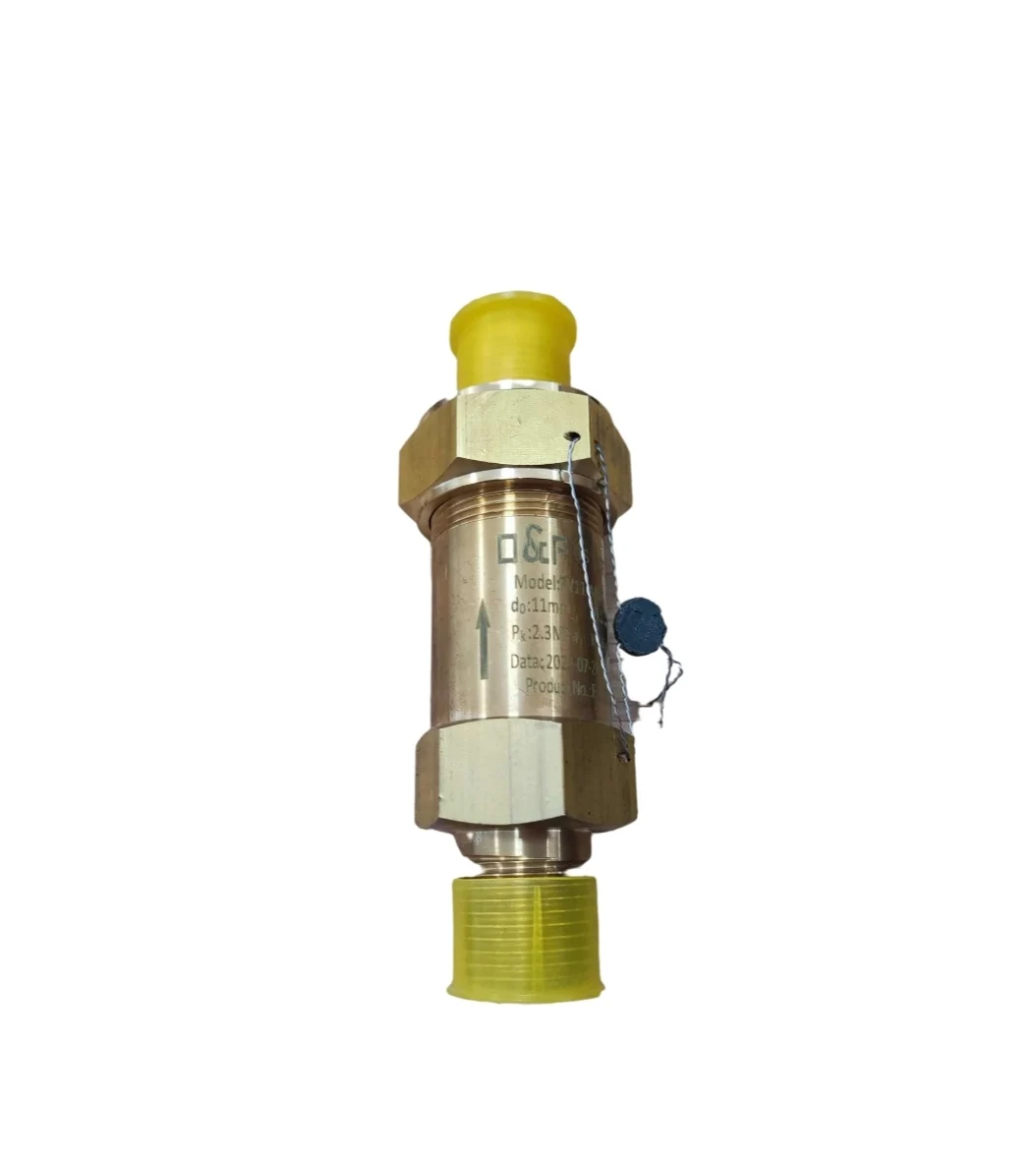

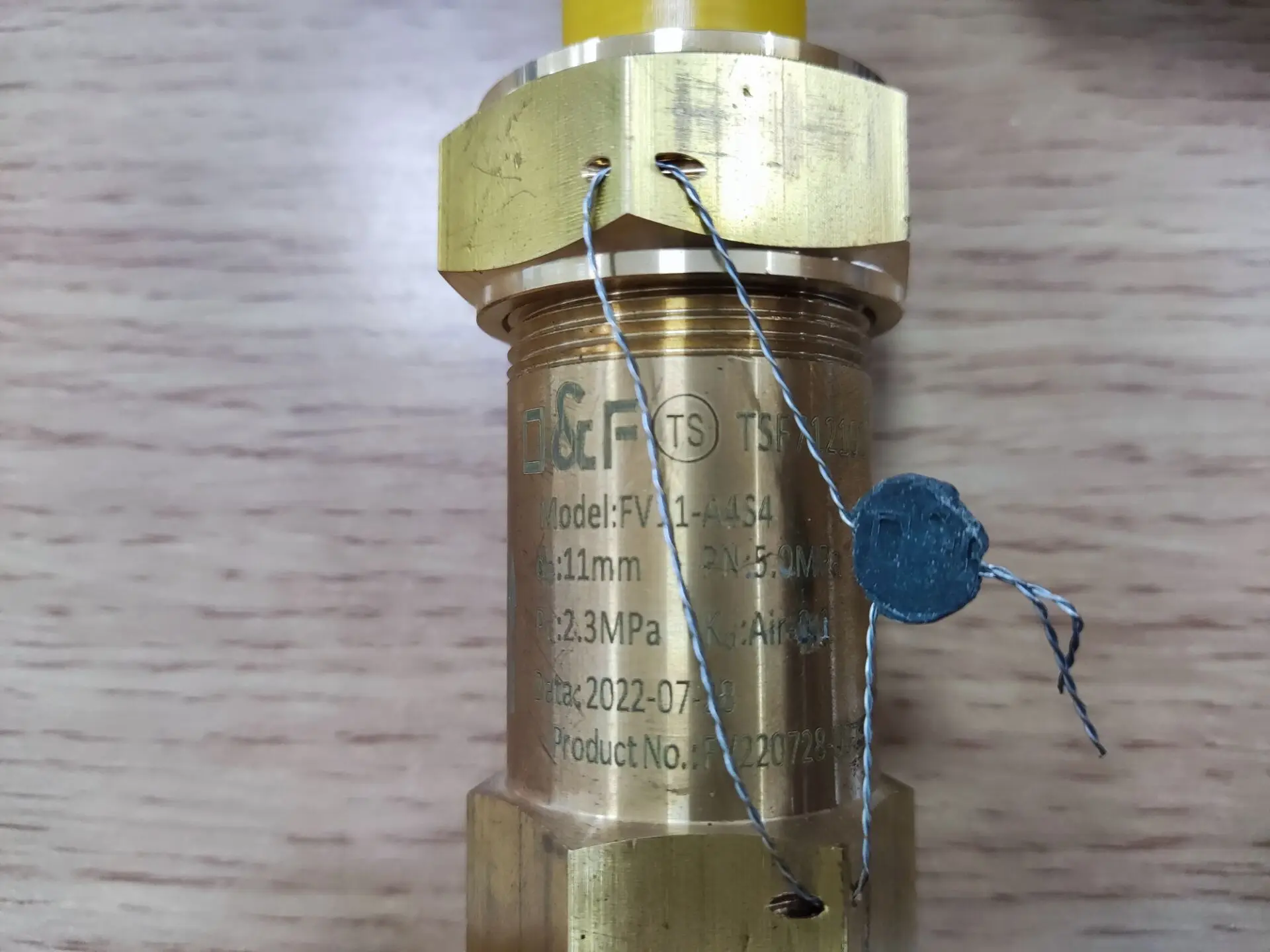

FV11 A4S4 Refrigeration safety valve
- Category: >>>
- Supplier: Jiangsu Linsky Refrigeration Equipment Co. Ltd.
Share on (1600655810490):
Product Overview
Description
Product Description
Features and benefits - Danfoss Safety Valve
1.Fast and easy to install
2.Wide temperature range
3.Interchangeable orifices assembly
4.Available with Maximum Operating Pressure
5.Long service life and easy maintenance
2.Wide temperature range
3.Interchangeable orifices assembly
4.Available with Maximum Operating Pressure
5.Long service life and easy maintenance
Production license: TSF712101 | Product No: FV 220728-037 | ||||
Model | FV11-A4S4 | Nominal pressure | PN 5.0MPa | ||
Nominal diameter | DN15 | Flow Diameter | 11mm | ||
Inlet connection | 1/2" -14NPT | Outlet connection | 3/4" -16UNF | ||
Set pressure | 2.3MPa | Seal test pressure | 2.07MPa | ||
Relieving pressure | ≤ 2.53MPa | Applicable temp. | -40~150℃ | ||
Re-seating pressure | ≥ 1.73MPa | Applicable medium | Gas(CFC,HCFC,HFC) | ||
Discharge coefficient | 0.1(Air） | Lift | ≥ 0.55mm | ||
Meterial | HPb59-1 | Production standard | GB/T 12243-2005 | ||
Standard Configuration of Refrigeration Unit
Product Application
About LINSKY Factory Introduction
Jiangsu Linsky Refrigeration Equipment Co., Ltd. has developed into a comprehensive enterprise engaged in refrigeration equipment product design, product development, product manufacturing, engineering complete sets, after-sales service, technical consultation and so on.
Linsky group include Jiangsu Linsky Refrigeration Equipment Co.,Ltd & Shanghai Linsky Refrigeration Equipment Co.,Ltd & Shanghai Snowdream Refrigeration Equipment Co.,Ltd.
Linsky group include Jiangsu Linsky Refrigeration Equipment Co.,Ltd & Shanghai Linsky Refrigeration Equipment Co.,Ltd & Shanghai Snowdream Refrigeration Equipment Co.,Ltd.
Our factory has strong refrigeration technology, advanced production lines and testing equipment. Has the special equipment manufacturing license of the People's Republic of China, the national industrial product production license and the Chinese refrigeration and air conditioning equipment maintenance and installation enterprise qualification certificate, ISO 9001:2015 quality management system certificate, mechanical and electrical installation qualification certificate, GC2 pipeline installation qualification certificate, China. Member of Refrigeration Association. The company has a number of patented technologies and has won national high-tech enterprises. At the same time, it has a group of experienced professional refrigeration, electrical, mechanical design engineers, builders and other technical personnel, project management personnel and professional construction technology team.
The company's main products: Ice machine, Chiller, Box condensation unit, Compression condensation unit, Freon liquid pump circulation system, Refrigeration Components, Refrigeration accessories, etc. All units adopt Bitzer, Hanbell, Copeland, Refcomp and other internationally renowned brand compressors, with characteristics. It is widely used in food refrigeration, hotel refrigeration, industrial process cooling, medical refrigeration, refrigeration truck, marine refrigeration, fresh-keeping and refrigeration of vegetables and fruits, cooling of production workshop and other fields. The products have been well received by users for many years. It provides a complete set of engineering project design and solutions for users with different needs.
The company's main products: Ice machine, Chiller, Box condensation unit, Compression condensation unit, Freon liquid pump circulation system, Refrigeration Components, Refrigeration accessories, etc. All units adopt Bitzer, Hanbell, Copeland, Refcomp and other internationally renowned brand compressors, with characteristics. It is widely used in food refrigeration, hotel refrigeration, industrial process cooling, medical refrigeration, refrigeration truck, marine refrigeration, fresh-keeping and refrigeration of vegetables and fruits, cooling of production workshop and other fields. The products have been well received by users for many years. It provides a complete set of engineering project design and solutions for users with different needs.
