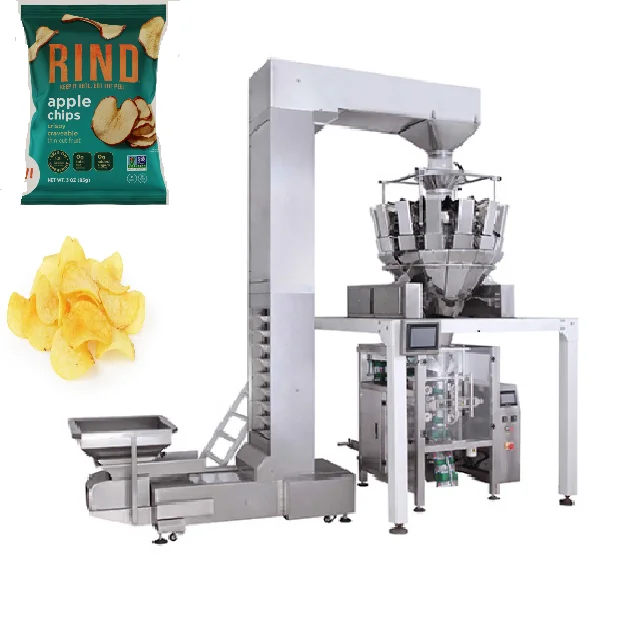

14 multihead weigher production line Pillow bag vertical snacks granule printing date Packaging Machine
- Category: >>>
- Supplier: Guangzhou Xinlongtai Machinery Co. Ltd
Share on (1600655824859):
Product Overview
Description

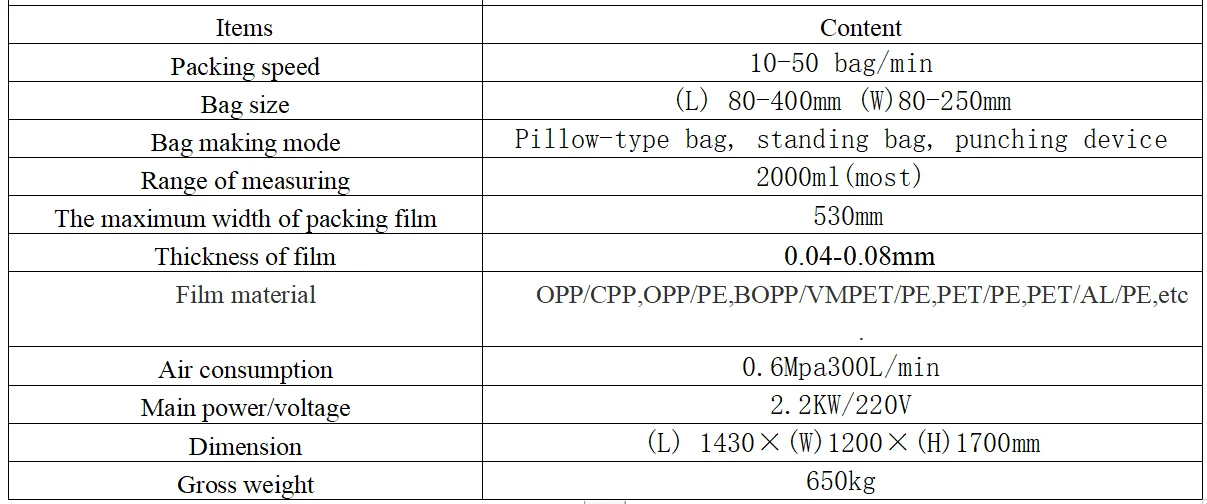

Specification
Use range | It’s suitable to pack dry products , such as : coffee beans, peanuts, chips, snacks, sugar, rice, dry fruits, candy... |
Range of measuring | 5-6000g |
Packing speed | 10-50bags/min |
Weighing accuracy | ±1-3g |
Weighing error | 0.1g-1g |
Hopper | 14pcs x1.6L weighing buckets |
Languages | English, Polish, France, Spanish, Hungary, Germany, Finland… |
The maximum width of packing film | 530mm |
Thickness of film | 0.04-0.08mm |
Air consumption | 0.6Mpa300L/min |
Bag making mode | Pillow-type bag, standing bag, punching device |
Bag size | (L) 80-350mm (W)80-250mm |
Product Description
Z Bucket elevator:
Standard lifting height 3.8m, discharging height 3.1m
Vibration hopper 70L
304SUS frame and PP/ABS plastic buckets
Max speed 90 buckets/min
Working capacity: 5-7CBM/H
Working platform:
support the weigher machine
304SUS frame, 3mm aluminum table
110X110X2MM legs
54cm feet step ladder
110mm railway

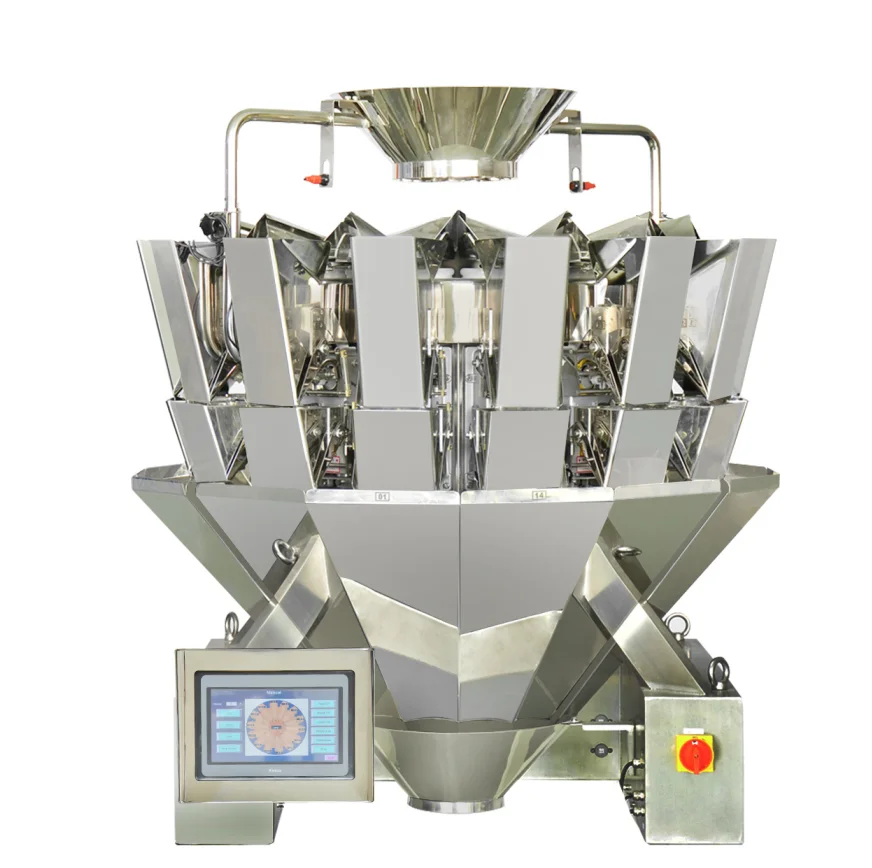

XLT-14DS-2500 multihead combination weigher
this model suit for weighing the dry products, such as banana chips, puffle food, snacks, french fries, potato chips, mixed nuts, chocolate beans, dried fruits, sunflower seeds, popcorn, fruit nuts, biscuits, snack.
10.1 inch color touch screen.
14pcs 2.5L weighing buckets.
Max speed 120bag/min (depends on products).
Weighing error: 0.1-1g.
Weighing range/dump: 5-1000g
CE certificate and IP 65 waterproof .
Each vibration feeder can be individial control.
Can store up to 50 different products information, easy to pick out to use next time.

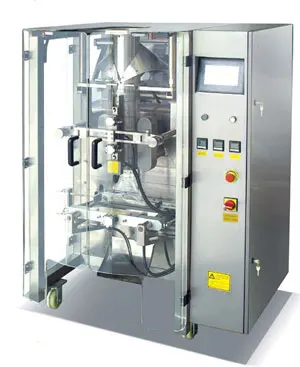

XLT-520 Vertical packing machine:
1. Imported PLC controlled system
2. Chinese/English touch screen operation system
3. Clearly showing the working condition and operation indication.
4. High accuracy serve-motor to drive film
2. Chinese/English touch screen operation system
3. Clearly showing the working condition and operation indication.
4. High accuracy serve-motor to drive film
5. Photo-electric position tracking system, high accuracy.
6. Digital number type temperature control system
7. With tear type sealing part to assure the good and nice sealing.
8. Automatic malfunction alarm function: low temperature,no film, no ink belt, no material, serve malfunction, no color mark signal.
9. When open the glass door, the machine will immediately alarm or stop.
9. When open the glass door, the machine will immediately alarm or stop.
10. This machine if equipped with the measuring equipment,it can do: measuring, dosing, sealing bag, date printing.
Double belt pulling system:
Double belt to pull the film, so that the bag will be seal in more nice and film will stable to be pulled at both sides.
Back side look:
Easy to load the film and there is a motor to control the roll film
Side look:
Can be open at the side, so the maintenance will be easy too.
Output conveyor
this conveyor is used to take the finished bags from the packing machine and send them to the rotary table or checkweigher or metal detector.
Rotary collecting table
The table is used to collecting the bags from the conveyor and wait for workers to take and put them inside the cartons or containers.
