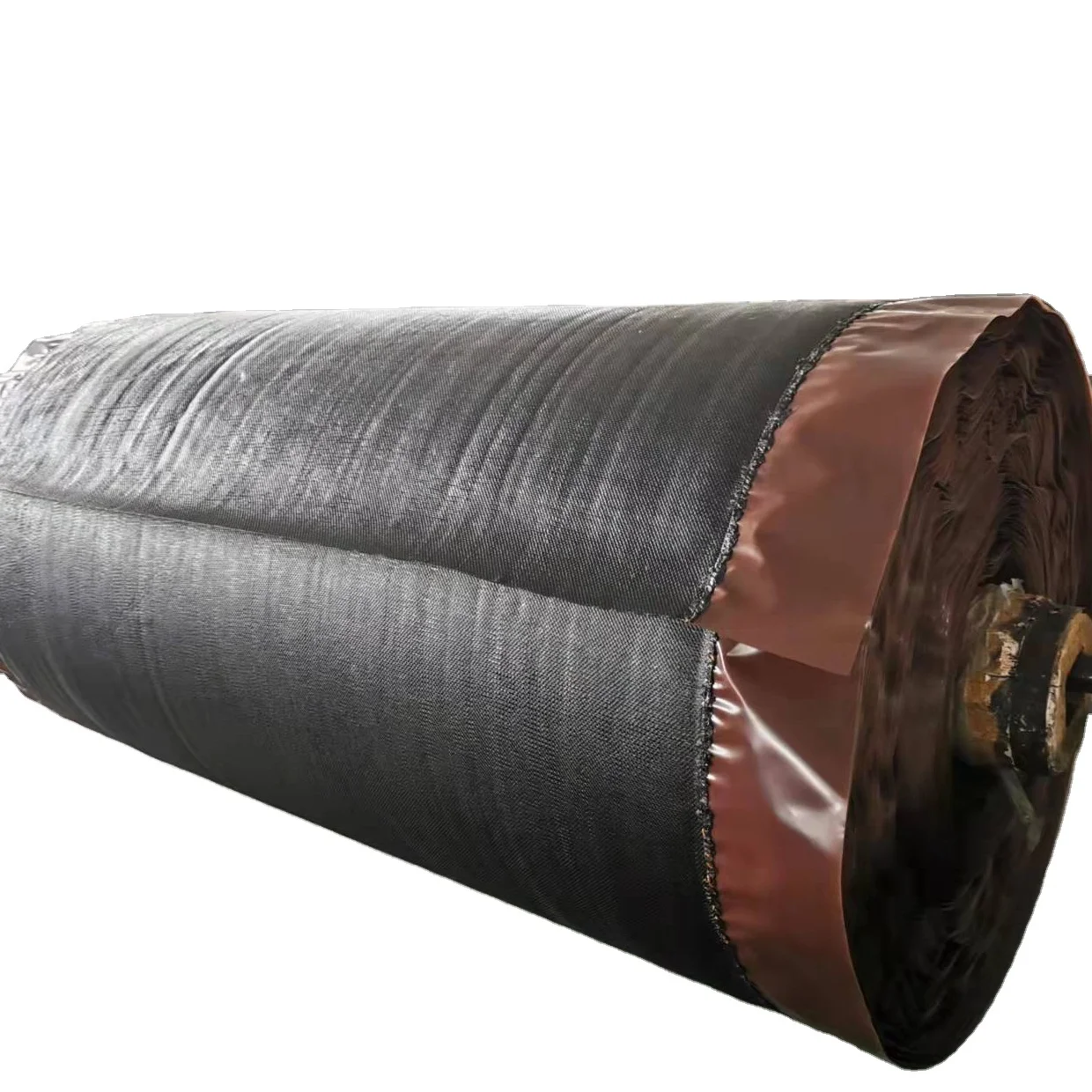

High Quality dipped nylon cord fabric for rubber suction hose
- Category: >>>
- Supplier: Weifang Minglun Chemical Fiber Co. Ltd
Share on (1600655840947):
Product Overview
Description
Products Description
Description

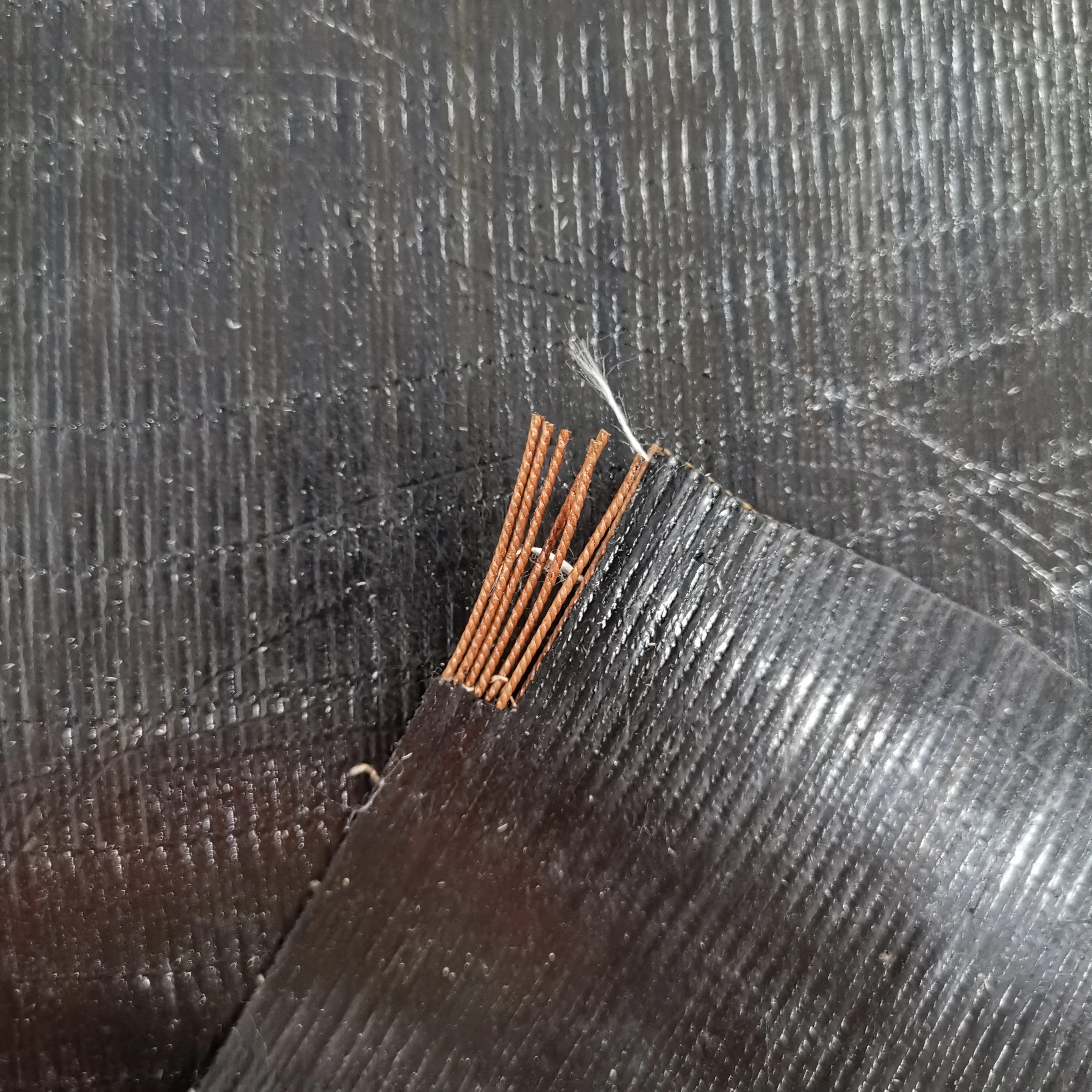

Tire cord fabric is an important framework material woven with strong strands as warp and medium and fine single yarn as weft. lt is mainly used in tire and hose industry, and has high strength, good fatigue,impact resistance, and high firmly bonded with rubber. lt is an important material affecting tire performance and service life, it is widely used in bicycle tire, motorcycle tire, light truck tire and bias tire, Engineering tire and aviation tire, etc. The company mainly engaged in nylon 6,nylon 66 and polyester cord fabric for domestic and foreign markets, a full range of types to meet customer demand.
Test
Item | 930dtex / 2 ( 840D / 2 ) | 1400dtex / 2 ( 1260D / 2 ) | 1400dtex / 3 ( 1260D /3 ) | 1870dtex / 2 ( 1680D / 2 ) | 2100dtex / 2 ( 1890D / 2 ) | ||
Warp Density | END / 10 CM | 60 | 100 / 74 / 52 | 88 / 74 | 88 / 68.4 | 88 / 74 | |
Weft Density | END / 10 CM | 10 | 8 / 10 / 10 | 8 / 10 | 9 / 9 | 9 / 9 | |
Width | CM | 145 ± 3.0 | 145 ± 3.0 | 145 ± 3.0 | 145 ± 3.0 | 145 ± 3.0 | |
Breaking Strength | N / root (Kgf /root) | ≥ 137.2 ( 14.0 ) | ≥ 215.6 ( 22.0 ) | ≥ 313.6 ( 32.0 ) | ≥ 284.2 ( 29.0 ) | ≥ 313.6 ( 32.0 ) | |
Elongation Rate of Breakage | % | 8.5 ± 0.6 ( 44.1 N ) ( 4.5 Kgf) | 8.5 ± 0.6 ( 66.6 N ) ( 6.8 Kgf) | 9.0 ± 0.8 ( 100 N ) ( 10.2 Kgf) | 8.5 ± 0.6 ( 88.2 N ) ( 9.0 Kgf) | 9.0 ± 0.6 ( 100 N ) ( 10.2 Kgf) | |
Elongation at Break | % | 22.5 ± 2 | 21.5 ± 2 | 22 ± 2 | 22.5 ± 2 | 22 ± 2 | |
Dry - Heat Shrinkage | % | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | |
Adhesive Strength | N / CM ( Kgf / CM) | ≥ 107.8 ( 11.0 ) | ≥ 137.2 ( 14.0 ) | ≥ 156.8 ( 16.0 ) | ≥ 156.8 ( 16.0 ) | ≥ 156.8 ( 16.0 ) | |
Dip Pick - up | % | 5.0 ± 0.9 | 5.0 ± 0.9 | ≥ 3.5 | 5.0 ± 0.9 | ≥ 3.5 | |
Diameter | MM | 0.53 ± 0.03 | 0.65 ± 0.03 | 0.78 ± 0.03 | 0.74 ± 0.03 | 0.78 ± 0.03 | |
Twist, First Twist | T / 10 CM | 46.0 ± 1.5 | 39.0 ± 1.5 | 32.0 ± 2.0 | 32.0 ± 1.5 | 32.0 ± 2.0 | |
Second Twist | T / 10 CM | 46.0 ± 1.5 | 37.0 ± 1.5 | 32.0 ± 2.0 | 32.0 ± 1.5 | 32.0 ± 2.0 | |
Moisture Regain | % | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | |
Application
Usage

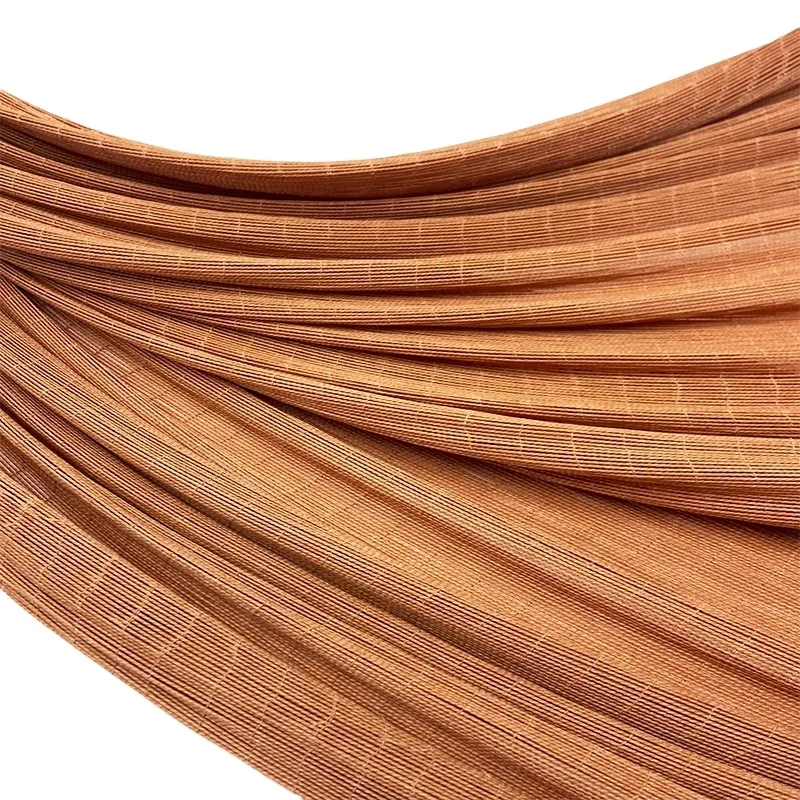

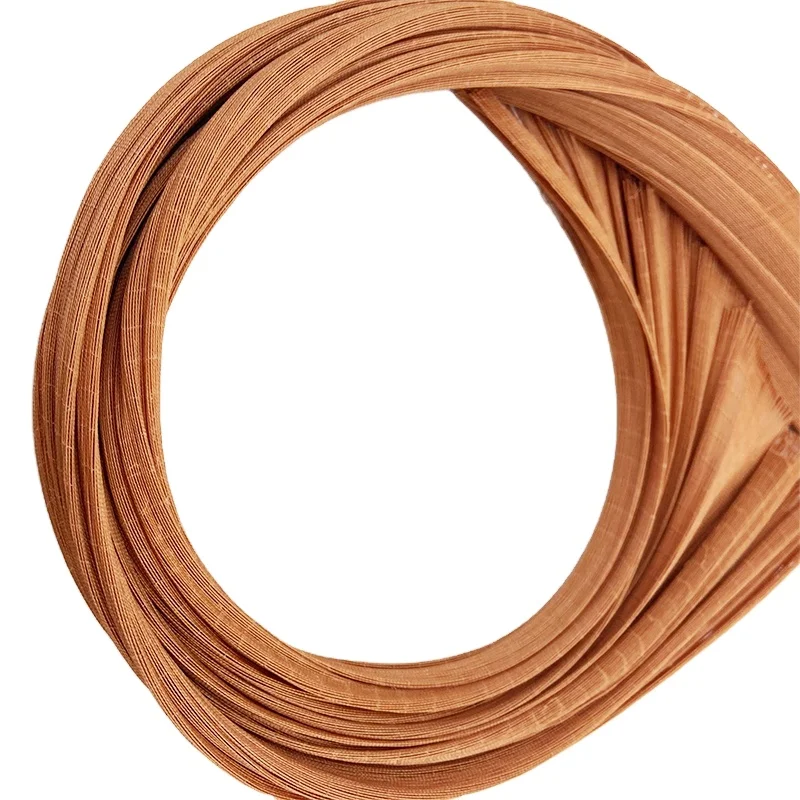

Cord fabric is a kind of rubber product frame fabric, which is made of strong ply yarn as warp yarn and medium fine single yarn as weft yarn. The warp yarn is closely arranged and the weft yarn is sparsely arranged, which looks like a curtain, hence the name.

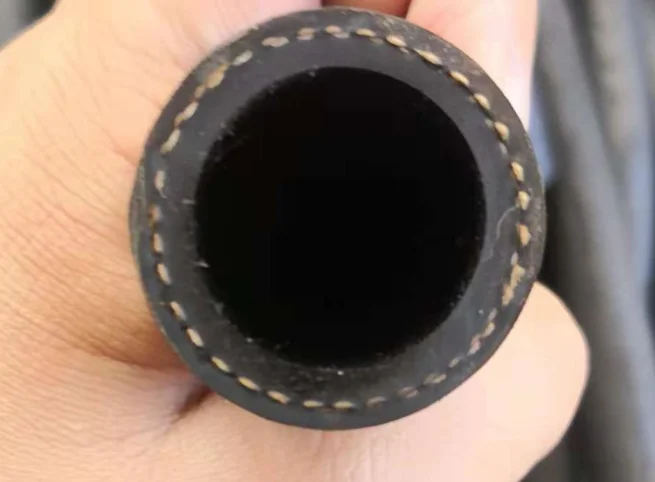

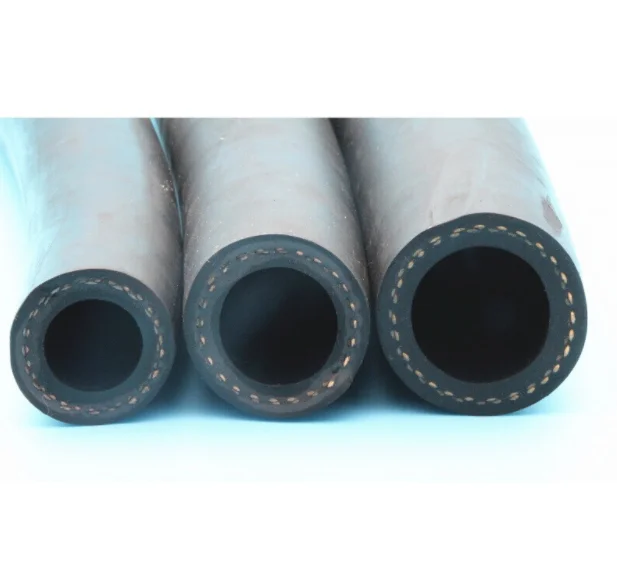

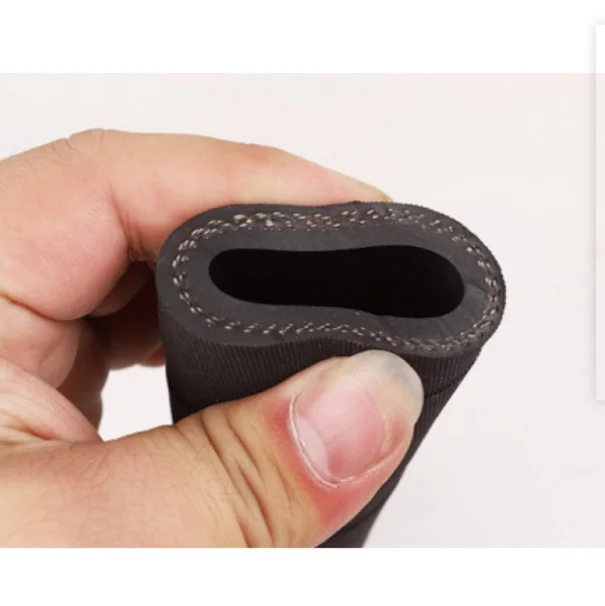

Cord fabric is used as the framework of rubber products such as rubber hose, which can withstand huge pressure, impact load and strong vibration. Cord fabric is an important material that affects the performance and life of tire. Warp, also called rope, bears the load, and weft fixes the position of warp

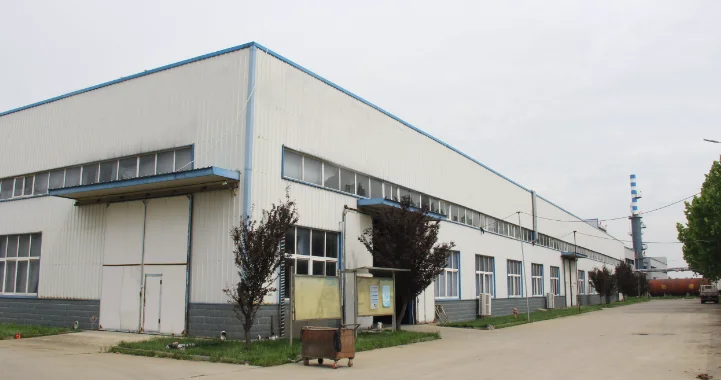

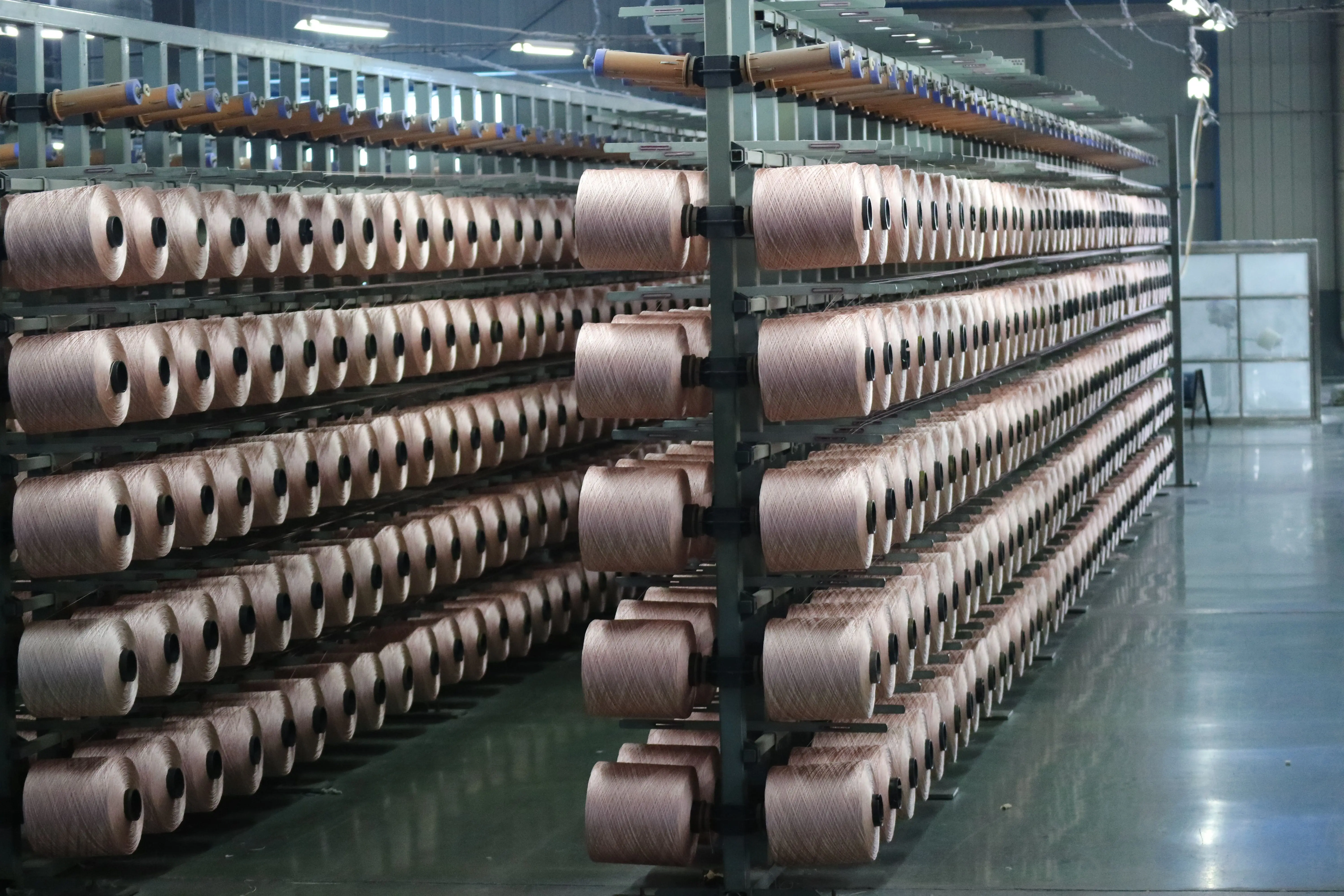

Factory Show
We are the modern enterprise of production and marketing integration of all kinds of industrial fabric, such as the BELTING FABRIC, TIRE CORD FABRIC, and NYLON CHAFER. MingLun covers an area of 120000 square meters owning registered capital 61 million RMB, fixed asset 670 million MB and over 1000 workers. Our machine and manufacturing technique are the most advanced both in domestic and abroad. Our Annual output includes 30000 tons HMLS polyester tire cord fabric, 45000 tons nylon6( nylon66) tire cord fabric,7000 tons belting fabric and 500 tons nylon(nylon66) chafer and contributes to annual sales revenue about 2200 million RMB.
All our products are exported to countries like America, Britain, Germany, Japan, South Korea, Malaysia and Indonesia. We have achieved good reputation and universally recognized by the market.
This project conforms to the relevant national industry policies, meanwhile also can improve the quality of radial tyre and stimulate the tyre and auto industry development efficiently, speed up the manufacturing modernization, adapt to the requirement of strong industrial province of Shandong, and will show the positive effect of promoting development of the economy and the adjustment of industrial function of the area. Making "keep moving, keep faith and keep quality' as its operation principle. MingLun much values the communication and cooperation with clients and our chemical fiber industry friends and believes we can create a bright future together by professional service and modernization management.
This project conforms to the relevant national industry policies, meanwhile also can improve the quality of radial tyre and stimulate the tyre and auto industry development efficiently, speed up the manufacturing modernization, adapt to the requirement of strong industrial province of Shandong, and will show the positive effect of promoting development of the economy and the adjustment of industrial function of the area. Making "keep moving, keep faith and keep quality' as its operation principle. MingLun much values the communication and cooperation with clients and our chemical fiber industry friends and believes we can create a bright future together by professional service and modernization management.
Advantage
Exhibition
FAQ
Q:Can we get the sample before we place an order？
Yes, we offer free samples, shipping is not included, and shipping is refunded after your first order.
Q: How long is the delivery time?
Generally 10 days depending on the quantity of goods.
Q:What if we receive defective products?
We have perfect after-sales service system, accept replacement, as well as special reception.
Q:What's your advantage?
1.Best Materials selection:
All our goods are by use of best materials imported which are environmentally-friendly and we can guarantee all mass production goods are same as the perfect pre-production samples with exactly same materials craftsmanship.
2.Excellent staff with Outstanding Academic Qualification
All our team members are highly experienced with responsible manners, fast-tracking attitudes and prompt reaction.
Q: How long is the delivery time?
Generally 10 days depending on the quantity of goods.
Q:What if we receive defective products?
We have perfect after-sales service system, accept replacement, as well as special reception.
Q:What's your advantage?
1.Best Materials selection:
All our goods are by use of best materials imported which are environmentally-friendly and we can guarantee all mass production goods are same as the perfect pre-production samples with exactly same materials craftsmanship.
2.Excellent staff with Outstanding Academic Qualification
All our team members are highly experienced with responsible manners, fast-tracking attitudes and prompt reaction.
OUR SERVICES
1.Reply your enquiry in 24 working hours ,any time you can contact me.
2.High Quality and Most Competitive Price
3.Professional engineers and staffs.
4.All Specs Acceptable Customized!
5.OEM
6.timely delivery
2.High Quality and Most Competitive Price
3.Professional engineers and staffs.
4.All Specs Acceptable Customized!
5.OEM
6.timely delivery
