55T High Effective Automatic Blood Lancet Making Machine Injection Machine
- Category: >>>
- Supplier: Dongguan Hommar Hardware Co. Ltd.
Share on (1600655857180):
Product Overview
Description
Products Description

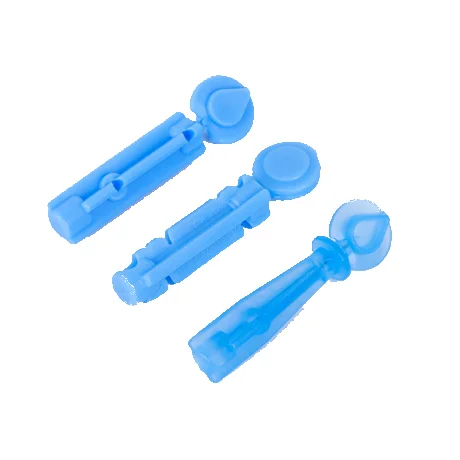

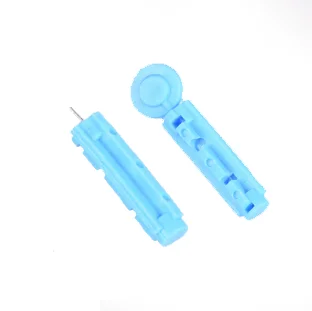

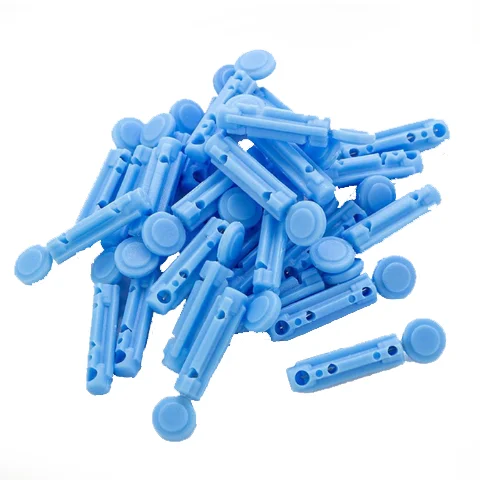

55T High Effective Automatic Blood Lancet Making Machine Injection Machine
Clamping Force | 55T |
Plastic Type | Thermoplastic |
Machine Type | Vertical Plastic Injection Molding Machine |
Screw Diameter | 28-32mm |
Screw Stroke | 140mm |
Machine Dimesions | 2240mm*1520mm*2455mm |
Specification
Mold | Unit | HM-V55R2 | |
注射装置 Injection Unit | Screw Diameter | mm | 28-32 |
Screw Stroke | mm | 140 | |
Theoretical Shot Volume | cm³ | 86-112 | |
Injection Molding Quality | g | 80-103 | |
oz | 2.8-3.6 | ||
Max.Injection Pressure | Mpa (kgf/cm²) | 212-162(2169-1661) | |
Injection Rate | cm³/s | 51-67 | |
Screw Speed | r.p.m | 0-190 | |
合模装置 Mold Clamping Unit | Clamping Force | KN(tf) | 539(55) |
Clamping Stork | mm | 200 | |
Min.Mold Thickness | mm | 180(260) | |
Max.Open Distance | mm | 380(460) | |
Diameter of rotary table | mm | 880 | |
Max.Size of Mold | mm | 320*320 | |
Plate Size | mm | \\ | |
Distance of Product Out of Mold | mm | 70 | |
Ejector Force | KN(tf) | 21.5(2.2) | |
QTY of Ejector | pcs | 3 | |
其他 General | System Pressure | Mpa(kgf/cm²) | 13.7(140) |
Motor Power | kw(HP) | 7.5(10) | |
Electric Power | kw | 5.5 | |
Temperature Stage | 3+1 | ||
Mechanine Dimesions | mm | 2240*1520*2455 | |
Machine Weight | tf | 3.2 |
*Vertical clamping and vertical injecting, suitable for the molding of plastic products with inserts.
* 2,3 or 4 Stations Structure,stable rotation, accurate positioning, can improve production efficiency up to 30%-50%.
*2-3 times of outputs.
*Rotary table type, Yet ensures fast speed, excellent stability of operations and more safety
* Unique toggie mechanism evenly distributes clamping force over the mould surface.
*Rotary table type, Yet ensures fast speed, excellent stability of operations and more safety
* Unique toggie mechanism evenly distributes clamping force over the mould surface.

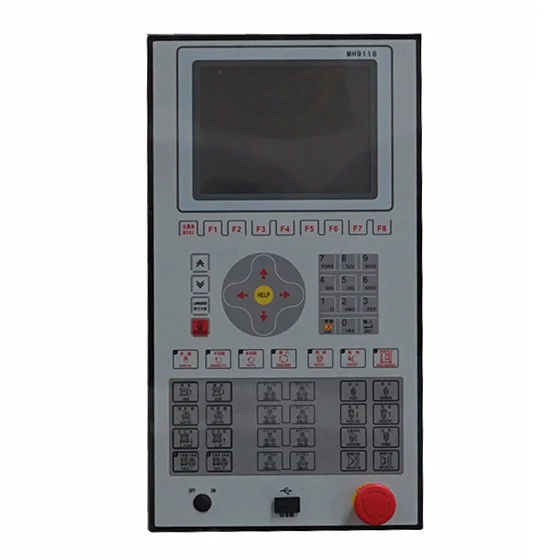

PLC | Electronic Parts | ||||||
Brand: MIRLE | Brand: Fuji/Schineider/Fotec | ||||||
Original: CHINA | Original: Japan/France/Taiwan, China | ||||||
Features: High Precise Control,High Sensitive Response ,TFT Color Display,Language:Portugal,English,Chinese | Features: Stable High Sensitive | ||||||

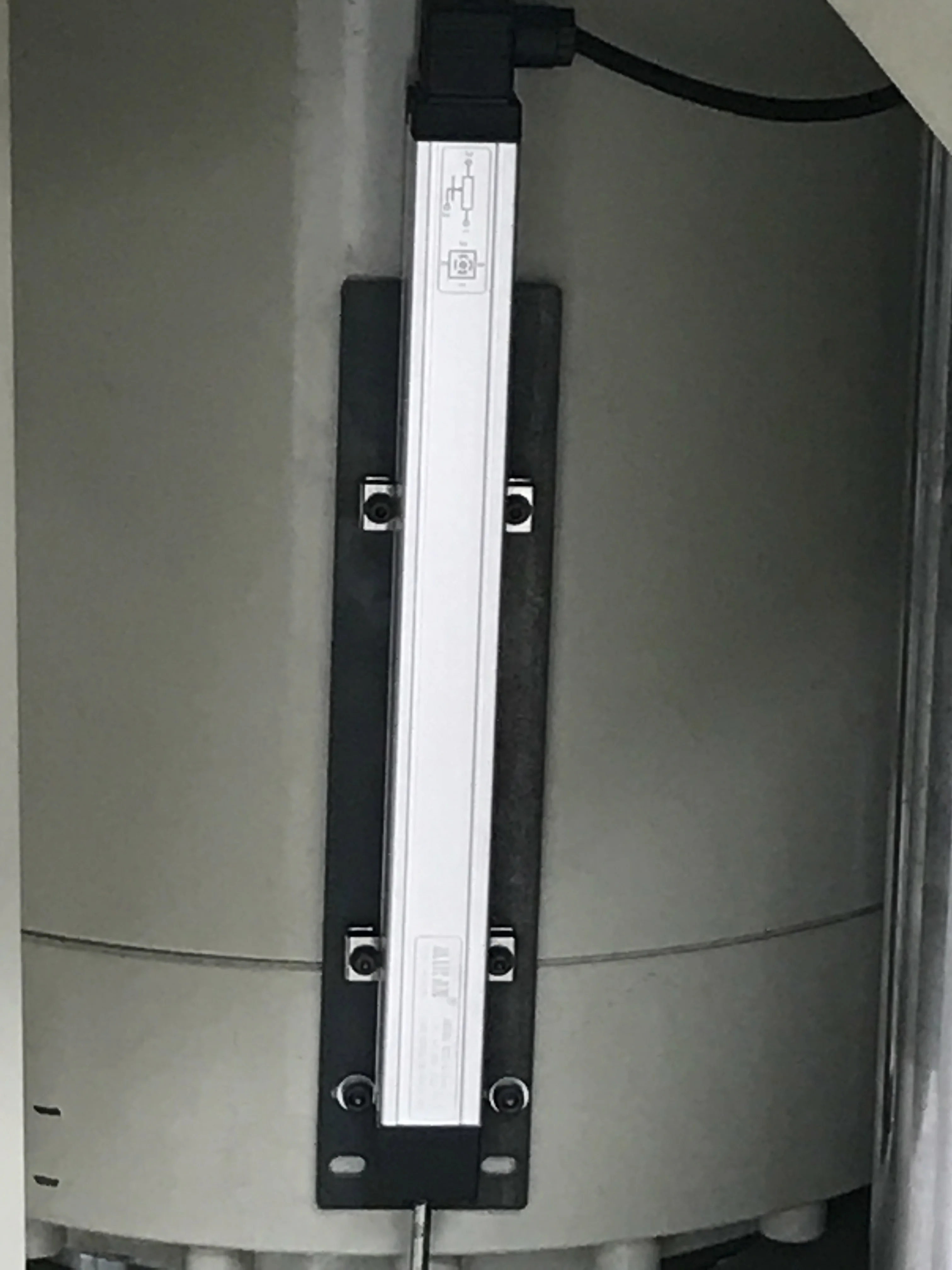

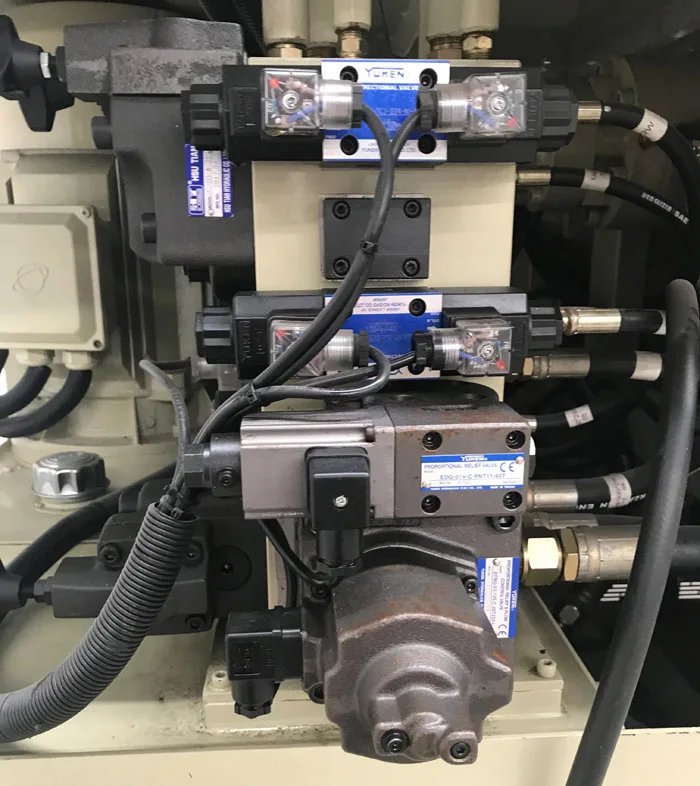

Position Transducer | Hydraulic Valve | ||||||
Brand: Gefran | Brand: Yuken | ||||||
Original: Italy | Original: JAPAN | ||||||
Features: High Precise Control | Features: Longer span life | ||||||

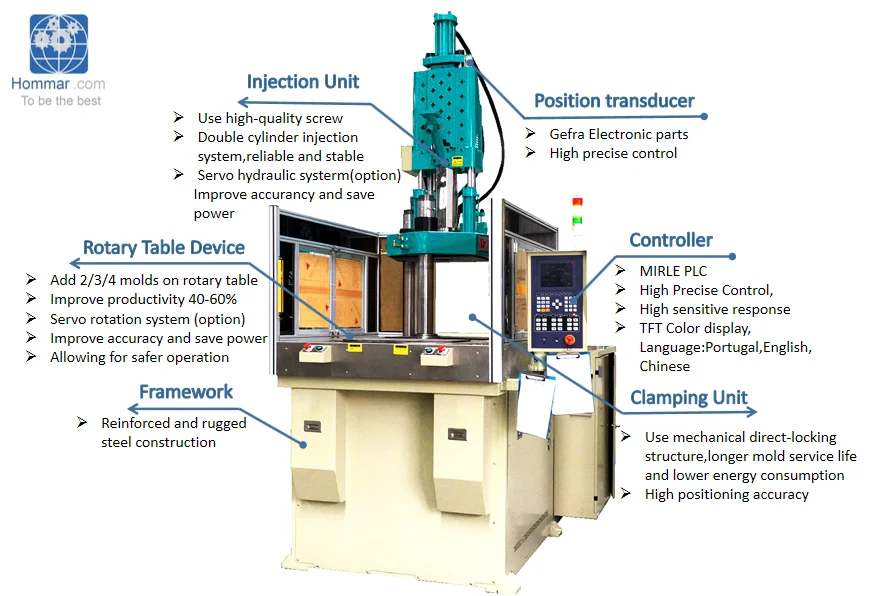

Performance&Features
GENERAL PERFORMANCE
1.Fixed lower platen and movable upper platen. Suitable for insert molding.2.Nitrided steel screw and barrel,high-torque hydraulic motor-driven,multi-stage injection pressure,excellent plasticizing performance.
3.Vertical hydraulic clamping system with two cylinders,high-speed and low-pressure mold closing,multi-stage pressure control, longer mold life and more safety.
4.Protective devices of electrical components to avoid malfunction and maintain personal safety.
5.Movable injection carriage for easy replacement of material and mold.
STANDARD FEATURES
1.Screw cold start protection.
2.Emergency stop safety switch.
3.PID proportional temperature control.
4.Automatic fault display and shutdown.
5.Double-way safety starting switch.
6.High-speed low-pressure safety clamping device.
6.High-speed low-pressure safety clamping device.
Applications
