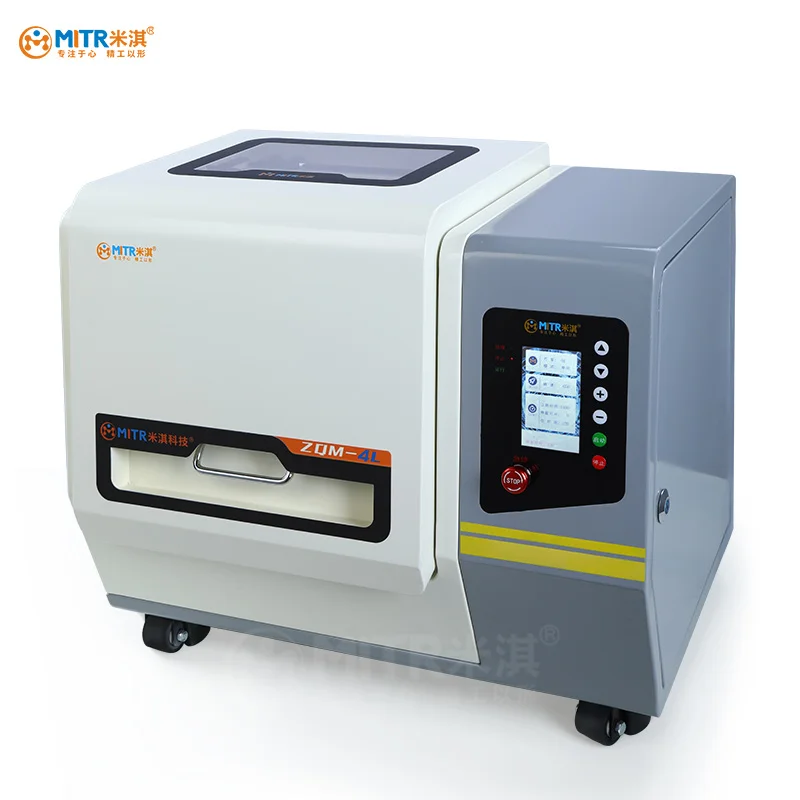

High Energy Smart LCD Panel Timing Setting Lab Planetary Ball Mill Mini Wet And Dry China Micron Nano Powder Milling Machine

Share on (1600655883135):


Price:$1,825.00 - $2,700.00

Quantity:


Product Overview

Description



Small Agatemortar Powder Pp Grinding Jar For Lab Planetary Ball Mill Machine


all Mill Machine

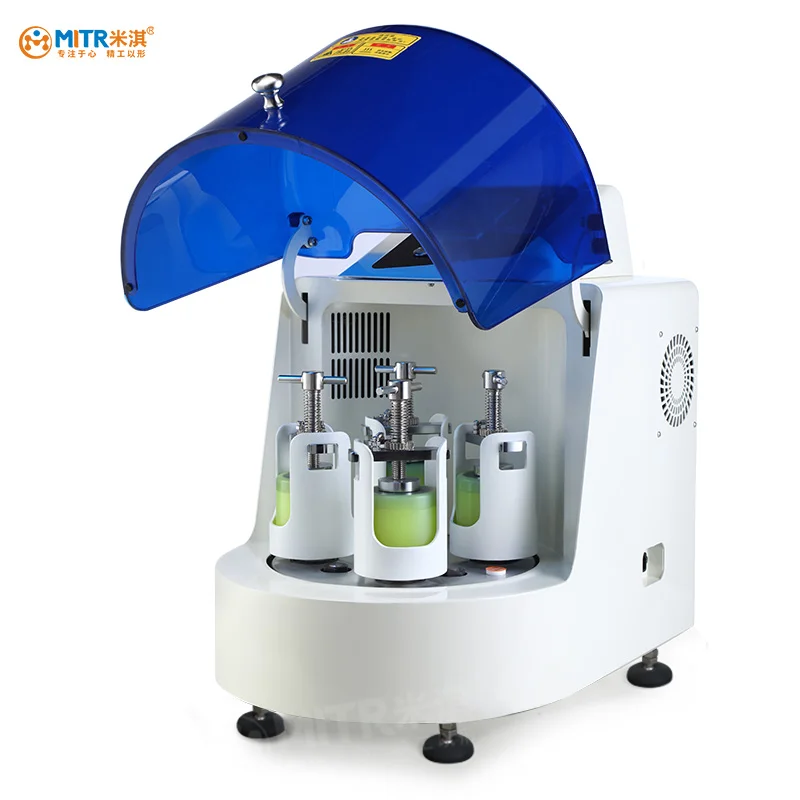

Lab planetary ball mill for super fine powder grinding


 Feature of MITR oil seal mute planetary ball mill:


* Factory direct selling and certified products.---High cost performance and quality assurance.


* Our machine running noise low 50db. Prolonging gear life.---Planetary ball mill


* Arc sleeve and safety lock ball mill jar device.---Planetary ball mill


* PLC frequency conversion control


* Acrylic transparent glove box with vacuum to -0.1Mpa.


* Stainless steel glove box with vacuum to -0.1Mpa


*Our product widely used in the field of biochemistry, metallurgy, electronics, chemical engineering, geology, mineral, medicine.


*Used for electronic materials, magnetic materials, equipment batteries, biological breeding, etc.


* Many agents and university all over China. Plan to expand business over the world .


* More than 10 years of manufacture experience in lab planetary ball mill and lab glove box.--- Professional!





Application


     Pearl, ginseng, Dendrobium candidum, tablets, medicament, liquorice, coke, coal, glass, cellulose, paper, chip, polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramics, Alumina, bone, kaolin, Limestone, gypsum, quartz, minerals, ores, carbonized fibres, graphite, ink, clay minerals, fibre products, sewage sludge, catalysts, chemicals, alloys, soils, waste samples, wood, plant materials, Cement slag, concrete, slag, tobacco.


Instruction:


    MITR Planetary ball mill is a necessary device for mixing,fine grinding,small samples prepared,dispersion of nanomaterail,R&D of new product and small batch production for high tech materials. The equipment with small volume,comprehensive function,high efficiency,low noise which is the ideal device of obtaining micro-particle research samples used for research and development institute,collages and universities,enterprise laboratory(Four samples can be obtained at the same time in each experiment). The samples could be ground under vacuum state with using the vacuum ball mill jars.


Technical parameter:














































































































































































ModelVoltageMotor power(KW)Inverter power KWTotal timingAlternating Run TimeRPMRPMNoise ≤db
YXQM 0.4L220V 50HZ0.550.551-99991-99995-45010-900<50db
YXQM 1L220V 50HZ0.550.551-99991-99995-45010-900<50db
YXQM 2L220V 50HZ0.750.751-99991-99995-40010-800<50db
YXQM 4L220V 50HZ0.750.751-99991-99995-40010-800<50db
YXQM 8L220V 50HZ1.51.51-99991-99995-32010-640<58db
YXQM 10L220V 50HZ1.51.51-99991-99995-32010-640<58db
YXQM 12L380V 50HZ1.52.21-99991-99995-32010-640<58db
YXQM 16L380V 50HZ2.22.21-99991-99995-28010-560<58db
YXQM 20L380V 50HZ33.71-99991-99995-23010-460<60db
YXQM 40L380V 50HZ5.57.51-99991-99995-22010-440<63db
YXQM 60L380V 50HZ7.57.51-99991-99995-18010-360<65db
YXQM 80L380V 50HZ7.5111-99991-99995-18010-360<65db
YXQM 100L380V 50HZ11111-99991-99995-18010-360<68db






Details:

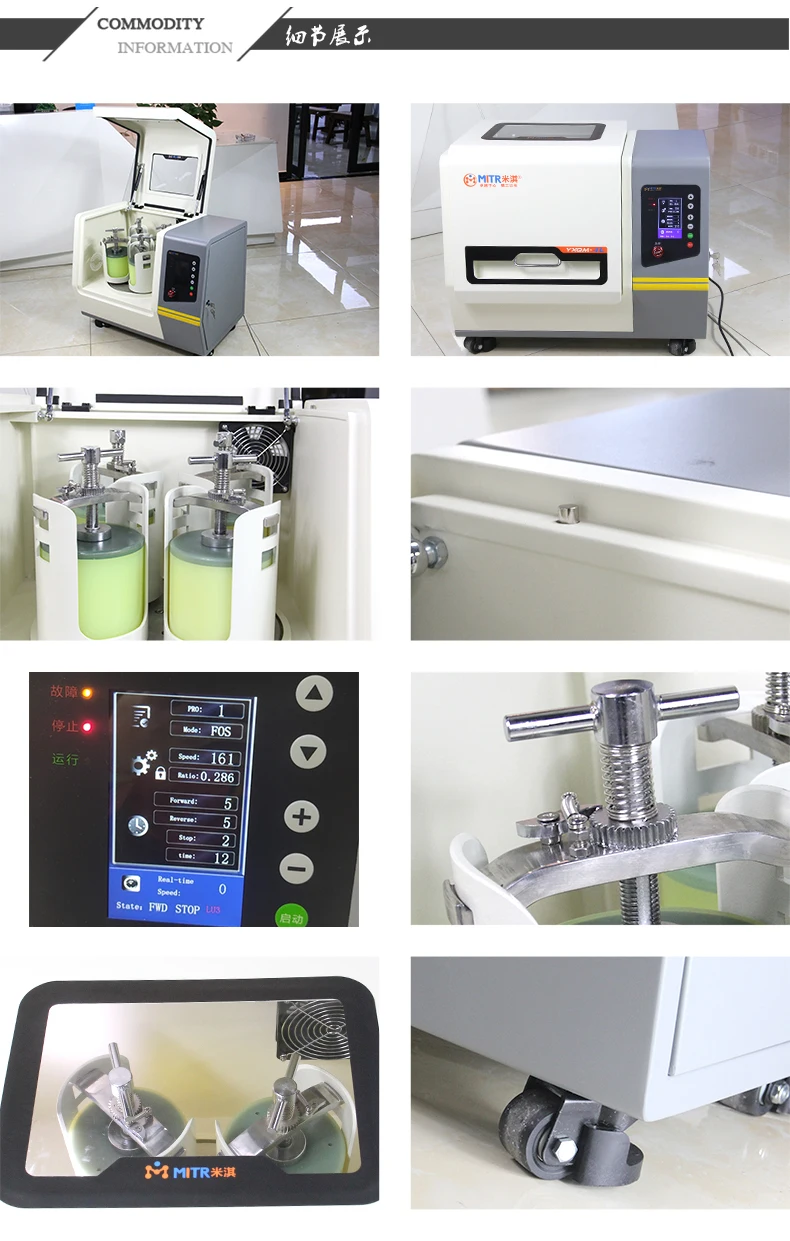

 Details of ZQM-P2(1).jpg









Accessories

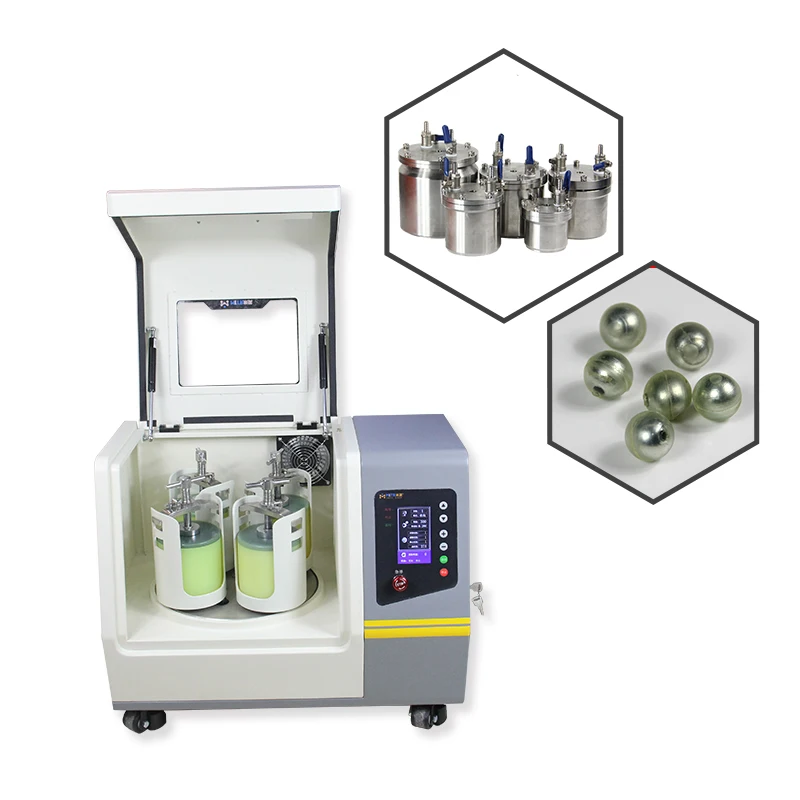

Jars.jpgGrinding balls].jpg


Company Information:


Our main business is the R&D,production and marketing of experimental equipmental and related technical consultation service.


We are specialized in planetary ball mill,roller ball mill,stainless vacuum glove box,acrylic vacuum glove box,horizontal light ball mill,tablet machine and related equipment with more than 10 years. Our company have the laboratory with 1000 sets of application cases and maybe could provide you some suggestion.


We have the talented technical team members more than 30 including Ph.D.,Master,Senior engineer,Senior technician,technicians. We have more than 150 staff in the factory.


 MITR Factory and Office


Packaging:
