FOTOVO Splendid insulation performance 420w Half cut Perc solar module lower cost mono crystalline mono facial panel
FOTOVO Splendid insulation performance 420w Half-cut Perc solar module lower cost mono-crystalline mono-facial panel
FOTOVO Splendid insulation performance 420w Half-cut Perc solar module lower cost mono-crystalline mono-facial panel
FOTOVO Splendid insulation performance 420w Half-cut Perc solar module lower cost mono-crystalline mono-facial panel
FOTOVO Splendid insulation performance 420w Half-cut Perc solar module lower cost mono-crystalline mono-facial panel
FOTOVO Splendid insulation performance 420w Half-cut Perc solar module lower cost mono-crystalline mono-facial panel
FOTOVO Splendid insulation performance 420w Half-cut Perc solar module lower cost mono-crystalline mono-facial panel

FOTOVO Splendid insulation performance 420w Half cut Perc solar module lower cost mono crystalline mono facial panel

Share on (1600655902016):


Price:$0.23 - $0.28

Quantity:


Product Overview

Description



Details Images




Product Paramenters

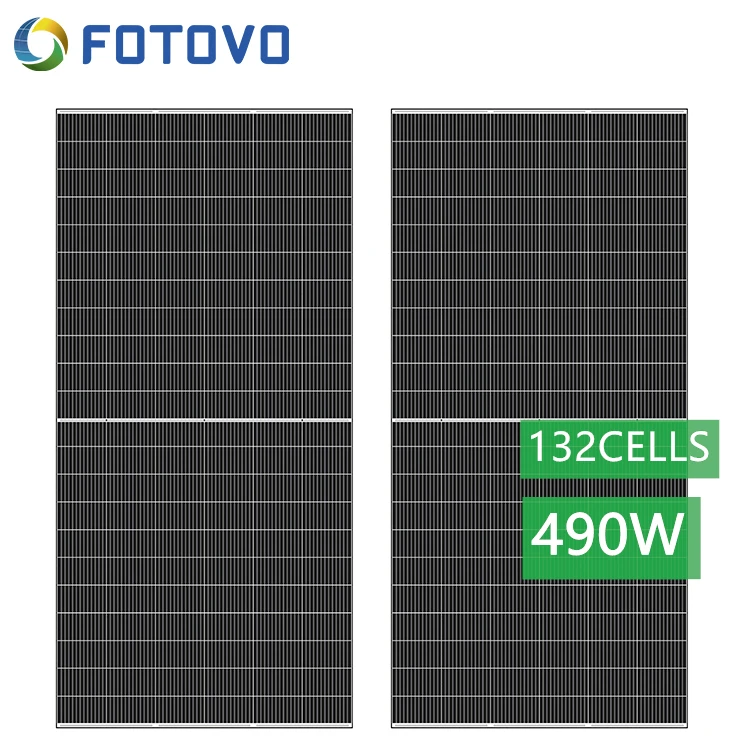

490W Mono Facial Module




Electrical Characteristics (STC)
Maximum power - Pm (W)
490
Open circuit voltage - Voc (V)
45.25
Short circuit current Isc (A)
13.74
Maximum Power Voltage-Vm (V)
38.08
Maximum Power Current-Im (A)
12.87
Module Efficiency-n (%)
20.9
Note: 1. Standard Test Conditions [STC]: irradiance 1000 W/㎡; AM 1.5; ambient temperature 25℃ according to EN 60904-3；
          2. Tolerance of Pm: 0~+5W, Measuring uncertainty of power: ±3%. Performance deviation of Voc [V], Isc [A], Vm [V] and Im [A]: ±3%.






Mechanical Parameters
Dimensions
2092×1134×35mm (L×W×H)
Weight
25.0kg
Front Glass
3.2mm,Anti-Reflflection Coating,
High Transmission, Low Iron, Tempered Glass
Frame
Anodized Aluminium Alloy
Cells
Mono PERC 182 ×182mm
Cell Orientation
132（6*22）
Junction Box
IP68 Rated
Cable
TUV 1×4.0mm²
(+): 290mm , (-): 145mm or Customized Length


Temperature Parameters
NMOT
42.3℃(±2℃)
Temperature Coefficient of Voc
-0.27%/℃
Temperature Coefficient of Isc
0.04%/℃
Temperature Coefficient of Pm
-0.34%/℃



Maximum Rated Parameters
Maximum System Voltage (V)
DC1500/1000(IEC)
Series Fuse Rating (A)
20
Surface Load Capacity (Pa)
5400
Temperature Range (°C)
-40~+ 85
Withstanding Hail
Maximum diameter of 25 mm with impact speed of 23 m·s-1


Package
container
40‘GP
Number of pallets per container
31
Number of modules per container
682


Company Profile






Certifications




Product packaging




FAQ


Q1: How to choose a right system and products?
A1: Tell us your requirements, then our seller will recommend a suitable product and system to you.

Q2: The advantages of home photovoltaic system
A2: Solar photovoltaic power generation performance is stable and reliable, with a service life of more than 25 years; Small
investment, big income;zero pollution;Low maintenance costs;

Q3: Why choose us?
A3: FOTOVO have been engaged in new energy power generation for more than 16 years. Our products and services cover more than 39 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions for PV power plants.

Q4: What is the warranty of solar system?
A4: 5 years for whole system,10 years for inverter,modules,frame.And we can make sure our products will through very strictly testing,and then send to you.

Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.And we have offices in many
countries,if you have problems,we can arrange people to help you solve problem.

Q6: What about the package?
A6: Strict double-layer packaging design,Rigorous vibration testing.Ensure that the product is not damaged during transportation.
