Product Description


Nordic nRF52832 BLE Wireless Module BT5.0 Positioning Mesh Module

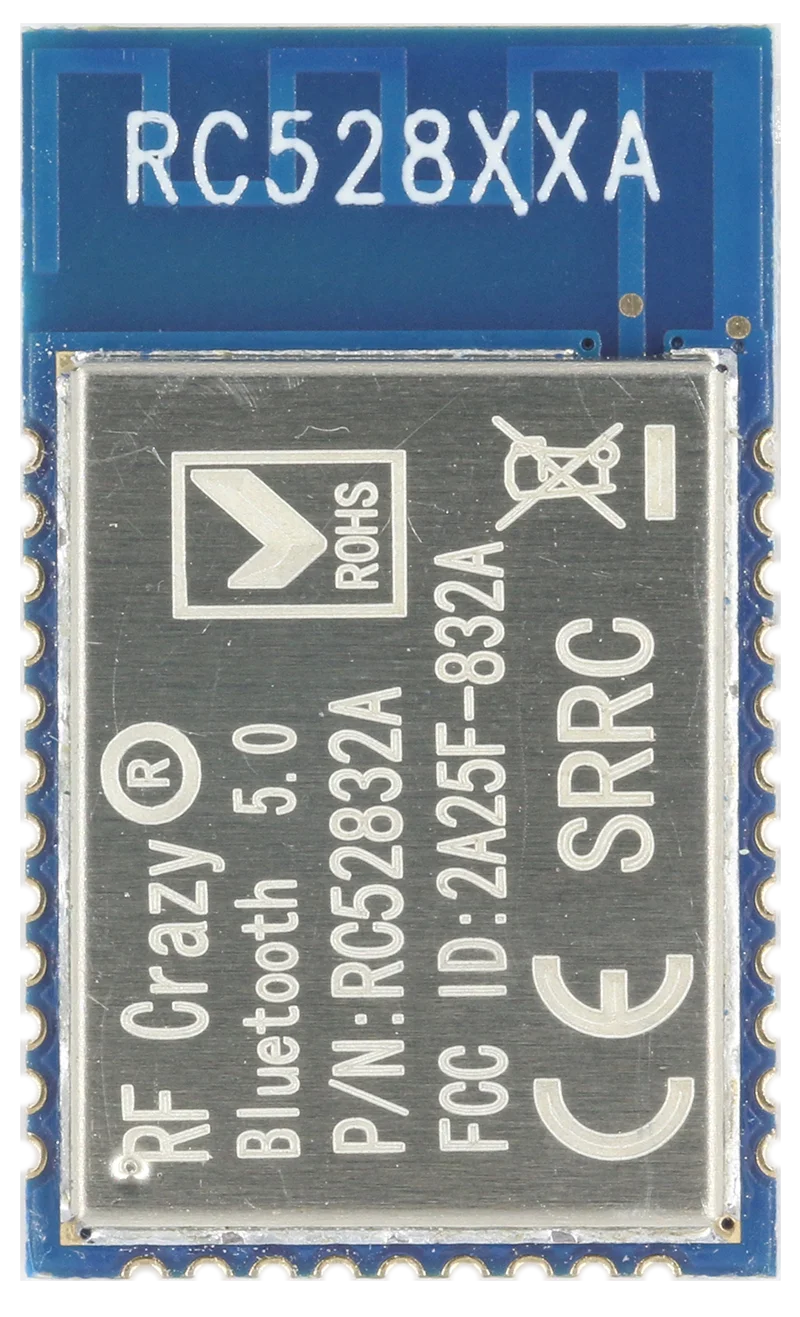

RC52832A is an RF module based on Nordic BLE SoC nRF52832QFAA with ARM Cortex-M4 32-bit processor. It integrates a 32.768 kHz and a 32 MHz crystal, an LC filter, an antenna matching and a meander line inverted-F PCB antenna. It supports BLE stack v5.0 including the high-speed 2 Mbps feature and can be preprogrammed with a serial interface communication protocols, such as NFC, ANT and 2.4 GHz proprietary for simple programming. RC52832A also support Bluetooth mesh which can be run concurrently with Bluetooth LE, enabling smartphones to provision, commission, configure and control mesh nodes. The module has NFC-A Tag for use in simplified pairing and payment solutions. It also has numerous digital peripherals and interfaces such as ADC, PDM, PWM, I2C and I2S for many applications. It features low power consumption, small size, robust connection distance, and rigid reliability. 1.27-mm pitch stamp stick package for easy assembling and cost-effective PCB design.

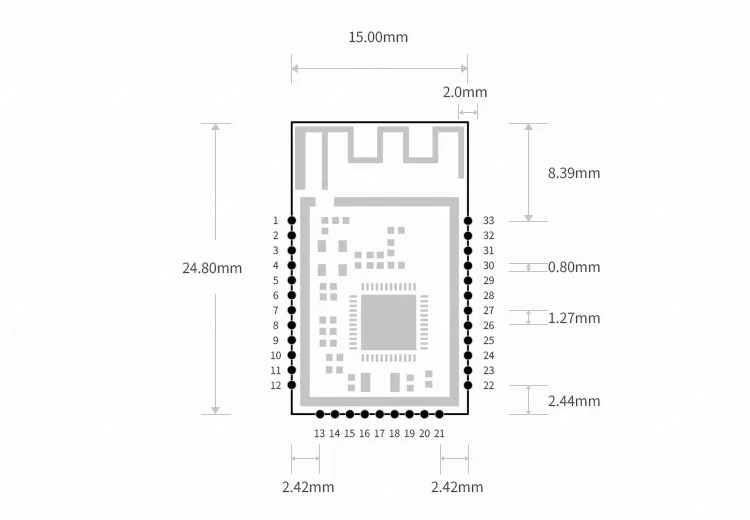

Pin
Name
Chip Pin
Pin Type
Description
1
GND
GND
GND
GND
2
VCC
VCC
Power
Power supply 1.7 V ~ 3.6 V, Recommend 3.3 V
3
P21
P0_21/RESET
I/O
Reset
4
P22
P0_22
I/O
5
P23
P0_23
I/O
6
P24
P0_24
I/O
7
P25
P0_25
I/O
8
P28
P0_28/AIN4
I/O
9
P29
P0_29/AIN5
I/O
10
P30
P0_30/AIN6
I/O
11
P26
P0_26
I/O
12
P27
P0_27
I/O
13
P02
P0_2/AIN0
I/O
14
P03
P0_3/AIN1
I/O
15
P04
P0_4/AIN2
I/O
16
P05
P0_5/AIN3
I/O
17
P06
P0_6
I/O
18
P07
P0_7
I/O
19
P08
P0_8
I/O
20
P09
P0_9
I/O
21
P10
P0_10
I/O
22
P11
P0_11
I/O
23
P12
P0_12
I/O
24
P13
P0_13
I/O
25
P14
P0_14
I/O
26
P15
P0_15
I/O
27
P16
P0_16
I/O
28
SWDIO
JTAG SWD
I/O
29
SWCLK
JTAG CLK
I/O
30
P17
P0_17
I/O
31
P18
P0_18
I/O
32
P19
P0_19
I/O
33
P20
P0_20
I/O




Company Profile




Production Workshop




Our Advantages




Payment & Shipping




Packing Modes






FAQ


Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.

Q2: Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete solution according to your requirements.

Q3.Whether the product can be customized logo?
A3.For bulk orders, we support custom logo.

Q4: What about the delivery time?
A4: For regular order it takes about 3-6 days for production, for mass order or customized order it may need 15-30 days.

Q5: What is your delivery terms and payment terms?
A5: We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you. 100% in advance for sample order, 50% deposit and 50% balance for mass order.

Q6. Can we get free samples from you ?
A6. Free samples are available. Normally we take 2 days to arrange samples.
