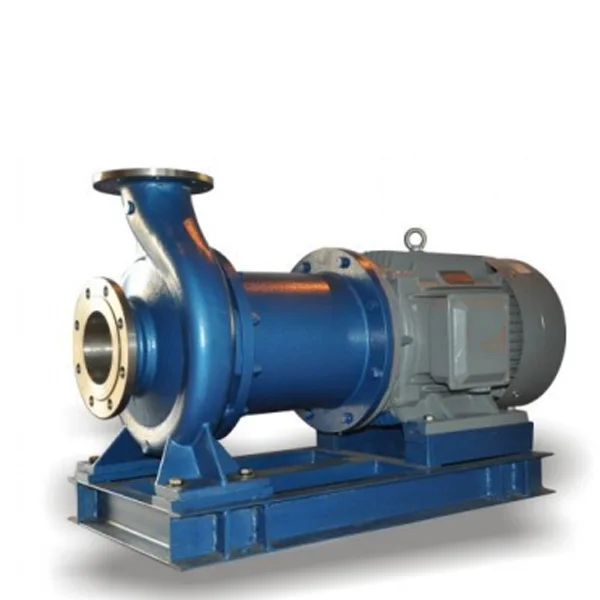

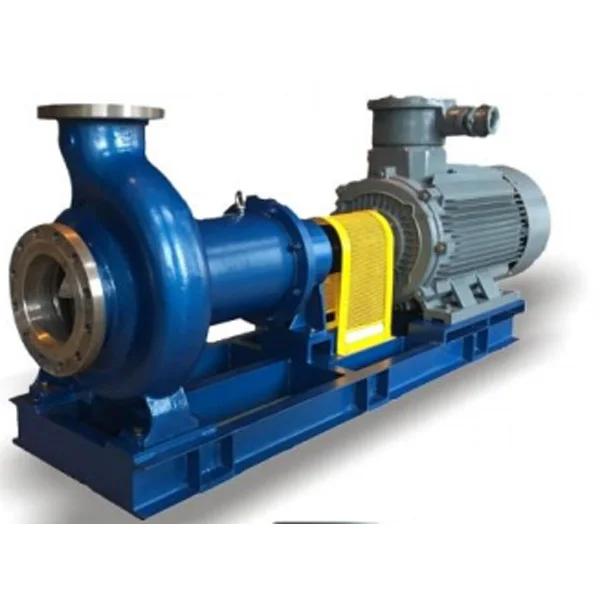

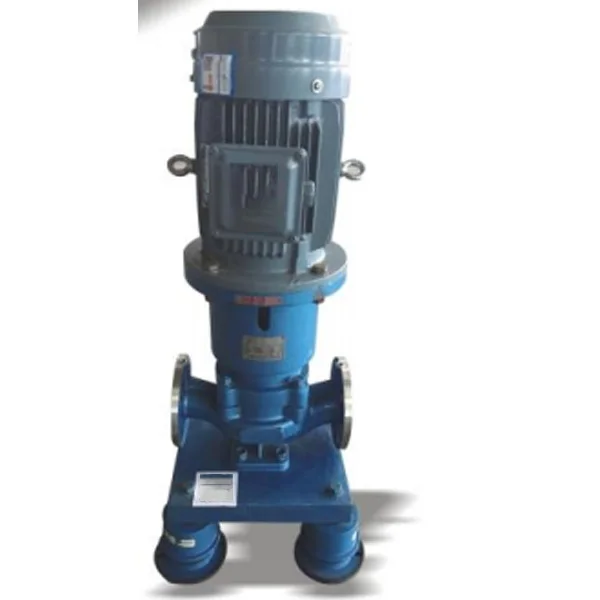

Stainless Steel Magnetic Driven Pump for Laboratory and chemical manufacturing operations high temperature resistance
- Category: >>>
- Supplier: Hangzhou Royal Pharmaceutical Equipment Co. Ltd.
Share on (1600655908993):
Product Overview
Description
Product Description
The RYNMQ series stainless steel magnetic pump is a new highly efficient magnetic pump improved on the standard CQB metal magnetic pump. With internationally leading combined push magnetic road and optimized design, magnetic torque increases by 15% under the same size, with minimum 316L material, greatly reducing the loss of magnetic vortex flow; excellent hydraulic model improves the machine efficiency by 3-8 percentage points; using double sliding bearing support for running smoothly. Temperature below 120℃ of the largest magnetic area, 120℃ -350℃ high temperature resistance of samarium cobalt magnetic material, product parts and high degree of standardization, strong general type.
Working Condition
Pump Diameter: 25mm-250mm
Working Temperature: -20℃-180℃
Flow Capacity Range∶3m³/h-130m³/h
Pump Head Range:12.5m-130m
Materials Range: SS304, SS316, SS316L, SS904
Designed Standard: API 685
Working Temperature: -20℃-180℃
Flow Capacity Range∶3m³/h-130m³/h
Pump Head Range:12.5m-130m
Materials Range: SS304, SS316, SS316L, SS904
Designed Standard: API 685
Application Fields
Biological medicine, petrochemical, mining, metallurgy, textile printing and dyeing, electricity, food, paper-making, electroplating, sewage treatment, flue gas treatment, new energy, new materials and other industries.
Pump Usage
Applicable to transport inflammable and explosive volatile, poisonous and harmful, valuable and highly corrosive cleaning medium; Such as any concentration of acid and alkali, salt, solvent, strong oxidizer, etc.
Mode Significance: RYNMQ50-32-125
RY: ROYAL PHARMS
N: N_Anhui South Chemical Pump Co., Ltd
M: M magnetic drive pump
Q: Q hydraulic model code
50: 50 pump inlet diameters
32: 32 pump outlet diameters
125: 125 the name of the impeller diameter
RYNMQ50-32-125
RY: ROYAL PHARMS
N: N_Anhui South Chemical Pump Co., Ltd
M:M magnetic drive pump
Q: Q hydraulic model code
G: G high temperature code
50: 50 pump inlet diameter
32: 32 pump outlet diameter
125: 125 the name of the impeller diameter
RYNMZ165-50-160
RY: ROYAL PHARMS
N: N_Anhui South Chemical Pump Co., Ltd
M: M magnetic drive pump
Z: Z self-priming code
65: 65 pump inlet diameters
50: 50 pump outlet diameters
160: 160 the name of the impeller diameter
N: N_Anhui South Chemical Pump Co., Ltd
M: M magnetic drive pump
Q: Q hydraulic model code
50: 50 pump inlet diameters
32: 32 pump outlet diameters
125: 125 the name of the impeller diameter
RYNMQ50-32-125
RY: ROYAL PHARMS
N: N_Anhui South Chemical Pump Co., Ltd
M:M magnetic drive pump
Q: Q hydraulic model code
G: G high temperature code
50: 50 pump inlet diameter
32: 32 pump outlet diameter
125: 125 the name of the impeller diameter
RYNMZ165-50-160
RY: ROYAL PHARMS
N: N_Anhui South Chemical Pump Co., Ltd
M: M magnetic drive pump
Z: Z self-priming code
65: 65 pump inlet diameters
50: 50 pump outlet diameters
160: 160 the name of the impeller diameter
More display
Specification
Model | RYNMZL RYNMZG |
Packing & Delivery
Company Profile
FAQ
Q1. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We also can design for you.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We also can design for you.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
