square quartz glass tube
US $0.15
SUCCESS Heat Resistant Cylinder Glass Large Diameter Quartz Glass Tube Temizle Kuvars Boru
- Category: Quartz Tubes >>>
- Supplier: Jinzhou,City,Success,Quartz,Glass,Factory
Share on:
Product Overview
Description
Product Description

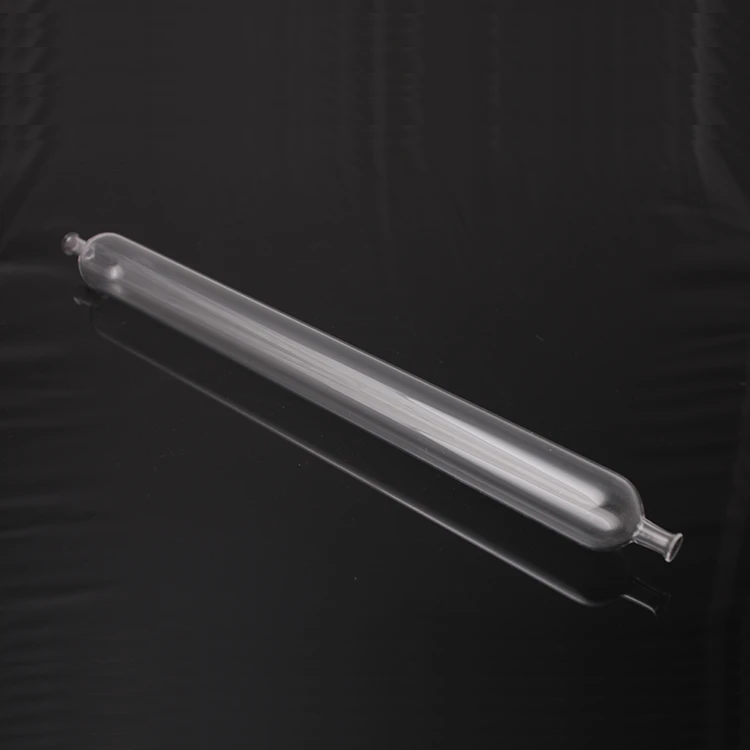

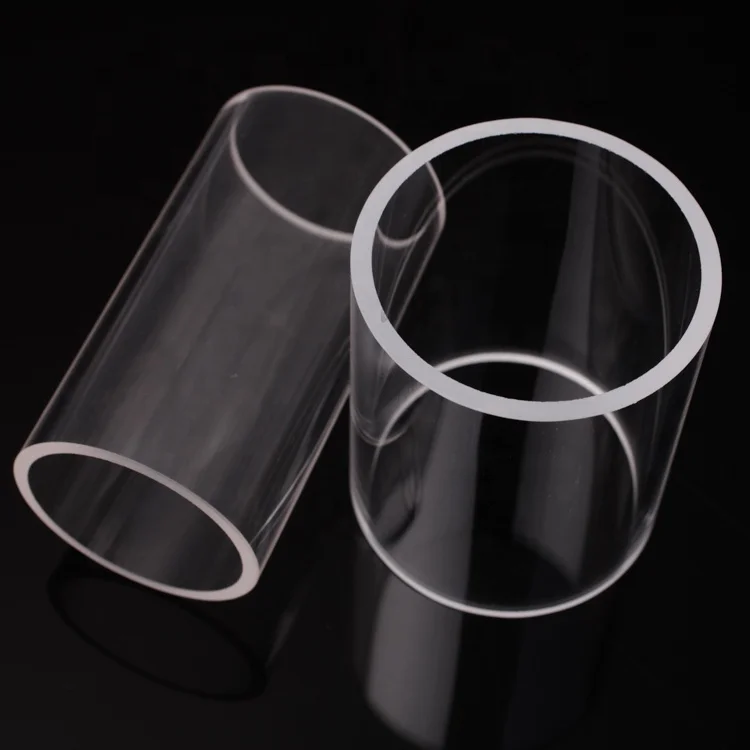

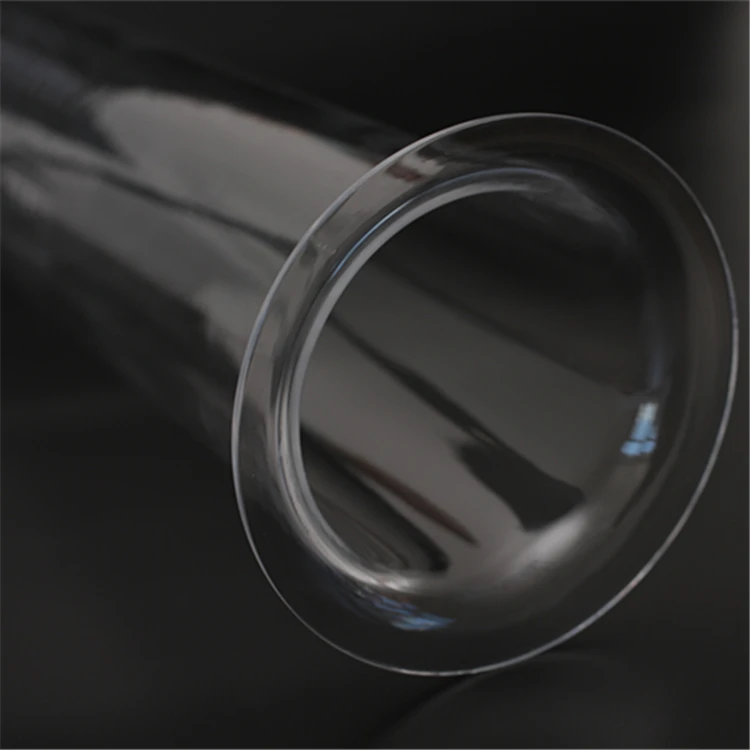

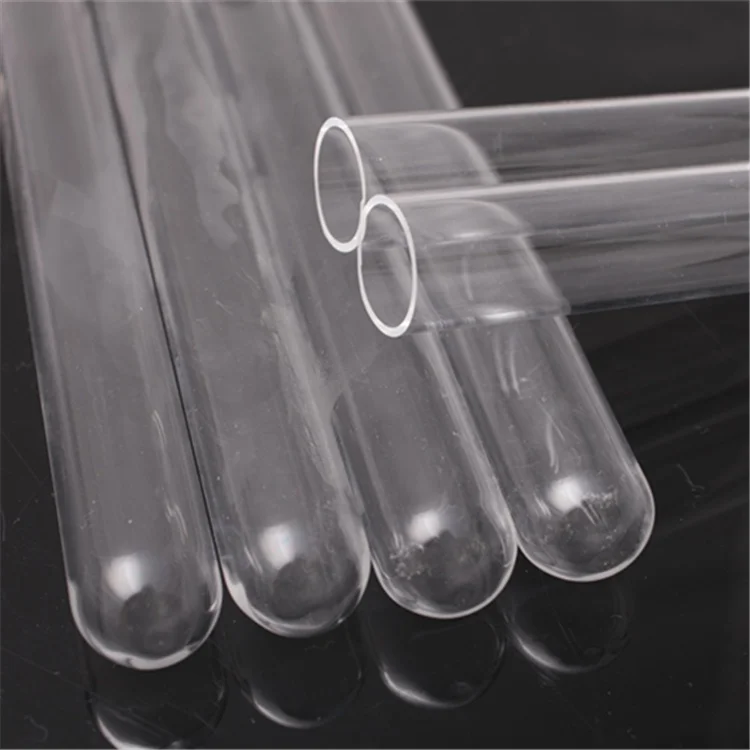

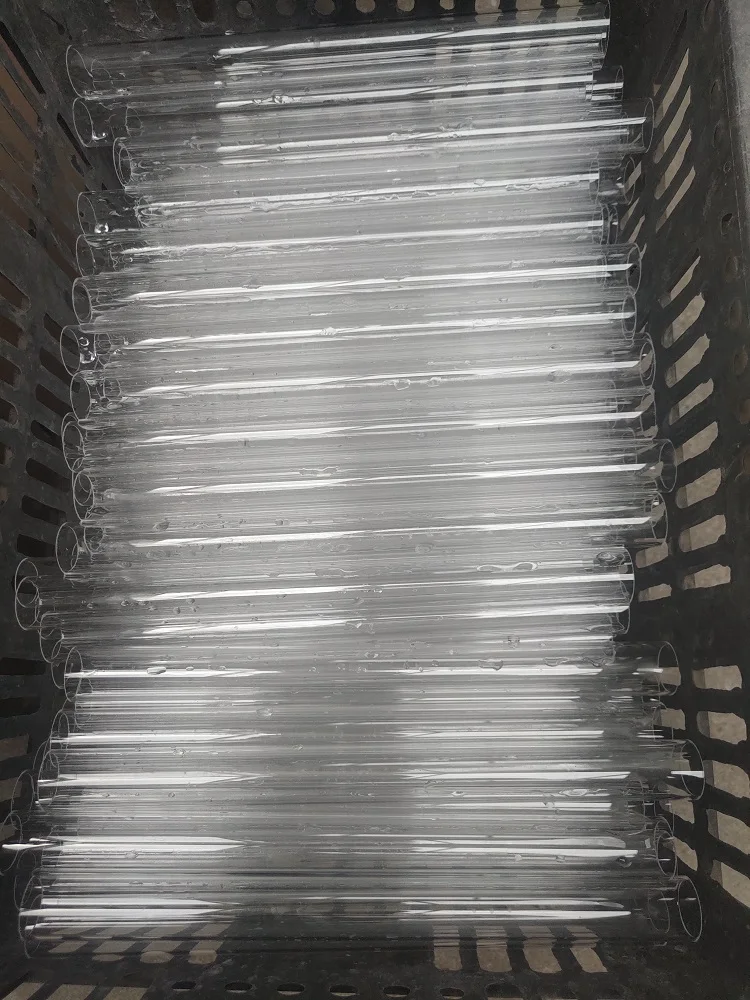

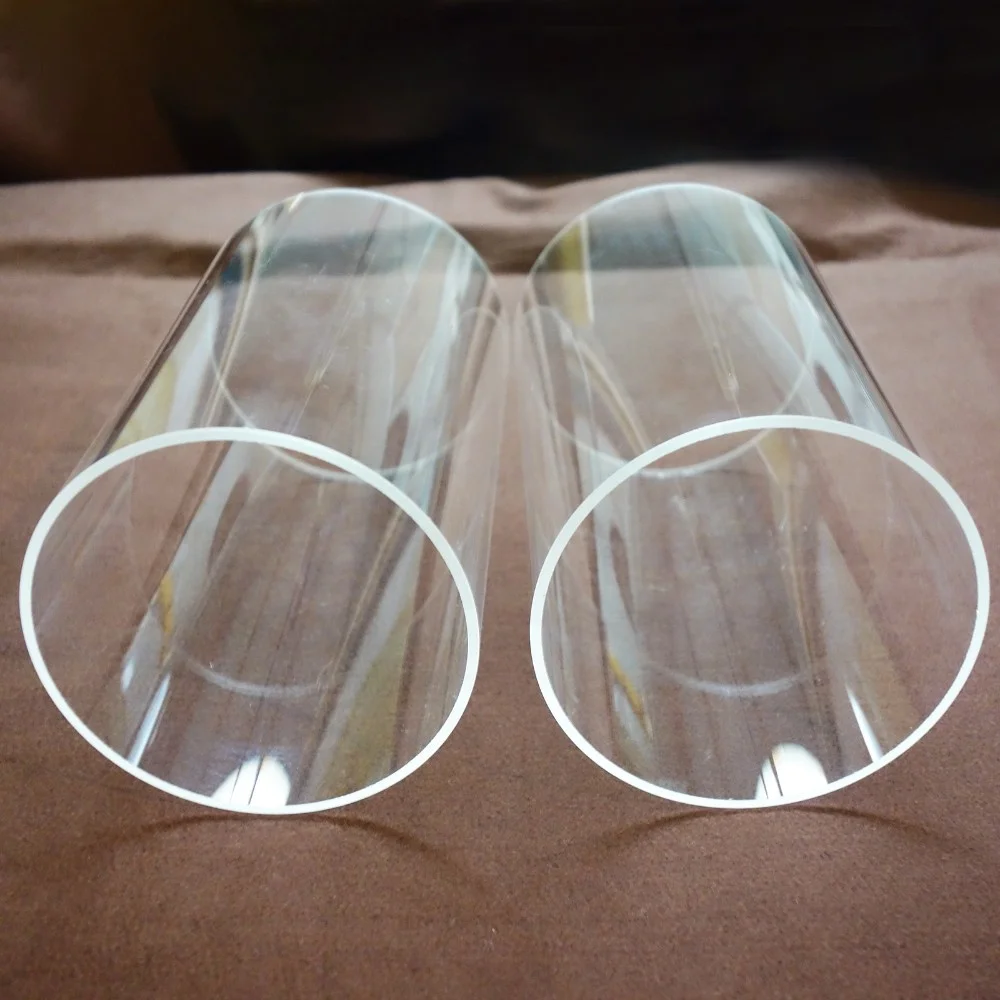

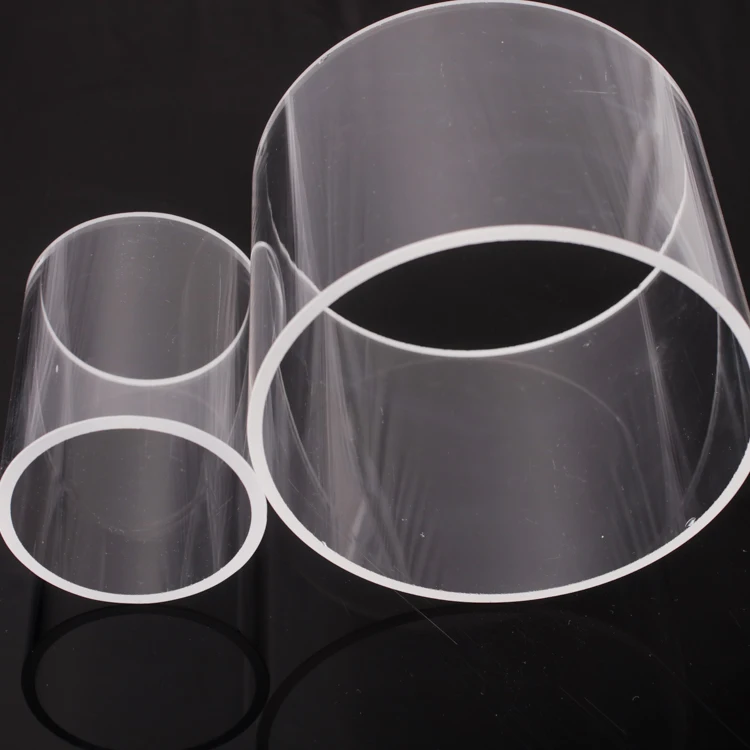

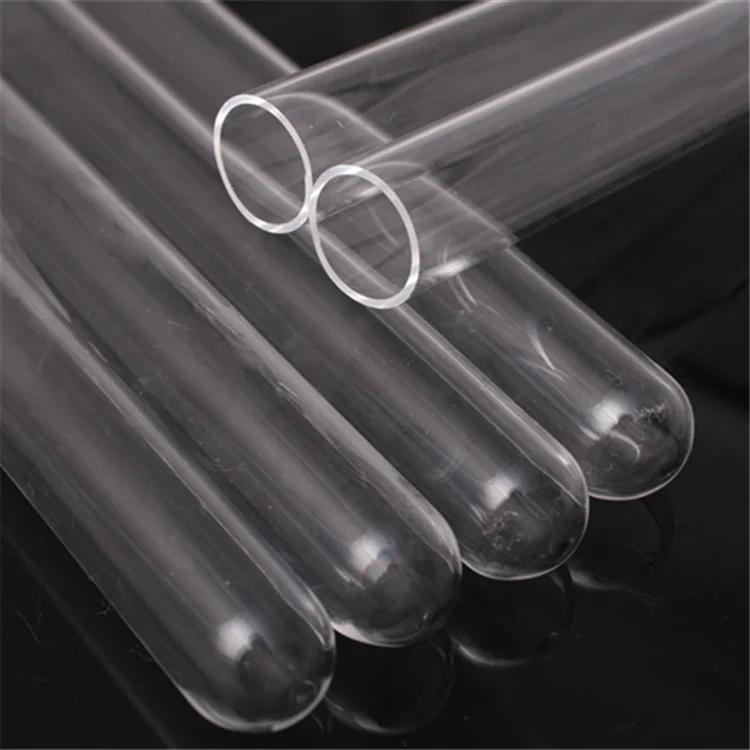

SUCCESS Quartz Glass Tube
We are a manufacturer of Transparent Quartz Tube Furnace.
Size&design: Accept customize according to different diameter, thickness,length or sending your drawing.
Advantage of Quartz Tube Furnace:
1)High purity:SiO₂> 99.99%.
2)Operating Temperature: 1200℃; Soften Temperature: 1730℃.
3)Good thermal stability.
4)Acid and alkali resistance.
5)High transmittance.
6)Excellent electrical insulator.
1)High purity:SiO₂> 99.99%.
2)Operating Temperature: 1200℃; Soften Temperature: 1730℃.
3)Good thermal stability.
4)Acid and alkali resistance.
5)High transmittance.
6)Excellent electrical insulator.
Product Name | SUCCESS Quartz Glass Tube |
Material | Sio2＞99.99% |

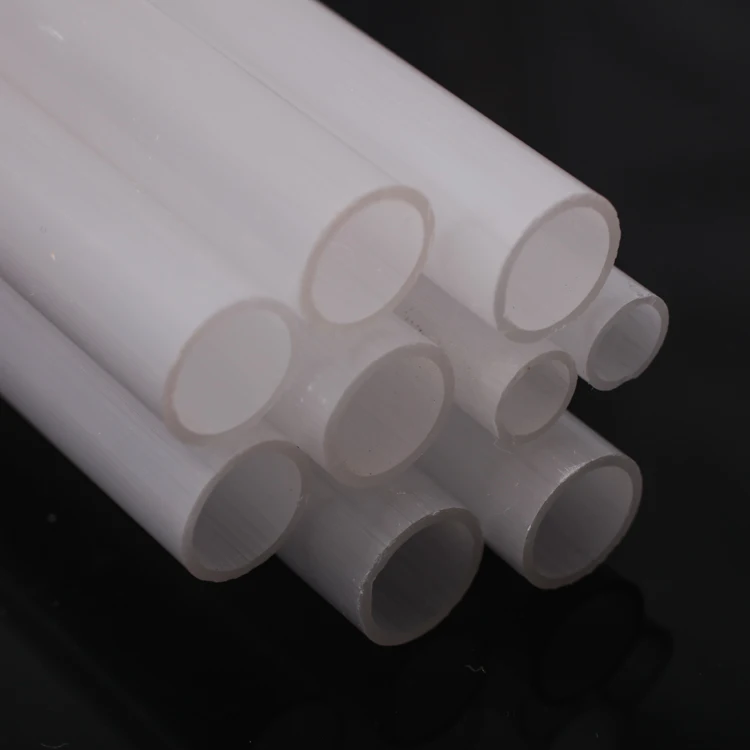

Color | Transparent or Opaque |

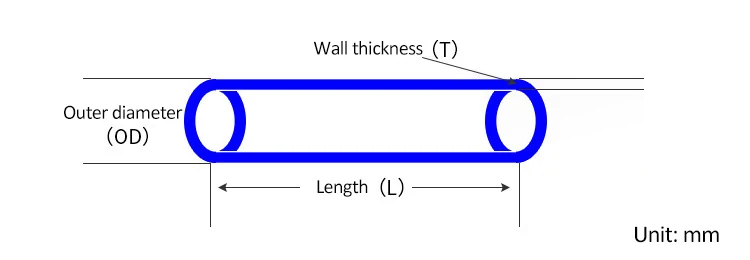

Size | 1. Diameter: 3-450mm 2. Thickness: 0.75-10mm. 3. Length: 10-3500mm. 4. OEM: All different sizes can be done according to customer's demand. |
Quartz Performance
Chemical properties：Quartz glass is an acidic material, except for hydrofluoric acid and hot phosphoric acid, it is inert to any other acid and is a very good acid-resistant material, with better chemical stability than opaque quartz glass, non-hygroscopic and non-weathering.
Electrical Properties：Quartz glass has high dielectric strength and low conductivity, even at high temperature, high pressure and high frequency, still maintain high dielectric strength and resistance, almost no dielectric loss in the applied frequency band, so quartz glass is excellent high temperature dielectric insulation material.

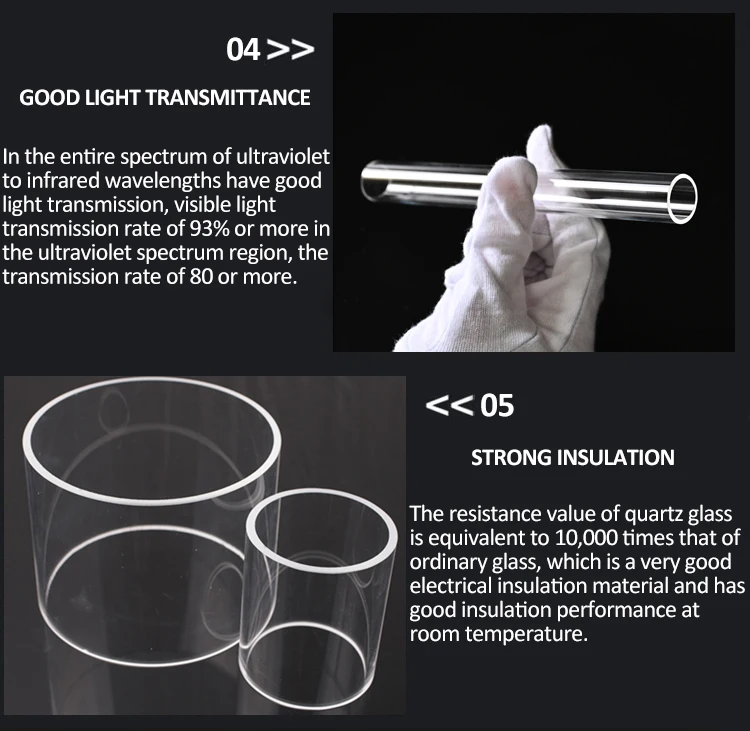

Optical Performance：Quartz glass has its unique optical properties, it can transmit both the far-ultraviolet spectrum, which is a good choice for all UV-transmitting materials, and can transmit visible light and near-infrared spectrum, high temperature resistance, small coefficient of thermal expansion, good chemical thermal stability, bubbles, streaks, uniformity, birefringence and comparable to general optical glass.
Thermal Properties：The coefficient of thermal expansion of quartz glass is small, only one-twelfth to one-twentieth of the ordinary glass times, the standard stipulates that the specimen will be burned to 1200 degrees Celsius and then cast sharply into cold water, repeatedly more than three times is not allowed to blow up.
Mechanical properties：Quartz glass mechanical properties than coin glass and ceramics are better, but the brittleness is poor. The theoretical calculated strength of quartz glass is very high, about 24 * 1.3 MPA, but the actual measured strength is tens of times lower than this value.
Airtight performance：The structure of quartz is very relaxed, even at high temperatures also allows the ions of certain gases to diffuse through the network, including the diffusion of sodium ions for the faster. This property of quartz glass is particularly important for users.
Physical Property
Property | Value | Noted |
Density | 2.2g/cm3 | Thermal stability: Put the quartz material from 1100 °C to 20 ℃ three times, will not cracks. It will be not changed color under 1100 degree for three hours. |
Hardness | 570KHN100 | |
Tensile strength | 4.8×107Pa(N/m2) | |
Compression strength | >1.1×109 Pa | |
Coefficient of thermal expansion (20℃-300℃) | 5.5×10-7cm/cm℃ | |
Thermal conductivity (20℃) | 1.4W/m℃ | |
Specific heat(20℃) | 660J/kg℃ | |
Softening point | 1730℃ | |
Annealing point | 1250℃ |
Chemical Composition
Unit: PPM | ||||||||||||||||
K+Na | Ca | Fe | Al | Mg | Ti | Ba | Li | Cu | ||||||||
<10 | <3 | <1.5 | <20 | <1.0 | <3.0 | <0.2 | <1.0 | <0.5 | ||||||||
2.For example: the larger the outer diameter of the quartz tube, the thicker the wall thickness, the higher the price. The more quantity you buy, the cheaper the price will be. Please contact the seller for details.

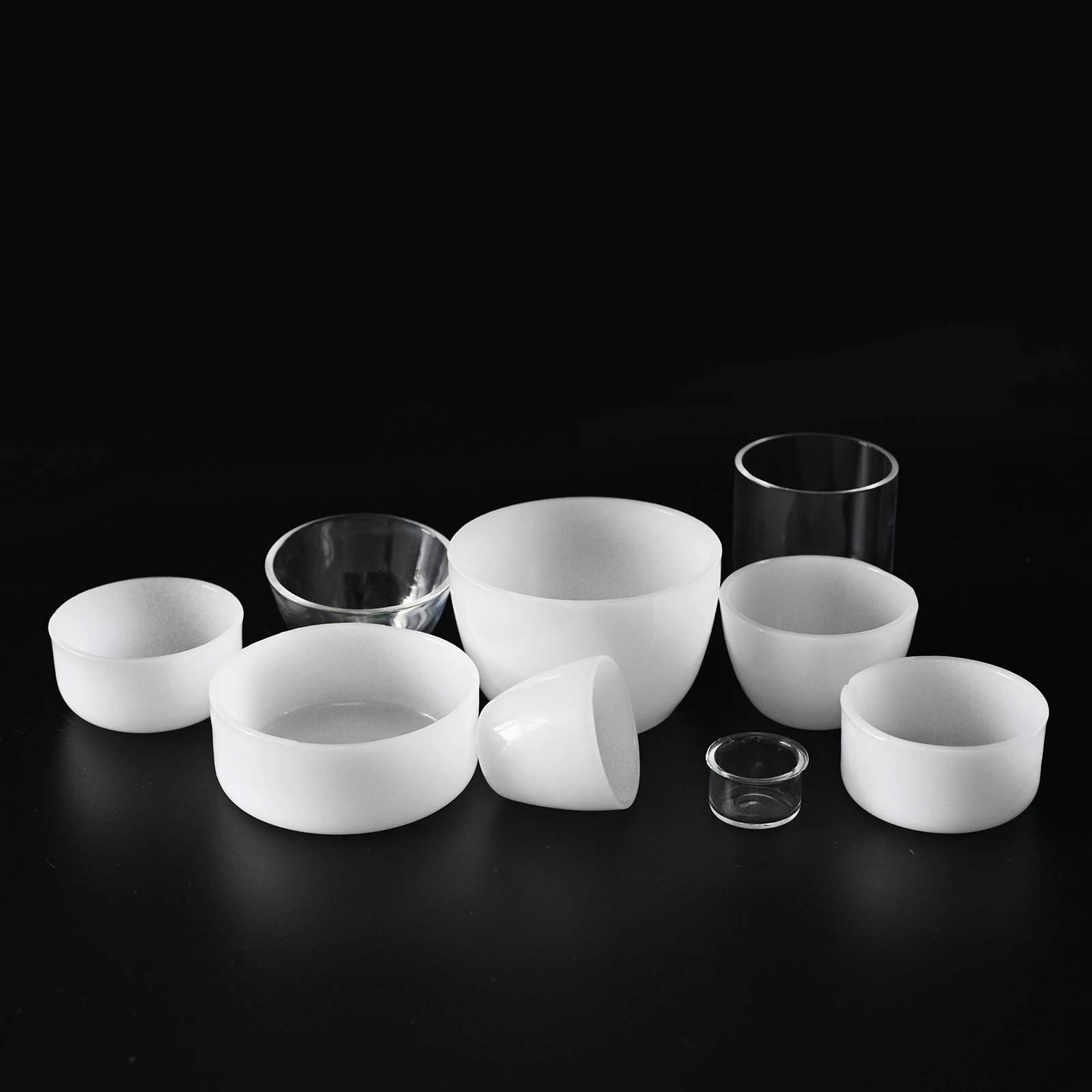

Related Products
Our Company

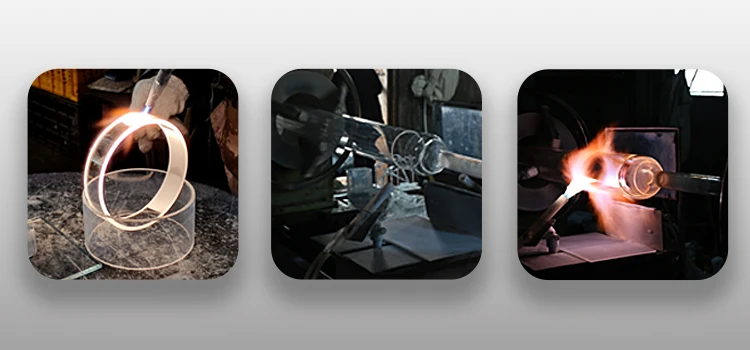

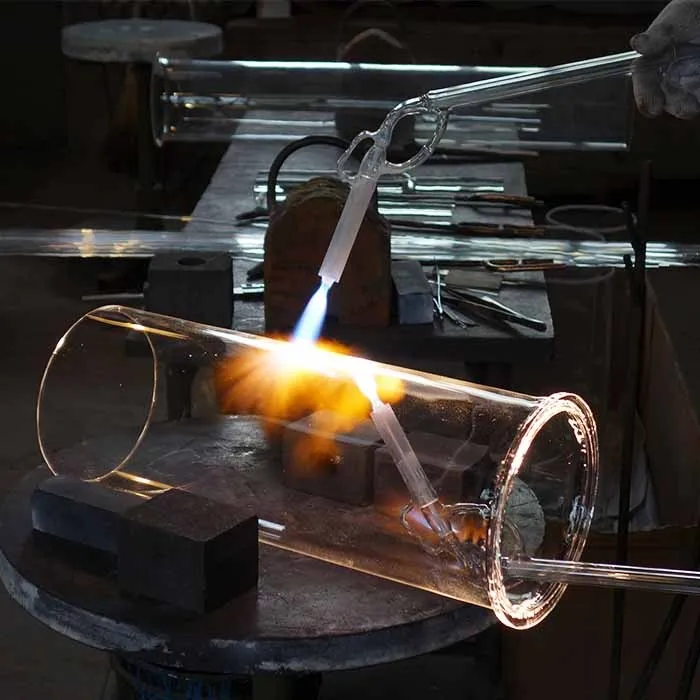

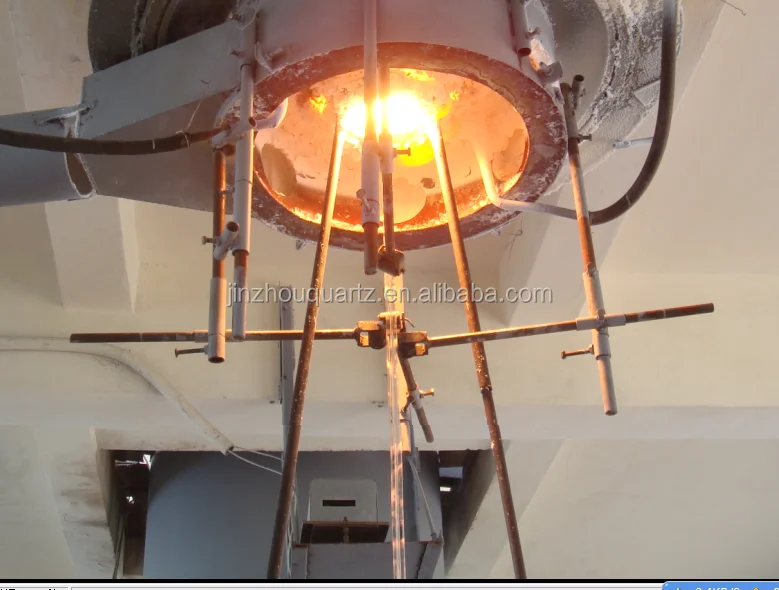

Production process

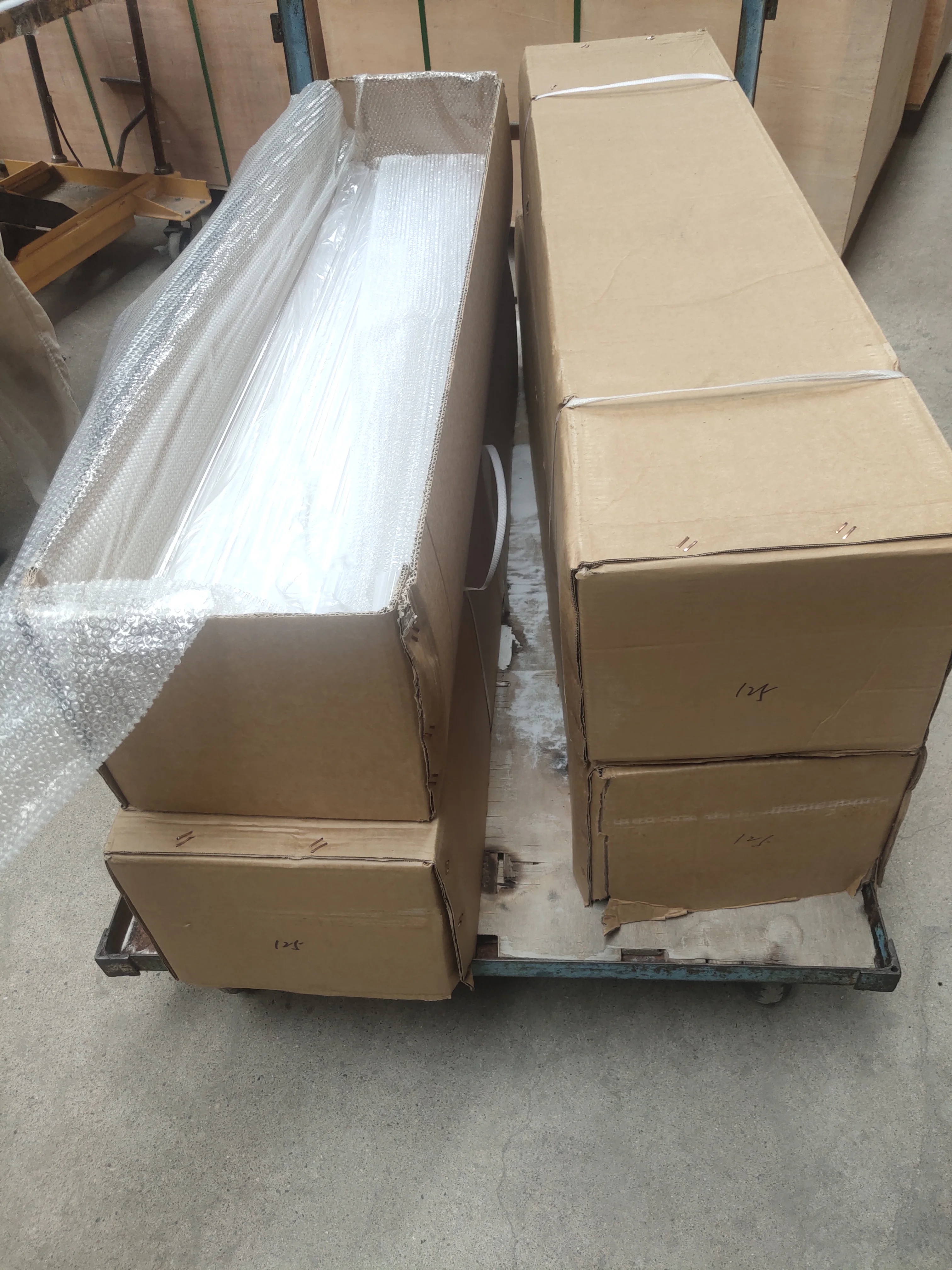

Packing & Delivery
Our business philosophy is survive on quality, reputation for development. The products widely sales to all of the world, such as America, Germany, France, Italy, Australia, Canada, Britain, Spain, Sweden, Mexico, Argentina, Chile, Russia,India, Japan and other too many countries.

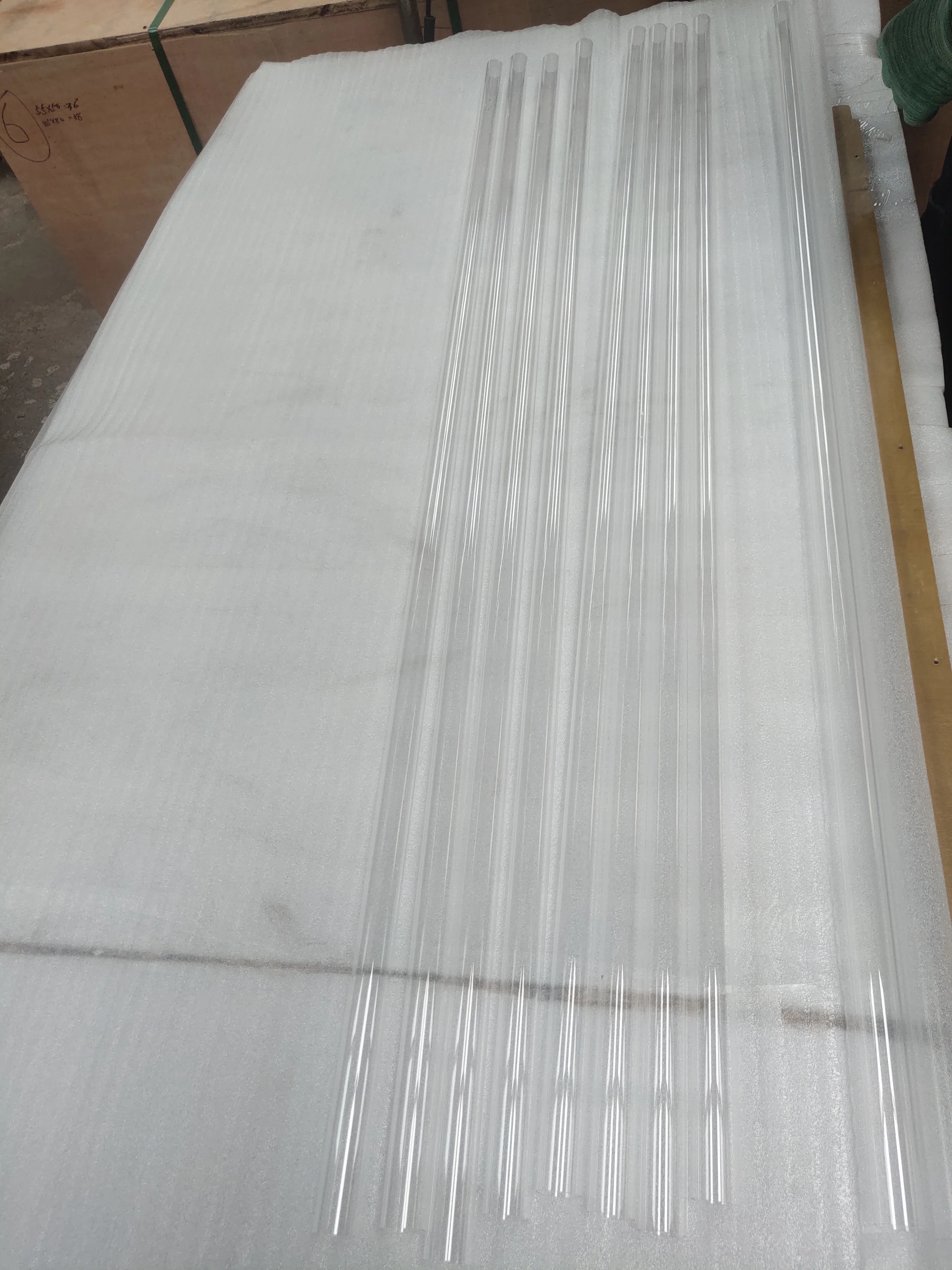

Packing Details : Packing the quartz plate in a carton or wooden case well.
Delivery Details : Ship the quartz plate in 3-10 days after payment.
1. Have the quartz plat/sheet/bar ready.
2. Suitable carton size
Shock bubble film
3. Special logistics packaging
4. Professional placement
6. Complete package
Certifications
Our Service
1.Your inquiry related to our product will be replied within 24hours.
2.Well trained & experienced staff are to answer your inquiries professional in English of course.
3.Customize size is welcome, OEM is welcome.
4.Delivery the goods to our customers with speed and precision.
5.Good after-sale service offered, please get back if you got question.
6.We have rich experience of design and manufacture. We cherish every order from our honor.
2.Well trained & experienced staff are to answer your inquiries professional in English of course.
3.Customize size is welcome, OEM is welcome.
4.Delivery the goods to our customers with speed and precision.
5.Good after-sale service offered, please get back if you got question.
6.We have rich experience of design and manufacture. We cherish every order from our honor.
FAQ:
Q1: Are you trading company or manufacturer ?
A1: We are china final quartz manufacturer about 20 years,
Q2: How long is your delivery time?
A2: Generally it is 5-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A4: Payment<=1000USD, 100% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Step1 Please choose the goods with links or pictures which you want to order, Then click contact supplier or chat with me Or just send an inquiry. When we get your inquiry, we will give you a quotation soon within 24hours.
Step2 You can email us your order list with details, we'll reply right away when we received your email.
A1: We are china final quartz manufacturer about 20 years,
Q2: How long is your delivery time?
A2: Generally it is 5-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A4: Payment<=1000USD, 100% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Step1 Please choose the goods with links or pictures which you want to order, Then click contact supplier or chat with me Or just send an inquiry. When we get your inquiry, we will give you a quotation soon within 24hours.
Step2 You can email us your order list with details, we'll reply right away when we received your email.
If you have a need please send your inquiry details,Click " Send "now.
