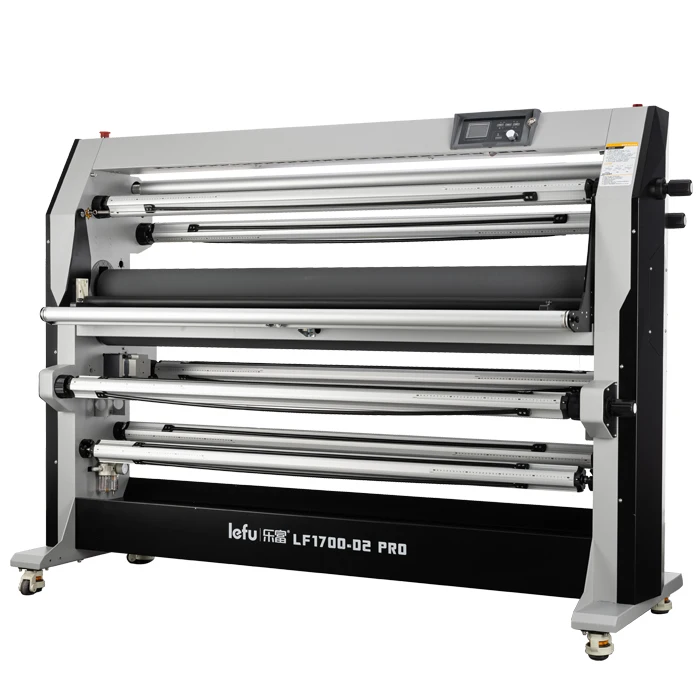

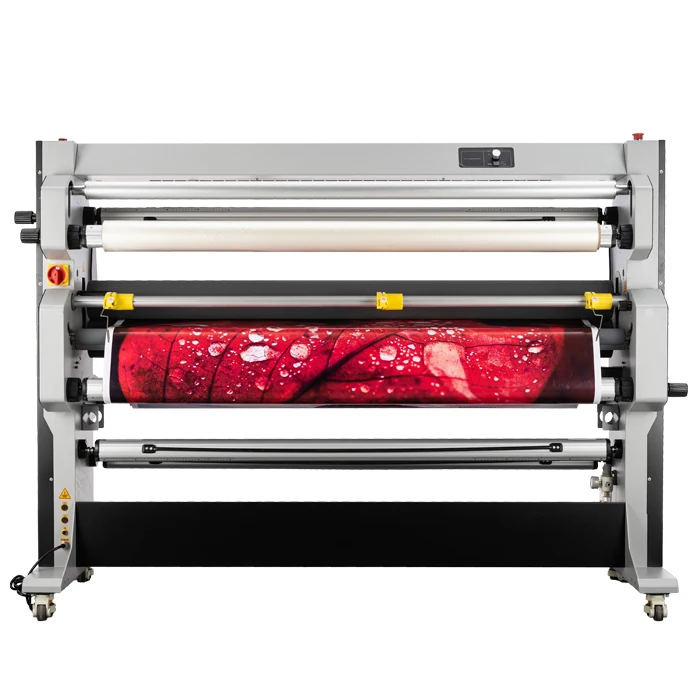

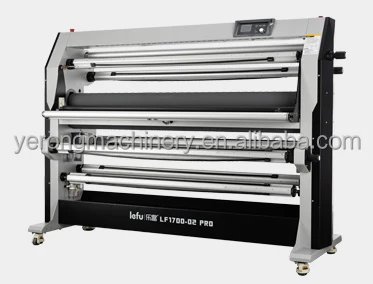

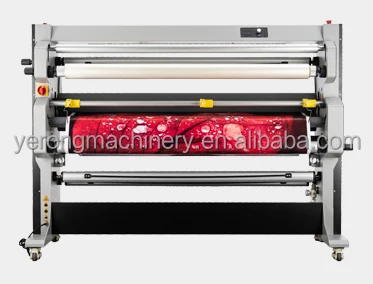

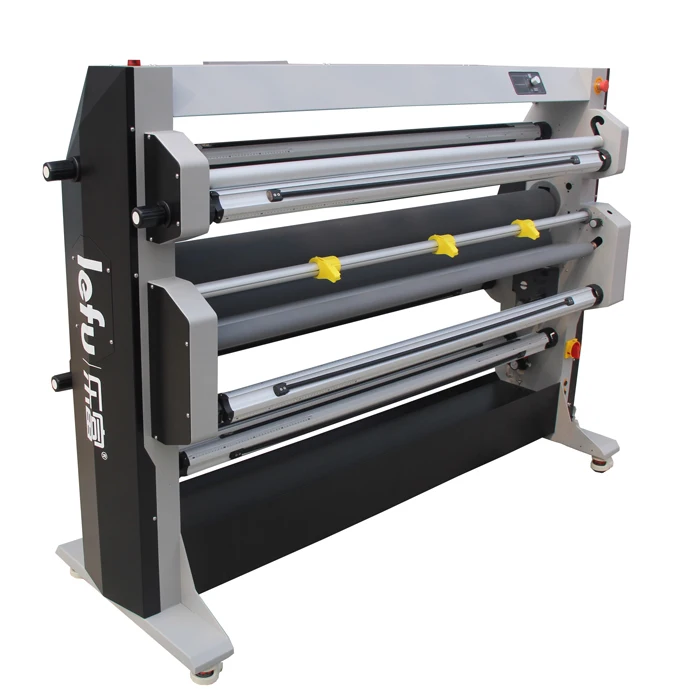

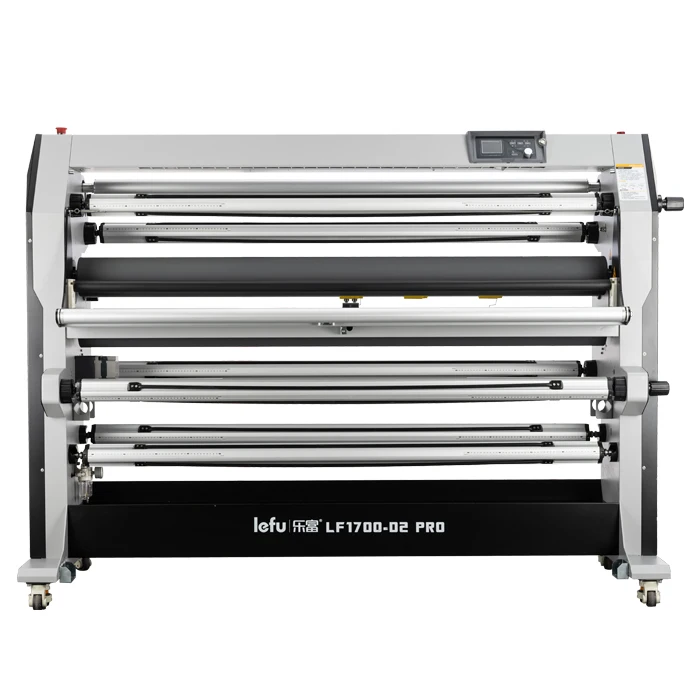

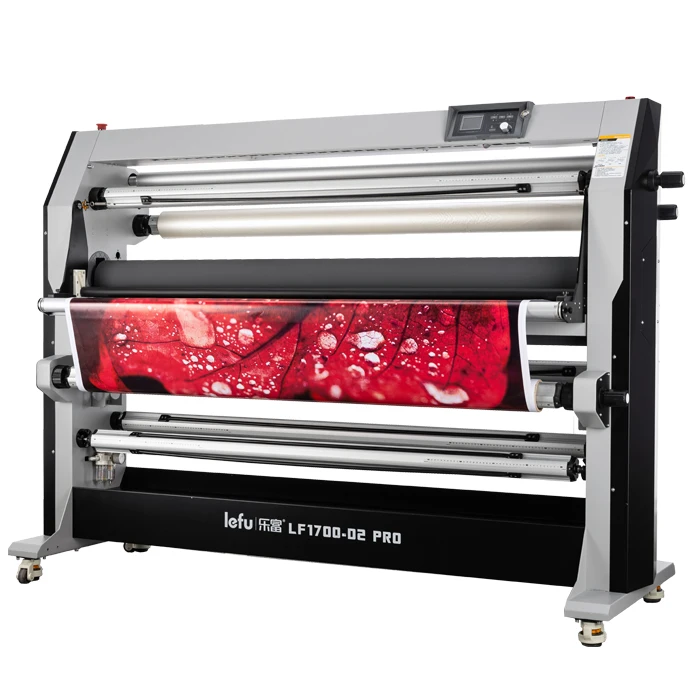

LeFu LF1700 D2 Pro Double Sides Hot and Cold Laminator
- Category: >>>
- Supplier: Zhengzhou Yerong Machinery Co. Ltd.
Share on (1600655926877):
Product Overview
Description
LeFu LF1700-D2 Pro Double Sides Hot and Cold Laminator
LeFu LF1700-D2 Double Sides Hot and Cold Laminator, Max Lamination Width: 1630mm, Max Lamination Temp: 0~120°C/0~248°F, Max Lamination Speed: 28 M/Min.
LeFu LF1700-D2 Double Sides Hot and Cold Laminator can be Widely Used in Signage and Graphic Industries, Used Special for Flexible Sign, Board, Irregular Shaped Panels, Banners Etc.
TECHNICAL DATA
Model | LF1700-D2 Double Sides Warm Laminator | LF1700-D2 Double Sides Hot Laminator | |
Lamination Type | Warm & Cold | Hot & Cold | |
Lamination Temp | 0~60°C/0~140°F | 0~120°C/0~248°F | |
Cutters | ≥3 Sets | ||
Laminating Type | Roll-to-Roll | ||
Heating Roller | Top (Double Sides Lamination Optional) | ||
Max Lamination Speed | 28 M/Minute | ||
Max Lamination Thickness | 28mm/1.1'' | ||
Max Lamination Width | 1630mm/64'' | ||
Roller | Silicon | ||
Diameter of Roller | 130mm | ||
Pressure/Height Adjust | Automatic (Pneumatic Pressure) | ||
Hand Protection Device | Safety Laser Sensor | ||
Anti Static Electricity | Yes | ||
Certificate | CE, RCM, ROHS | ||
Hand Safety Sensor | Yes | ||
Heating | Infrared | ||
Preheating Time | 10-15 min | ||
Voltage | 110V/220V 50/60Hz | ||
Package Size | 2270*810*1660mm 3.1CBM | ||
Gross Weight | 370KGS | ||
PRODUCT CONFIGURATION
Model: LF1700-D2 Double Sides Hot and Cold Laminator
Max Lamination Width: 1630mm/64″
Lamination Temp: 0~60°C/0~140°F (0~120°C/0~248°F Optional)
Max Lamination Speed: 28 M/Minute
Roller Up and Down: Pneumatic Pressure
Max Lamination Width: 1630mm/64″
Lamination Temp: 0~60°C/0~140°F (0~120°C/0~248°F Optional)
Max Lamination Speed: 28 M/Minute
Roller Up and Down: Pneumatic Pressure
LF1700-D2 Double Sides Hot and Cold Laminator Is Perfect For Most Applications of Sign and Graphic. The Dual-heated Rollers with Max Temperature Of 120C Offers the Possibility Not Only for Laminating but Also for Mounting and Encapsulating Up to 1630mm.
Additionally, its Fully Adjustable Tungsten Blades Can Cut Most Materials with a Lifetime That over 15000m.
Additionally, its Fully Adjustable Tungsten Blades Can Cut Most Materials with a Lifetime That over 15000m.
① Electron Magnetic Valve----Adjust Roller Up and Down though Compressed Air
② Intelligent Control System----Lamination Speed, Temperature and Lamination Statistics Display
③ Speed Controller----Control Lamination Speed 0-18 M/Minute
④ Material Bar----To Hold Lamination Photos
⑤ Emergency Stop----Can Give Laminator Emergency Stop
⑥ Film Bar----To Hold Lamination Film
⑦ Silicon Roller----Long Time Service Life under High Temperature Lamination
⑧ Lamination Platform----Can Check Lamination Quality on Time
⑨ Liner Film Bar---- To Hold Lamination Bottom Paper
⑩ Universal Wheel----To Move Laminator Conveniently
② Intelligent Control System----Lamination Speed, Temperature and Lamination Statistics Display
③ Speed Controller----Control Lamination Speed 0-18 M/Minute
④ Material Bar----To Hold Lamination Photos
⑤ Emergency Stop----Can Give Laminator Emergency Stop
⑥ Film Bar----To Hold Lamination Film
⑦ Silicon Roller----Long Time Service Life under High Temperature Lamination
⑧ Lamination Platform----Can Check Lamination Quality on Time
⑨ Liner Film Bar---- To Hold Lamination Bottom Paper
⑩ Universal Wheel----To Move Laminator Conveniently
LAMINATOR DETAILS

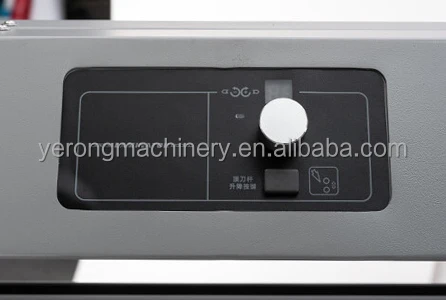

● Operation is more Intuitive and Convenient
● Pulse-Type Speed Control Knob, Precise and Durable
● Lamination Speed, Temperature and Lamination Statistics Display
● Pulse-Type Speed Control Knob, Precise and Durable
● Lamination Speed, Temperature and Lamination Statistics Display
● LF1700-D2 Hot Roll Laminator Lamination Sart-stop and Speed Control.
● Cutting Function Active. Lamination Statistics Display
Rear Safety Trimmer
●There are 3 Rear Tungsten Steel Trimmer●Tungsten Steel Trimmer Usage can be More than 15000m
Strengthen Materials Bar
● LF1700-D2 Pro Hot Roll Laminator Winding Diameter is 320mm.● Stable and Durable Frame Design can Meet 200 meters of Vinyl Sticker Lamination
● Remove Static during High Speed Lamination
● Can Set Lamination Meter, When Closing Finish Lamination, Laminator will Stop Automatically
● Silicon Roller Can Avoid Any Bubbles and Folds during Lamination
● Up and Down Roller use Silicon and Solid Seamless Steel Tube
● Silicon Roller Has Long Time Service Life under High Temperature Lamination
LEFU FACTORY
222
LeFu is a leading manufacturer of Roll laminator, Flatbed Laminator, Cutting device, Film stand and clips, PVC Film for all segments of the graphics and building industries in China.
For many years, LeFu has been an innovative force in the lamination industry from the first automated heat-assist cold laminator to the year 2011 introduction of flatbed laminator a revolutionary adhesive system designed specifically for rigid or flexible materials. Amazingly, LeFu launched the hybrid laminating and cutting machine in the year 2014, which brings an efficient and profession way for sign makers.
For many years, LeFu has been an innovative force in the lamination industry from the first automated heat-assist cold laminator to the year 2011 introduction of flatbed laminator a revolutionary adhesive system designed specifically for rigid or flexible materials. Amazingly, LeFu launched the hybrid laminating and cutting machine in the year 2014, which brings an efficient and profession way for sign makers.
LEFU EXPO
Rich experience of lamination technologies in the hardware and film, we have design, develop, manufacture and sell laminator to 31600 users for 61 countries (2017). Our two laminator brands MeFu and LeFu full-auto and semi-auto hot and cold laminators are popular in world market. The quality and service are welcome by our customers.
LEFU TEAM
LEFU has standard for many types of wide format laminator, and that did not happen by accident, since we invented the method and technology, it has undergone a natural development based on our customer’s requirements and specific problems as well as our own 10 years experience as manufacturer. Our dedication to customer satisfaction and quality is unsurpassed.
LEFU CUSTOMERS
LeFu Laminator is a leading manufacturer of Automatic Laminator, Roll Laminator, Hot Laminator, Warm Laminator, Cold Laminator, Wide Format Laminator, Flatbed Laminator in China from year of 2006.
PACKING AND DELIVERY
The Package Uses Wooden Box for Free Fumigation Packaged:
2270*870*920=1.816CBM
G.W.: 290kgs
G.W.: 290kgs
