SHUIPO Column and boom welding manipulator for fuel tank production line

Product Overview

Description

Aluminum Tank Automatic Tig Girth  seam Welding Machine

Product information

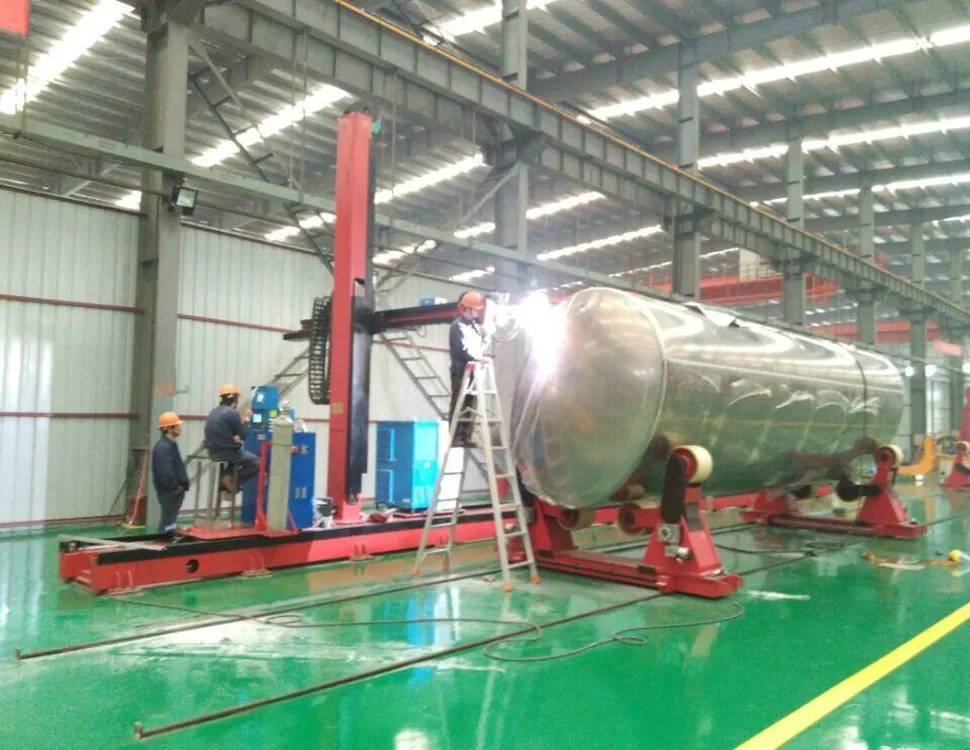

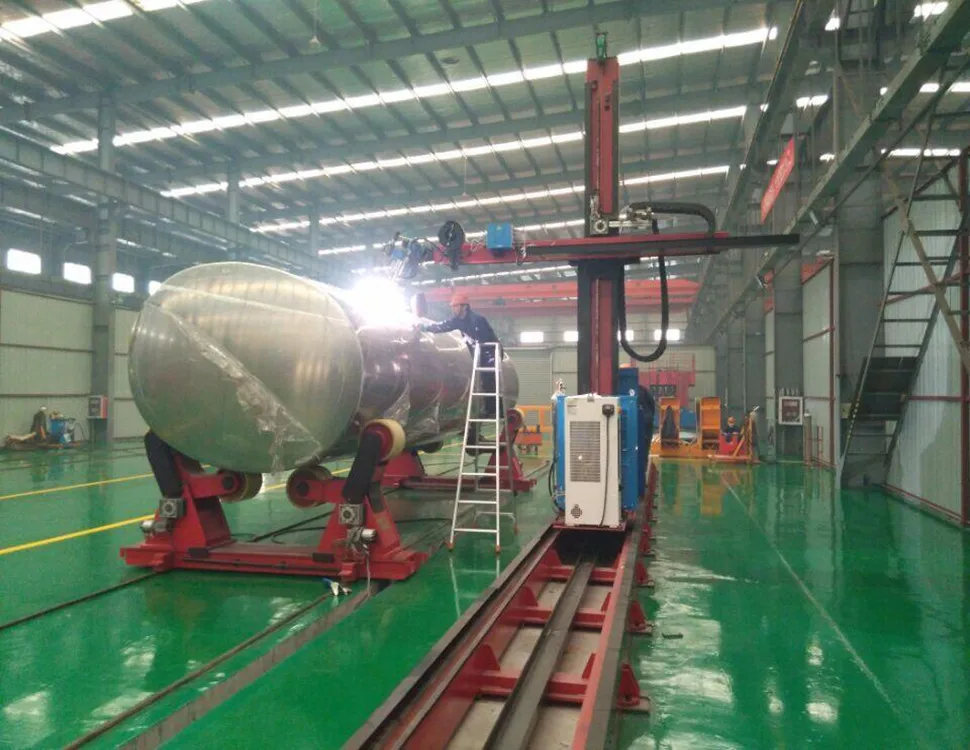

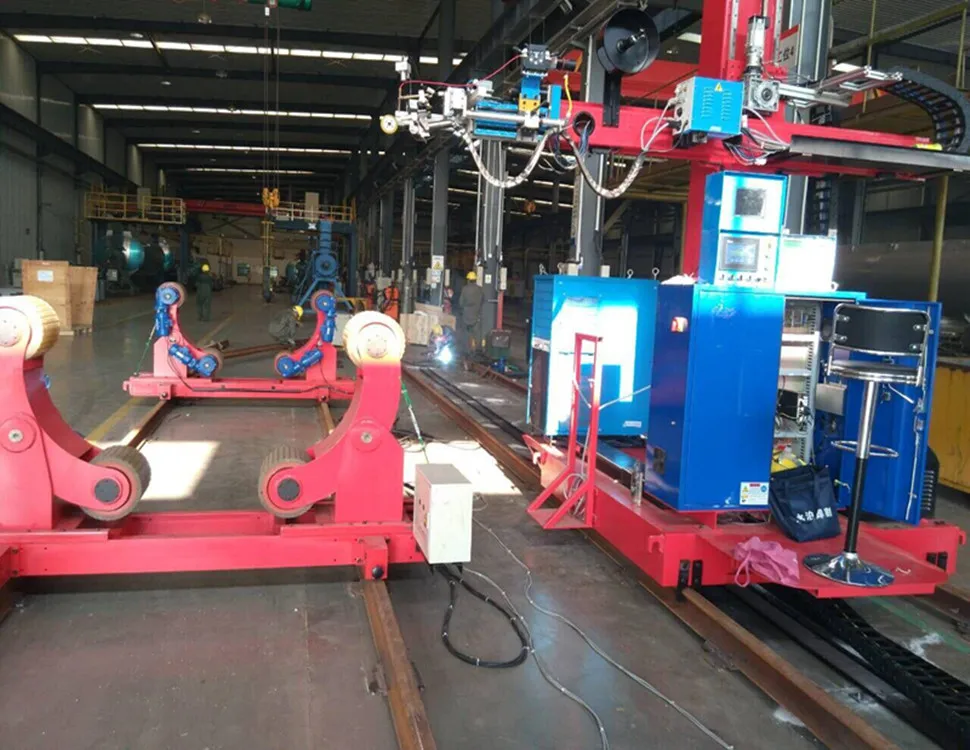

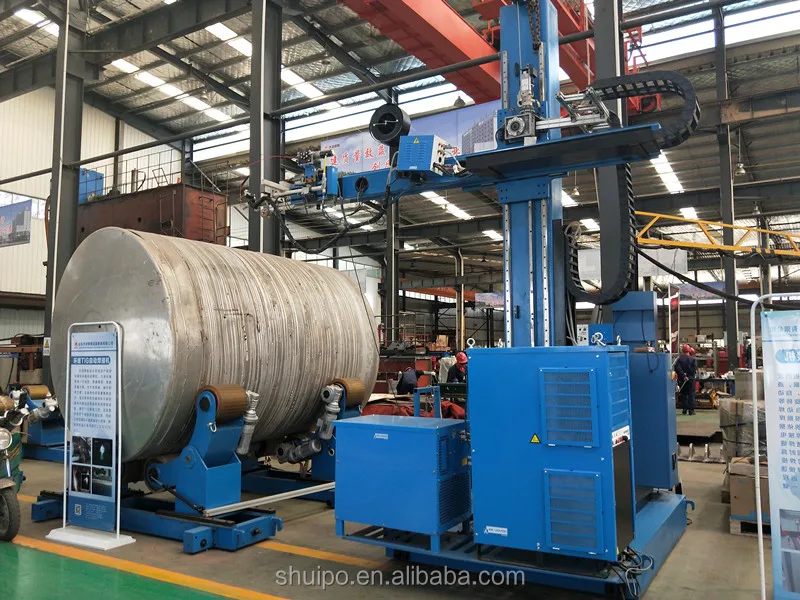

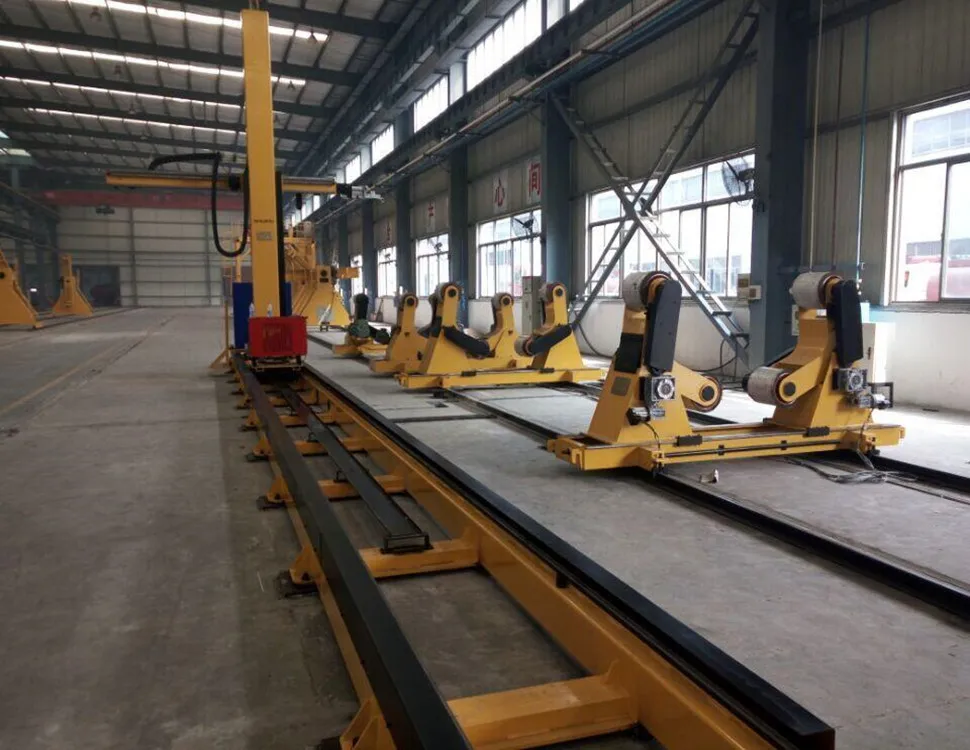

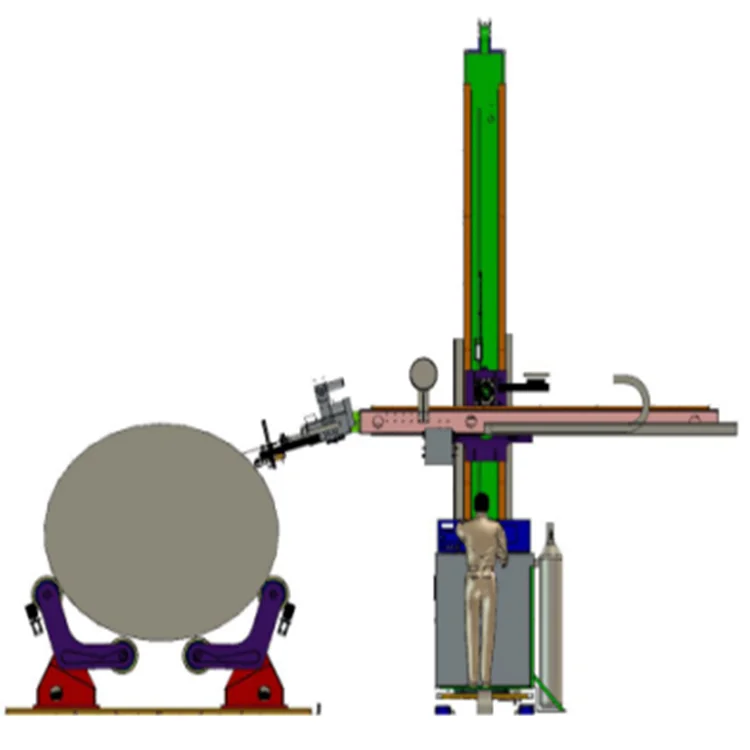

1.Product picture of   Aluminum Tank Automatic Tig Girth  seam Welding Machine





2.   Aluminum Tank Automatic Tig Girth  seam Welding Machine   Introdction

a. The overall machine welded by profile steel, both reduce the weight of machine, also can meet the rigidity.

b. Precision transmission adopts linear square rail pinion and rack.

c. Mobile mechanism driven by servo motor; Linear square rail orient, smooth operation.

d. The welding seams are good in appearance, high in welding quality and production efficiency, simple and convenient in operation, which has improved both the efficiency and quality.

e. Make sure that the welding of a circumferential seam completed in one operation.

f. Welding requirements: First need finish the inner girth welding. Make sure welding area have no burr, solder joints, oil, rust and other which can affect the welding quality. Interface gap should be uniform. Make sure have no misalignment, tooth edge defects, etc.

g Workpiece butt joint gap must be less than 10% of the thickness.





Technical parameter



Maximum Diameter		3200mm
Minimum Diameter		1200mm
Rail Length		16000mm
Guide rail type		linear guideway 35
Welding Speed		50-200mm/min
Gantry Max Returning Speed		Can adjust by servo
Welding Wire Diameter		1.2mm
Welding manner		TIG/MIG
Cable Conveying		Drag chain
Seam tracking way		Pointer-Tracker
Rotation signal sensing		Laser sensors
Power Supply		AC 380V 50HZ 3-phase 4-wire
Thickness of workpiece		3-10mm(Make groove if the thickness of plate more than 6mm)
Workpiece material		Aluminium alloy
Workpiece shape		Round, ellipse,square
Min R		400mm
Welding gun cooling mode		Water cooling
Power		About 40KVA
Rotating device		Tank roller

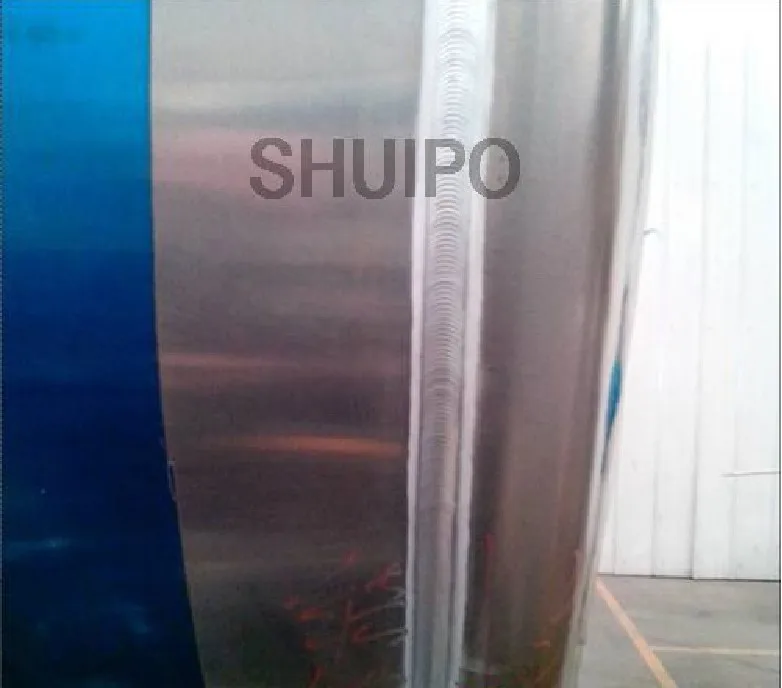

Aluminum Tank Automatic Tig Girth  seam Welding Machine    welding effect
