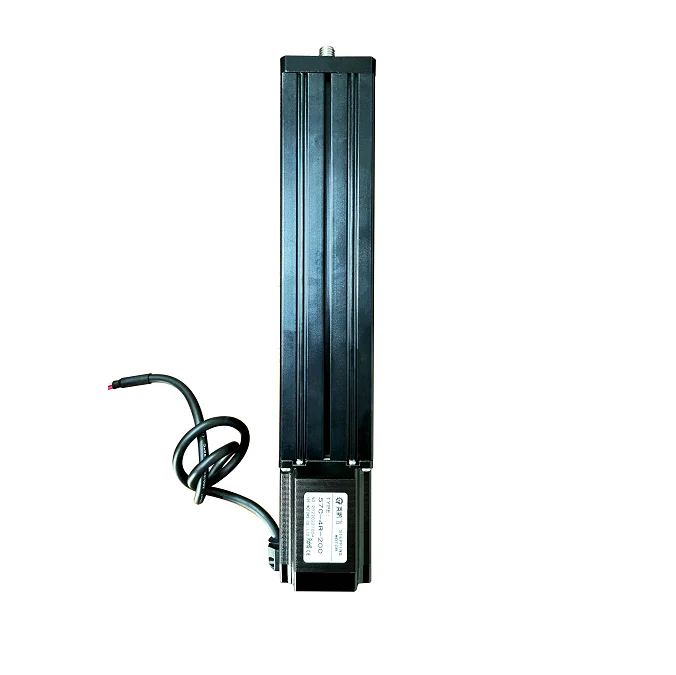

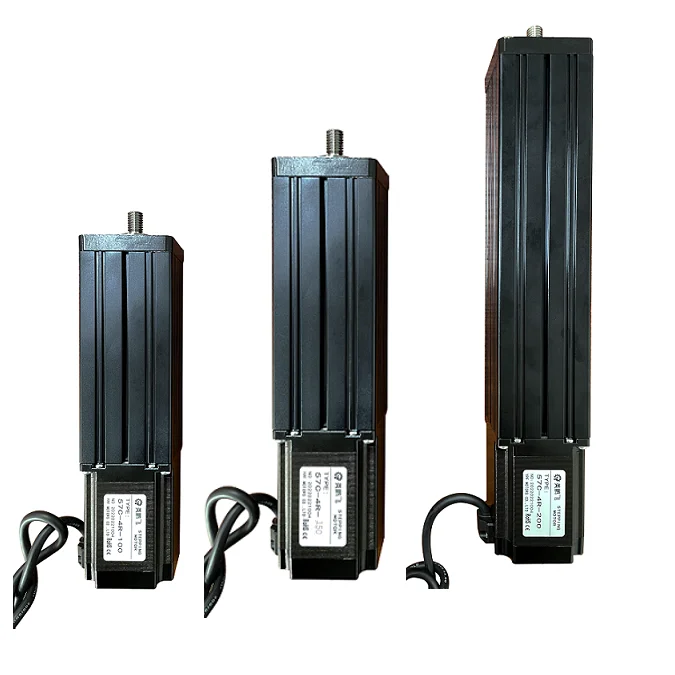

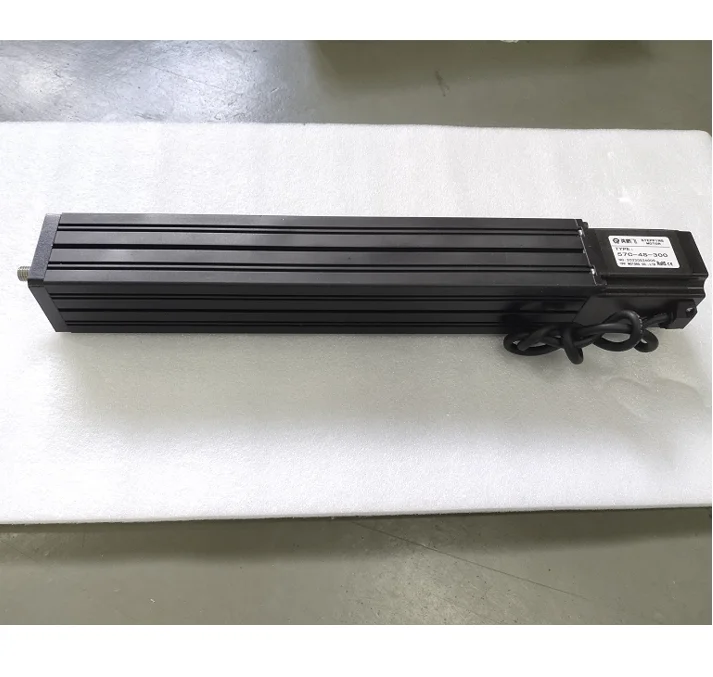

linear stepping motor 50mm captive linear actuator stepper motor nema 23 kit cnc 57C 4S 50

Product Overview

Description

linear stepping mortor 50mm captive linear actuator stepper motor nema 23 kit cnc

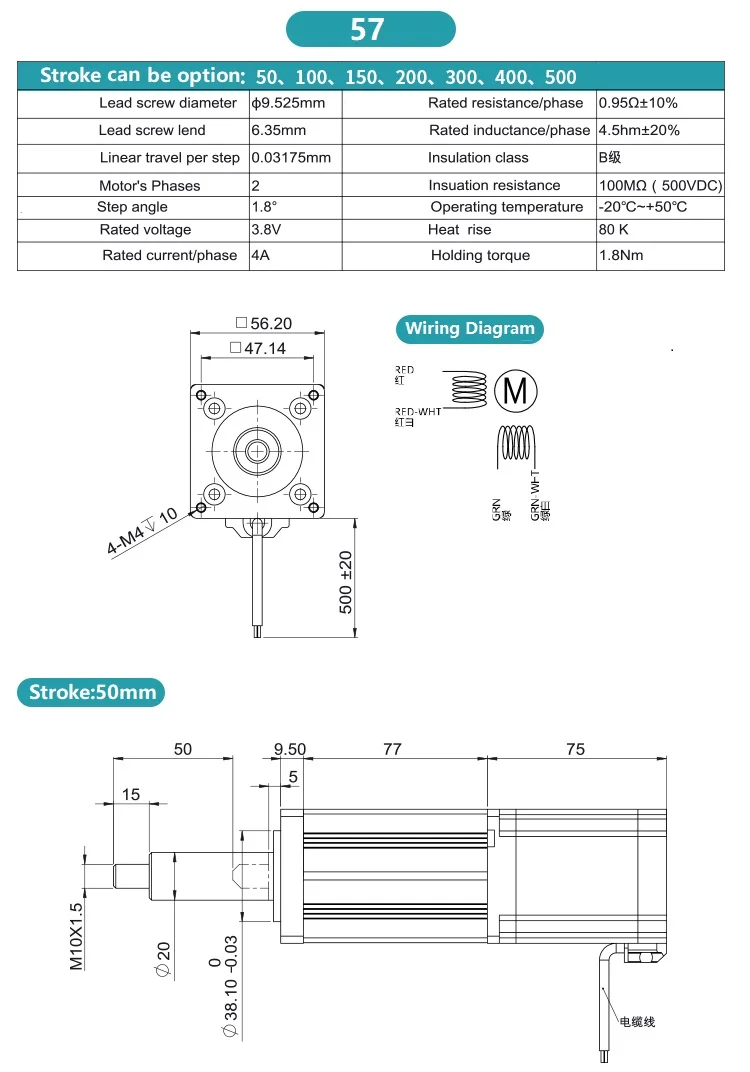

Parameter	Unit	Value
Phase		2
Step Angle		1.8°
Frame Size		NEMA 23
Motor Length	mm	75
Rated Current	A	4.0
Screw Diameter	mm	6.35
Screw Lead	mm	6.35mm
Linear Travel per Step	mm	0.03175mm
Stroke	mm	50mm
Rotating Speed	rps	5
Rated Voltage	V	3.8
Resistance	Ohms ±10%@20℃	0.95
Rated inductance	mH Typ.	4.5
Holding torque	N.m	1.8
Weight	kg	1.2

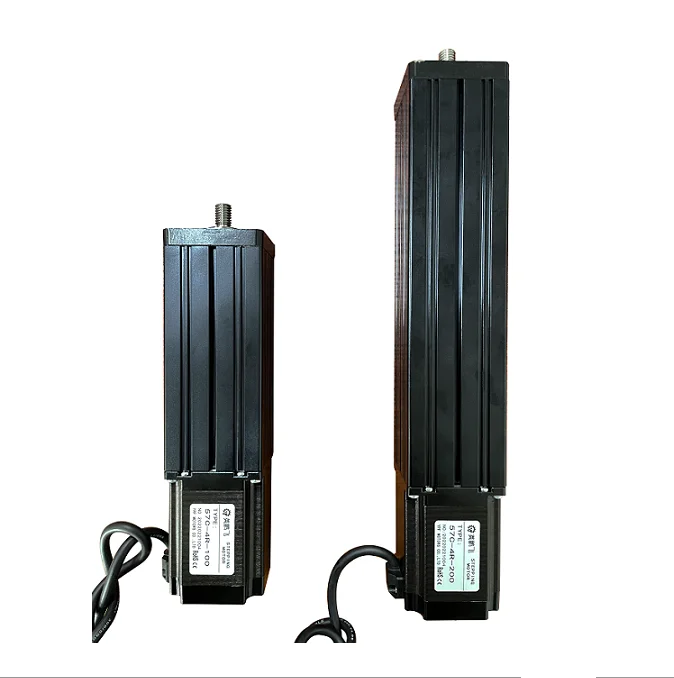

                                        Product Detail



Company Information





SAMSR Motor has 30 years history of manufacturing stepper motors and drives. Along with the development of automation the SAMSR motors are becoming increasingly towards high precision, superior technology and comprehensive.

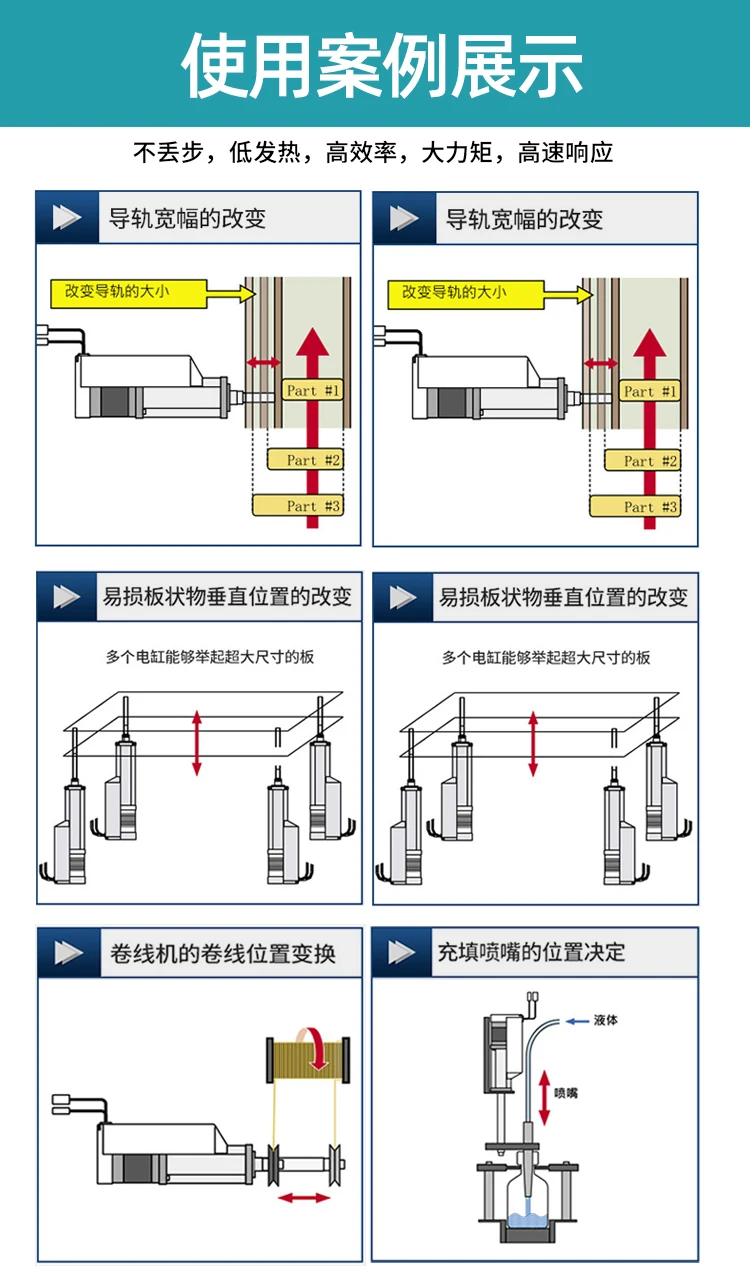

SAMSR stepping motors and drivers are widely used in those fields which requiring precise positioning, automatic aiming and automatic recording, etc...Such as precision machining, automation control, aerospace technology, medical apparatus, robots,textile and semiconductor equipment. Packaging and transportation machinery and so on

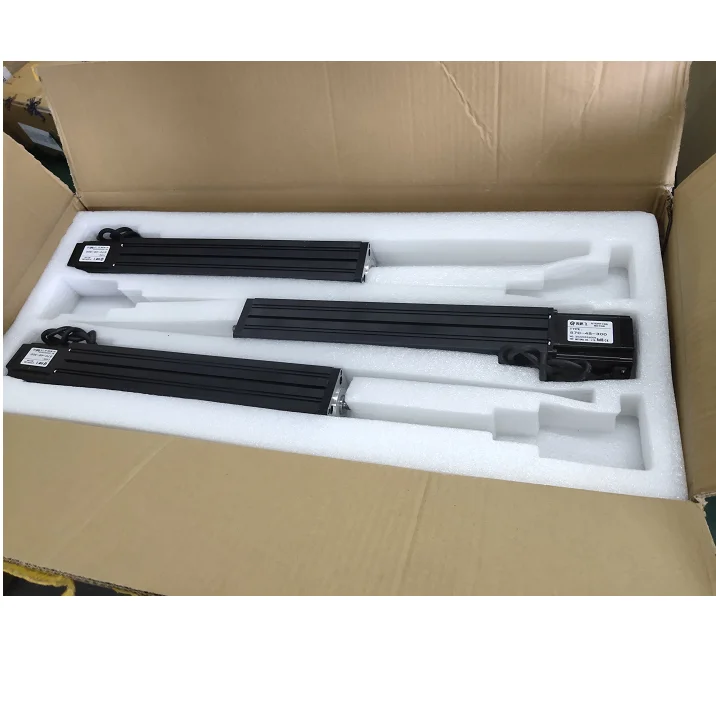

Packaging & Shipping







FAQ

1.Factory or Agent?
We are Agent, but have professional R&D team as introduced in company information.



2. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-20 days.



3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.



4. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished product inspection.



5. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
