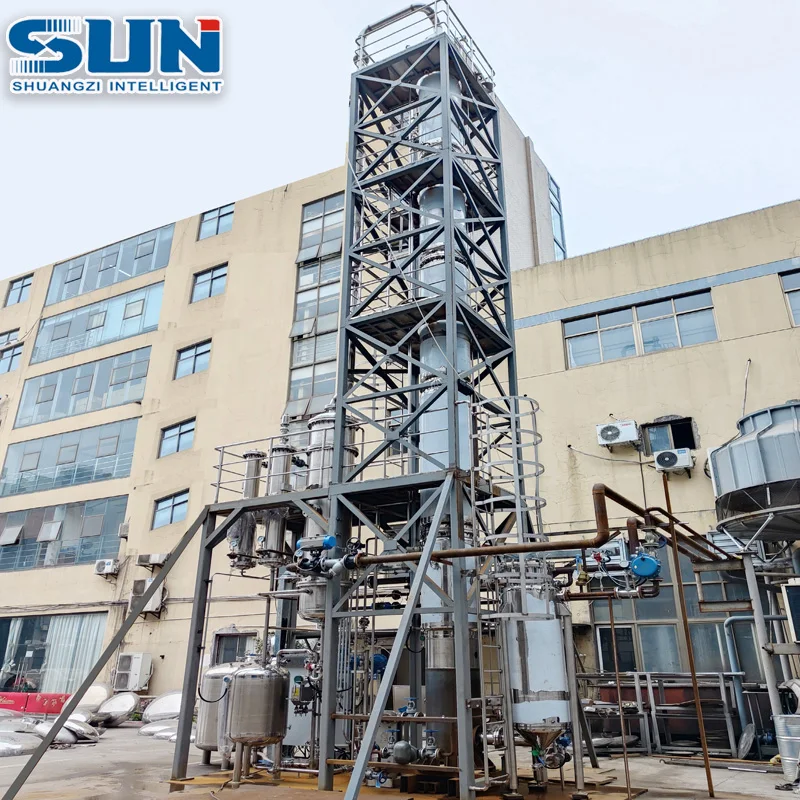

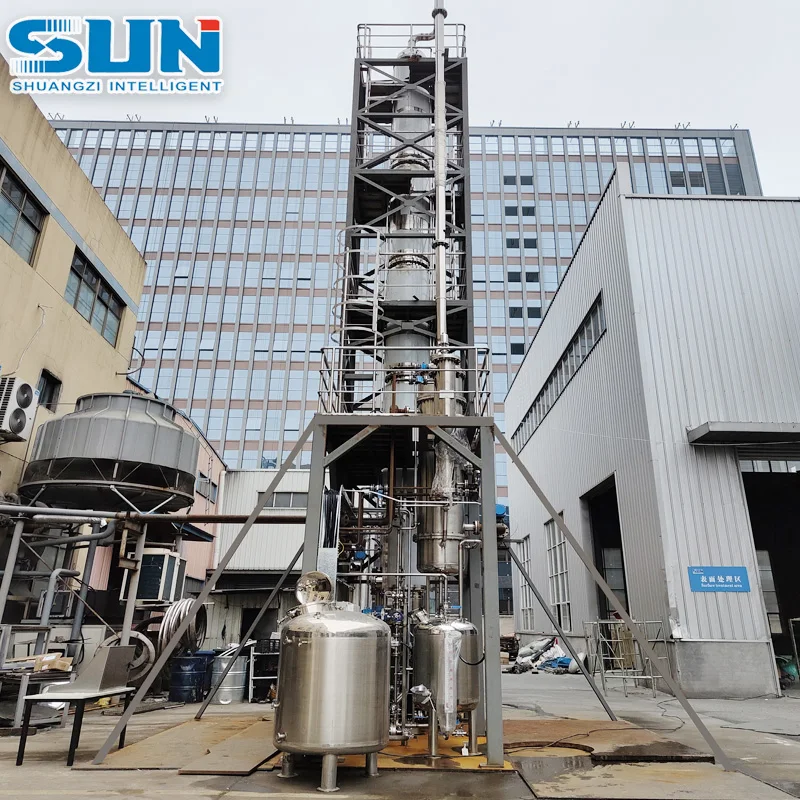

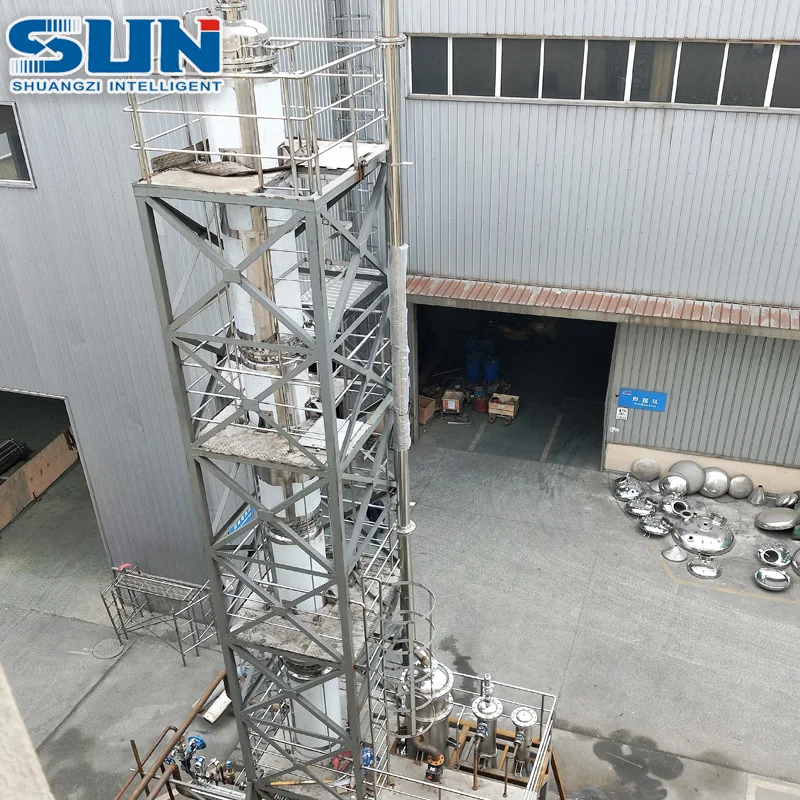

600 620kg/h Ethanol Rectifying Tower Alcohol Distillation Column Skid Mountable
- Category: >>>
- Supplier: Zhejiang Shuangzi Intelligent Equipment Co. Ltd.
Share on (1600655986897):
Product Overview
Description
Product Description
Large Alcohol Recovery Tower/Stainless Steel Ethanol Recovery Tower/Methanol Ethanol Distillation Unit/Distillation Tower is applicable to the alcohol recovery in pharmaceutical,food,chemical and light industries. It can reduce production cost and enhance economic benefits. The device can distill the dilute alcohol of 30-50% to 90-50%. For finished alcohol with high requirements on concentration,the reflux ratio can be increased,resulting in lower output of finished products. The alcohol concentration of residue is not higher than 3°.It is a device special for alcohol recovery.

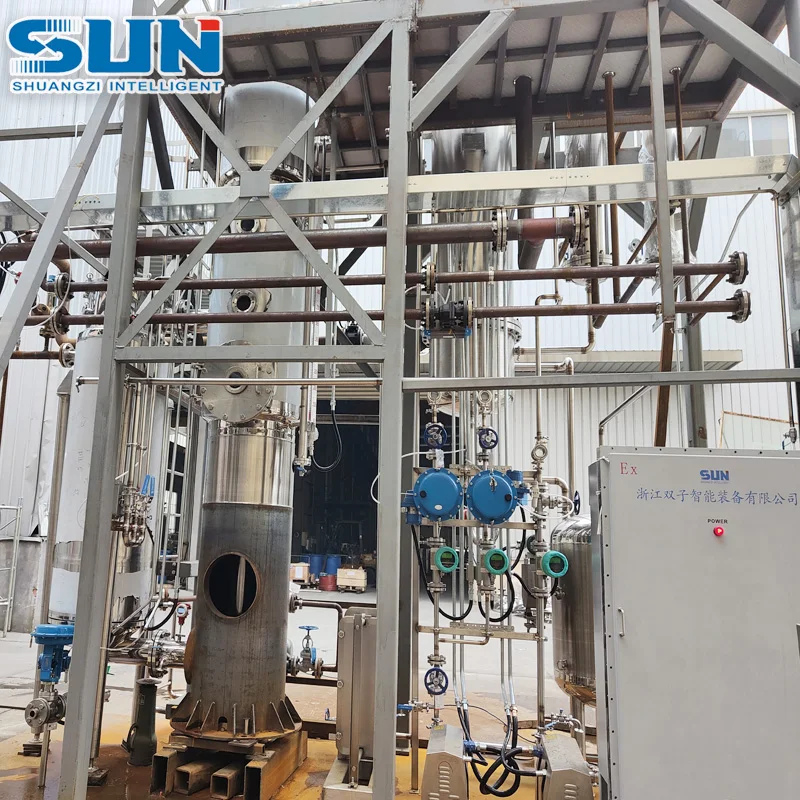

The alcohol recovery tower adopts highly-effective ceramic or stainless steel corrugated padding material.The parts that contact the alcohol,such as tower body,condenser,pressure stabilizer tank and cooling pipe etc.,are all made of stainless steel to ensure that the finished alcohol is free of pollution. The tower kettle adopts dismountable U type pipe,so as to facilitate the cleaning of the external heating wall and internal wall of distilling kettle.
Main technical parameters:
Items | JH-200 | JH-300 | JH-400 | JH-500 | JH-600 | JH-800 | |||||
Tower Volume (L) | 640 | 1220 | 1450 | 2300 | 2500 | 3200 | |||||
High Position Height (mm) | 6000 | 7000 | 7000 | 7000 | 7500 | 7500 | |||||
High Tank Volume (L) | 300 | 400 | 650 | 800 | 1000 | 1500 | |||||
Condensation Area (m²) | 5 | 9 | 11 | 18 | 25 | 45 | |||||
Cooling Area (m²) | 1 | 1.5 | 2.2 | 4 | 6 | 8 | |||||
Heat Exchange Area (m²) | 3.0 | 6.0 | 6.5 | 10 | 15 | 26 | |||||
Recovery Capacity (kg/h) | 45-50 | 90-100 | 150-160 | 280-300 | 420-440 | 600-620 | |||||
Recovery Concentration (%) | >90 | ||||||||||
Padding Material Type | ceramic or stainless steel corrugated padding material | ||||||||||
Dimension (L*W*H) mm | 2300*700*9300 | 2600*800*12500 | 2500*1000*15000 | 3000*1200*18000 | 3500*1400*18000 | 4200*1800*18000 | |||||
Detailed Images
Certifications
Factory Equipment & Workshop
Sample Projects
We Zhejiang Shuangzi have our own lab. We can supply small scale and middle scale test for our customers before designing the production line. We can get the key technical data during the testing, ensuring the high quality of the technical process and design level.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
* Visit customers abroad
After-Sales Service
* 6 engineers and 15 workers has USA visa, no problem to go to USA, Canada and any other countries to do technical support
*Technical trainning, Technical documents, *Customers field installation, field debugging
*One year quality guarantee
Package & Delivery
Big Tank Package
The big tank (reactor) will be wrapped by thick cloth and fitted in container directly.
Big Equipment Package
The big equipment will be wrapped by thick cloth and fitted in container directly.
Small Equipment Package
The small equipment will be packed in standard plywood cases
