Latest Product 1.5INCH L OBD 18BSP 0 11BAR160PSI 304 stainless steel case Liquid filled oil pressure gauge
- Category: >>>
- Supplier: Ningbo Weka Instrument Co. LTD
Share on (1600655994175):
Product Overview
Description

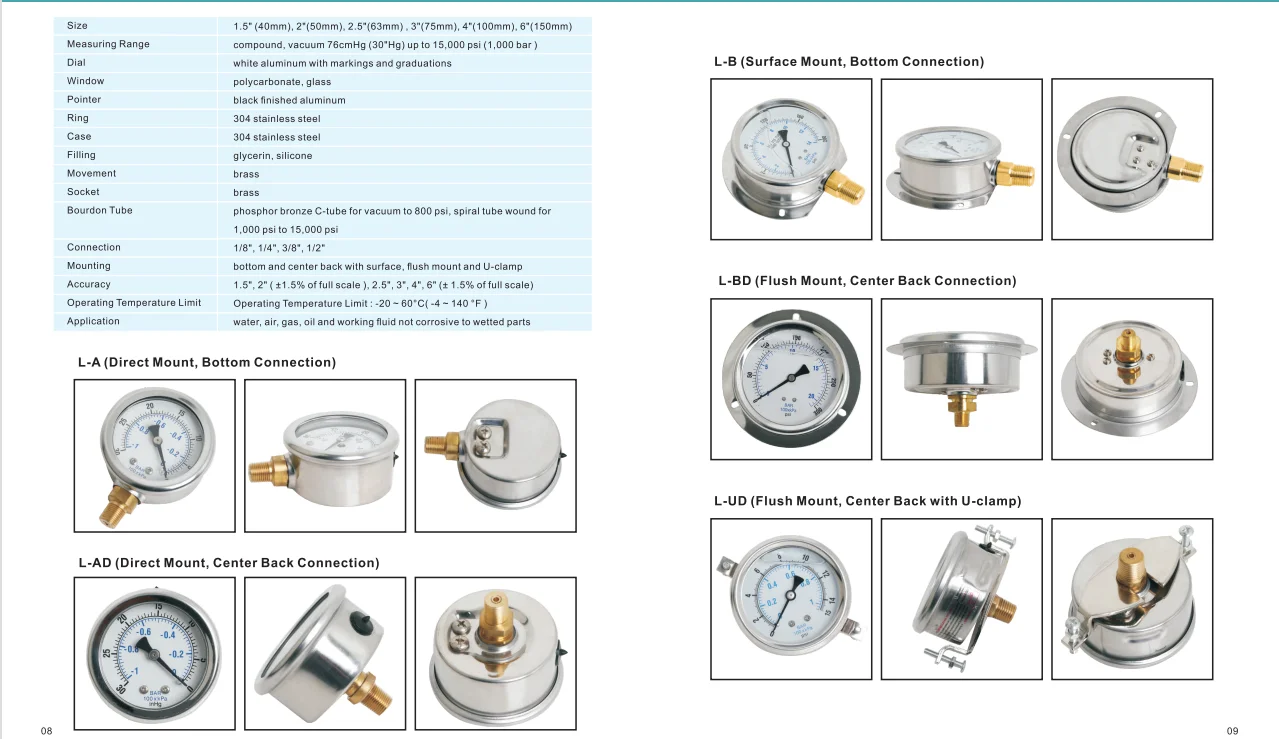

Description The liquid filled pressure gauge is designed for heavy duty service where excessive pulsation, shock and vibration such as pumps, compressors, HVAC and hydraulic & systems. Connection types:L-A type (bottom mount) L-B type (bottom mount with back flange) L-AD type (center back mount) L-BD type (center back mount with front flange) L-UD type (center back mount with u-clamp) L-DU type (lower back mount with or without front flange) Application: water, air, gas, oil and working fluid not corrosive to wetted parts | Specification Size: 1.2" (30mm), 1.5” (40mm), 2”(50mm), 2.5”(63mm) , 3”(75mm), 4”(100mm), 6”(150mm) Measuring Range: compound, vacuum 76cmHg (30"Hg) up to 15,000 psi (1,000 bar) Dial: white aluminum with markings and graduations Window: polycarbonate, glass Pointer: black finished aluminum Ring: sus304 stainless steel Case: sus304 stainless steel Filling: dry and fillable (oil type available glycerin, silicone) Movement: brass Socket: brass or chromed plated brass Bourdon Tube: 316L C-tube for vacuum to 800 psi, spiral tube wound for 1,000 psi to 15,000 psi Connection: 1/8", 1/4", 3/8", 1/2" PT, NPT, BSP thread Mounting: bottom, center back with surface, flush and u-clamp Accuracy: 1.5", 2"(+/-2.5% of full scale), 2.5", 3", 4", 6"(+/-1.5% of full scale) Operating Temperature Limit: -20 ~ 60°C (-4 ~ 140°F) |
1.Before we received the first order, please afford the sample cost and express fee.
We will return the sample cost back to you within your first order.
2.Existing items: Within 10~15 days.
3.We can print your Logo on both the products and the packages if you can meet our MOQ. OUR MOQ 500PCS.
We will return the sample cost back to you within your first order.
2.Existing items: Within 10~15 days.
3.We can print your Logo on both the products and the packages if you can meet our MOQ. OUR MOQ 500PCS.
