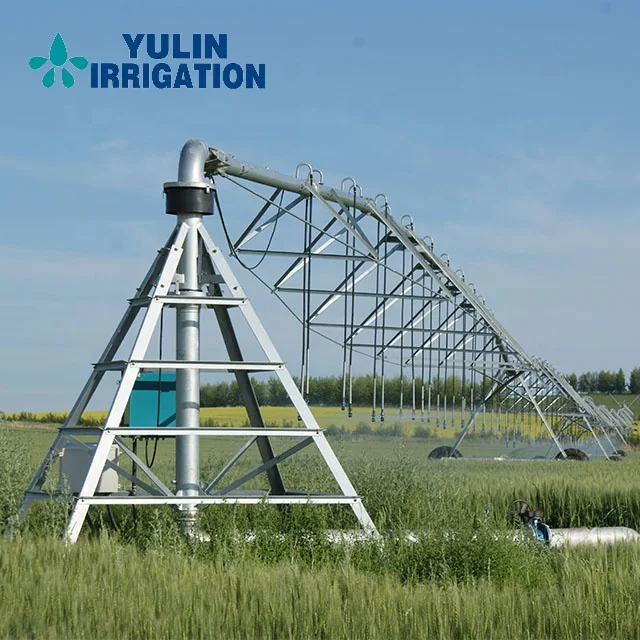

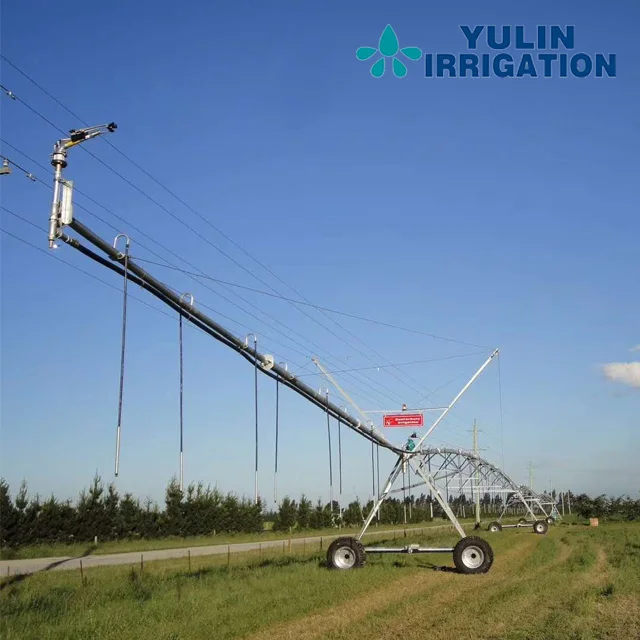

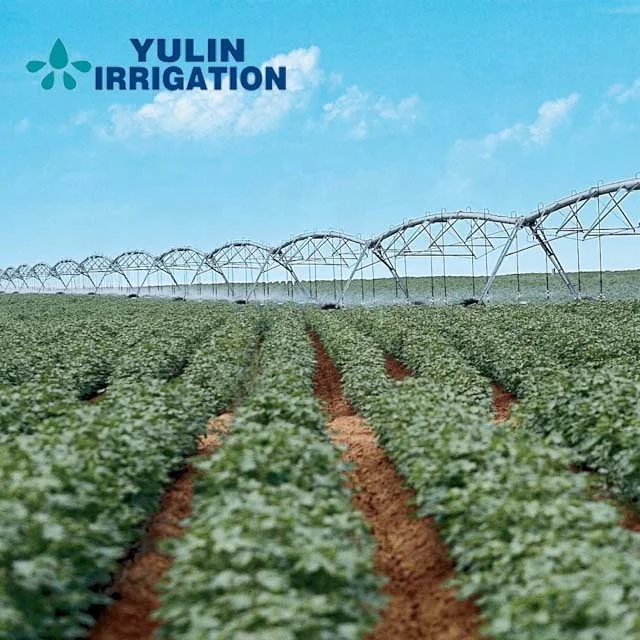

Farmland center pivot irrigation system boom irrigation machine for sale
- Category: >>>
- Supplier: China Yulin Irrigation Equipment Co. Ltd.
Share on (1600656065026):
Product Overview
Description
Product Description
Center Pivot Irrigation System Allocation Standard | ||
Main pipe diameter | 6-5/8''(168mm*3.2mm,high frequency welded steel pipe | |
Standard span | 6-5/8''(168mm)*54.5m(8 pipes) | |
King-sized span | 6-5/8''(168mm)*61.3(9 pipes) | |
Overhang | 5-9/16''(141mm) | |
King-sized overhang | 4''(101mm) | |
Pipe length | 22feet/one (6.7m) | |
Main pipe Flange thickness | 10mm, Flange and pipe adopt double welded technology | |
Working voltage | 460--380V/50--60HZ | |
Power supply mode | Diesel generator and the local power company provide | |
Tire type | 14.9*24, vacuum irrigation tire | |
Motor power | 0.75~1.5 horse power | |
Motor speed reducer | output speed of electric transmission gearbox:28~86RPM | |

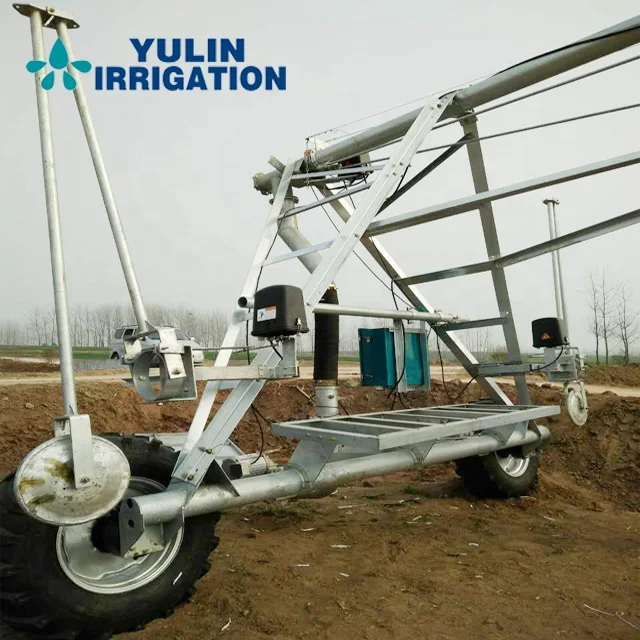

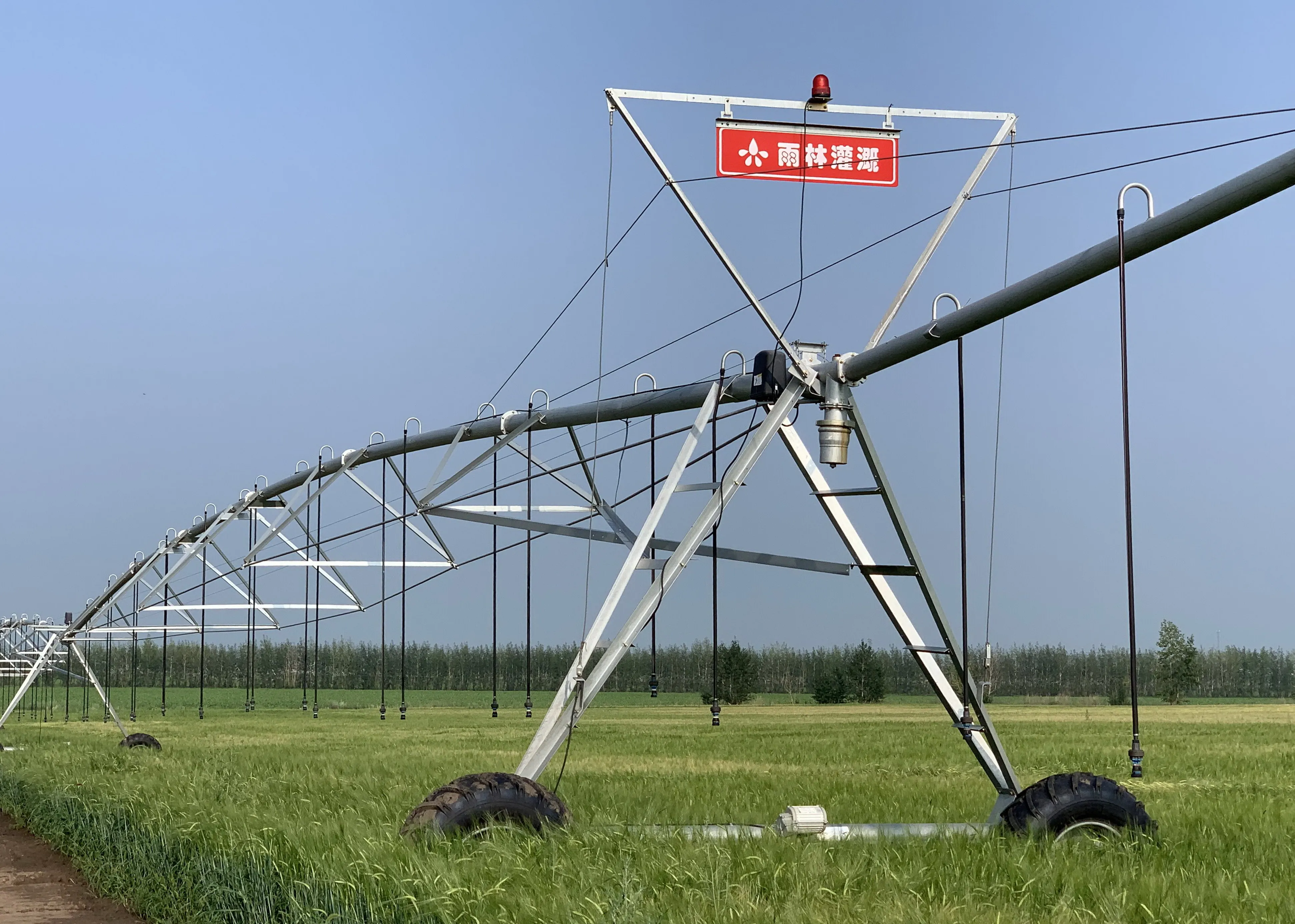

Span body tower structure | Adopt "V" model tower | |
All the equipment with | The pressure of Nelson pressure governor:15PSI (20PSI) | |
Main cable | 4*4mm²+6*1.5mm²(resisting ultra violet and aging | |
The end has | LED working status instruction light | |
Irrigation intake | 1 water inlet in center point,quick pipe joint connected structure | |
Irrigation intake caliber | 8 inches,the spot water supply pipe is more than 6 inches | |
Irrigation intake pressure | 0.20--0.35mpa | |
Standard irrigation truss height from the ground | 3.2m | |
Sprayer spacing | 2.2--4m ( quantity:2-3 sprayer/water pipes) | |
After complete machine steel component was welded, it adopts hot galvanizing. | ||

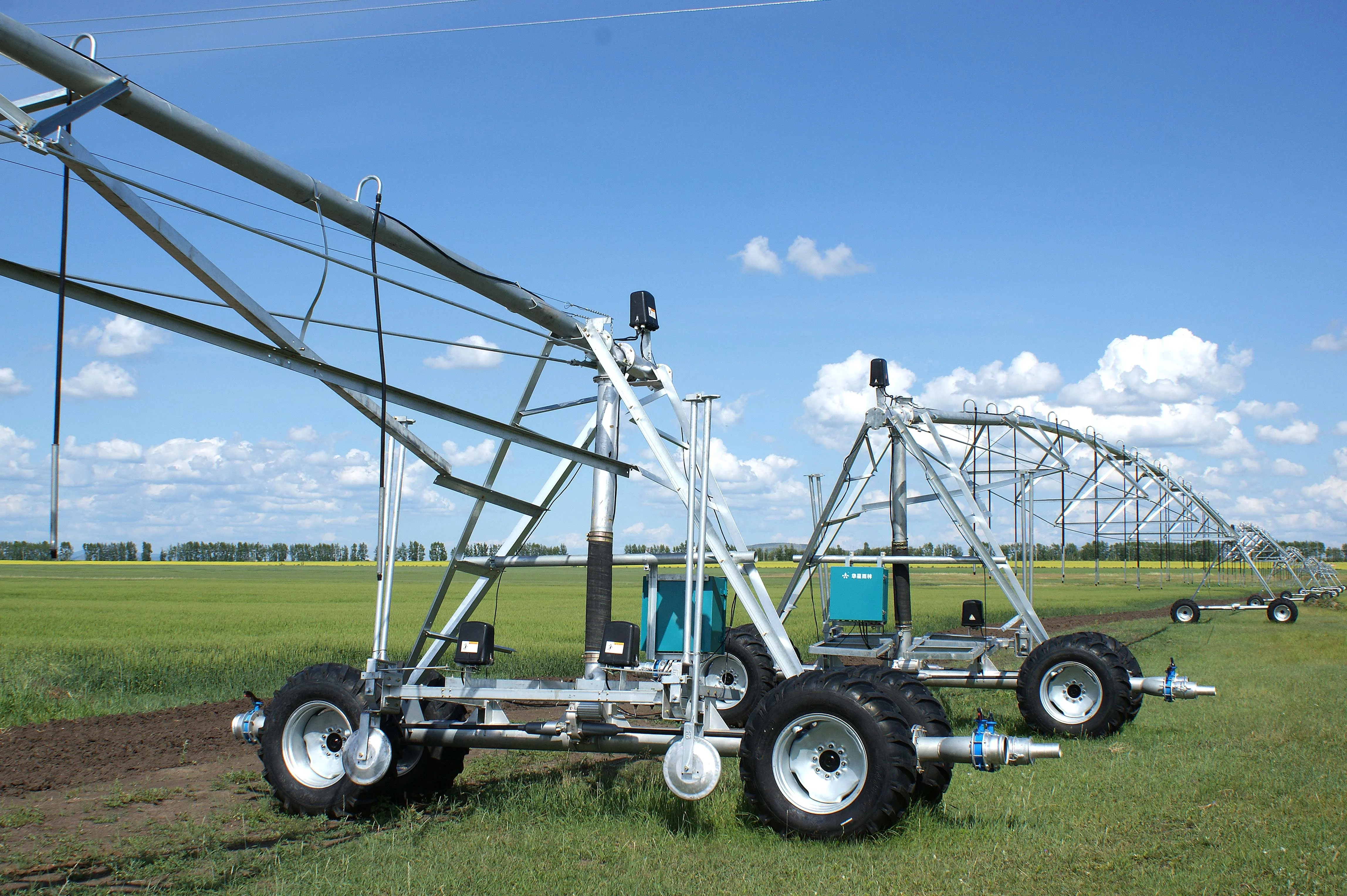

Detailed Images

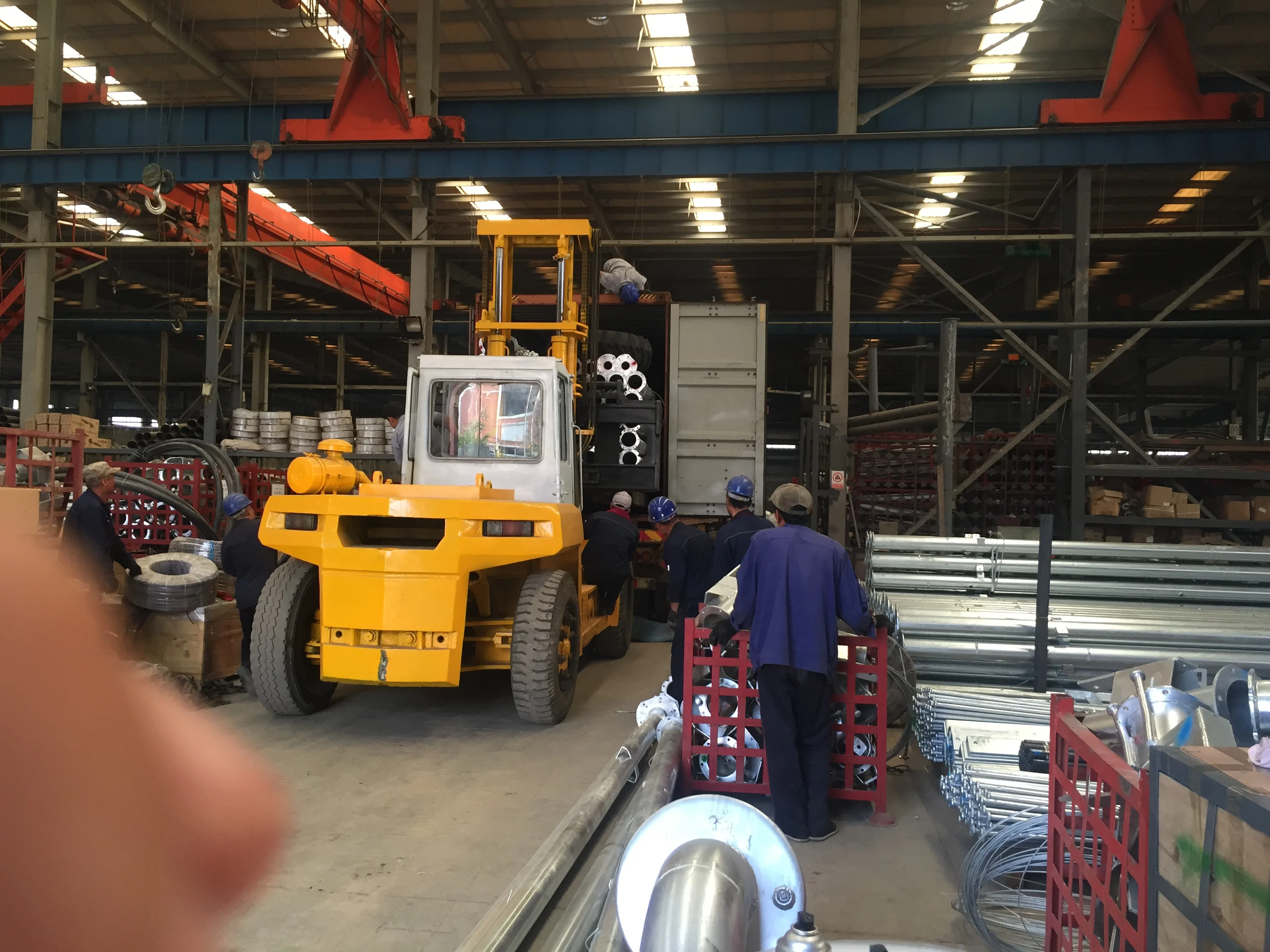

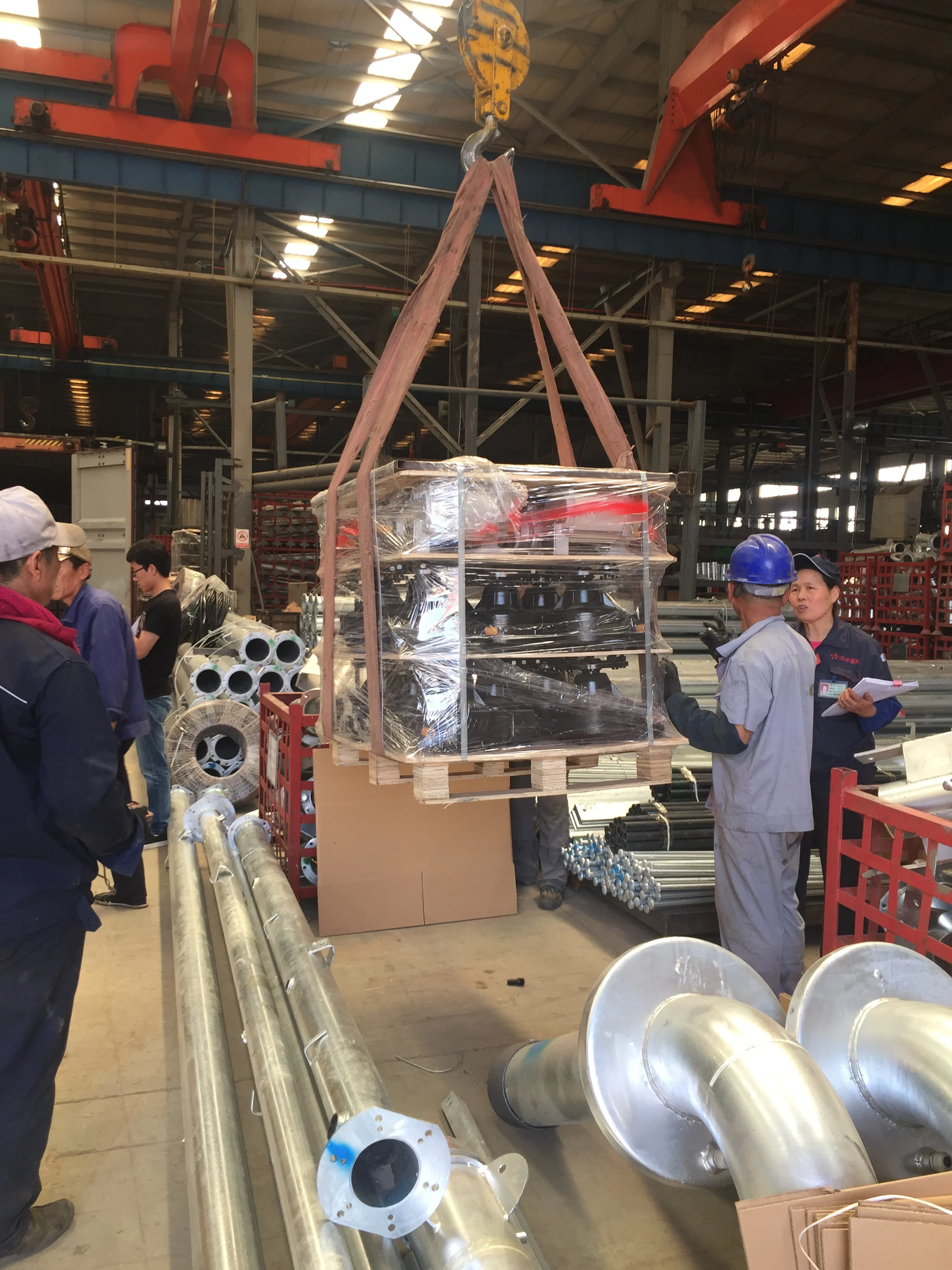

Packing & Delivery
Loading Container: 40 GP for whole machine
20 GP for irrigation machine
Mix container to loading for client
Vessel Company: COSCO, ZIM, CMA and famous international vessel company

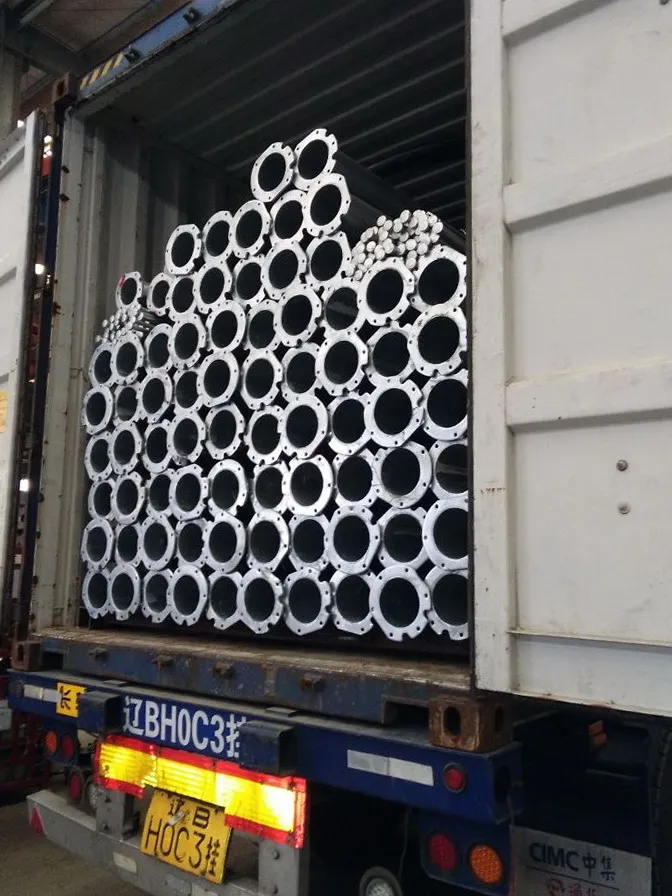

Standard Packing: Pipe:5 pieces of pipe for one line,four line as one packing
10 pieces of pipe for one line,two line as one packing

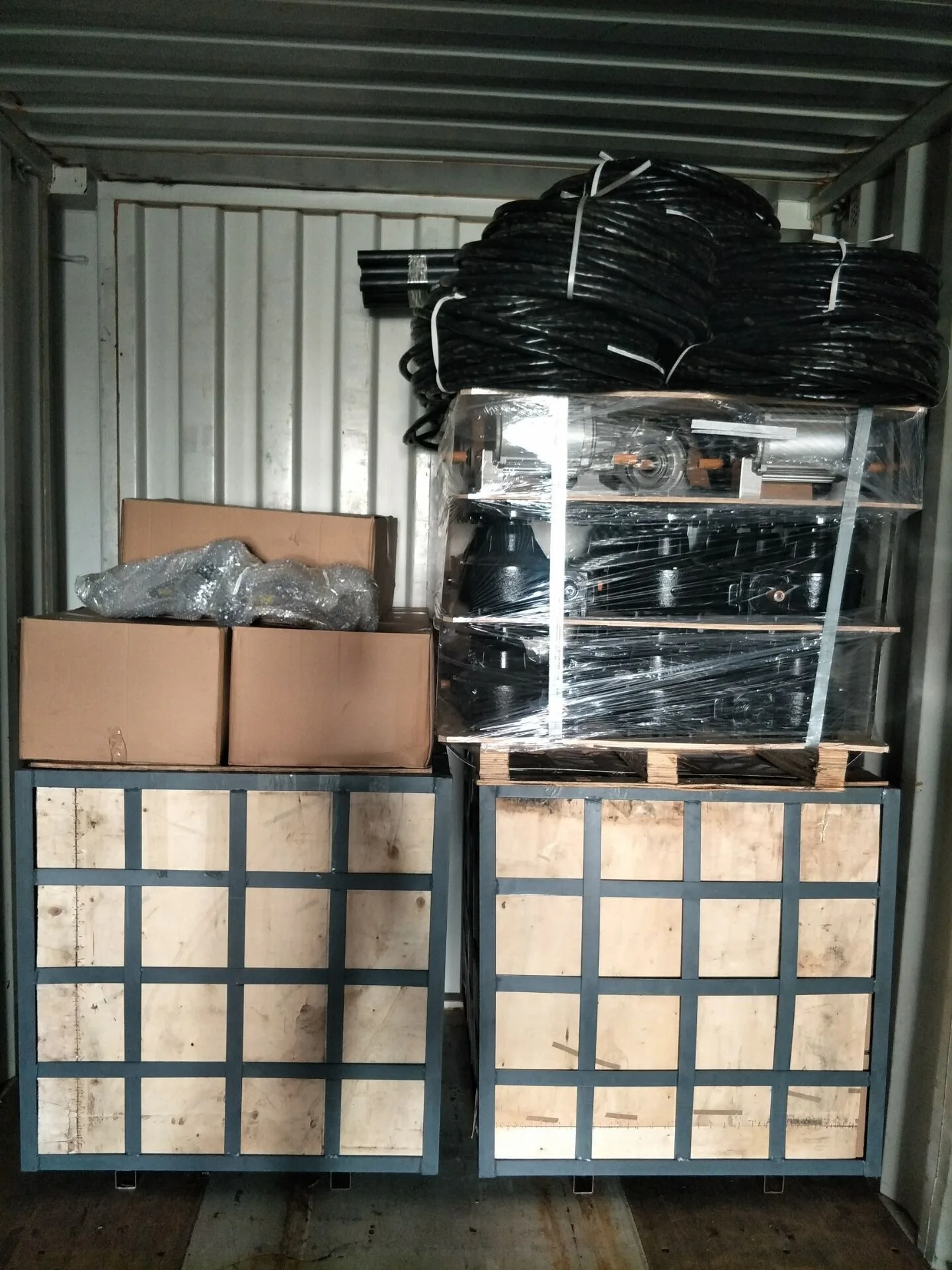

Eletricity parts : Packaged by carton and then put inside of iron box
Angles: Each span angle with different color marked for client as one packing

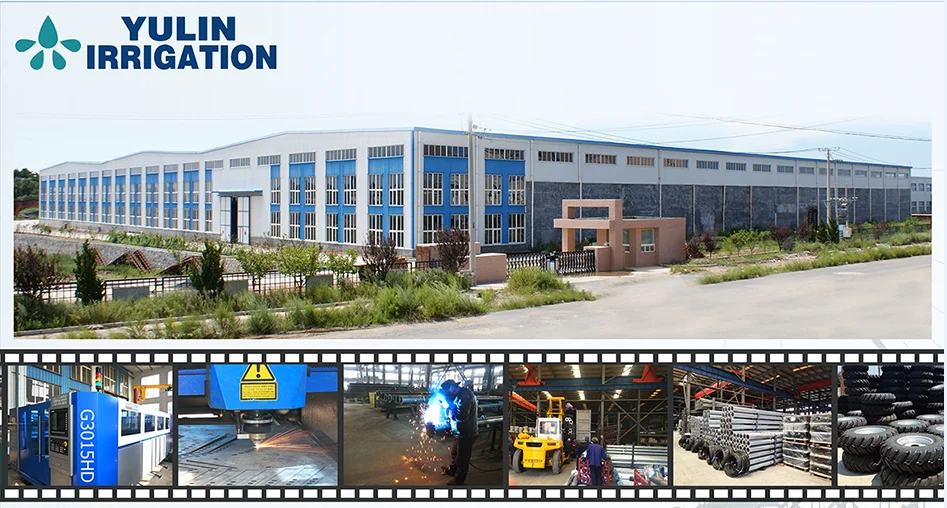

Our Company
CHINA YULIN IRRIGATION EQUIPMENT CO.,LTD
We're a leading manufacturer of agricultural irrigation equipment in China.As an OEM manufacturer we have more than 1000 large scale irrigation projects between 2000 to 2008 to American irrigation company. From 2009 YULIN has marked irrigation equipment under the brand HUA XING YULIN and has developed into a major supplier to industry and the Chinese Government through large government project tenders.
Exhibition
China Yulin Irrigation Equipment Co., Ltd joins professional irrigation shows all over the world every year.
Our machines have been exported to more than 20 countries.
Expecting to cooperate with customers specialized in irrigation industry all over the world. Let's grow more and more bigger and stronger with each other.
Looking forward to your arrival to visit our factory.
Our machines have been exported to more than 20 countries.
Expecting to cooperate with customers specialized in irrigation industry all over the world. Let's grow more and more bigger and stronger with each other.
Looking forward to your arrival to visit our factory.
Our Service
1.Timely and professional irrigation design team for clients all over the world.
2.Careful installation and debugging of our irrigation system to support Chinese domestic and dispatch engineer to foreigner countries
3.Perfect after-sale service for clients of our irrigation system
Debugging
Installing
