China Safety Biometric Fingerprint Access Control Systems Premium Electronic Optical Fingerprint Sensor Module
- Category: >>>
- Supplier: Jiangsu Bongrong Microelectronics Co. Ltd.
Share on (1600656108668):
Product Overview
Description
Products Description

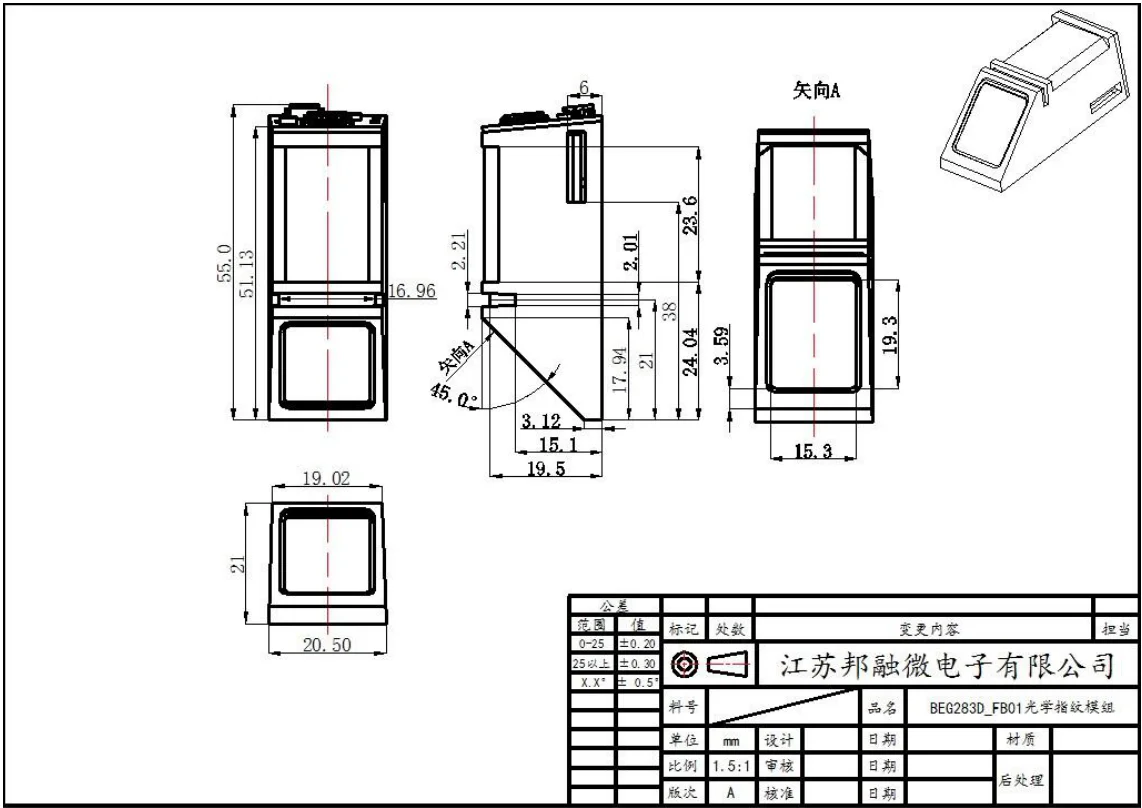

Acquisition head volume | 54.69mm(L)×20.49mm(W)×21.00mm(H) |
Window Size | 15.3mm(W)*19.3mm(H) |
Fingerprint Capacity | 3000 Fingerprints |
Resolution | 500 Dpi |
360 Degree Rotation Fingerprint Verification | Support |
Identification Speed | 1:1<22ms; 1:N(500 fingerprints) <80ms |
Sensor | CAMA optical finger print sensor |
Auto-Learning Function | Improve user's fingerprint data automatically while daily using |
Interface | USB (4pin, 1.25mm pitch) RS232 (TTL, 8pin, 1.25mm pitch) |
Verification Method | Support Both 1:1 and 1:N verification |
Capacity | 3000 fingerprints |
fingerprint Template | 1M bytes |
fingerprint Image | 256x288 pixel |
Power Supply | DC 3.3V |
Work Current | 120mA |
Standby Current | 43mA |
Sleep Current | 6μA |
FRR | <0.1% |
FAR | <0.001% |
Working Temperature | -40℃- 60℃ |
Working Humidity | 0%-85% |
More Products
Company Profile
Production Line
Transportation & Packaging
FAQ
1: Are you factory or only company?
We are a chip design company（fabless）, chip packaging testing and module OEM are in a large famous factory with quality assurance。
2: Why we can choose you?
1): Reliable--We design chips and module that are good enough, and we keep iterating
2): Professional--We are a derivative enterprise of institute of Microelectronics of Chinese Academy of Sciences, with high technical support and a large number of highly educated talents. More than 100 intellectual property rights and invention patents
3: How about the shipping cost?
We can send goods to you via express, such as FEDEX, DHLEMS,TNT,etc. we can also send to you via sea or air, we can quote the price base on FOB. CIF &CNF as you like。More details will be discussed
4:How about the price? Can you make it cheaper?
The price depends on the item your demand(Shape, size, quantity) Final quotation accoring to receving full description of the item you want. More details will be discussed
5:How about the sample time?
Sample time:3-10days after e-proof confirmed. More details will be discussed
We are a chip design company（fabless）, chip packaging testing and module OEM are in a large famous factory with quality assurance。
2: Why we can choose you?
1): Reliable--We design chips and module that are good enough, and we keep iterating
2): Professional--We are a derivative enterprise of institute of Microelectronics of Chinese Academy of Sciences, with high technical support and a large number of highly educated talents. More than 100 intellectual property rights and invention patents
3: How about the shipping cost?
We can send goods to you via express, such as FEDEX, DHLEMS,TNT,etc. we can also send to you via sea or air, we can quote the price base on FOB. CIF &CNF as you like。More details will be discussed
4:How about the price? Can you make it cheaper?
The price depends on the item your demand(Shape, size, quantity) Final quotation accoring to receving full description of the item you want. More details will be discussed
5:How about the sample time?
Sample time:3-10days after e-proof confirmed. More details will be discussed
