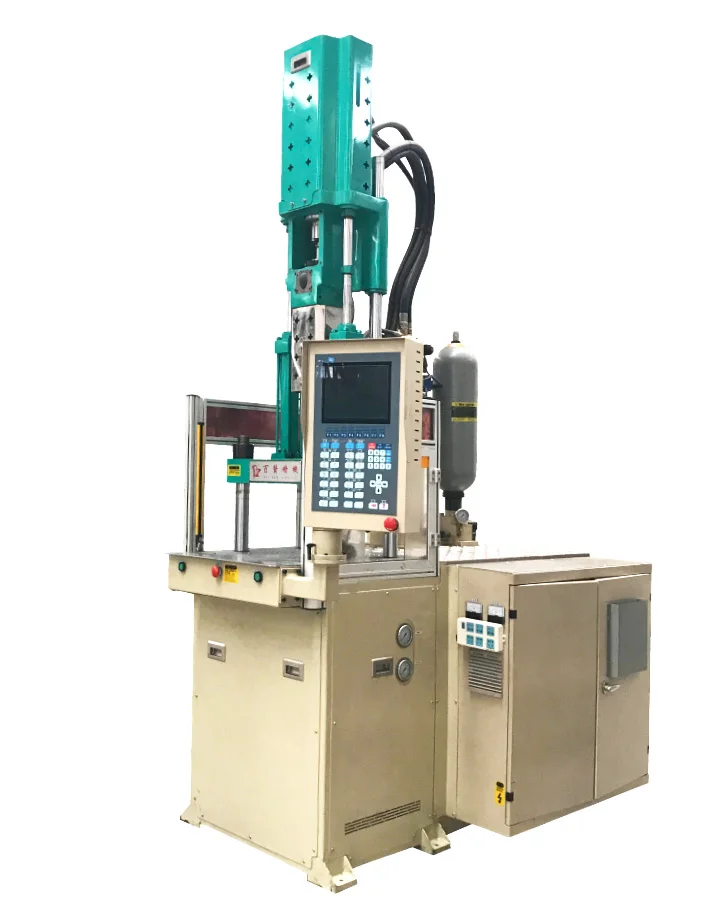

35T High Effective Blood Lancet Manual Machine Vertical Injection Molding Machine
- Category: >>>
- Supplier: Dongguan Hommar Hardware Co. Ltd.
Share on (1600656108722):
Product Overview
Description
Products Description

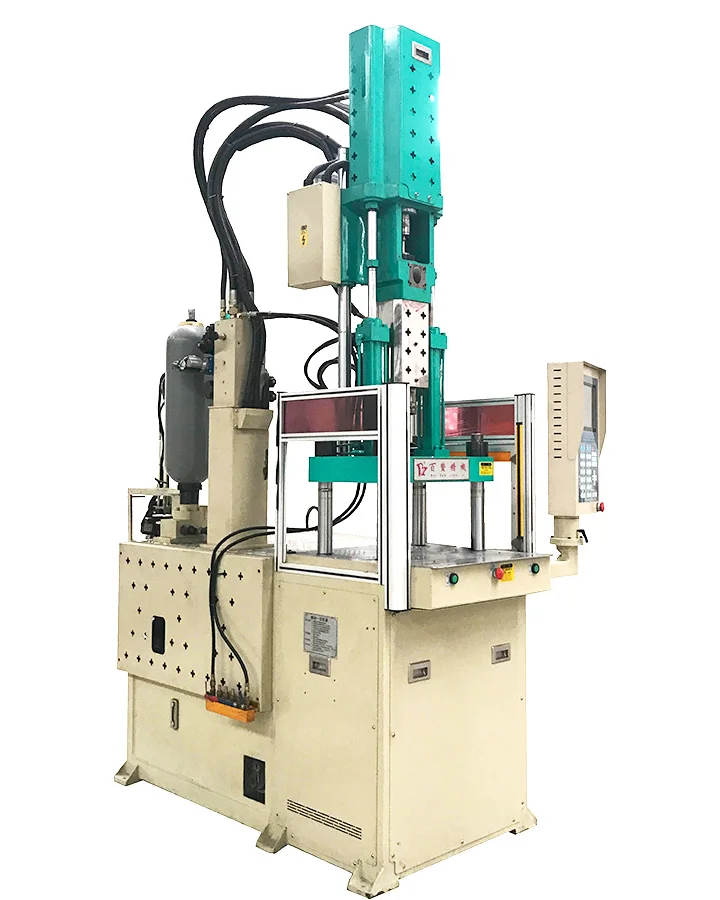

35T High Effective Blood Lancet Manual Machine Vertical Injection Molding Machine
Clamping Force | 35T |
Plastic Type | Thermoplastic |
Machine Type | Vertical Plastic Injection Molding Machine |
Screw Diameter | 28-32mm |
Screw Stroke | 110mm |
Machine Dimesions | 1770mm*1100mm*2610mm |
*Low noise and particulary suitable for clean-room production.
* Yet ensures fast speed, high precision, and excellent stability of operations.
* 2,3 or 4 Stations Structure.
* 2-3 times of outputs.
* Unique toggie mechanism evenly distributes clamping force over the mould surface.
Combining Advantages
Combining advantages of hydraulic and electric machines and highlighting high energy savings, fast response, high precision and high efficiency.
Saving Energy
Servo-motor-driven g ear pump and screw regulated b y servo controller,closed-loop control of flow and pressure, accurate multi-stage speed and pressure control of injection and clamping and plasticizing
High Performance
Suitable for injection molding of ultra-thin and high-precision products .
Injection response time ≤ 20 ms , injection speed up t o 1000 mm/s, part weight tolerance ≤0.5%
Injection response time ≤ 20 ms , injection speed up t o 1000 mm/s, part weight tolerance ≤0.5%

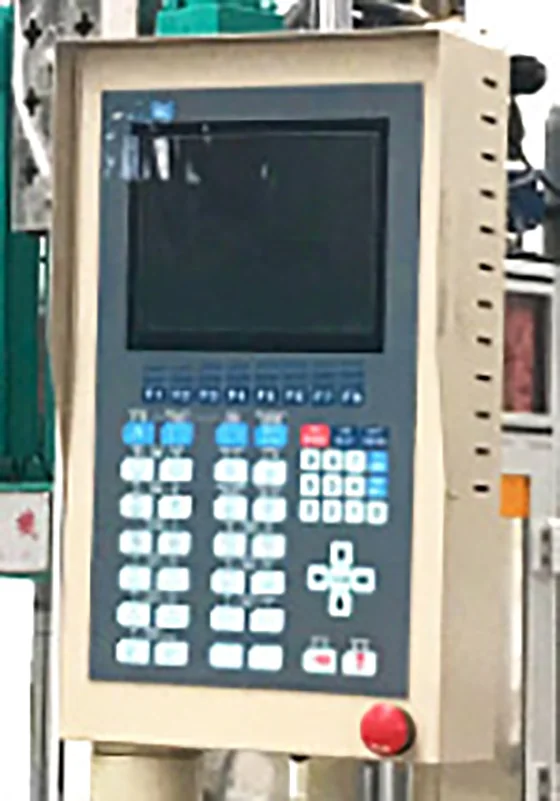

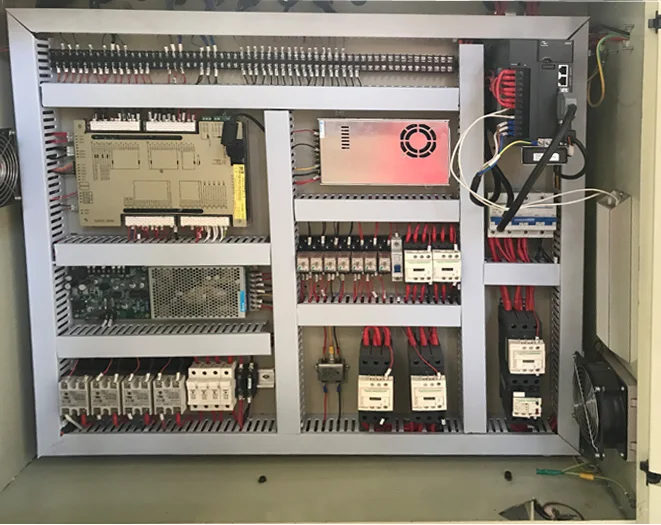

PLC | Electronic Parts | ||||||
Brand: Porches on | Brand: Schineider | ||||||
Original: TAIWAN | Original: FRANCE | ||||||
Features: High Precise Control,High Sensitive Response ,TFT Color Display,Language:Portugal,English,Chinese | Features: Stable High sensitive | ||||||

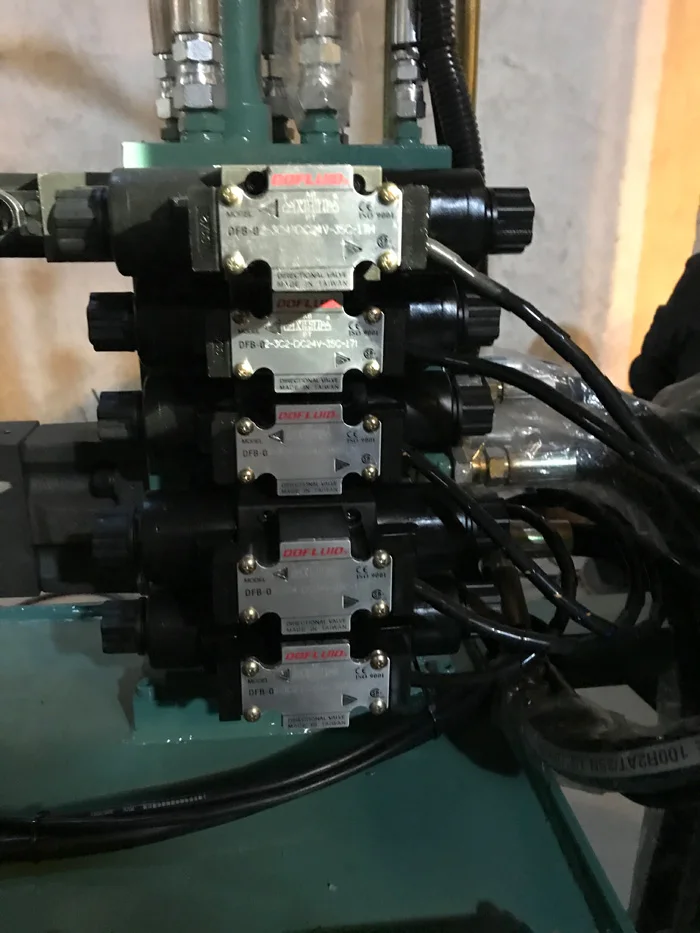

Oil Cylinder | Directional Valve | ||||||
Brand: Baizan | Brand: PINGZHONG | ||||||
Original: CHINA | Original: CHINA | ||||||
Features: Anit Brasive | Features: High sensitive response | ||||||
Performance&Features
GENERAL PERFORMANCE
1.Fixed lower platen and movable upper platen. Suitable for insert molding.
2.Nitrided steel screw and barrel,high-torque hydraulic motor-driven,multi-stage injection pressure,excellent plasticizing performance.
2.Nitrided steel screw and barrel,high-torque hydraulic motor-driven,multi-stage injection pressure,excellent plasticizing performance.
3.Vertical hydraulic clamping system with two cylinders,high-speed and low-pressure mold closing,multi-stage pressure control, longer mold life and more safety.
4.Protective devices of electrical components to avoid malfunction and maintain personal safety.
5.Movable injection carriage for easy replacement of material and mold.
STANDARD FEATURES
1.Screw cold start protection.
2.Emergency stop safety switch.
3.PID proportional temperature control.
4.Automatic fault display and shutdown.
5.Double-way safety starting switch.
6.High-speed low-pressure safety clamping device.
1.Screw cold start protection.
2.Emergency stop safety switch.
3.PID proportional temperature control.
4.Automatic fault display and shutdown.
5.Double-way safety starting switch.
6.High-speed low-pressure safety clamping device.
Applications
Specification
Mold | Unit | HM-V35T | |
注射装置 Injection Unit | Screw Diameter | mm | 28-32 |
Screw Stroke | mm | 110 | |
Theoretical Shot Volume | cm³ | 67-77 | |
Injection Molding Quality | g | 62-71 | |
oz | 2.2-2.5 | ||
Max.Injection Pressure | Mpa (kgf/cm²) | 141-123(1446-1250) | |
Injection Rate | cm³/s | 44-71 | |
Screw Speed | r.p.m | 0-240 | |
合模装置 Mold Clamping Unit | Clamping Force | KN(tf) | 343(35) |
Clamping Stork | mm | 200 | |
Min.Mold Thickness | mm | 150(210) | |
Max.Open Distance | mm | 350(410) | |
Space between Columns | mm | 370*210 | |
Max.Size of Mold | mm | 350*300 | |
Plate Size | mm | 440*350 | |
Distance of Product Out of Mold | mm | 100 | |
Ejector Force | KN(tf) | 21.5(2.2) | |
QTY of Ejector | pcs | 3 | |
其他 General | System Pressure | Mpa(kgf/cm²) | 13.7(140) |
Motor Power | kw(HP) | 5.5(7.5) | |
Electric Power | kw | 3.6 | |
Temperature Stage | 3+1 | ||
Mechanine Dimesions | mm | 1770*1100*2610 | |
Machine Weight | tf | 1.5 |
Certifications
Ente Certificazione Macchine
Hommar is a professional manufacturer of vertical injection molding
machine since 1998.
machine since 1998.
Always focus on upper-class quality machines .
Developing at least 15 new machines every year.
CE certification
Company Profile
About us
Hommar Industry Co., LIMITED is engaged in developing and manufacturing plastic injection machine and integrating peripherals and providing one stop source for customers for more than 20 years. Hommar has served more than 2000 customers not only with single process service but finished product from concept to packing and exports products to more than 30 countries, including 50 World Fortune 500 companies from electronics, telecommunication, home appliance, kitchen appliance, textile, shoes, automobile, machinery, gift, lighting, toys, health &medical, packing and so on.And we gain a lot of good reputations and lasting trust from customers by professional and high efficiency service and high quality standard qualified products all over the world. Our headquarter and the first factory is located in Dongguan, Guangdong with 22000 square meters floor and the second factory is located in Jiangmen, Guangdong with 60000 square meters floor.
Hommar Industry Co., LIMITED is engaged in developing and manufacturing plastic injection machine and integrating peripherals and providing one stop source for customers for more than 20 years. Hommar has served more than 2000 customers not only with single process service but finished product from concept to packing and exports products to more than 30 countries, including 50 World Fortune 500 companies from electronics, telecommunication, home appliance, kitchen appliance, textile, shoes, automobile, machinery, gift, lighting, toys, health &medical, packing and so on.And we gain a lot of good reputations and lasting trust from customers by professional and high efficiency service and high quality standard qualified products all over the world. Our headquarter and the first factory is located in Dongguan, Guangdong with 22000 square meters floor and the second factory is located in Jiangmen, Guangdong with 60000 square meters floor.

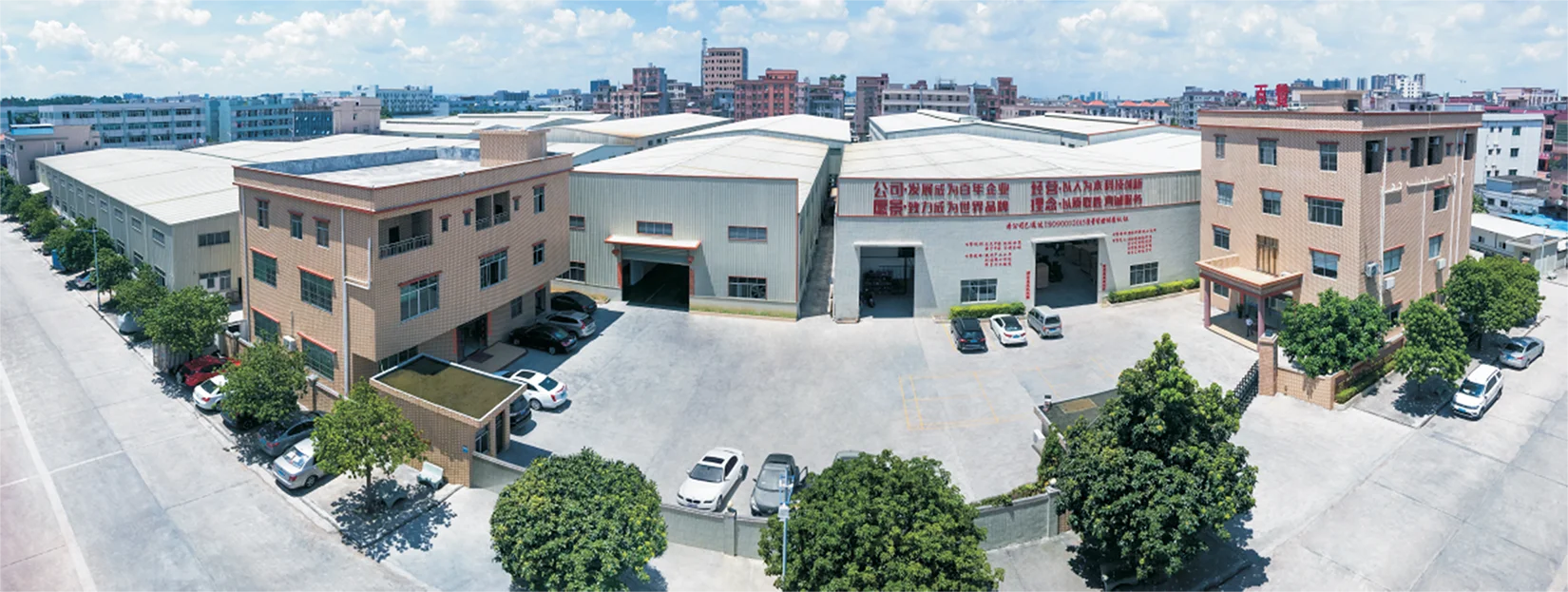

Factory Overview
Profession and Special: Our team is always making ourselves special by studying more than hundreds cases and analyze commonality and individuality and make a complete perfect solution to customer.
Innovation and Flexible:We also accept customer's drawing or concept for customization. We are the first manufacturer of 3 colors injection machine with center turret, hydraulic and electricity injection machine,650T vertical machine with low workstation.
Innovation and Flexible:We also accept customer's drawing or concept for customization. We are the first manufacturer of 3 colors injection machine with center turret, hydraulic and electricity injection machine,650T vertical machine with low workstation.
Processing equipment area
blood lancets making machine
Processing equipment area
automatic machine blood lancet
Assembly area
blood lancet machine
Assembly area
blood lancet automatic making machine
Producing workshop
blood lancet making injection machine
Producing workshop
auto blood lancet machine
Customer case
blood lancet manufacturing machine
Customer case
semi auto blood lancet machine
Out Team
Why you will choose us:
Giants alliance, integrated sources, close cooperation, high efficiency, professional and quick response team, solution worked out in 24 hrs.
How we work for you:
Professional and sincere marketing team +professional and flexible engineer team+ professional and experienced production team.
Global Operations
Selling more than 1000 machines every year
30+ million USD Sales turnover in 2018
Working with more than 200 listing corporations.
Always focus on upper-class quality machines
Developing at least 15 new machines every year
30+ million USD Sales turnover in 2018
Working with more than 200 listing corporations.
Always focus on upper-class quality machines
Developing at least 15 new machines every year
Exhibition
Our Customers
Packing and Delivery
Anti-rust Protection
Packing has been added with moisture-proof and rust-proof protection measures according to the characteristics of the equipment.
Wooden Case Packing
All the goods delivered by us have strong packing suitable for long distance transportation, multiple handling and handling.
Container Loading
The packaging structure of export products is scientific and reasonable to ensure the safety and reliability of the products under the conditions of automobile transportation, railway transportation, ocean transportation and various loading and unloading conditions.
FAQ
1. who are we?
We are based in Guangdong, China, start from 1998,sell to Domestic Market(80.00%),Eastern Europe(5.00%),North America(5.00%),South America(3.00%),Southeast Asia(3.00%),Western Europe(2.00%),South Asia(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
vertical injection machine,injection molding machine,LRS injection molding machine,bicycle grip making machine,Automatic Machine
4. why should you buy from us not from other suppliers?
Professional at Stamping molds for connects and electronics Devices
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 1998,sell to Domestic Market(80.00%),Eastern Europe(5.00%),North America(5.00%),South America(3.00%),Southeast Asia(3.00%),Western Europe(2.00%),South Asia(2.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
vertical injection machine,injection molding machine,LRS injection molding machine,bicycle grip making machine,Automatic Machine
4. why should you buy from us not from other suppliers?
Professional at Stamping molds for connects and electronics Devices
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
