Product Overview
Description
Main Features
Product Application
Machine name: Plastic PVC Wall Panel Making machine, Plastic PVC Ceiling Board Making Machine UPVC PVC Profile Extrusion Line

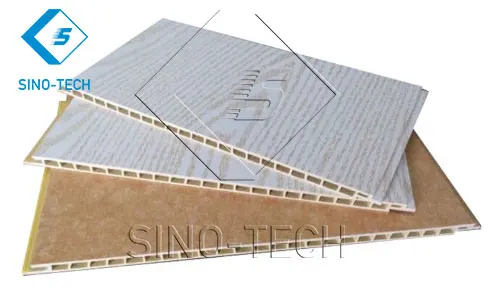

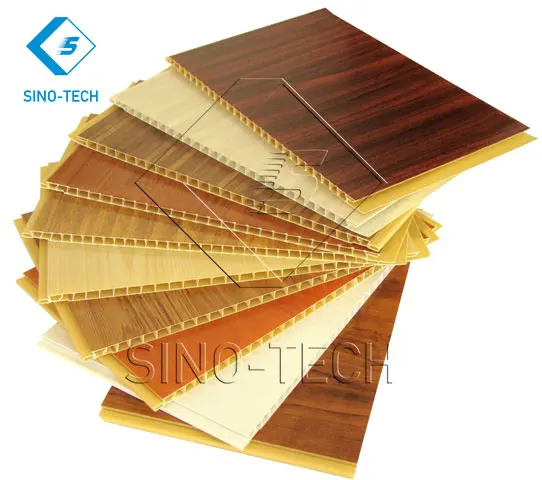

Finished product : Plastic Wall Panel,PVC composite ceiling,Plastic profile
PVC Ceiling can be applied in many decoration fields, such as: indoor ceiling board, floor,wardrobe board, cabinet board and so on,economical and suitable, cheap and good quality.
Matching with punching, lamination, hot stamping, printing machine achieves good synchronize and automatic control.
1. This PVC ceiling panel making machine which is suitable for the production of PVC and WPC as raw material products.

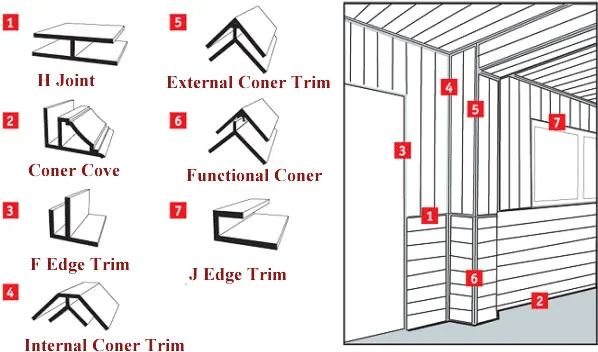

2. By replacing the mould, the same production line can be used to produce PVC/WPC ceiling panel,wall
panel,U-Clip,flooring,decorative lines etc.
3.Depending on the different products,this production line can be configured with on-line hot printing and off-line lamination.
Finished product : Plastic Wall Panel,PVC composite ceiling,Plastic profile
PVC Ceiling can be applied in many decoration fields, such as: indoor ceiling board, floor,wardrobe board, cabinet board and so on,economical and suitable, cheap and good quality.
Matching with punching, lamination, hot stamping, printing machine achieves good synchronize and automatic control.
1. This PVC ceiling panel making machine which is suitable for the production of PVC and WPC as raw material products.
2. By replacing the mould, the same production line can be used to produce PVC/WPC ceiling panel,wall
panel,U-Clip,flooring,decorative lines etc.
3.Depending on the different products,this production line can be configured with on-line hot printing and off-line lamination.
Product Name | PVC panel , PVC ceiling , PVC wall panel , PVC board |
Surface Treatment | Normal Printing , Transfer Printing , Laminated , Common glossy , High glossy |
Thickness | 5mm, 6mm,7mm,7.5mm,8mm,9mm,10mm,11mm,12mm |
Width | 180mm, 200mm, 250mm, 300mm, 400mm, 550mm, 600mm |
Length | 2m, 2.7m, 3m, 4m, 5.8m or customized |
Weight | 1.8, 1.9, 2.0, 2.1, 2.2, 2.3, 2.4, 2.5, 2.6, 2.7, 2.8, 2.9, 3.0, 3.2, 3.3, 3.4, 3.5, 3.6 kg/sqm |
Production process
On-line hot stamping process
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Hot stamping machine →Haul-off machine→ Cutting machine → Stacker(finished product)
Off-line transfer laminating process
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Haul-off machine→ Cutting machine → Transfer table→Lamination machine → Stacker(finished product)
Waste plastic:Crushing machine→Milling machine
PVC Ceiling Panel Wall Panel Making Machine UPVC PVC Profile Extrusion Line
(1). PVC Ceiling Machine / PVC Ceiling Panel Making Machine for Plastic Panel Wall Making is used to produce PVC ceiling panel(board), PVC decoration door panel.If change mould, it can produce other different PVC profile.
1.We are expert manufacturer of PVC Ceiling Machine / PVC Ceiling Panel Making Machine for Plastic Panel Wall Making and can supply you turnkey solution including supplying machines, installation, training staff, material purchasing help, help send Chinese production master etc.
2. We can show you running PVC ceiling making machine in our factory and our customer's factory.
3. The most important thing is that we have manufacturing PVC ceiling machine for over 15 years, we are familiar with all production process and we know how to make machines perfect and how to reduce production cost.
PVC Ceiling Panel Making Machines
The production line includes:
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Hot stamping machine →Haul-off machine→ Cutting machine → Stacker(finished product)
Off-line transfer laminating process
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Haul-off machine→ Cutting machine → Transfer table→Lamination machine → Stacker(finished product)
Waste plastic:Crushing machine→Milling machine
PVC Ceiling Panel Wall Panel Making Machine UPVC PVC Profile Extrusion Line
(1). PVC Ceiling Machine / PVC Ceiling Panel Making Machine for Plastic Panel Wall Making is used to produce PVC ceiling panel(board), PVC decoration door panel.If change mould, it can produce other different PVC profile.
1.We are expert manufacturer of PVC Ceiling Machine / PVC Ceiling Panel Making Machine for Plastic Panel Wall Making and can supply you turnkey solution including supplying machines, installation, training staff, material purchasing help, help send Chinese production master etc.
2. We can show you running PVC ceiling making machine in our factory and our customer's factory.
3. The most important thing is that we have manufacturing PVC ceiling machine for over 15 years, we are familiar with all production process and we know how to make machines perfect and how to reduce production cost.
PVC Ceiling Panel Making Machines
The production line includes:
1 | Screw feeder | |
2 | YF series conical twin screw extruder | |
3 | Extrusion Mould | |
4 | vacuum forming table | |
5 | haul off | |
6 | auto cutting machine | |
7 | stacker | |
Supporting machine(optional) | ||
1 | High speed mixing machine | |
2 | Hot stamping machine(or Laminating machine) | |
3 | Crushing machine | |
4 | Milling machine | |
model | YF180 | YF240 | YF300 | YF600 |
Max. Product with(mm) | 180 | 240 | 300 | 600 |
Max. Product height(mm) | 6-12mm | 20mm | ||
Extruder model | SNJZ51/105 | SNJZ55/110 | SNJZ65/132 | SNJZ80/156 |
Extruder power(KW) | 18.5 | 30 | 37kw | 55kw |
Capacity(kg) | 80-130 | 120-200 | 150-300 | 260-500 |
Haul-off motor | 1.1kw*2 | 1.5*2 |

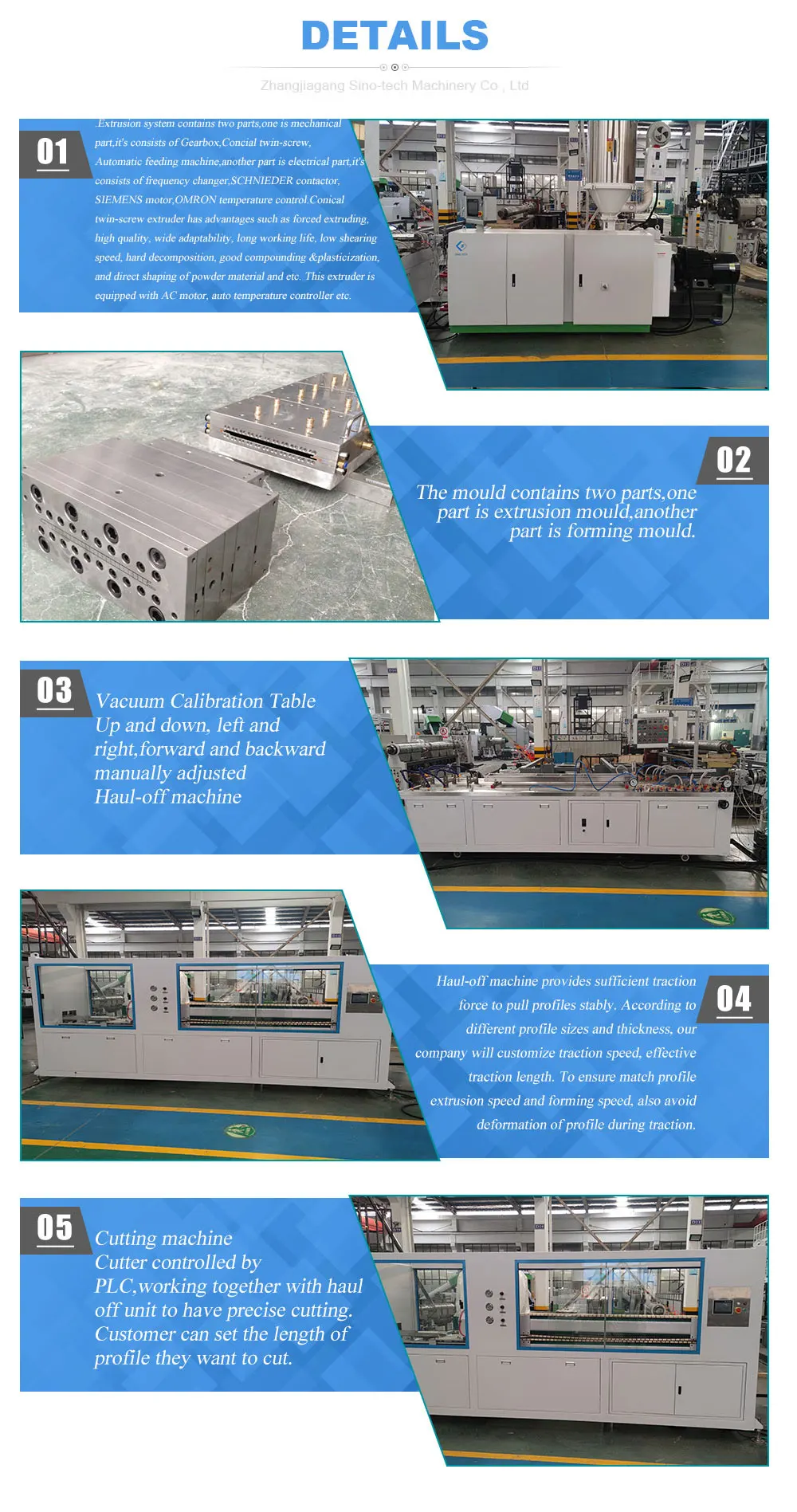

Details
Floor Plan

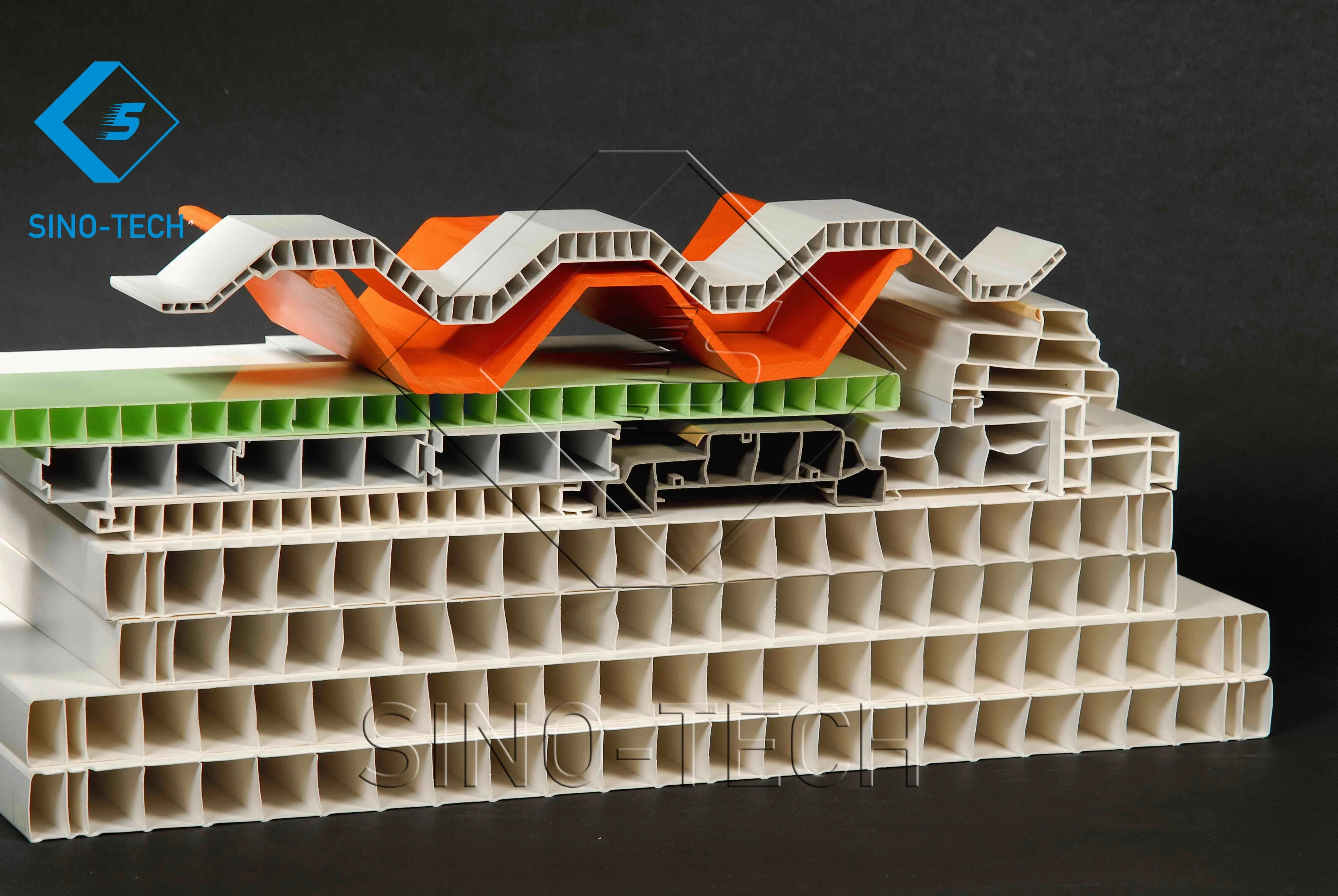

Final Products
Company Profile
Why Choose Us
Packaging & Shipping
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
