direct sale Concrete Spreader Dongfeng Chassis palcing boom truck mixer pump villa batch plant
- Category: Engineering & Construction Machinery >>>
- Supplier: Hunan,Tant,Construction,Machinery,Imp.,And,Exp.co.,Ltd.
Share on:
Product Overview
Description

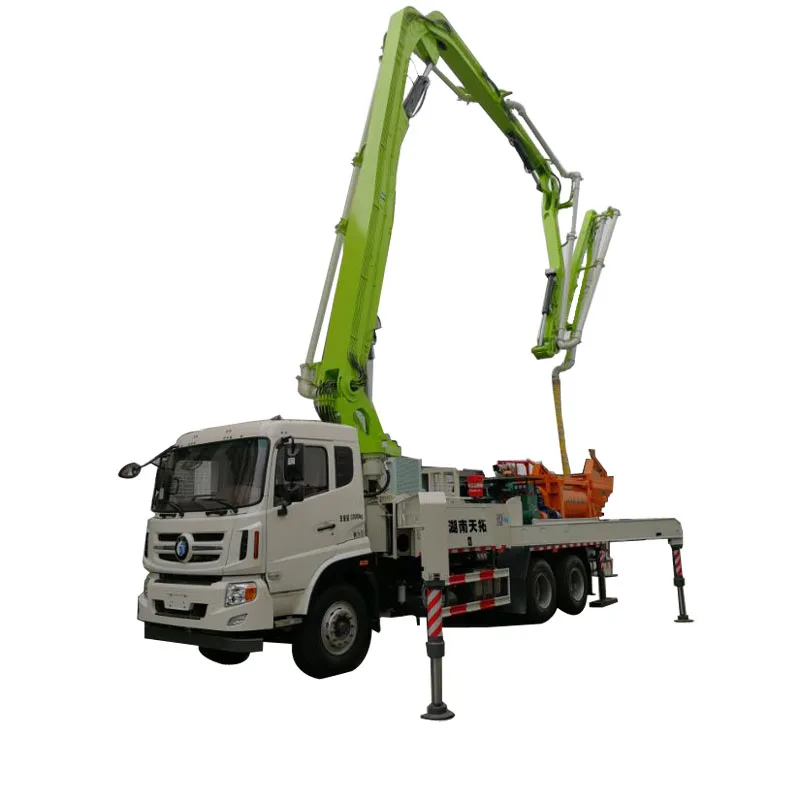

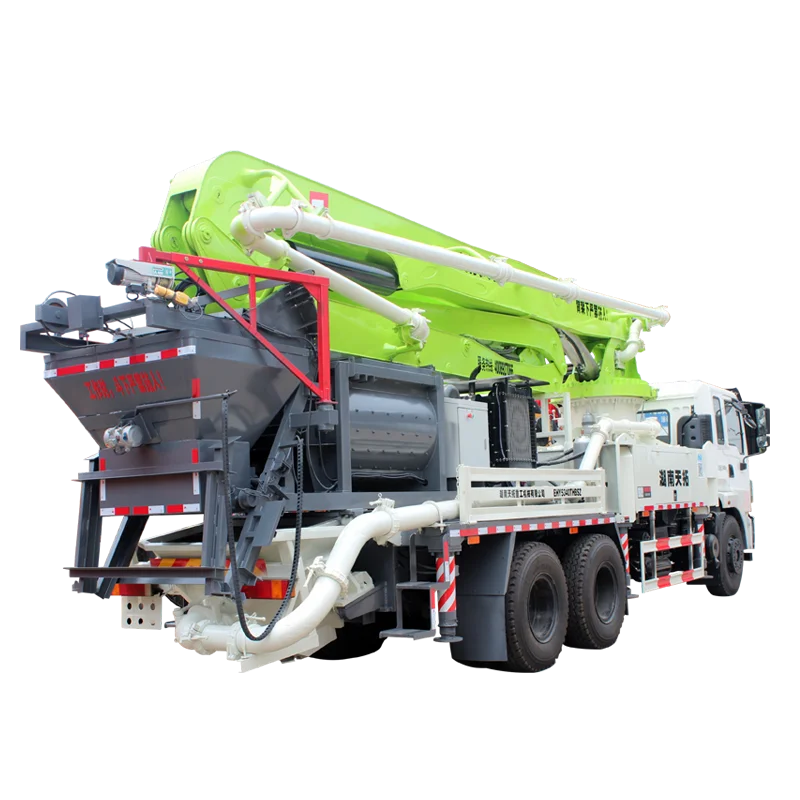

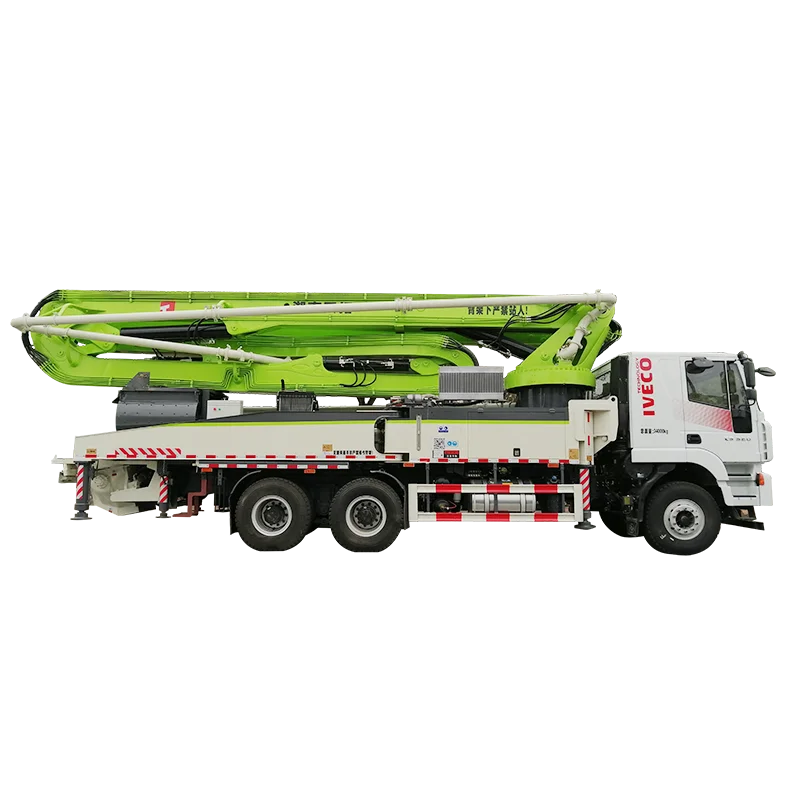

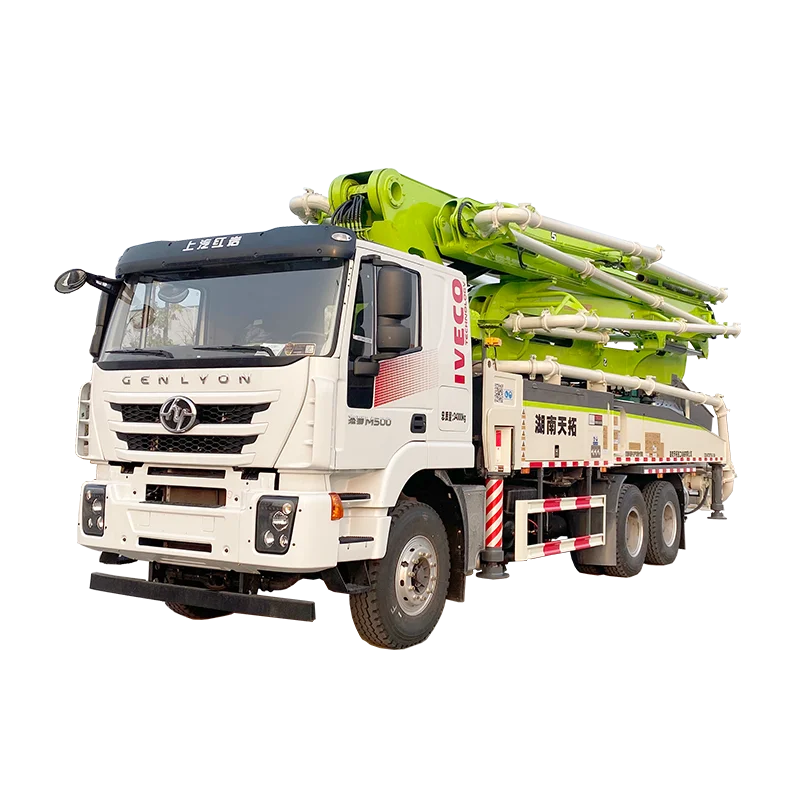

Truck Boom Pump with Mixer
Professional manufacturer
18 years+ Production & Export Experience
Solid technical foundation and independent innovation to ensure product quality
Well-know brand components from Germany, Italy, Japan, France etc. strive for the best combination of mechanical parts
MODEL | UNIT | 24M | 30M | 35M | 38M | 45M |
Overall length | mm | 9880 | 10200 | 11500 | 11840 | 12700 |
Overall width | mm | 2300 | 2300 | 2500 | 2500 | 2550 |
Overall height | mm | 3900 | 3900 | 3900 | 4000 | 4300 |
Total weight | kgs | 19500 | 20200 | 27200 | 31000 | 36000 |
Boom form | 3RZ | 5RZ | 5RZ | 5RZ | 6RZ | |
End hose length | m | 3 | 3 | 3 | 3 | 3 |
First arm length/ angle | mm/ o | 7500/ 90 | 7550/ 90 | 8000/ 90 | 9300/ 90 | 9430/ 90 |
Second arm length/ angle | mm/ o | 6200/ 180 | 6290/ 180 | 5995/ 180 | 7860/ 180 | 7284/ 180 |
Third arm length/ angle | mm/ o | 6105/ 180 | 6295/ 180 | 5280/ 180 | 7780/180 | 6900/ 180 |
Fourth arm length/ angle | mm/ o | / | 3450/ 180 | 6000/ 245 | 4870/ 245 | 8348/ 245 |
Fifth arm length/ angle | mm/ o | / | 2856/ 90 | 5730/ 180 | 4000/ 245 | 4100/ 225 |
Sixth arm length/ angle | mm/ o | / | / | / | / | 4274/ 90 |
Hydraulic system type | Open type system | Open type system | Open type system | Open type system | Open type system | |
Distribution valve form | S tube valve | S tube valve | S tube valve | S tube valve | S tube valve | |
Theory output capacity | m3/h | 50 | 80 | 80 | 80 | 80 |
Maximum aggregate size | mm | 40 | 40 | 40 | 40 | 40 |
Theory pumping pressure | Mpa | 10 | 10 | 10 | 10 | 10 |
Hopper capacity | L | 600 | 600 | 600 | 600 | 600 |
Recommended concrete slump | MM | 14-23 | 14-23 | 14-23 | 14-23 | 14-23 |
Hydraulic oil cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | |
Mixer model | JS 500 | JS 500 | JS 500 | JS 500 | JS 500 | |
Discharge capacity | L | 500 | 500 | 500 | 500 | 750 |
Feed capacity | L | 800 | 800 | 800 | 800 | 1200 |
Theory mixing capacity | m3/h | 30 | 30 | 30 | 30 | 37.5 |
Truck boom pump with mixer in other lengths can also be produced according to your needs.
Chassis, equipment, components etc. all can be further negotiated according to your requirements.
Details

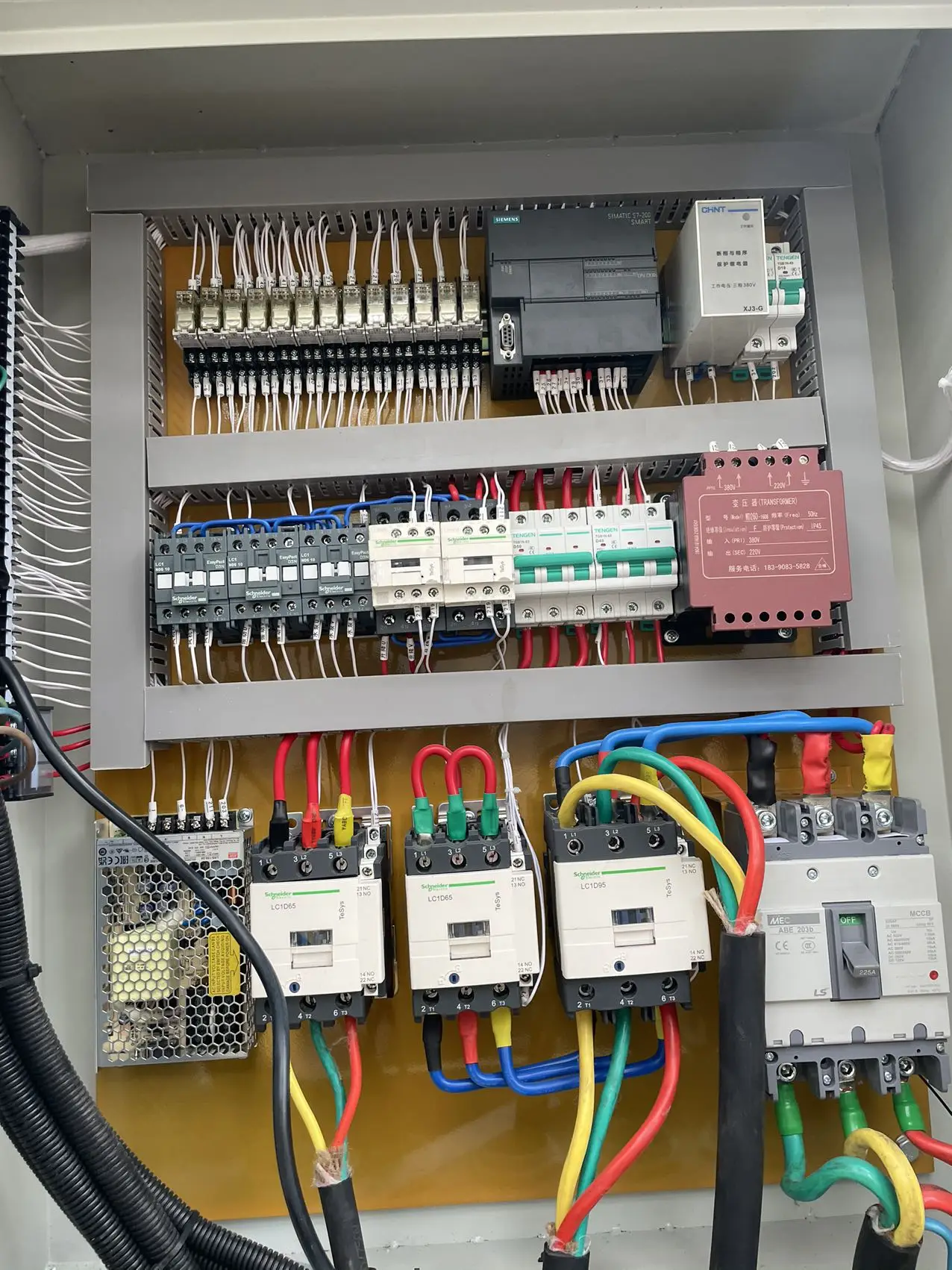

Electronic control system
Electronic System is highly automated and reliable. And the major electrical devices are from Schneider.
The electronic control system is equipped with two kinds of control device: board control device and wireless remote control device, which are with the features of easy operation, user-friendly ergonomics, and nice appearance. There into, the wireless remote control devices are Apollo wireless remote control devices.
The electronic control system is equipped with several warning devices which can ensure high safety during machinery working.
The electronic control system is equipped with several warning devices which can ensure high safety during machinery working.

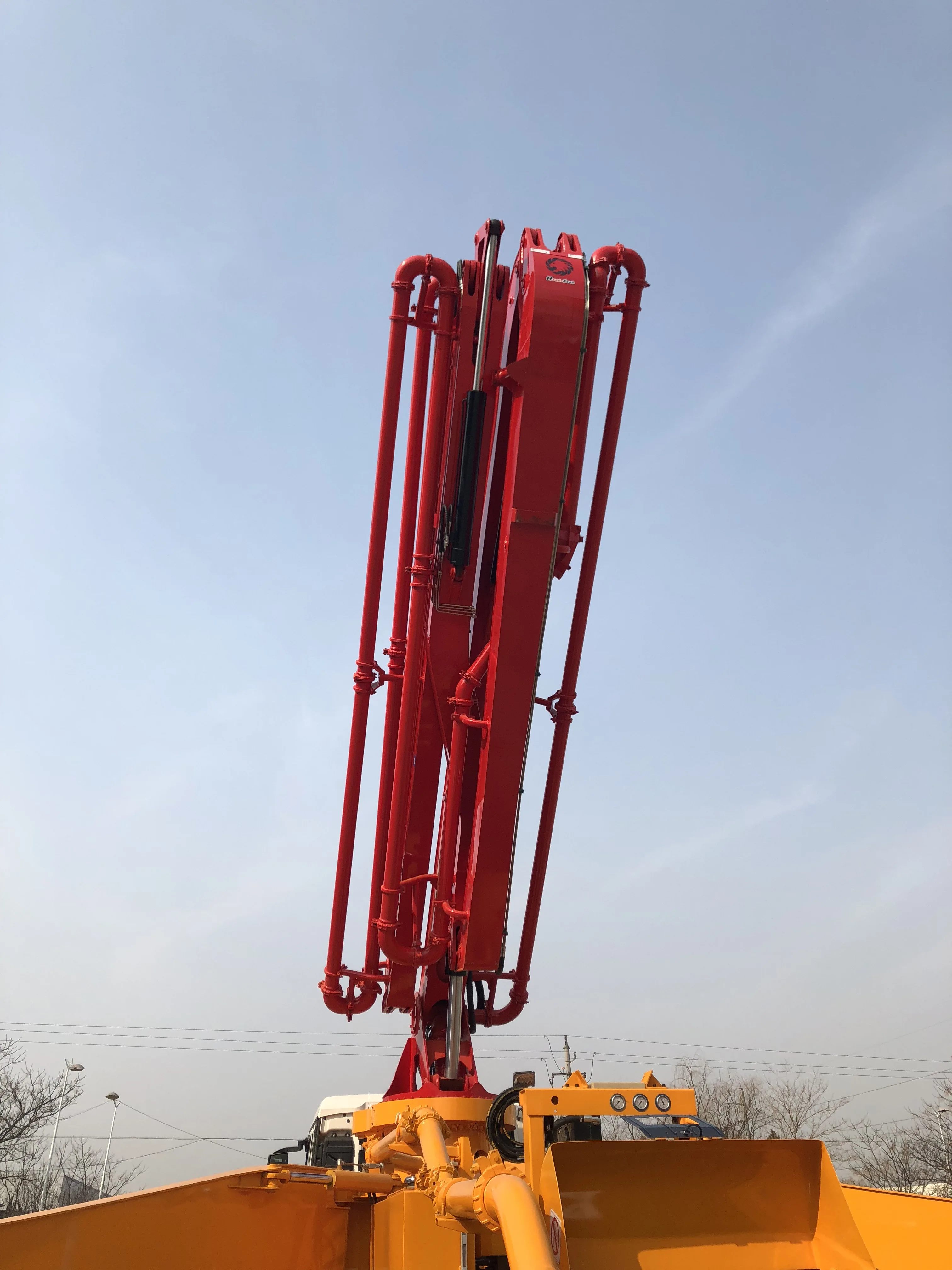

Boom System
Boom system, based on accurate data, is formed by the finite element analysis, dynamic analysis and test.
Boom system is produced with imported high strength low-titanium alloy steel. All material and its welds pass the 100% nondestructive inspection to ensure the safety and reliability of boom.
The control system of boom has pressure compensation and load sensing function. And the R-shaped boom can be adjusted in five grades of speed. So the boom can run in proper speed and can be perfectly operated.

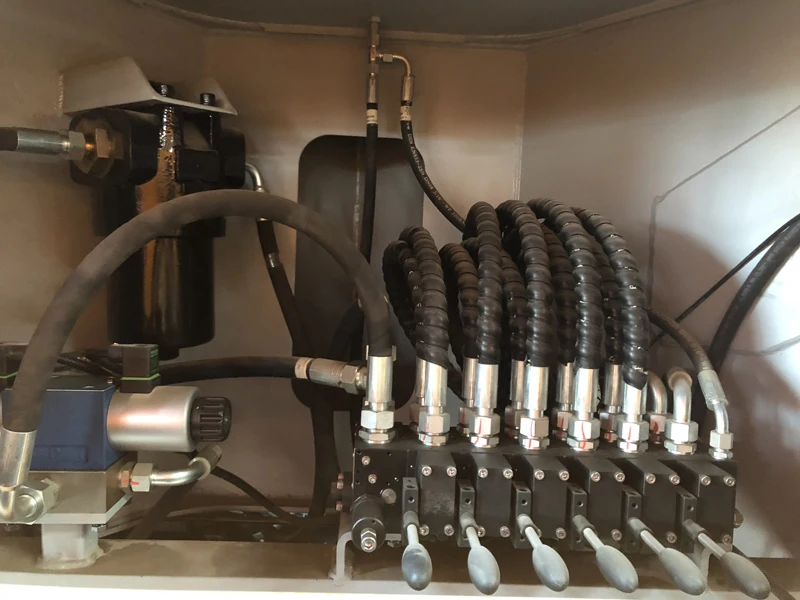

Multi-way valve device
The best loading-sensing multi-way values are used to improve the stability during the boom operating.

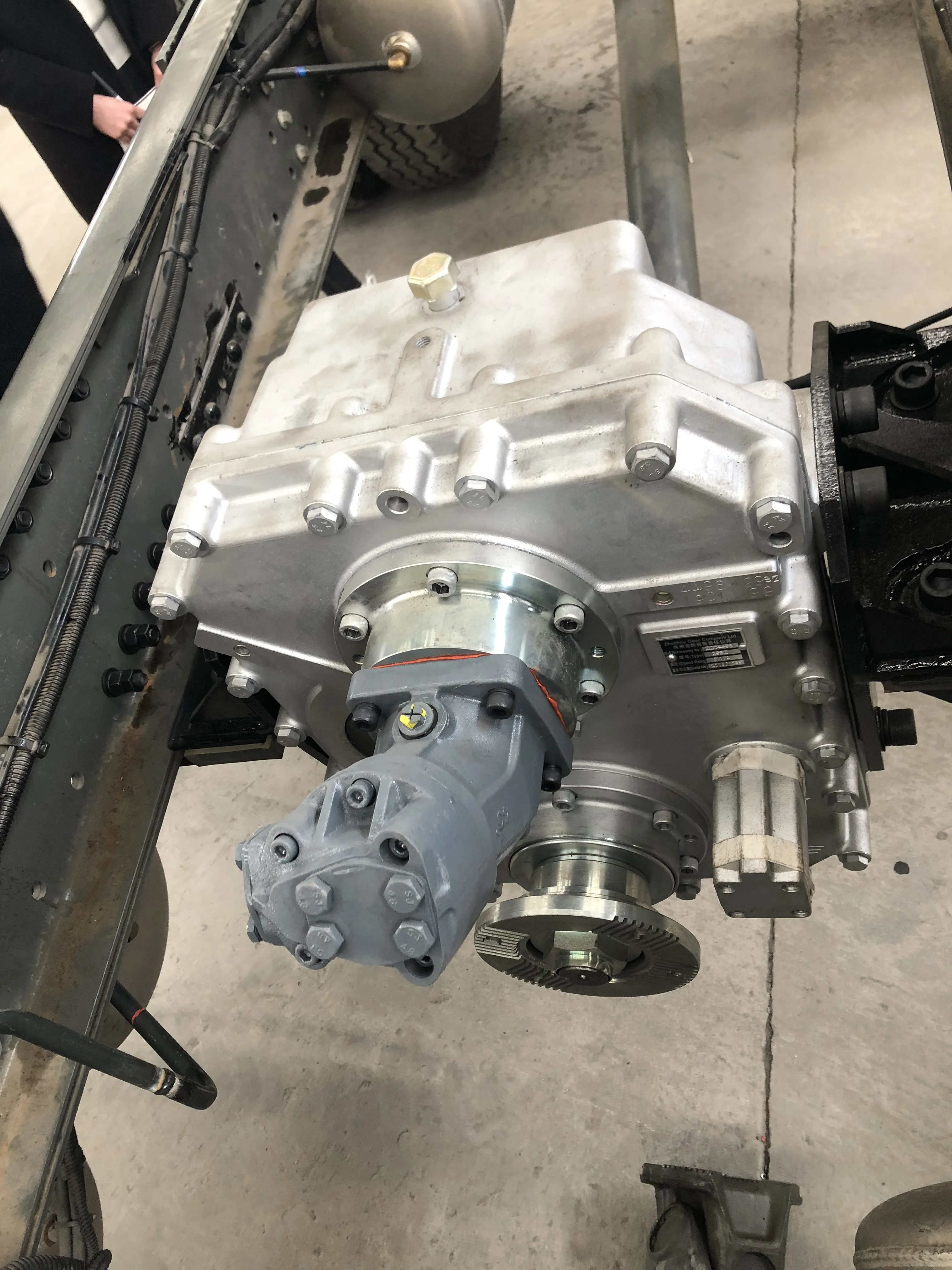

Transfer case system
Transfer case is the device which distributes the engine power. It can transfer the power from the engine on chassis so that the power from additional engine can be replaced, and the energy can be saved utilized efficiently.

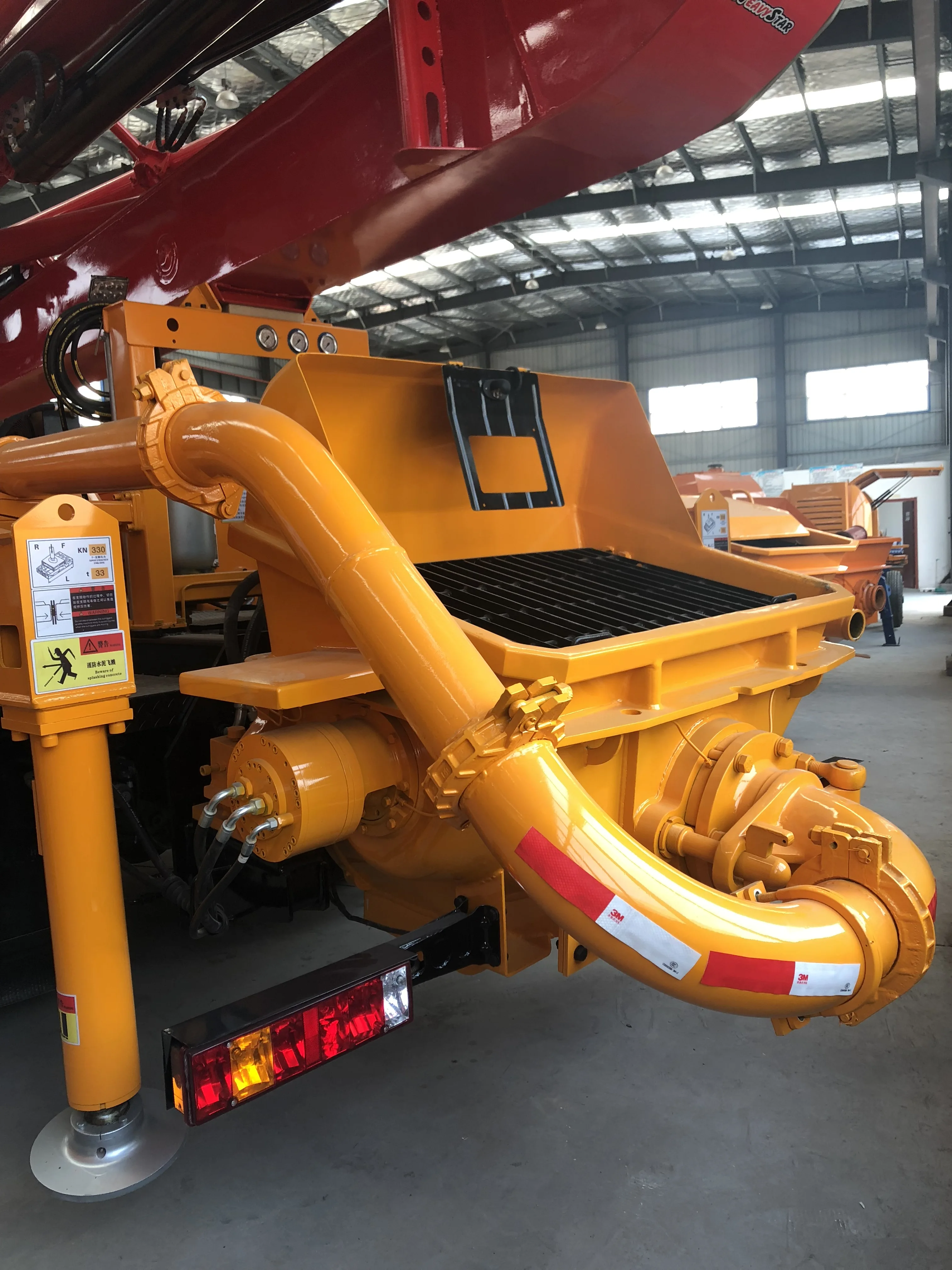

Hopper
Designed with finite element analysis, the hopper is thick, strong, and good in dimension stability. As a result, the service life of the concrete pump and piston can be prolonged.
The arc-shaped design can avoid blind corners. As a result, its performance of the concrete transferring can be improved, and the frequency of concrete blocking-up can
be reduced.
Stirring shaft and S-shaped outlet and small end assembly are double-sealing structured, to prevent the components from corroded and abraded by cement paste.
be reduced.
Stirring shaft and S-shaped outlet and small end assembly are double-sealing structured, to prevent the components from corroded and abraded by cement paste.

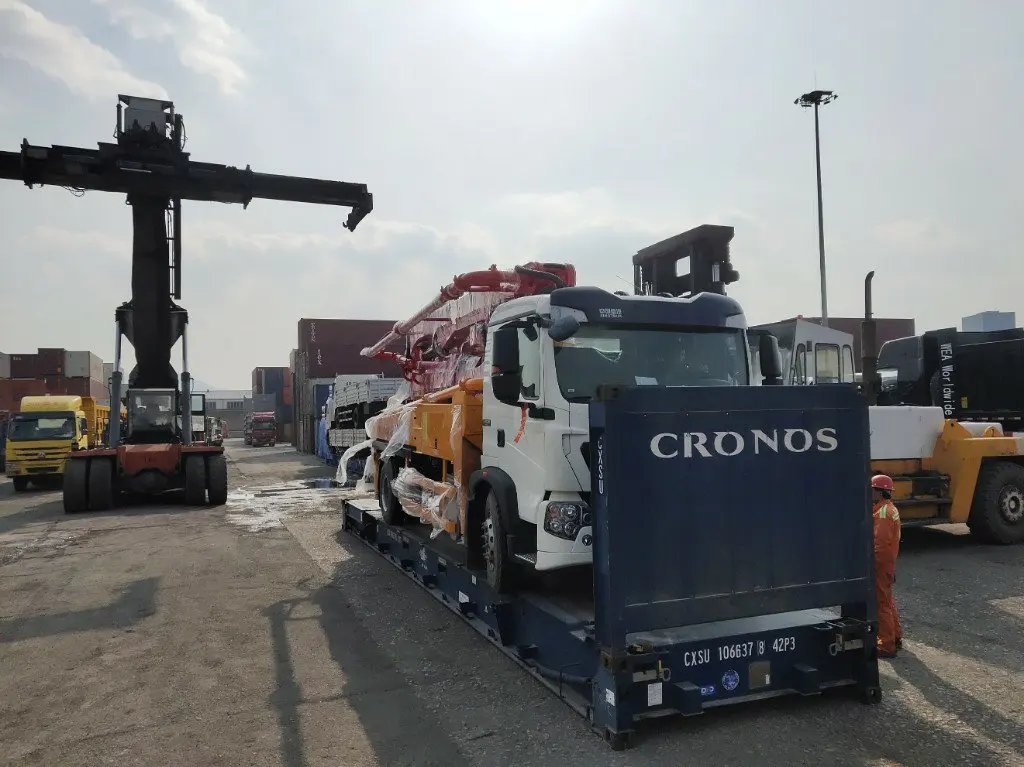

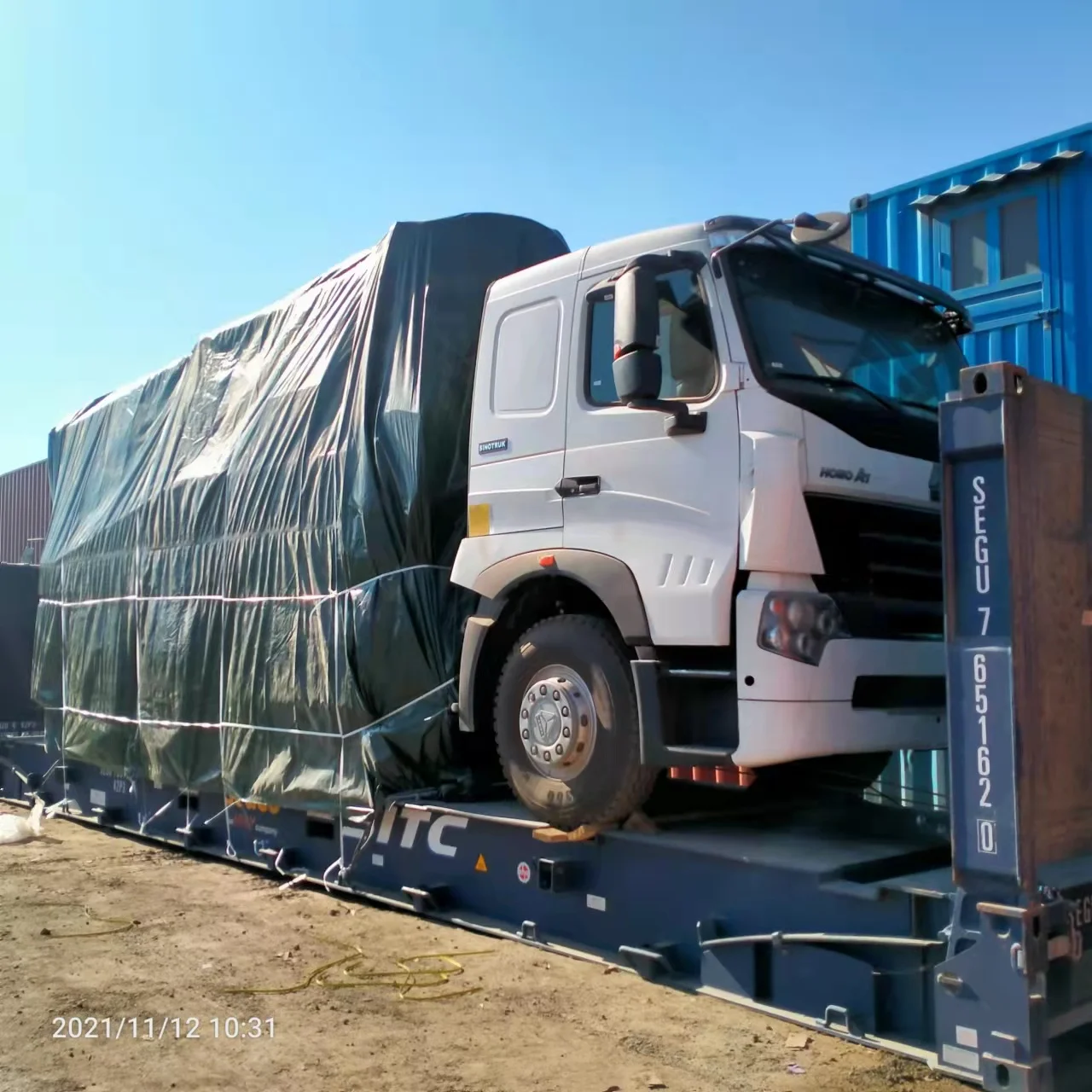

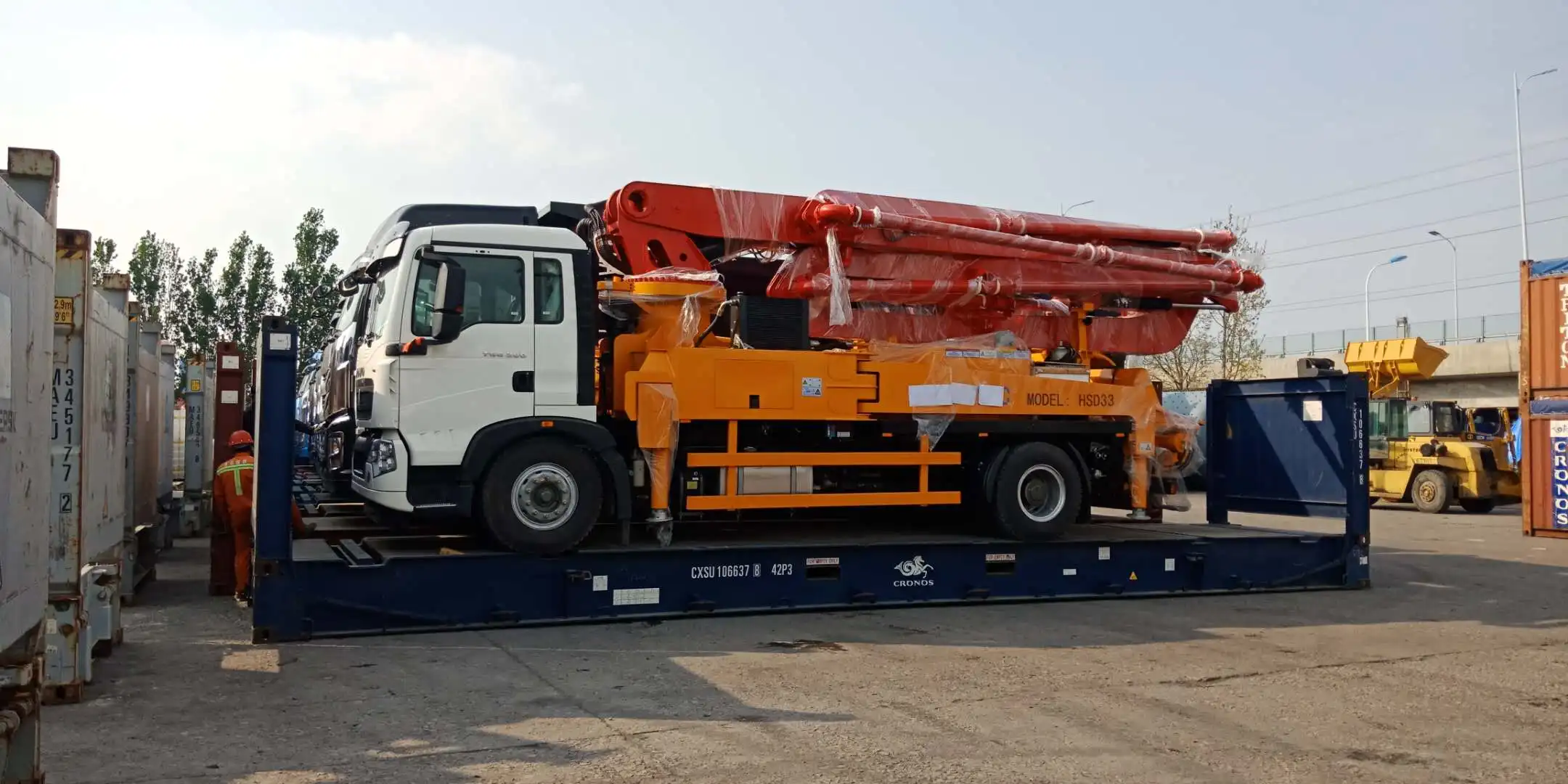

Packing

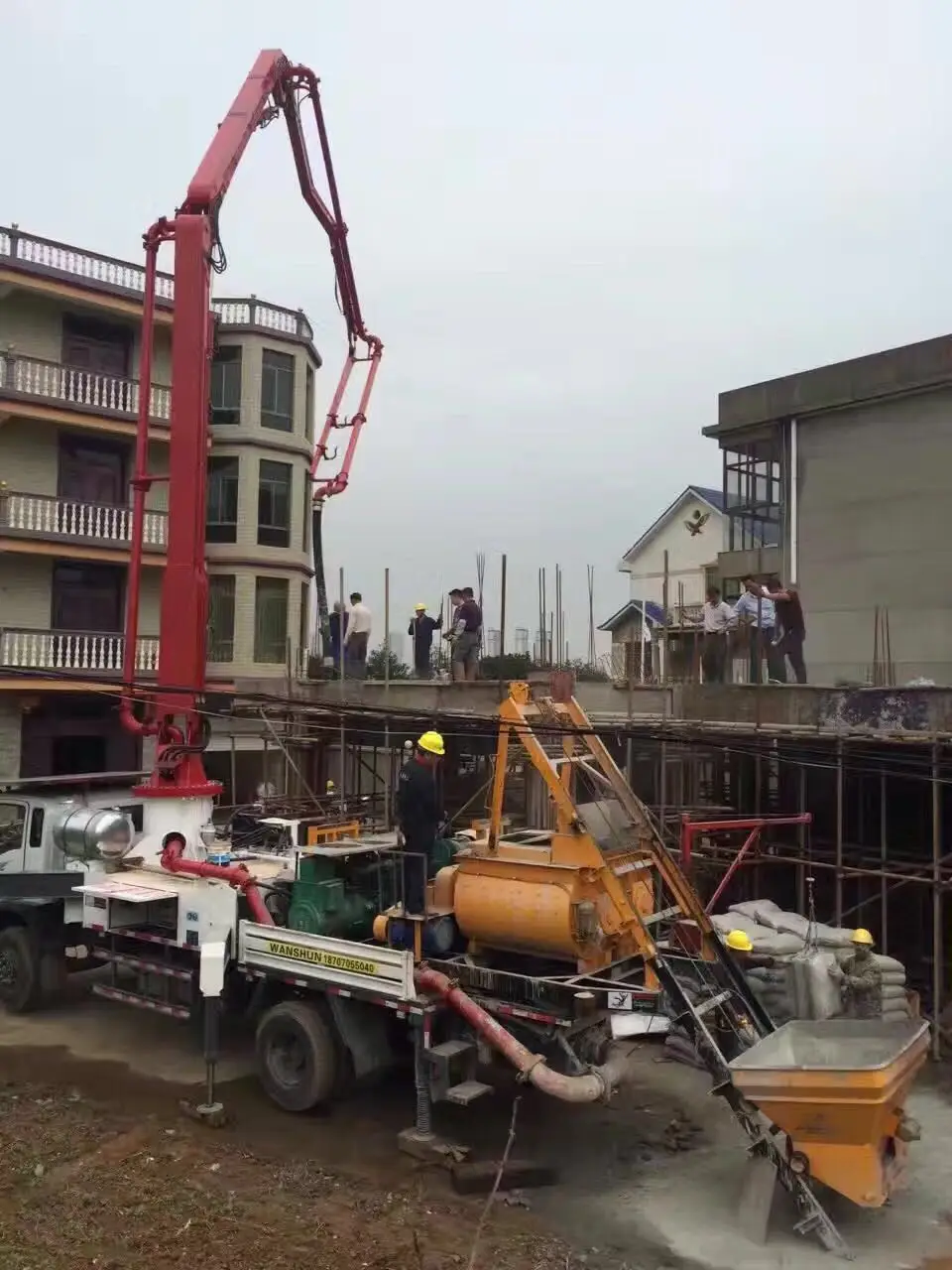

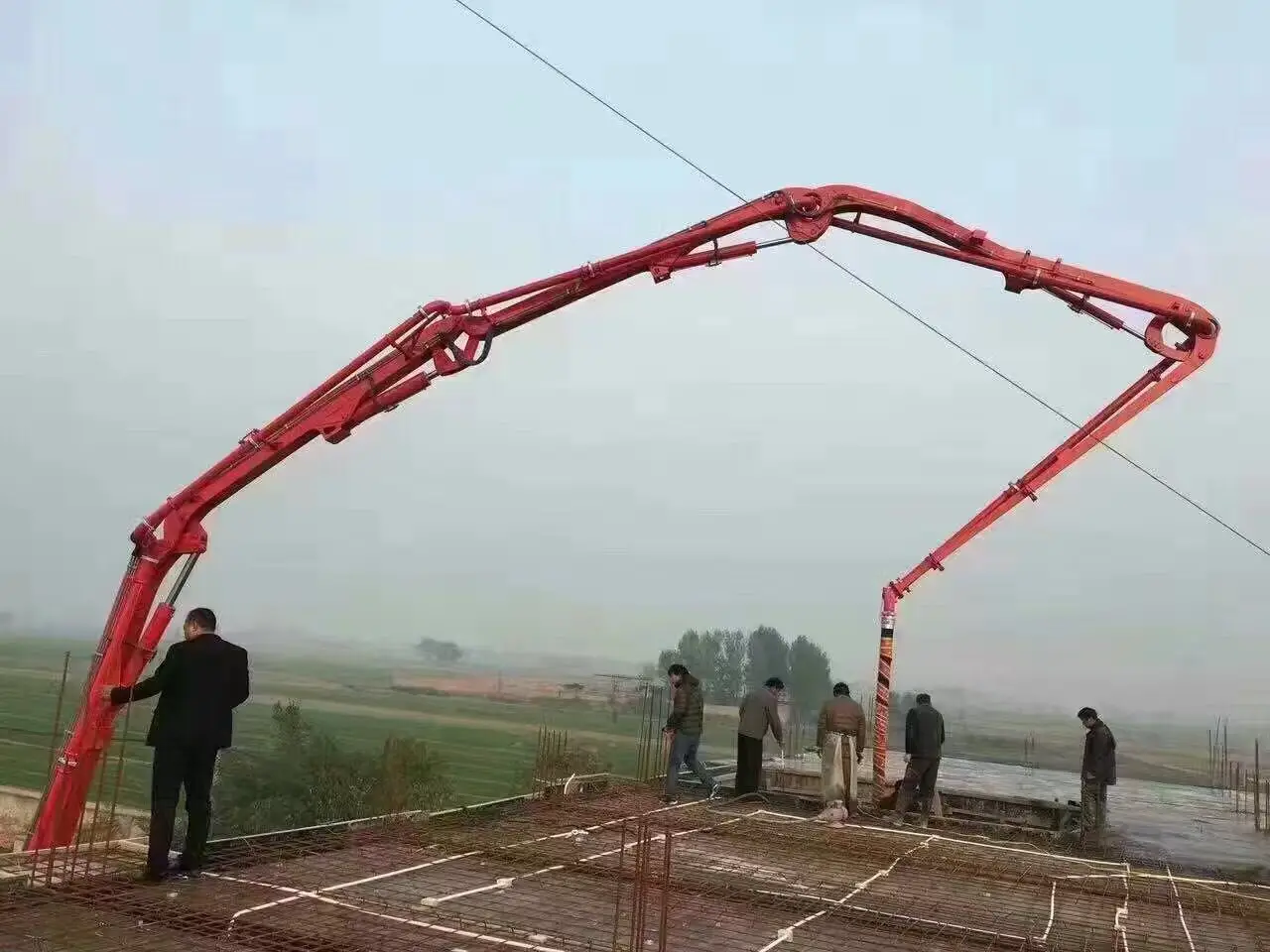

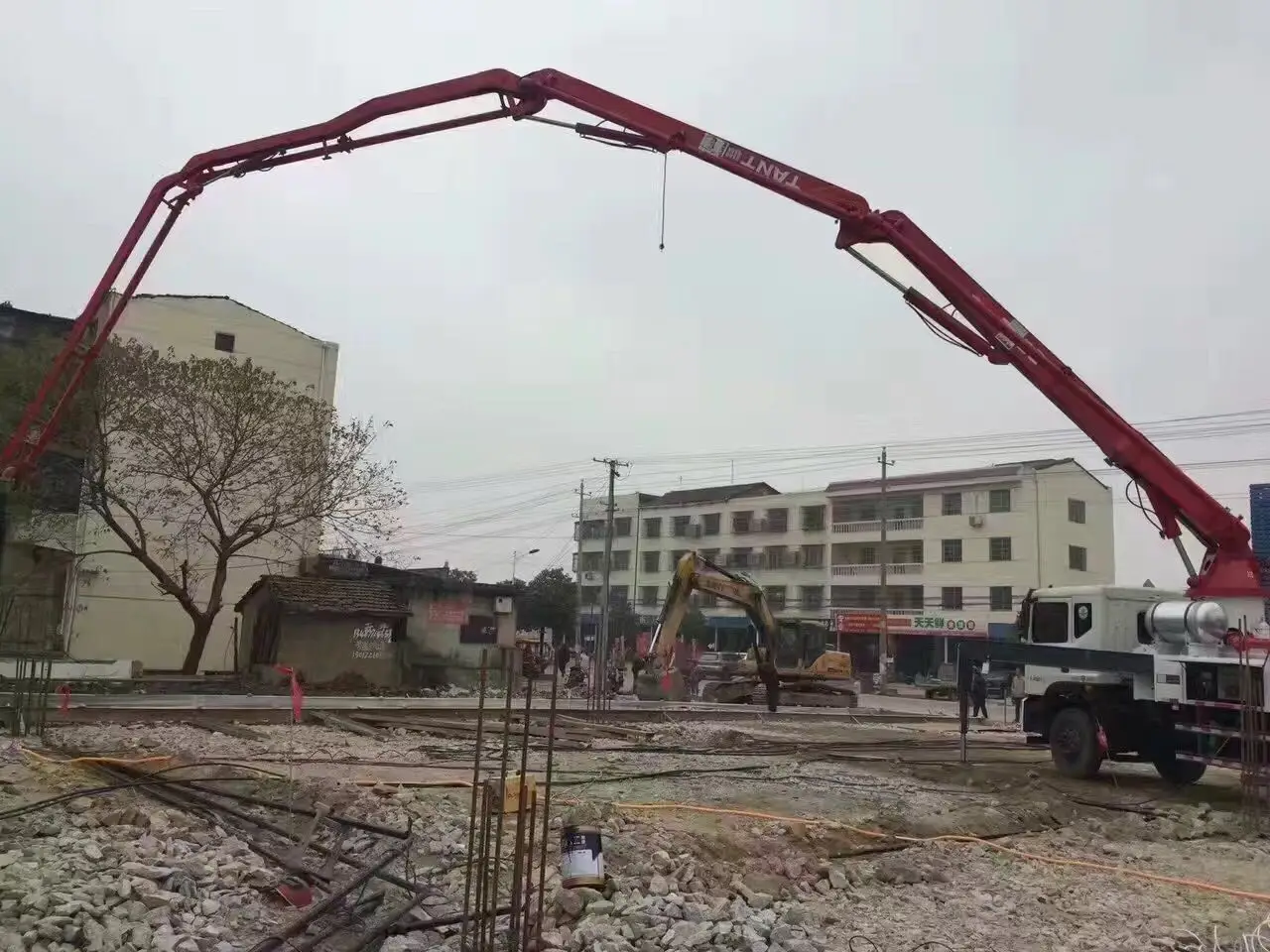

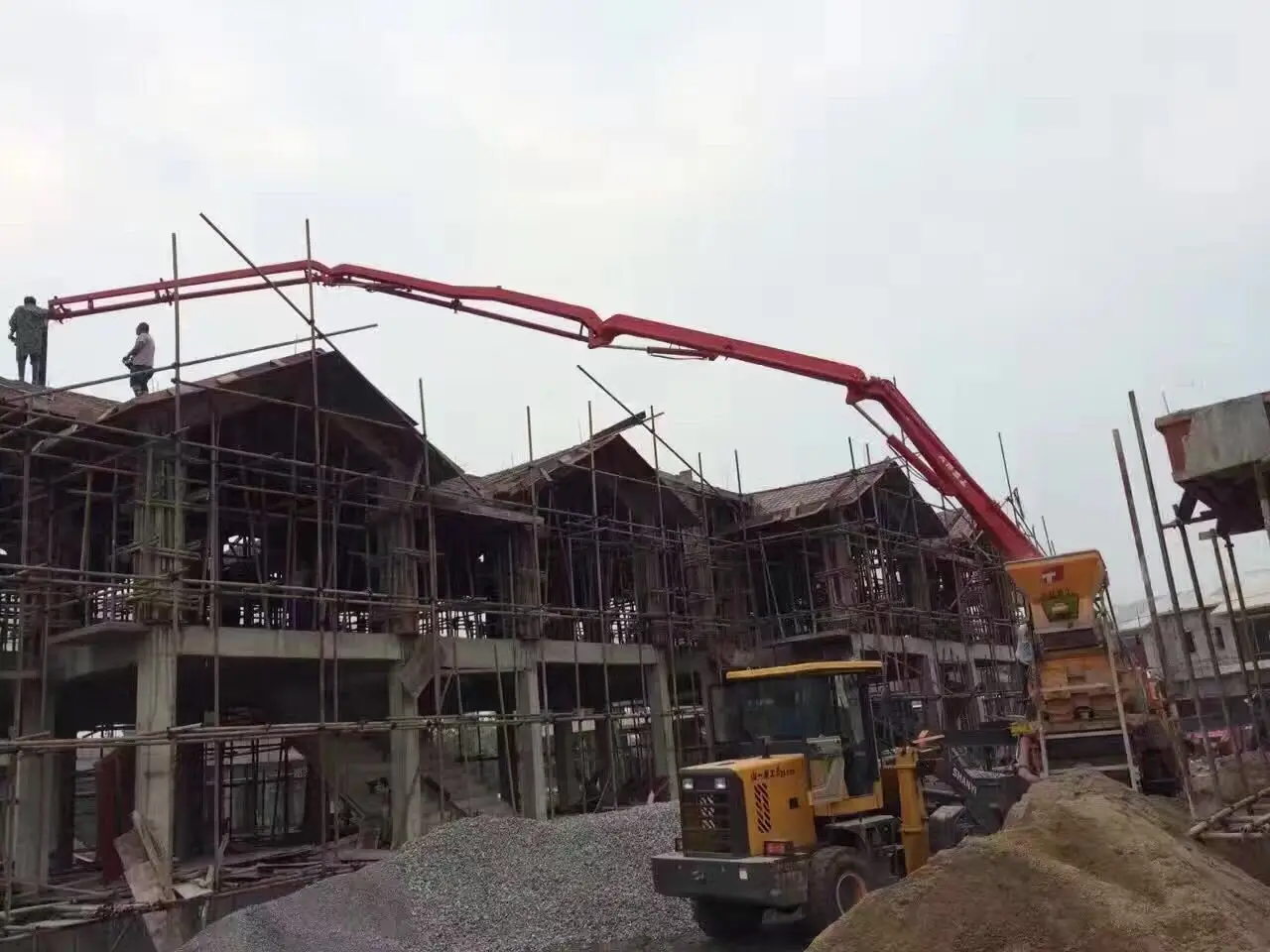

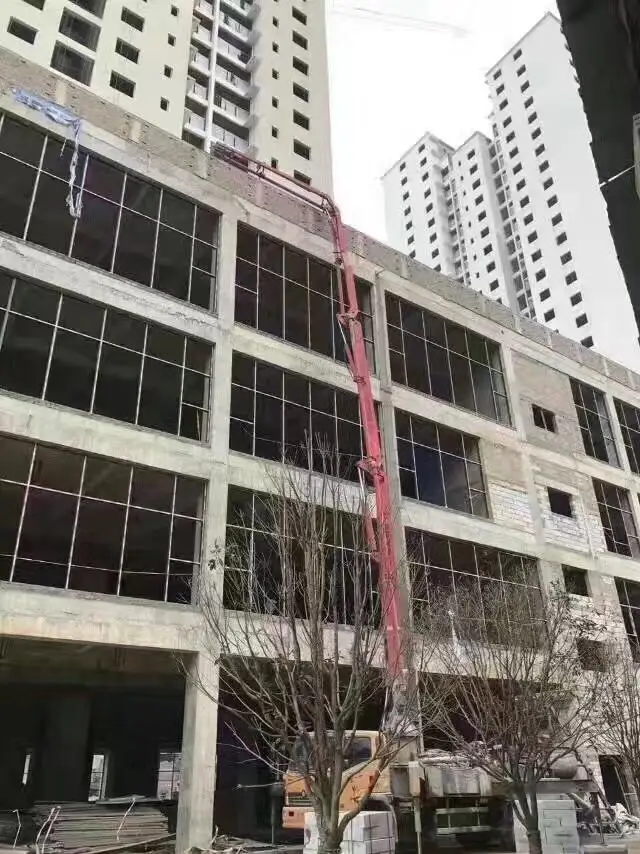

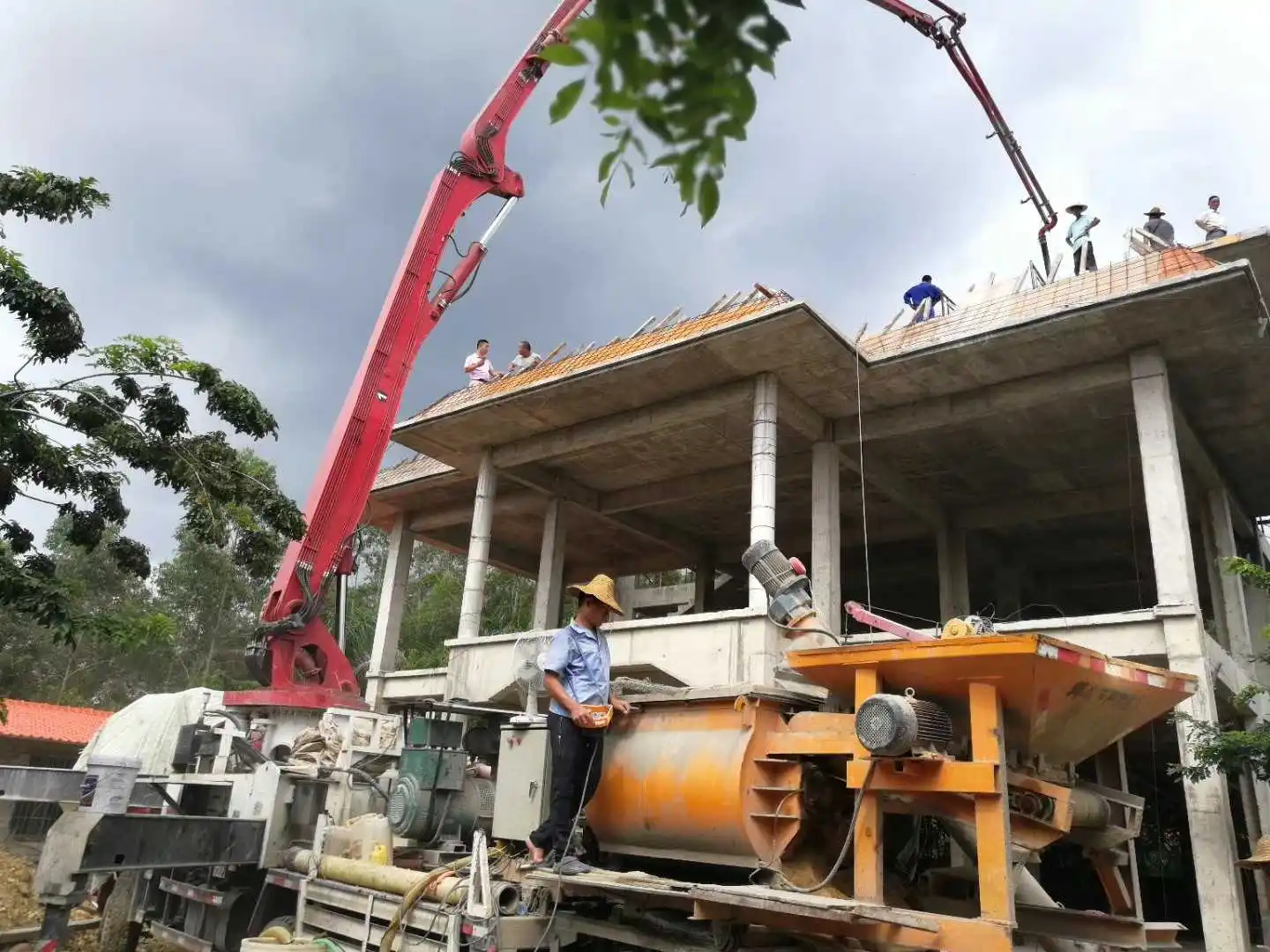

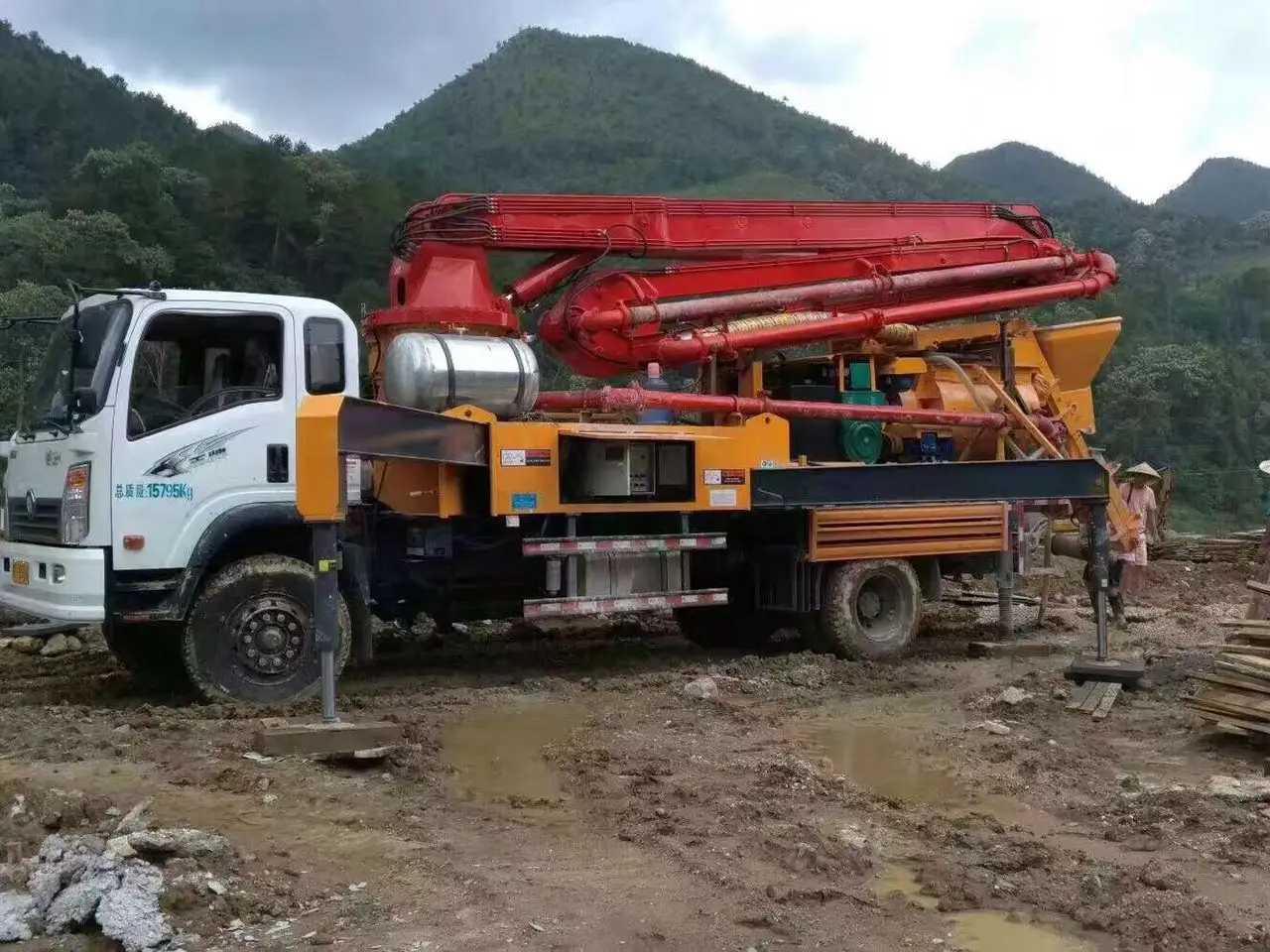

Construction case

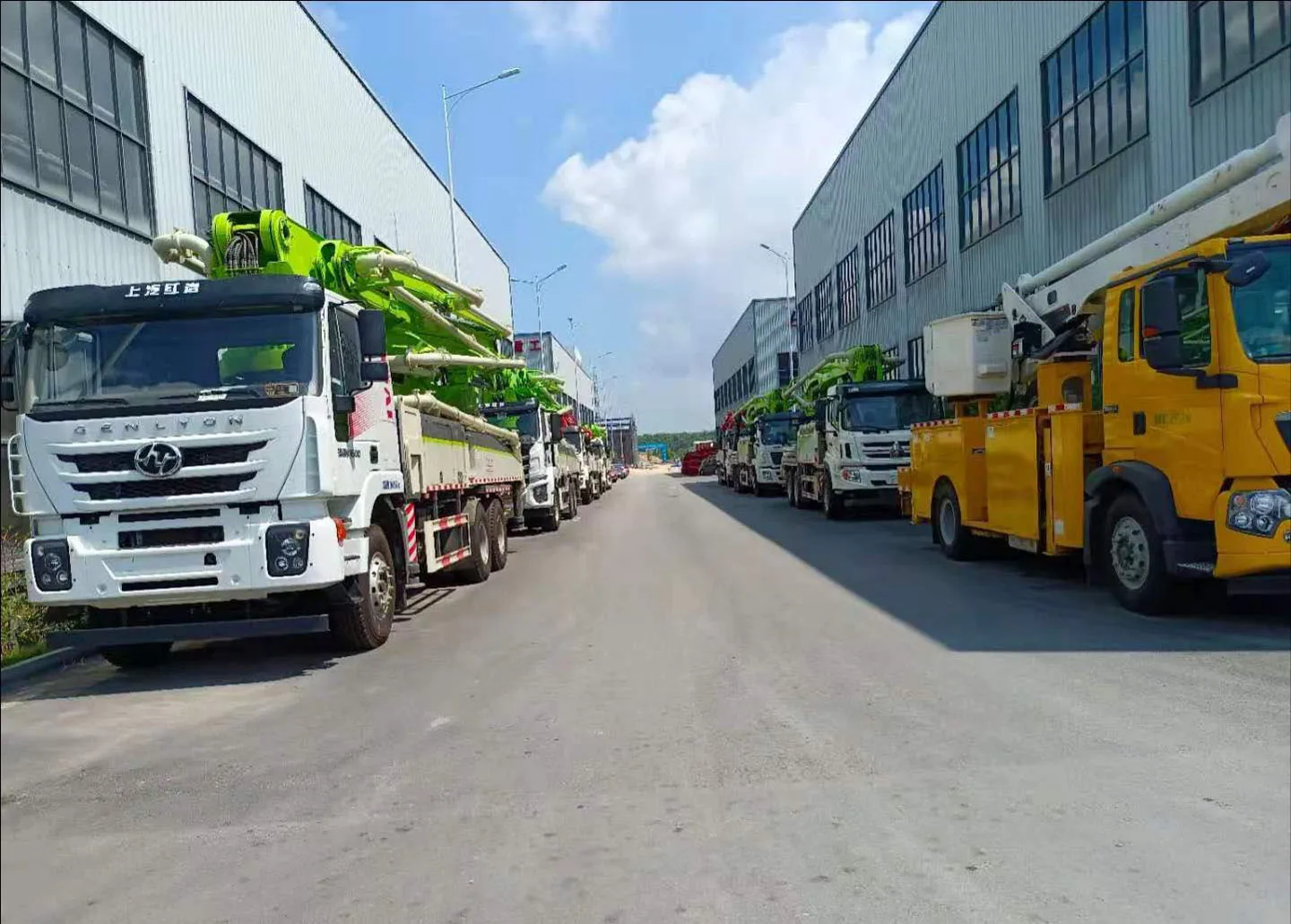

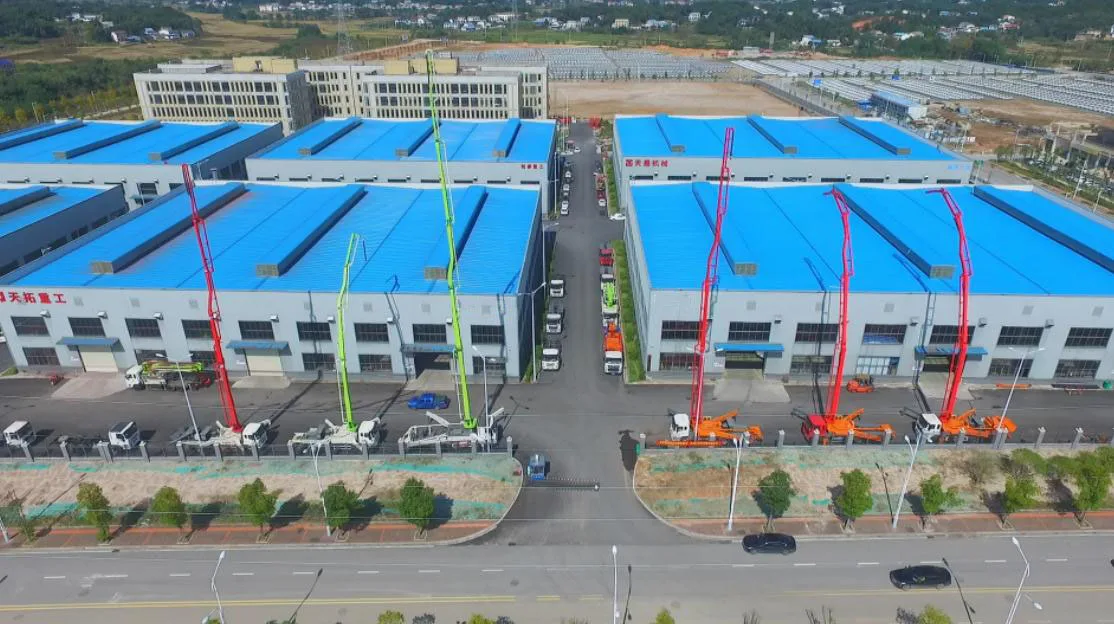

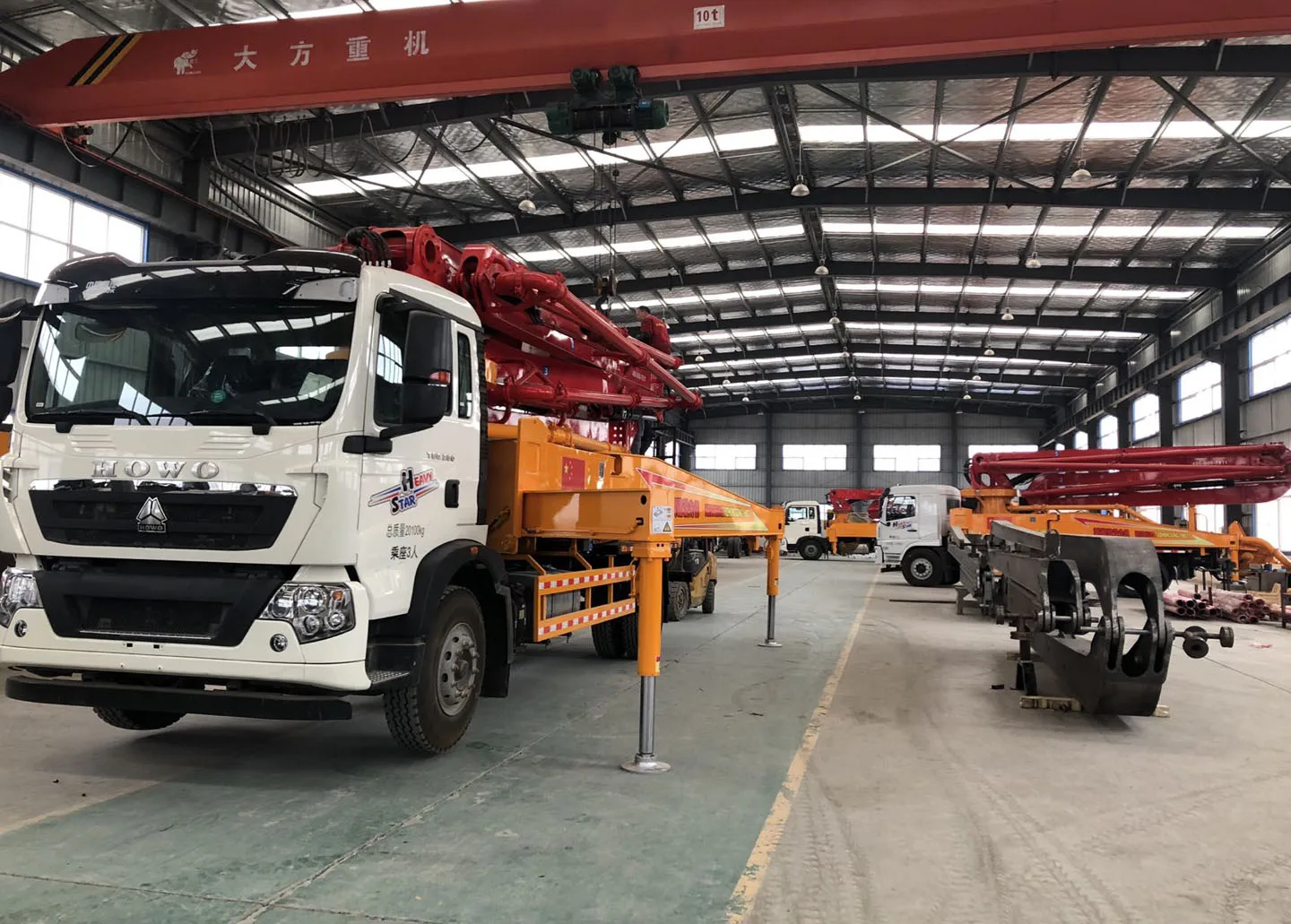

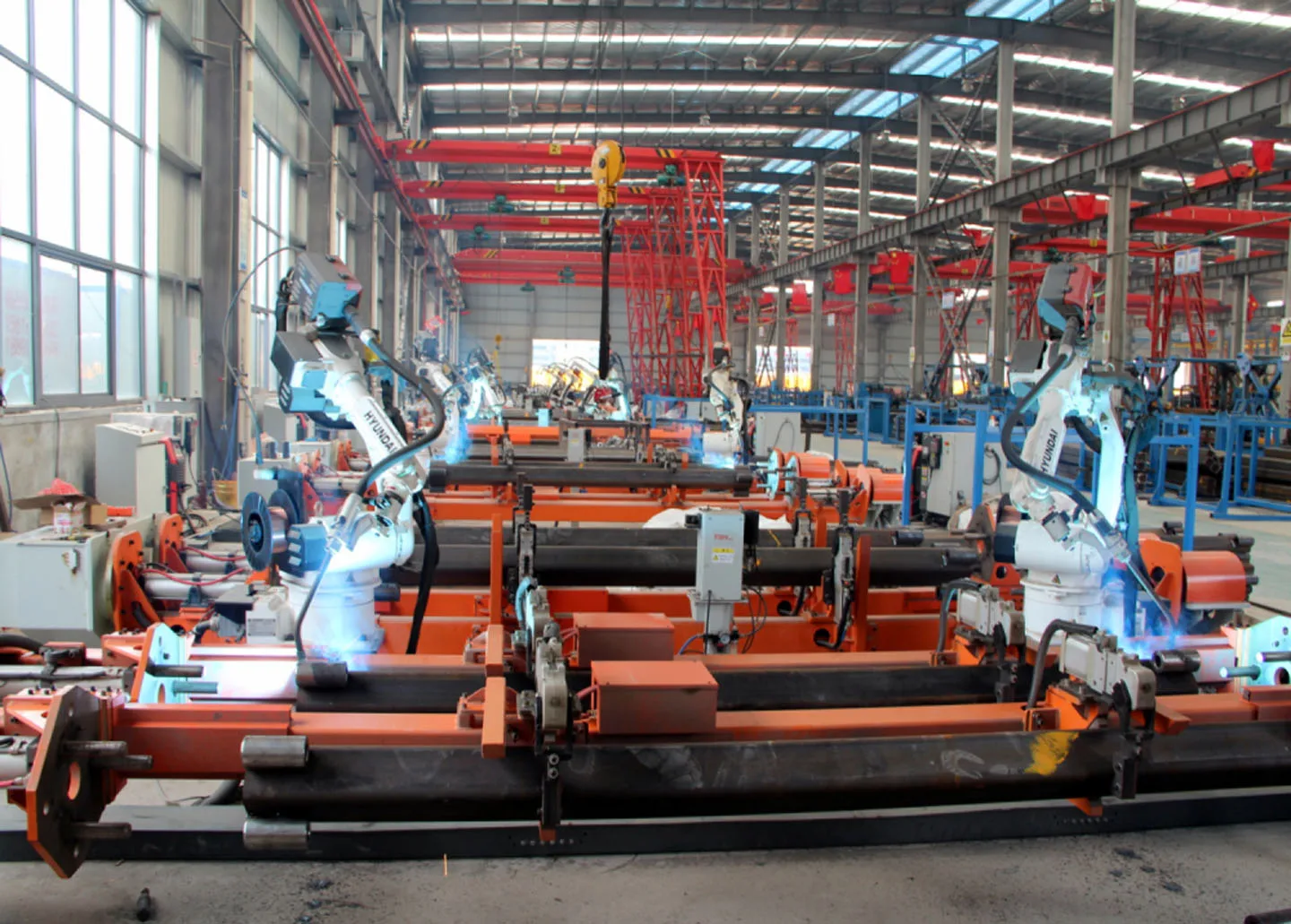

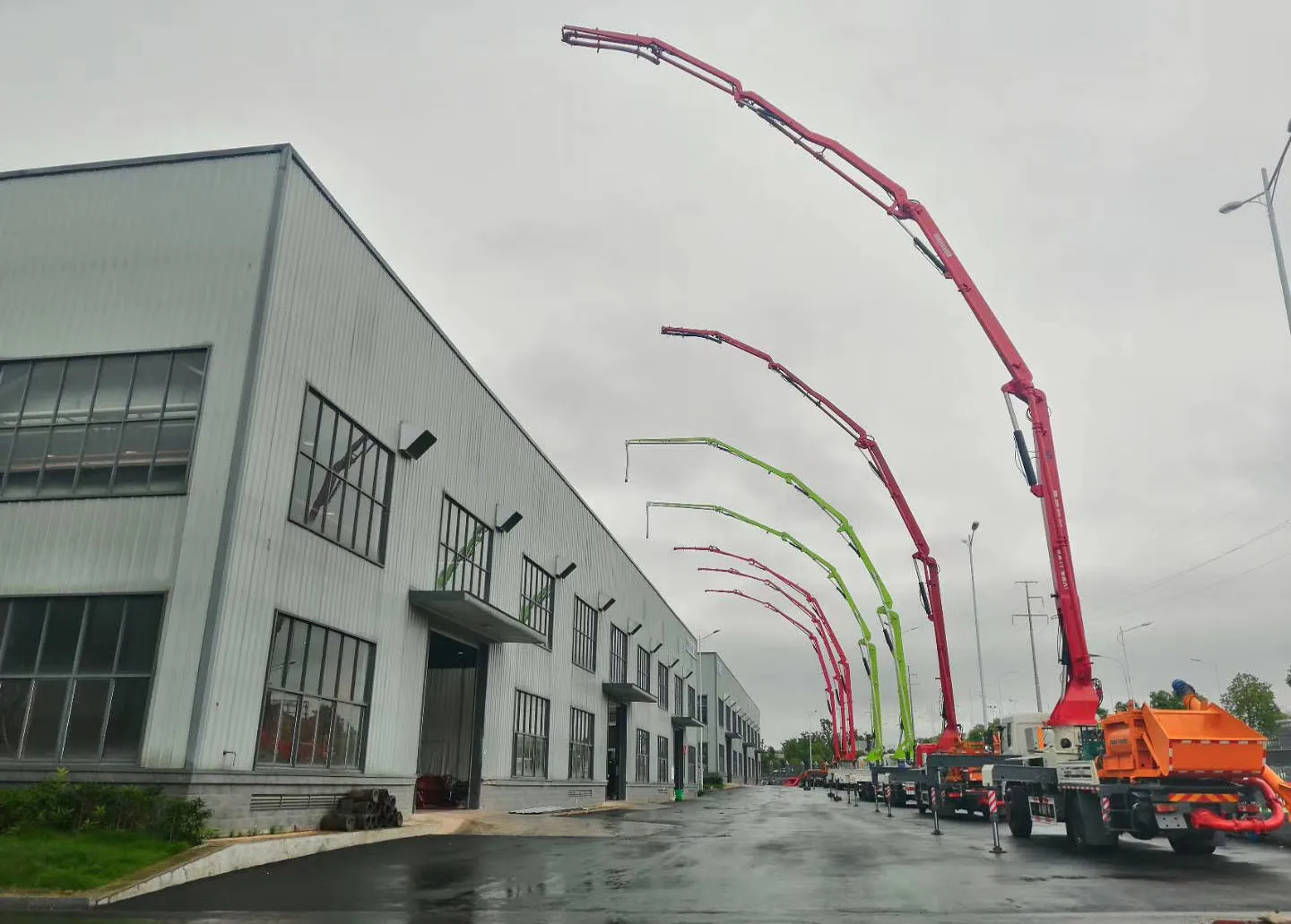

Our factory
Hunan Tant Heavy Machinery Co., Ltd. is located in the Miluo Feidi Industrial Park, Changsha Economic Development Zone. The company specializes in research, development, production and sales of concrete pumping equipment such as Truck concrete pumps with/without mixer, Trailer pumps with/without mixer, Truck mounted concrete pumps with/without mixer, and Concrete mixing equipment such as Truck mixer, hydraulic concrete placing boom, Truck mounted crane, Construction hoist, Folding tower crane, etc.
Tant Heavy machinery was established in 2003. The leaders of the company has been swayed for nearly two decades. After optimization and reorganization, our company has developed into a large-scale modern enterprise integrating R&D, producing and sales, with annual domestic sales of more than 300 million yuan. The plant covers an area of 60 acres and the workshop covers an area of 21,000 square meters. It has more than 200 employees, including more than 90 research and marketing salesmen. It has 5 branches and 25 offices across the country. The machines have been sold overseas, including Southeast Asia, Africa, South America, CIS and more than 40 countries and regions.

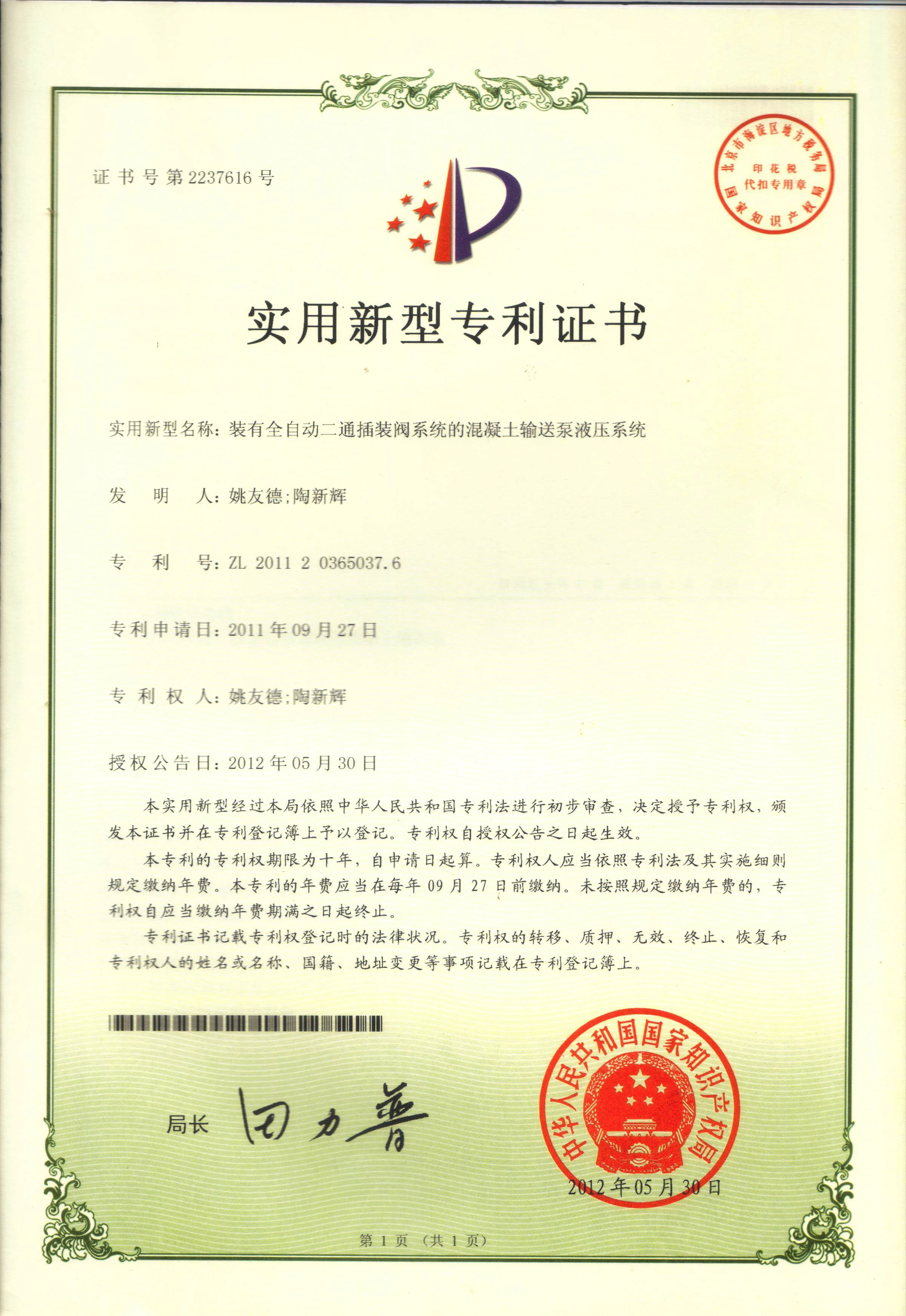

Certifications

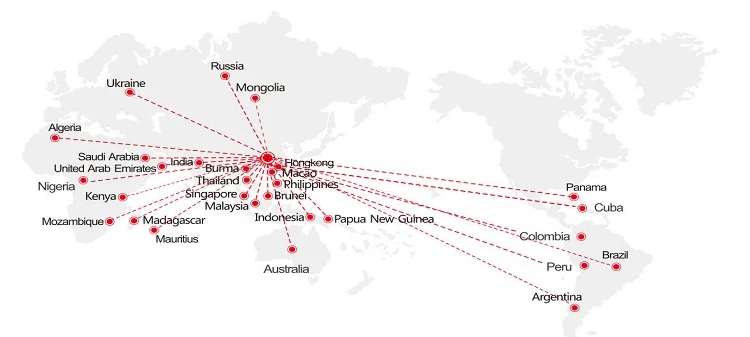

Sales and service network
Exhibition
FAQ
1.Q:Are you factory or trading company?
A: We have our own factory in Changsha.
2.Q: What is your oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
3.Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 380V 50Hz.
4.Q: How about guarantee period?
A: 1 year for non-easy worn parts. We strictly follow the warranty terms.
5.Q: What is the payment terms?
A: 30% advance payment and the rest should be paid before delivery by T/T or by L/C.
6.Q: Maintenance and After-sales service?
A: There are professional overseas after-sales technicians, and we have local after service team in some areas.
A: We have our own factory in Changsha.
2.Q: What is your oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
3.Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 380V 50Hz.
4.Q: How about guarantee period?
A: 1 year for non-easy worn parts. We strictly follow the warranty terms.
5.Q: What is the payment terms?
A: 30% advance payment and the rest should be paid before delivery by T/T or by L/C.
6.Q: Maintenance and After-sales service?
A: There are professional overseas after-sales technicians, and we have local after service team in some areas.
