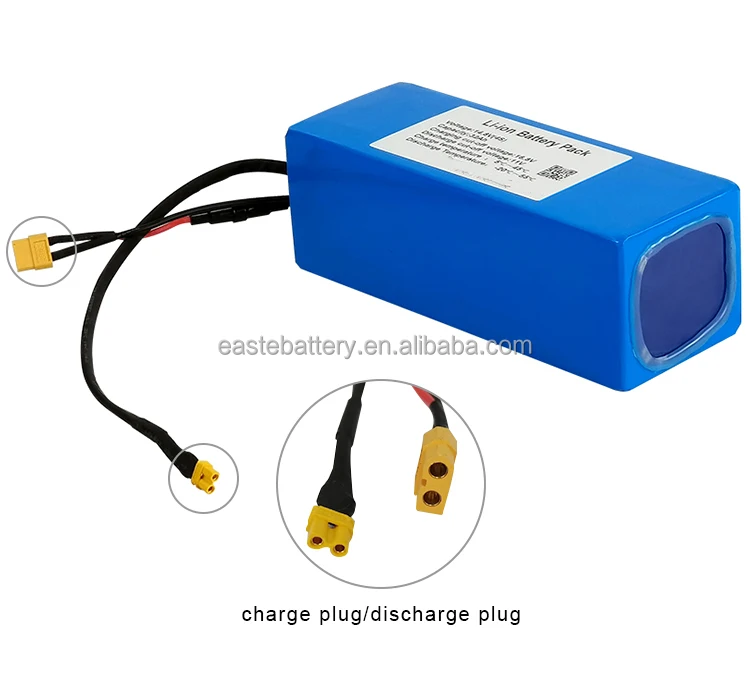

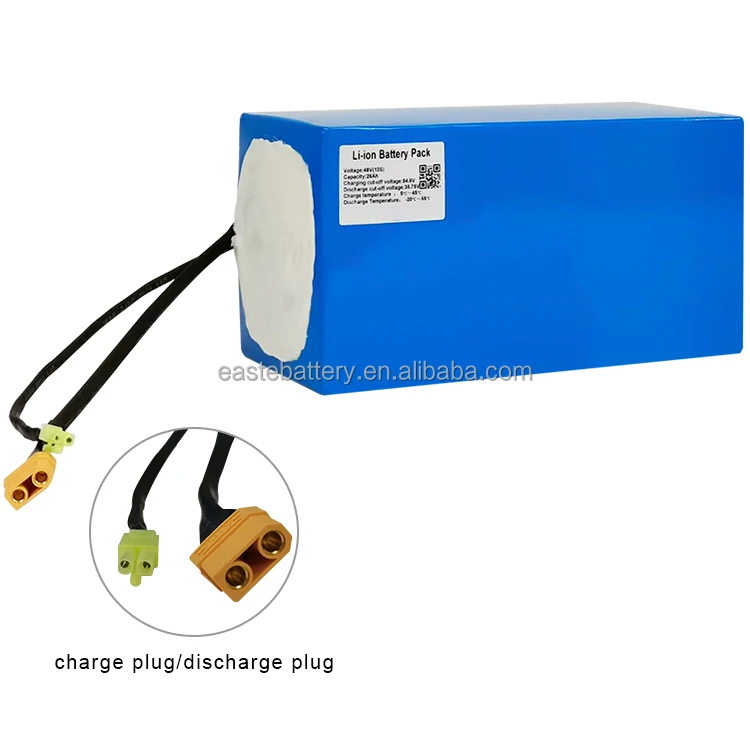

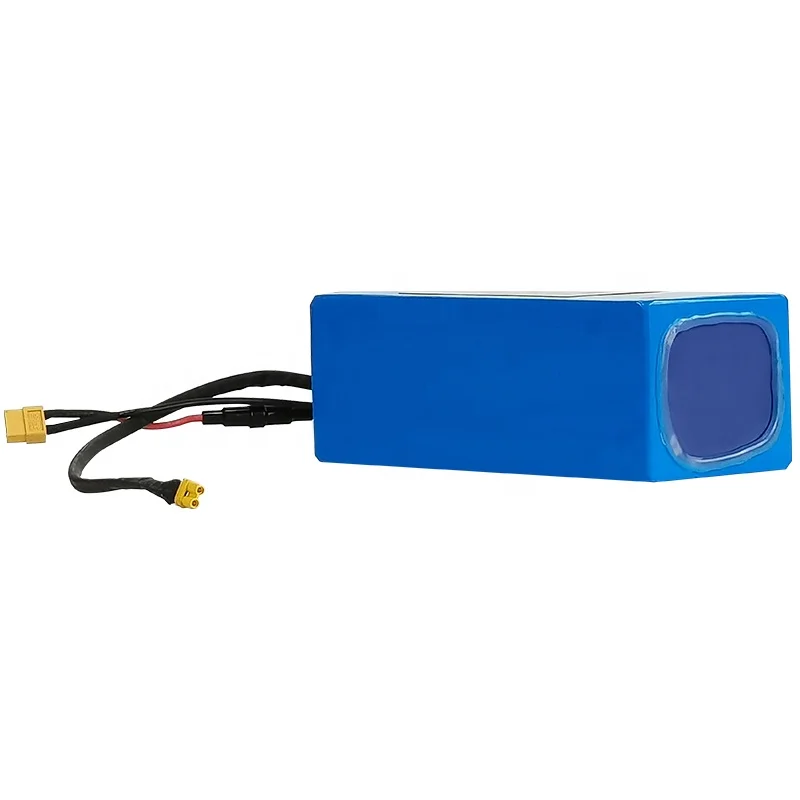

36V 15Ah Lithium ion Battery e bike pack 10ah 12ah 18ah 20ah 36v 12ah electric scooter battery
- Category: >>>
- Supplier: Dongguan Junda New Energy Technology Co. Limited
Share on (1600656182226):
Product Overview
Description
36V 15Ah Lithium ion Battery e bike pack 10ah 12ah 18ah 20ah 36v 12ah electric scooter battery pack 18650 specification:
Regular model for your option:
| Item | configuration cell | G.W(kg) | pack dimension(mm) |
| 36v 10ah | 10S4P 18650 2.6ah or 18650BD/35E/50E | 3 | 190*74*70/customized |
| 36v 13ah | 10S5P 18650 2.6ah or 18650BD/35E/50E | 4 | 190*95*70/customized |
| 36v 15ah | 10S5P 18650 3Ah or 18650BD/35E/50E | 5 | 190*95* 75/customized |
| 36v 18ah | 10S6P 18650 3ah or 18650BD/35E/50E | 6 | 190*115* 75/customized |
| 36v 20ah | 10S8P 18650 2.5ah or 18650BD/35E/50E | 7 | 190*148* 75/customized |
| 36v 24ah | 10S8P 18650 3ah or 18650BD/35E/50E | 8 | 190*148* 75/customized |
| 36v 30ah | 10S10P 18650 3ah or 18650BD/35E/50E | 9 | 190*190* 75/customized |
| 36v 35ah | 10S11P 18650 3ah or 18650BD/35E/50E | 10 | 190*210* 75/customized |
No. | Item | Characteristics | Remarks |
3.1 | Nominal Capacity | 10Ah/12ah/15ah/18ah | Standard discharge(0.2C5A) after Standard charge |
3.2 | Nominal Voltage | 36v/48v/52v |
|
3.3 | Charging Cut-off Voltage | 42v/54.6v/58.8 |
|
3.4 | Discharge Cut-off Voltage | 30V/39/42v |
|
3.5 | Standard charge | Constant Current 0.5C5A Constant Voltage 8.4V 0.01 C5A cut-off | Charge time : Approx 4.0h |
3.6 | Maximum Constant Charging Current | customized |
|
3.7 | Constant current 0.2 C5A end voltage 6.0V |
| |
3.8 | Maximum Continuous Discharging Current | customized |
|
3.9 | Operating Temperature | Charge 0~45℃ Discharge –20~60℃ |
|
3.10 | Storage Temperature | -20~45℃ for 1Month -20~35℃ for 6Months |
|
3.11 | Environmental request | RoHS | If the materials of the product and packaging accord with RoHS standard,there will be a RoHS Id on the box. |
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are a factory loacted at dongguan city,welcome to visit us.
Q2: How long is your delivery time?
A2: Generally it is 4-5 days for sample order, 7-9 days for mass qty order .it is according to quantity.
Q3: Do you provide samples ?
A3: Yes, sample order is ok, as we have enough stock for normal model ebike battery.
Q4: Which battery cell would be used for assemble ?
A4: Domestic A grade cell or famous brand 18650 battery cell for each customer's request.
Q5: What is your terms of payment ?
A5: For bulk order,30% T/T in advance ,balance 70% before shippment. For sample order,100% payment
before production.
Q6:Which shipping methods would be provide?
A6:Sample order We would ship out by the express DHL ,UPS. Fedex .TNT,For mass quantity shipping by air
or by sea is ok.
Q7:What kind of after sales service would you provide ?
A7:If you have any questions when using,just feel free to contact our technology department,we have 24 hours service.
Company Information
Dong guan junda new energy technology.Co.Limited company was established in 2018 and is located in dongguan city, Our company covers an area of 1200 square meters and has 35 employees. We are specialized in_electric bike battery pack/electric motorcycle battery pack/portable power station series .Our company has rich experience in the power solution industry. Our main products include electric bicycle battery/li ion battery pack/lifepo4 battery pack/lithium polymer battery pack, OEM and ODM service can be provided. Besides, Most of our hot item have been approved the MSDS/UN38.3/CE certificate.And we also have the EU/USA/Canada warehouse for drop shipping service.which can save the shipping time and offer the best after-service with goods return and replacement . we are making great efforts to develop new products to meet different requirements. Our company has Automatic Sorting/ Automatic Spot Welding /aging test equipment to strictly control the product quality. Adhering to the business principle of mutual benefits, we had a reliable reputation among our customers because of our professional services, quality products and competitive prices. warmly welcome customers from at home and abroad to cooperate with us for common success.
