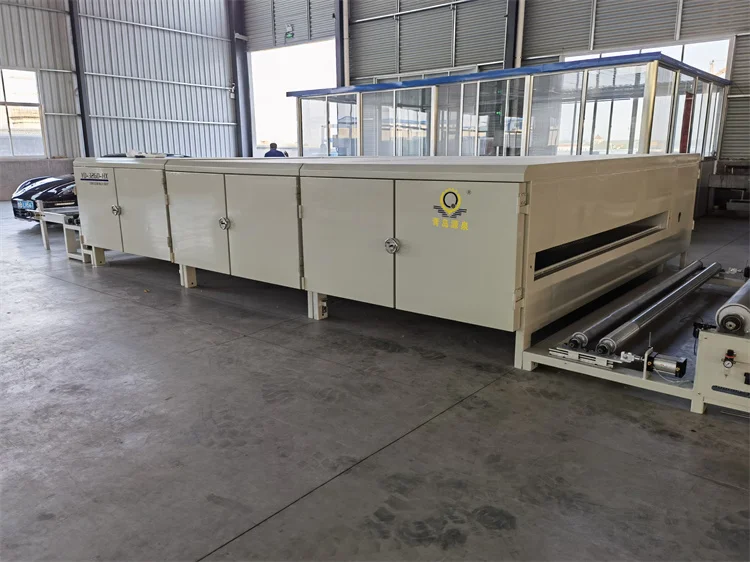

Non woven oven equipment with single conveyor for Soft Wadding
- Category: >>>
- Supplier: Qingdao Yuanquan Machinery Co. Ltd.
Share on (1600656184082):
Product Overview
Description
Product Overview

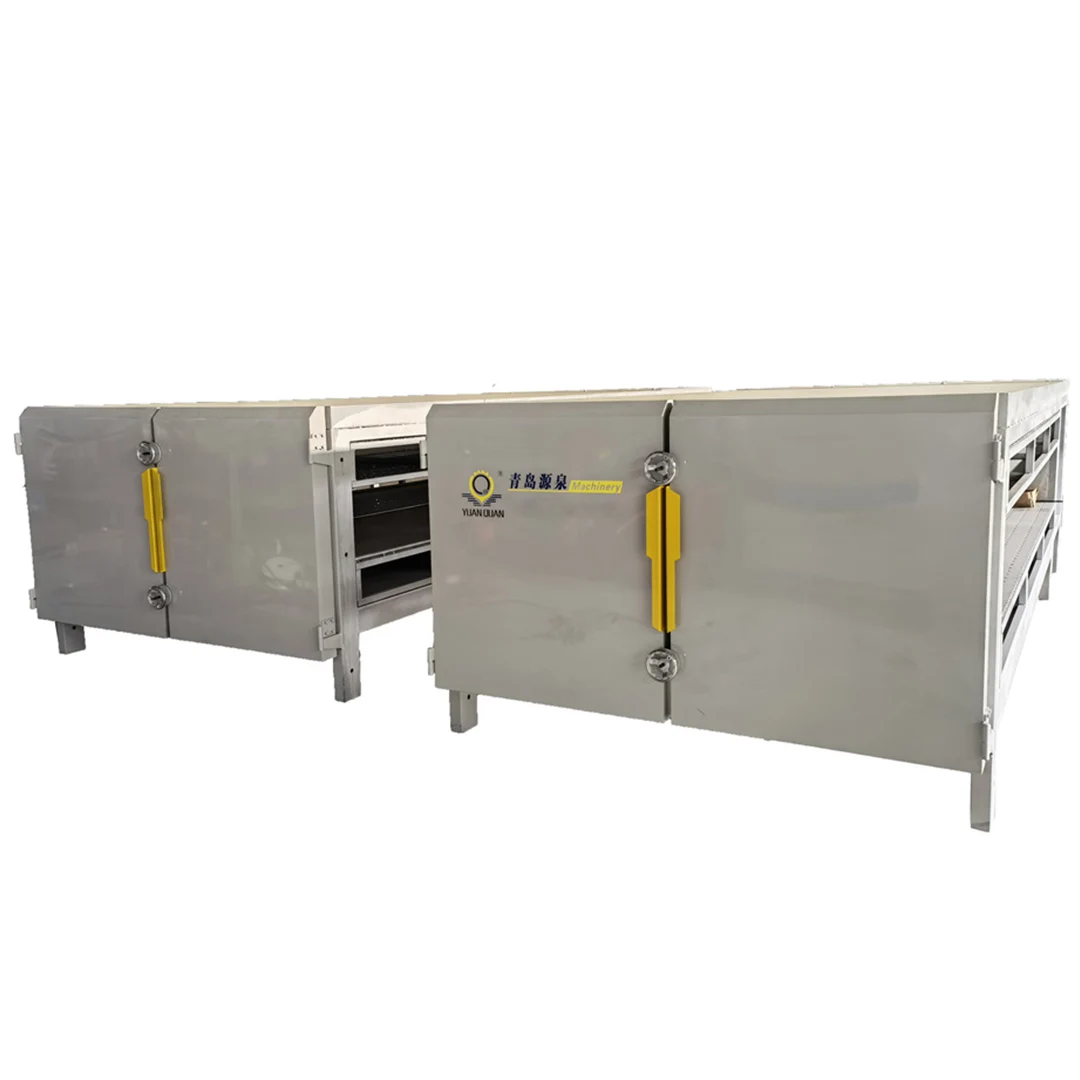

Oven With single conveyor for Non Woven
This machine is used to heating the fiber layer,which is transported by cross lapping machine.And it can be used to produce soft wadding product, quilt with different types, etc. This product is widely used in clothing, embroidery, bedding, furniture, tourism products, etc
PRODUCT SPECIFICATIONS
Working Width | Working Width | 3200-4500mm Or customized | |
Size of Main Oven Body | 6000*5200*1300mm | ||
Height of Heating Layer | 350mm Or customized | ||
Working Speed | 3-20m/min | ||
Weight（Kg） | About 5000 | ||
Conveyor belt (customized) | Teflon mesh belt | ||
Heating Mode | Natural gas heating or electric heating (maximum 260kw) | ||
Burner: with alarm control function | NONE | ||
Thermal insulation material | Internal thermal insulation material aluminum silicate rock wool board(100mm) | ||
Sealing Material | High temperature resistant silicone nitrile rubber strip seal | ||
Temperature control range in the oven box | ≤160-200℃ | ||
Power | Motor for Driving | 1*2.2kw=2.2kw (Frequency conversion control) | |
Motor for Fan | 2*5.5kw=11kw (Frequency conversion control) | ||
Heating Tube | 2*130kw=260kw | ||

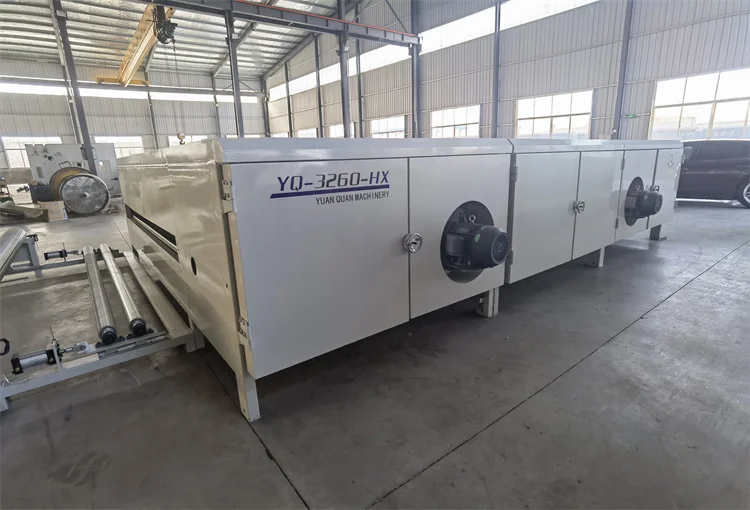

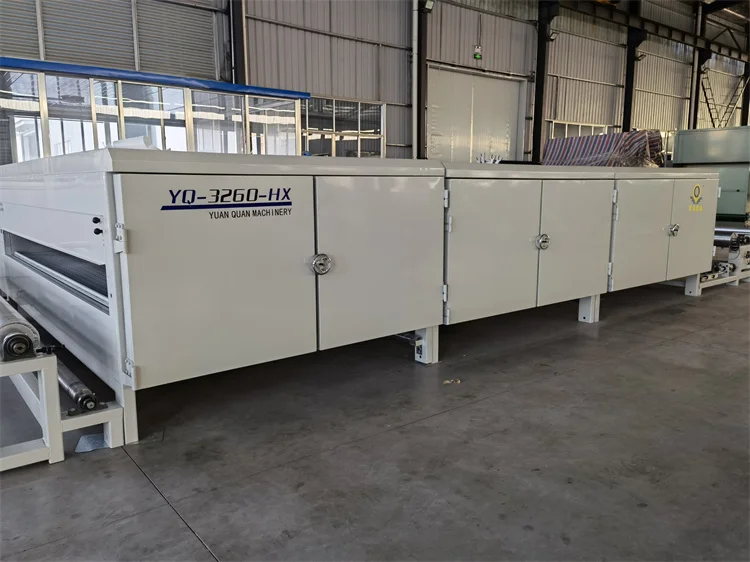

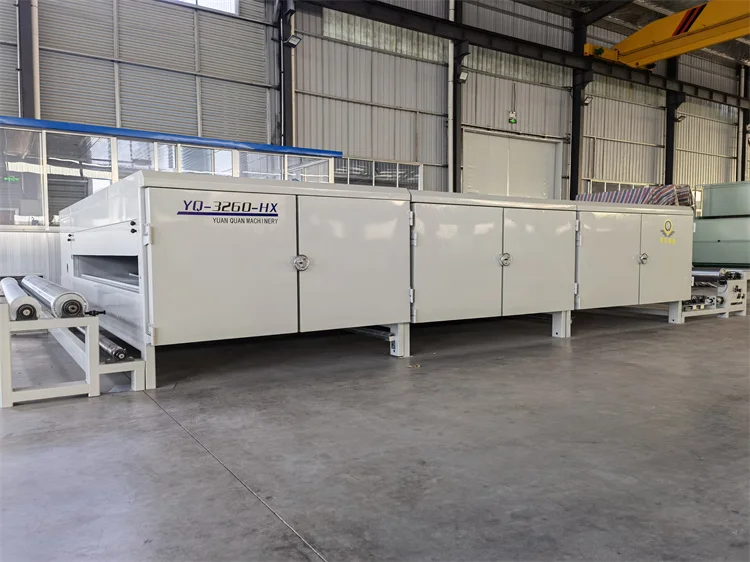

Product Display
Main Features
① Heating mode: two burners or electric heating can be used; The circulating fan penetrates the hot air through the air duct, blows it down and sucks it up; Achieve the maximum energy-saving effect;
③ The rack is welded with 120mm square pipe and connected with 120mm square pipe; Structural stability;
④ The transmission mesh roller adopts seamless steel pipe and chrome plating after fine grinding; The pressing roller is made of stainless steel;
⑤ Frame with front and rear access curtain; Each 1000mm long, effectively ensuring deviation correction and stable operation of motor;
⑥ Single layer mesh belt drives separately, and each main drive adopts frequency conversion control;
⑦ The bearing adopts domestic famous brand, Dongguan tr bearing (with shell) high temperature
⑧ Fine turning and grinding of drum shaft, static / dynamic balance by computer balancing machine, control and adjustment within 0.03-0.05mm.
⑨ The motor adopts red flag motor, and the reducer adopts Shengbang reducer, which is directly supplied by the manufacturer with quality assurance.
⑩ All transmission parts are treated with phosphating and rust prevention. The phosphating color is uniform and black, with strong adhesion and no fading.
③ The rack is welded with 120mm square pipe and connected with 120mm square pipe; Structural stability;
④ The transmission mesh roller adopts seamless steel pipe and chrome plating after fine grinding; The pressing roller is made of stainless steel;
⑤ Frame with front and rear access curtain; Each 1000mm long, effectively ensuring deviation correction and stable operation of motor;
⑥ Single layer mesh belt drives separately, and each main drive adopts frequency conversion control;
⑦ The bearing adopts domestic famous brand, Dongguan tr bearing (with shell) high temperature
⑧ Fine turning and grinding of drum shaft, static / dynamic balance by computer balancing machine, control and adjustment within 0.03-0.05mm.
⑨ The motor adopts red flag motor, and the reducer adopts Shengbang reducer, which is directly supplied by the manufacturer with quality assurance.
⑩ All transmission parts are treated with phosphating and rust prevention. The phosphating color is uniform and black, with strong adhesion and no fading.
SIMILAR PRODUCTS

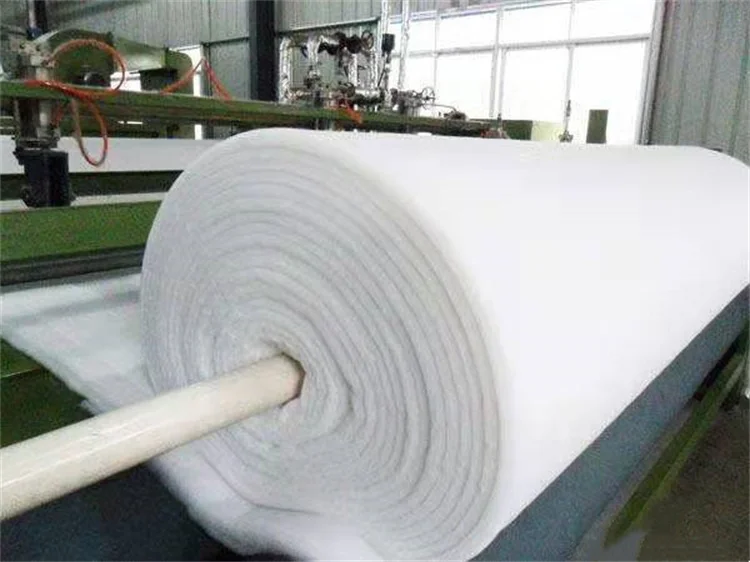

FINISHED PRODUCT PHOTO
Company Strength

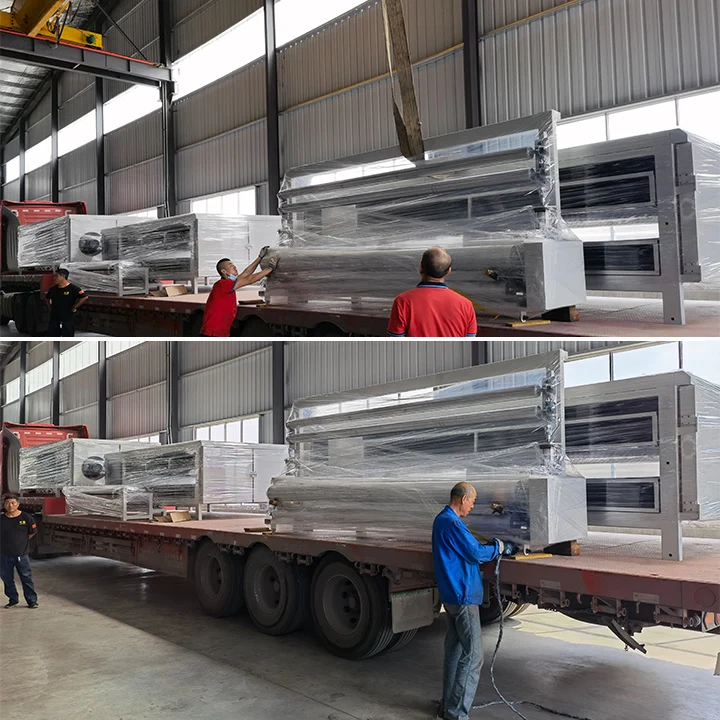

Packaging And Delivery

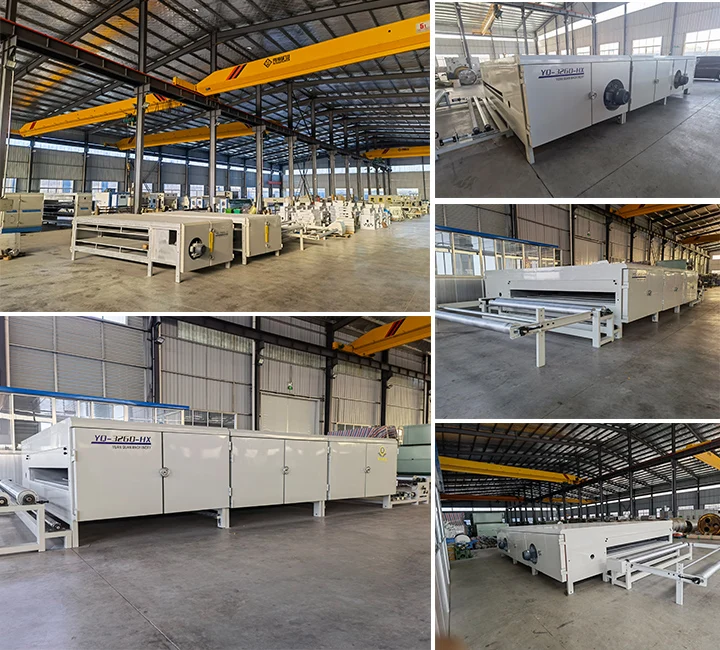

Production workshop
