DJI Agras T30 battery drone battery suitable for Agras T30 Agras T30 accessory agriculture farming drone VS DJI T20

Introduction

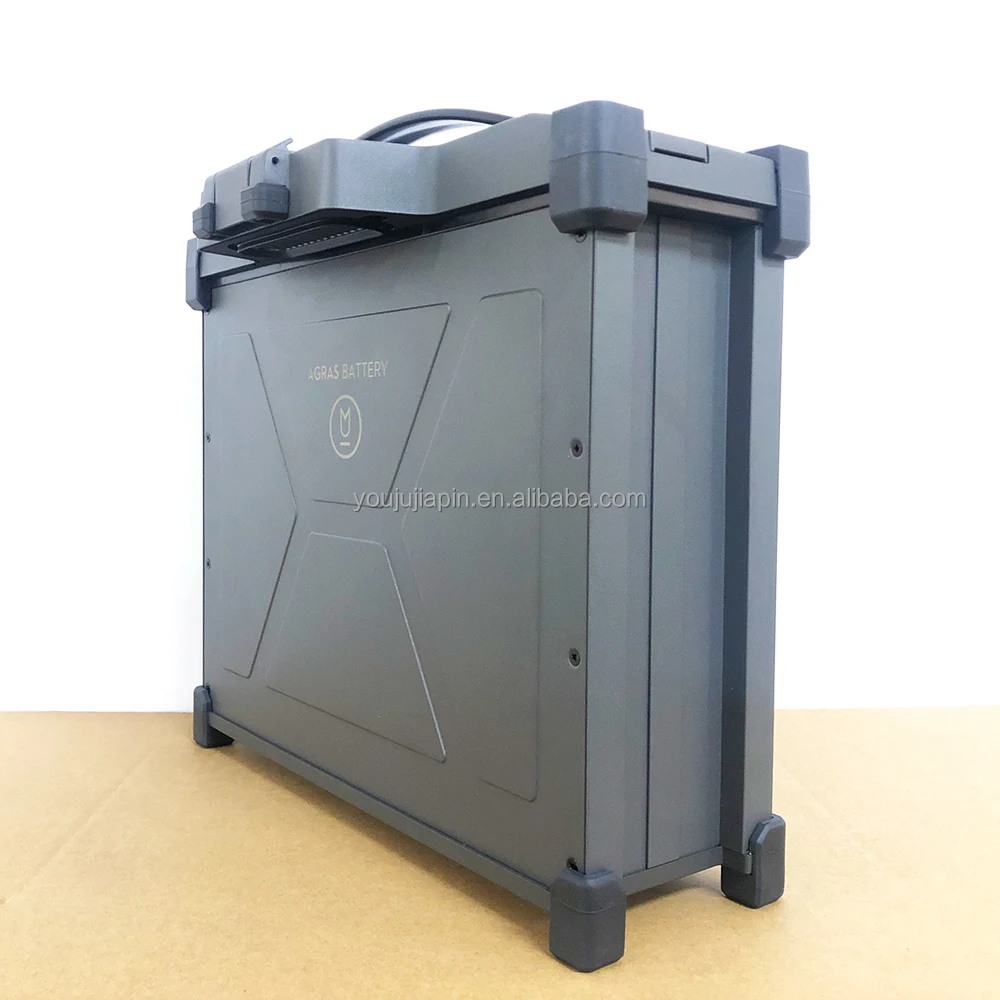

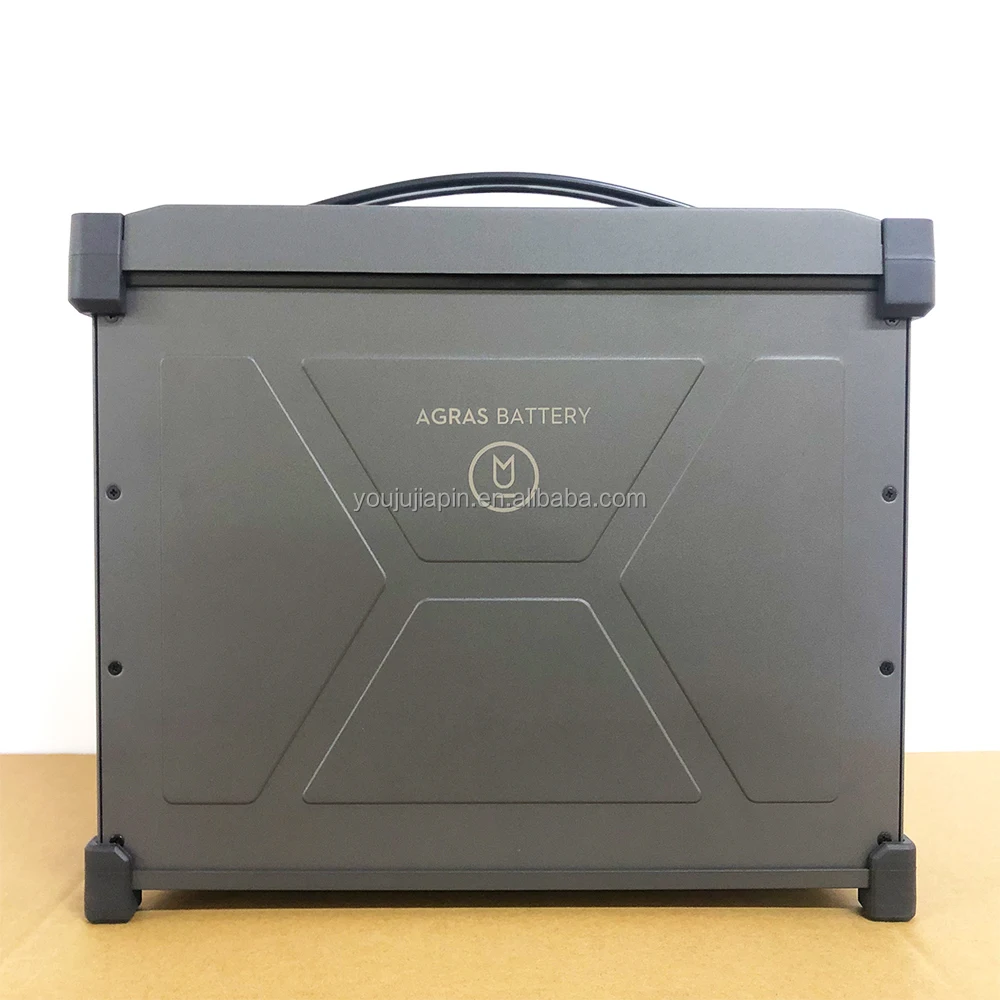

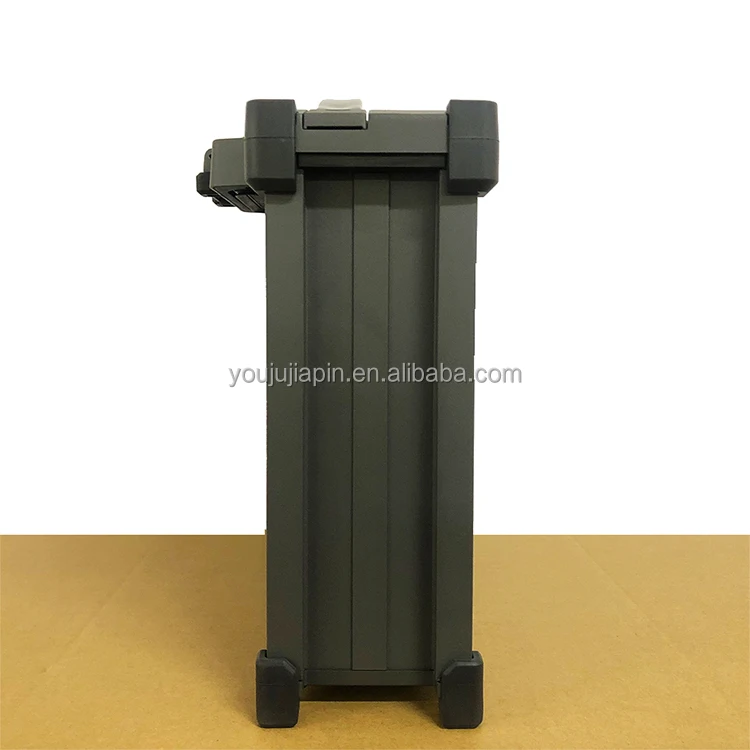

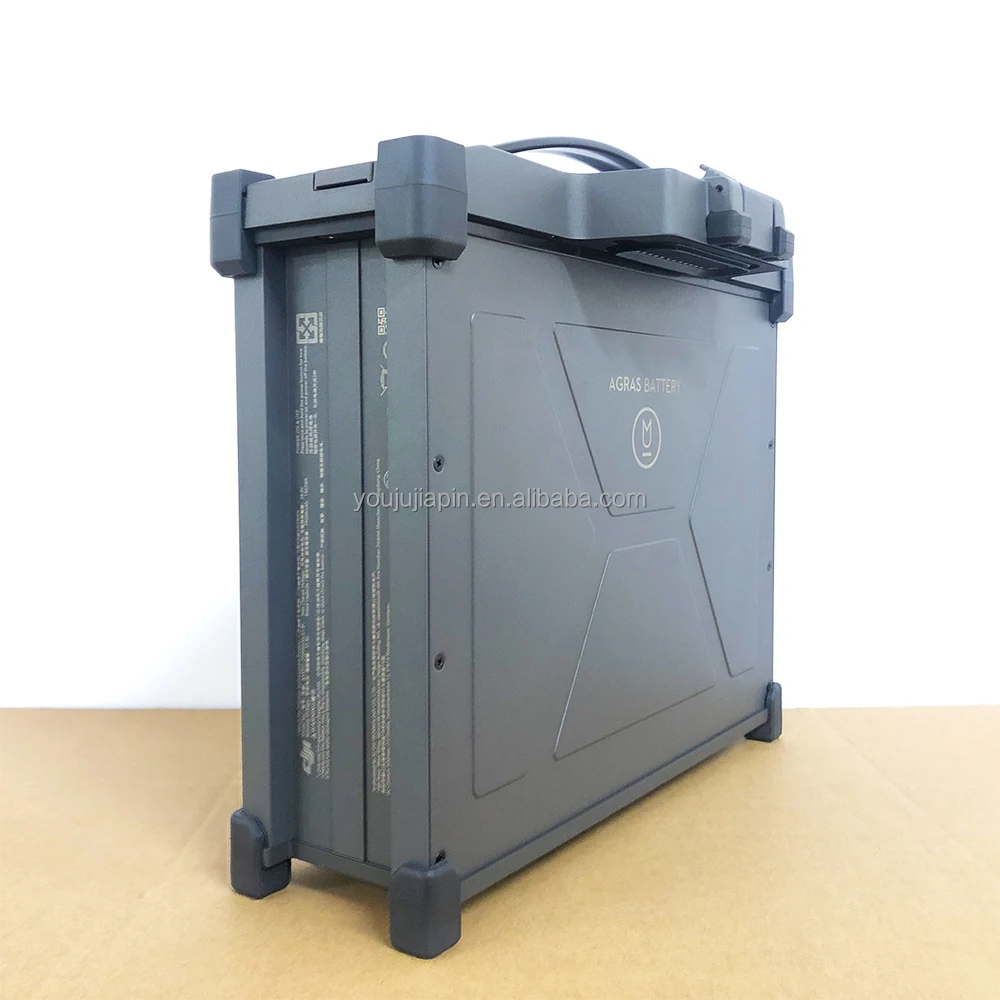

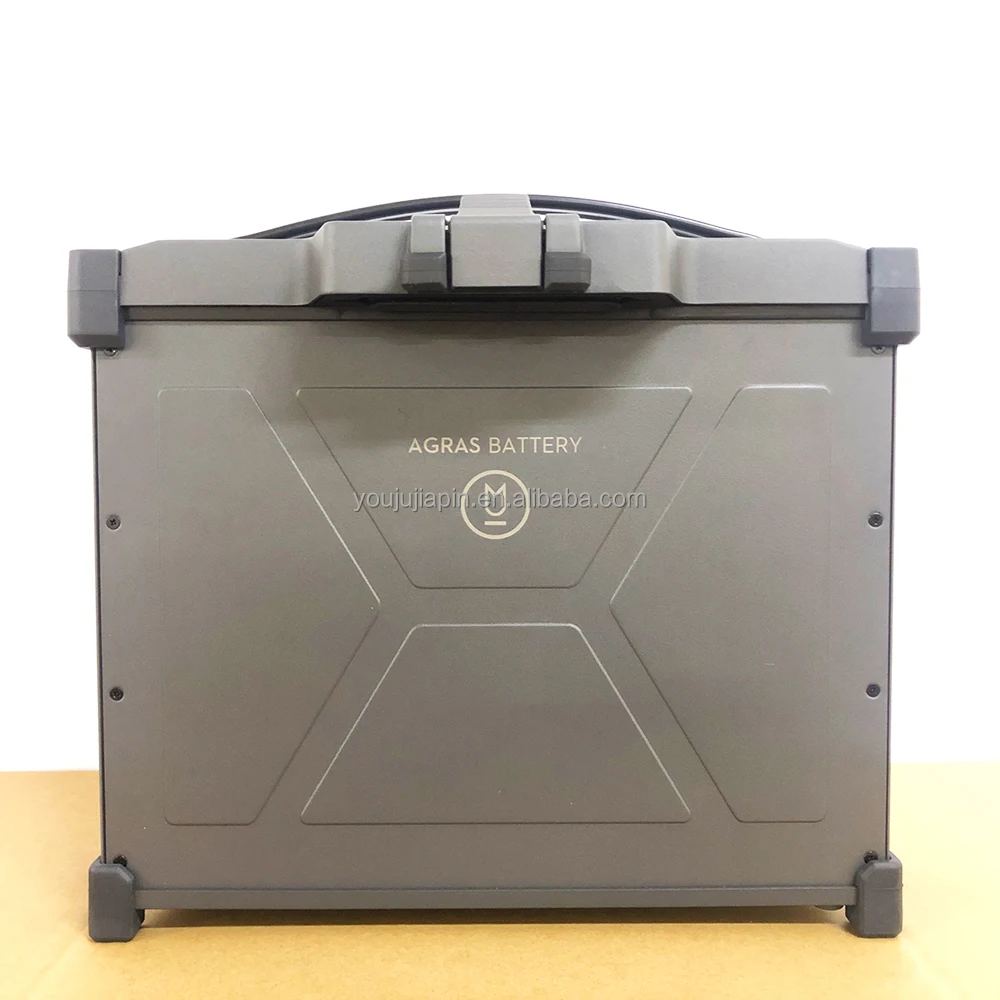

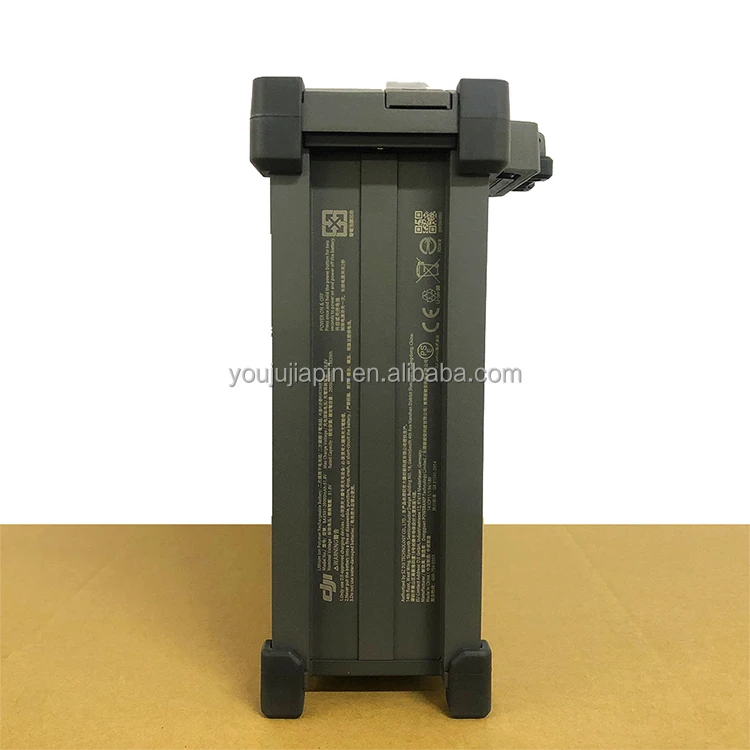

The T30 Intelligent Flight Battery applies to DJI AGRAS TM T30 and has a capacity of 29000 mAh at a nominal voltage of 51.8 V, while the T10 Intelligent Flight Battery applies to DJI Agras T10 and has a capacity of 9500 mAh with the same voltage. The metal shell and rubber caps effectively protect the battery, and the high energy battery cells and the advanced power management system provide long-lasting power to an aircraft.

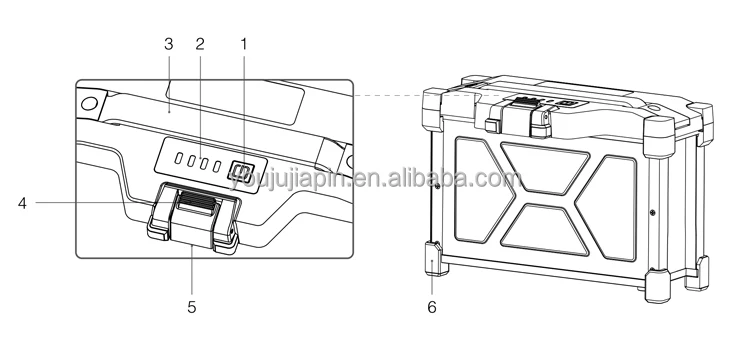

The T10 Intelligent Flight Battery is used as an example below.

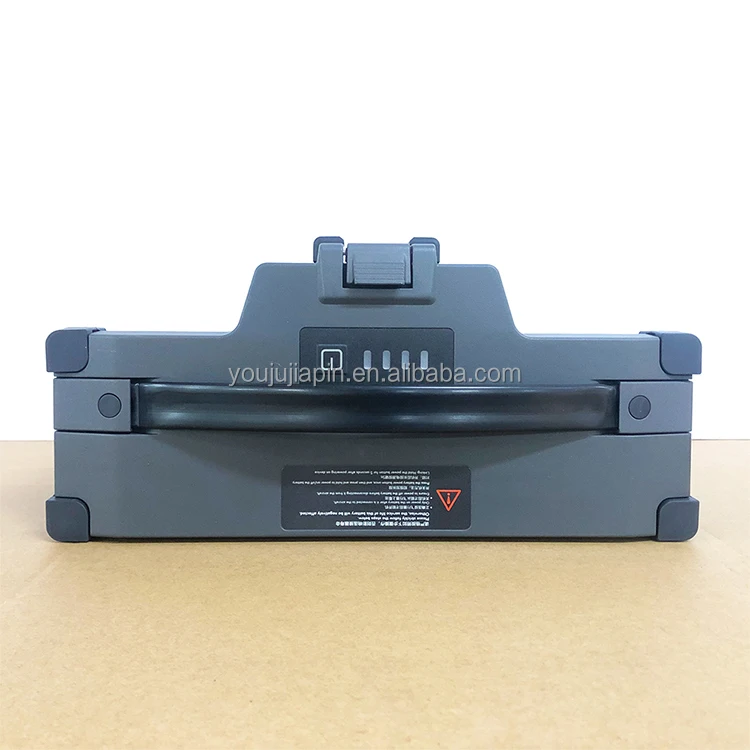

1. Power Button
Press to check the battery power level. Press and then press and hold to power on the battery. Only power the battery on and off when it is connected to the aircraft. Otherwise, the power ports on the battery and the aircraft will be damaged.

2. Status LEDs
Indicate the battery level. From left to right: LED 1, LED 2, LED 3 and LED 4.

3. Handle
Use the handle to carry the battery.

4. Clamp
Use the clamp to firmly attach the battery to the aircraft. Press the clamp to remove the battery from the aircraft.

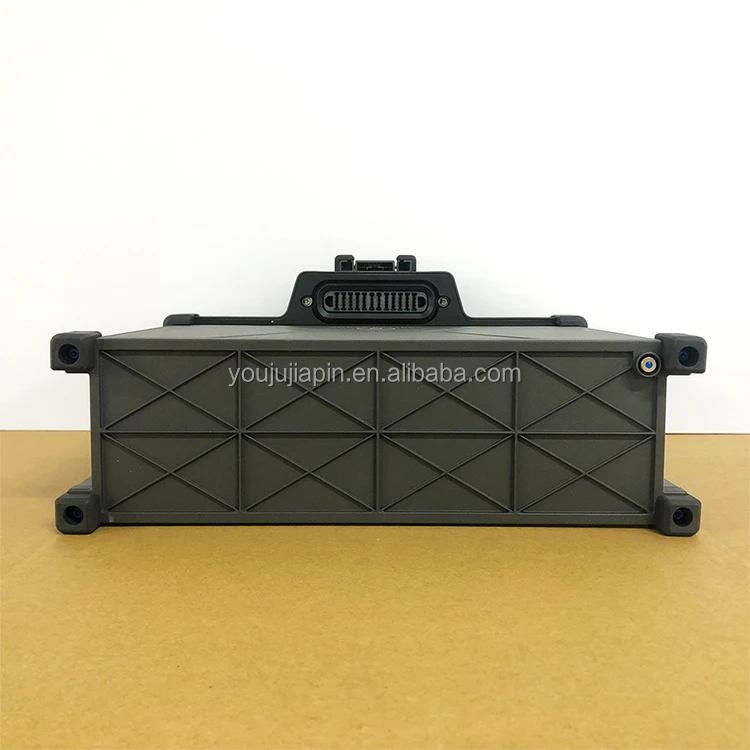

5. Power Port

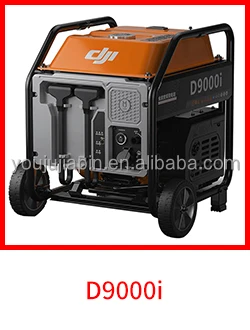

Connects to an aircraft, battery station, or multifunctional inverter generator.

6. Rubber Caps
Protect the battery.

Battery Functions
1. Battery Level Display: The status LEDs indicate the current battery level. Press the power button to check.
2. Communication: Battery parameters including the voltage and power level are transmitted to the aircraft to enable the aircraft to take appropriate action when battery parameters change.
3. Charging Error Detection: Errors that occur during charging are indicated by the status LEDs. When an error occurs, disconnect the battery and wait for the battery to fix the error automatically. For more information, refer to the LED Patterns section.
4. Battery Error Records: The battery records errors such as excessive charging or discharging, exceeding the temperature range when charging and discharging, and storing a battery for an extended period with the power level outside of the recommended range. The battery error records can be accessed by authorized DJI dealers when troubleshooting or repairing.
5. Auto Balancing: In certain situations, the battery automatically balances the voltages of the cells.
6. Auto Discharging: If fully charged for more than one day, the battery automatically discharges to 97%. After 7 days, it automatically discharges to 60%.
7. Auto Current Adjustment: When using with the provided battery station, the battery intelligently adjusts the charging current based on the temperature of the battery cell. The battery also supports self-protection based on the environment temperature.
8. Temperature Control: The battery ensures the temperature difference between the battery cells are the same and stay within the allowable temperature range.

Using the Battery
Press and then press and hold the power button to power on the battery after it is connected to the aircraft. When the aircraft lands and the motors stop, press and then press and hold the power button to power off the battery, and then disconnect the battery from the aircraft.

Battery Maintenance
• DO NOT splash the battery with water. An excessive amount of water will damage the battery.
• DO NOT store the battery when the temperature is outside the range of -20° to 45° C (-4° to 113° F).
• If the battery is not used for an extended period, the battery life may be reduced.
• Fully charge and discharge the battery at least once every three months to ensure the performance of the battery.
• If a battery has not been charged or discharged for five months or more, the battery will no longer be covered by the warranty.
