HUGEROCK K80(2021) android touchscreen industrial rugged tablet 8 inch mobile nfc long distance reader writer module
- Category: >>>
- Supplier: Shenzhen Soten Technology Company Limited
Share on (1600656303136):
Product Overview
Description

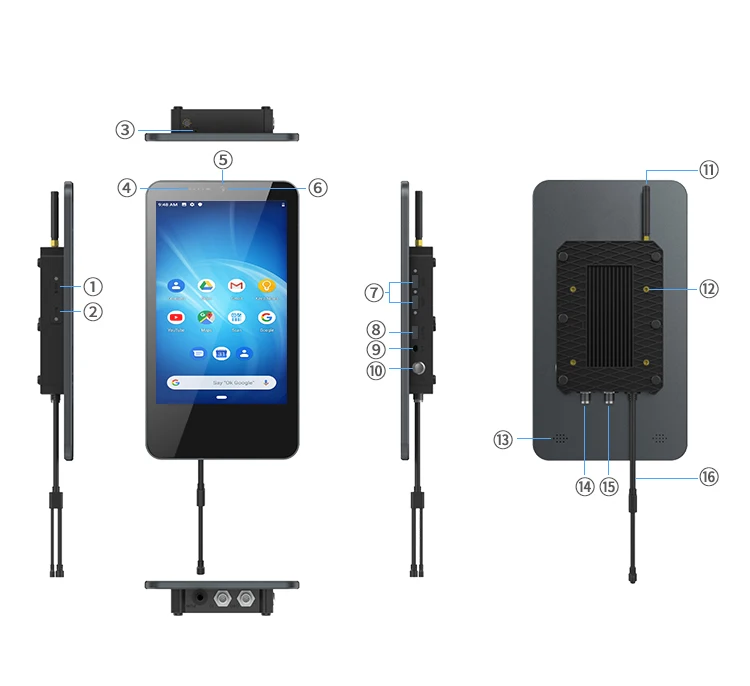

1：SIM card | 2：TF card | 3：MIC | 4：indicator light | 5：light sensor |
6：camera | 7：Type-A (Sealed Cover) | 8：Type-C (Sealed Cover) | 9：headphone jack | 10：power button |

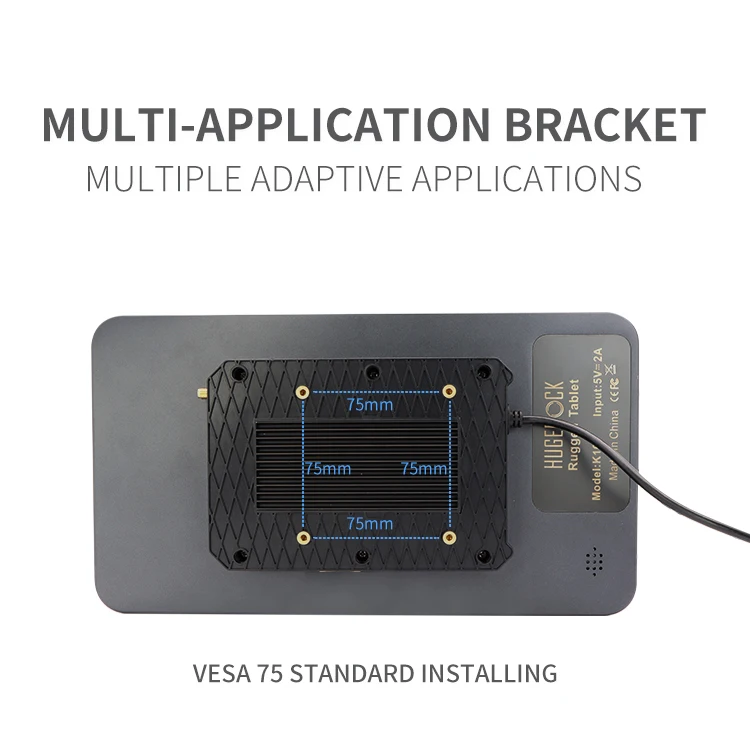

11：GPS antenna（optional） | 12：VESA lock nut | 13：speaker | 14：OBD （optional） | 15：I/O（optional） |
16：DC cable+RJ45 |
Hardware | ||||||||
CPU | ARM A73 2.0GHz Octa --core | |||||||
GPU | Arm Mali--G72 MP3 | |||||||
RAM | 4G | |||||||

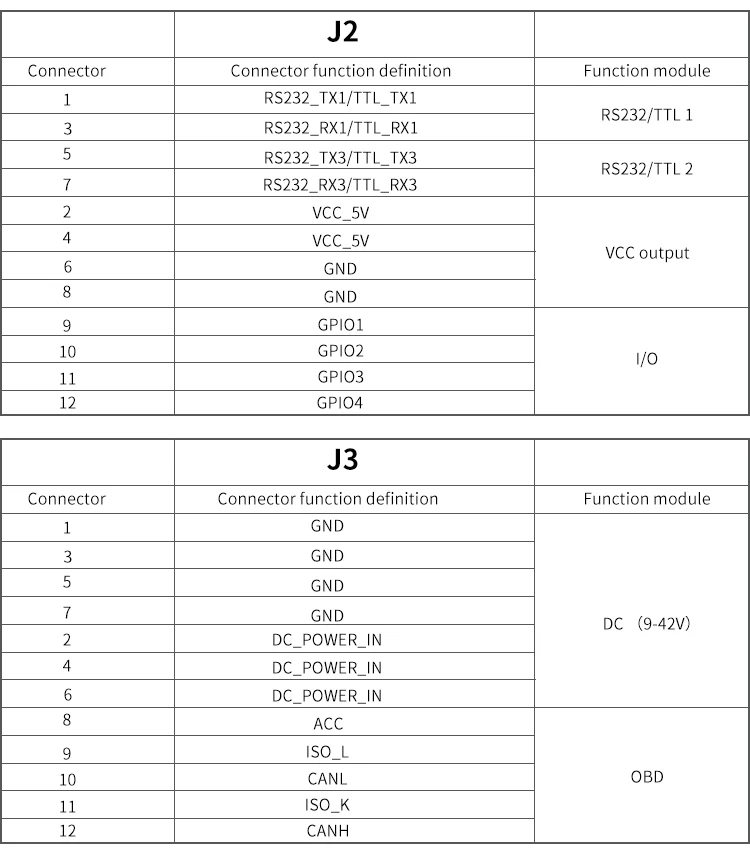

Internal Memory | 32G | |||||||
External Memory | Micro SD card ( T-FLASH card), max 256GB | |||||||
Sub Camera | 5.0MP | |||||||
Battery | No built-in battery/external power supply | |||||||

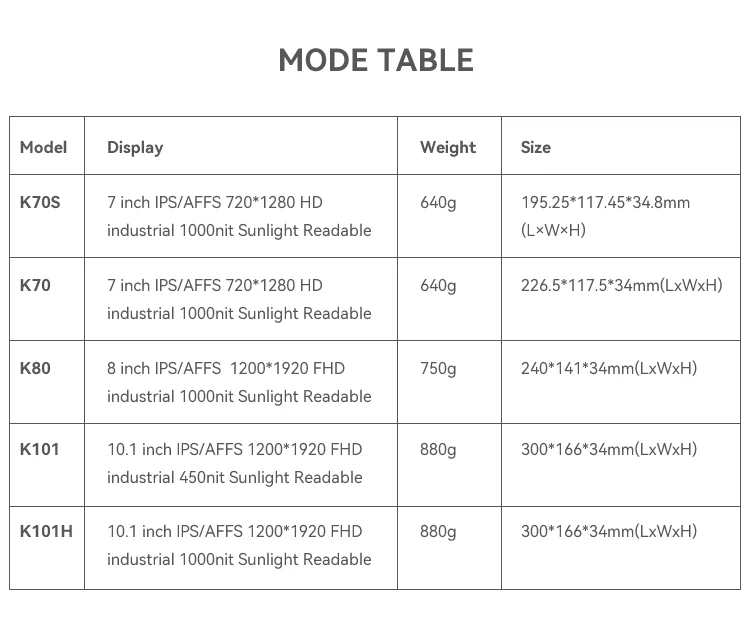

Display | 8 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable | |||||||
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen | |||||||
IO/Sensor/Navigation | ||||||||
SIM Card | Nano sim card*2 | |||||||
TF Card | Micro SD card ( T-FLASH card) ;max 256GB | |||||||
Headphone | 3.5mm (CTIA） | |||||||
Data interface | USB Type-A(Host)*2 , Type-C*1 | |||||||

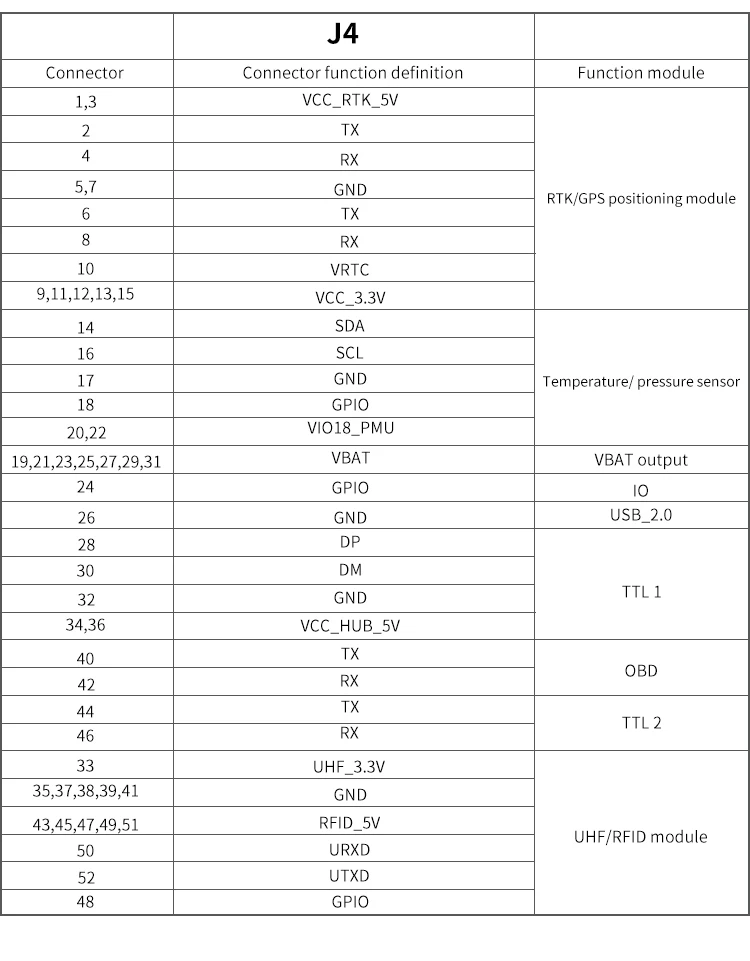

UART（optinal） | The motherboard reserves two serial ports TTL3.3V | |||||||
RS232 （optinal ） | Optional RS232 serial port, use M8 5pin aviation plug to transfer 9pin | |||||||
Gravity sensor | support | |||||||
Motion sensor | support | |||||||
Direction Sensor | support | |||||||
Magnetic Field | support | |||||||
Gyro sensor | support | |||||||
Rotation Vector | support | |||||||
Light-sensor | support | |||||||
Acceleration sensor | support | |||||||
Body sensing | 4G microwave radar sensor | |||||||
Charger | DC 9～24V input,3A 27W | |||||||
Navigation | GPS+Beidou+Glonass+AGPS+SBAS （EPO 2.5m） | |||||||
Appearance | ||||||||

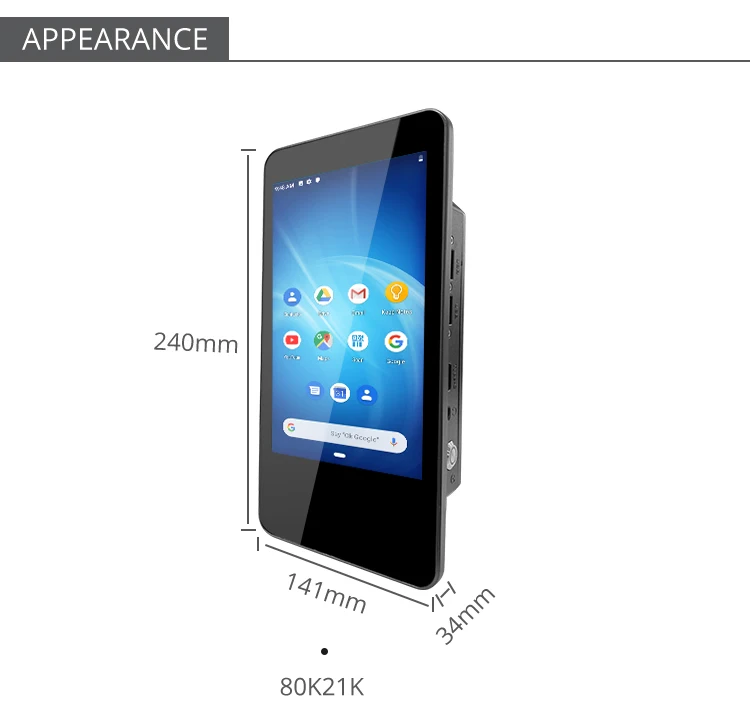

Size | 240*141*34mm（L×W×H） | |||||||
Weight | 750g | |||||||
Color & Material | grey | |||||||
Communications & Networking | ||||||||
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE | |||||||
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |||||||
2G Band | GSM（B2/3/5/8） | |||||||
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO | |||||||
3G Band | WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1 | |||||||
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink , 50Mbps uplink | |||||||
4G Band | TD-LTE（B38/39/40/41）；FDD LTE（B1/2/3/4/5/7/8/12/17/20/28） | |||||||
WI-FI | Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |||||||
Bt | 5.0 Low Energy (LE) | |||||||
Industrial & Reliability Design | ||||||||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |||||||
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |||||||
Waterproof | Class 5 ( IEC 60529 ) | |||||||
Dustproof | Class 6 ( IEC 60529 ) | |||||||
Reliability | MTBF>5000h；MTTR | |||||||
Operating temperature | -20°C to 70°C | |||||||
Storage Temperature | -40°C to 80°C | |||||||
RH | 5% to 95% | |||||||
Operating Altitude | Max: 4,500 m（15,000 feet） | |||||||
Certification/OS/Software | ||||||||

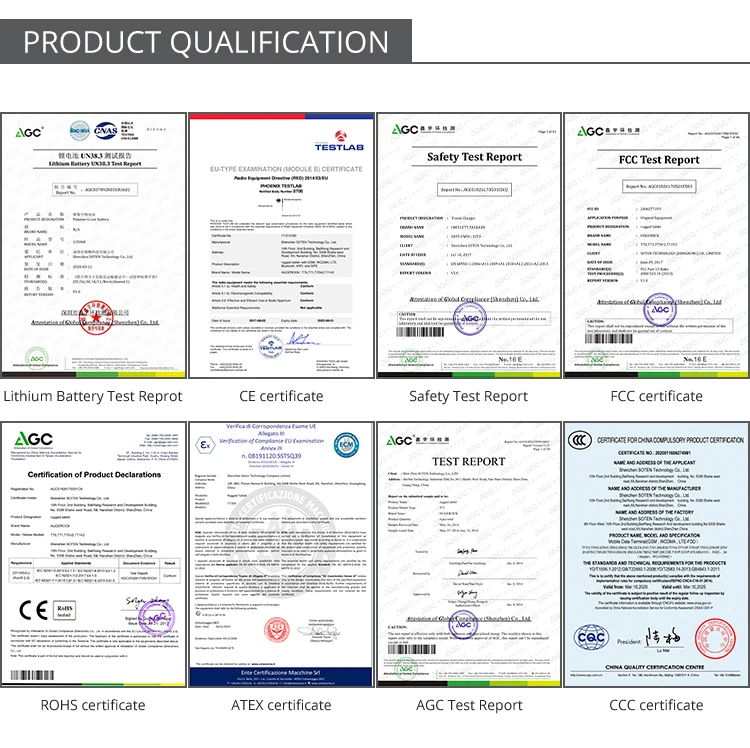

Certification | 3C /FCC/CE/ROHS/IP65（IEC 60529） | |||||||
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian,Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc | |||||||
OS | Android 10 / 11 | |||||||
Package/Warranty terms/OEM | ||||||||
Warranty | 24 months | |||||||
OEM/ODM | Support | |||||||

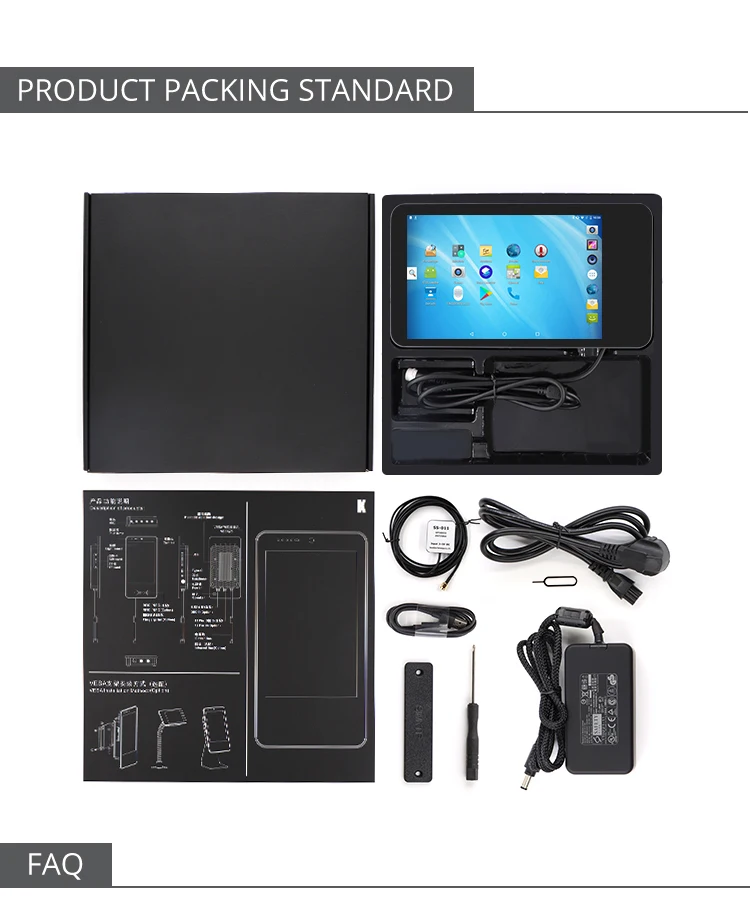

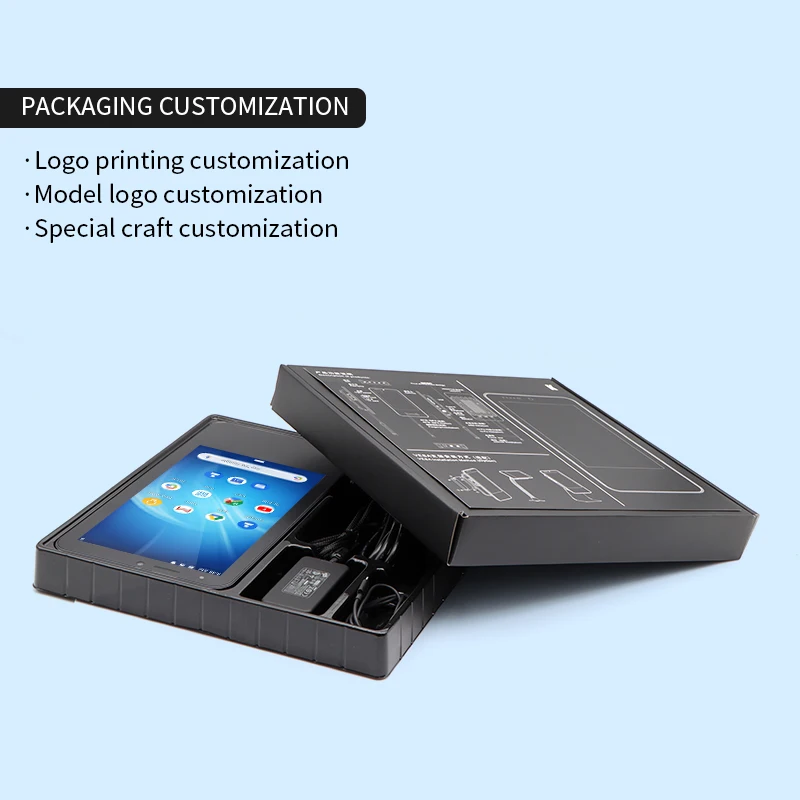

Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Aircraft box/Toolkit（optional） | |||||||
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?

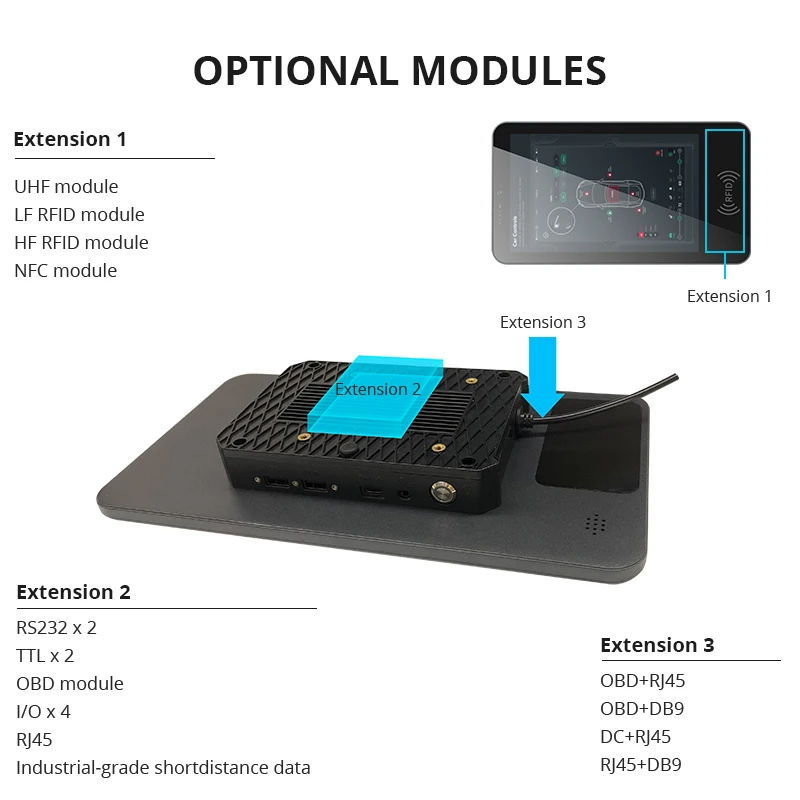

A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance .
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences.
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance .
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences.
