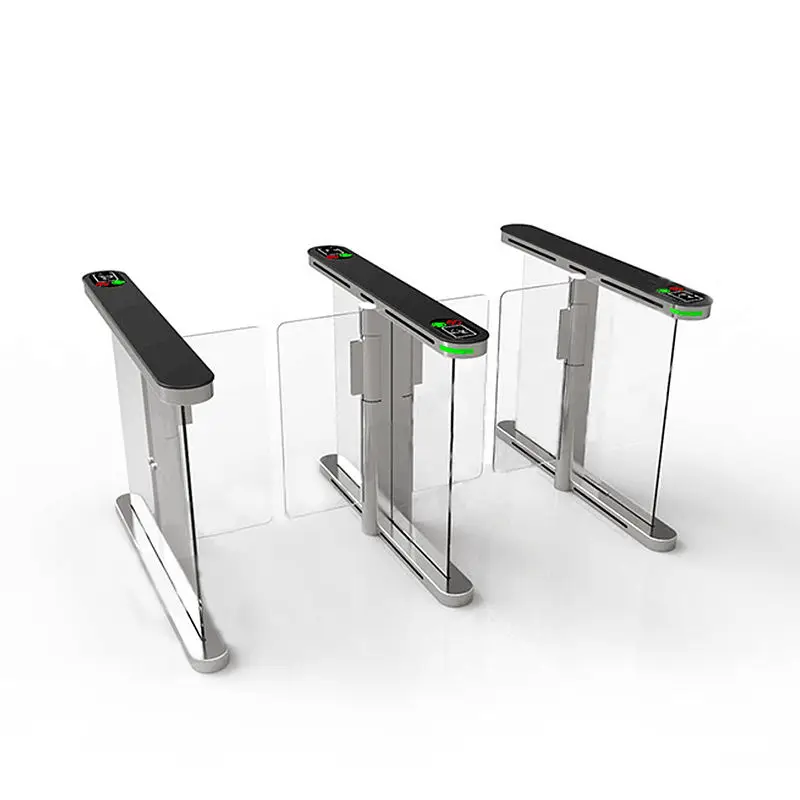

Barcode Scanner Speed Gate Turnstiles QR Code Reader
- Category: >>>
- Supplier: Shenzhen Anxia Technology Co. Ltd
Share on (1600656352649):
Product Overview
Description
Product Description
Description

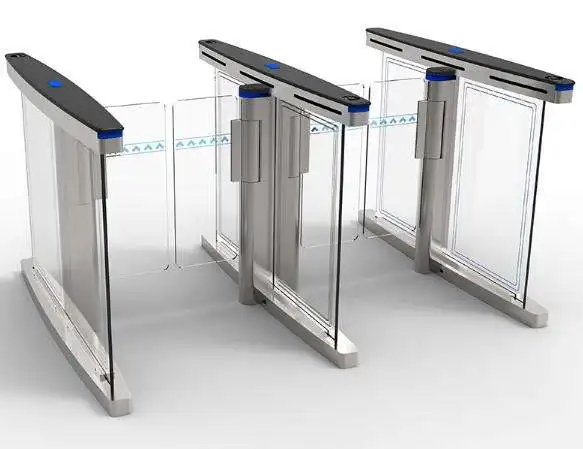

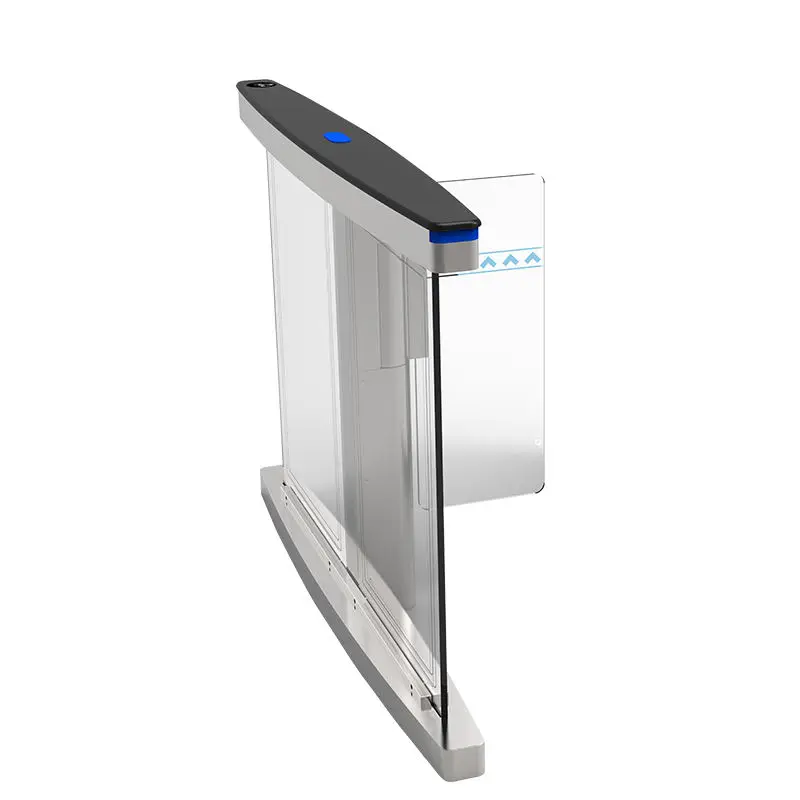

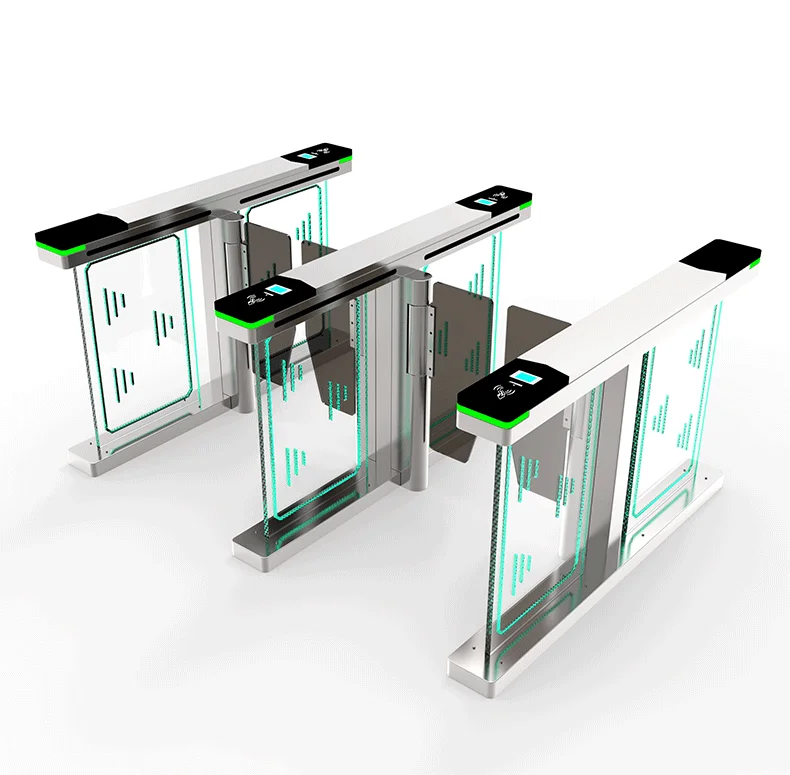

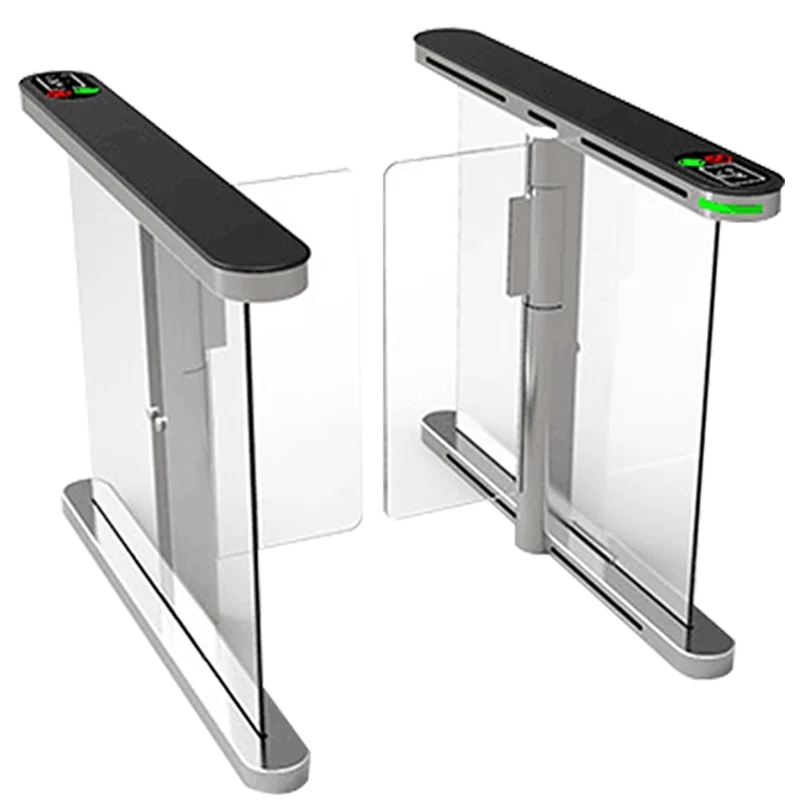

automatic opening Security stainless steel entrance swing barrier turnstile speed gate waist height access control Swing Barrier Gate Turnstile offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. It's high speed gate for quick passing. The elegant & slim design makes it suitable for commercial buildings, office, government building etc. The compact unit makes it simple to construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding
Details Images
Features&Benefits
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.

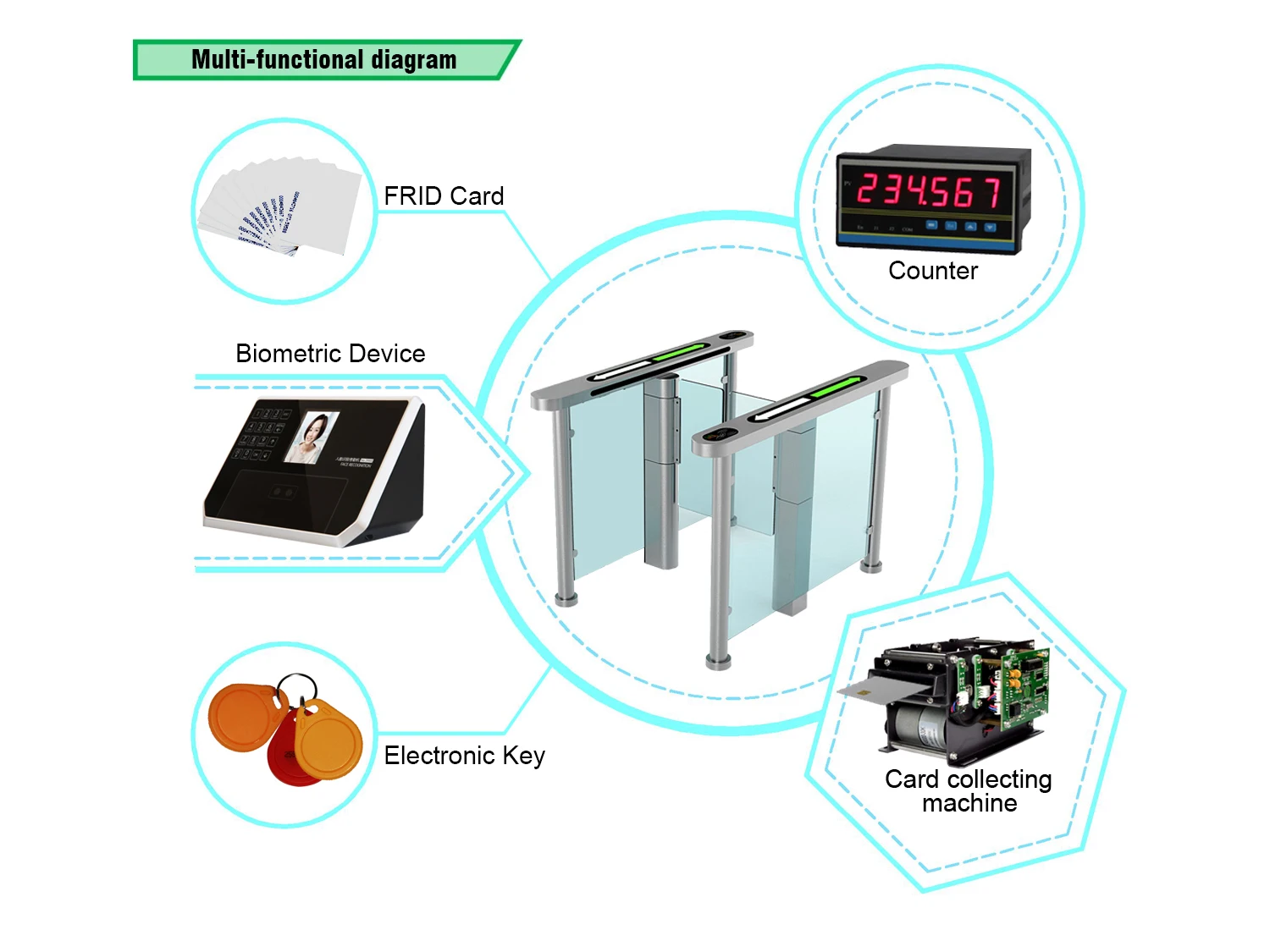

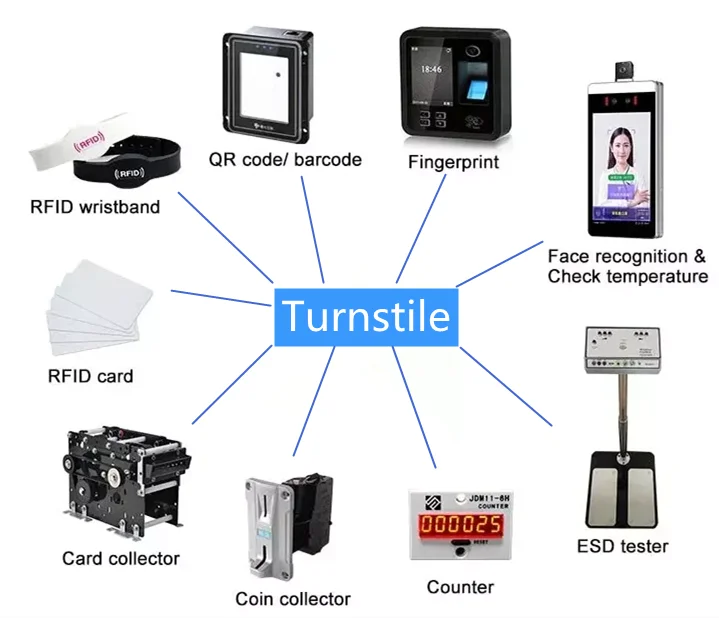

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function
Product Paramenters
Material | SUS304 Stainless steel optional with SUS316L | ||||||
Voltage | AC110/220±10% 50/60Hz±10%（Specify when ordering） | ||||||
Electromotor | Brushless motor 24V 40W | ||||||
Dimension | Width 300mm Depth 1400mm and 980mm Heigh | ||||||
Operation | Full-automatic | ||||||
Flap opening | 0.2 seconds | ||||||
DIrection | Single or bi-directional | ||||||
LED light | Entry or no-entry display direction arrows | ||||||
Enviorment | Indoor or outdoor ( use a canopy cover) | ||||||
Pass speed | 35-40 persons/min | ||||||
Temperature | Indoor /outdoor -10℃-50℃ | ||||||
Input interface | Dry contact signal pr +12V signal or pulse | ||||||
Packaging&Shipping
Why Choose Us
Company Profile
FAQ
Are you a factory or trading company
We are biggest professional manufacture of security equipment with almost 13 years experience in Shenzhen China
What is your MOQ
Normally MOQ 1 pcs and the price is negotiable for batch quantity
What is your lead time
3-7 working days after received payment
How does your factory do regarding quality control
We control every production process in according with ISO9001 and CE certification
What is your after sale service
100% guarantee on our product install instrustion and video suporrt software debugging with remote control support The whole unit 2 years free guarantee
