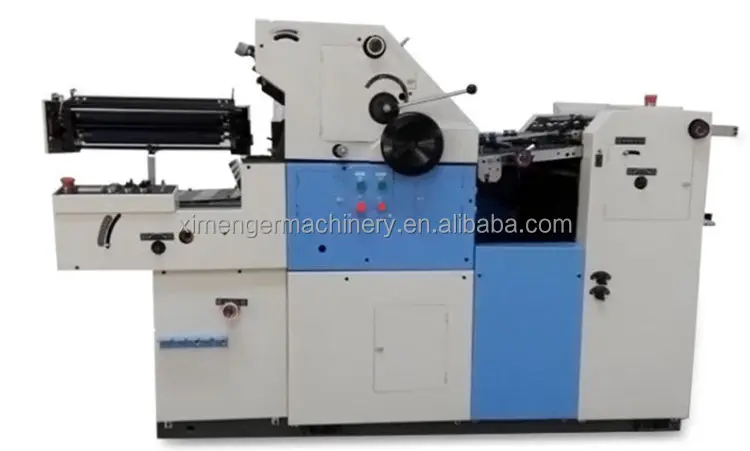

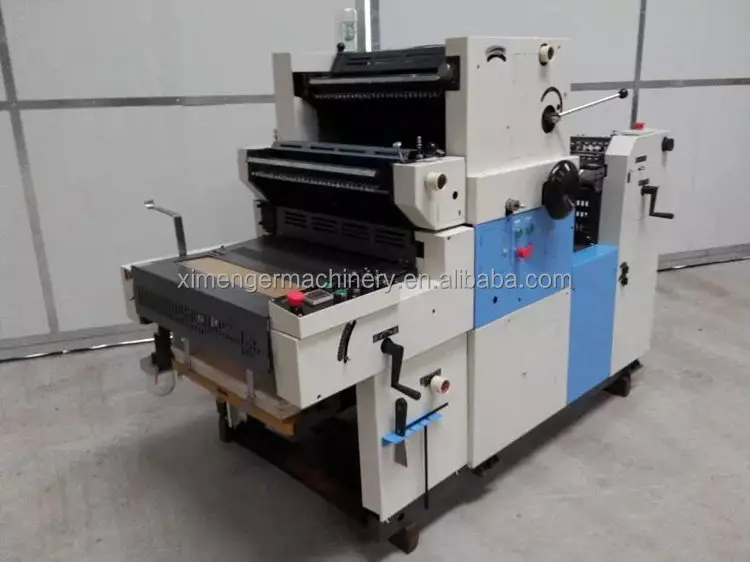

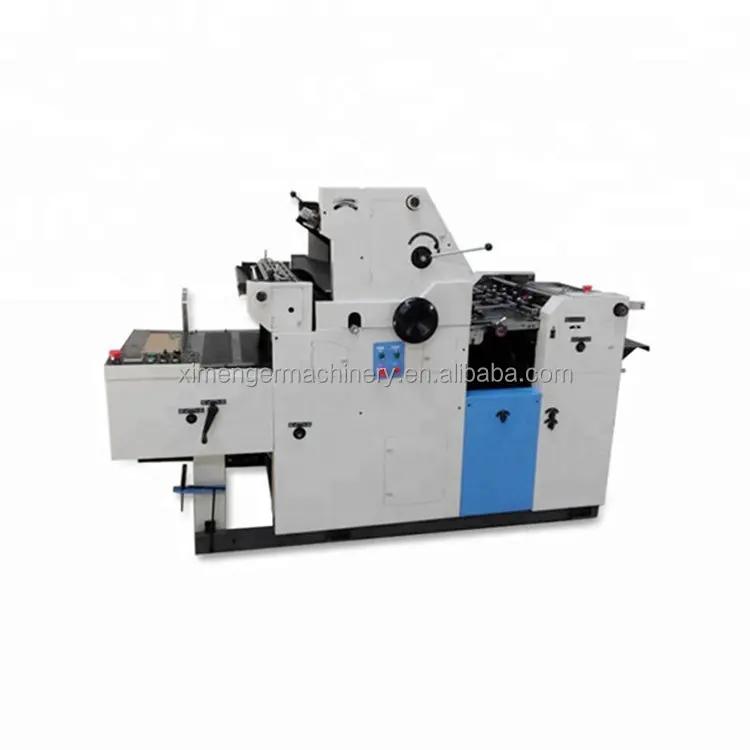

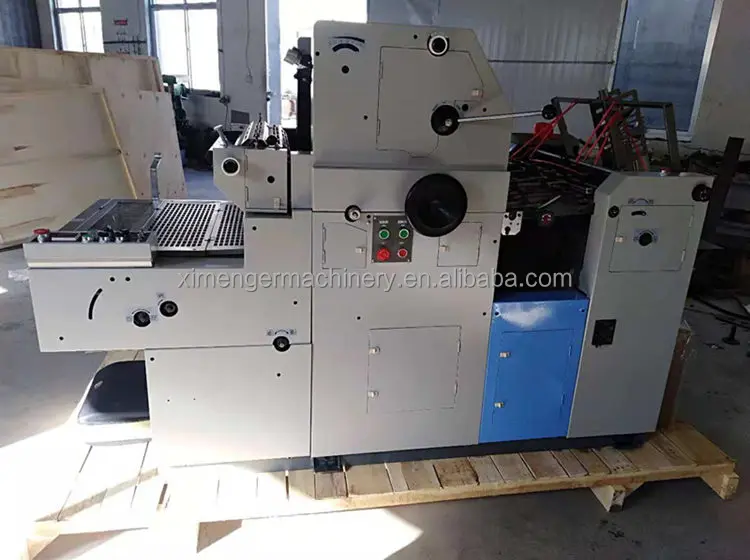

High Speed Paper Offset Printing Machine Newspaper Numbering Machine
- Category: >>>
- Supplier: Zhengzhou Ximenger Machinery Co. Ltd.
Share on (1600656358757):
Product Overview
Description
High Speed Paper Offset Printing Machine Newspaper Numbering Machine
Product Paramenters
High Speed Paper Offset Printing Machine Newspaper Numbering Machine
| Model | JC56NP | JC62NP |
| Printing Colors | 1 color | 1 color |
| Max. printing size | 550*375mm | 605*440mm |
| Max. sheet size | 560*400mm | 620*450mm |
| Min. sheet size | 150*200mm | 260*180mm |
| Plate size | 560 * 420* 0.15mm | 620* 485*0.15mm |
| Blanket size | 560* 460*1.95mm | 616*505*1.95mm |
| Paper Weight | 28-250g/m2 | 28-250g/m2 |
| Ink roller | 10pcs (2 forme inking rollers) | 16pcs (3 forme inking rollers) |
| Dampening roller | 4pcs (1forme dampening rollers) | 3pcs (2 forme dampening rollers) |
| Printing speed | 2000-7000 sheets/hour | 2000-7000 sheets/hour |
| Molleton | thick: 76 stitches; thin: 44stitches | thick: 76 stitches; thin: 44stitches |

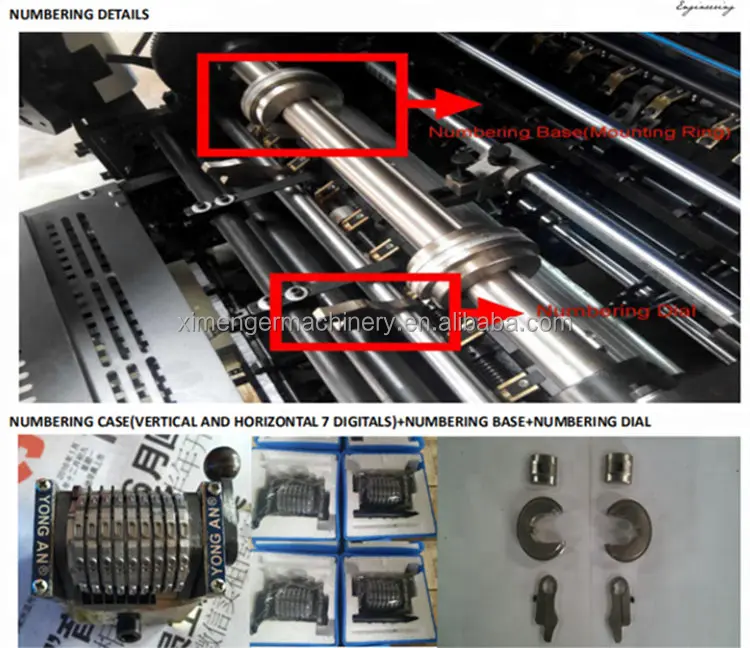

| Numbering device |
Straight type(horizontal): 56 heads Max. (7 heads on a ring × 8 rings on a shaft) | Straight type(horizontal): 56 heads Max. (7 heads on a ring × 8 rings on a shaft) |
| Convex type(vertical): 45 heads Max. (5 heads on a ring × 9 rings on a shaft) | Convex type(vertical): 45 heads Max. (5 heads on a ring × 9 rings on a shaft) | |
| Perforating device | Cross perforation: Min 25mm | Cross perforation: Min 25mm |
| Vertical perforation:5mm(blade-perfo type) 2cm(rotary-perfo type) | Vertical perforation:5mm(blade-perfo type) 2cm(rotary-perfo type) | |
| Ink Roller for NP unit | 6pcs(2 forme inking rollers) | 6pcs(2 forme inking rollers) |
| Main Power Motor | 1.1KW | 1.5KW |
| air-pump motor | 0.55KW | 0.8KW |
| Weight | 950kg | 1100kg |
| Dimension | 2.11*1.11*1.57m | 2.35*1.15*1.62m |
Product Description
High Speed Paper Offset Printing Machine Newspaper Numbering Machine
1.This machine is widely used in printing center, typed copy shop to print bills,tickets,books,newspaper,magazine,brochures,non-wowen bags, paper cups etc.
2.It’s an advanced type on basic of Hamada machine.
3.It can achieve single-color print, over print for 2 Colors,3 Colors,4 Colors.
4.It has the plate micro-adjustment function.

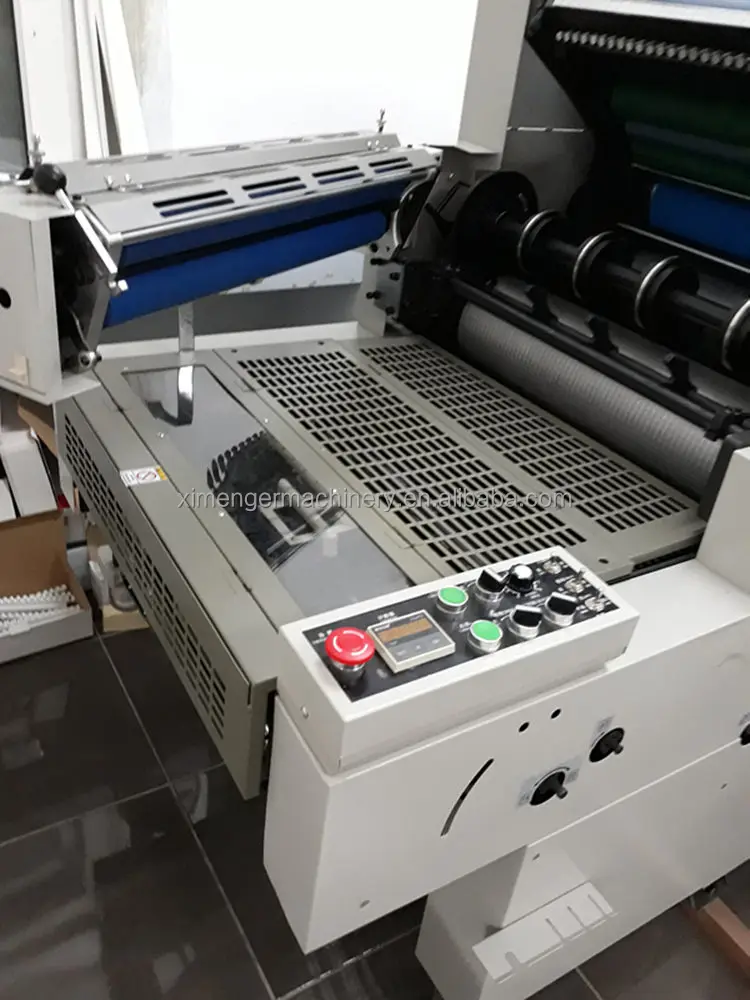

5.It’s easy to operate. (Pneumatic Press,Touching Screen is optional)
6.It adopts advanced PLC programmable controller

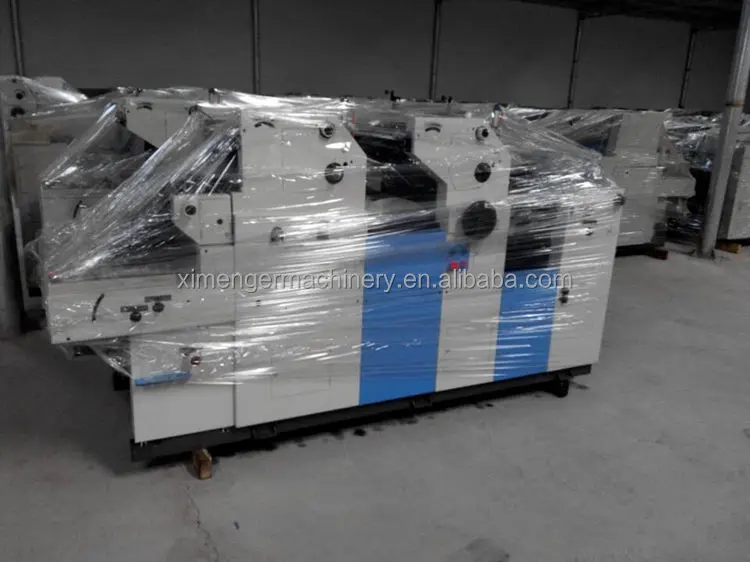

Packaging & Shipping
1.Professional, environmentally friendly, convenient and efficient packaging services
2.7 working days leading time
3.sea shipping,express shipping,air shipping etc.
Our Services
Company Information
Zhengzhou Ximenger Machinery Co., Ltd is a diversified company, which is an integrated company of industry and trade. it specializes in the production of paper product making machine,paper processing machine and also specializes in finding machines for customers with good cooperative relation.
Our products are widely recognized and trusted by our users to meet changing economic and social needs.
Welcome new and old customers from all walks of life to contact us, looking for future business relations and common success.
FAQ
1. Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 10 years and also a professional exporter.
2. Q: What about the payment term?
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
A: Mostly 30%T/T in advance as deposit, 70% T/T when machine is finished before shipping.
3. Q: What is the warranty?
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
A: One year warranty after sales.During the warranty period, we will send the spare parts that break out due to the quality.
4. Q: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service.
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service.
5. Q: What is the delivery time?
A: Mostly it takes 3 to 10 working days (depend on different machine) after receiving the deposit and confirming the drawing or samples as required.
A: Mostly it takes 3 to 10 working days (depend on different machine) after receiving the deposit and confirming the drawing or samples as required.
