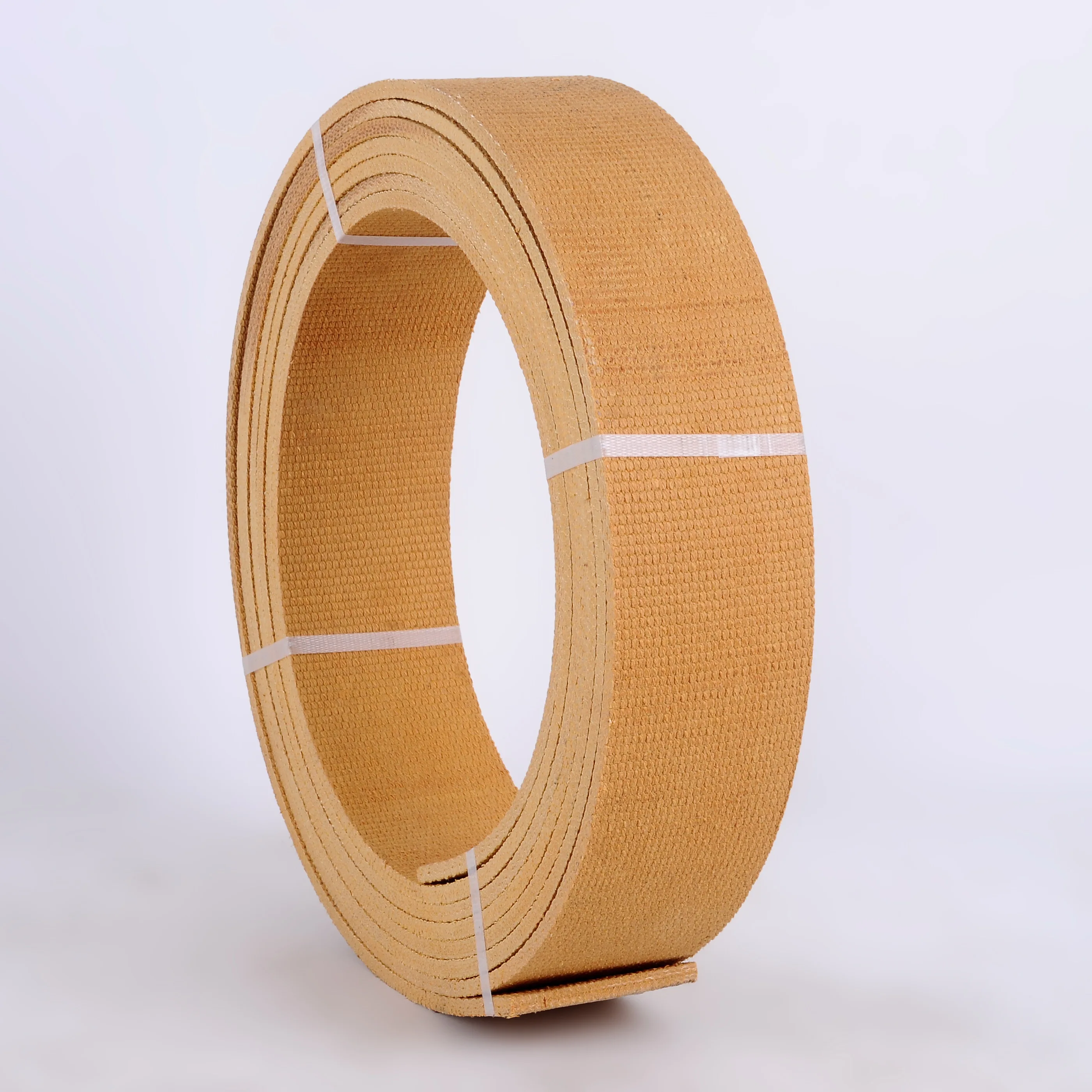

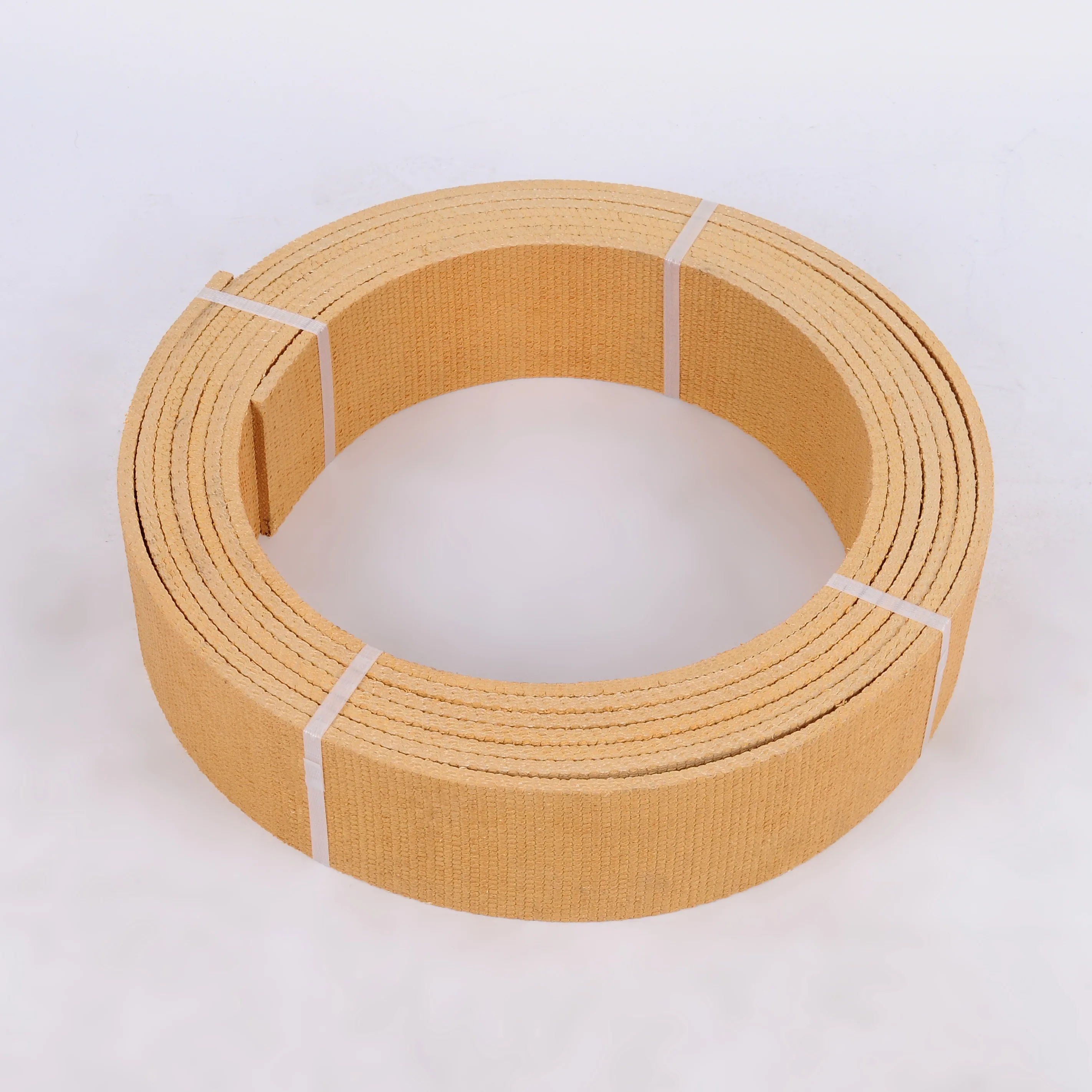

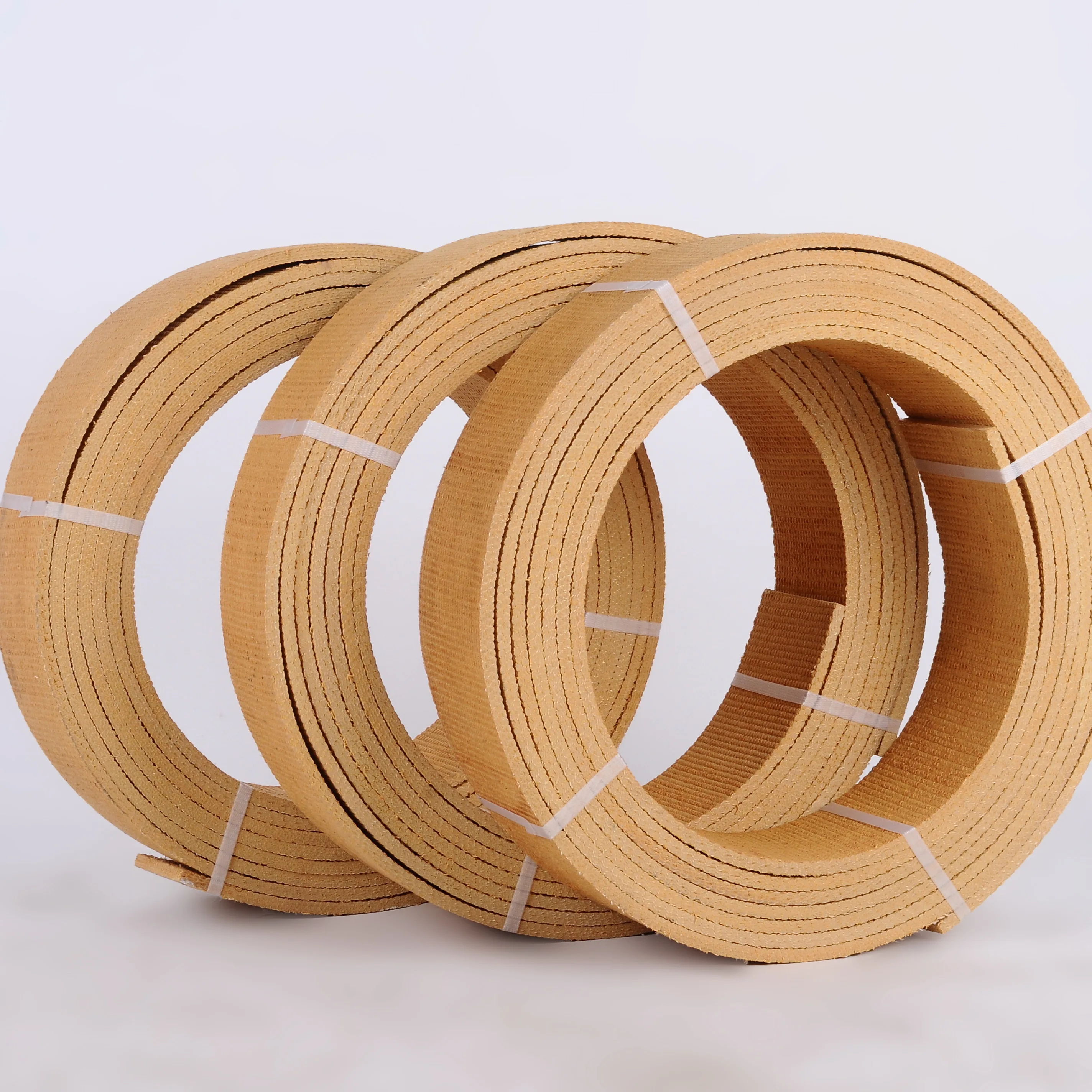

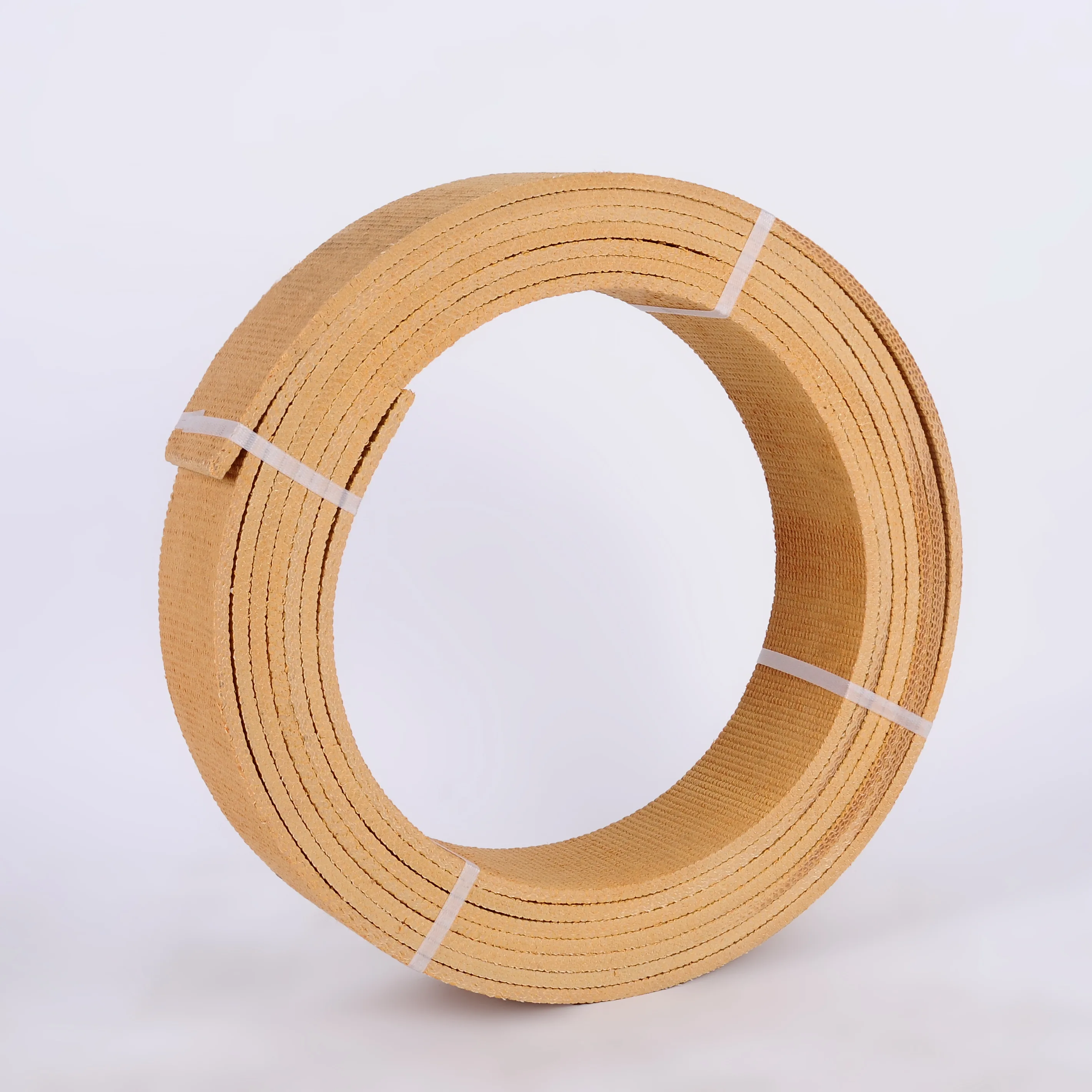

Winch Brake Lining Non Asbestos Brake Lining Asbestos Free Woven Brake Lining Roll

Product Overview

Description

Winch Brake Lining Non Asbestos Brake Lining Asbestos Free Woven Brake Lining Roll



Color: as per your request

Thickness: 5-30mm;

Width: ≤600mm;

Length: as per your request



Material: viscose fiber, glass fiber, copper wire, melamine resin

Work condition: 200°C, Pressure: 1.0 mpa

Standard: GB/T11834-2000

Application: widely use in decelerating and braking of engineer machines, industry machine and mining machines.

Performance: good elasticity, high tenacity, shock resisting, heat resisting, good duality and anastomosis, agile brake, etc.





 Wear Performance of Woven Resin Brake Lining in roll

Interface Temperature	Friction coefficient	Wear rate(CM3/NM)
100°C	0.40—0.65	≤0.7×10-7
150°C	0.35—0.65	≤1.1×10-7
200°C	0.30—0.60	≤1.3×10-7





We can manufacture the size and material as per your requirements.

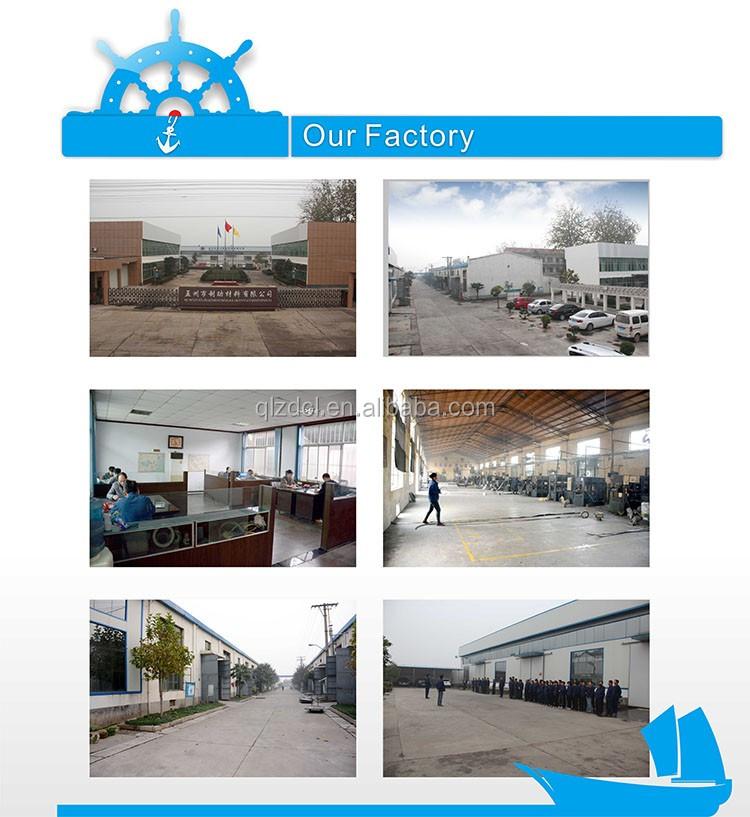

Welcome you to our factory.
