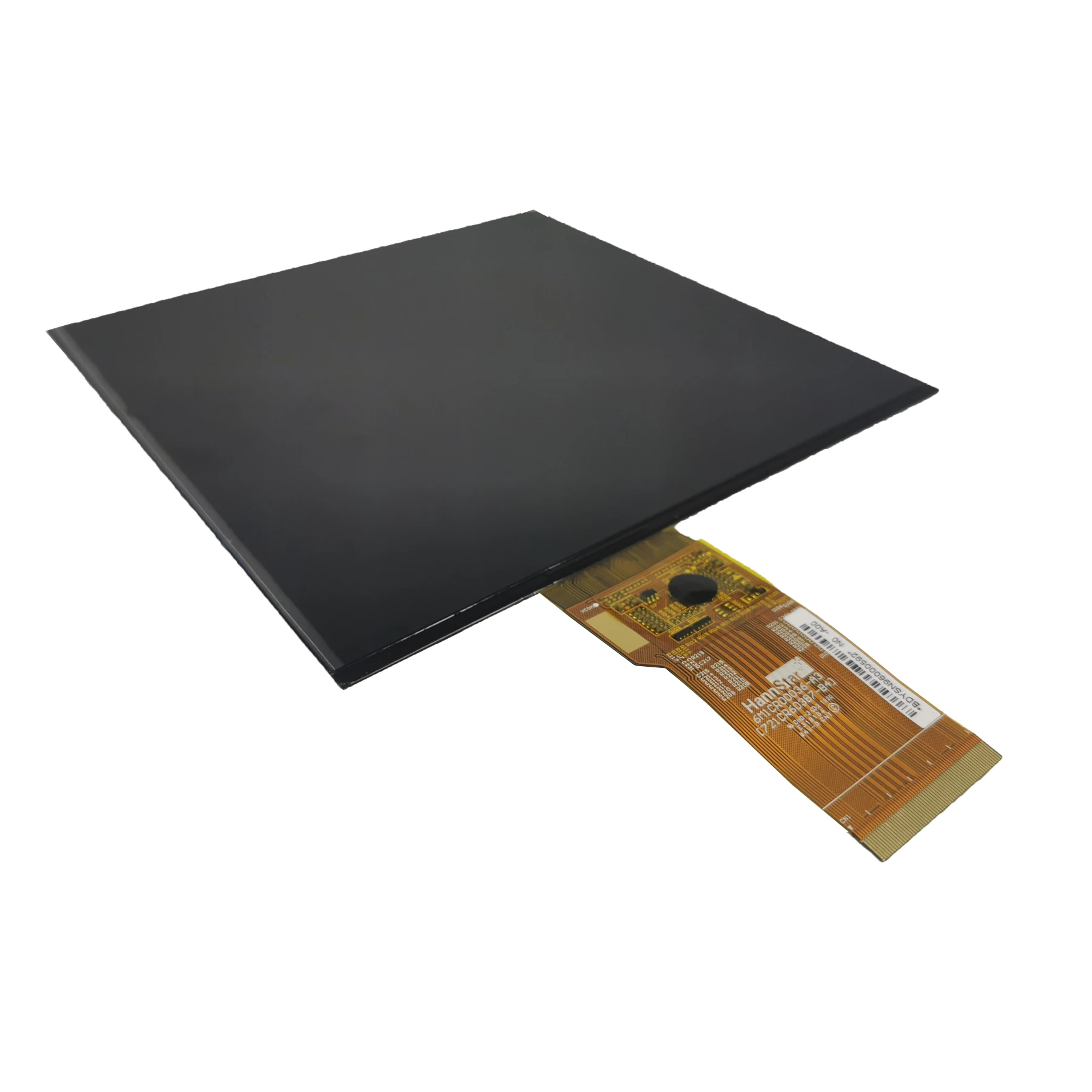

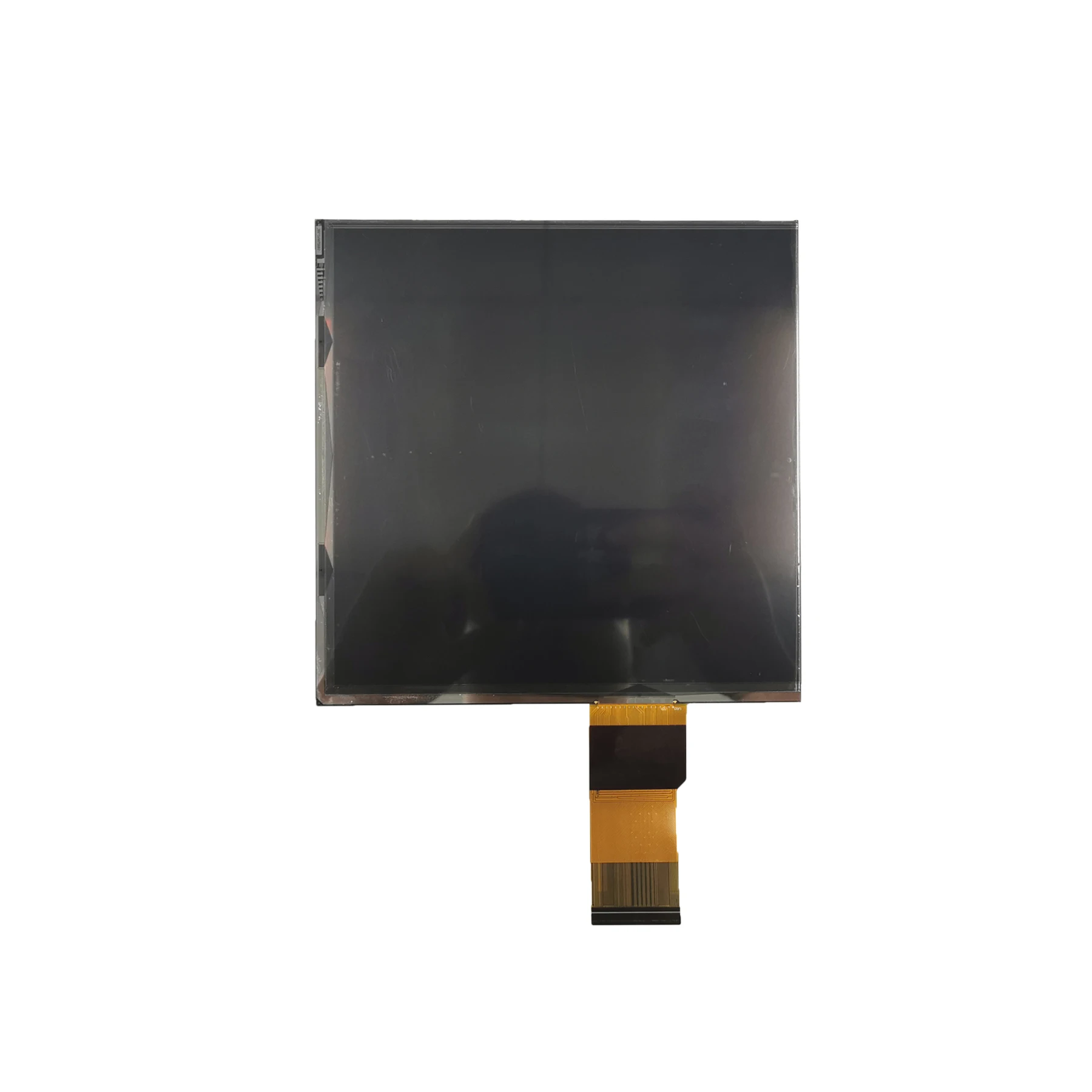

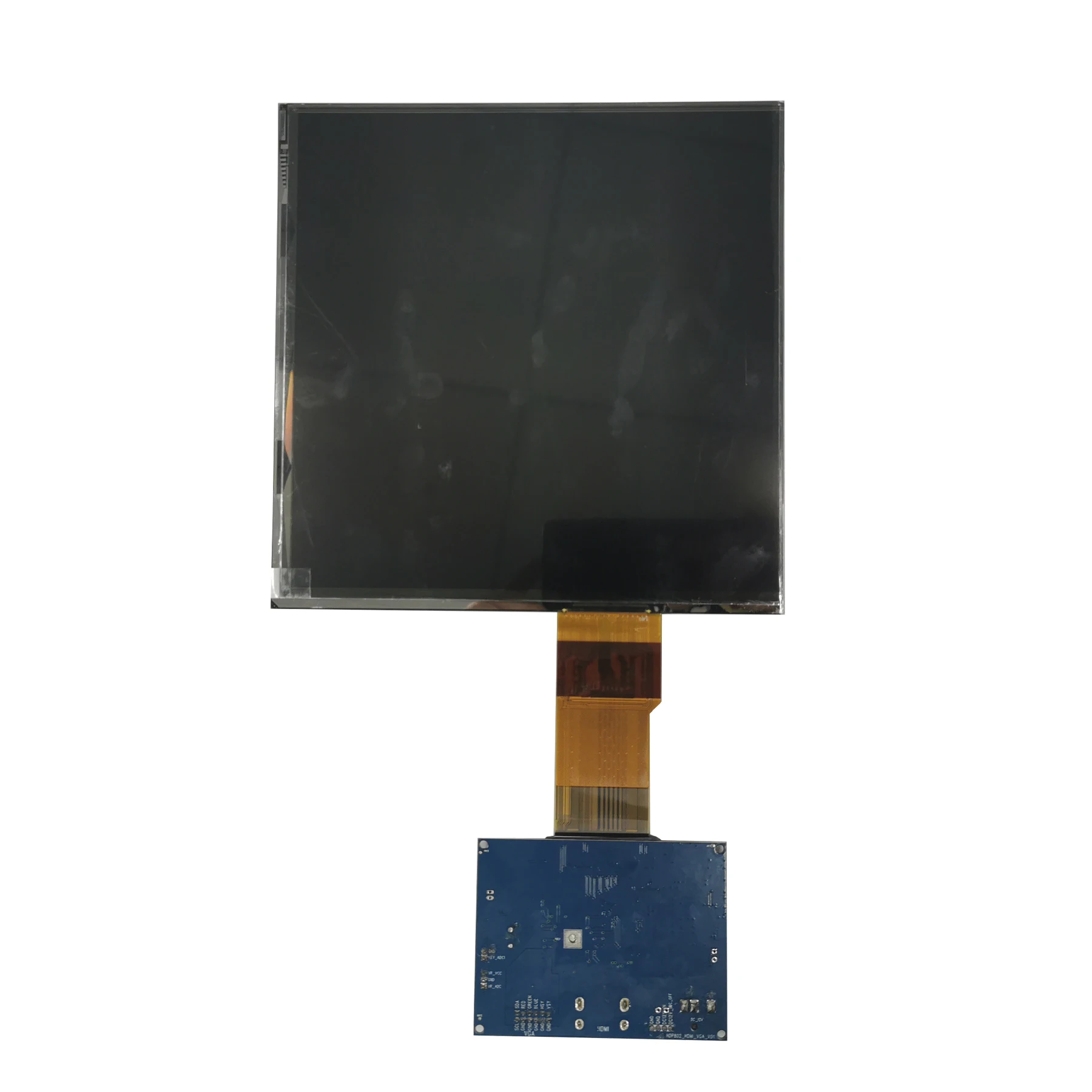

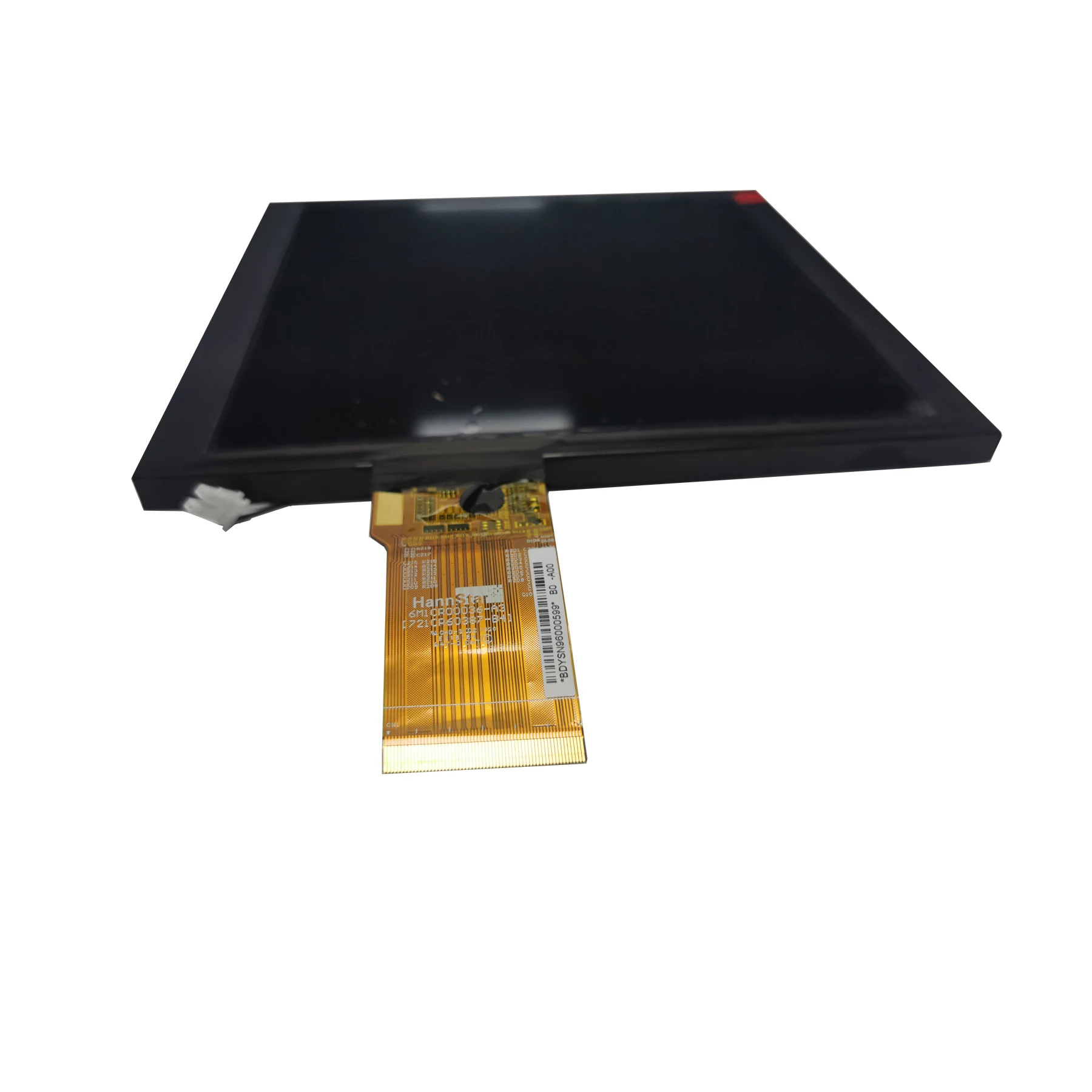

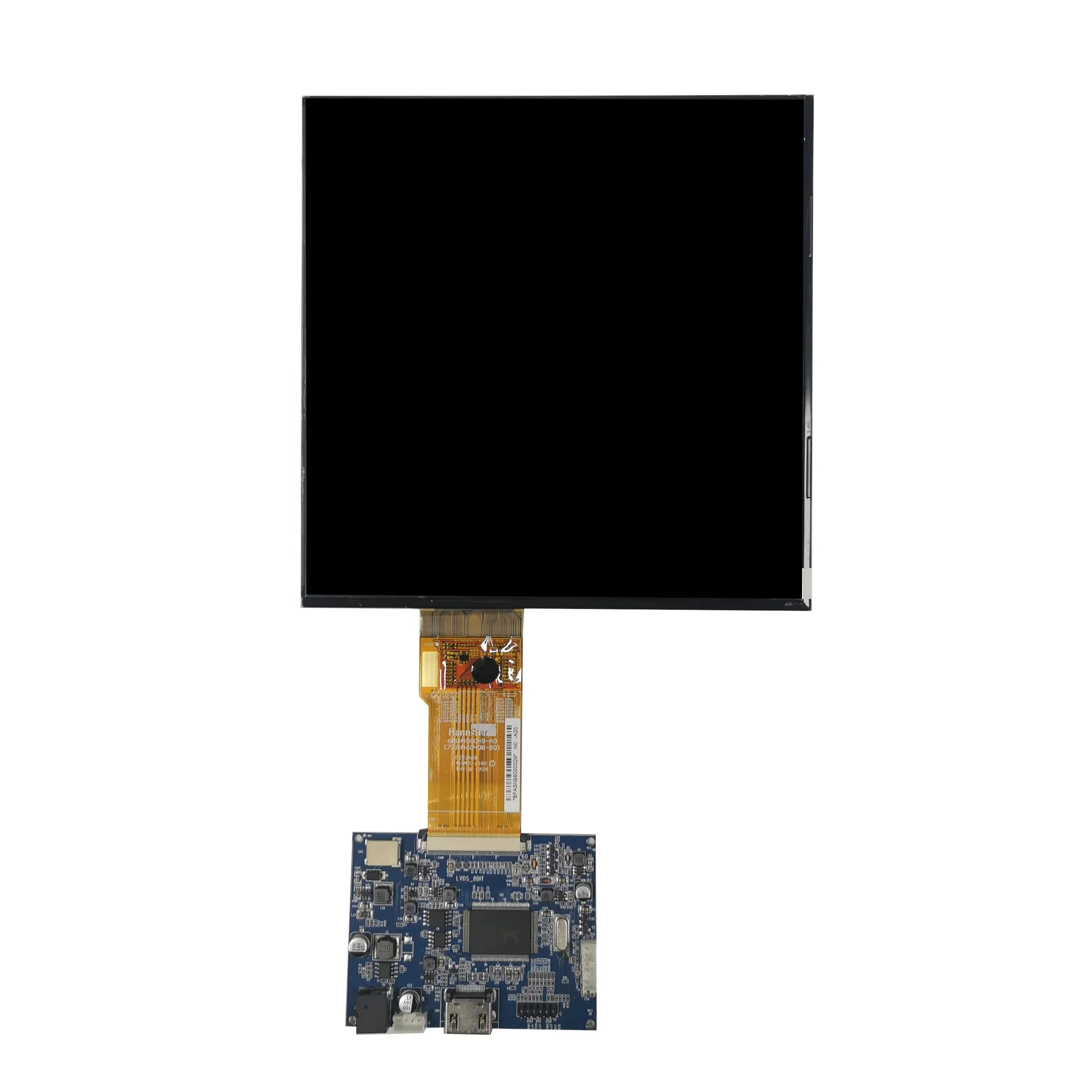

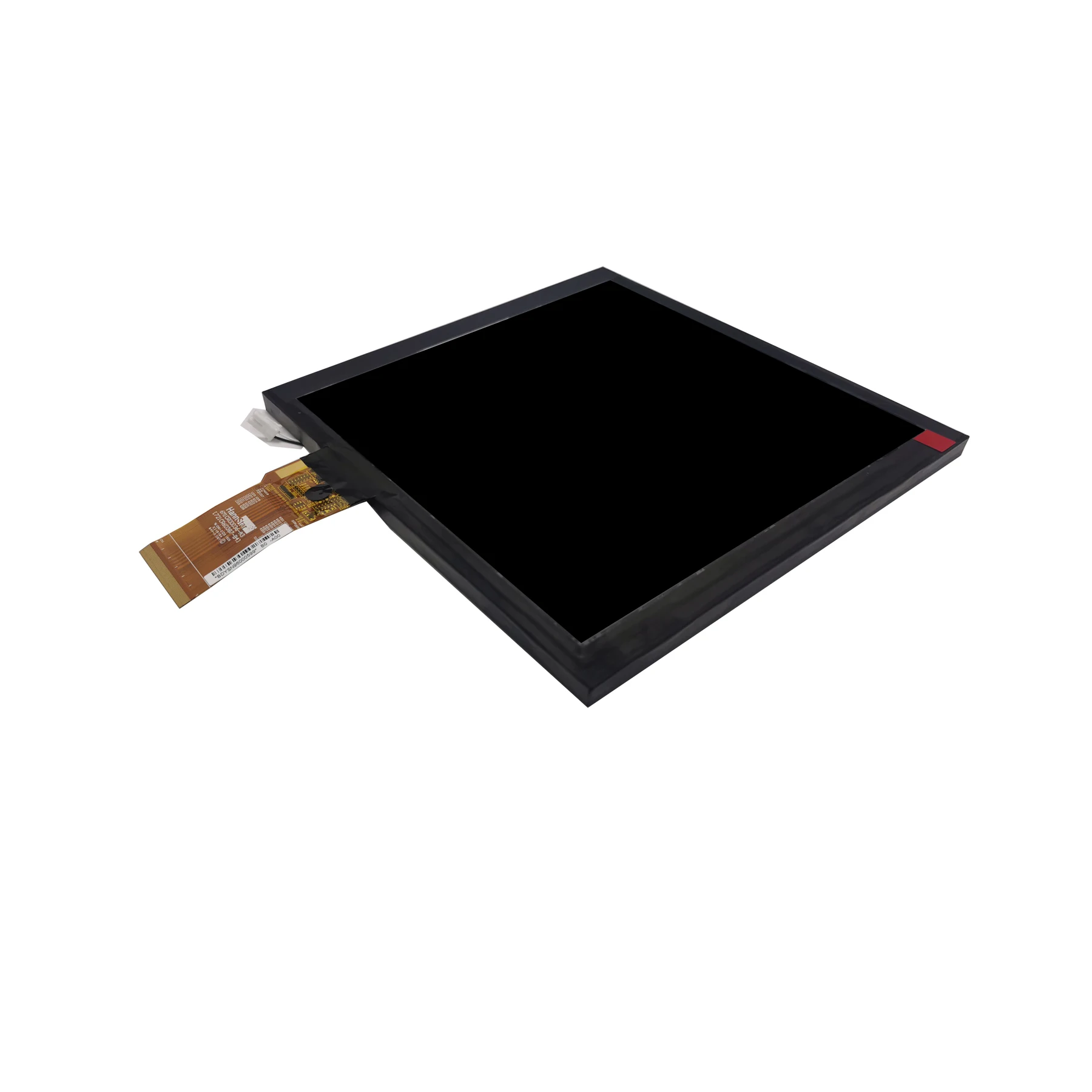

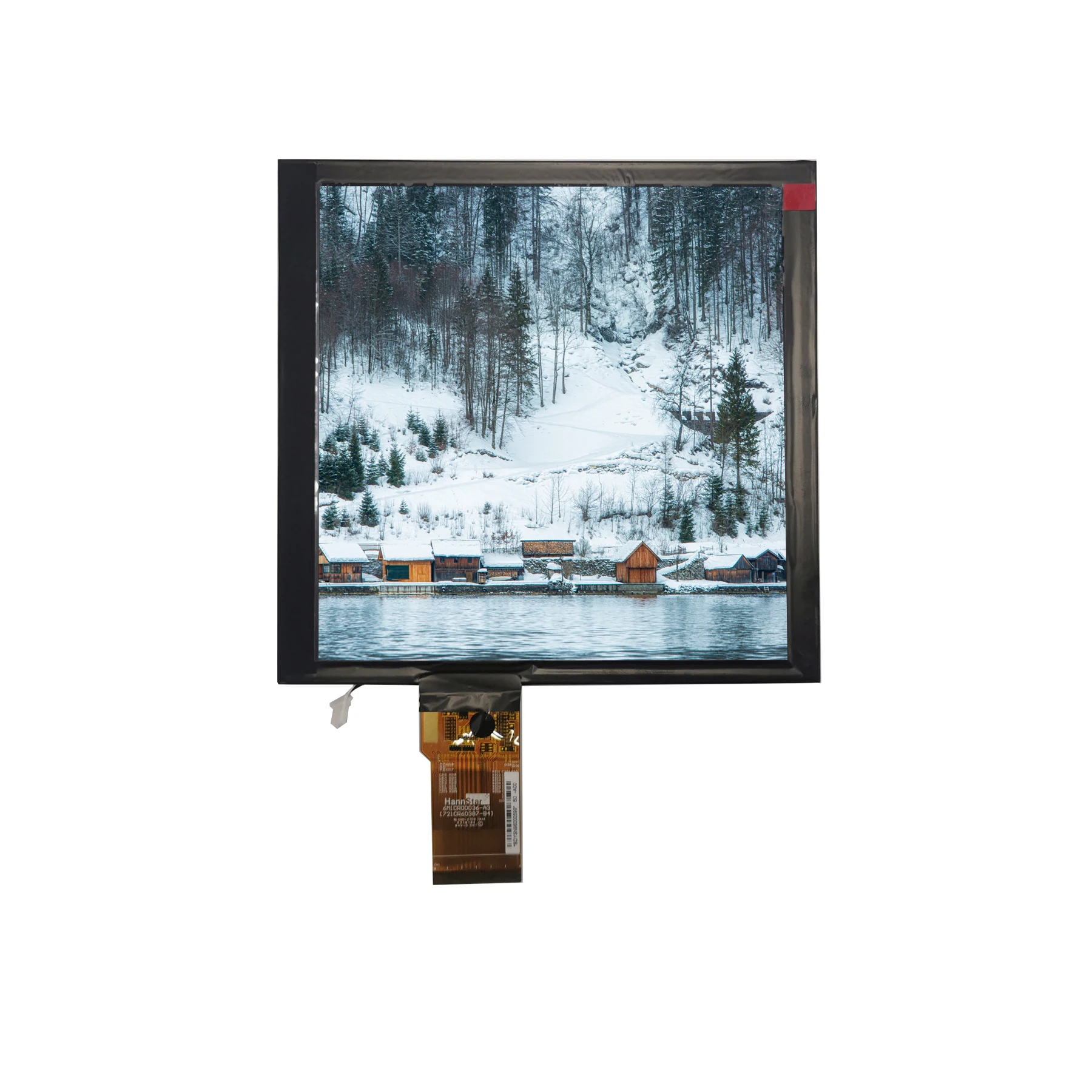

8.8 Inch 768*768 RGB 8.82 inch 16.2M LVDS Interface Square LCD Module Screen
- Category: >>>
- Supplier: Shenzhen Aptus Technology Co. Ltd
Share on (1600656723587):
Product Overview
Description
Product Description
Specification
item | value |
Type | TFT LCD |
Display Size | 8.8 inch |
Supplier Type | Original manufacturer |
Place of Origin | China |
Model Number | DBC088HIX60L01 |
Brand Name | Duobond |

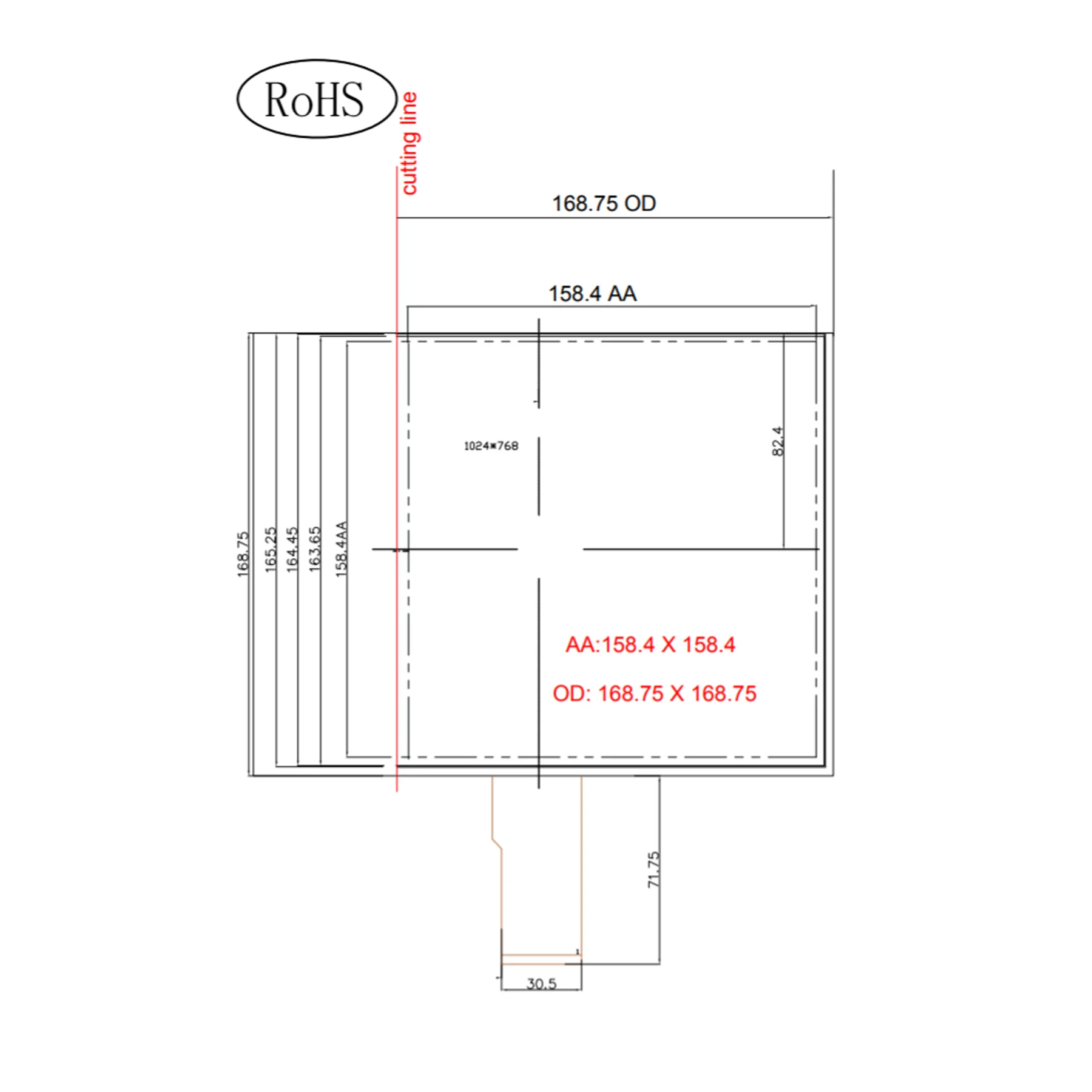

Outline Dimension | 176.85 (H)x176.85(V)x1.29(D)mm |
Display area | 158.4(H) x 158.4(V)mm |
Number of Pixel | 768(H) x 768(V) |
Pixel pitch | 0.20625(H) x 0.20625(V)mm |
Pixel arrangement | RGB Vertical Stripe |
Backlight | without backlight |
Operating Temperature | -20~70℃ |
Storage Temperature | -30~80℃ |
Contrast | 900:1 |
color | 16.2M |
Related Products
Click the product "Model number" in the list to enter the corresponding product interface for details!If you feel that there are too many words and it is inconvenient to find the product you want, you can contact our sales staff.
All products support customization!
Backlight, Touch panel, FPC, Outline dimensions., etc.
Size | Model number | Resolution | Interface | Viewing angle (Typ.) | Brightness |
1.33" | 240xRGBx240 | 8BIT MCU | 80/80/80/80 | 200cd/m2 | |
1.44" | 128xRGBx128 | 4-Line Serial MCU | 70/70/65/60 | 200 cd/m2 | |
1.77" | 128xRGBx160 | 4 wire spi | 45/45/45/20 | 180 cd/m2 | |
2" | 240×RGB×320 | MPU 8 Bits | 80/80/80/80 | 180 cd/m2 | |
2.31" | 320xRGBx240 | 6-RGB | 70/70/70/60 | 180 cd/m2 | |
2.31" | 320xRGBx240 | SPI | 70/70/70/60 | 180 cd/m2 | |
2.4" | 240xRGBx320 | MPU 8 Bits | 70/70/70/60 | 200cd/m2 | |
2.4" | 240xRGBx320 | 4-LINE SPI | 80/80/80/80 | 200cd/m2 | |
2.4" | 240×RGB×320 | SPI | 80/80/80/80 | 220cd/m2 | |
2.8" | 240×RGB×320 | MPU 8 Bits | 70/60/70/70 | 180cd/m2 | |
3" | 360xRGBx640 | MIPI | Free | 230cd/m2 | |
3.4" | 800xRGBx800 | MIPI (3 data lanes) , FPC , 39 pins | 80/80/80/80 | 350cd/m2 | |
3.5" | 320×RGB×480 | MCU 16 Bits | 70/70/60/60 | 250cd/m2 | |
3.6" | 1024xRGBx768 | MIPI, 35 pins | 85/85/85/85 | 900 cd/m2 | |
4" | 480×RGB×800 | MIPI | 80/80/80/80 | 250Cd/m2 | |
4.3" | 800xRGBx480 | 40 pins LVDs | 80/80/80/80 | 800 cd/m2 | |
5" | 1080xRGBx1080 | MIPI (3 data lanes) , FPC | 80/80/80/80 | 400cd/m2 | |
5.1" | 480xRGBx480 | parallel RGB 24-bit | 80/80/80/80 | 500cd/m2 | |
7" | 720xRGBX720 | 40 pin LVDs | 80/80/80/80 | 500 cd/m2 | |
7" | 800xRGBx480 | 40 Pins TTL | 80/80/80/80 | 350 cd/m2 | |
7" | 800xRGBx480 | 40 Pins TTL | 80/80/80/80 | 350 cd/m2 | |
7" | 800xRGBx480 | 50pins TTL | 70/70/50/70 | 1000 cd/m2 | |
7" | 800xRGBx480 | 8bits LVDS | 80/80/80/80 | 800cd/m2 | |
7" | 800xRGBx480 | 60PIN FPC,24bit RGB,TN | 60/70/75/75 | 2500cd/m2 | |
7" | 800xRGBx480 | 50PIN FPC,24bit RGB | 50/70/70/70 | 500cd/m2 | |
7" | 1024xRGBx600 | 50 pin TTL | 70/70/60/70 | 1500cd/m2 | |
7" | 1200xRGBx1920 | MIPI | 80/80/80/80 | 400cd/m2 | |
7" | 1200xRGBx1920 | MIPI | 80/80/80/80 | 600cd/m2 | |
7" | 1280xRGBx800 | 40 pins LVDs FPC | 88/88/88/88 | 400cd/m2 | |
8.8" | 768xRGBx768 | LVDS | 85/85/85/85 | 400~1200 cd/m2 | |
9" | 800xRGBx480 | 50pins TTL | 70/70/50/70 | 1000 cd/m2 | |
10.1" | 1280xRGBx800 | 40 pins LVDS | 85/85/85/85 | 1000~1200 cd/m2 | |
10.1" | 1920xRGBx1080 | I2C (Up to 400kbits/sec) | 85/85/85/85 | 1100cd/m2 | |
10.1" | 1920xMONOx1080 | 40 Pins EDP | 80/80/80/80 | 500~4000 Cd/m2 | |
10.1" | 1920xRGBx1200 | 45Pins LVDS | 85/85/85/85 | 1500cd/m2 | |
10.4" | 1024xRGBx768 | 30Pins LVDS | 88/88/88/88 | 400~1200 cd/m2 | |
11.6" | 1920xRGBx1080 | 30Pins EDP | 85/85/85/85 | 400~1200 cd/m2 | |
15.6" | 1920xRGBx1080 | eDP (2 Lanes),30 pins | 85/85/85/85 | 300 cd/m² |
General Clauses
1 | MOQ: | 1 pcs |
2 | Lead time: | Samples in stocks within 2 days,3~6 weeks for mass production |
3 | Trade Terms : | EXW or FOB |
4 | Payment: | 100% Paypal or T/T or Western union in advanc for samples |
5 | Warranty: | 12 months |
6 | Package: | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
All our products are standard packed, you can contact us sales for detailed information.
We can ship the products by DHL, UPS, FedEx,EMS Express.
