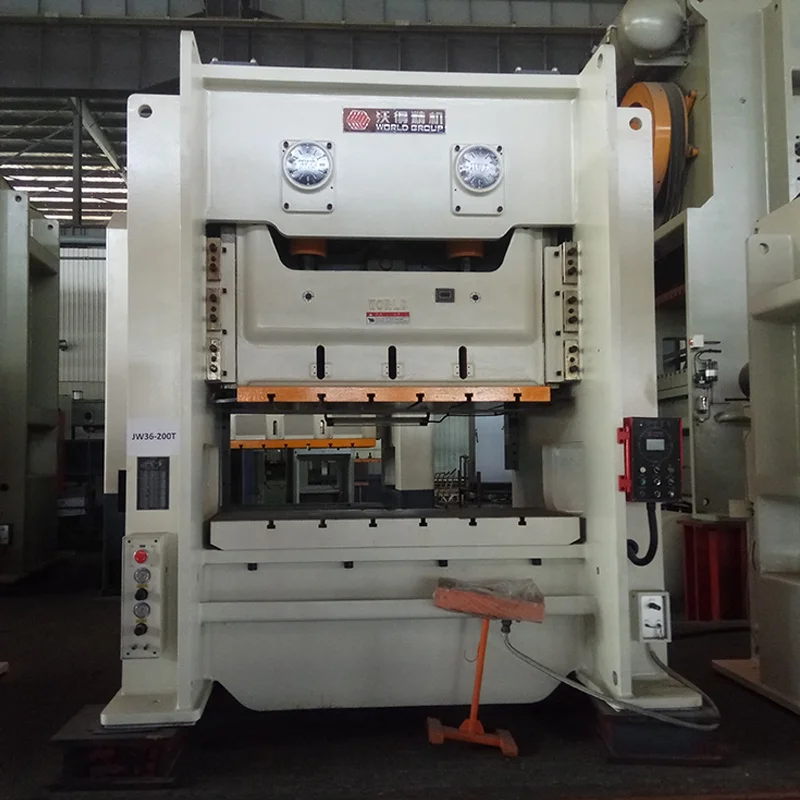

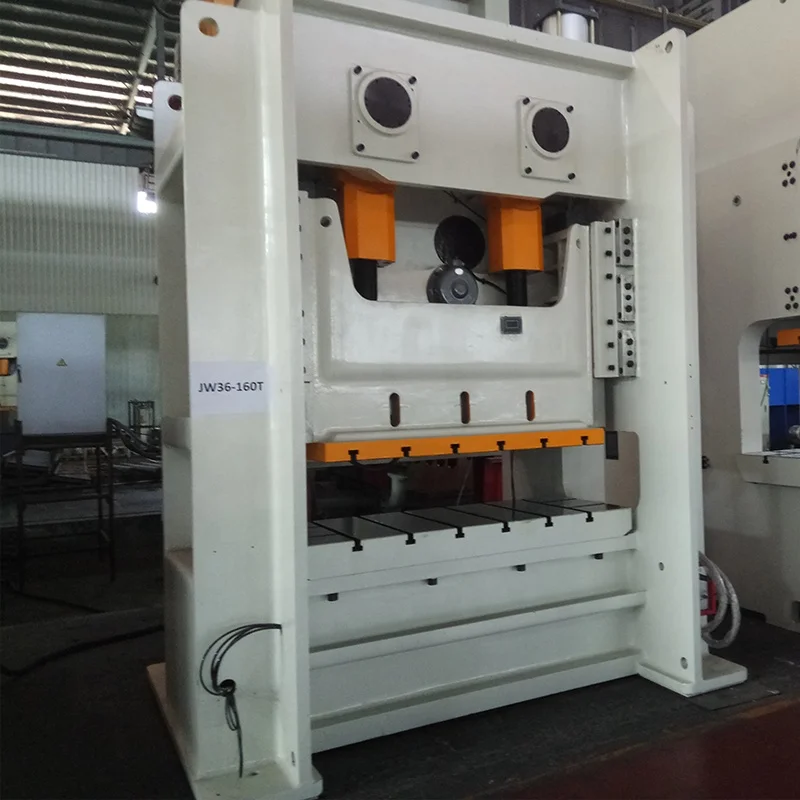

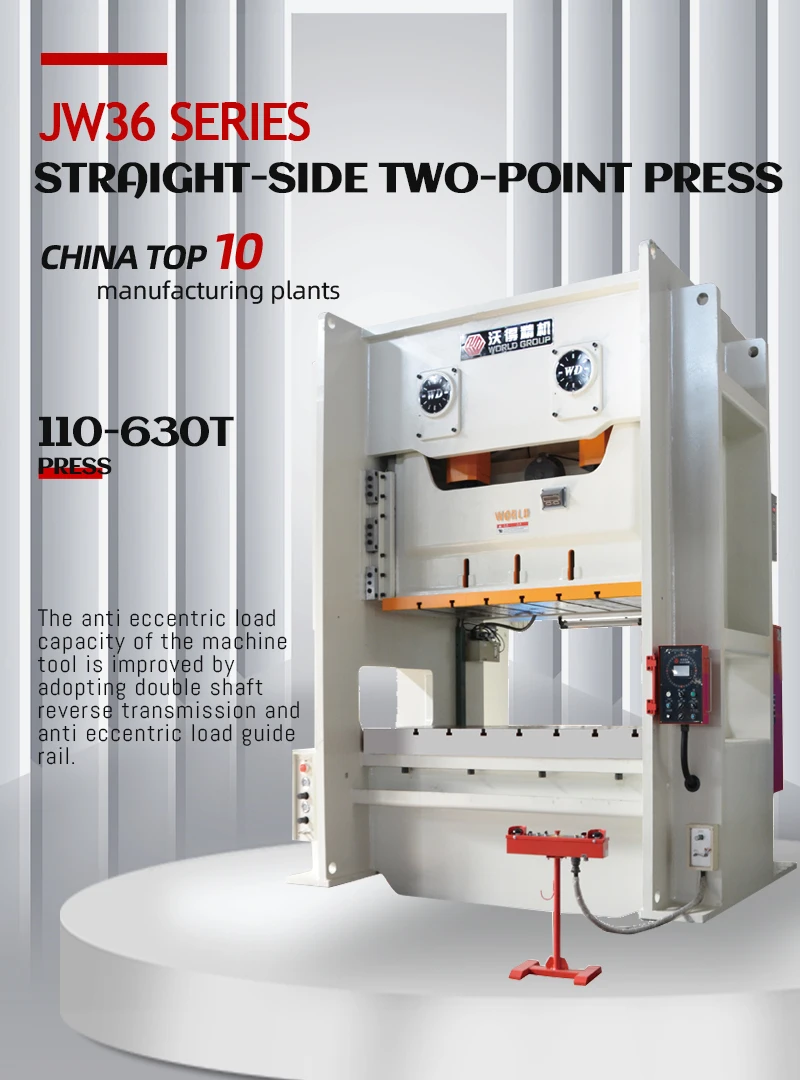

JW36 400T 2023 NEW Double Crank Press Precision 400 Ton Stamping Press Heavy press punching Machine
- Category: >>>
- Supplier: Wuxi Mingxu Machinery Equipment Co. Ltd.
Share on (1600656748436):
Product Overview
Description
Products Description
Above prices are in advance, the specific price please ask customer service
Professional stamping equipment manufacturing has reached 68 years
Product Paramenters
SpecidicatIons | Unit | JW36-400T |
Nominal | kN | 4000 |
Nominal Stroke | mm | 8 |
Slide Stroke | mm | 300 |
Slide Stroke Per Mintue(Fixed) | min-1 | 20 |
Slide Stroke Per Mintue(Variable) | min-1 | 15-25 |
Max Die Set Height | mm | 600 |
Die Height Adjustment | mm | 130 |
Column Distance | mm | 2810 |
Slide bottom Size | mm | 2400*1000 |
Shank Hole Size | mm | 3-70*100 |
Bolster Size | mm | 2700*1100 |
Bolster Thickness | mm | 200 |
Bolster Surface Height | mm | 1340 |
Dimensions Of Side Hole | mm | 1000*550 |
Motor Power | kW | 45 |
Overall Dimensions | mm | 3150*4000*5500 |
Weight(Approximate) | kg | 54000 |
Press Pressure | Map | 0.55 |
SpecidicatIons | Unit | |||
Nominal | kN | 3150 | 5000 | 6300 |
Nominal Stroke | mm | 7 | 8 | 8 |
Slide Stroke | mm | 280 | 300 | 300 |
Slide Stroke Per Mintue(Fixed) | min-1 | 30 | 20 | 20 |
Slide Stroke Per Mintue(Variable) | min-1 | 20-35 | 15-25 | 15-25 |
Max Die Set Height | mm | 550 | 650 | 650 |
Die Height Adjustment | mm | 120 | 130 | 130 |
Column Distance | mm | 2570 | 3200 | 3300 |
Slide bottom Size | mm | 2200*900 | 2700*1100 | 2800*1200 |
Shank Hole Size | mm | 3-70*100 | 3-70*105 | 3-70*115 |
Bolster Size | mm | 2500*1000 | 3000*1200 | 3100*1300 |
Bolster Thickness | mm | 190 | 210 | 220 |
Bolster Surface Height | mm | 1285 | 1340 | 1480 |
Dimensions Of Side Hole | mm | 950*460 | 1100*600 | 1200*650 |
Motor Power | kW | 37 | 55 | 75 |
Overall Dimensions | mm | 3000*3450*4900 | 3400*4200*6000 | 3900*4300*6100 |
Weight(Approximate) | kg | 41500 | 75500 | 103000 |
Press Pressure | Map | 0.55 | 0.55 | 0.55 |
