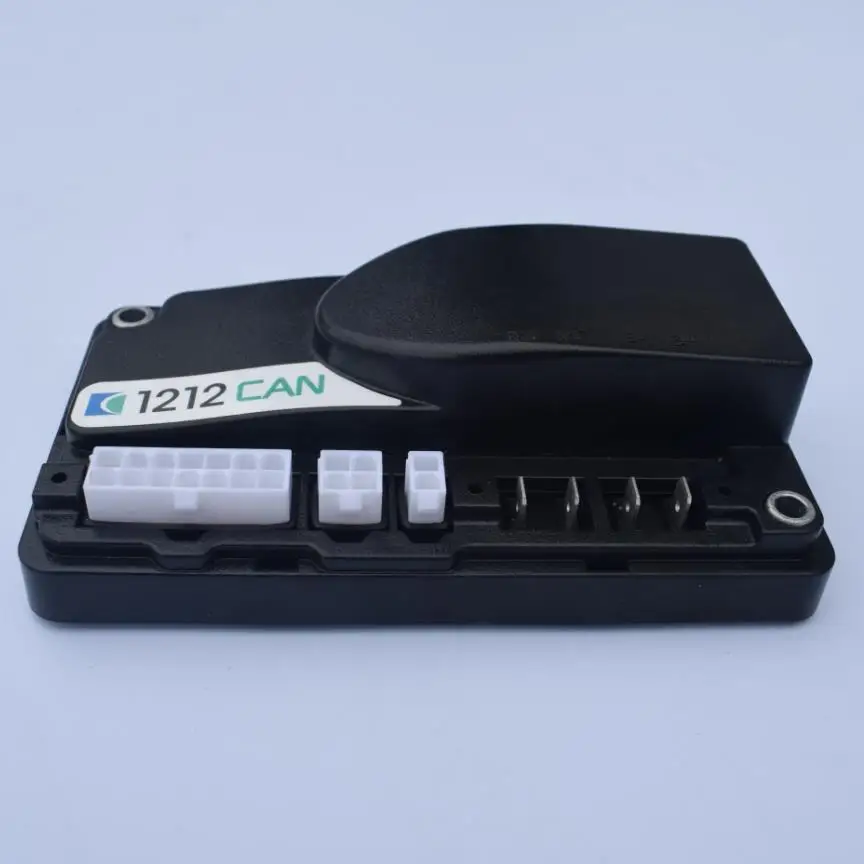

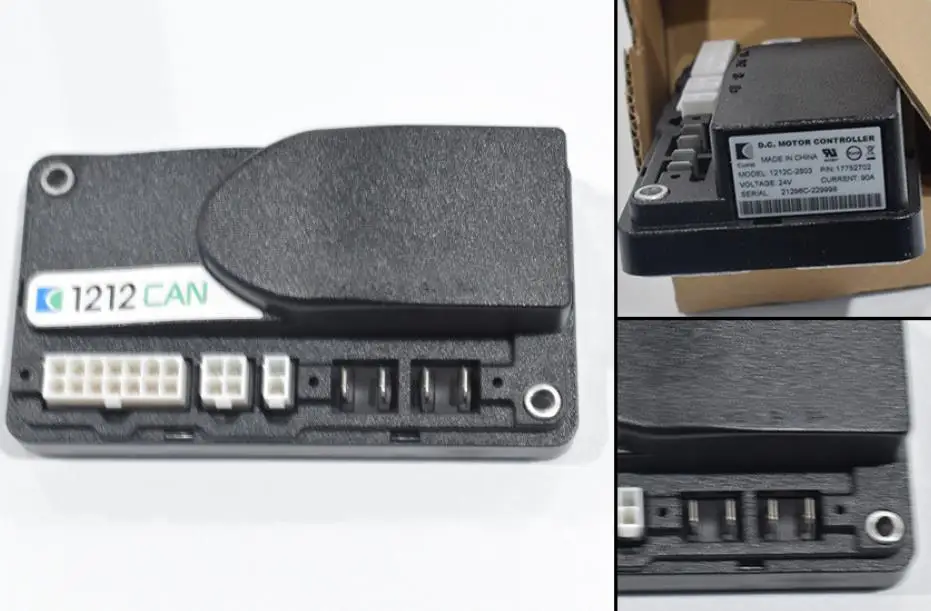

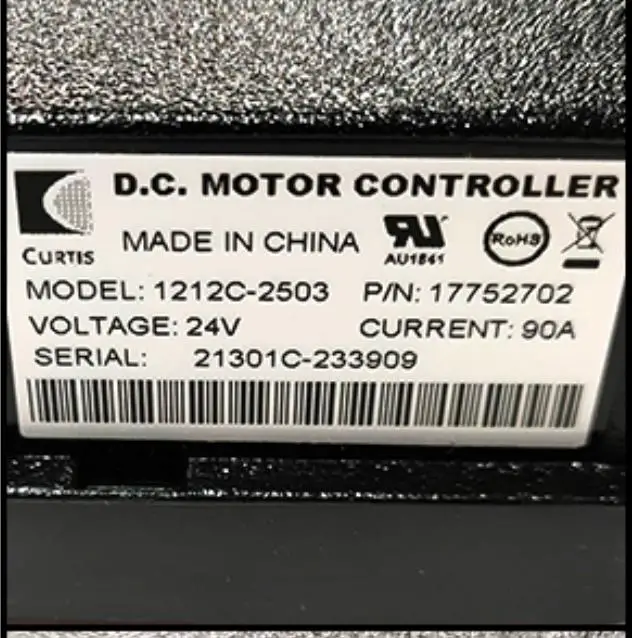

Original 24v 90A 1212C 2503 Curtis motor controller with CAN function

24v 90A 1212c-2503 Curtis motor controller for heli/liftstar CBD15-170H pallet truck

The Curtis Model 1212S, 1212P and 1212C Motor Speed Controllers provide efficient, optimal control of
permanent magnet drive motors for battery powered industrial vehicles. Optimized for use on lightduty
Class III pallet trucks, sweeper scrubber floorcare machines and other similar electric industrial vehicles.
Highly flexible programmability allows them to be applied on any low power PM motor application. Easy Installation and Set-up
Easily programmed with Model 1313 handheld or 1314 PC
programming station, or can be supplied pre-programmed.
Compatible with industrial tiller handle wig-wag throttles such as the
Curtis Model ET-19XX (1212P) or ET-1XXCAN (1212C only).
Simplified troubleshooting and diagnostics.
Industry standard Molex Mini-fit Jr. logic connectors with convenient
1/4” 6.35mm faston push-fit connectors (1212P,1212C) or heavier duty
M4 threaded busbars (1212S) for battery and motor wiring.
Compatible with the Curtis 3140 display.
Smooth and Secure Control
Advanced speed regulation maintains precise speed over varied
terrain, obstacles, curbs and ramps.
Linear cutback of current ensures smooth control, with no sudden loss
of power during under-voltage or over-temperature.
Proprietary algorithms help prevent gearbox wear while providing
smooth starts and reversals.
The vehicle is brought to a complete halt before the electromagnetic
brake is applied, ensuring safe and secure stopping under all conditions.
Charger inhibit input prevents driving while charger is connected.
Emergency Stop Decel function ensures a smooth “brake to stop”
when the key is turned off or a fault occurs that requires the vehicle
to stop.
Emergency reverse with belly button switch input.
Anti-roll back/roll-forward function provides smooth and safe vehicle
control on hills and ramps.
Internal main relay provides secure power-off.
Temporary “Boost Current” feature provides greatly improved
performance with transient loads such as starting on a hill, crossing
thresholds, climbing obstacles, etc.

Hefei Huanke Electric Vehicle Parts Co., Ltd., are a professional supplier of forklift spare parts in China.

Our company specializes in various kinds of electric pallet truck parts and forklift parts for both domestic

and international markets.

Now, our company is the Curtis agent and distributor of Britain Albright Contactor. In addition, we have established strategic cooperation relations with France REALS Company and Belgium TVH Company

which are the professional suppliers of forklift parts in the world.

Our product category covers forklift control system, running system, drive system, hydraulic system, etc. Controllers, contactors, sensors, PU wheels and other parts are supplied by our Huanke Company. Meanwhile,  we have set up purchase and development department to supply different brands of

superior pallet truck parts and forklift parts, such as, TCM, , NICHIYU, , MITSUBISHI,

LINDE, HYSTER, DAEWOO, TAILIFT, HELI, , JAC, BAOLI etc.

 Package:Normally we use the standard exporting packaging , we also can according to clients' request .

Shipping:For sample or samll quantity,the item will be sent in 48 hours after the payment confirmed,

through an expedited service (Fedex, DHL, TNT, UPS or EMS),tracking number will be available in 2- 5 working days

For large quantity,the goods will be send in 10-25 days by sea or air

 We will reply your enquiry within 24 hours.pls feel free to contact us at anytime

We supply the most competitive price with guaranteed quality

We have large stock and can send the goods asap,Sample order and OEM is acceptable

We supply the most comprehensive range of forklift parts

We have Perfect after-sale service ,If you have any feedback about the goods, pls contact with us in time, we will offer the solution for you
