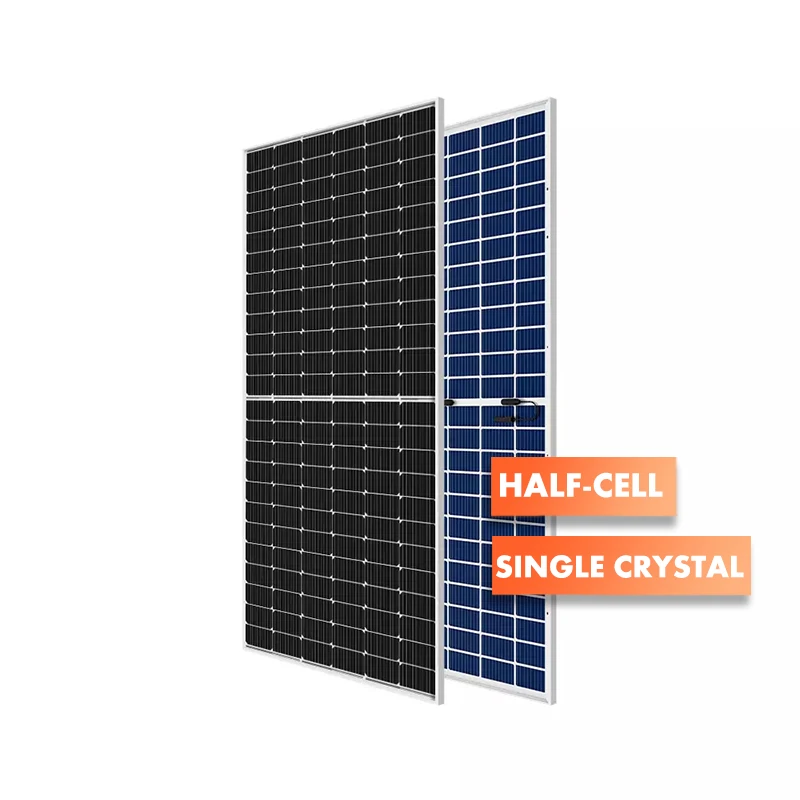

475w 480w 485w 490w 495w 500w 505w gallium arsenide solar cell photovoltaic cell solar flexible solar cell
- Category: >>>
- Supplier: Anhui Garridon Trade Co. Ltd.Anhui Ltd.
Share on (1600656809935):
Product Overview
Description
Product Paramenters
Quick Details
Place of Origin: Anhui,China
Model Number: JC(475-505)-132M-B
Model Number: JC(475-505)-132M-B
Panel Efficiency: 21.30%
Solar Cells: Monocrystalline
Weight: 26.5kg
Junction Box: IP68,3 Bypass Diodes
No.of Cells： 132(6×22）
Operating Temperature： -40~+85℃
Maximum series fuse rating: 25A
Brand Name: Garridon

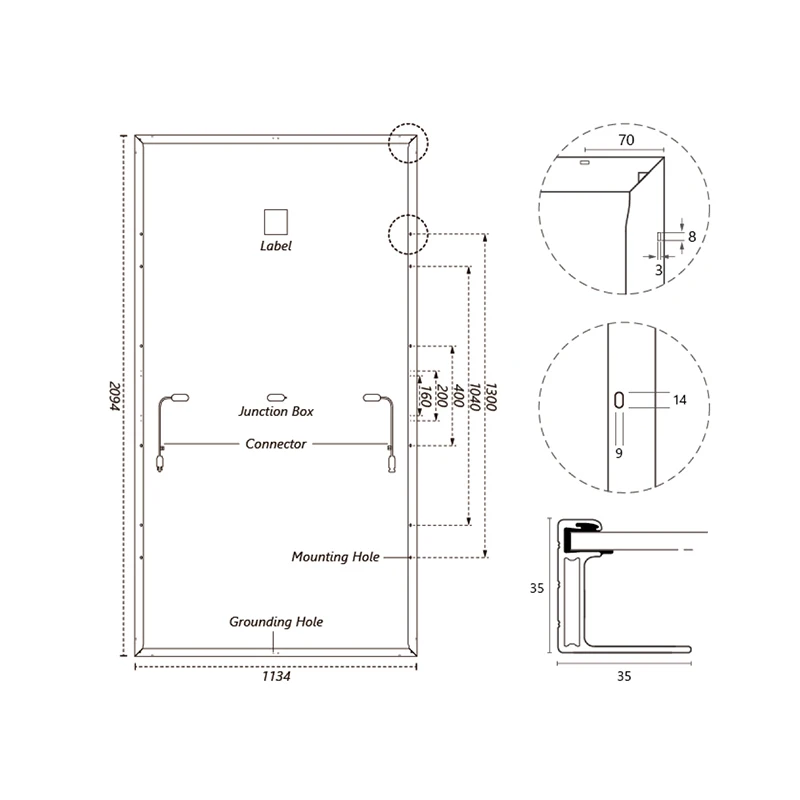

Cell size: 182*91mmPanel Dimensions: 2094*1134*35mm
Glass: 3.2mm High Transmission,
Antireflecting Coating
Antireflecting Coating
Cables: 4.0mm²
Packing： 31pcs/pallet，682pcs/40HQ
Warranty: 12
Application level： Class A
ELECTRICAL CHARACTERISTICS(STC).

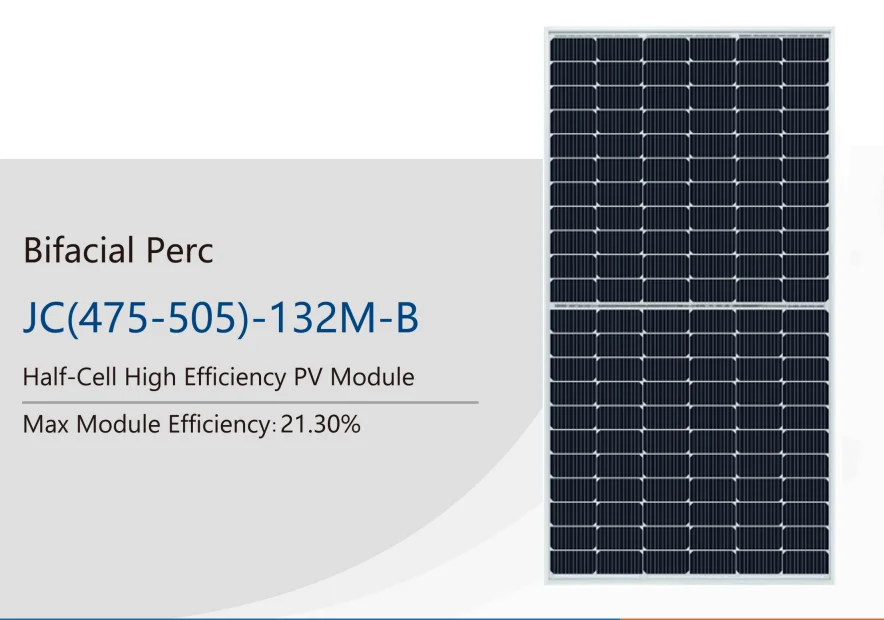

Module | Bifacial Perc JC(475-505)-132M-B | ||||||||||||
Peak Power Watts(Pmax/W) | 475W | 480W | 485W | 490W | 495W | 500W | 505W | ||||||
Open-circuit Voltage (Voc) | 44.80V | 44.95V | 45.10V | 45.25V | 45.40V | 45.55V | 45.70V | ||||||
Maximum Power Voltage (Vmp) | 37.66V | 37.80V | 37.93V | 38.08V | 38.22V | 38.38V | 38.53V | ||||||
Short-circuit Current (lsc) | 13.51A | 13.59A | 13.67A | 13.75A | 13.83A | 13.92A | 13.99A | ||||||
Maximum Power Current (lmp) | 12.63A | 12.71A | 12.79A | 12.87A | 12.95A | 13.05A | 13.12A | ||||||
Moudle Efficiency (%) | 20.10% | 20.30% | 20.50% | 20.70% | 20.90% | 21.10% | 21.30% | ||||||
Power Tolerance | 0~﹢5W | ||||||||||||
ELECTRICAL CHARACTERISTICS(NOCT)
Module | Bifacial Perc JC(475-505)-132M-B | ||||||||||||
Maximum Power(Pmax) | 348W | 352W | 356W | 360W | 364W | 368W | 372W | ||||||
Open-circuit Voltage (Voc) | 41.44V | 41.58V | 38.72V | 41.86V | 42.00V | 42.13V | 42.17V | ||||||
Open-circuit Voltage (Voc) | 34.50V | 34.65V | 32.80V | 34.95V | 35.15V | 33.32V | 35.37V | ||||||
Short-circuit Current (lsc) | 10.90A | 10.96A | 11.02A | 11.08A | 11.15A | 11.21A | 11.28A | ||||||
Maximum Power Current (lmp) | 10.11A | 10.17A | 10.23A | 10.30A | 10.36A | 10.42A | 10.49A | ||||||
