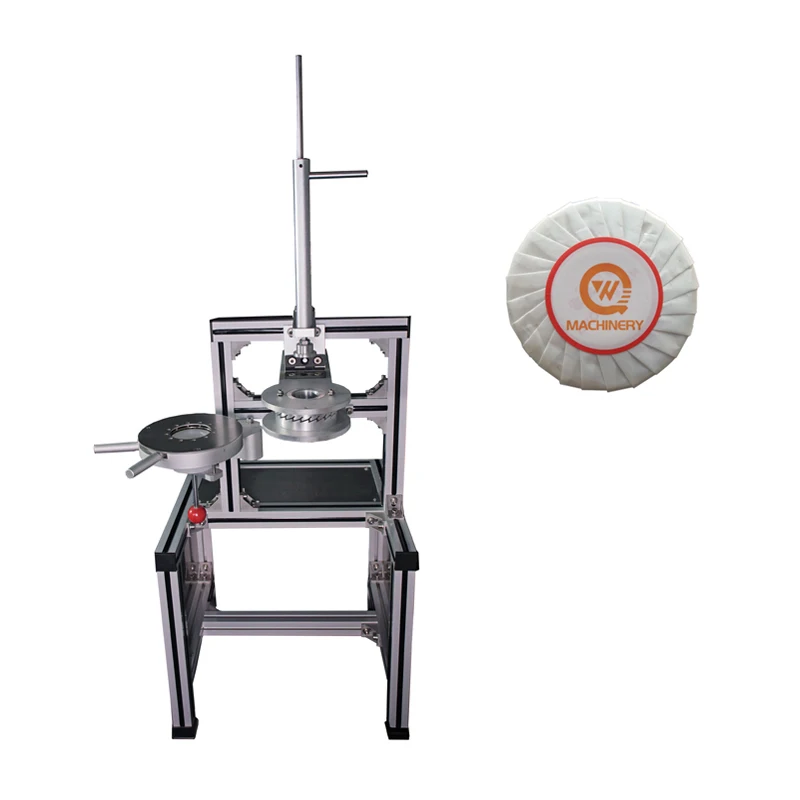

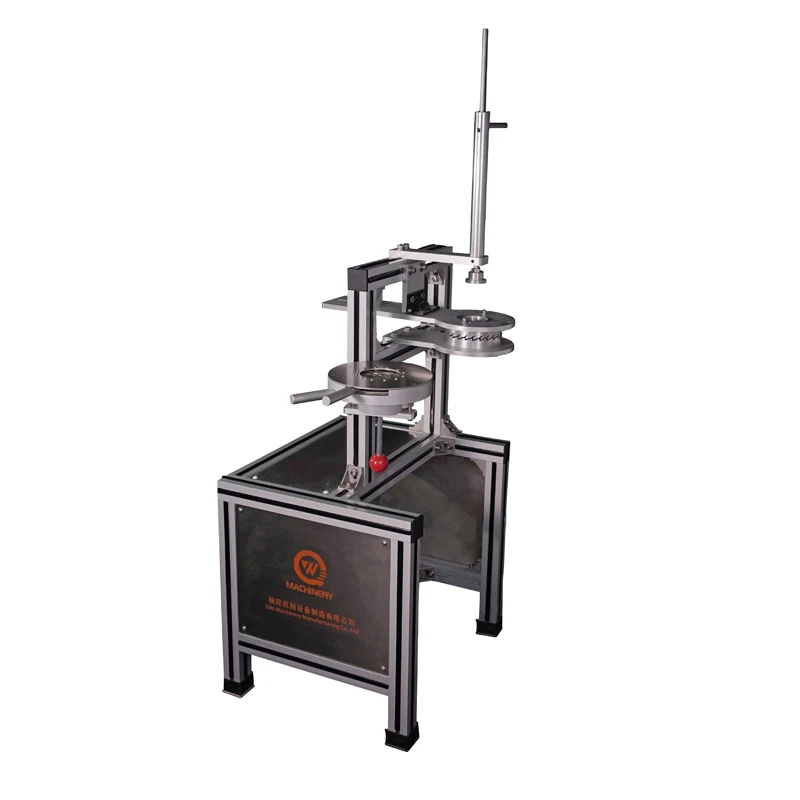

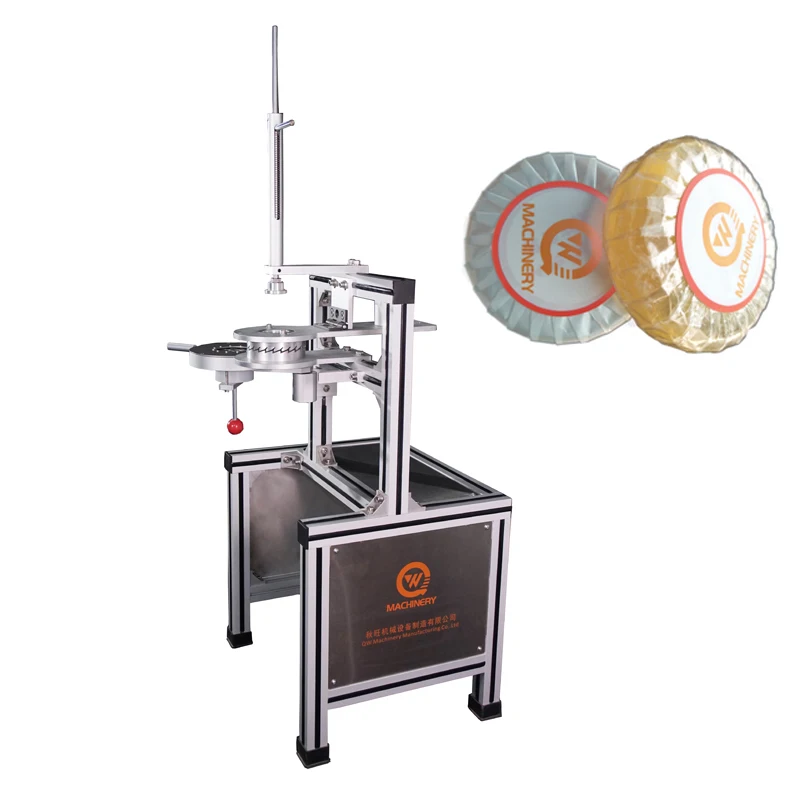

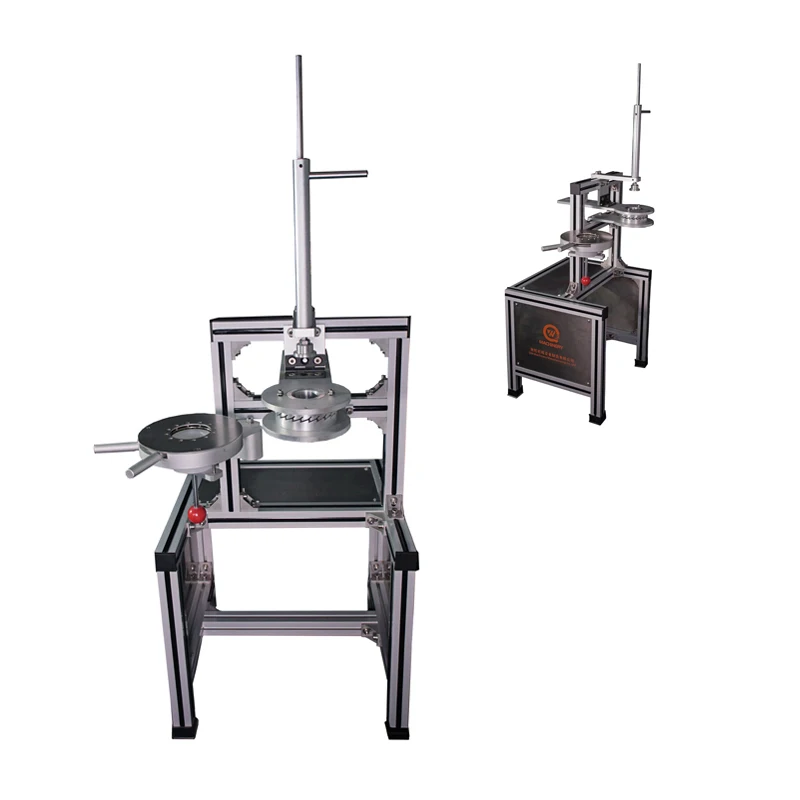

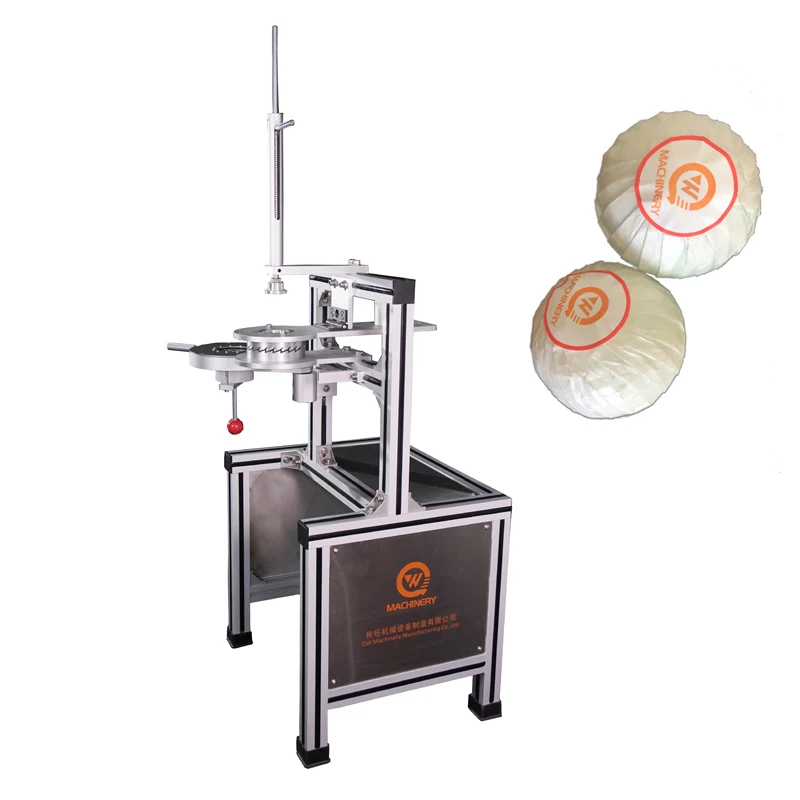

Manual Bar Soap Paper Wrapping Machine

Product Overview

Description

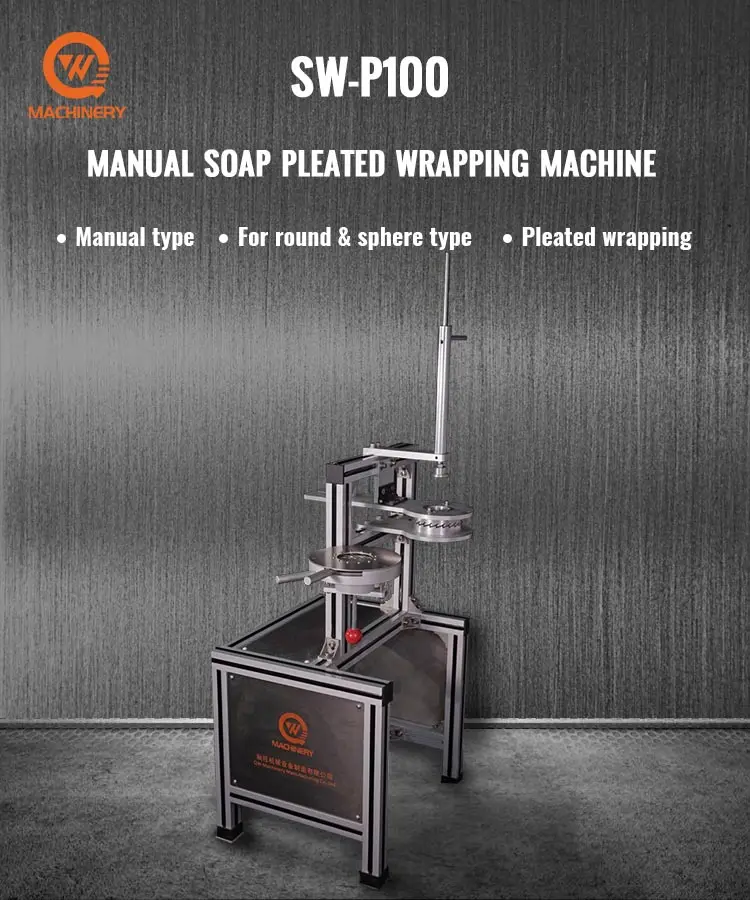

SW-P100 Manual wrapping machine for round & sphere soap pleated wrapping. Each different diameter will need one mold. Machine standard can wrap the diameter from 40mm-55mm. We also can customer built to meet special requirements. SW-P100 equipped with one free mold.





Name	Manual Soap Pleated Wrapping Machine
Model	SW-P100
Standard Packing Dimension	Dia:40mm-55mm  Height:10mm-35mm                Note:Different soap dia. need different mould.                 SW-P100 equipped with one free mould
Packing Speed	15-25pcs per minute
Applicable Packing Film	Pearl film ;PE coated paper; BOPP
Packing film thickness	0.022-0.03mm
Machine Net Dimension	L500*W550*H1340mm
Machine Package Dimension	L550*W600*H1340mm
Machine Net Weight	25kg
Machine Gross Weight	35kg

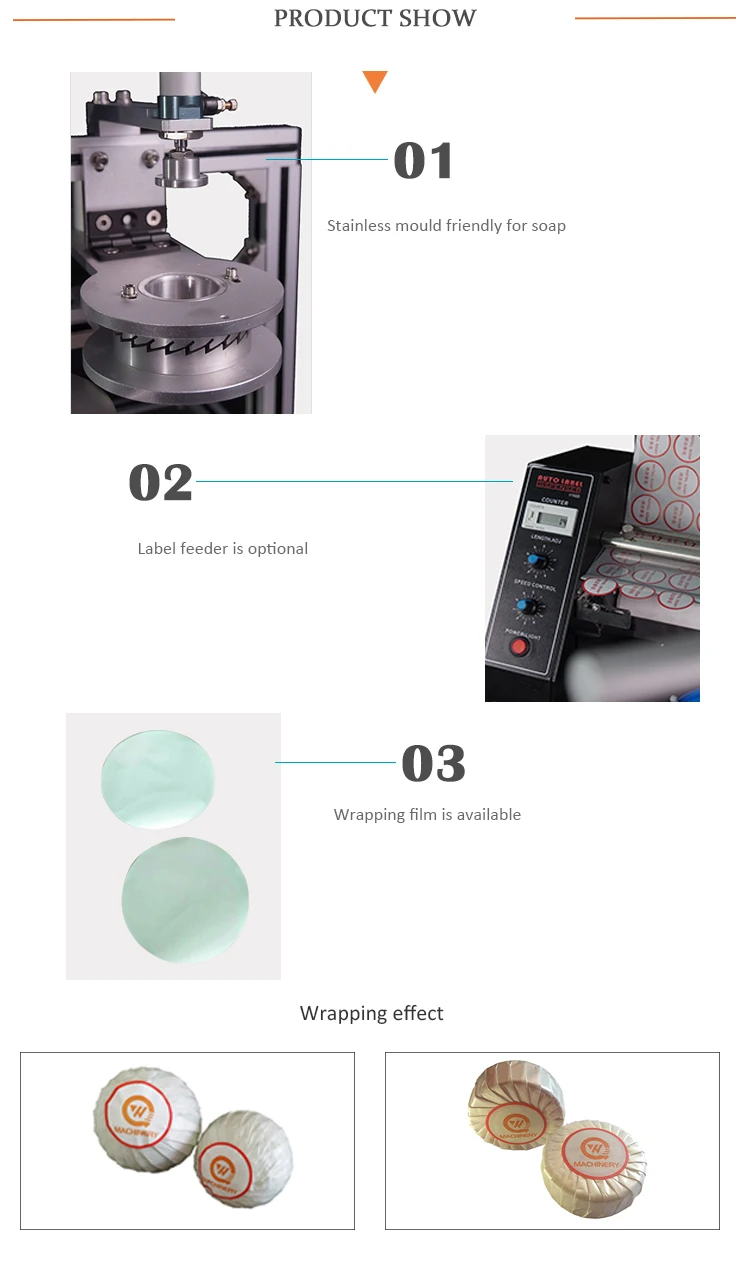

OPTION	Labelling Function(Label paper roll Inner Dia.75cm)



1. Did not find the machine exactly meet our requirements.
All our machine can be custom-built to meet your special needs.
2. We are not sure what design can fit us best.
Our engineers can be your factory to work out the suitable design. We offer on-site service in your factory. Ourservice is from design to installation.
3. Do you offer training service?
Yes. We will instruct your engineers and operator before delivery in our factory, or train them after installation in your factory. Training is free of charges.
4. Warranty terms.
A comprehensive 12 months structural and components warranty is offered. Cost price Spare parts are available within 15 years.
5. After-sale service.
Contact and telephone number is provided by us for 24 hours/7days a week support. We will respond the help within 24 hours. Our engineers are available to service overseas if necessary.
