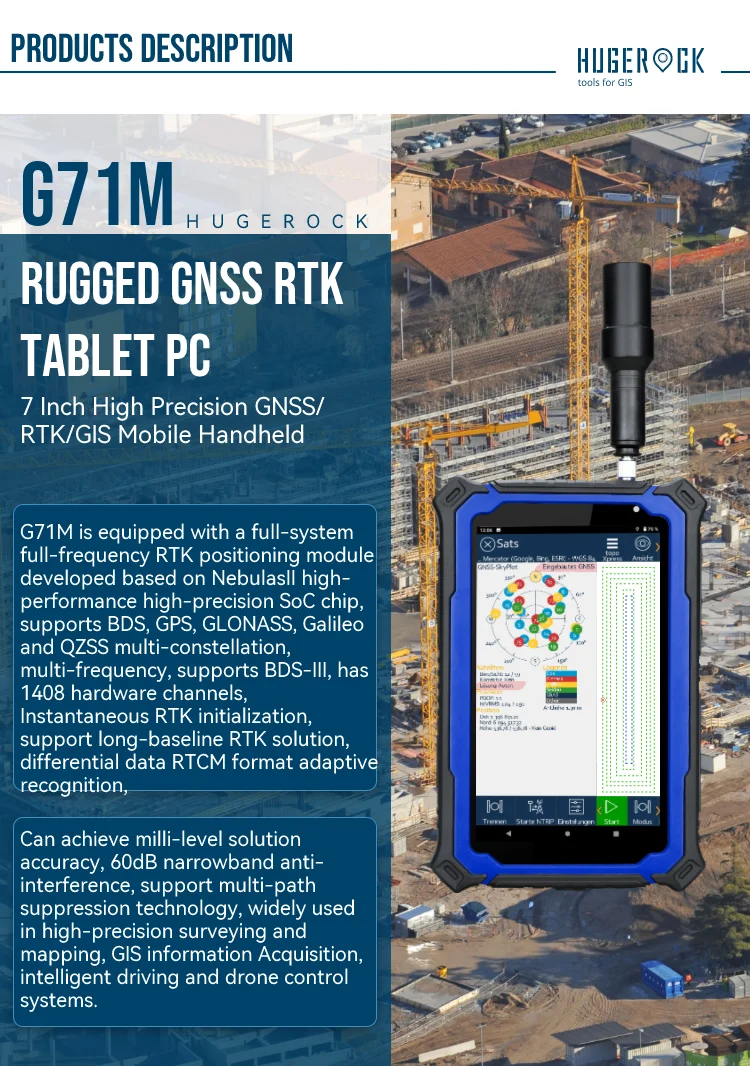

HUGEROCK G71M Gnss Surveying Equipment Test Instruments Positioning Navigation Rtk Gps Forland Surveying Mapping Rugged Tablet
- Category: >>>
- Supplier: Shenzhen Soten Technology Company Limited
Share on (1600656935904):
Product Overview
Description

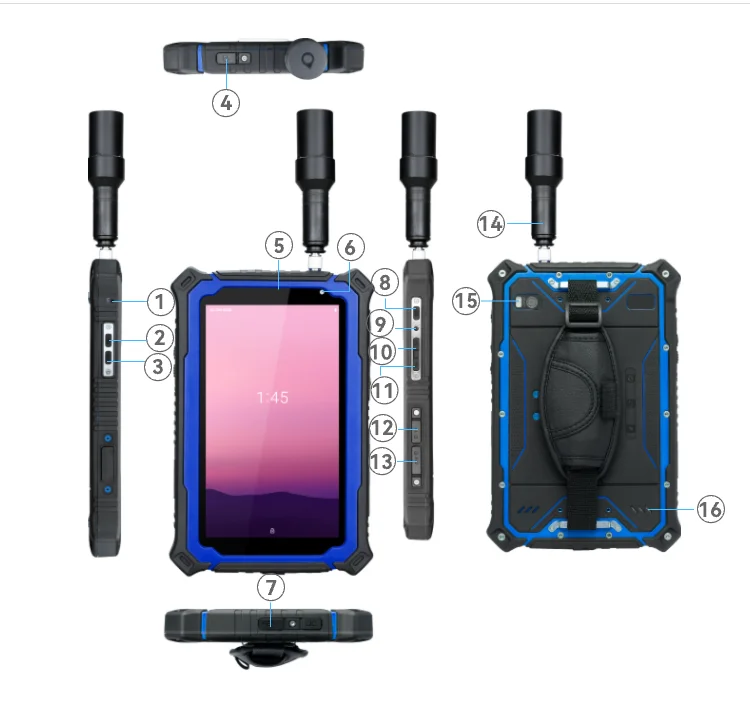

1. MIC | 2. Camera Button | 3. SOS Button | 4. Handset Jack (Sealed Cover) | 5. Light sensor |
6. Sub Camera | 7. Type-C (Sealed Cover) | 8. Power Button | 9. Reset Button | 10. Volume Up |
11. Volume Down | 12. TF-card (Sealed Cover) | 13. SIM-card (Sealed Cover) | 14. Antenna | 15. Main Camera |
16. Speaker |
Hardware | ||||||||
CPU | ARM Cortex A73 Octa-core(2.0GHz) | |||||||
GPU | ARM Mali-G72 MP3 | |||||||
RAM | 8G | |||||||
Internal Memory | 128G | |||||||
External Memory | Micro SD card ( T-FLASH card), max 256GB | |||||||
Main Camera | 13.0MP(AF) with flash led | |||||||
Sub Camera | 5.0MP | |||||||
Battery | 10000mAh | |||||||

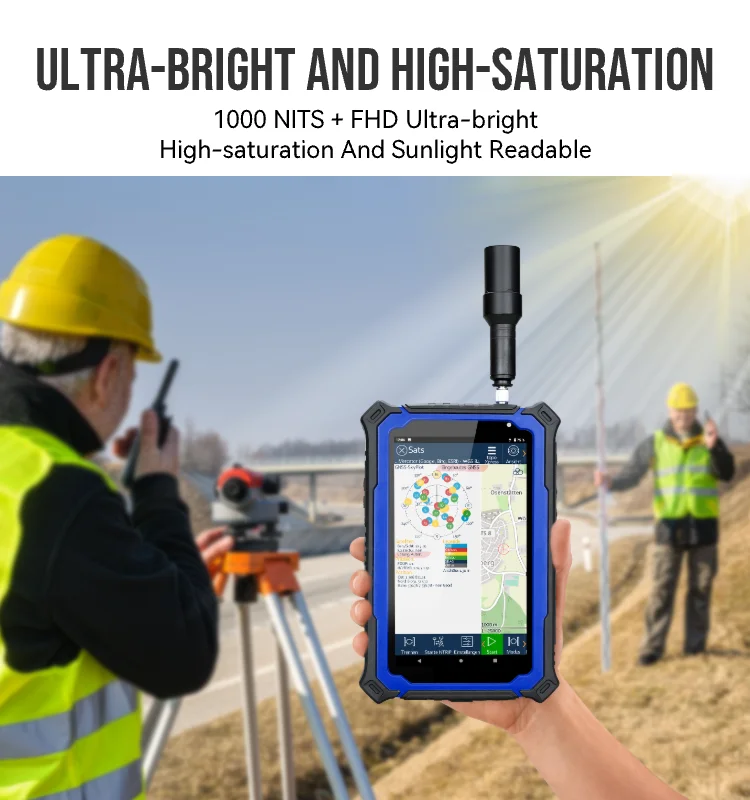

Display | 7 inch IPS/AFFS 1200*1920 FHD industrial 1000nit Sunlight Readable | |||||||
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen | |||||||
IO/Sensor/Navigation | ||||||||
SIM Card | 1.8/3.3V SIM card | |||||||
TF Card | Micro SD card (T-FLASH card); max 256GB | |||||||
Headphone | 3.5mm (CTIA） | |||||||
Charging interface | Type-C*1 | |||||||
Data interface | USB Type-C(OTG)*1 | |||||||
Direction Sensor | support | |||||||
Gravity sensor | support | |||||||
Magnetic Field Sensor | support | |||||||
Motion sensor | support | |||||||
Rotation Vector | support | |||||||
Light-sensor | support | |||||||
Acceleration sensor | support | |||||||
Charger | 5.0V 2A-10W | |||||||

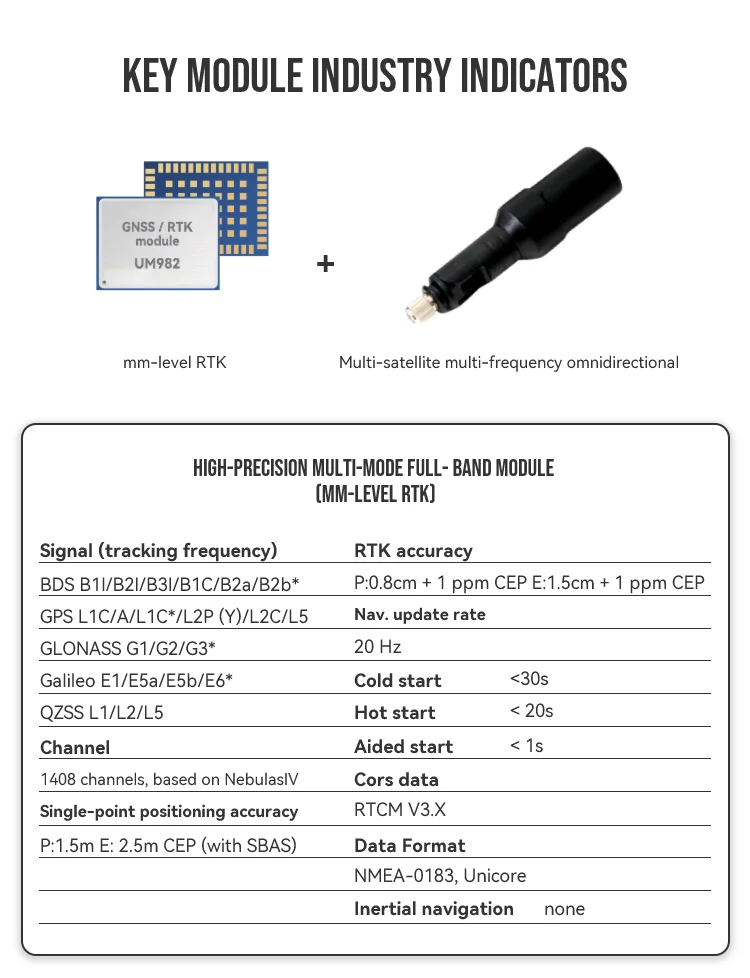

Navigation | GPS+Beidou+Glonass+AGPS+SBAS(EPO 2.5m) | |||||||
Appearance | ||||||||

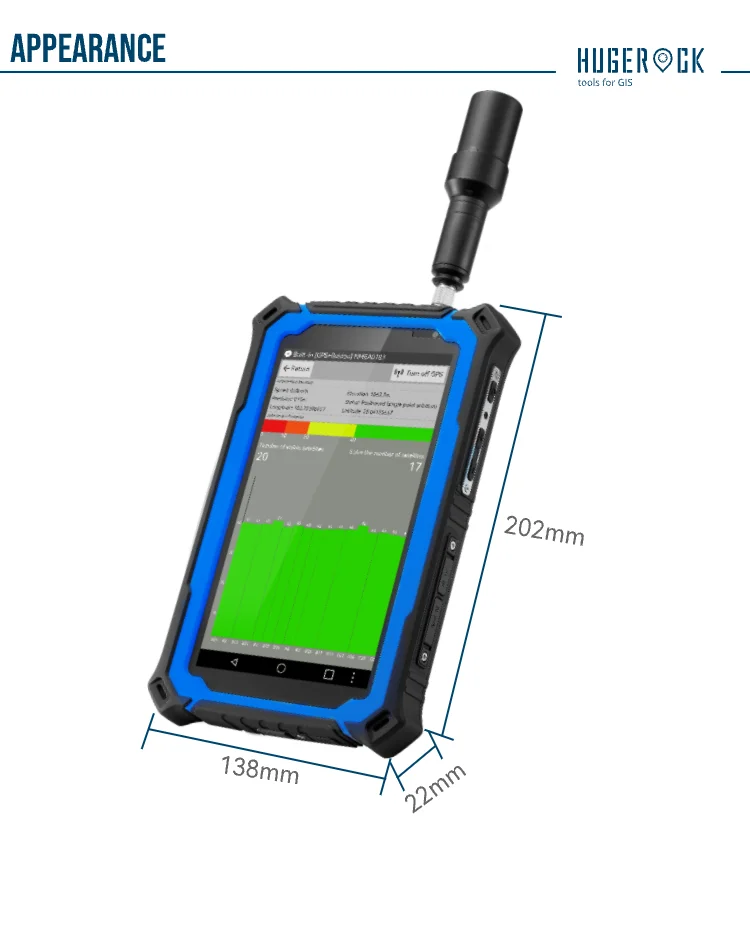

Size | 202*138*22mm(L×W×H) | |||||||
Weight | 700g | |||||||
Color & Material | GPS+Beidou+Glonass+AGPS+SBAS(EPO 2.5m) | |||||||
Communications & Networking | ||||||||
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE | |||||||
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |||||||
2G Band | GSM（B2/3/5/8） | |||||||
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO | |||||||
3G Band | WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1 | |||||||
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink | |||||||
4G Band | TD-LTE（B38/39/40/41）；FDD LTE（B1/2/3/4/5/7/8/12/17/20/28） | |||||||
WI-FI | Dual-bandWIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |||||||
Bt | 5.0 Low Energy (LE) | |||||||
Industrial & Reliability Design | ||||||||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |||||||
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |||||||

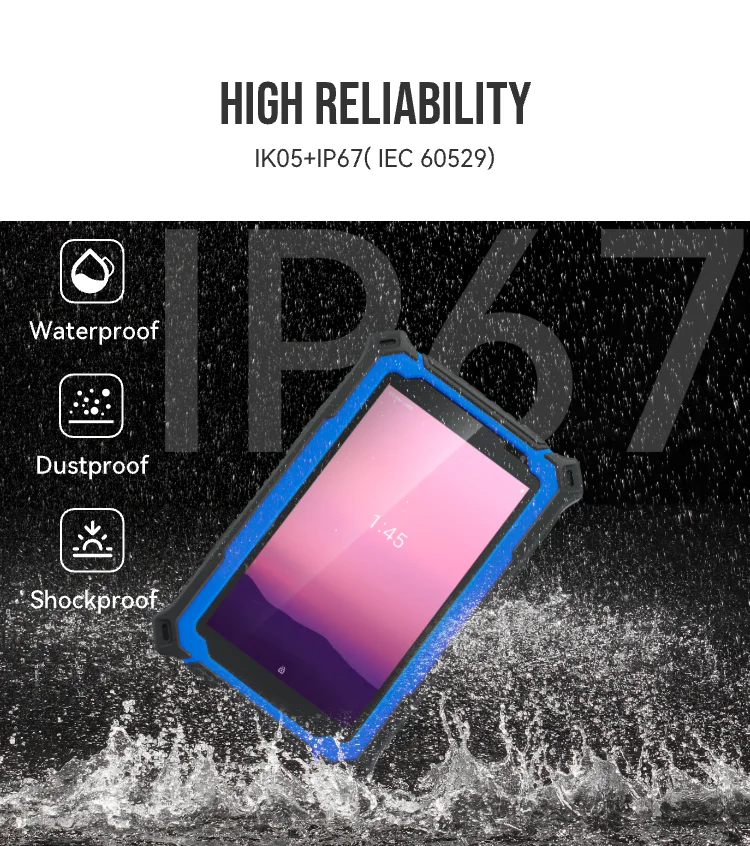

Waterproof | Class 7 (IEC 60529) | |||||||
Dustproof | Class 6 (IEC 60529) | |||||||
Reliability | MTBF>5000h；MTTR<0.5h | |||||||
Operating temperature | -20°C to 55°C | |||||||
Storage Temperature | -40°C to 80°C | |||||||
RH | 5% to 95% | |||||||
Operating Altitude | Max: 4,500 m（15,000 feet） | |||||||
Certification/OS/Software | ||||||||
Certification | MA/3C /FCC/CE/ROHS/ATEX/IP67(IEC 60529) | |||||||
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian,Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc | |||||||
OS | Android 11 | |||||||
Package/Warranty terms | ||||||||
Warranty | 24 months | |||||||

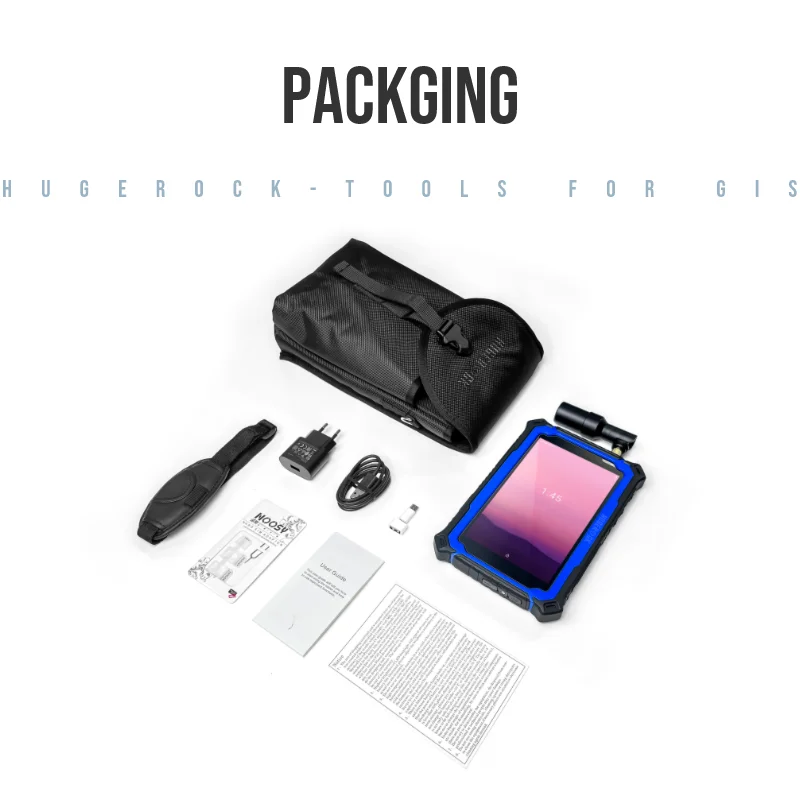

Package | USB cable / Charger 5V 2A / Introduction manual / Screen protector / Aircraft box / Toolkit / SIM Card Ejector x 1 | |||||||
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF)1 Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences
