Product Overview

Description





 Grease Distributor For Oil Injector Block Grease Dispenser Manifold ForProgressive Lubrication System
Dear Customer :
Bulk order give you best price !! Inquire me !
Thank you visiting our website.
We try to provide the best service and the perfect products to all customers. We have been making for lubrication products over 10 years.we have our own factory ,can customized item you need (we supply OEM service ) .our main products are automatic lubrication pump, electric lubrication pump, pneumatic lubrication pump, manual lubrication pump, grease pump,progressive distributor, quantitative distributor, pipe connector, metering unit and so on .
Welcome to send us inquiry,we will do our best to answer and solve your problems you may meet. You can click the pic to view our new products and exhibition plan. Thank you for your support, enjoy your shopping !
Best Regards ,
Kewell Team

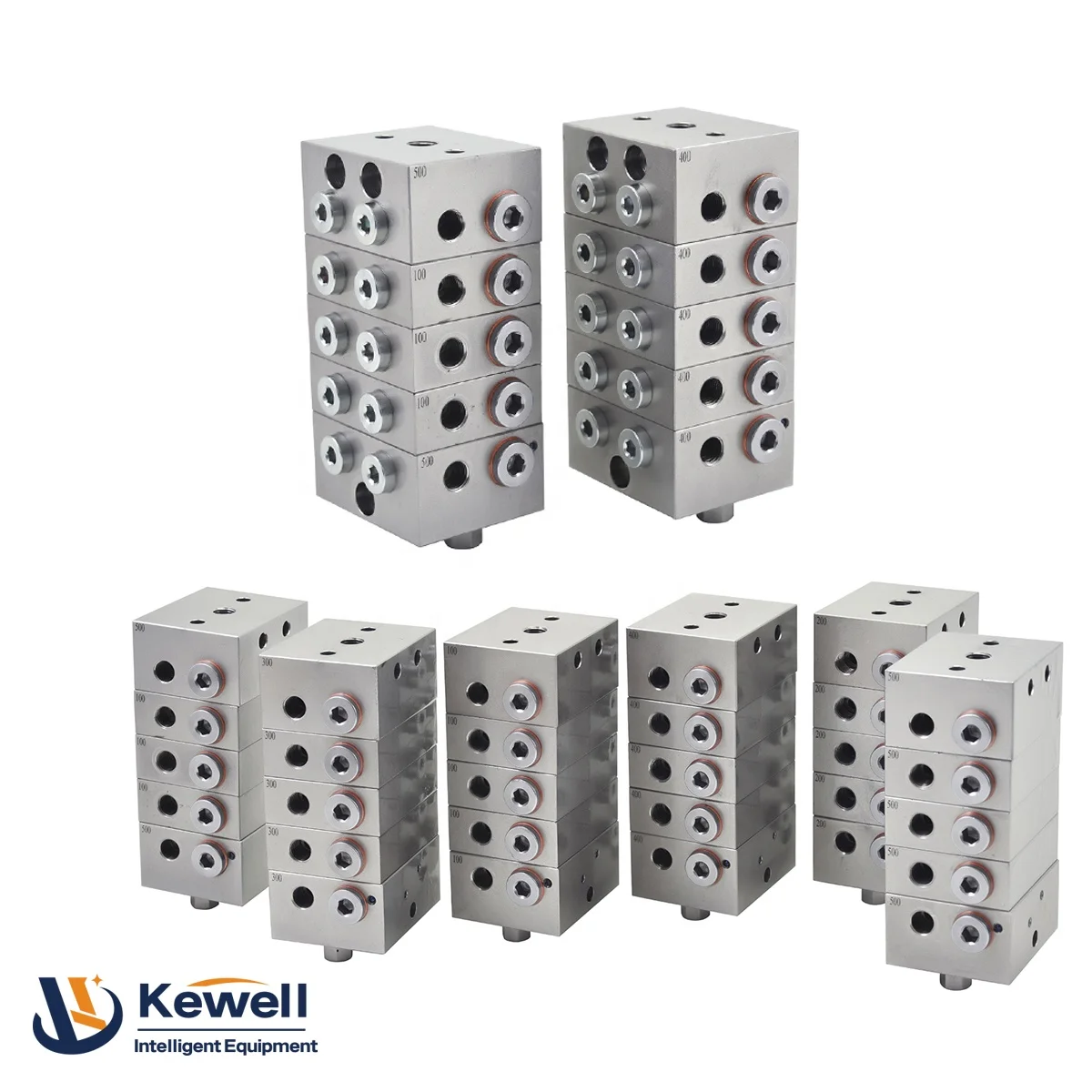

DSC Progressive Divider Valves
DSC is progressive dividers is generally composed of 3-10 working valve pieces, its head and tail valve pieces are working valve pieces. There are 5 displacement specifications for the working valve disc, and different displacement specifications can be. selected for combination. The distributor valve disc has two side outlet structure, which can be changed to one side outlet by merging, and the displacement is superimposed. The distributor valve disc is sealed with O-ring, the whole has good sealing, stable and reliable oil.




DSF Progressive Divider Valves
DSF type progressive distributor is a small displacement plate distributor, which is composed of a first piece installation valve plate and several working valve plates. Generally, a group of DSF type distributors has 3-10 working valve plates, and the valve plates have four displacement specifications. Different displacement specifications can be selected for combination. The working valve plate of the distributor is a structure of oil outlet on both sides, which can be changed into a single oil outlet by merging, and the displacement is superposed. O-ring seal is adopted between the distributor working valve plates, which has good sealing performance and stable and reliable oil delivery.




DSA Progressive Divider Valves
 The DSA type progressive distributor consists of 3-10 working valve plates, with both the head and tail valve plates being working valve plates, and mounting brackets installed on the head and tail valve plates. The DSA type distributor has four displacement specifications, and users can choose different displacement specifications for combination. Each displacement specification is marked according to the actual displacement of the valve disc oil outlet. The distributor valve plates are sealed with O-ring seals, which have good overall sealing performance and stable and reliable oil output.




DDV Double Line Distributor
DDV double line distributor has two oil inlets, which distribute lubricant quantitatively to each lubrication point through
alternate oil supply, and is applicable to double line centralized lubrication system. The distributor is easy to install and
maintain, and has three rated displacement options. The distributor outlet can be equipped with an indicator rod, which can be adjusted to adjust the oil output, and can be used to judge whether the distributor works normally by observing the indicator rod.
Technical parameter
Rated working pressure: 40MPa
Rated displacement: 0. 5ml/cyc, 1. 5ml/cyc, 3. 0ml/cyc
Quantity of oil outlet:1-8
Valve body material: carbon steel/stainless steel
Oil inlet thread specification: G3/8
Oil outlet thread specification: G1/4
Operating ambient temperature: - 20 ° C - 80 ° C
Lubricant range: grease NLGI # 000 - # 3

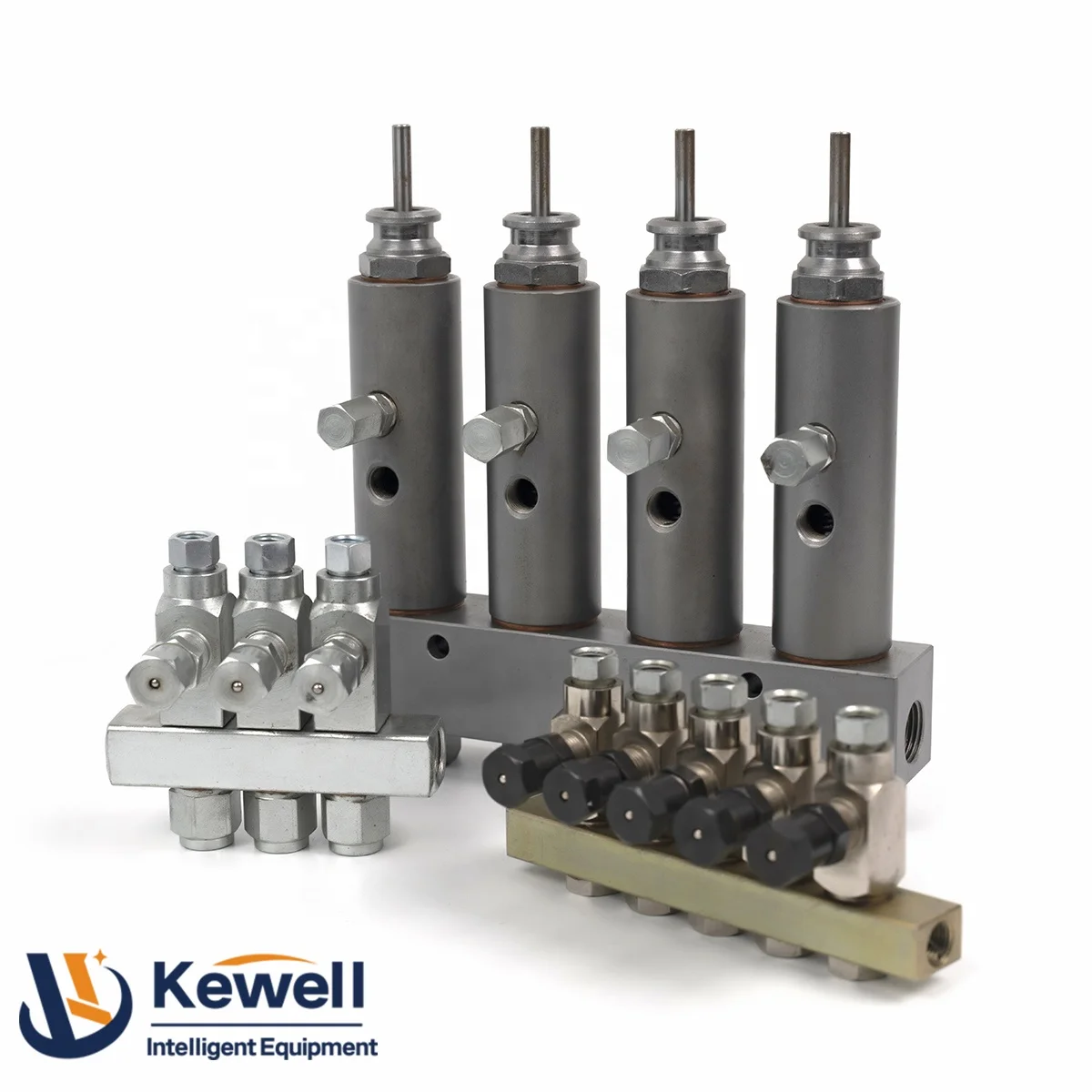

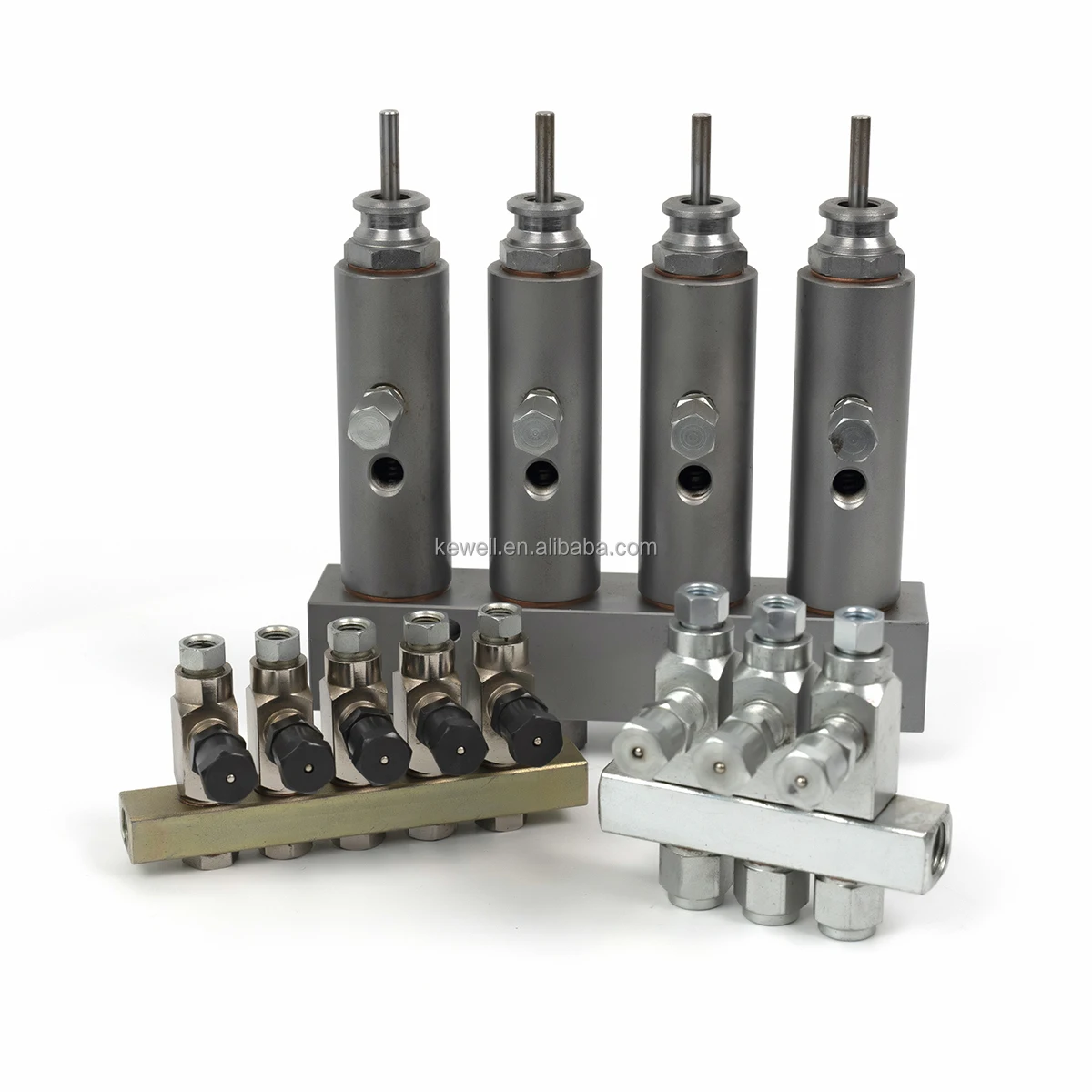

DL Type Oil Injector
DL type oil injector is reasonably designed, and its internal structure is plunger type. It is applicable to thousands of medium and high pressure oil injection conditions. It can accurately lubricate each lubricating point, and the oil output is stable and reliable. The displacement of each stroke is continuously adjustable, and the displacement of each stroke can be adjusted without stopping the system. The lubricating points can be quickly set without redesigning the lubricating system.
The DL type oil injector is a pressurized oil outlet, which stores oil when the system is unloaded.
DL oil injector is sealed with aromatic rubber, which is applicable to thousands of high temperature environments (up to 176 ° C). It is widely used in thousands of working conditions and various mechanical equipment.








DSV Progressive Grease Distributor
The DSV series progressive distributor is designed for small-size progressive lubrication systems. They are a cost efficient solution for supplying multiple lubrication points with relatively small volumes of oil and grease. The  series can be used with machine tools, processing machinery, presses, textile, printing and packaging machinery.
1 Oil Outlet :
Standard Flow : 0.17ml
2 Distribution principle
The plunger sleeve is connected through the oil hole to establish pressure. As long as there is pressure to allow the lubricant to enter the oil mouth, the distributor will run continuously in a progressive manner and fill with a constant displacement.
3 Alarm
Once the supplied pressure lubricant stops, all of the plungers in the dispenser will also stop moving. Therefore, by operating a specific indicator to observe the movement of an oil discharge plunger, the operation of the entire distributor can be monitored.
In the event of a blockage, an alarm can be issued.
4 Oil Outlet
The plunger which closest to the oil inlet ,discharges the lubricant oil first from the farthest oil outlet , and the other
plungers in the valve body discharge the quantitative lubricant through the next oil outlet.






Progressive Divider Valves DMA DMB
The DMA DMB  progressive distributor is made up of a first piece, a tail piece and some working pieces. The oil is supplied to the lubricating points by point by continuous action of the plunger in the work piece. Each work piece has 2 outlets, usually one distributor has 3-10 work pieces.
The  working piece is modular design. The work piece is made up of a base block and a working valve block. It is versatile and easy to remove and maintain. It is suitable for high pressure and wide temperature changing conditions. The oil outlet is stable and reliable. The outlet can be equipped with a circular indicator to monitor the distributor's working state.
Selection rules of DMA DMB  distributor:
1. According to the position of the oil inlet, mark the displacement code of each work piece in sequence according to the order from top to bottom.
2.The work piece specification code T indicates that the working piece is the oil outlet on both sides. S indicates that the working piece is a unilateral outlet, and the suffix plus L and R indicate the direction of the oil outlet.
3.Users need to change the diameter of inlet and outlet tubing, please specify when ordering. See the overall dimension drawing for the threads of each distributor body.
4.the position of the circular indicator should be marked on the corresponding work piece. The suffix plus L and R indicate the direction of the indicator.
5. If you need to merge the distributor outlet, you can install the adapter on the work piece, and use CF to indicate the details.
Under any circumstances, the user shall not block the distributor outlet, so as not to overpressure the distributor !!!!

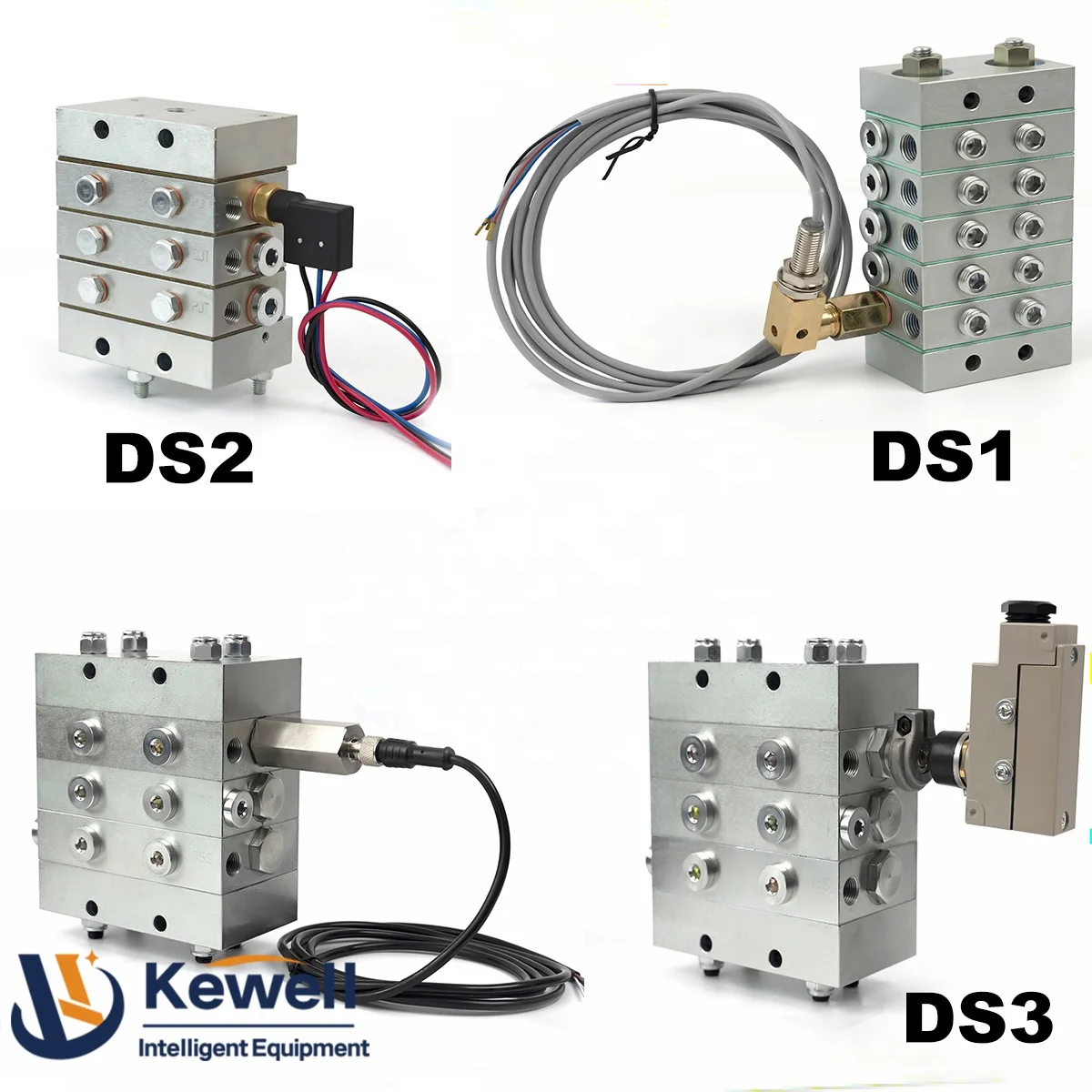

Progressive Divider Valves DS1/DS2/DS3
DS1/DS2/DS3 series progressive grease distributor is an advanced design and reasonable structural oil distributor; Can be used in high pressure and wide temperature change conditions. It can be combined with electric and pneumatic pumps to form a single line lubrication system. It is used as a female distributor for various large machine tools and port of equipment , or for large single-line lubrication systems.
A standard set of dispensers consists of a "first chip"+a piece of "tail chip" + 3-10 piece. It can provides 3-20 lubrication
points for lubrication.
Double outlet working chip, (after size use T to indicate the double outlet), there are two oil outlets, at the two ends of the working chip; Note that for the double outlet working chip, can not Block any oil outlet, which will affect its normal operation and damage the distributor .
Single grease outlet working chip (after the specification value of ,use S to indicate the single grease outlet), there is an oil outlet, which can be any of end of the working piece, and the other end of the outlet oil needs to be blocked.










DU/MDU -Block Distributors
 DU/MDU type progressive distributor is an aluminum alloy integral structure with compact valve body, which is suitable for working conditions of medium and low pressure, and is widely used in forging machine tools, engineering machinery and other industrial equipment. The DU distributor has two types of standard valve bodies. The number of standard outlets is 8 and 12.
The displacement is 0.3ml/cyc. The number of oil outlets can be changed by changing the number of pistons and merging the outlets. The DU distributor can provide 2, 4, 6, 8, 10 and 12 oil outlets. The DU type distributor can be combined with the base distributor to form a MDU type distributor. The base distributor provides two to four oil outlets with a displacement of 1.5ml/cyc.












JIAXING KEWELL INTELLIGENT EQUIPMENT CO.,LTD
We have two factory located in Zhejiang and Jiangsu Province China Which have over 2000 squares for factory land Welcome visit us. We offers every type of lubrication system, ranging from manual models to complex systems, fully automated and centralized that run on oil and grease. Our products are used in all industrial systems, vehicular systems and several other fields such as mining, railway, machine tools, paper industries, wind energy and marine equipment. The lubrication systems at our disposal are distinguished as:
Progressive Lubrication
It is the most reliable and comprehensive system offered by us to measure grease and oil with actual control on operation. The 3 types of progressive metering can be combined with automatic or manual pumps or powered directly from a single point in the system. Suitable for industrial machinery and the vehicle sector.
Volumetric lubrication
Consisting of manual or automatic pumps combined with volumetric metering valves, the volumetric lubrication system can measure oil or grease. Normally installed in industrial machinery, it also allows for lubrication in systems with several points. You can control pump operation and circuit integrity.
Resistive Lubrication
It is the basic system that can dispense only oil and combined with manual or automatic pumps, resistive metering units allow for continuous or intermittent lubrication depending on the metering and type of supply. Particularly suitable for agricultural overhead contact lines and small systems.
Main products : Automatic lubrication pump, electric lubrication pump, pneumatic lubrication pump, manual lubrication pump, grease pump, progressive distributor, quantitative distributor, pipe connector, metering unit, high pressure nylon hose, high pressure pipe etc.
These products are widely used in robot, cutting machine tools, forging machine, plastic machine, CNC machine tools, construction machinery, vehicles, metallurgical machinery, textile machinery, printing machinery, woodworking machinery, chemical machinery, mining machinery and other industrial machinery.
Our customer : We mainly exported to Russia ,Brazil ,Australia, Thailand,South korea and so on.
Our team : If you interesting in our lubrication products , please let us know. We will be pleased to give you a quotation according your detailed specifications in short time . If you have technical help ,Our expert engineering team also will ready to serve you for consultation and feedback . We can provide you professional technical info about products in time.
Products control : Each product is carefully made with strictly controller and testing , it will make you satisfied. We trust that only to provide you the best quality, we will feel confident. High production costs but low prices for our long-term cooperation.
Our attitude : In order to build long-term friendly relationship. We all significantly promise: same excellent, better selling price; exact selling price, better quality.
If you have any question, do not hesitate to contact us.




Factory supply will more easy for you !
☛1. Free samples
We offer free samples for your quality inspection with your courier number for shipping.
☛2. OEM & ODM service
We are a professional OEM manufacturer, welcome to send us designs for sampling.
We also have the the technic staffs and we can provide more free designes for choosing.
☛3. Small orders
We accept small order to all customers ,we accept trial order, to show our products to customers.
☛4. Free sampling
We refund/reduce the sample fees for any order placed, which is consistent with our MOQ.
☛5. Easy payment
We accept payment in many ways such as T/T, L/C, PayPal, Western Union, and MoneyGram.
☛6. Quick response
7x12h online service team ,making quick response to customers.Factory supply will more easy for you !
☛7. Quick delivery
We will have fast delviery 7-15days delivery is possible .
☛8. Trade assurance
We have joined in the trade assurance system to secure our customers.
☛9.Would you be willing to sign a non-disclosure agreement so that I further decide to work with you ?
Yes. Of course. We would like to sign and keep our customers profits and secrets. Without customers permission, we never show customers design to public.
