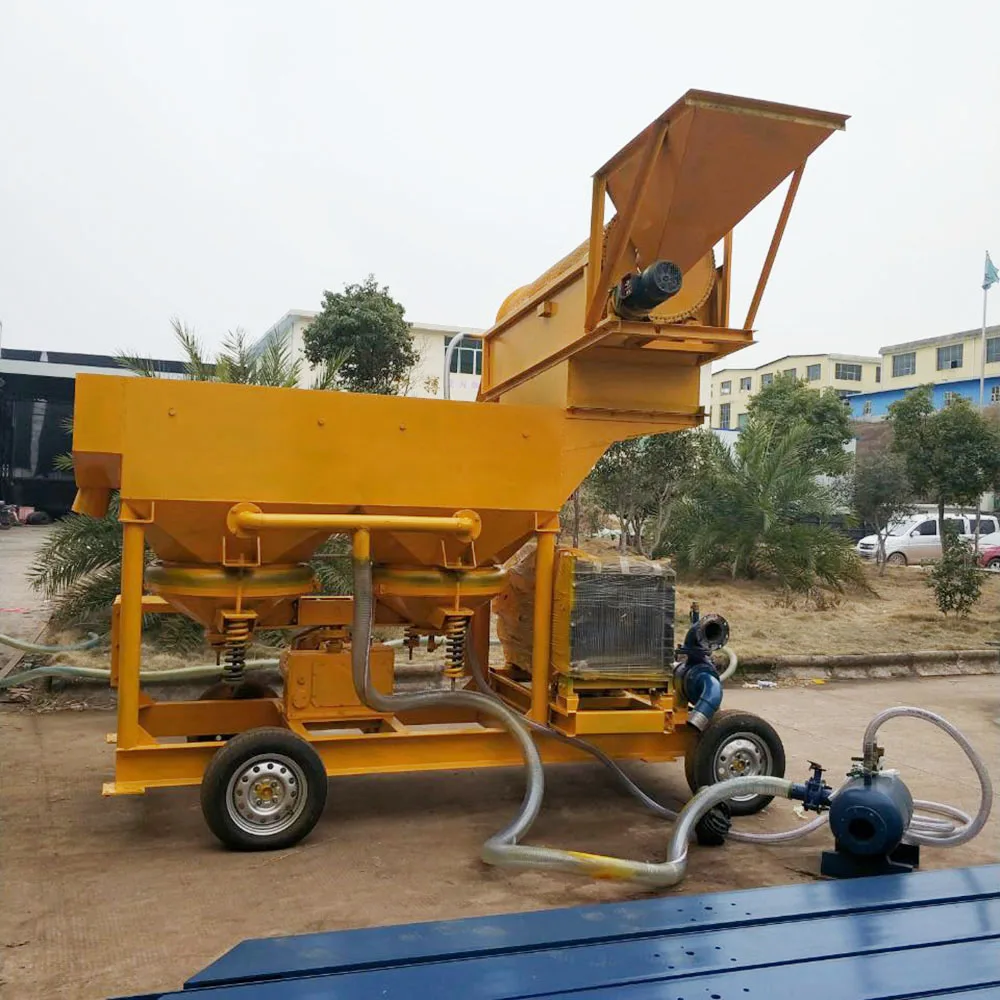

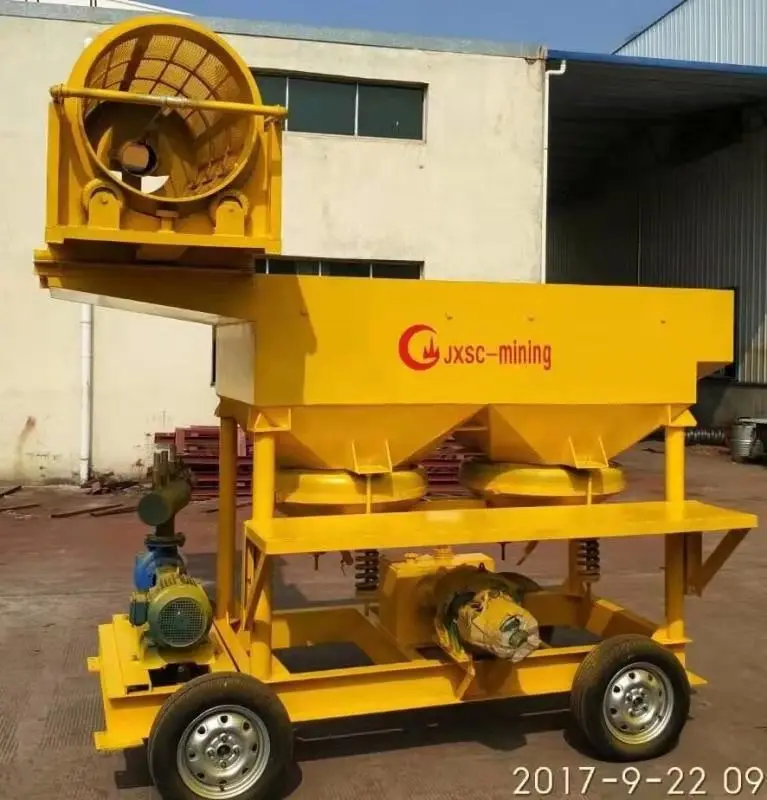

15 20TPH Coltan Tin Process Separator Plant Gold Gold Mobile Jig Concentrator Mining Machine
- Category: >>>
- Supplier: Jiangxi Province County Mining Machinery Factory
Share on (1600656989518):
Product Overview
Description
\t\t\t\t\t\t\t\t\tJig Separator \t\t\t\t\t\t\t

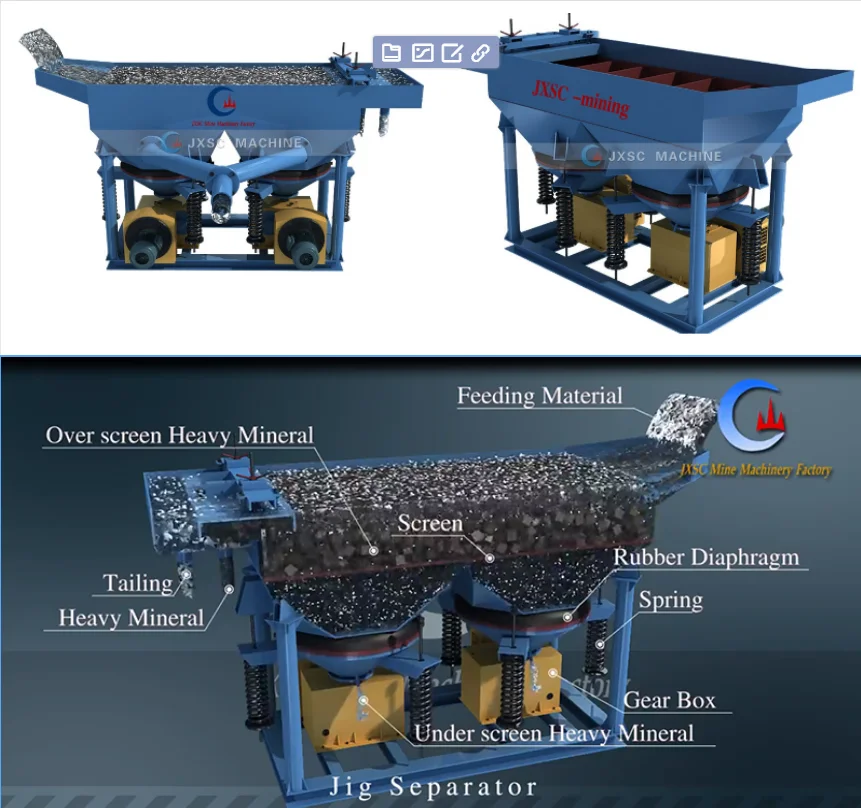

Brief Introduction:
JXSC jig concentration machine is energy-saving gravity separation equipment, which is developed according to the law of layer theory of jigger bed stratification. The performance of saw-tooth Jig has reached the domestic advanced level, the jig separator is one of the ideal devices in energy-saving gravity separation.
When processing the open-pit mines, the saw-tooth wave jigger is a key machine with the principle of gravity separation. Its pulse curve is like saw-tooth waveform to make rising water faster than the dropping water; enhanced the loose of bed, eased the inhaled role, so that heavy particles in the mineral can fully settlement, greatly improving the sorting capacity and recovery rate of equipment.
JXSC jig concentration machine is energy-saving gravity separation equipment, which is developed according to the law of layer theory of jigger bed stratification. The performance of saw-tooth Jig has reached the domestic advanced level, the jig separator is one of the ideal devices in energy-saving gravity separation.
When processing the open-pit mines, the saw-tooth wave jigger is a key machine with the principle of gravity separation. Its pulse curve is like saw-tooth waveform to make rising water faster than the dropping water; enhanced the loose of bed, eased the inhaled role, so that heavy particles in the mineral can fully settlement, greatly improving the sorting capacity and recovery rate of equipment.

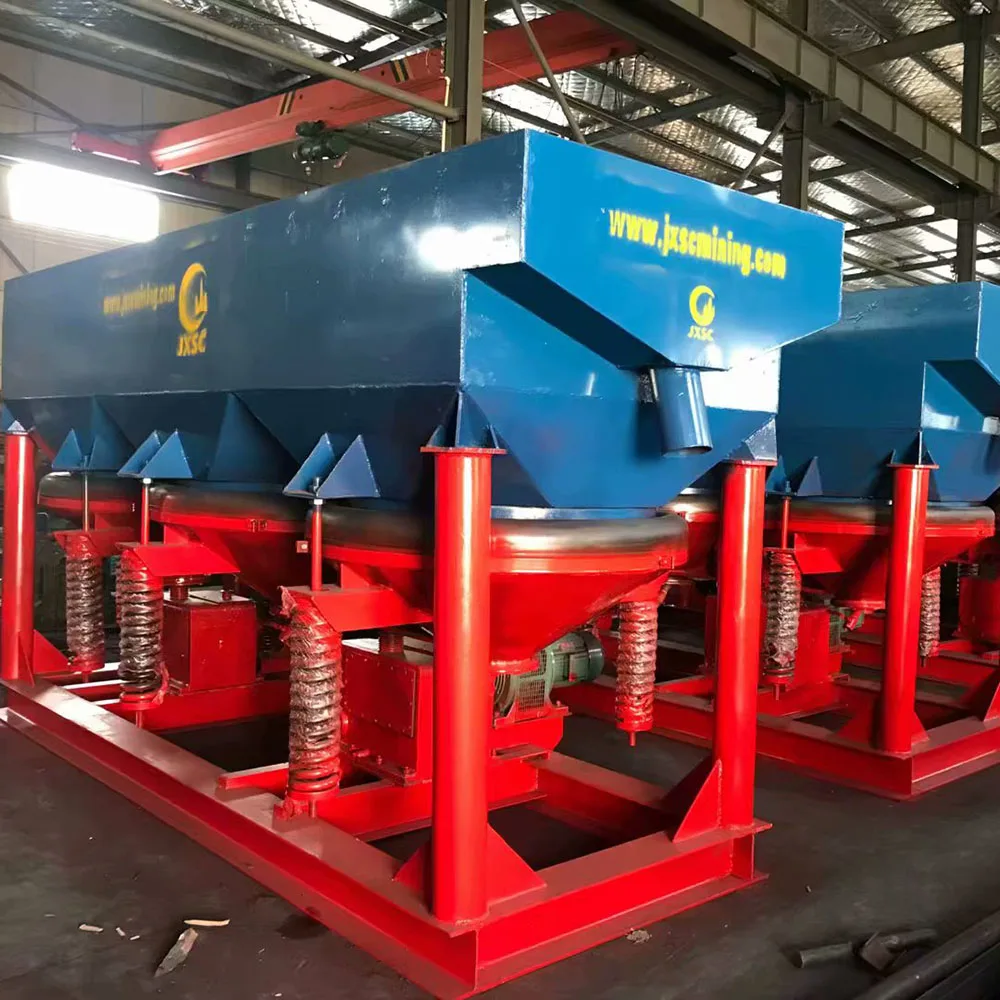

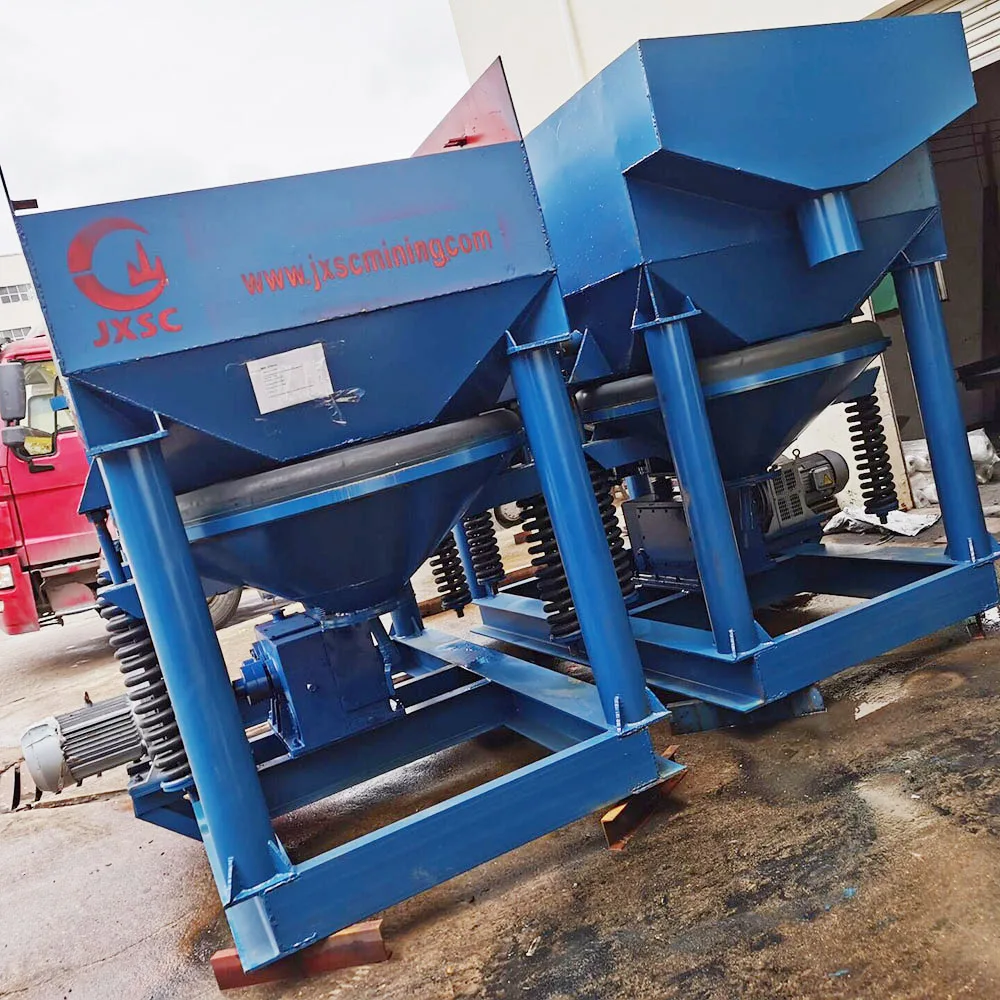

Jig Concentration Machine
JXSC jig concentration machine is energy-saving gravity separation equipment, which is developed according to the law of layer theory of jigger bed stratification. The performance of saw-tooth Jig has reached the domestic advanced level, the jig separator is one of the ideal devices in energy-saving gravity separation.
Mining Machinery Gravity Beneficiation Equipment Jig Concentrator for Gold/ Coltan/ Tin/ Diamond
Capacity: 1-16 TPH as per requested
Procesible Material: gold ore/coltan ore/ tin ore/ tungsten ore/ diamond ore/ barite ore/ iron ore/ manganese ore,ect.
Mining Machinery Gravity Beneficiation Equipment Jig Concentrator for Gold/ Coltan/ Tin/ Diamond
Capacity: 1-16 TPH as per requested
Procesible Material: gold ore/coltan ore/ tin ore/ tungsten ore/ diamond ore/ barite ore/ iron ore/ manganese ore,ect.

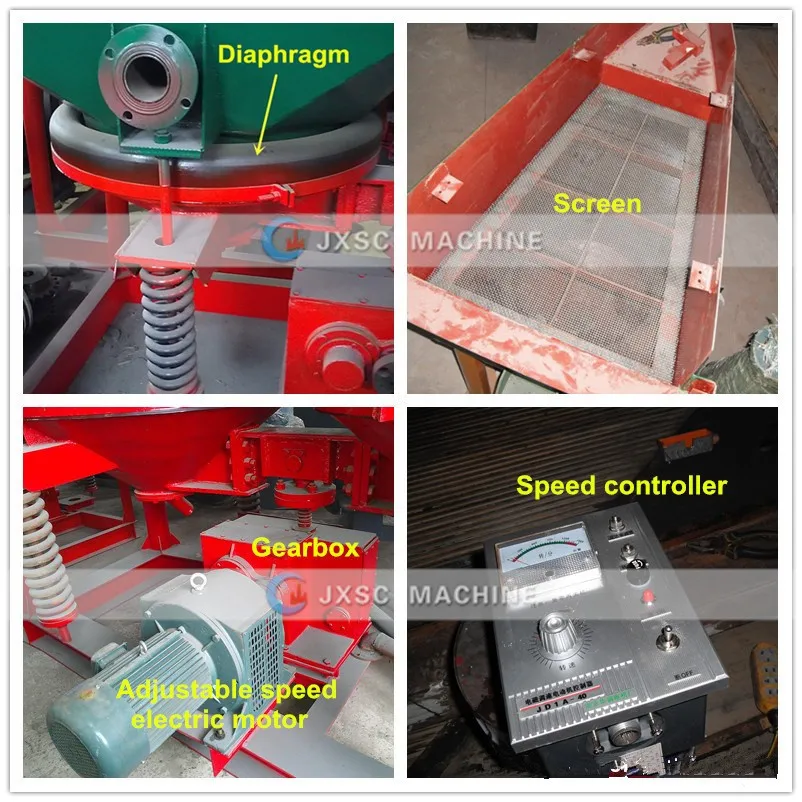

Jig Separator Machine Spare Parts: Gearbox, Adjustable speed electric motor & Speed controller
jig machine features:
1.High capacity, high concentration ratio and high recovery ratio.
2.Fabricated with highest quality material
3.Easy to install, operate and maintain
4.Water conservation ,Saving water 30-40% than ordinary jig.
5.The pulsation speed very easy adjusted by regulator
6.Suitable to separate out big and small size heavy minerals.
Technical data
Model | Jig Area (M2) | Stroke (R/Min) | Feeding size (mm) | Hutch Water ( T/H) | Pressure Water (kg/cm2) | Capacity (T/H) | Power (KW) | Overall dimensions (mm) | Weight (T) |
JT0.57-1 | 0.57 | 60-160 | <6 | 1-2 | ≥0.3 | 1-2.5 | 1.5 | 1560x820x1550 | 0.612 |
JT1-1 | 1.04 | 60-160 | <10 | 2-3 | ≥0.3 | 4-10 | 2.2 | 1322x1190x1915 | 0.9 |
JT2-2 | 2.28 | 60-160 | <10 | 2-4 | ≥0.3 | 8-15 | 3 | 3225x1550x2150 | 1.637 |
JT4-2 | 4 | 50-125 | <10 | 4-8 | ≥0.1 | 8-16 | 7.5 | 4240x1990x2750 | 4.6 |
JT4-2A | 4 | 50-125 | <10 | 4-8 | ≥0.1 | 8-16 | 8 | 4240x1990x2750 | 4.6 |
JT5-2 | 4.86 | 80-120 | <10 | 4-10 | ≥0.1 | 10-20 | 7.5 | 3940x2006x2580 | 4.6 |
after-sales service
We can send engineers to guide the installation and provide perfect after-sales service

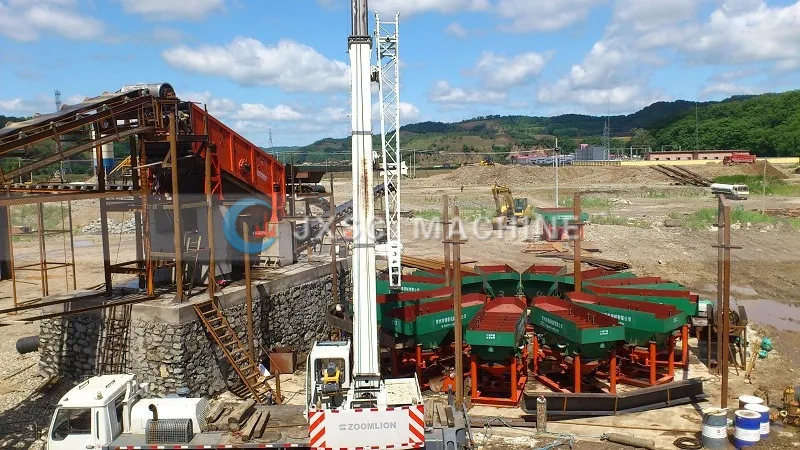

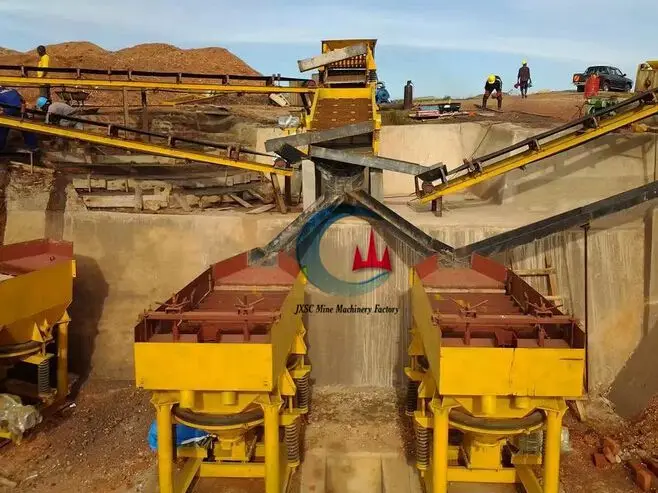

Project Case

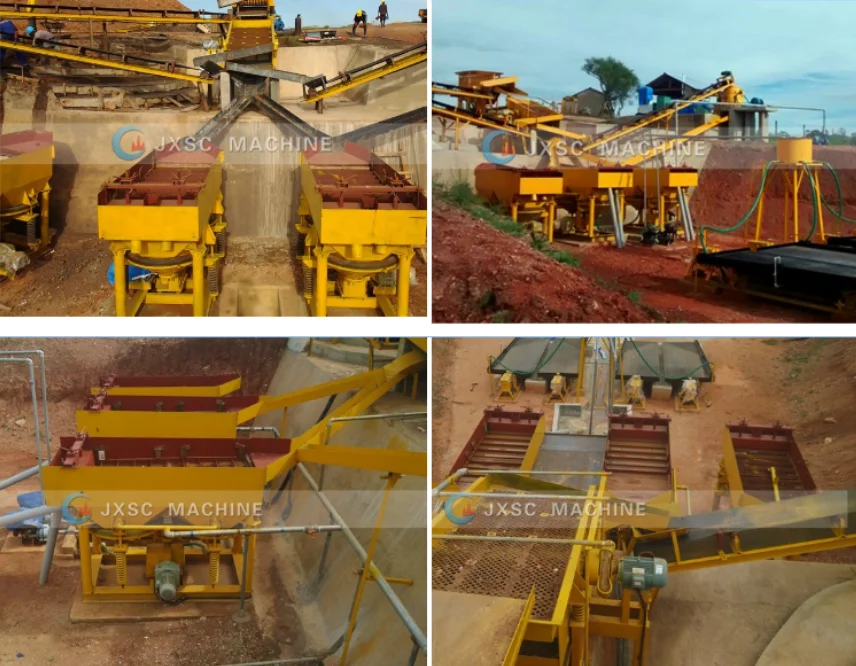

Jig Separator Machine Application
JXSC jig machine is widely used in processing plant of tungsten, tin, gold, diamond, iron, titanium, iron, coltan, manganese, fluorite, chrome. It can also be used for recovery for alloy particles from manganese slag, chromites slag and stainless slag, etc.

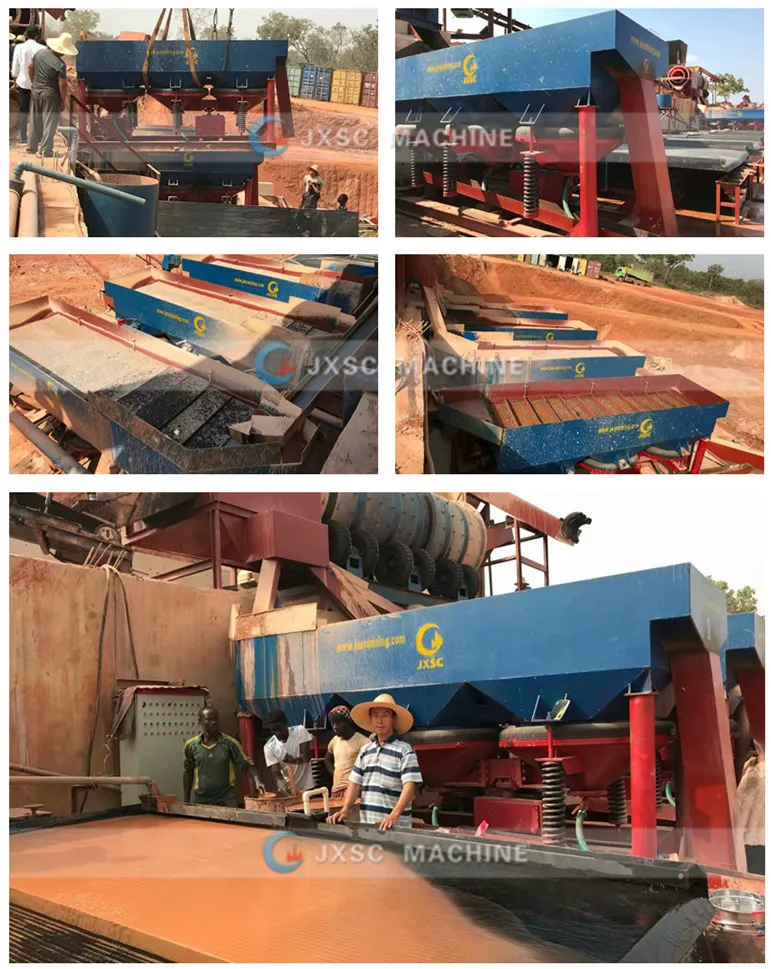

JXSC 100TPH Tantalum Niobium Project in Uganda
Capacity:100tph
site:Uganda
mineral:Tantalum niobium
machine:hopper,jig separator,belt conveyor,vibrating feeder,vibrating screen,pumps etc
We designed and offered the whole processing plant equipments,and offered the engineer there for commissioning and guidance.
site:Uganda
mineral:Tantalum niobium
machine:hopper,jig separator,belt conveyor,vibrating feeder,vibrating screen,pumps etc
We designed and offered the whole processing plant equipments,and offered the engineer there for commissioning and guidance.

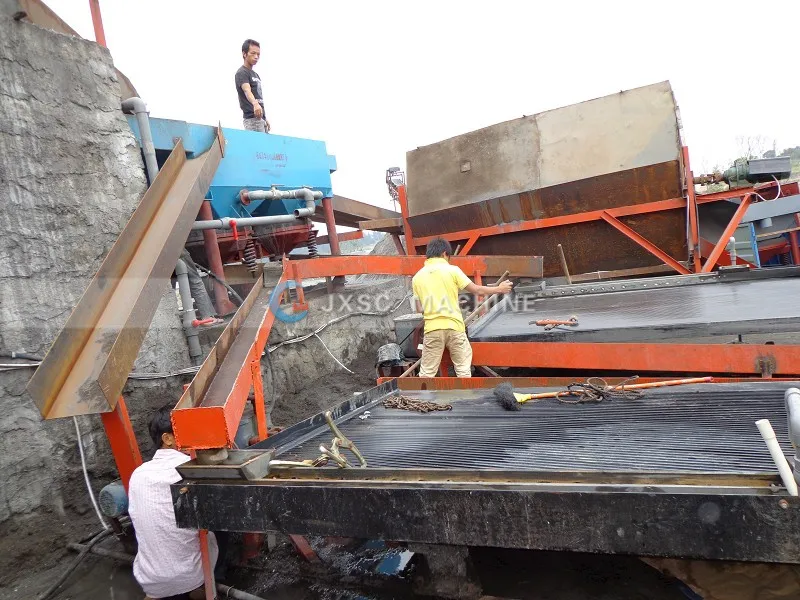

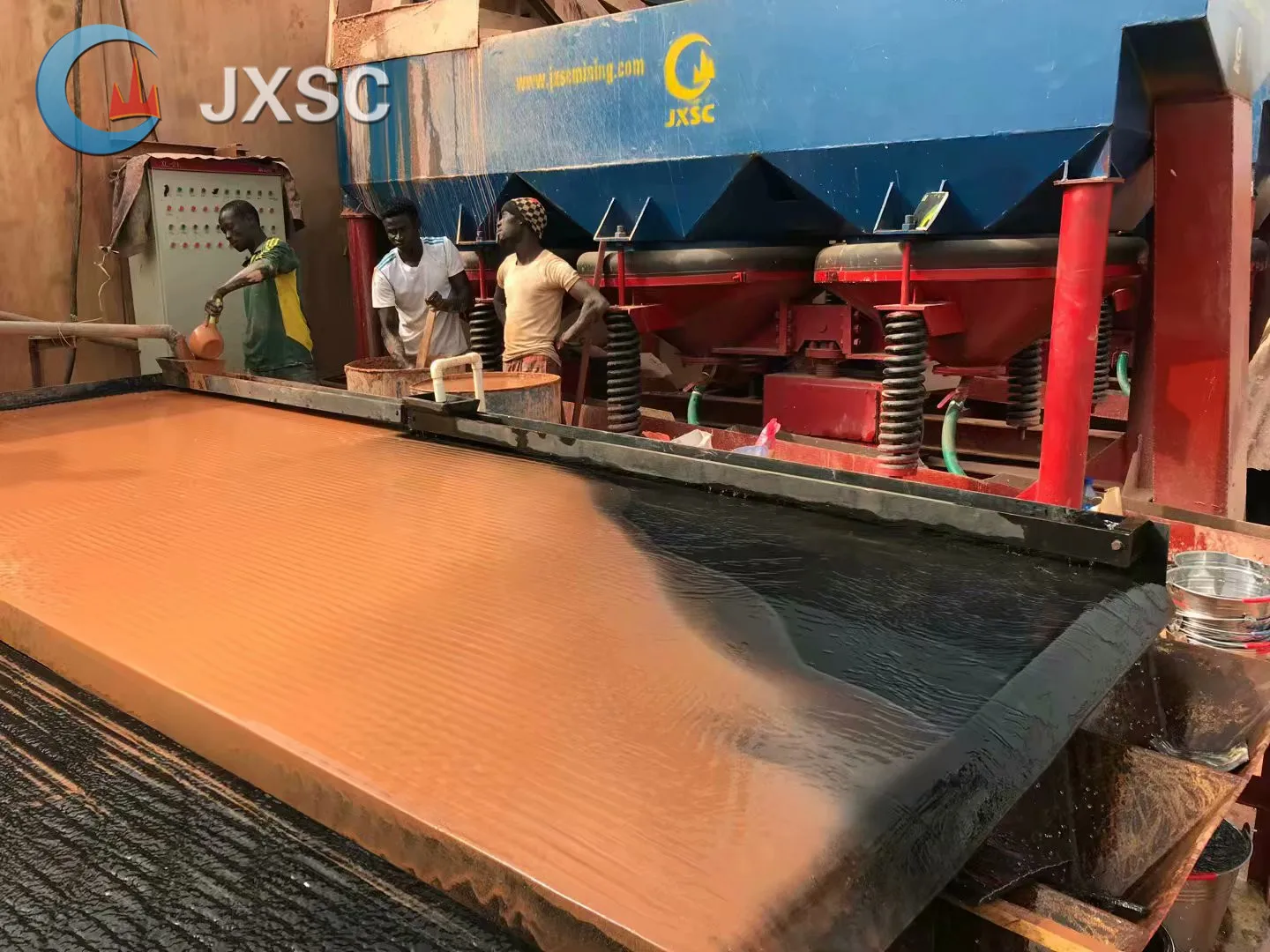

100tph Complete Set Plant Tantalum-niobium Ore Processing in Nigeria
1) JXSC supplied complete Set Plant , including Jig Separator, Trommel Scrubber Washing Machine & Shaking Table etc. for this project.
2) JXSC sent Engineer Mr. Wen services at customer's mine site to guide for installation, commission, start up and training.
2) JXSC sent Engineer Mr. Wen services at customer's mine site to guide for installation, commission, start up and training.
We have provided the diamond jig for many customers in Sudan,Mali, Mozambique, Nigeria, Suriname, Ghana, South Africa,Uganda,Zambia, Tanzania, Angola, Canada, Austrialia, Chile, Peru,ect. For Alluvail gold washing plant, coltan ore mining plant,diamond washing plant, Iron ore washing plant,ect.
Packing & Shipping

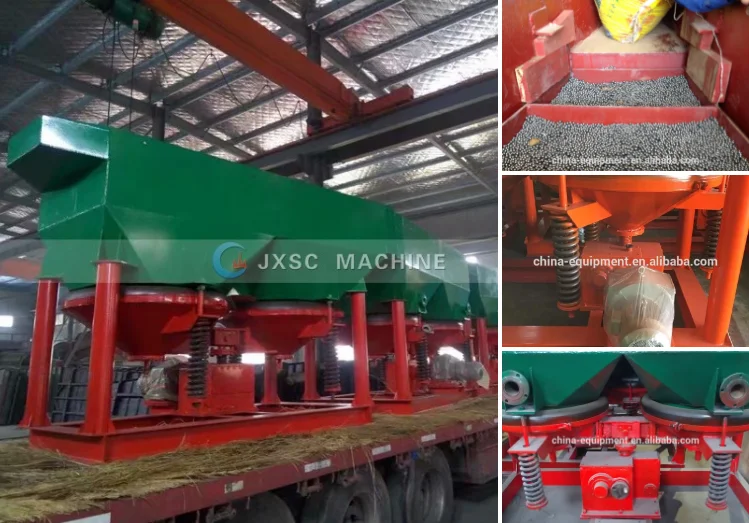

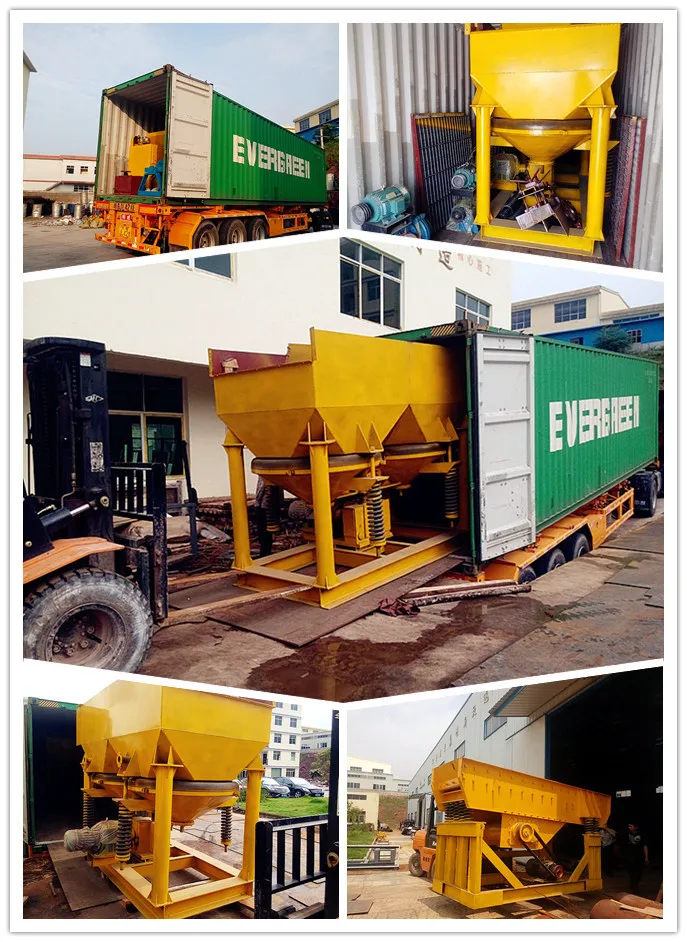

Jig Separator Packing/Loading
1. Some machines spare parts would be packed in wooden boxes to avoid broken.
2. Usually the machines are fixed and loaded in container directly.
2. Usually the machines are fixed and loaded in container directly.
Jig Machine Shipping
1. Usually our mining machines are shipped in 40'HQ or Flat Containers by sea.
2. Our mining equipments can be also shipped by air if customers request.
2. Our mining equipments can be also shipped by air if customers request.
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t
Jiangxi Shicheng Mine Machinery Factory is an experienced supplier of complete set mining equipments, professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice;Finished product pictures will be provided to customers before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice;Finished product pictures will be provided to customers before delivery.
5.What about the production time?
Answer: All of our machines are produced in standard time frame.
For complete set equipment for the entire line,factory production time is about 30-35 days;
For single machine,factory production time is about 10-15 days;
For laboratory equipment,factory production time is about 5-7 days.
