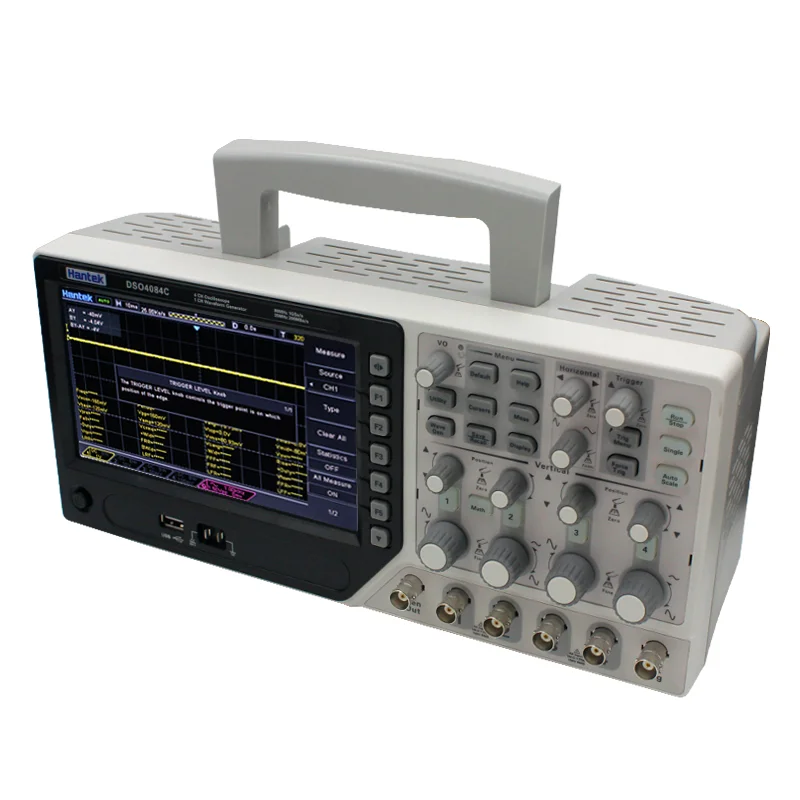

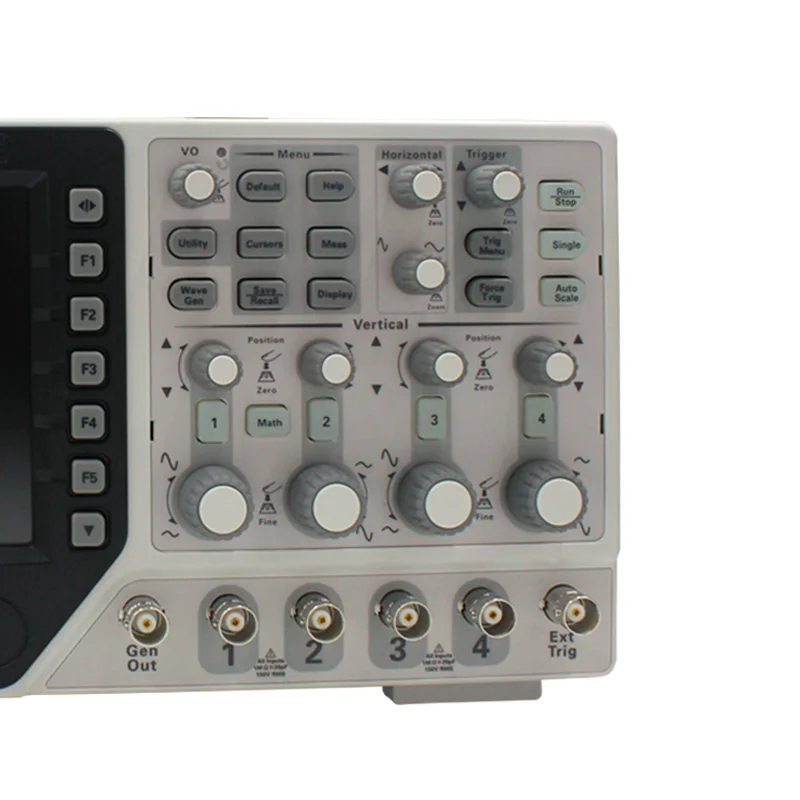

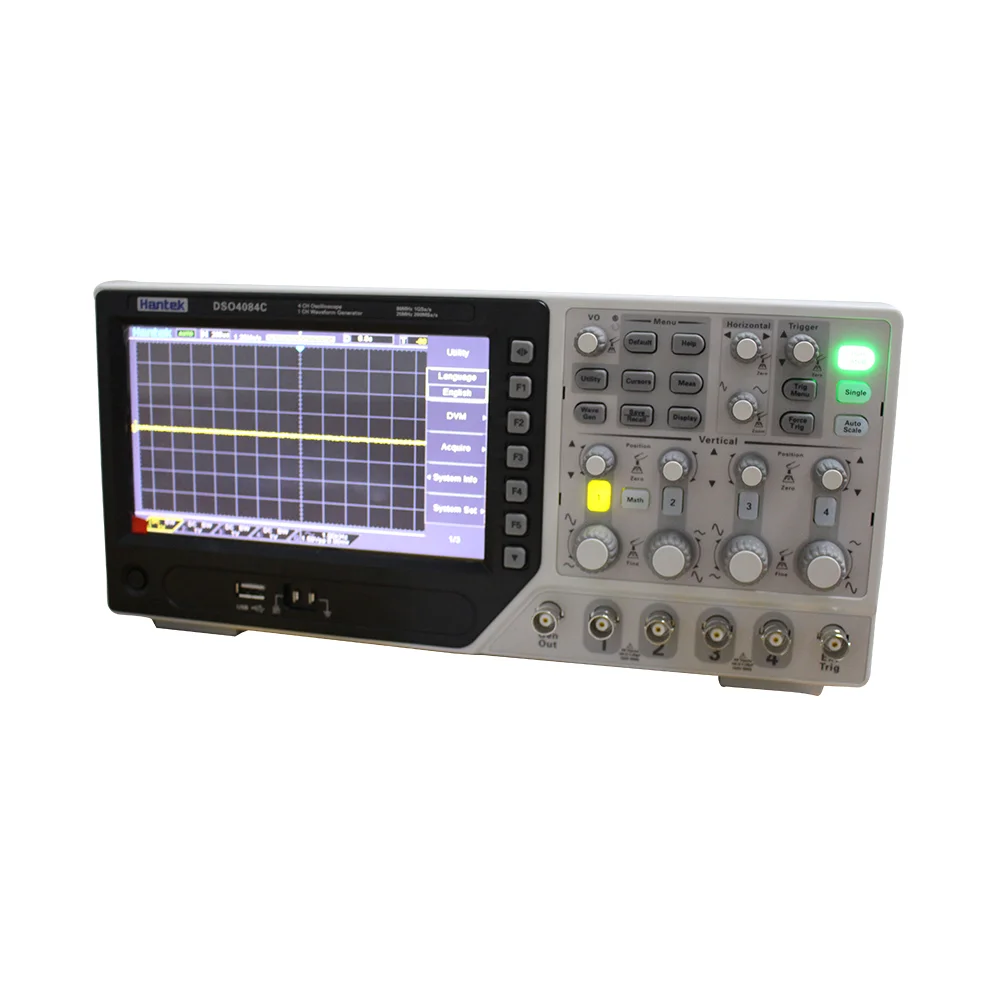

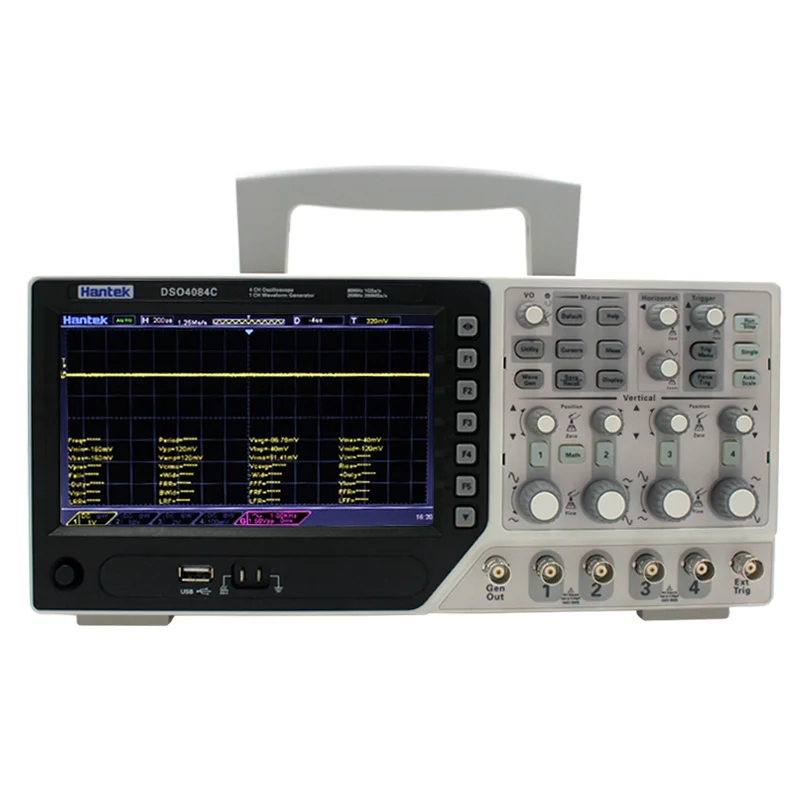

Hantek Dso4084c 4 Channel Digital Oscilloscope With 1ch Arbitary Function Waveform Generator
Hantek Dso4084c 4 Channel Digital Oscilloscope With 1ch Arbitary Function Waveform Generator
Hantek Dso4084c 4 Channel Digital Oscilloscope With 1ch Arbitary Function Waveform Generator
Hantek Dso4084c 4 Channel Digital Oscilloscope With 1ch Arbitary Function Waveform Generator
Hantek Dso4084c 4 Channel Digital Oscilloscope With 1ch Arbitary Function Waveform Generator
Hantek Dso4084c 4 Channel Digital Oscilloscope With 1ch Arbitary Function Waveform Generator
Hantek Dso4084c 4 Channel Digital Oscilloscope With 1ch Arbitary Function Waveform Generator

Hantek Dso4084c 4 Channel Digital Oscilloscope With 1ch Arbitary Function Waveform Generator

Share on (1600657216951):


Price:$313.33 - $328.48

Quantity:


Product Overview

Description











Specification


Hantek Dso4084c 4 Channel Digital Oscilloscope With 1ch Arbitary Function Waveform



Feature:

*4CH oscilloscope+EXT+DVM+auto range function
*80-250MHz bandwidth,minimum range 500μV /div,1GS/s sample rate.
*Over 32 types of auto measurement function
*Advanced digital trigger system, high trigger sensitivity.
*Over 14 types of trigger function: edge, overtime, pulse, pattern, interval, etc.
*Function/arbitrary signal generator25MHz,12BitS resolution, 200MHz DDS, ARB/square wave/sine wave/triangular wave/trapezoidal
wave/impulse wave/DC etc.,easy to simulate the sensor.
*Integrated USB Host/Device, convenient to communicate with PC. Support U-stick storage/systerm update.
*Support a variety of SCPI remote control command
*Support optional RS232 port, LAN port, HDMI port, touch screen, WIFI communication, SD card storage
*Stable and reliable quality, sturdy and durable.


Model
DSO4254C
DSO4204C
DSO4104C
DSO4084C
Bandwidth
250MHz
200MHz
100MHz
80MHz
Horizontal
Sample Rate Range
1GS/s
Waveform Interpolation
(sin x)/x
Record Length
Maximum 64K samples per single-channel;
Maximum 32K samples per dual-channel (4K, 32K optional)
SEC/DIV Range
2ns/div~100s/div
1, 2, 5 sequence
Sample Rate and
Delay Time Accuracy
±50ppm
Delta Time Measurement Accuracy
(Full Bandwidth)
Single-shot, Normal mode
± (1 sample interval +100ppm × reading + 0.6ns)
>16 averages
± (1 sample interval + 100ppm × reading + 0.4ns)
Sample interval = s/div ÷ 200
Vertical
AD Converter
8-bit resolution,
each channel sampled simultaneously
VOLTS/DIV Range
500μV/div to 10V/div at input BNC
Position Range
500μV/div~20mV/div, ±400mV
50mV/div~200mV/div, ±2V
500mV/div~2V/div, ±40V
5V/div~10V/div, ±50V
Selectable Analog Bandwidth Limit, typical
20MHz
Low Frequency Response (-3db)
≤10Hz at BNC
Rise Time at BNC, typical
DSO4254C
DSO4204C
DSO4104C
DSO4084C
<1.4ns
≤1.8ns
<3.5ns
≤4.4ns
DC Gain Accuracy
±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
±4% for Normal or Average acquisition mode, 5mV/div to 500μV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Acquisition
Acquisition Modes
Normal, Peak Detect, Average and HR
Acquisition Rate, typical
Up to 2000 waveforms per second per channel (Normal acquisition mode, no measurement)
Single Sequence
Acquisition Mode
Acquisition Stop Time
Normal, Peak Detect
Upon single acquisition on all channels simultaneously
Average
After N acquisitions on all channels simultaneously, N can be set to 4, 8, 16, 32, 64 or 128
