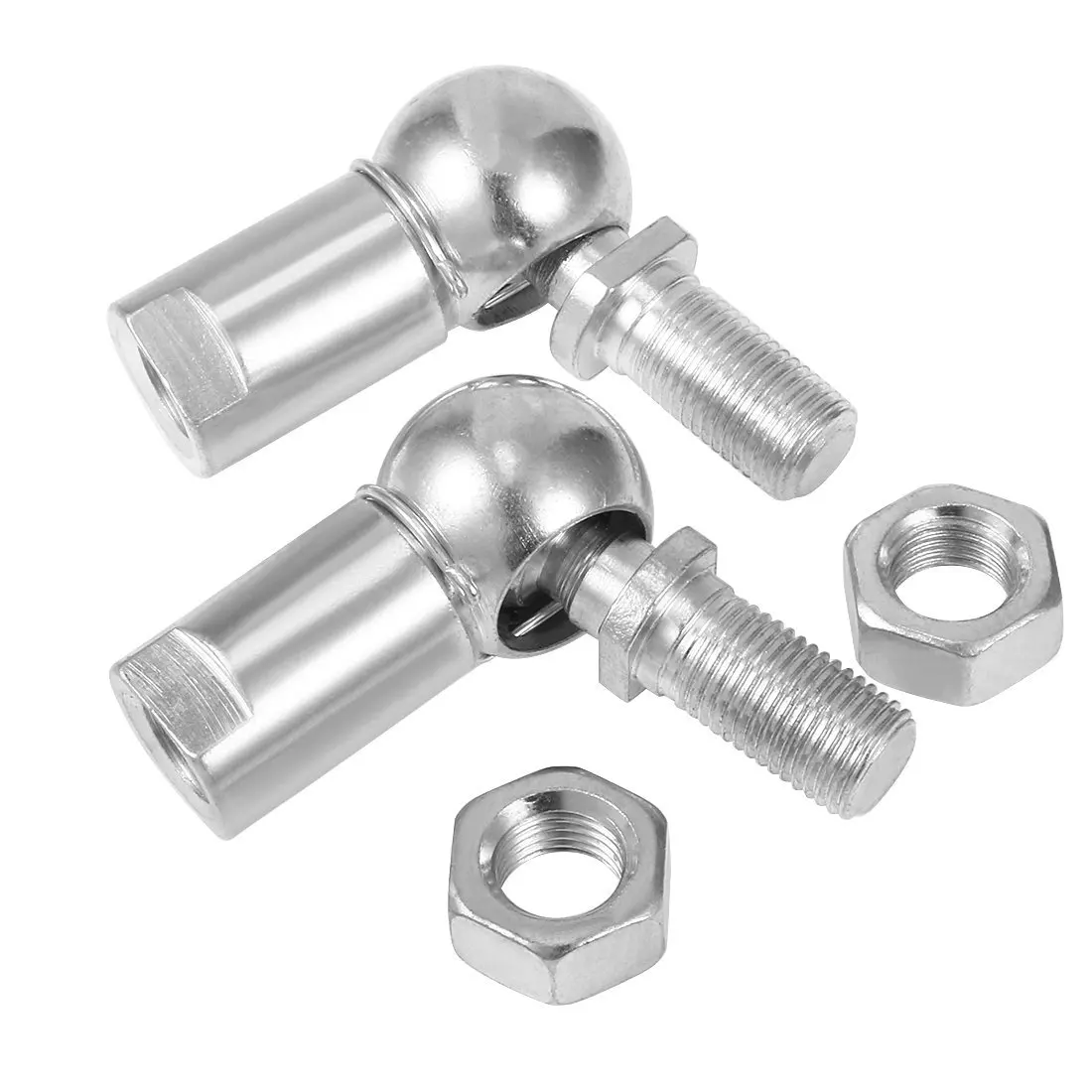

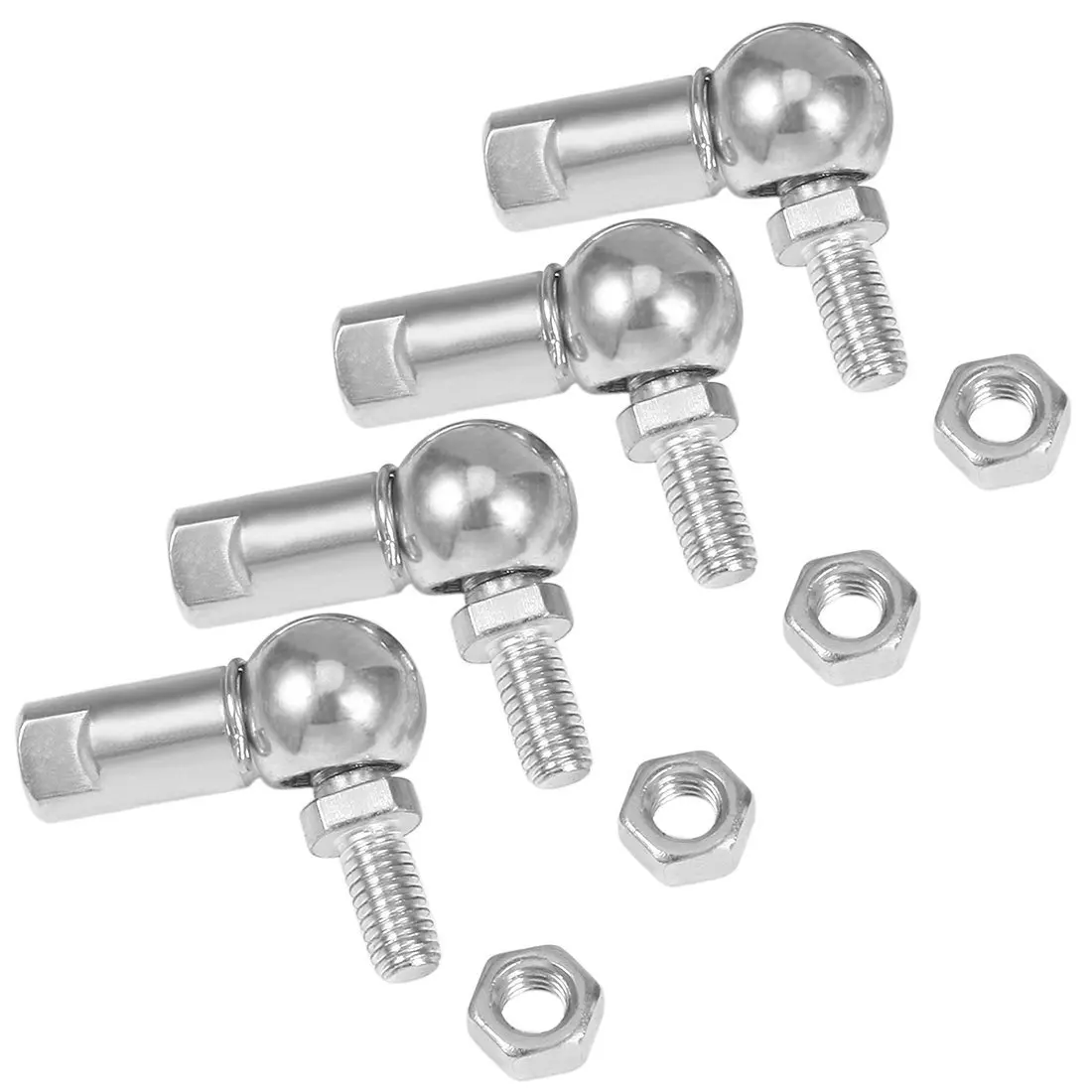

DIN71802 Carbon Steel Angle Ball Joints with M14 for Auto parts
- Category: >>>
- Supplier: Shanghai Chenghui Bearing Co. Ltd.
Share on (1600657266201):
Product Overview
Description
C&H Angle Ball Joints Din71802 with M14 Right Hand Thread.
Production Description
Material and surface treatments:
•Ball stud : carbon steel
•Ball socket : carbon steel
•The ball joint housing: carbon steel with right or left-hand thread
•The ball joint surface: zinc plated
•The grease is filled in the ball joint socket.
•Snap ring and safety clip : spring steel /Zinc plating
•Alternative stainless steel 304, stainless steel 303 or stainless steel 316., Surface passivation
Angle ball joints DIN71802 with M14 x1.5 Right Hand Thread
DIN71802 steel angled ball joints consist of a ball socket DIN71805 and a ball shank DIN71803.
Features : •Type A,B,C without safety clip on the ball socket •Type AS,BS,CS with safety clip on the ball socket •Ball stud of Type C,CS with spanner surface •Alternative left-hand thread for the ball socket •Ball socket with or without spanner surface or hexagon surface as required •Ball stud with or without sealing cap as required •Ball stud with or without nut as required |  |

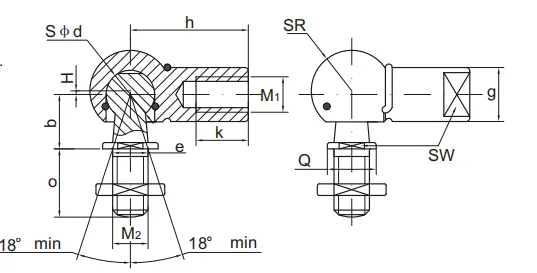

Part No. | Dimensions | Weight kg | ||||||||
| Q | M1 6H | b | o | e | h | H | SW | SR | ||
SQP 5 S | 8 | M5 X 0.8 | 9 | 10 | 5 | 22 | 0.7 | 7 | 6.4 | 0.014 |
| SQP 6 S | 10 | M6 X 1.0 | 11 | 12.5 | 6 | 25 | 0.7 | 8 | 7.4 | 0.024 |
| SQP 8 S | 13 | M8 X 1.25 | 13 | 16.5 | 8 | 30 | 1.16 | 11 | 9.65 | 0.053 |
| SQP 10 S | 16 | M10 X 1.25 | 16 | 20 | 10 | 35 | 1.16 | 13 | 12 | 0.097 |
| SQP 12 S | 16 | M12 X 1.75 | 16 | 20 | 12 | 35 | 1.16 | 13 | 12 | 0.097 |
| SQP 14 S | 22 | M14 X 2.0 | 20 | 27 | 14 | 45 | 1.5 | 17 | 15 | 0.218 |
| SQP 14-1 S | 22 | M14 X 1.5 | 20 | 27 | 14 | 45 | 1.5 | 17 | 15 | 0.218 |
About our Company:
C&H is a hgih quality Angle ball joints suppliers that have skillful and responsible team because most of them have at least 20 years experience in industry. What is more, the quality of the ball ,the ability of strictly whole process as well as the level of machine can guarantee to supply top-class products and service. More importantly, the skillful engineer team can provide great support in technology and help customers to develop all kinds of new products. We firmly believed that our company will becom more and more better and keep going ahead due to the stronger team and the better partner.
Application
A-frames, dump cylinders, front and rear struts, and steering cylinders for mining trucks
Equalizer track bars, lift and tilt cylinders, push blades, trunnion balls and ripper blades for bulldozers
Articulated joint upper and lower steering cylinders and boom and bucket cylinders for wheel loaders
Stick and bucket cylinders for hydraulic excavators
Additional applications for space shuttles, heavy movable structures and miscellaneous vehicles
Package
our products will be delivered by a papaer box with a complete and perfect angle as well as surface.
