equipment for the production of paper bags with D cut

Share on (1600657274698):


Price:$80,000.00

Quantity:


Product Overview

Description







Product Description




Details




Specification


Model
XKFD-280
XKFD-330
XKFD-450
Width of Bag(mm)
100-280
150-330
230-450
Length of Bag(mm)
225-450
225-450
220-450
Paper Grams(g/m2)
60-160
60-160
60-160
Inside Diameter Of Paper Core(mm)
76
76
76
Maximum Discharge Diameter(mm)
ɸ1300
ɸ1300
ɸ1300
Max Speed(pcs/min)
160
140
130
Total Power(kw)
12
12
15
Machine Weight (kg)
7000
8000
9000
Machine Size(mm)
10500*3600*1900
10500*3700*1900
10500*3800*1900


PRODUCT INTRODUCTION:
This machine can use the rolling paper, which is made of primary color paper or printed to produce square bottom paper bag to one time. This machine can produce various of paper bags, with fast speed, high production efficiency, is an ideal equipment for paper bag production.
This machine is composed of rolling paper feed (hydraulic feeding, automatic deviation correction, constant tension), side glue, printing paper electric eye tracking, original paper into roll, fixed length traction cutting, bag bottom indentation opening bottom, bag bottom gluing folding forming and bag output. The whole machine is controlled by the computer central control system, the touch screen display, and the servo motor controls the length of the paper bag.
According to customer needs, two/ four-color printing machine, Paper bag windowing device and paper bag hand holing device can be customized.


Samples

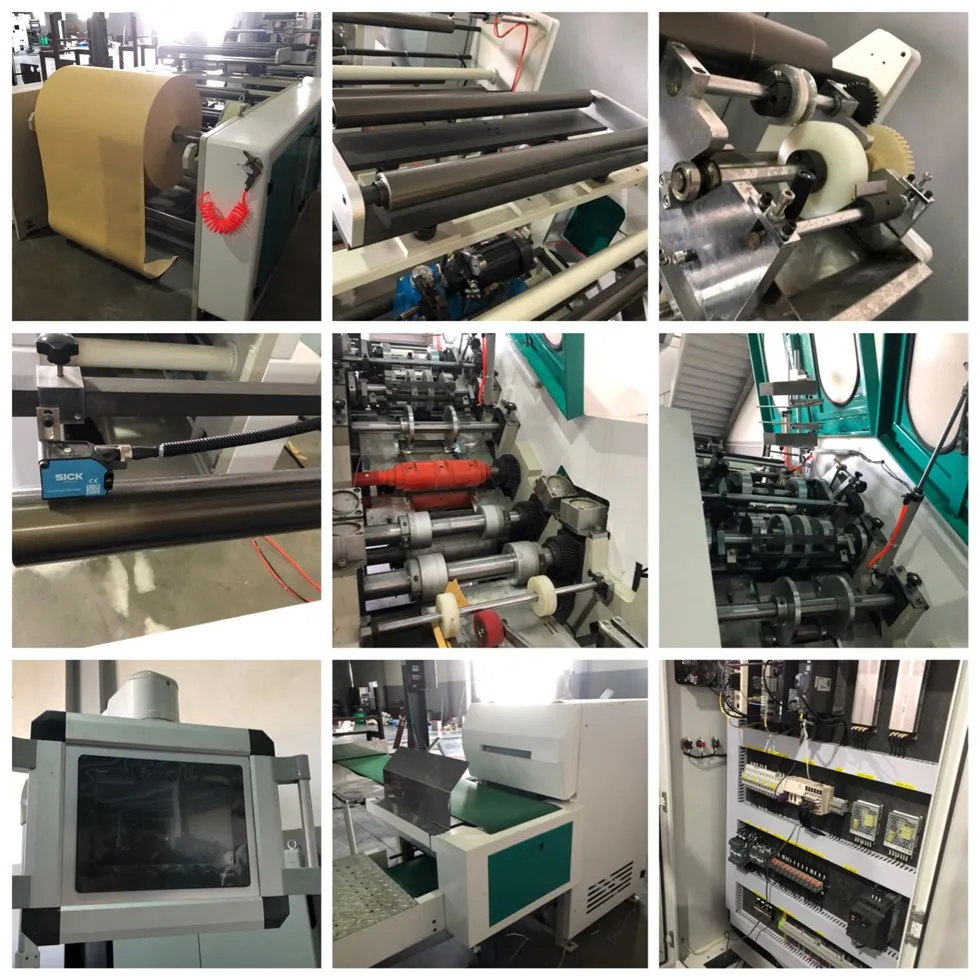

Factory Appearance

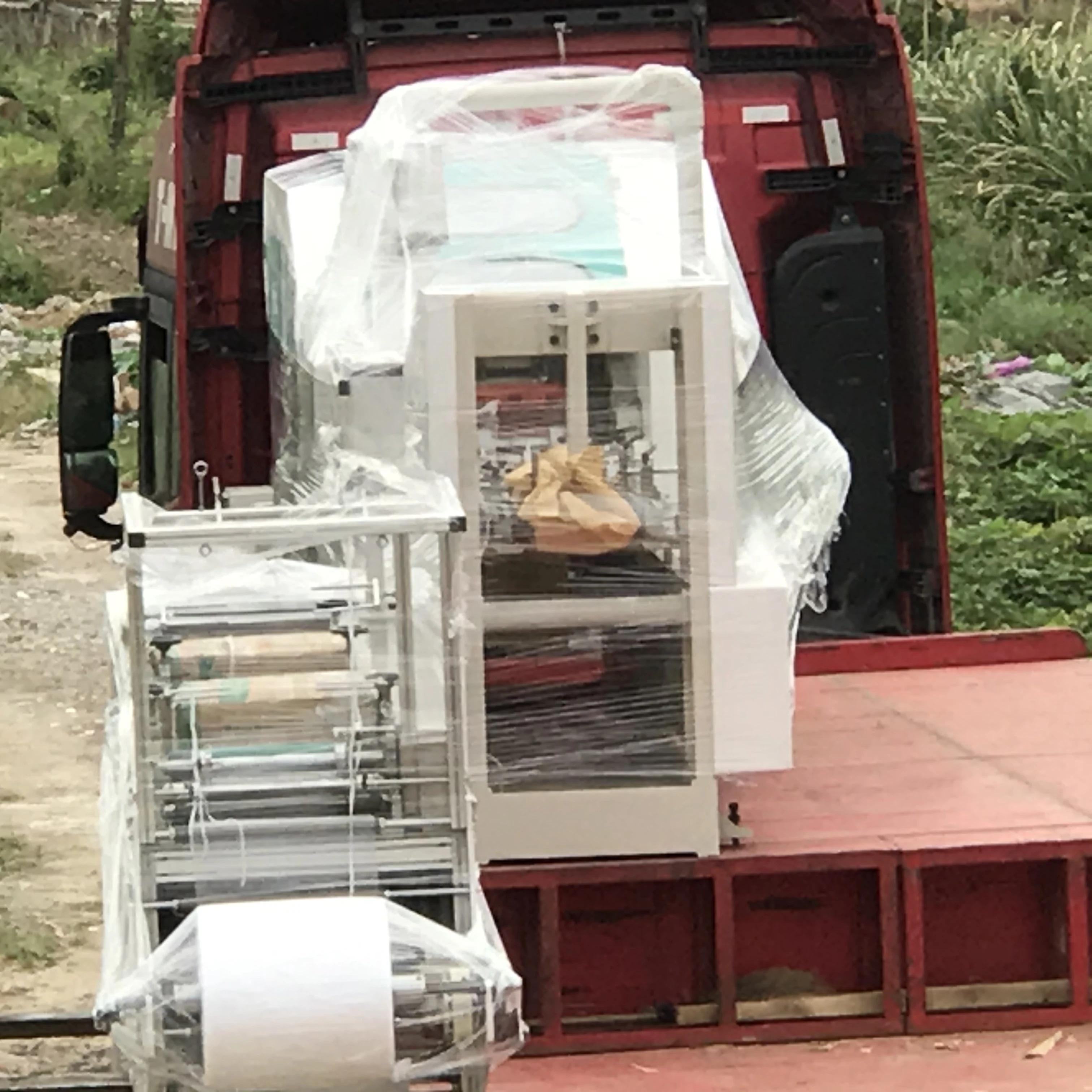

Packing & Delivery




Elastic earloop face mask making machine Packing Detail,
The Wooden Case.
