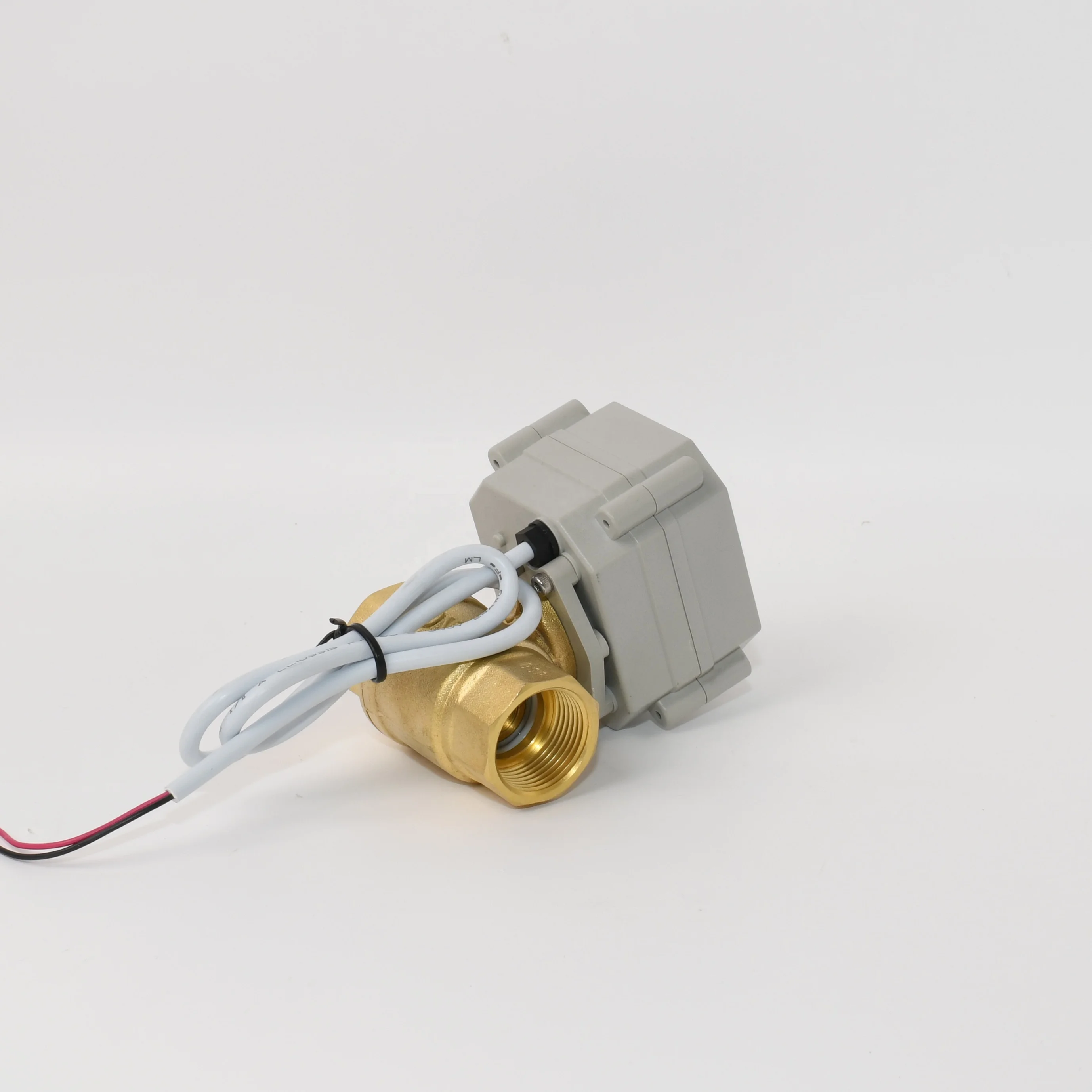

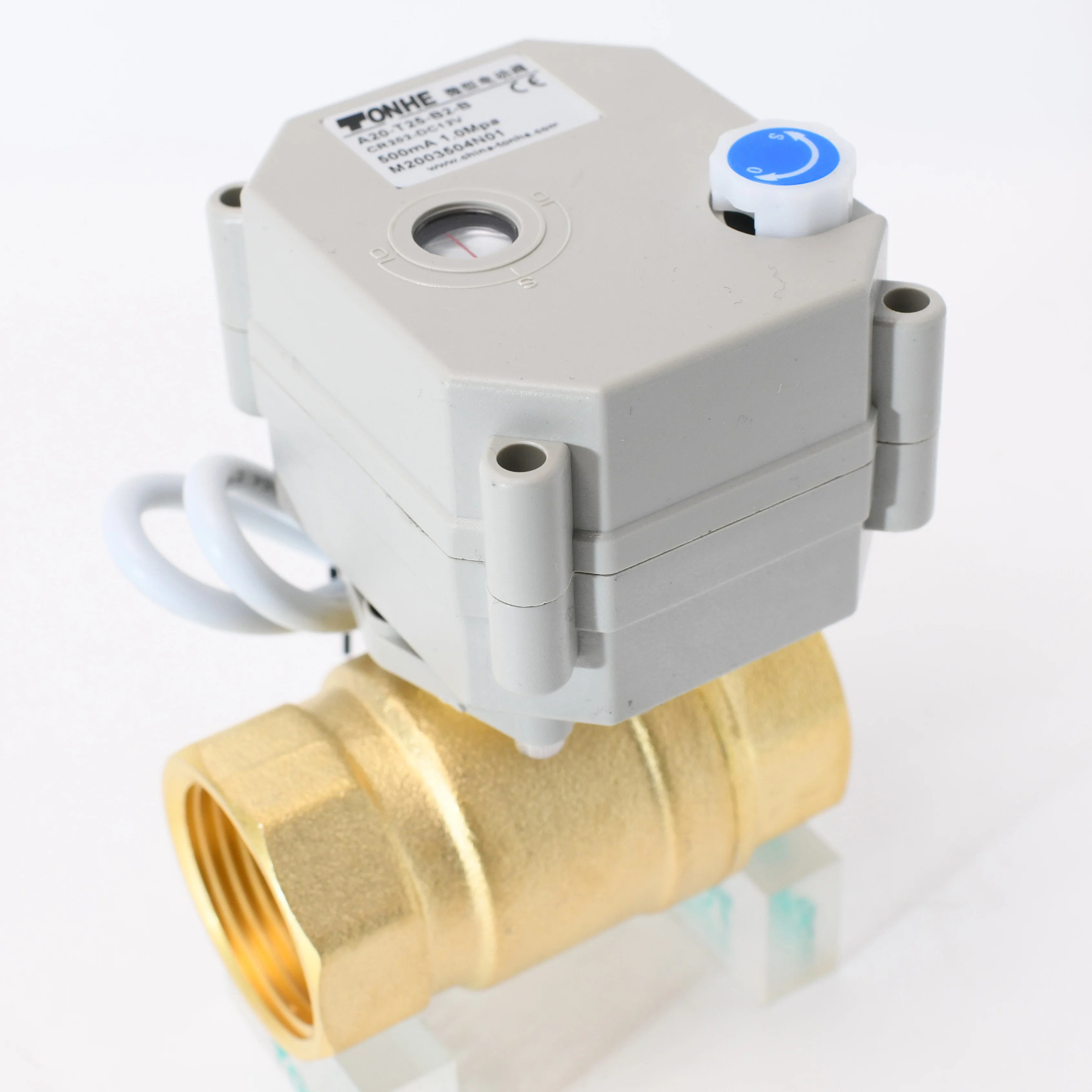

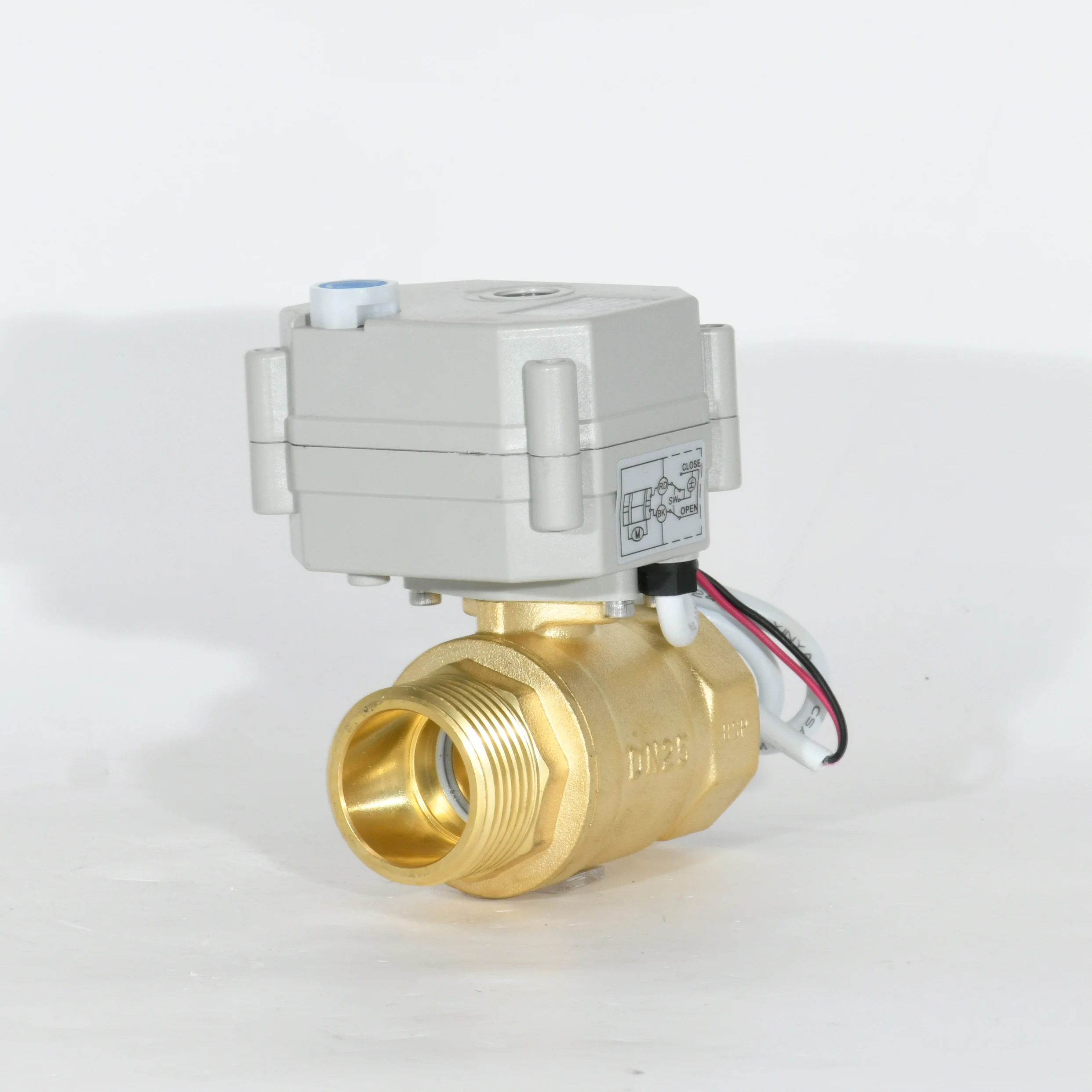

2 way WRAS approved 3/4' AC220V brass electric motorized ball valve with manual override
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.Taizhou Ltd.
Share on (1600657286861):
Product Overview
Description
2 way WRAS approved AC110-230V brass electric shut off water ball valve with manual override, with different wire control ,for drinking water .
Technical Parameters:
Product size NPT/BSP 1/4" NPT/BSP 1/2"' NPT/BSP 3/4'' NPT/BSP 1" NPT/BSP 1 1/4'' (Optional )
Maximum working pressure 1.3 MPa
Circulation medium Fluid, air
Rated voltage DC5V/ DC12V DC24V AC/DC9-24V AC/DC-35VAC110-230V (Optional )
Wiring control methods CR2-01 CR2-02 CR3-01 CR3-02 CR3-03 CR3-04 CR4-01 CR5-01 CR5-02 CR7-01 CR7-02 CR7-04(Optional)
Working current ≤500MA
Open/close time ≤5S/≤9S(Optional)
Life time 70000 times
Valve Body material Brass Nickel plated Brass 304 Stainless steel (Optional)
Actuator material Engineering Plastics
Sealing material EPDM & PTFE
Actuator rotation 90°
Max. torque force 2 Nm/4Nm(Optional)
Cable Length 0.5m,1.5m(Optional)
Environment temperature -15℃~50℃
Liquid temperature 2℃~90℃
Manual override Yes No(Optional)
Indicator Yes No (Optional)
Protection class IP67
DC12V electric actuator water valve with manual override , automatic control actuator ball valve , Tonhe motorized actautor ball valve with feedback signal

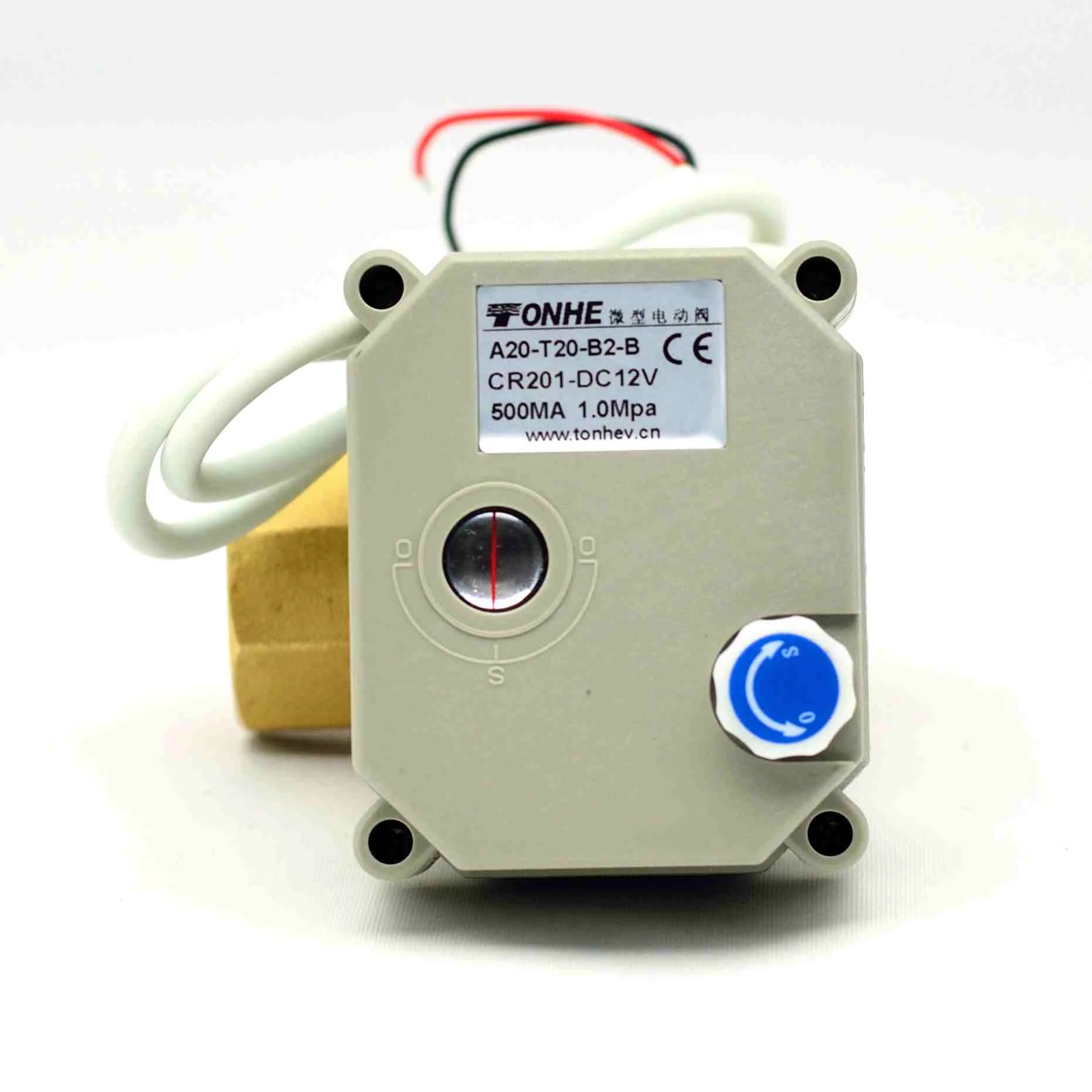

Valve can with manual override and indicator :
