TLK200 RCK40 Z2 Type 85x125 Power Lock Keyless Locking Devices
- Category: >>>
- Supplier: Changzhou,Tianniu,Transmission,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Effects
TLK200 RCK40 Z2 Type 85x125 Power Lock Keyless Locking Devices
Description of Locking Device Assembly Z2 Power Transmission Component Cone Clamping Elements
It can replace single keywey and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub ,inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft .
Data sheet of Locking Device Assembly Z2 Power Transmission Component Cone Clamping Elements
| Model | Z2 Cone Clamping Elements | |
| Pressure on Shaft (N/mm2) | 120 | |
| Pressure on Hub (N/mm2) | 92-108 | |
| Rated Load (kN.m) | Force | 175 |
| Torque | 7417 | |
| Inner Race Size (mm) | 85 | |
| Outer Race Size (mm) | 125 | |
| Thickness (mm) | 38 | |
| Weight (Kg) | 1.49 | |

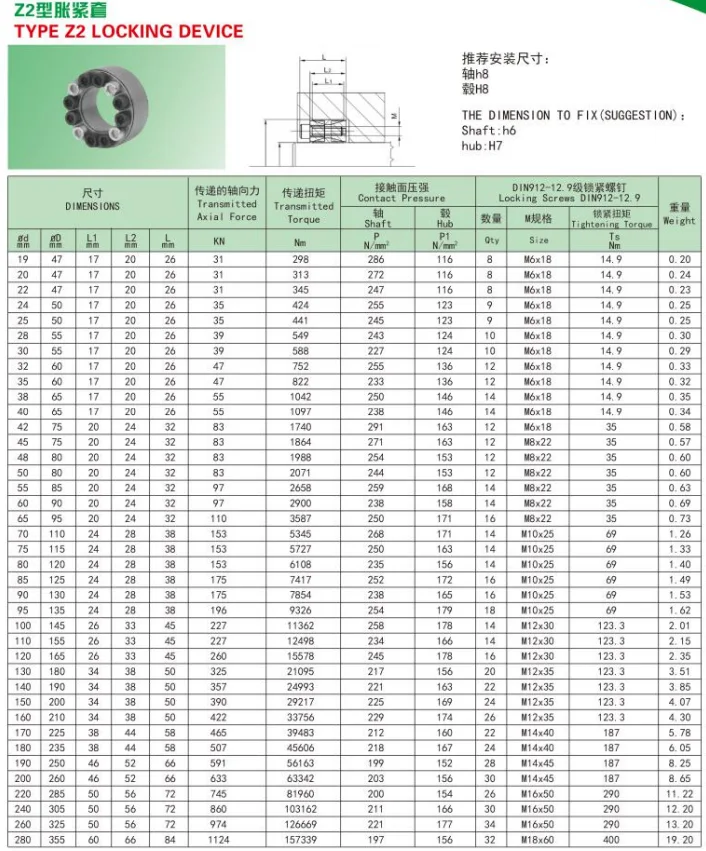

Catalogue of Locking Device Assembly Z2 Power Transmission Component Cone Clamping Elements
Packaging & Shipping
Production Flow
Company Information
Clients Visit
Certifications
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
