Графитовая синтетическая пленка, углеродная гибкая графитовая фольга/графитовый лист для планшетного компьютера, китайский поставщик

Графитовая синтетическая пленка, углеродная гибкая графитовая фольга/графитовый лист для планшетного компьютера, китайский поставщик

Category: Graphite Sheets >>>
Supplier: Jiangxi,Dasen,Technology,Co.,Ltd.

Price:3,60 $ - 4,00 $

Price in USD:Details

Quantity:

Product Overview

Description

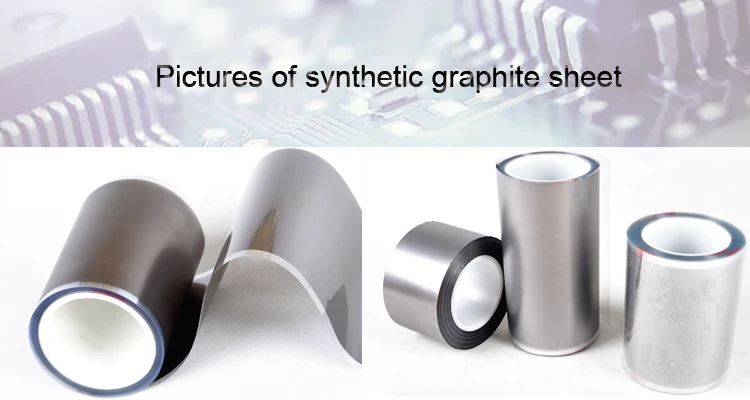

Synthetic graphite sheet, also called artificial graphite sheet, is a new film material made of Polyimide by sintering.

Synthetic graphite is a material consisting of graphitic carbon which has been obtained by graphitizing of non-graphitic carbon,by CVD from hydrocarbons at temperatures above 2500 K, by decomposition of thermally unstable carbides or by crystallizing from
metal melts supersaturated with carbon.

Parameters of the synthetic graphite sheet

Thickness(mm)

DSN5012

DSN5017

DSN5025

DSN5032

DSN5040

0.012±0.003

0.017±0.003

0.025±0.003

0.032±0.004

0.04±0.005

Thermal conductivity

(K/m.k)

X-Y axis

1700~1900

1500~1700

1400~1600

1300~1500

1200~1400

Z axis

10~15

12~18

13~19

Density (g/cm3)

2.15±0.1

2.12±0.1

2.1±0.1

2±0.1

1.9±0.1

Hardness(shore A)

Tensile strength (psi)

650

Heat resistance temperature (℃)

400

Thermal resistance (℃)

0.15%

Electric conductivity (s/cm)

50000

Thickness(mm)			DSN5050	DSN5070	DSN5100	DSN5150	DSN5200
Thickness(mm)				0.05±0.005	0.07±0.007	0.1±0.001	0.15±0.015	0.2±0.02
Thermal conductivity (K/m.k)	X-Y axis	1100~1300	1000~1200	800~1000	600~800	500~700
Thermal conductivity (K/m.k)		Z axis	15~22	15~22	15~22	15~22	15~22
Density (g/cm3)			1.85±0.1	1.8±0.1	1.5±0.1	1.1±0.1	1±0.1
Hardness(shore A)			85	85	85	85	85
Tensile strength (psi)			650	650	650	650	650
Heat resistance temperature (℃)			400	400	400	400	400
Thermal resistance (℃)			0.15%	0.15%	0.15%	0.15%	0.15%
Electric conductivity (s/cm)			50000	50000	50000	50000	50000

Production process

Product Application

The graphite sheet with high thermal conductivity and light weight can provide the best thermal management solution. It is widely used in smartphones, PC, ultra HD TV, LED lamp, solar energy, battery, VR, new energy vehicles, wireless charging, and other fields.

Dasen

Professional solution provider including pyrolytic graphite, graphene film, vapor chamber, silicone thermal pad, die-cutting, specialties graphite, ceramic filtration membrane.

- Services in telecommunications, industrial consumer electronics and medical, new energy vehicles, machinery, environmental
engineering.
- Used in soft circuit board, backlight module, touch panel, mechanical hardware, finished product assembly and environmental
protection engineering industry
- Four factories: Jiangsu, Jiangxi, Anhui and Shandong.
- Certificates: ISO9001,IATF16949,ISO14001,UL...

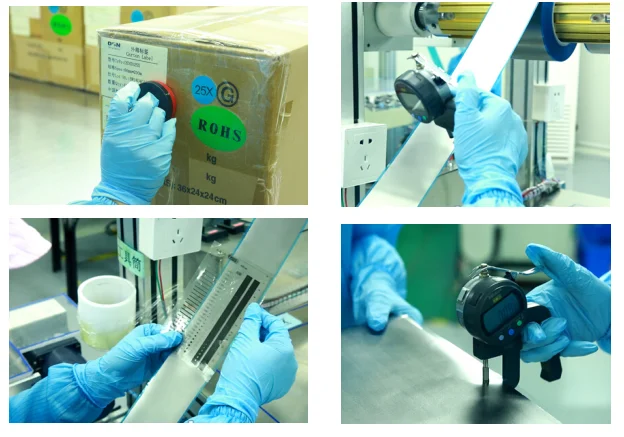

Quality Control

* Quality policy - The policy aims at satisfying our customer by way of initializing updated quality management and sticking to the top requirement of "quality first" in an attempt to achieve an elite project finally.
* Quality objective - Provide our customer with products in full line with relevant contract and standard by way of strictly conforming to quality control procedure and intensifying avoiding common quality faults to be sure of an effective operation of the quality assurance and quality control system, achieve a zero quality accident rate and realize good project construction quality.
* Quality Assurance System and Function - Establish quality assurance and effective quality control system before construction in order to ensure the realization of construction quality objective.
* Work - Post Responsibility - Responsibility of Project Manager

Certificate

ISO9001-2015, ISO14001-2015, IATF16949-2016, UL

We obtained more than 30 invention patents and utility model patent and gained the honor: "scientific and technological innovation enterprises", "Jiangxi Province special new enterprises", "national high-tech enterprises".

Packaging & Shipping

Packaging:

1. Shockproof foam and PET film covered - protection
2. Standard export carton or customized
3. Marked with customer's information or customized
4. QC department will check if the packing is strong enough.
