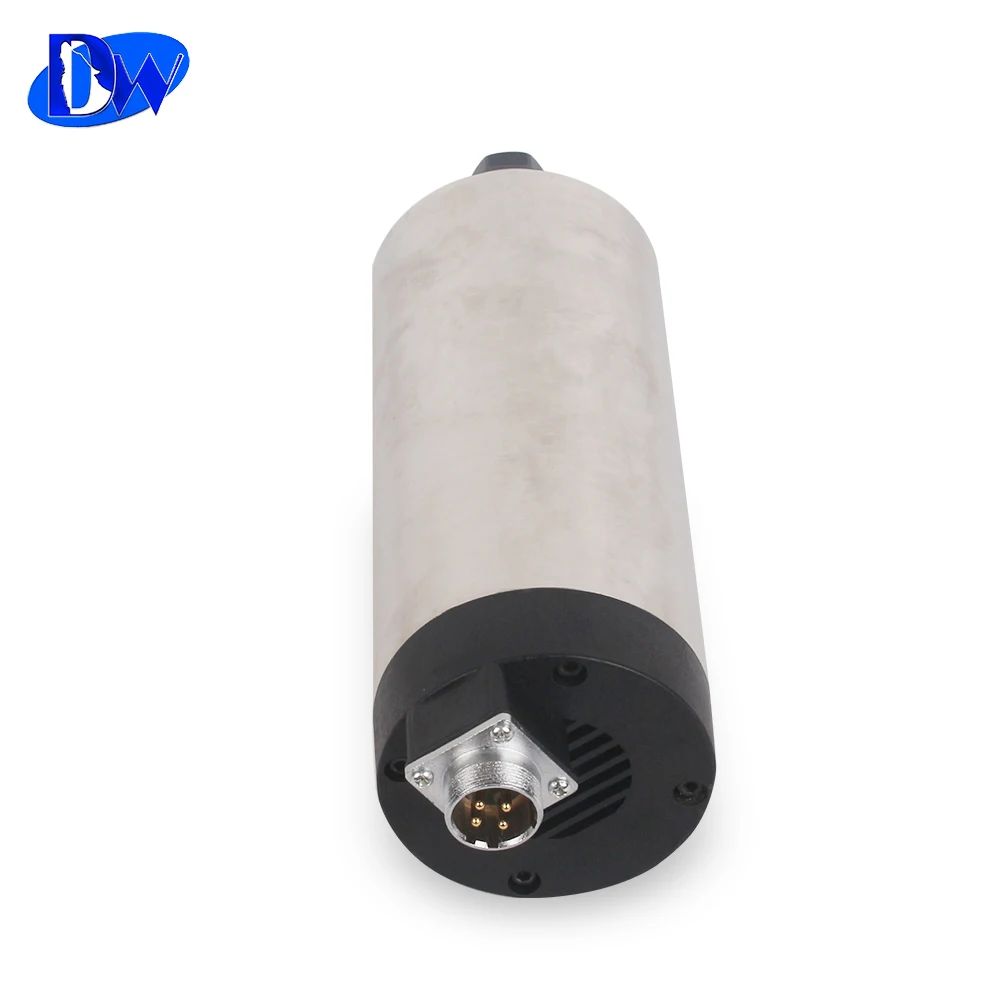

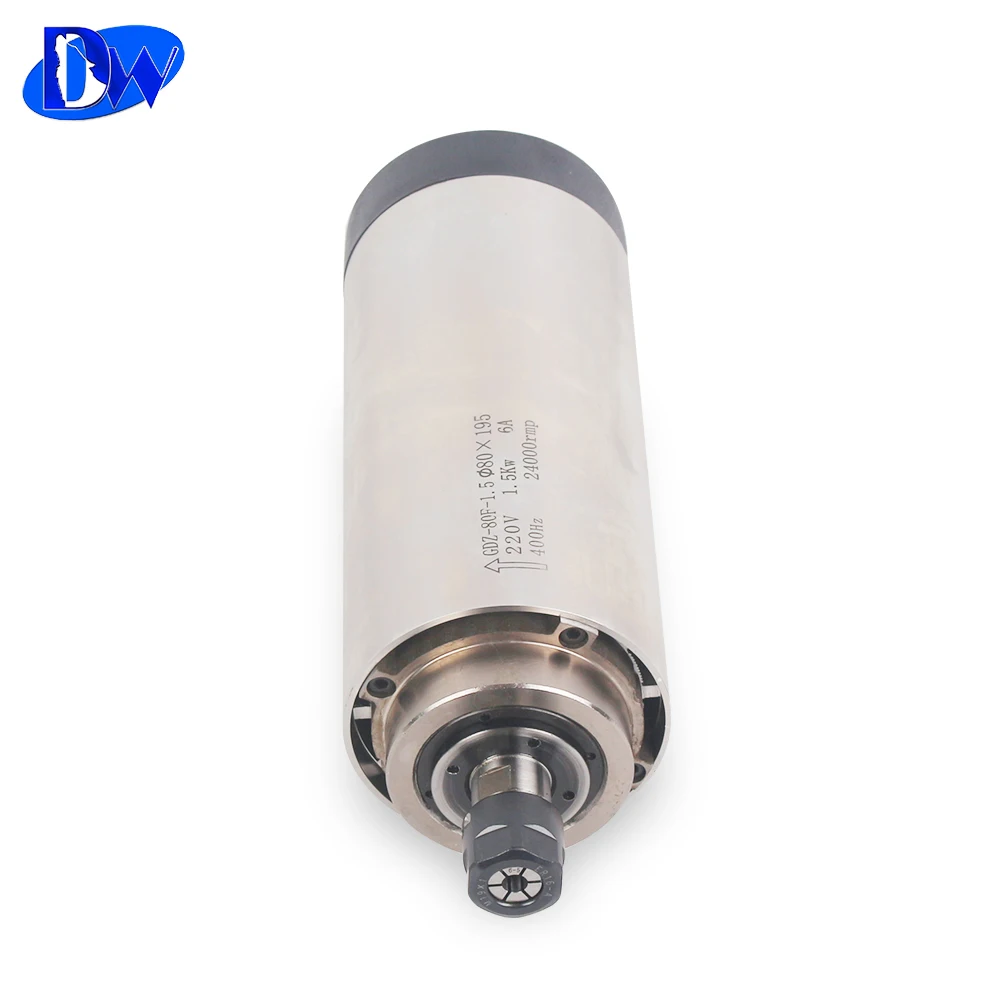

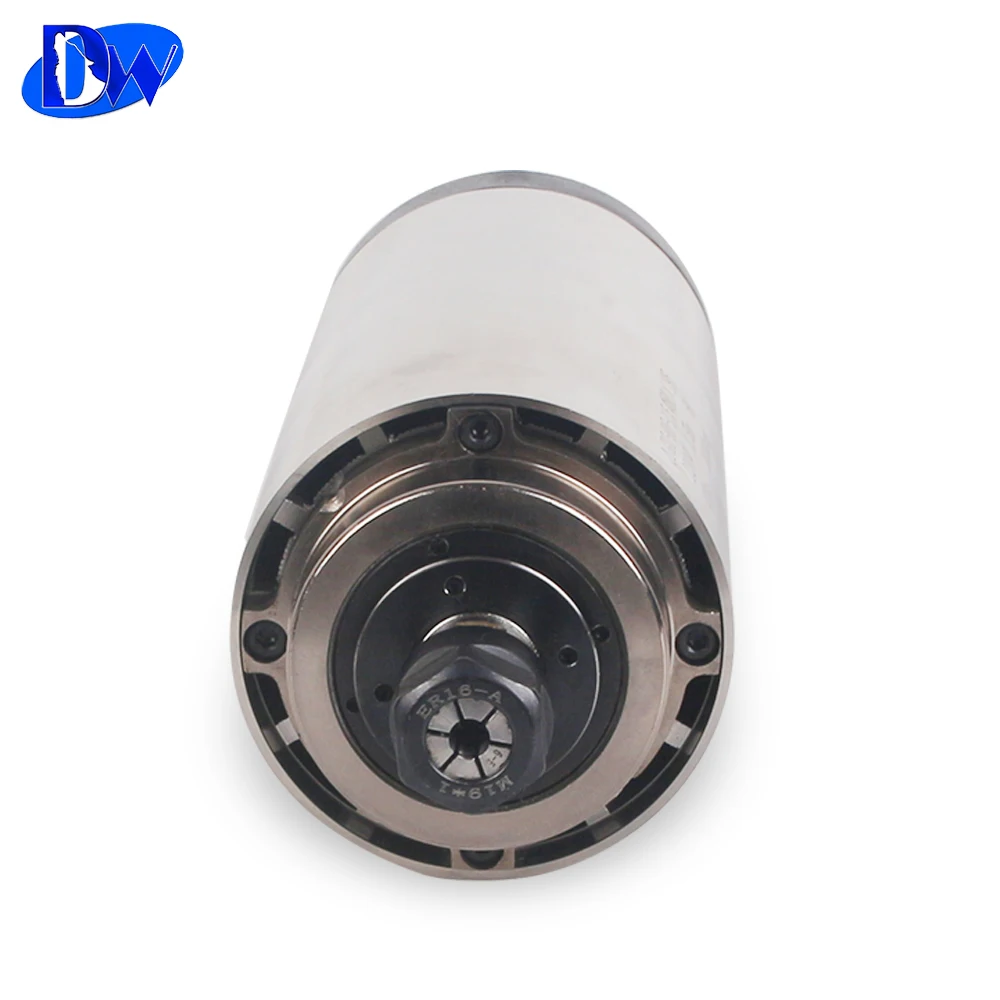

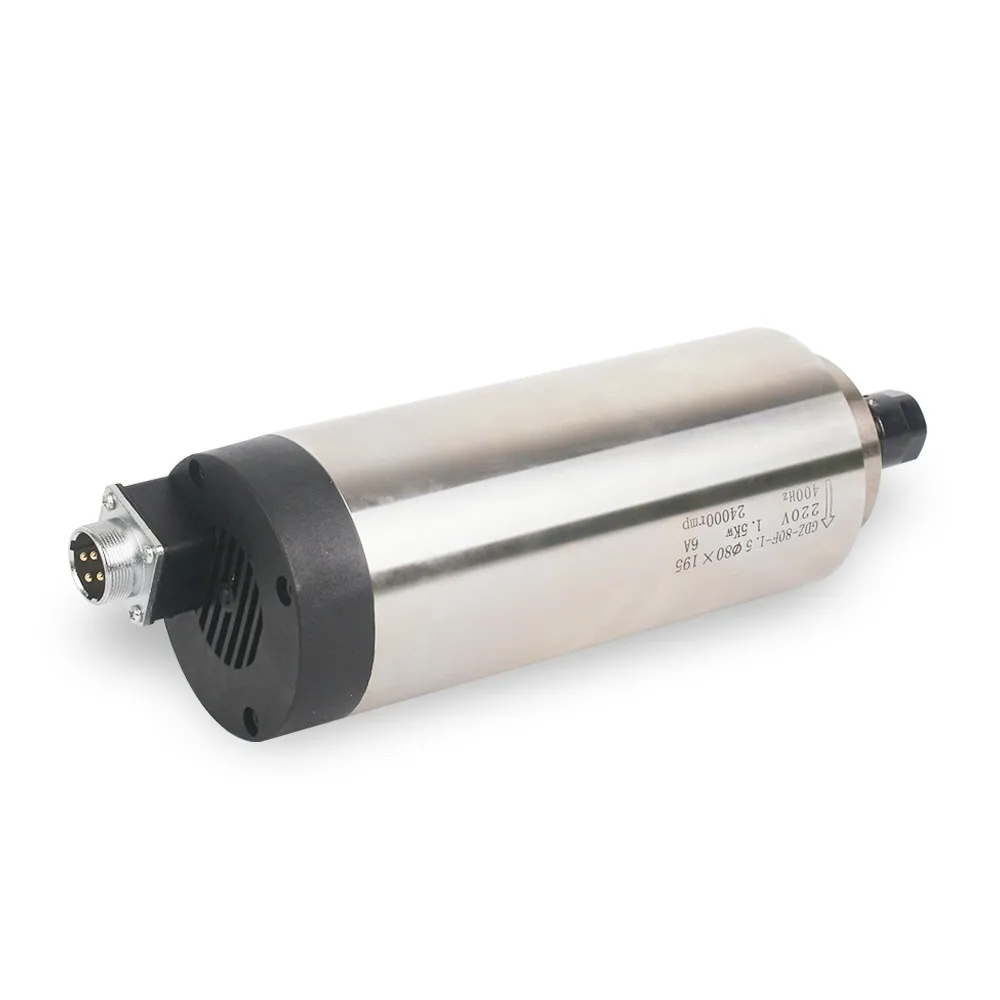

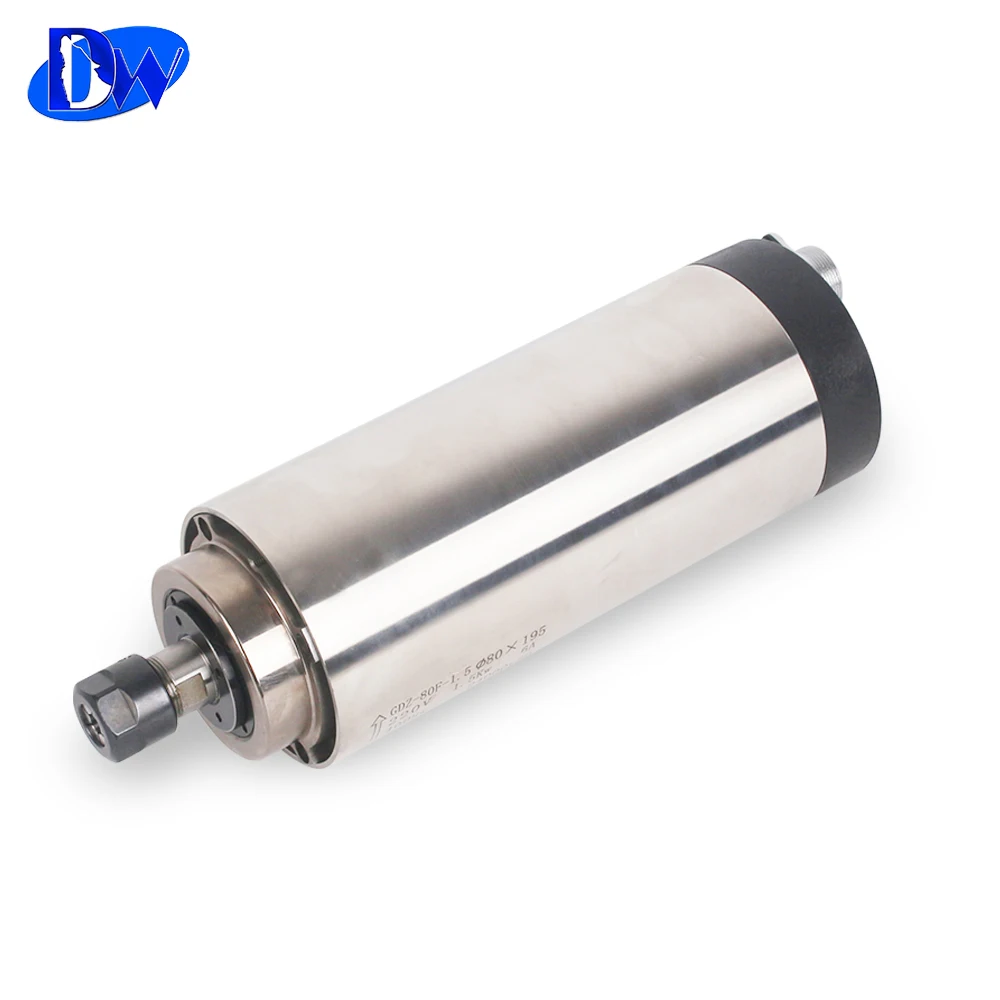

China high quality 80mm diameter 1.5KW, 24000rpm air cooled spindle motor used for milling machine
- Category: >>>
- Supplier: Changzhou Dewo Motor Co. Ltd.
Share on (1600657407735):
Product Overview
Description
1.5KW Air Cooling Spindle Motor ( GDZ80F-1.5)
Product Feature
| Model:GDZ80F-1.5 | Dimension: Φ80 | Collet: ER11 |
| Power: 1.5kW | Voltage:220V | Current:5A |
| Frequency:400HZ | Speed: 24000rpm | Cool: Air Cooling |
| Lub:Grease | Torque:0.91Nm | Weight: 4.4kg |
| Warranty period: Bearings=half a year, other parts a year | ||
Dimension:
The datasheet of our air cooling spindle motor
| TYPE | speed (rpm) | power (kw) | voltage (V) | current (A) | frequency (HZ) | dimension | collect | product size(mm) | Weight (kg) | |||||
| L4 | L5 | L6 | L1 | L2 | L3 | |||||||||
| round | GDZ65F-800 | 24000 | 0.8 | 220 | 4 | 400 | Φ65 | ER11 | 182.5 | 15 | 28.5 | 3 | ||
| GDZ80F-1.5 | 24000 | 1.5 | 220 | 5 | 400 | Φ80 | ER11 | 193.5 | 9 | 26 | 4.4 | |||
| GDZ80F-2.2 | 24000 | 2.2 | 220 | 8 | 400 | Φ80 | ER16 | 193.5 | 19.5 | 31.5 | 4.5 | |||
| GDZ80F-2.2 | 24000 | 2.2 | 220 | 8 | 400 | Φ80 | ER20 | 193.5 | 19.5 | 31.5 | 4.5 | |||
| square | GDZ93*82-1.5 | 18000 | 1.5 | 220 | 6.6 | 300 | 45 | 30 | 20 | ER20 | 137 | 44.5 | 37 | 6 |
| 380 | 3.8 | |||||||||||||
| GDZ93*82-2.2 | 18000 | 2.2 | 220 | 8 | 300 | 45 | 30 | 37 | ER25 | 173 | 48.5 | 37 | 8 | |
| 380 | 4.6 | |||||||||||||
| GDZ93*82-3.5 | 18000 | 3.5 | 220 | 13 | 300 | 45 | 30 | 37 | ER25 | 214 | 48.5 | 37 | 9 | |
| 380 | 7.5 | |||||||||||||
| GDZ93*82-3.5D | 18000 | 3.5 | 380 | 7.5 | 300 | 45 | 30 | 37 | ER25,ER25 | 201.5 | 48.5 | 30.5 | 9.5 | |
| GDZ120x103-4.5 | 18000 | 4.5 | 220 | 17.3 | 300 | 60 | 36 | 25 | ER32 | 190 | 56.5 | 46.5 | 13 | |
| 380 | 10 | |||||||||||||
| GDZ120*103-6 | 18000 | 6 | 220 | 20.8 | 300 | 60 | 36 | 40 | ER32 | 233 | 56.5 | 46.5 | 15 | |
| 380 | 12 | |||||||||||||
| GDZ120*103-7.5 | 18000 | 7.5 | 380 | 14.5 | 300 | 60 | 36 | 13 | ER32 | 272 | 56.5 | 46.5 | 18 | |
| GDZ170*150-12 | 18000 | 12 | 380 | 22 | 300 | 60 | 50 | 30 | ER32orER40 | 279 | 67.5 | 41 | 28 | |
Product Description
Produce process
Our Services
Different specification of stepper motor with competitive price for your choice:
A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
First-class service:
customization and OEM is available.
Warranty: 12 months
Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.
Contact me :
WhatsApp: +86 18306110590
Phone: +86 18306110590
Packaging & Shipping
We have standard package for our products. We can also make it as per your special requirements.
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
Company Information
Changzhou Dewo Motor Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years. We have two our own production base and a strong R&D team.
Till now, Dewo has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.
If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!
