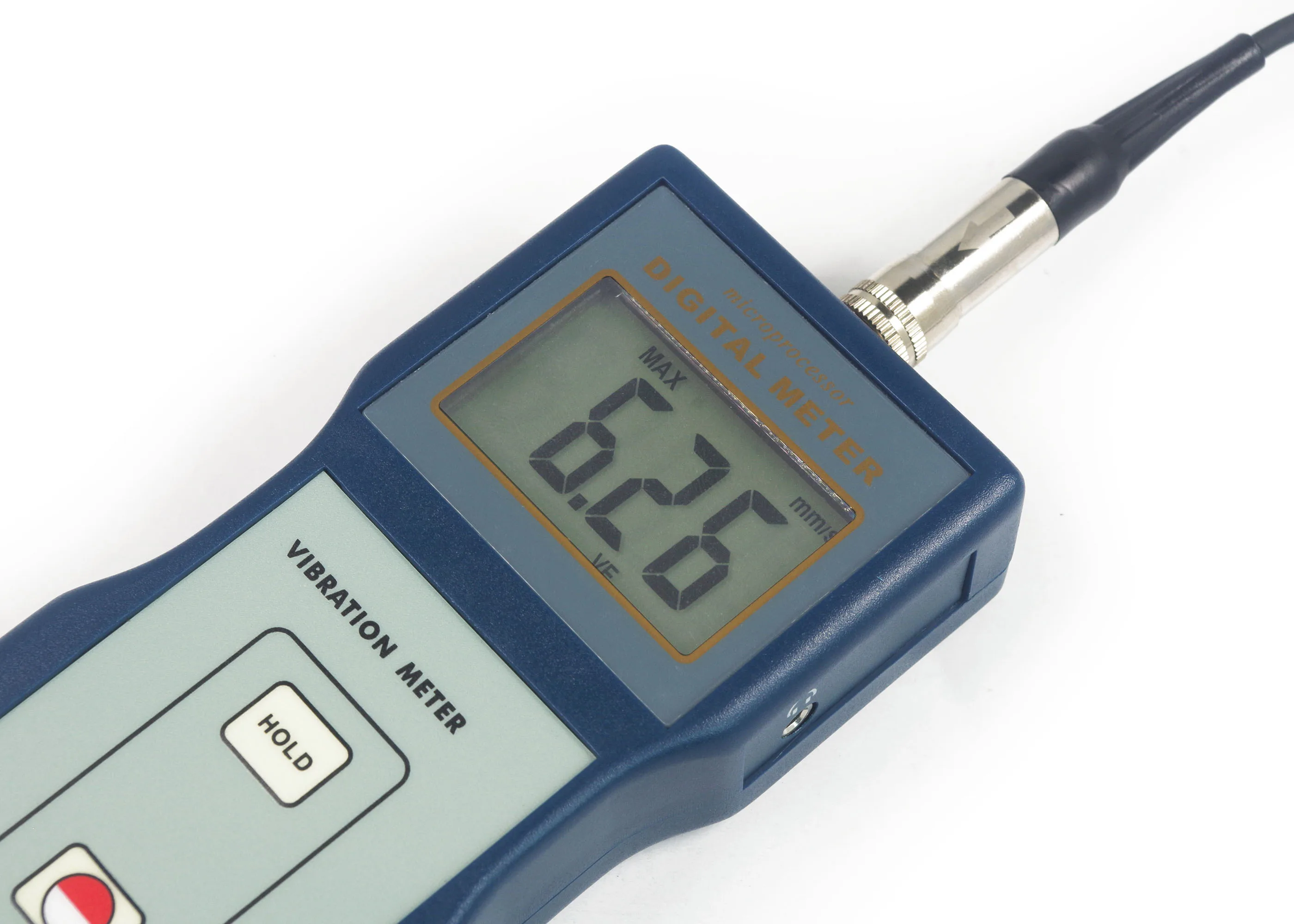

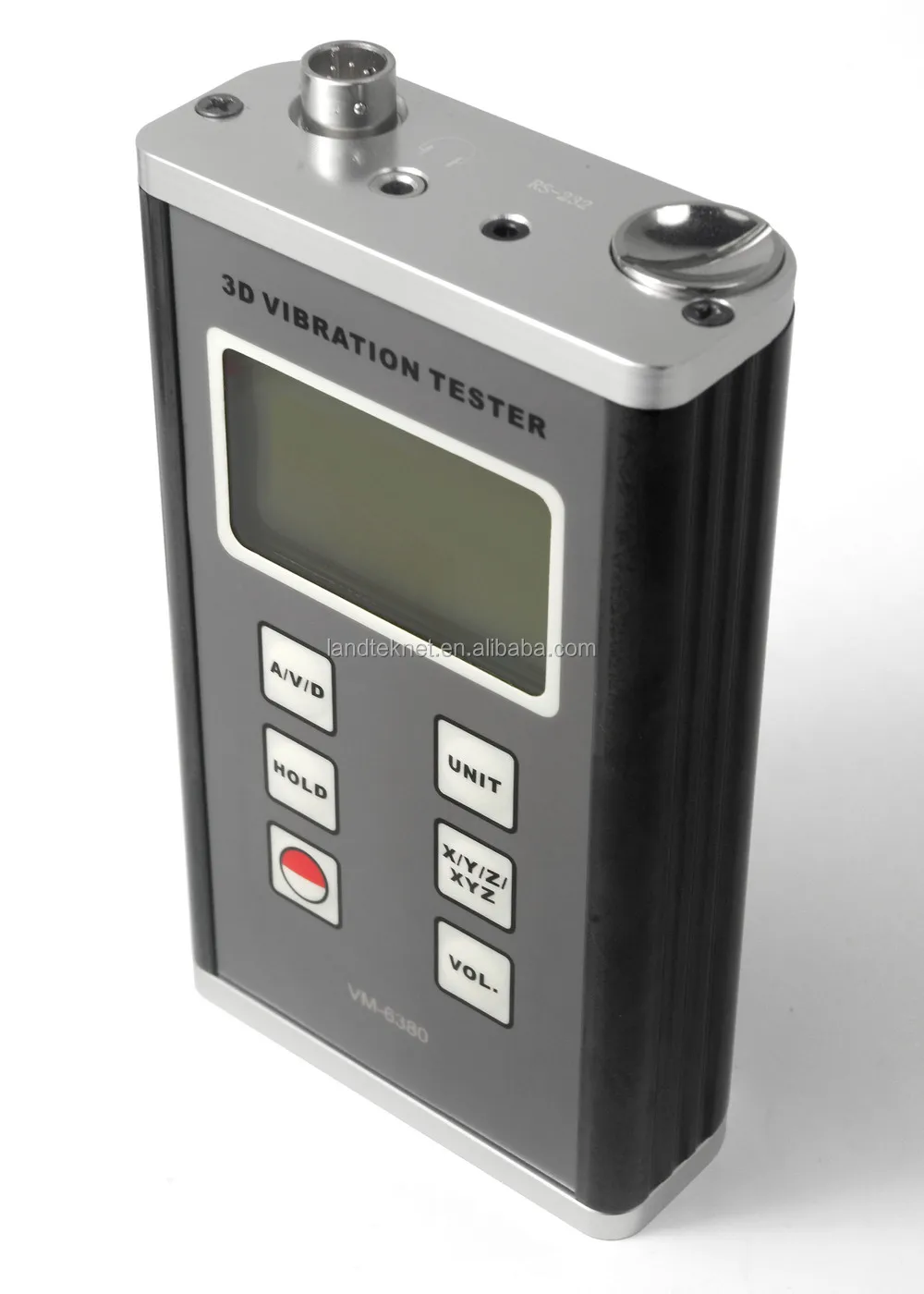

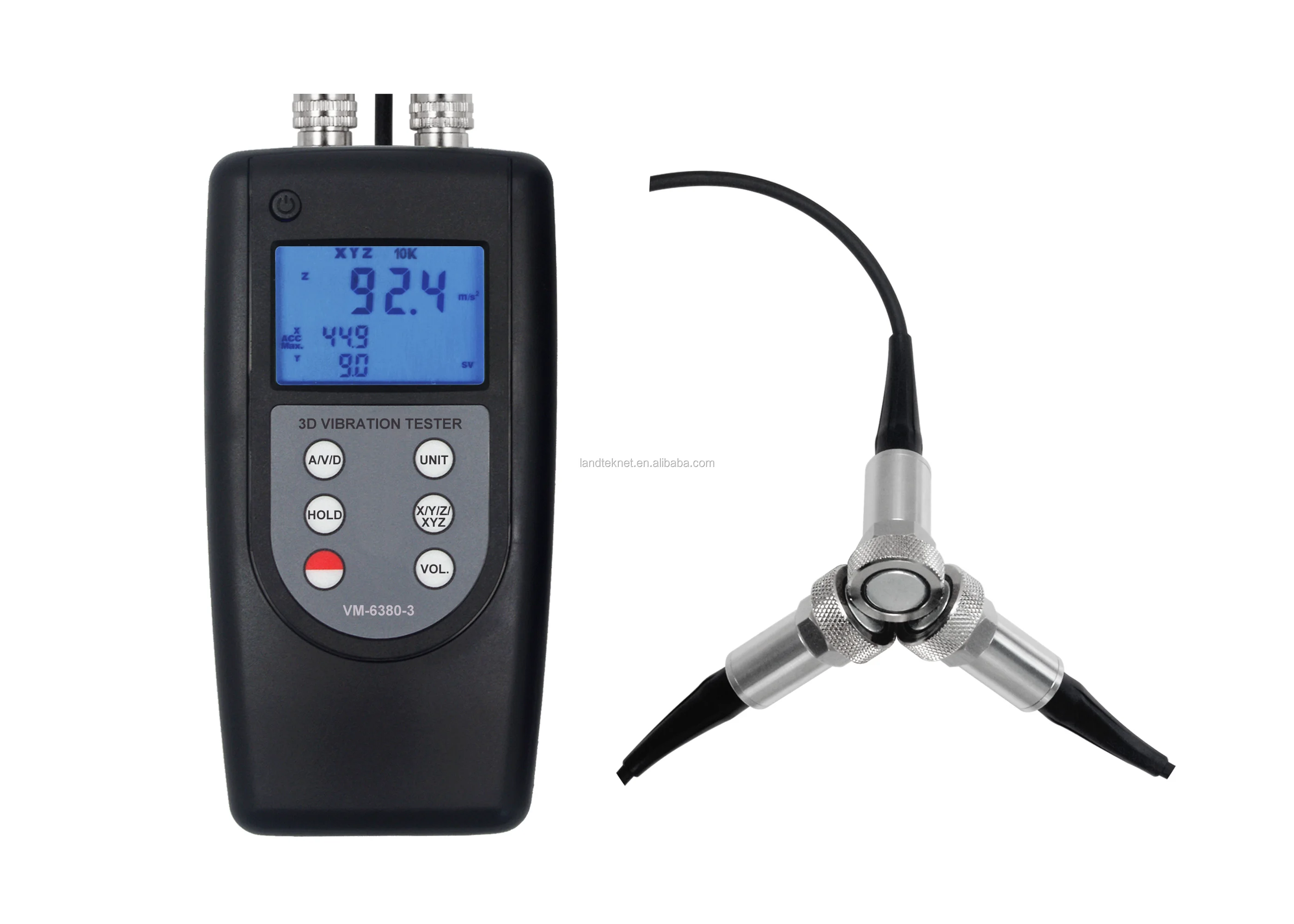

2 Channel Vibration Meter ,Dual Channel Vibration Analyzer VM 6380 2
- Category: >>>
- Supplier: Guangzhou Landtek Instruments Co. Ltd.
Share on (1600657445904):
Product Overview
Description
Applications: | Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep. |

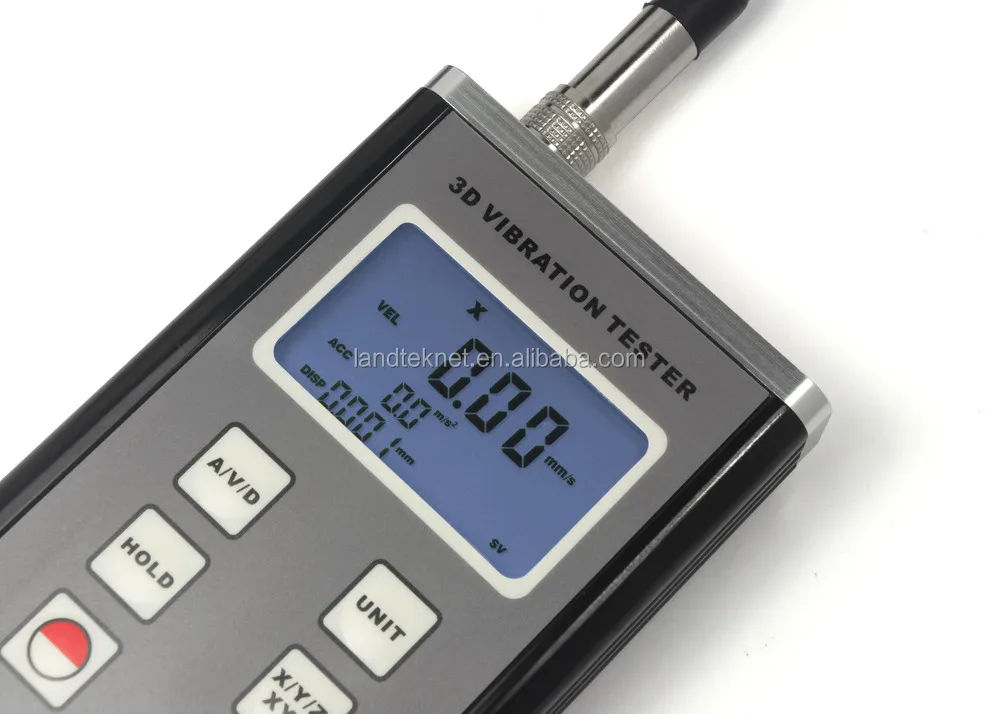

* 2 same parameters in one display for 2 position measurement or 1 position measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
Sensor | Piezoelectric Transducer |
Measuring Parameters & Range | Acceleration: 0.1-400.0 m/s Equivalent Peak; 0.3-1312 ft/s ; 0.0-40g |
Velocity: 0.01-400.0 mm/s True RMS; 0.004-16.00 inch/s | |
Displacement: 0.001-4.000mm Equivalent Peak-Peak; 0.04-160.0 mil | |
| |
Frequency Range | Acceleration: 10Hz ~ 10kHz |
Velocity: 10Hz ~1kHz | |
Displacement: 10Hz ~ 1kHz | |
Accuracy | ± ( 5%n + 0.2 ) |
Metric / Imperial Conversion |
|
Analogue Output | AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k) |
Max. Value Hold |
|
Power Off | Manual Power Off or Auto Power Off |
Battery Indicator | Low Battery Indicator |
Data Output | USB, RS-232 |
Operating Conditions | Temperature: 0~50 °C Humidity: <90 %RH |
Power Supply | 4 x 1.5V AAA size (UM-4) Battery |
Dimensions | 140 x 73 x 35 mm |
Weight | 330 g |
Standard Accessories:
1. Main Unit
2. Magnetic Suction Seat
3. Piezoelectric Transducer
4. Probe (Cone)
5. Probe (Spherical)
6. Carrying Case
7. Manual Book
Optional Accessories:
1. USB, RS-232 data cable with software
