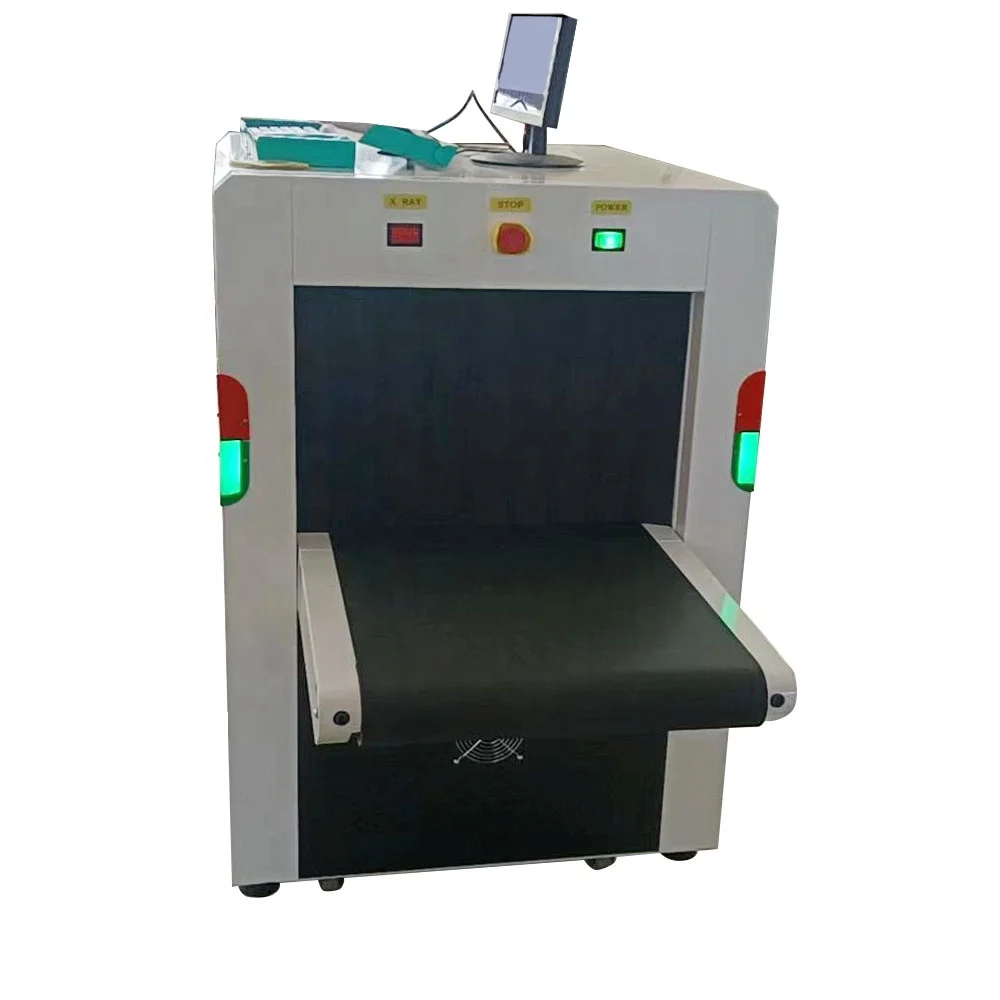

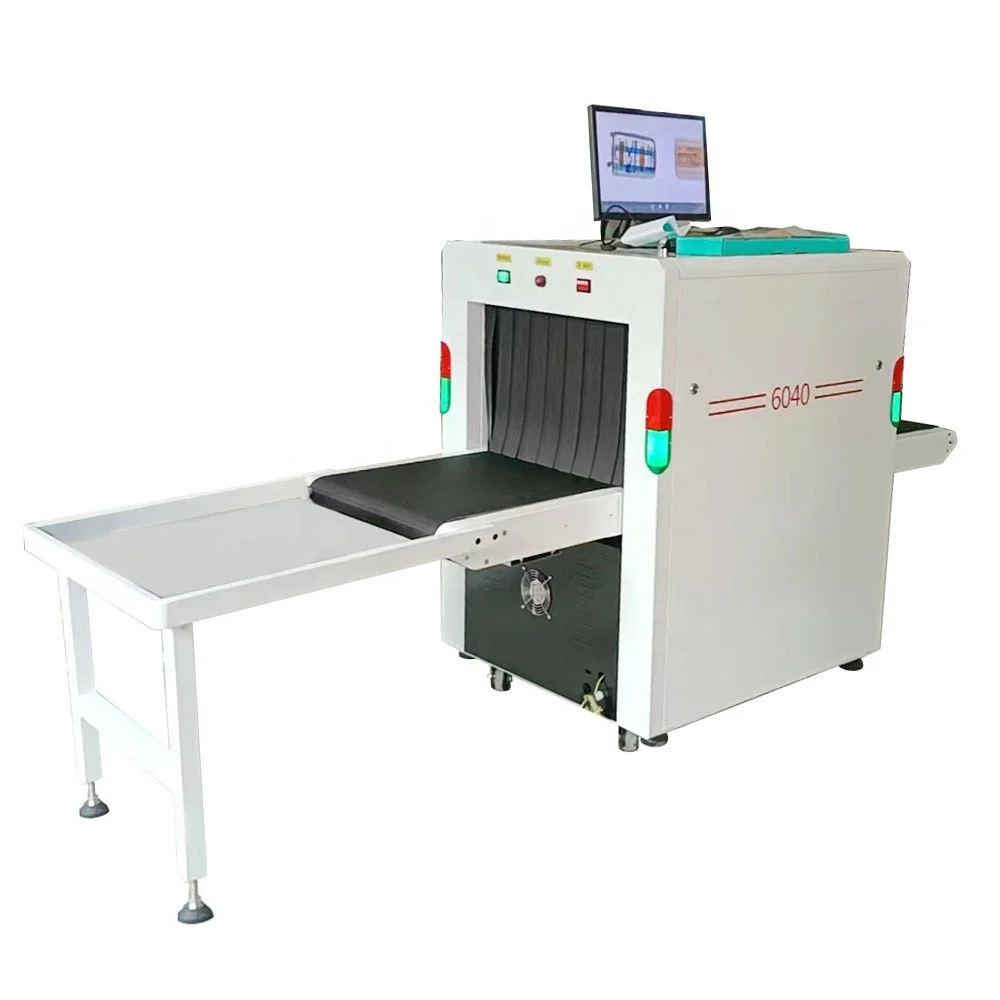

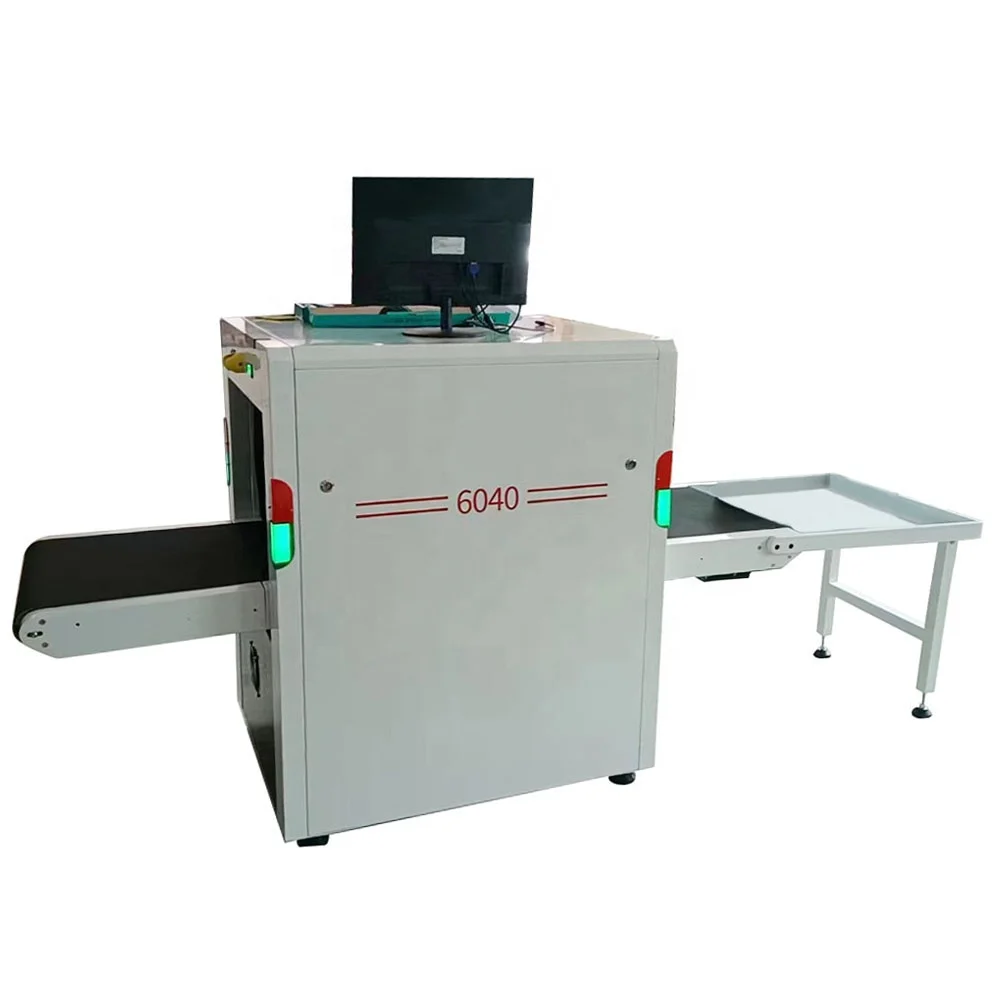

Hot Selling 6040 140KV Multi Energy Security Airport X ray Baggage Scanner Machine
- Category: >>>
- Supplier: Shenzhen Top Saful Electronic Tech Co. Ltd.
Share on (1600657447002):
Product Overview
Description
Product Description
Specification
Dimension: 2007.5mm x868mm x1314 mm
Tunnel Size: 620(W)*420(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170kg
Rate of ray leakage: Less than 0.1 μ Gy/h
Resolution: Dia0.0787mm Metal Wire
Penetration: >34mmSteel
Film Safety: Guarantee ISO1600 Film
X-ray Generate model: Spellman from USA
X-ray Generate direct: Downward
X-ray Generate angle: 80 degree
X-ray Anode Voltage: 100-160Kv
X-ray Anode current: 0.4 -1.2mA
X ray Dose per inspection <1.25μSv
Wire Resolution: 38AWG guarantee, 40AWG typical
Spatial resolution: Level: dia1.0mm, Vertical: dia1.0mm
Tube Current:0.4 to 1.2MA(adjustable)
Tube Voltage:100 to 160kv(adjustable)
Cooling / Duty Cycle: Oil Cooling /100%
Operation temperature/Humidity:0-45C/20%-95%(non-condensing)
Storage Temperature/Humidity:-20-60C/20%-95%(non-condensing)
Operation Power: 220VAC(+/-10%), 50+/-3Hz
Power Consumption: 0.6 KW
Noise: Less than 56dB
Wooden Packing Size: 2680(L)*1760(W)*2330(H)mm
Overall weight: 770kgs
Tunnel Size: 620(W)*420(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170kg
Rate of ray leakage: Less than 0.1 μ Gy/h
Resolution: Dia0.0787mm Metal Wire
Penetration: >34mmSteel
Film Safety: Guarantee ISO1600 Film
X-ray Generate model: Spellman from USA
X-ray Generate direct: Downward
X-ray Generate angle: 80 degree
X-ray Anode Voltage: 100-160Kv
X-ray Anode current: 0.4 -1.2mA
X ray Dose per inspection <1.25μSv
Wire Resolution: 38AWG guarantee, 40AWG typical
Spatial resolution: Level: dia1.0mm, Vertical: dia1.0mm
Tube Current:0.4 to 1.2MA(adjustable)
Tube Voltage:100 to 160kv(adjustable)
Cooling / Duty Cycle: Oil Cooling /100%
Operation temperature/Humidity:0-45C/20%-95%(non-condensing)
Storage Temperature/Humidity:-20-60C/20%-95%(non-condensing)
Operation Power: 220VAC(+/-10%), 50+/-3Hz
Power Consumption: 0.6 KW
Noise: Less than 56dB
Wooden Packing Size: 2680(L)*1760(W)*2330(H)mm
Overall weight: 770kgs
Products Feature
X - ray security inspection equipment has the baggage handling, X ray source and control part, signal
acquisition and processing and the transmission part and the image processing part and electric control part. X - ray security inspection equipment will send checked baggage into the crawler channel to complete the
transfer with the help of the conveyor belt. Goods into the channel, detection device and relevant information will be sent to the control unit, the X - ray source emitting X rays by the control unit triggers. X ray through the collimator form very narrow fan beam,through the conveyor belt into the luggage on the detector, the X - ray
detector transfers received Xray into the electrical signal.The weak current signal is amplified to quantify ,

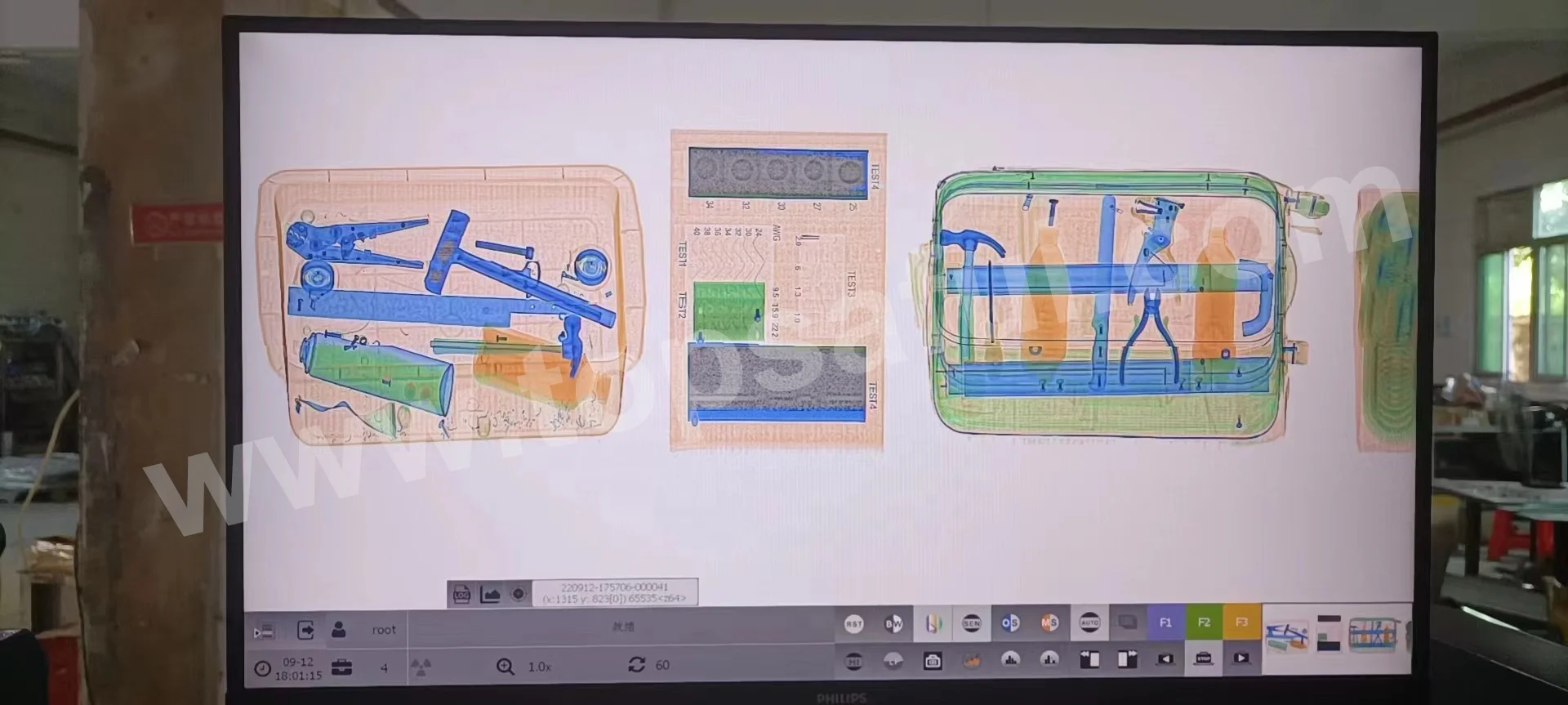

Transmitted through the universal serial bus to the industrial control computer for further processing, and afteroperation imaging processing complex to obtain high quality images.
acquisition and processing and the transmission part and the image processing part and electric control part. X - ray security inspection equipment will send checked baggage into the crawler channel to complete the
transfer with the help of the conveyor belt. Goods into the channel, detection device and relevant information will be sent to the control unit, the X - ray source emitting X rays by the control unit triggers. X ray through the collimator form very narrow fan beam,through the conveyor belt into the luggage on the detector, the X - ray
detector transfers received Xray into the electrical signal.The weak current signal is amplified to quantify ,
Transmitted through the universal serial bus to the industrial control computer for further processing, and afteroperation imaging processing complex to obtain high quality images.

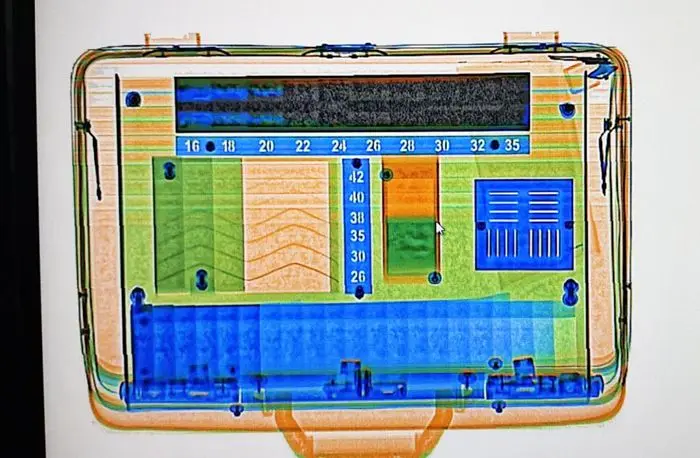

Product View
Packing & Delivery
Shipping Methods Available:
By air (5-7 days, most expensive)
By express (3-7 days, more expensive)
By sea (15-28days, cheapest)
By air (5-7 days, most expensive)
By express (3-7 days, more expensive)
By sea (15-28days, cheapest)

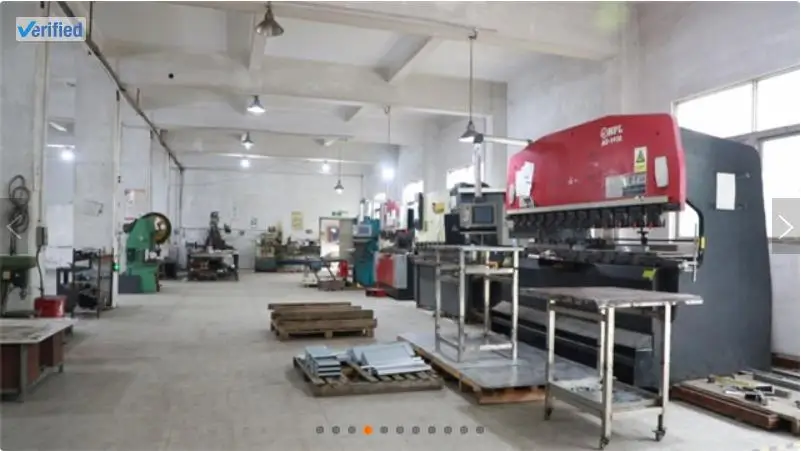

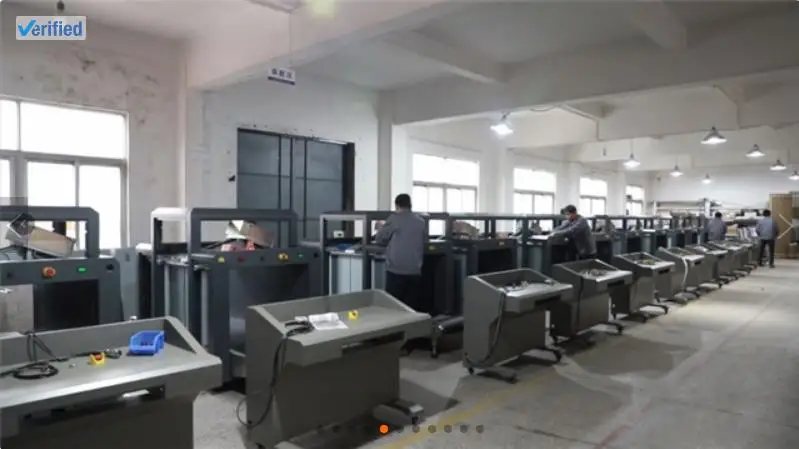

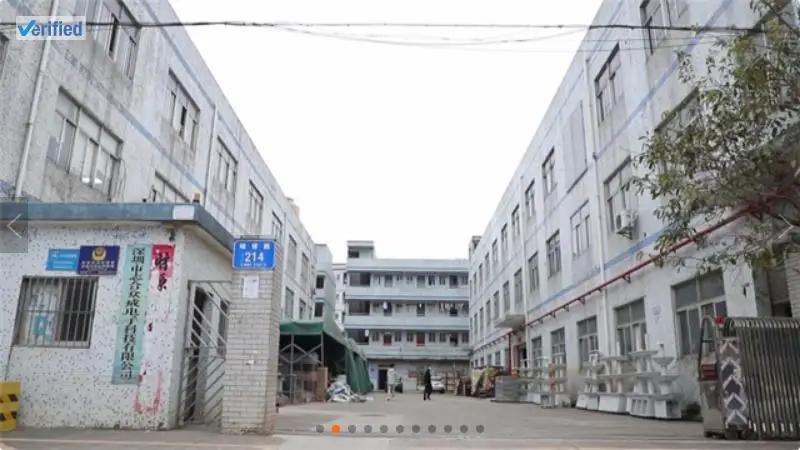

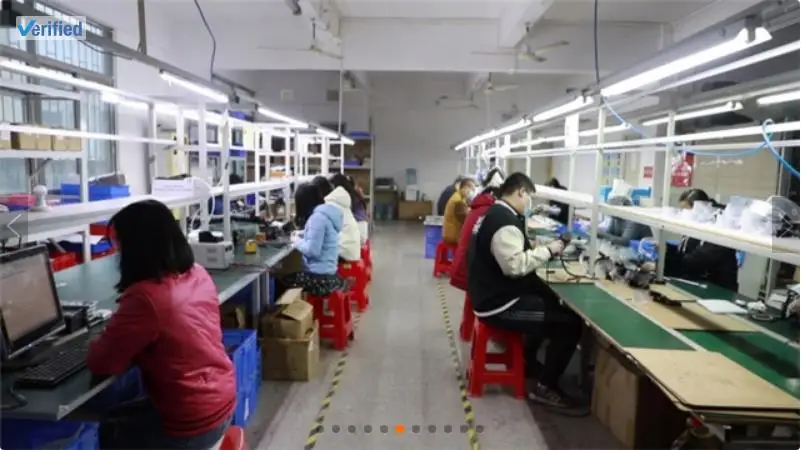

Company Profile
Shenzhen Top Saful Electronic Tech Co., Ltd. (topsaful.com) is a Chinese leading supplier of security products. It focused on researching, design, manufacture and exporting security equipment such as x-ray baggage scanner machine, walk through metal detection gate, turnstiles, road block and GSM alarm system and other security equipments for your house, shop, school, and other public places.
Shenzhen Top Saful adhering to the "create value for partners," the core values of honesty, tolerance, innovation, service "as the spirit of enterprise,e-commerce and information services industry to create value through independent innovation and sincere cooperation.
On creating value for partners. "
Shenzhen Top Saful Electronic Tech Co., Ltd. that customers, suppliers, shareholders, employees, and their own cooperative relations between the units and individuals who are their partners, and only through efforts to create value for partners, in order to realize their own value and access to development and success.
"Honesty, tolerance, innovation, service"
Shenzhen Top Saful Electronic Tech Co., Ltd. that honesty is the foundation of all cooperation, tolerance is the premise of
problem-solving, innovation is a tool for career development and service is fundamental to create value.
Shenzhen Top Saful adhering to the "create value for partners," the core values of honesty, tolerance, innovation, service "as the spirit of enterprise,e-commerce and information services industry to create value through independent innovation and sincere cooperation.
On creating value for partners. "
Shenzhen Top Saful Electronic Tech Co., Ltd. that customers, suppliers, shareholders, employees, and their own cooperative relations between the units and individuals who are their partners, and only through efforts to create value for partners, in order to realize their own value and access to development and success.
"Honesty, tolerance, innovation, service"
Shenzhen Top Saful Electronic Tech Co., Ltd. that honesty is the foundation of all cooperation, tolerance is the premise of
problem-solving, innovation is a tool for career development and service is fundamental to create value.

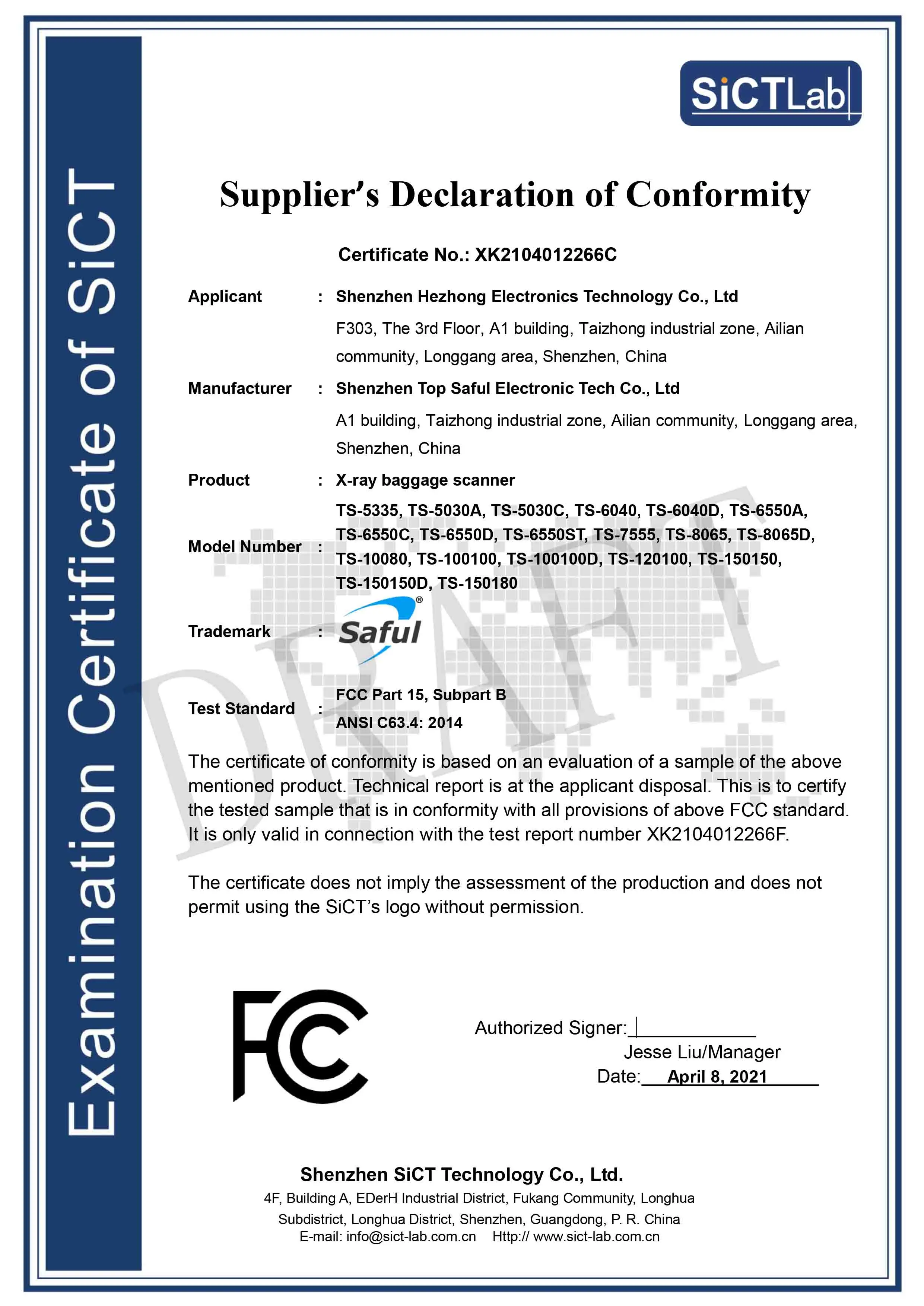

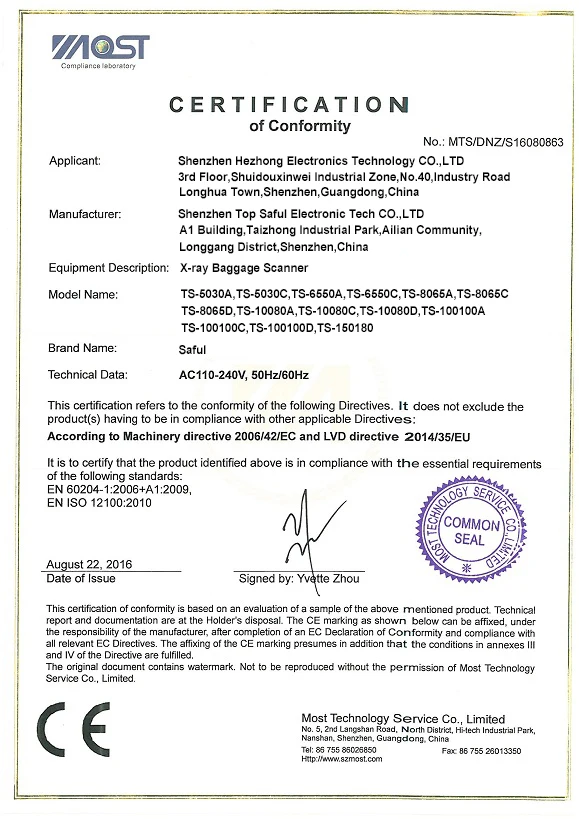

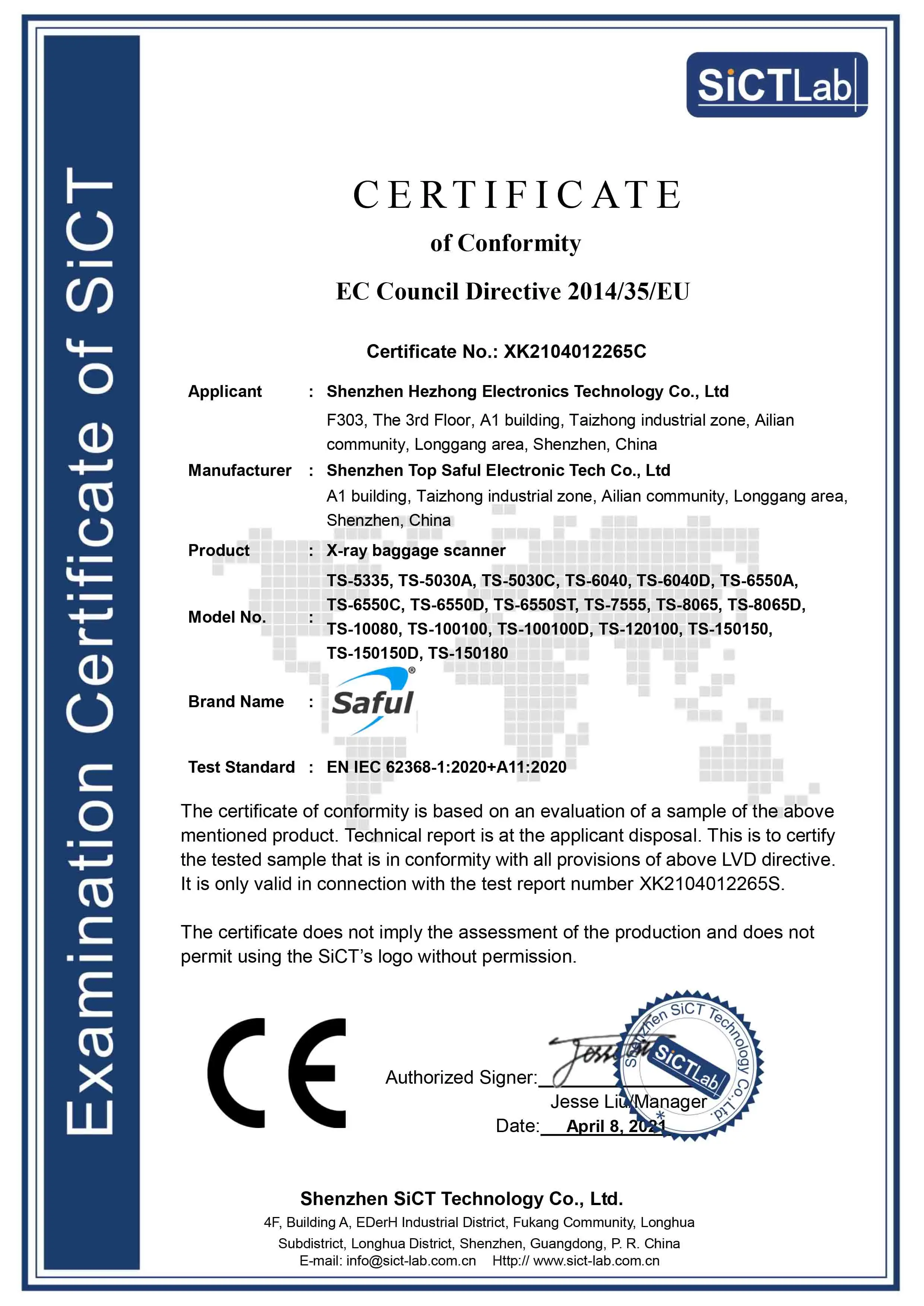

Certifications
FAQ
1. Can I have a sample order?
It depands on the goods you buy.Most of our main products,are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.(a litte variety like X-ray machine not provide samples,customers would like come to our factory to check the machine)
2. What is the lead time?
Sample needs 1-3 working days, mass production time needs 10-15 working days for order less than 100pcs.
3. Do you have any MOQ limit?
It depands on the products you buy.Usually,it have no limit for most goods,and you can check by our staff.
4. How do you ship the goods and how long does it take arrive?
The sample will be sent to you by optional shipping service (couriers, air, and sea). The delivery time
depends on the shipping service.
5. How will we proceed the order if I have logo to print?
Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would
make sampling firstly from silk print factory and take picture for your second confirmation before
mass production.
Whatsapp: 86 15977324769
OEM and ODM are highly welcome ! Waiting for your news !
It depands on the goods you buy.Most of our main products,are willing to offer trial sample order to you for quality test. Mixed samples are acceptable.(a litte variety like X-ray machine not provide samples,customers would like come to our factory to check the machine)
2. What is the lead time?
Sample needs 1-3 working days, mass production time needs 10-15 working days for order less than 100pcs.
3. Do you have any MOQ limit?
It depands on the products you buy.Usually,it have no limit for most goods,and you can check by our staff.
4. How do you ship the goods and how long does it take arrive?
The sample will be sent to you by optional shipping service (couriers, air, and sea). The delivery time
depends on the shipping service.
5. How will we proceed the order if I have logo to print?
Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would
make sampling firstly from silk print factory and take picture for your second confirmation before
mass production.
Whatsapp: 86 15977324769
OEM and ODM are highly welcome ! Waiting for your news !
