ZH 1000BFT HM Automatic High Speed Folding Boxes Gluing Machine with Memory Function and Cold Glue Spray Gluing System
- Category: >>>
- Supplier: Wenzhou Hoson Printing Machinery Co. Ltd.
Share on (1600657485472):
Product Overview
Description
Product Overview

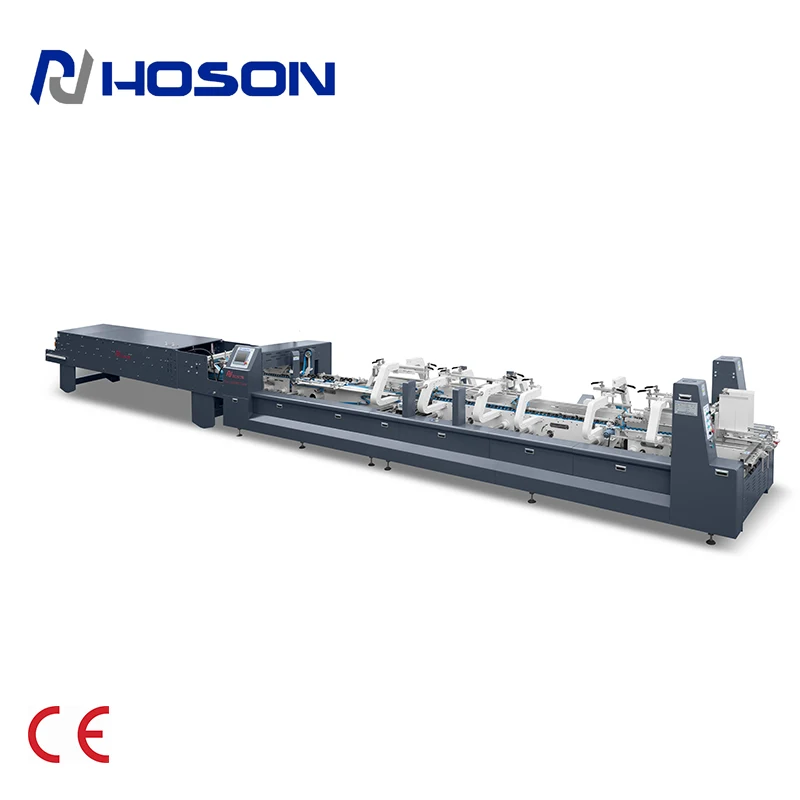

ZH-1000BFT-HM Automatic High Speed Folding Boxes Gluing Machine with Memory Function Cold Glue
This upgrade bottom lock type folding gluing machine is designed for Crash-lock Bottom box, straight line box, and double walls box.
FEATURES AT A GLANCE
Upgrade Bottom Lock Type Folding Gluing Machine
Smart Auto Adjustment with Memory Function
1. The machine is running steady with strengthened driving system, and it is also easy for maintenance.
2. The motor is controlled by transducers (inverter) which are available for automatic timing. It is power saved and it helps to work stably.
3. Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and automatic with this system.
4. Grinders are provided in both sides of machine, to make gluing more stable and firm.
5. One set of lower gluing unit for side line glue, easy and simple to handle. And one set of cold glue spray gluing system, more convenient and flexible.
6. PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc., is able to set by this system. A remote
diagnosis helps to maintenance (remote controller system included), and a photoelectric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit). Counting through photo-electric sensor & electromagnet kicking.
7. Pressing unit with pneumatic design. And the upper belt is able to work separately. Pressing also by a sponge belt in this section to keep out-put in a perfect condition. A transverse paper collection table after the pressing unit helps to collect boxes quickly.
8. The machine is able to make 2-fold or 4-fold crash-lock bottom boxes. In the pre-folding part, the first fold at 180°, the third fold at 135°. The second fold and the fourth fold box at 180°.
9.The spare parts are: Siemens Motor, Schneider Electric/PLC/Transducer (inverter), Japanese NITTA Belts, FYH/HYF/NSK Bearings, Germany Timing Belt, which make machine running more quick and steady. Except the normal cardboard boxes, it is able to fold and glue E flute.
10. The machine speeds up to 420m/min.
2. The motor is controlled by transducers (inverter) which are available for automatic timing. It is power saved and it helps to work stably.
3. Paper is feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and automatic with this system.
4. Grinders are provided in both sides of machine, to make gluing more stable and firm.
5. One set of lower gluing unit for side line glue, easy and simple to handle. And one set of cold glue spray gluing system, more convenient and flexible.
6. PLC system and touch screen for easy operation. Out-put quantity/speed/counting etc., is able to set by this system. A remote
diagnosis helps to maintenance (remote controller system included), and a photoelectric system for speed control in pressing unit (speed in pressing unit is corresponding automatically with the one in feeding unit). Counting through photo-electric sensor & electromagnet kicking.
7. Pressing unit with pneumatic design. And the upper belt is able to work separately. Pressing also by a sponge belt in this section to keep out-put in a perfect condition. A transverse paper collection table after the pressing unit helps to collect boxes quickly.
8. The machine is able to make 2-fold or 4-fold crash-lock bottom boxes. In the pre-folding part, the first fold at 180°, the third fold at 135°. The second fold and the fourth fold box at 180°.
9.The spare parts are: Siemens Motor, Schneider Electric/PLC/Transducer (inverter), Japanese NITTA Belts, FYH/HYF/NSK Bearings, Germany Timing Belt, which make machine running more quick and steady. Except the normal cardboard boxes, it is able to fold and glue E flute.
10. The machine speeds up to 420m/min.
Right elevation
Left elevation
Front elevation

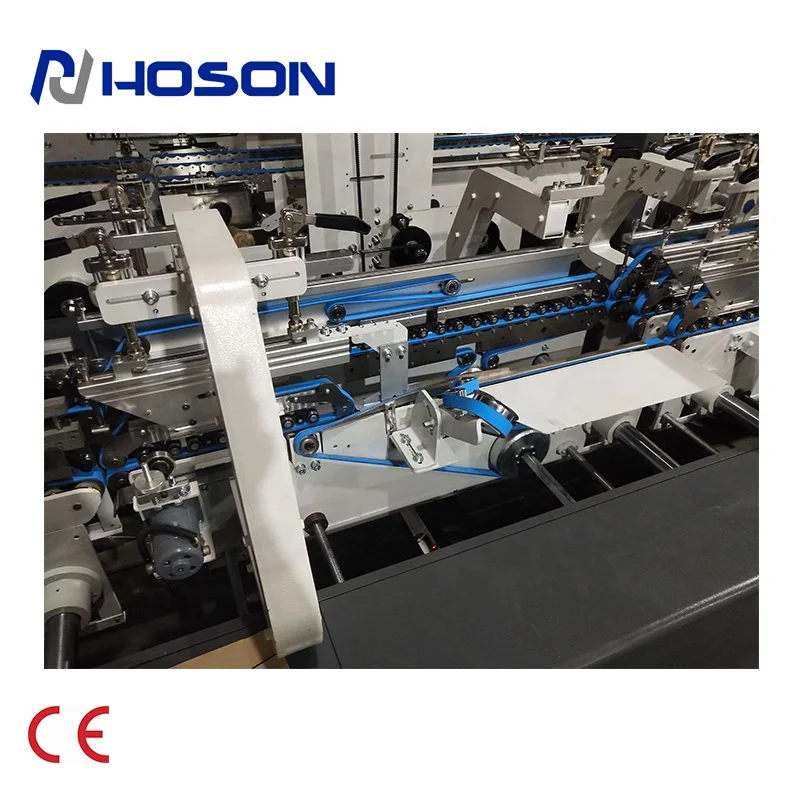

Details Images
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Line speed | 0-420m/min , Continuous adjustment |
2 | 250-650Usage paper | 250-650 g/ms, paperboard |

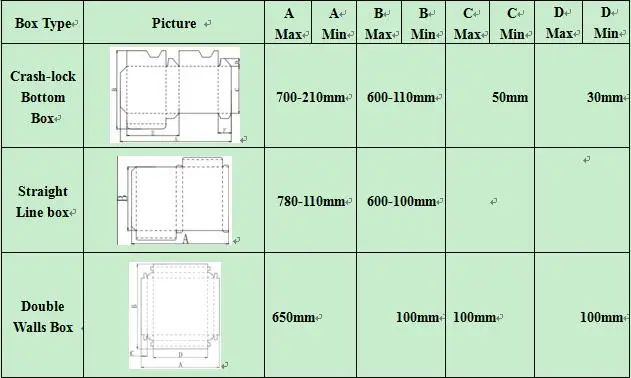

3 | Box forming | Bottom-lock, straight line box, double walls box |
4 | Fold method | 1st folds 180°, 3rd folds 135°, 2nd & 4th folds 180° |
5 | Paper feeding | Automatic feeding, grinding unit |
6 | Electric Power | 14kw |
7 | Dimension | 12.4*1.4*1.4m |
8 | Weight | 4200kg |
PRODUCT CONFIGURATION
Parts Sourced Brand | Item Name | |
Siemens | Main engine | |
Taiwan | Second engine | |
Schneider France | Air switch | |
AC Contactor | ||
Transducer | ||
PLC | ||
Nitta Japan | Belt | |
Germany hhs or China | 3-gun Cold Glue Spray Gluing System | |
Taiwan | Power switch | |
FYH/HYF/NSK Japan | Bearings | |
WICONTEK | Wireless remote control | |
Germany | Multi-Wedge belt (more stable, smooth running with small vibration) and timing belt | |
Remark: 1. Monitor: Monitor screen and cameras. 2. Press unit is equipped with air pressure system 3.This machine is equipped with many motors for memory function (automatic adjustment of different size). 4. Instant remote access to machine, PLC remote monitor and maintenance. (1).Customer can monitor and record the production status of the machine can see the production data on PC or mobile phone via internet. (2) Our engineer can help customer remotely and resolve PLC program issues to save more time. | ||
Optional Equipment
China Spray Gluing System Cold Glue (Three Guns)
Germany hhs Spray Gluing System Cold Glue (Three Guns)
China Plasma Surface Treatment
(One Gun)
China Plasma Surface Treatment
(Two Guns)
China Plasma Surface Treatment
(Three Guns)

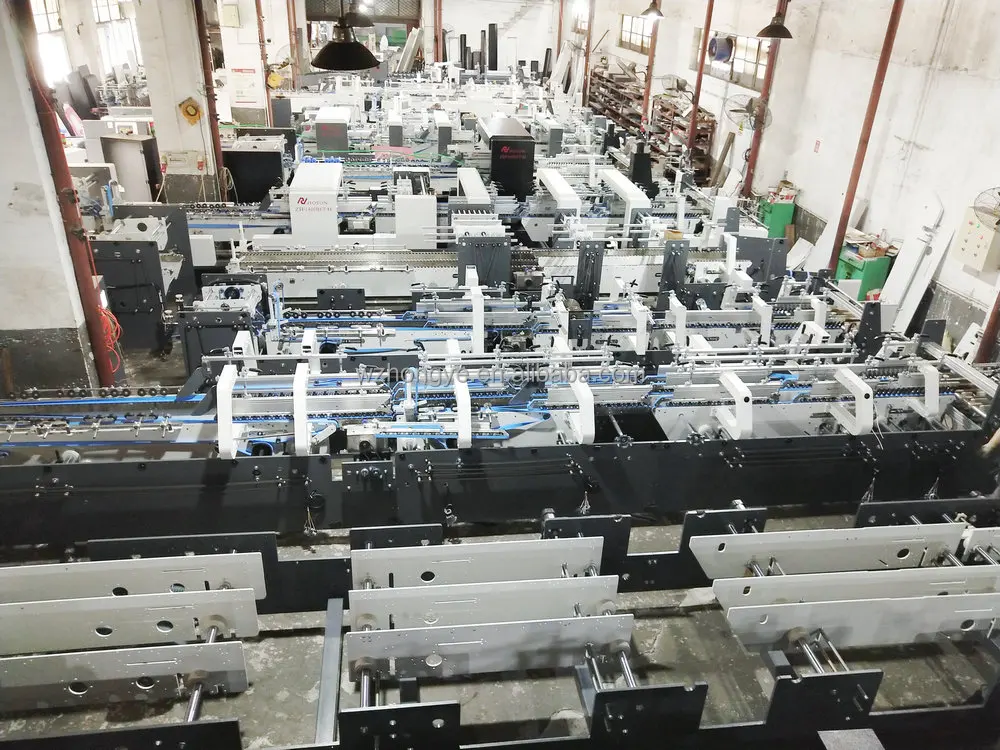

Company Information
We Wenzhou Hoson Printing Machinery Co., Ltd ( Hongye Factory) started in 1990s, who is the earliest manufacturer of folder gluer machinery in Wenzhou,Zhejiang,China.The main products are: 4/6 corner type, crash-lock bottom type, pre-folding type and two-fold type, etc. In addition, different specifications, functions, paperboard corrugated dual-purpose high speed folder gluer can be customized according to customer’s requirement.
Through more than 20 years’ efforts, our company has become the first choice for packaging manufacturers of cosmetics, tobacco,wine, food, medicine, etc. Our foreign markets are including South-East Asia, Middle East, Europe and South-America, Africa,etc.
We belief in “Great Service, Creditable Management and Creation”. And devote ourselves to build a mode integrated with production, sales and service. We do our best to keep a good cooperation with agents and partners.
We have these advantages: special design, easy operation, quick adjustment and high automation.We offer quality machine with a good price and sincere service.
HOSON sincerely welcome your inquiry.
Through more than 20 years’ efforts, our company has become the first choice for packaging manufacturers of cosmetics, tobacco,wine, food, medicine, etc. Our foreign markets are including South-East Asia, Middle East, Europe and South-America, Africa,etc.
We belief in “Great Service, Creditable Management and Creation”. And devote ourselves to build a mode integrated with production, sales and service. We do our best to keep a good cooperation with agents and partners.
We have these advantages: special design, easy operation, quick adjustment and high automation.We offer quality machine with a good price and sincere service.
HOSON sincerely welcome your inquiry.
FAQ
Q1. Are you a manufacturer or a trading company?
Hoson: We are the set design, development, production, sale and service of industry and trade-oriented company, our factory is in Wenzhou city, Zhejiang Province.
Q2. How many years are you in printing and packaging field?
Hoson: more than 20 years.
Q3. What is the machine warranty?
Hoson: One year. After the warranty, we still can provide technical support on line and spare parts when customer needs our help.

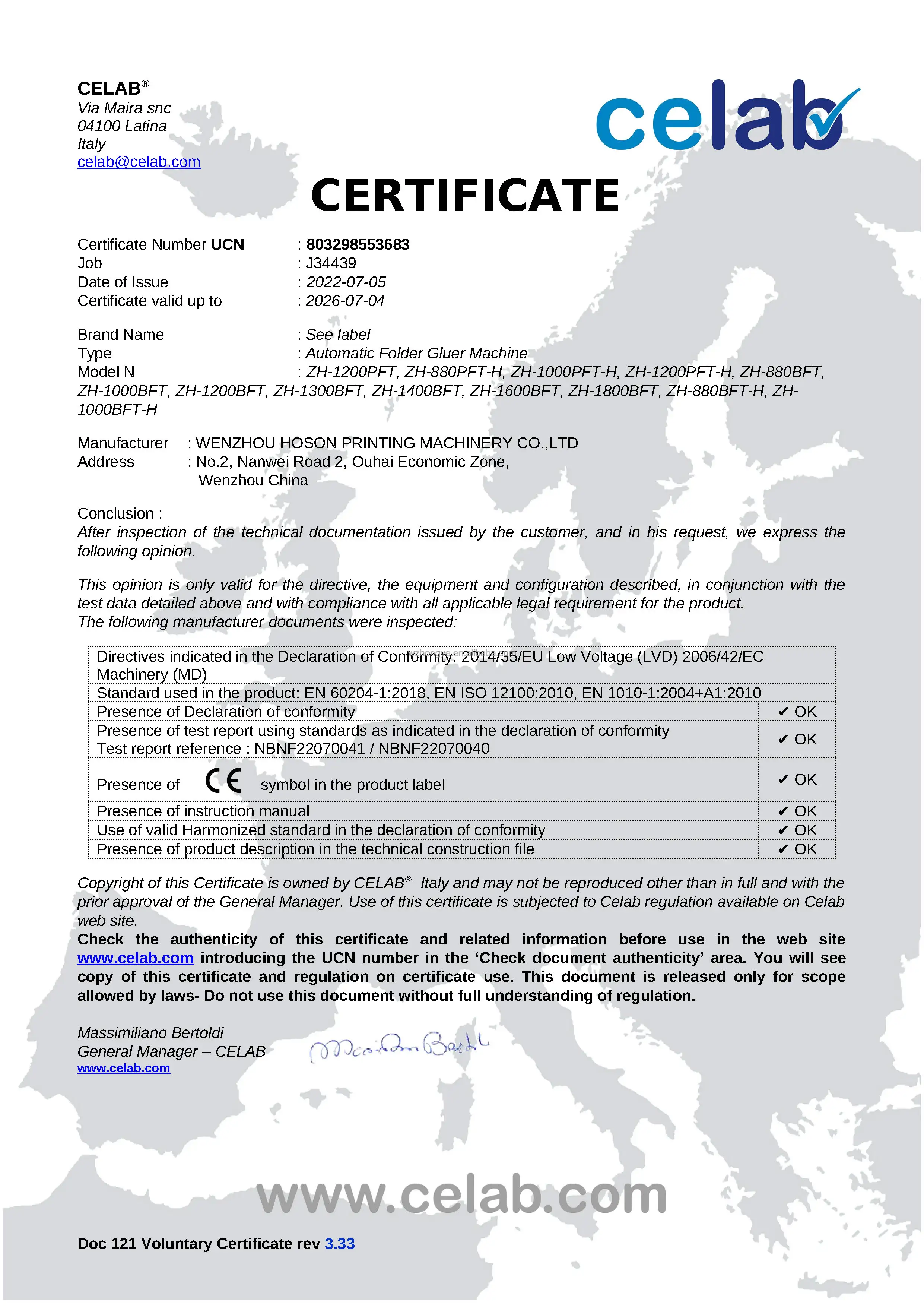

Q4. Does your machine with CE certificate?
Hoson: Yes, it does.
Q5. What is the production time while placing order?
Hoson: About 20-50 days. Different model have different production time.
Q6. What is the delivery time?
Hoson: About 25-55 days after receive the deposit.
Q7. Can your company handle shipping for customers?
Hoson: Yes. Please tell us your destination port, we can check the freight and arrange shipping for your order.
Q8. Do you inspect the finished products before packing?
Hoson: Yes, we will debug the machine and do running test before packing it, we will send machine photos and running test video to
customer. If customer want to test his own boxes, can send them to us for running test or we make box samples here according to customer’s request for running test.
Q9. Does the packing strong?
Hoson: Yes, all of our export packing is with strong iron shelf or iron pallet.
Q10. Do you have stock product to sell?
Hoson: We don’t have machine in stock, usually our machines need 20-50 days to manufacture, and there are many orders from China and foreign countries, so we need time to custom one for you and your order will be highly attentioned to manufacture.
Q11. What's the payment term?
Hoson: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by L/C at sight.
